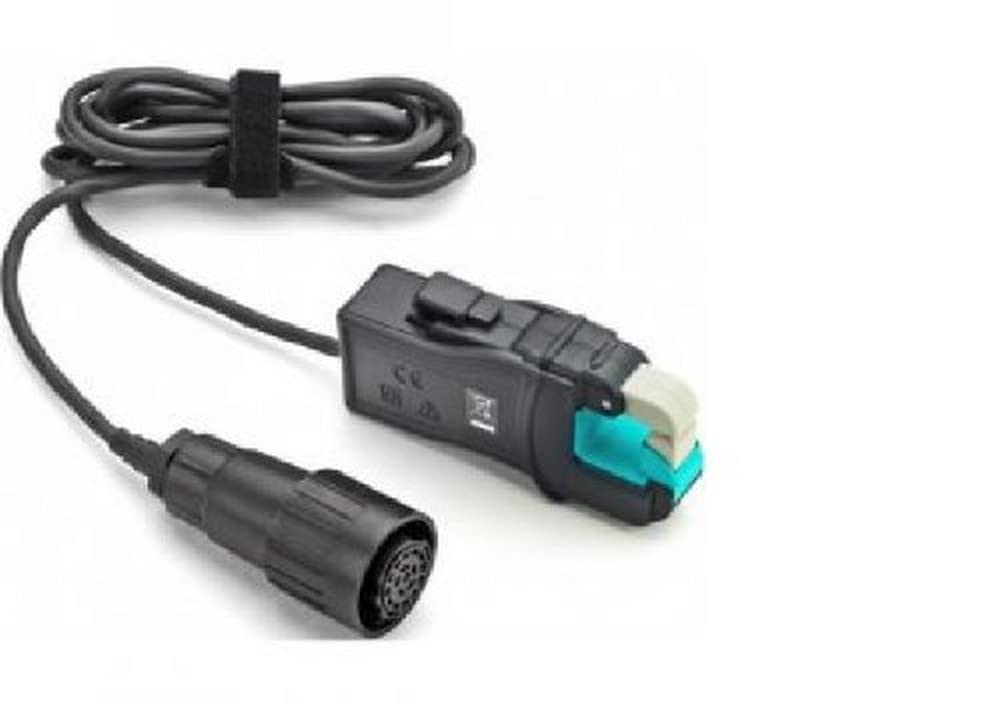

Fluke TPS CLAMP 50A/5A Clip On Current Transformer, 0.05A-5A Current, 40 Hz to 10 kHz Frequency

Brand: Fluke

Color: silver or gray

Features:

• A clip-on current transformer
• Measuring range selectable per software: 0. 05 A to 5 A and 0. 5 A to 50 A
• Peak current for sinusoidal currents: 18 A and 180 A
• Intrinsic error: 0. 5 percent
• Frequency range: 40 Hz to 10 kHz

Release Date: 12-03-2017

model number: 2540461

Part Number: TPS CLAMP 50A/5A

Details: Fluke a clip-on current transformer. Measuring range selectable per software: 0. 05 A to 5 A and 0. 5 A to 50 A. Peak current for sinusoidal currents: 18 A and 180 A. Intrinsic error: 0. 5 percent. Frequency range: 40 Hz to 10 kHz. Operating voltage: 300 V CAT IV. Phase error: 0. 5 degree. Jaw opening: less-than 15-millimeters diameter or 15-millimeters by 17-millimeters bus bars.

EAN: 0095969325714

Package Dimensions: 10.7 x 7.5 x 1.5 inches
