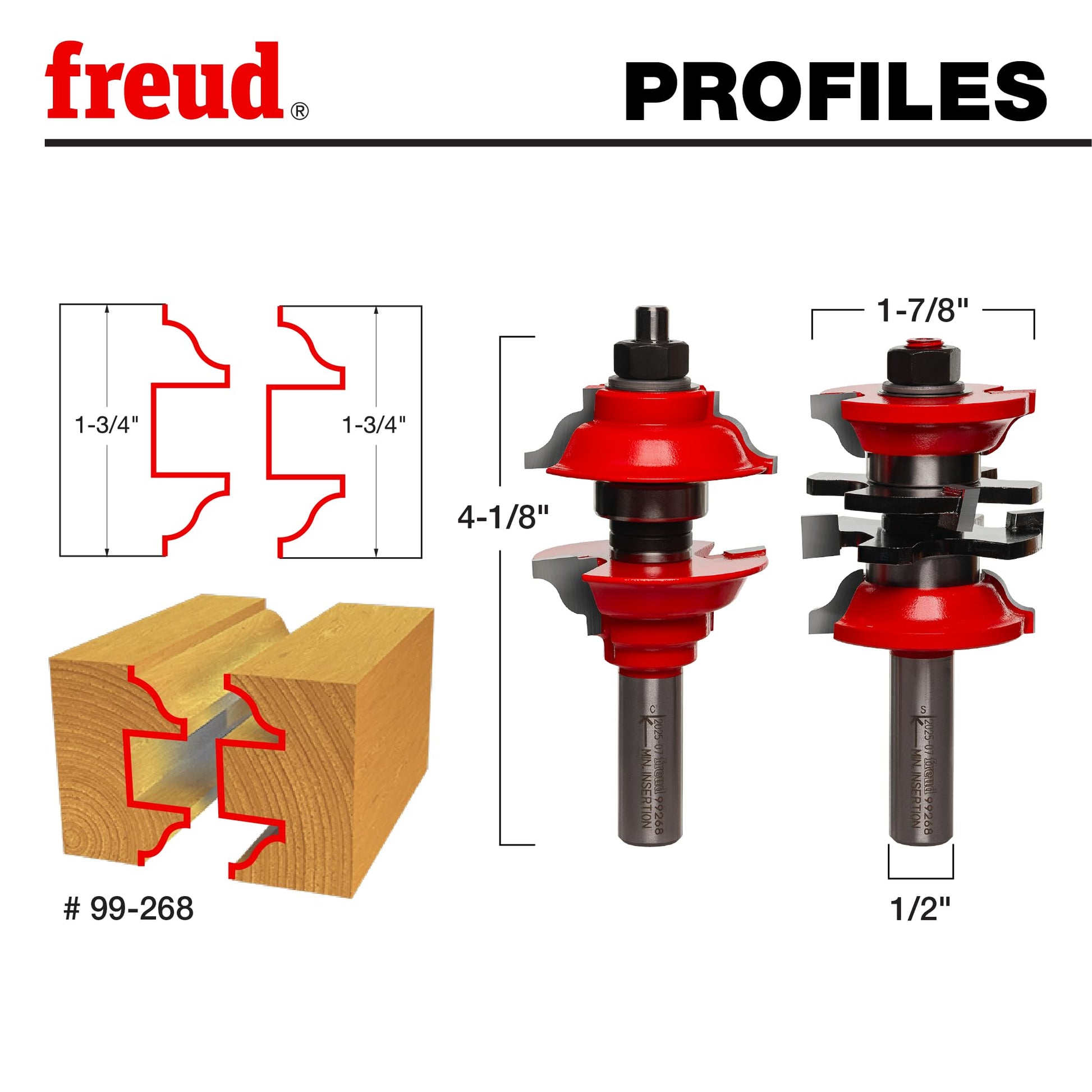

Specs: Bearing Dia. 7/8', Number of Cutters 2, Overall Dia. 1-7/8', Overall Length 4-1/8', Shank Dia. 1/2', Carbide Height 1-7/8'

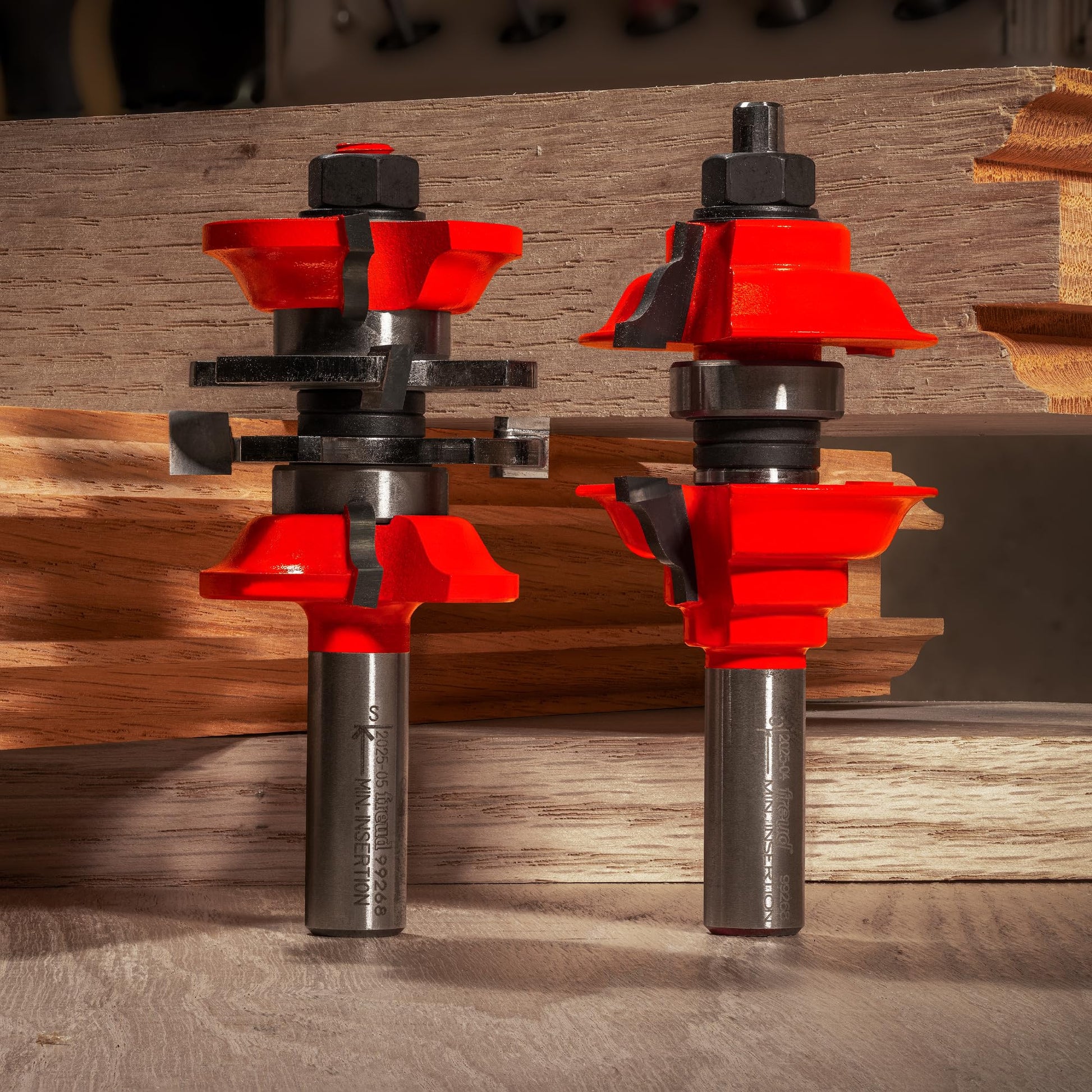

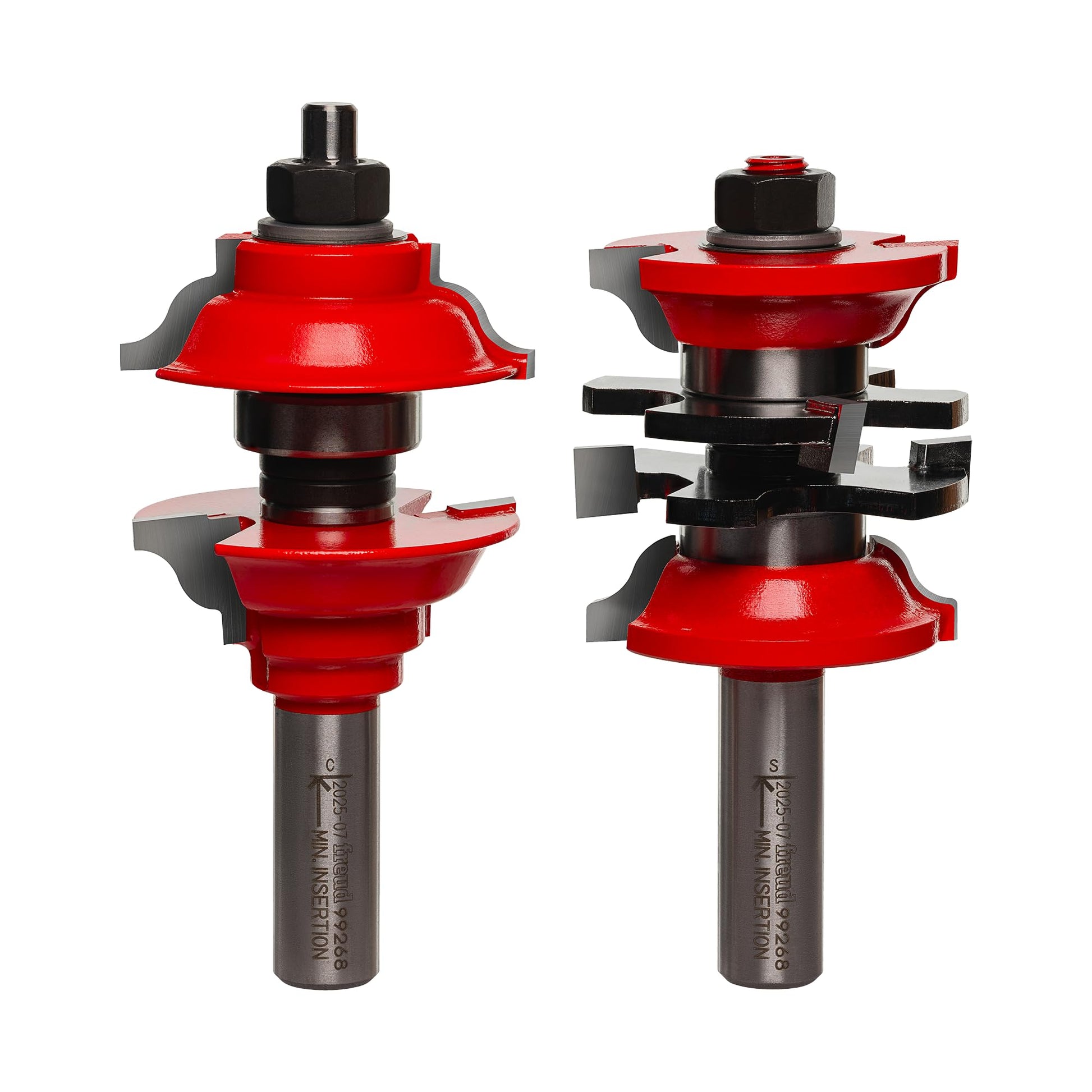

Matched Rail and Stile Bit Sets come fully assembled to mill perfect joints in hard or soft wood

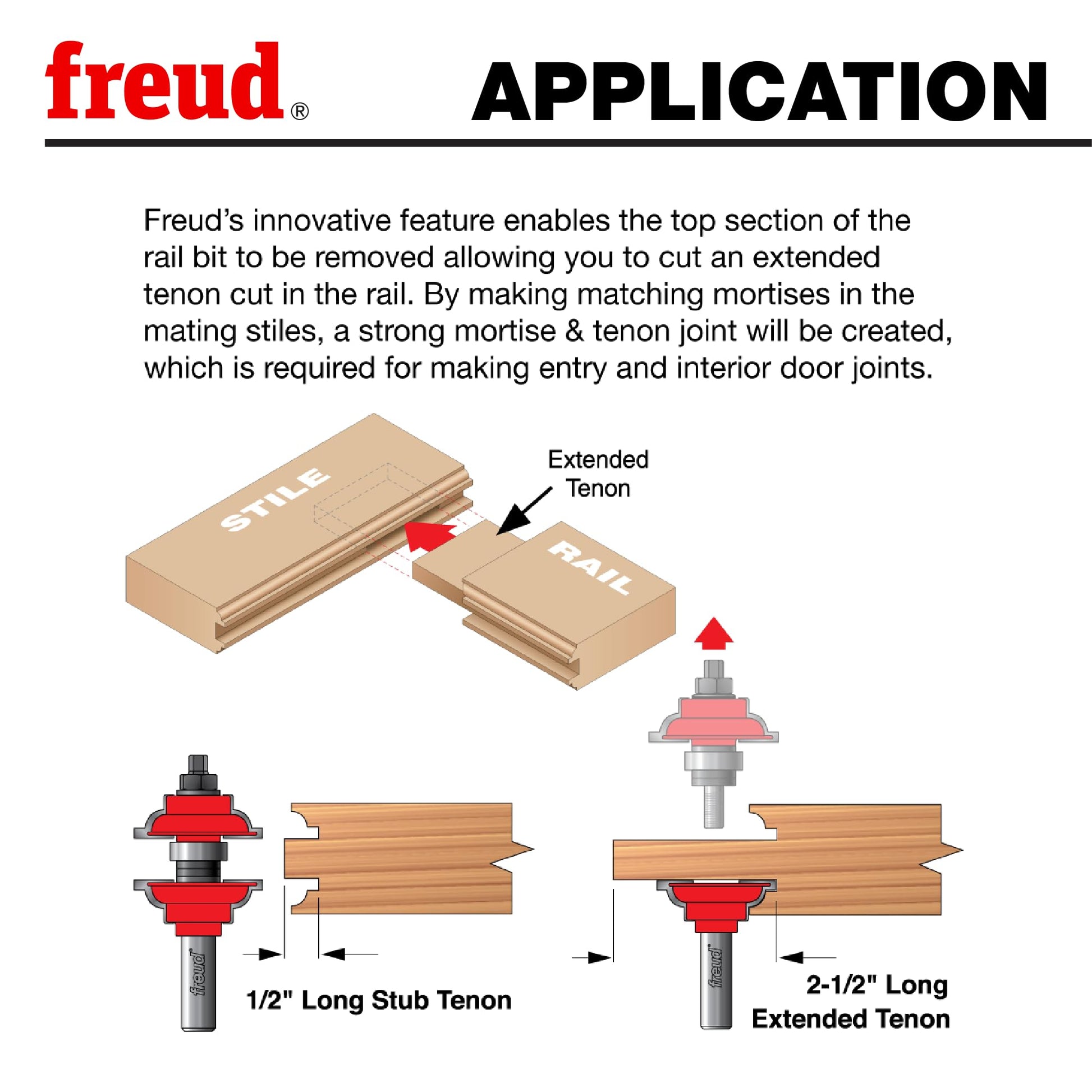

Patented Freud system allows milling tenons of any length for extra-strong joints
Three sets offered for 1-3/8' or 1-3/4' doors, or use Thick Stock Set for 2' to 2-1/4' doors

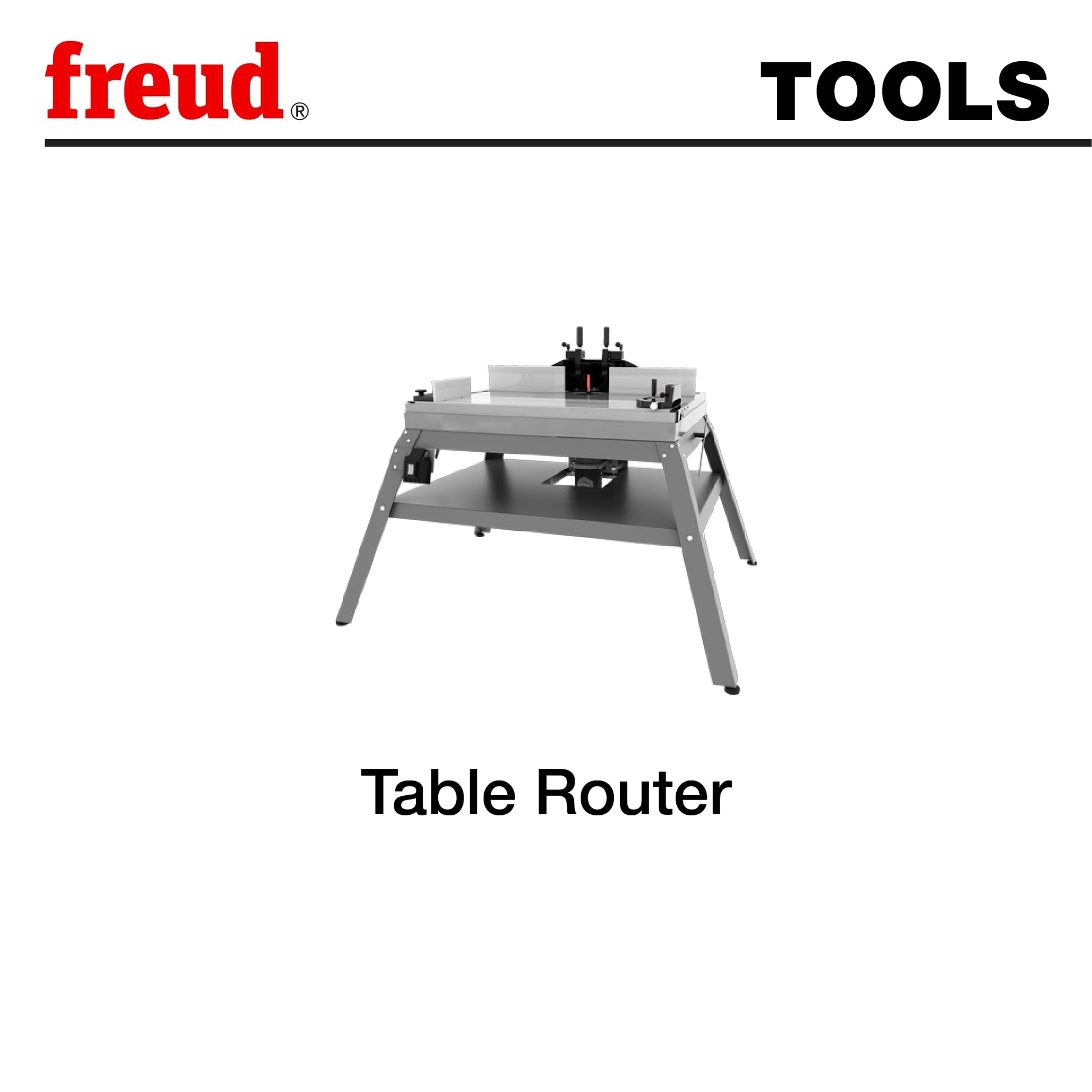

Use on table-mounted portable routers
Freud Perma-SHIELD Coating
model number: 99-268
Part Number: 99-268
Details: Product Description
1-7/8' (Dia.) Entry & Interior Door Router Bit System
From the Manufacturer
This Entry and Interior Door System lets the woodworker build doors with true mortise and tenon construction for rock-solid joints that last a lifetime. This matched rail and stile set comes fully assembled to mill perfectly 1-3/4-Inch exterior doors. To mill 1-3/8-Inch interior doors simply remove the spacers from each bit. Milling a tenon of virtually any length is easy. Ogee profile. 1-7/8-Inch diameter, 1-7/8-Inch carbide height, 1/2-Inch shank, 4-1/8-Inch overall length.
