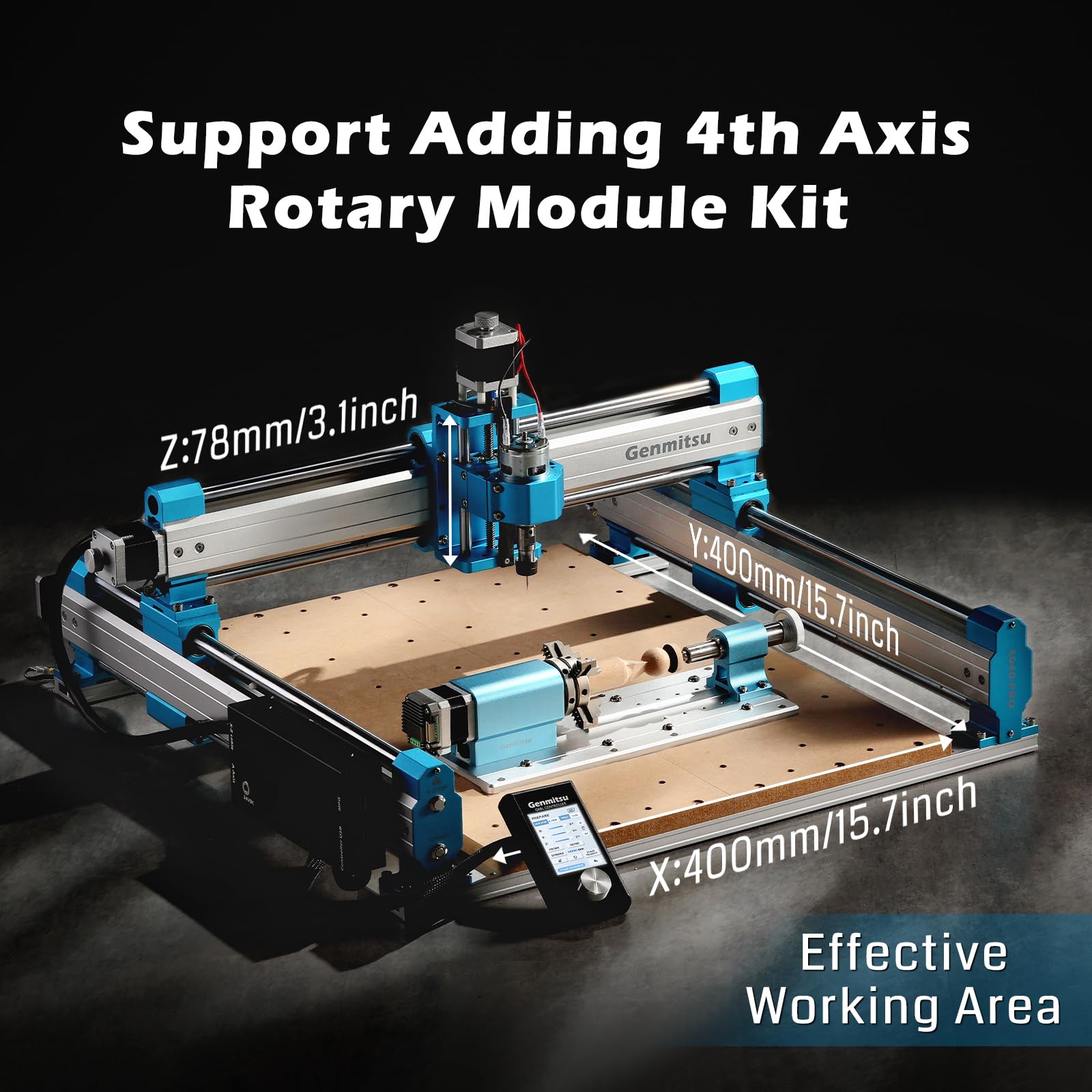

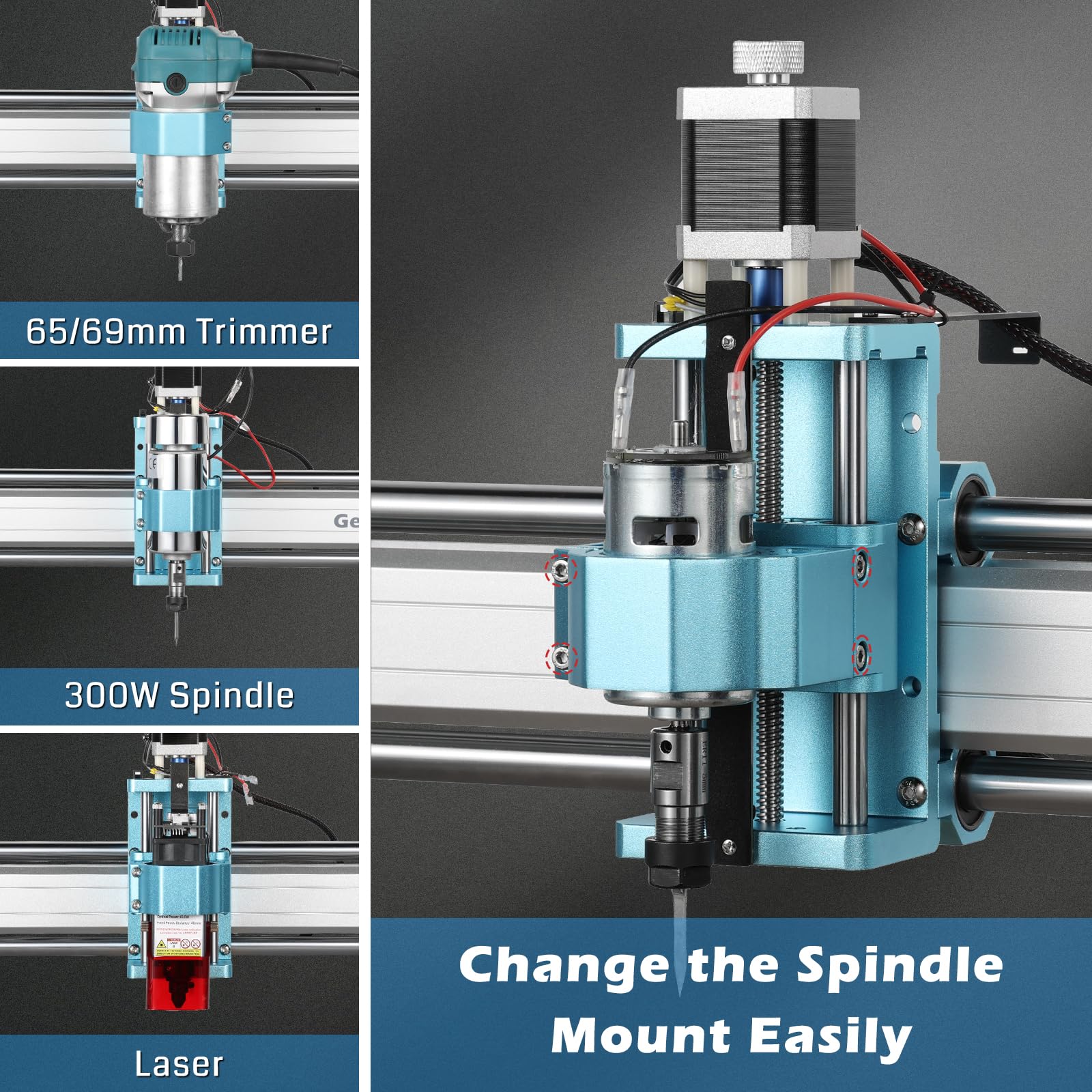

An effective working area of 15.7” x 15.7” x 3.1” is large enough for most daily wood carving projects. The redesigned Z-axis carriage makes swapping a spindle easier. Adding more screw holes on the non-all-in-one Z-axis carriage allows you to install the larger spindle higher for extra overfeed height.

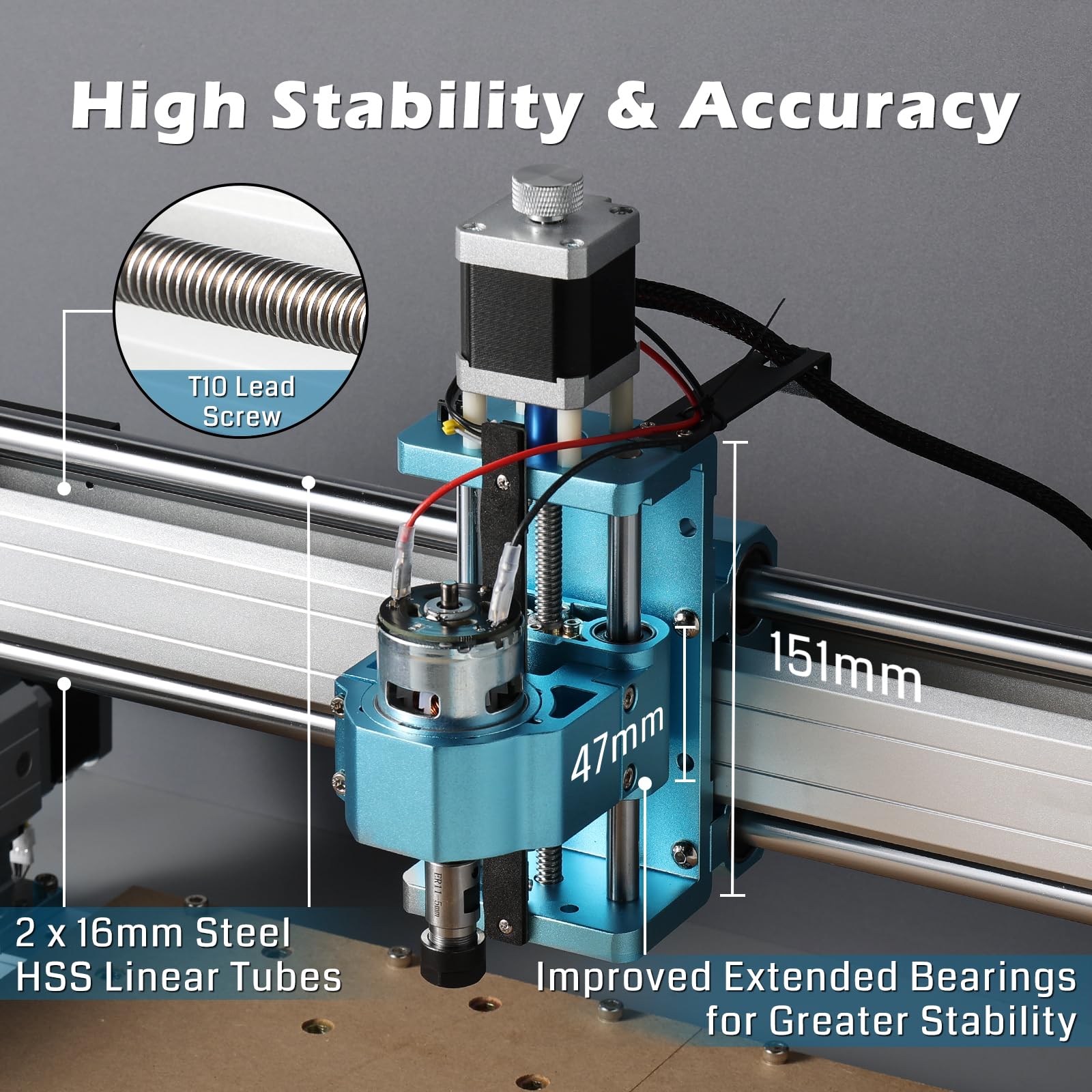

New Steel HSS Frame - all new redesigned frame structure, each axis is composed of two 16mm Steel HSS linear tubes and a lead screw motion drive, dual Y axis rails, and all metal frame. This new high-rigidity structure ensures the stability and accuracy of the milling machine.

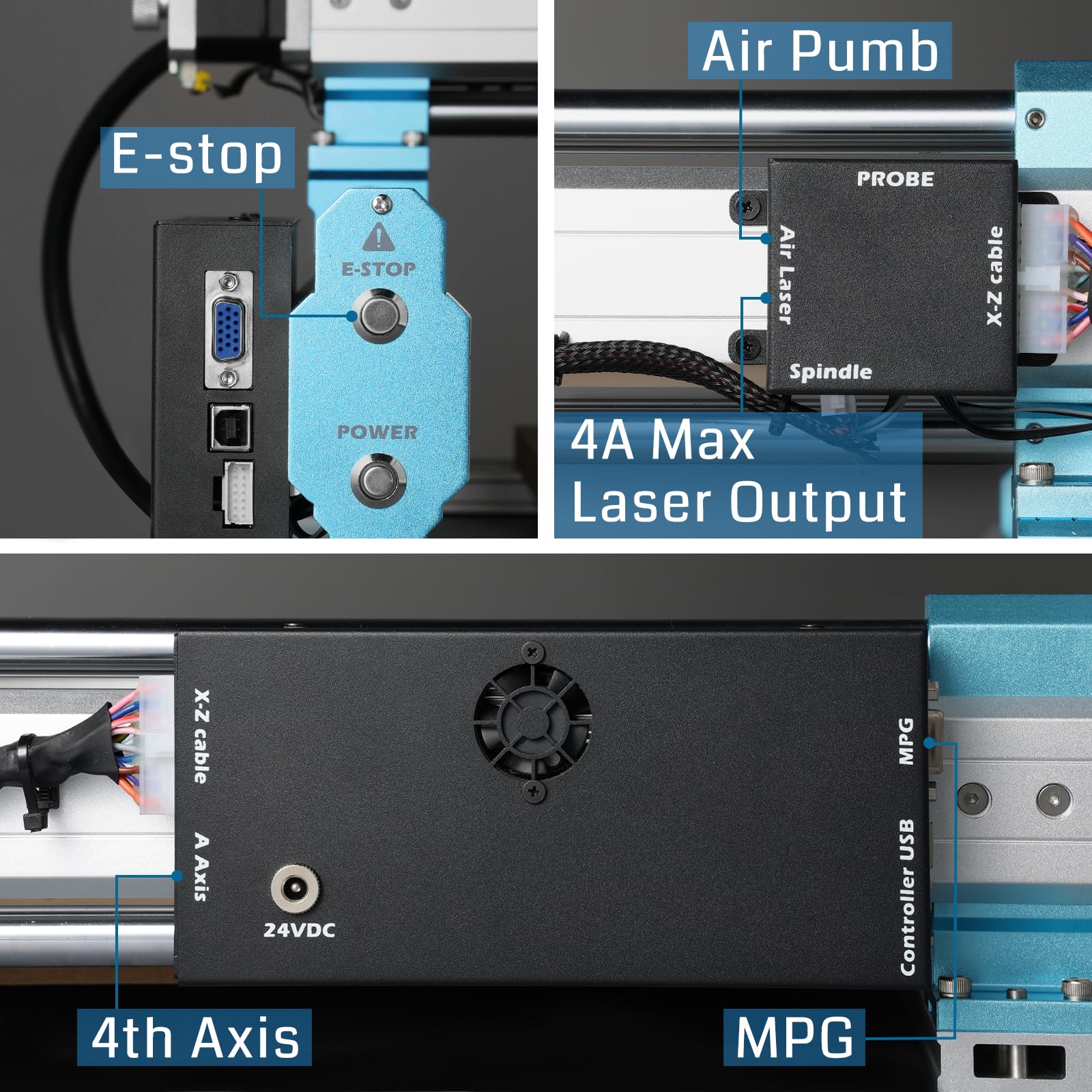

Still based on open-source Grbl v1.1, the 4040-PRO CNC router has stepped up to more powerful but silent Toshiba TB6S109 drivers with 32-bit chips. Upgrades include extended function ports like a Air Assistance Pump Port, and MPG Port.

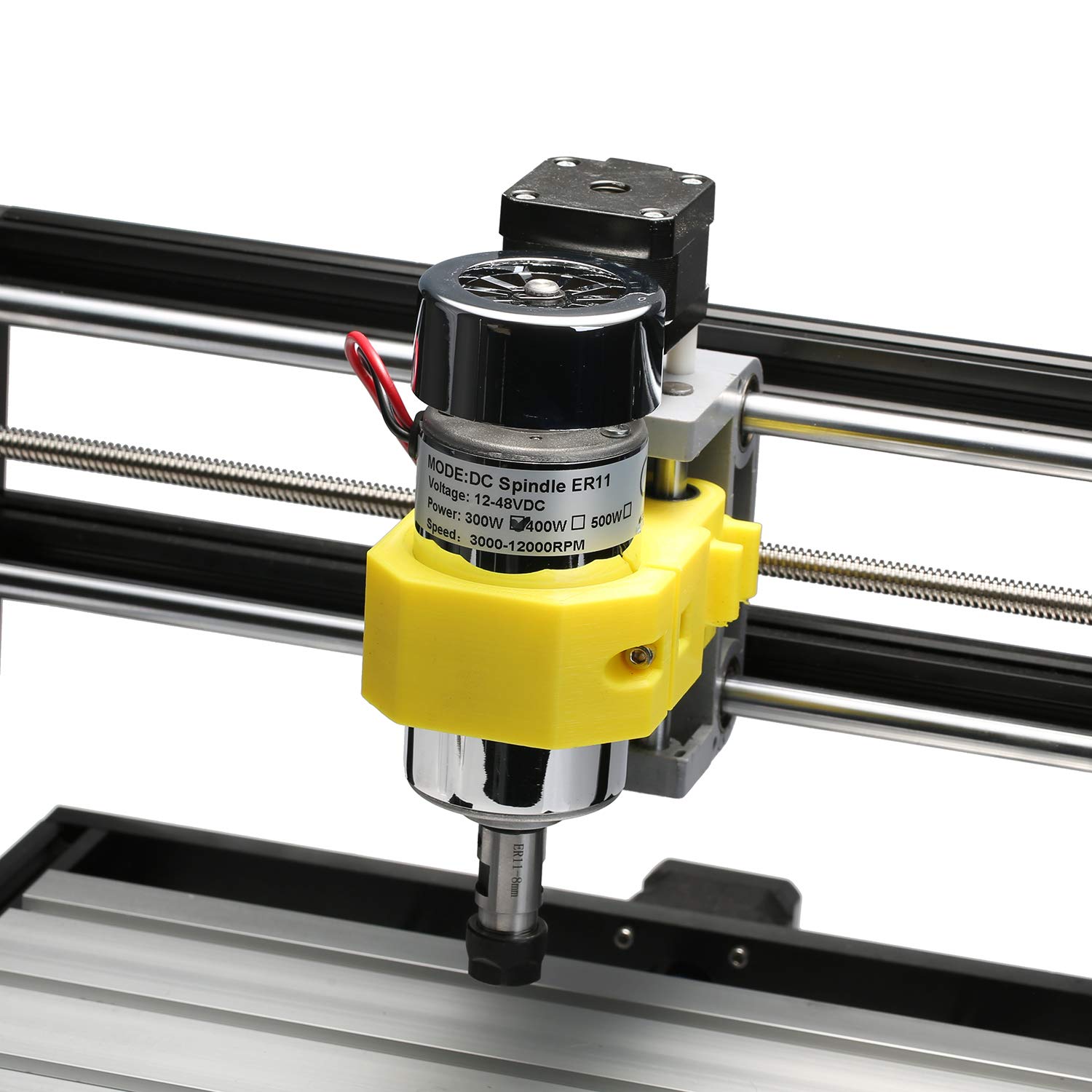

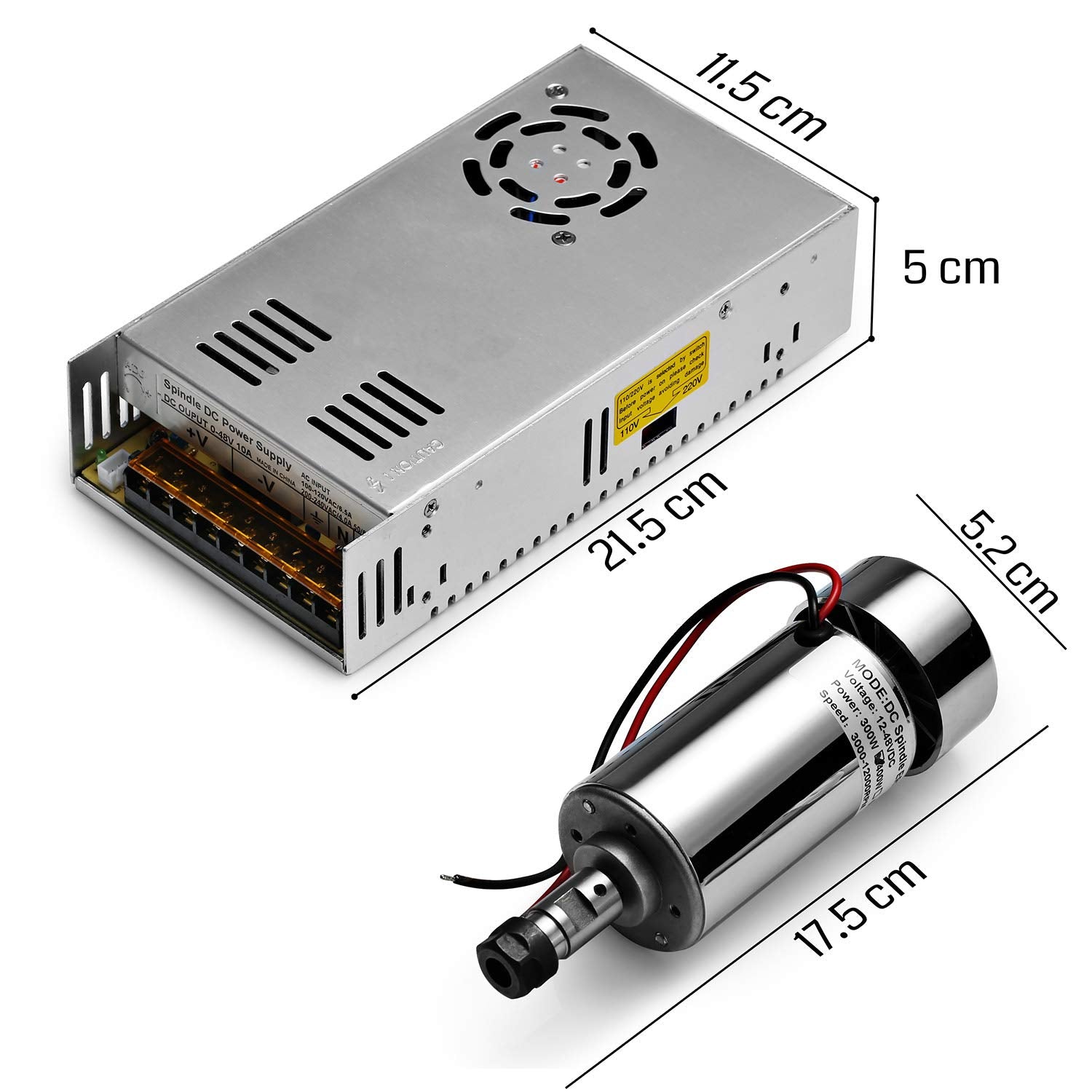

Spindle Motor: New chrome-plated Brush DC motor; This spindle comes equipped with air-cooled function, which can work for a long time.
Radial run out of spindle: 0.01-0.04; Speed: 3000-12000 r/min (12V-3000r/min, 24V-6000r/min, 36V-9000r/min, 48V-12000r/min)
