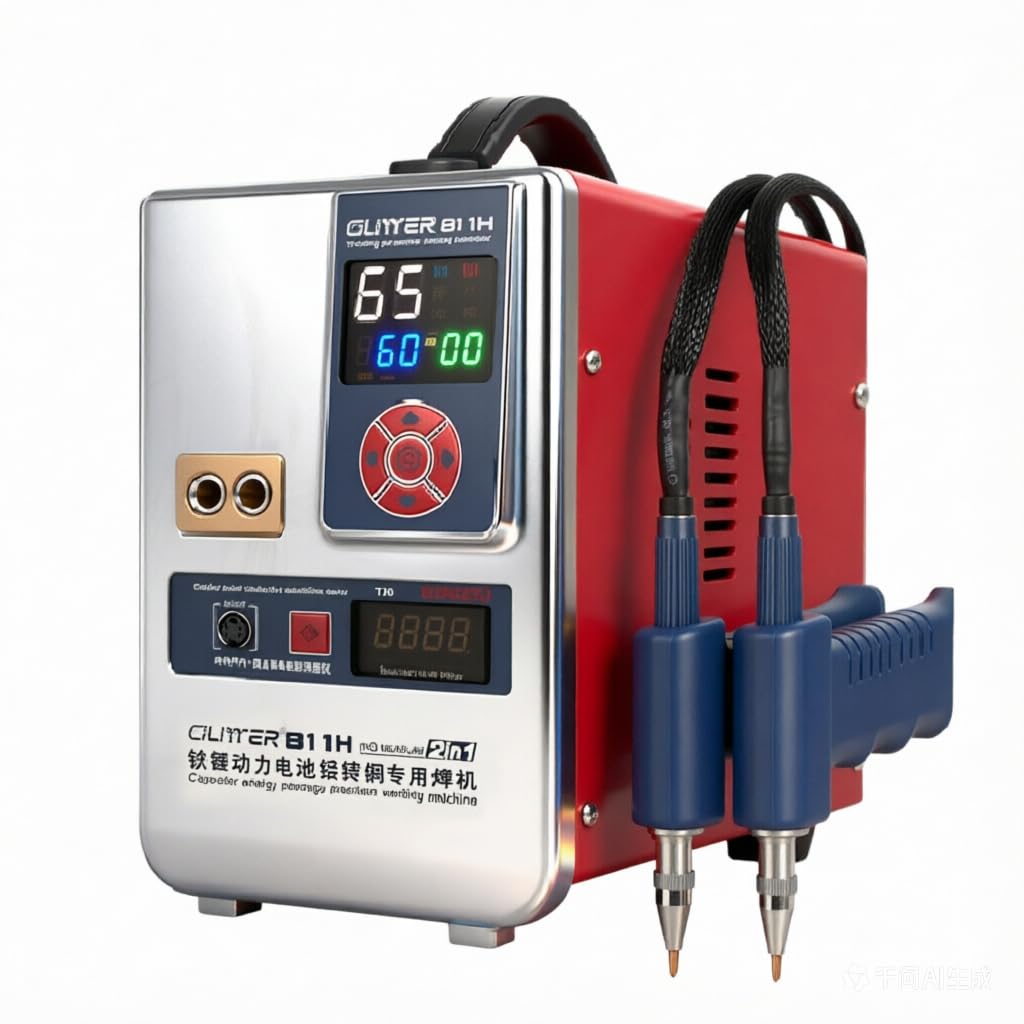

GLITTER 811H Industry Spot Welder & Milliohm Meter, 42000W 7000A High Power Battery Welding Machine for Copper Aluminum to Nickel, Heavy Duty Welder for LiFePO4 Prismatic 18650 Lithium Battery Pack

Brand: ZIYUCOOL

Color: Silver and Red

Features:

• 1.Advanced High-Frequency Inverter Technology：Equipped with super energy storage capacitor discharge technology, this welder eliminates interference to the AC power supply and effectively prevents circuit breaker tripping. The intelligent control system features a multi-function display screen, making parameter management clear at a glance for precise, professional-grade welding proficiency.

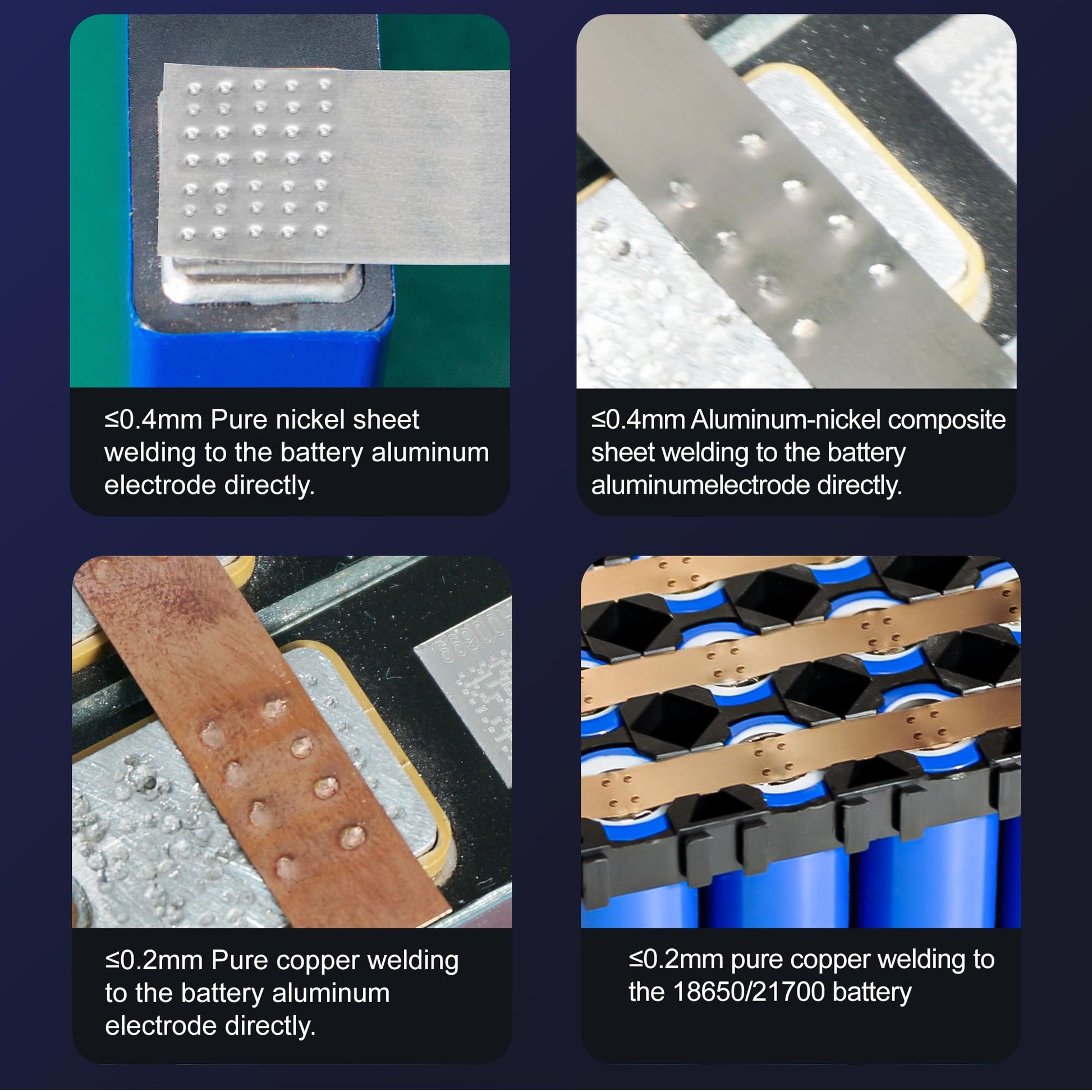

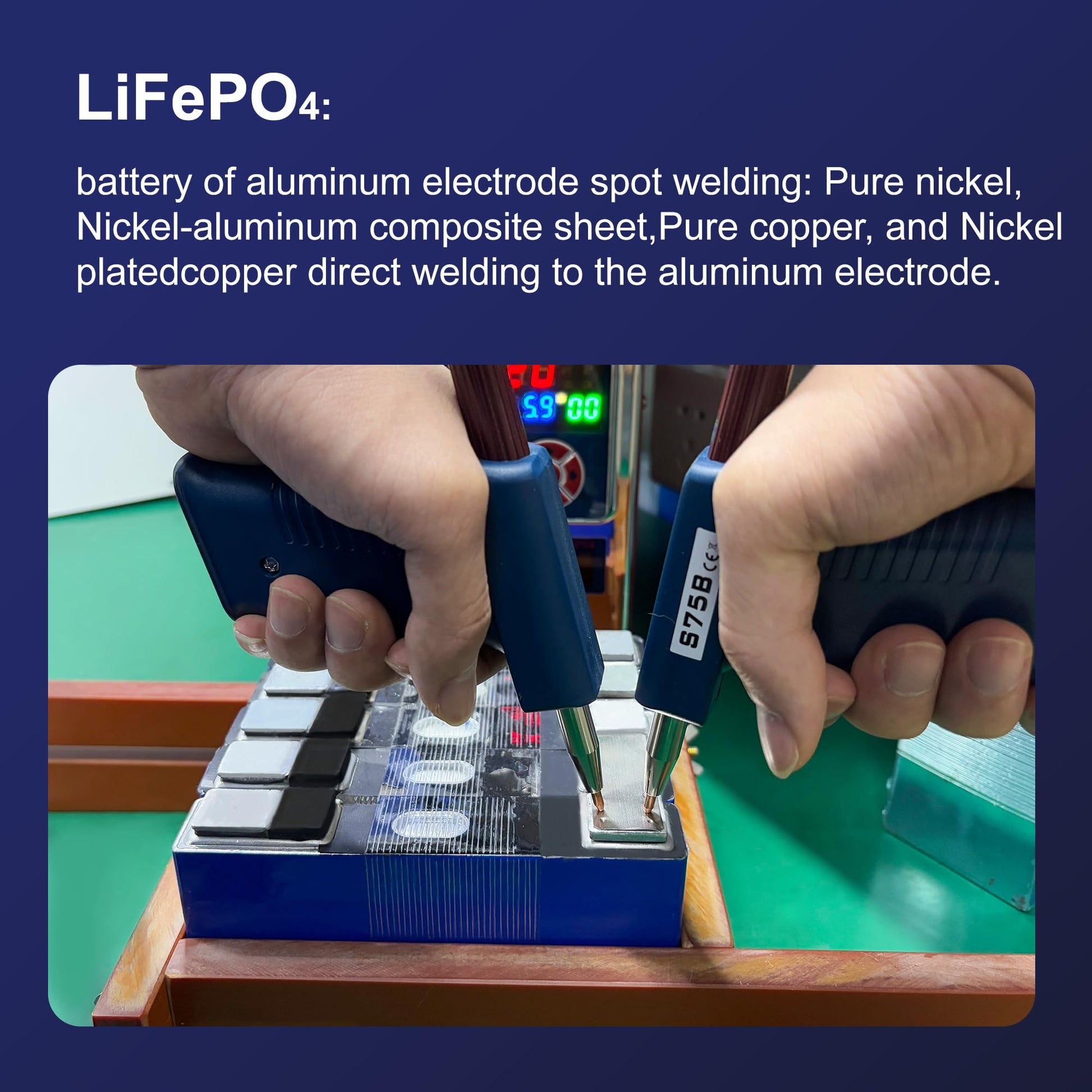

• 2.42000W High-Power Pulse Welding：Delivers a concentrated, slender pulse for deep melt pool penetration without blackening solder joints. This 7000A output ensures efficient welding of copper and aluminum-nickel while generating minimal heat, preventing damage to sensitive LiFePO4 and 18650 lithium batteries

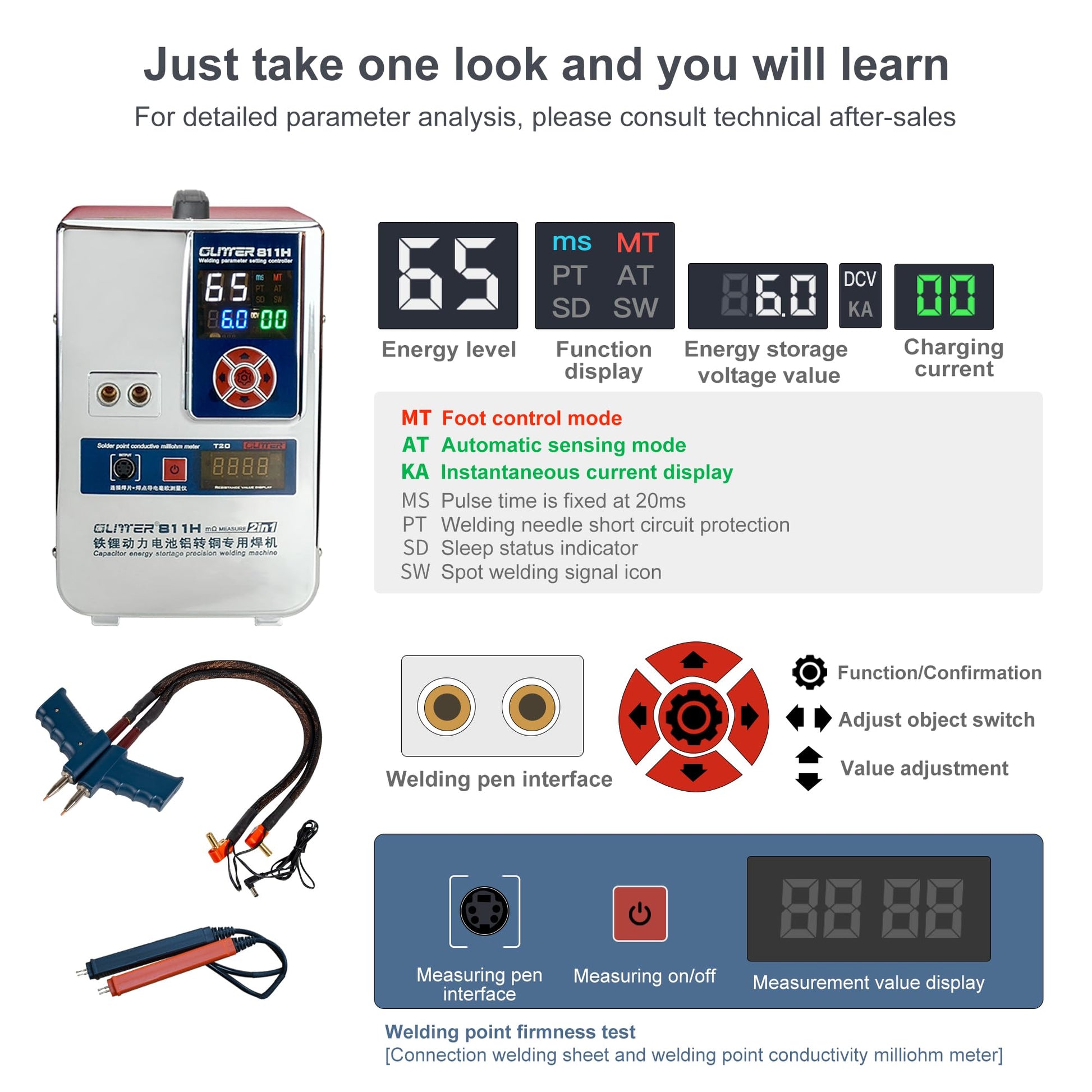

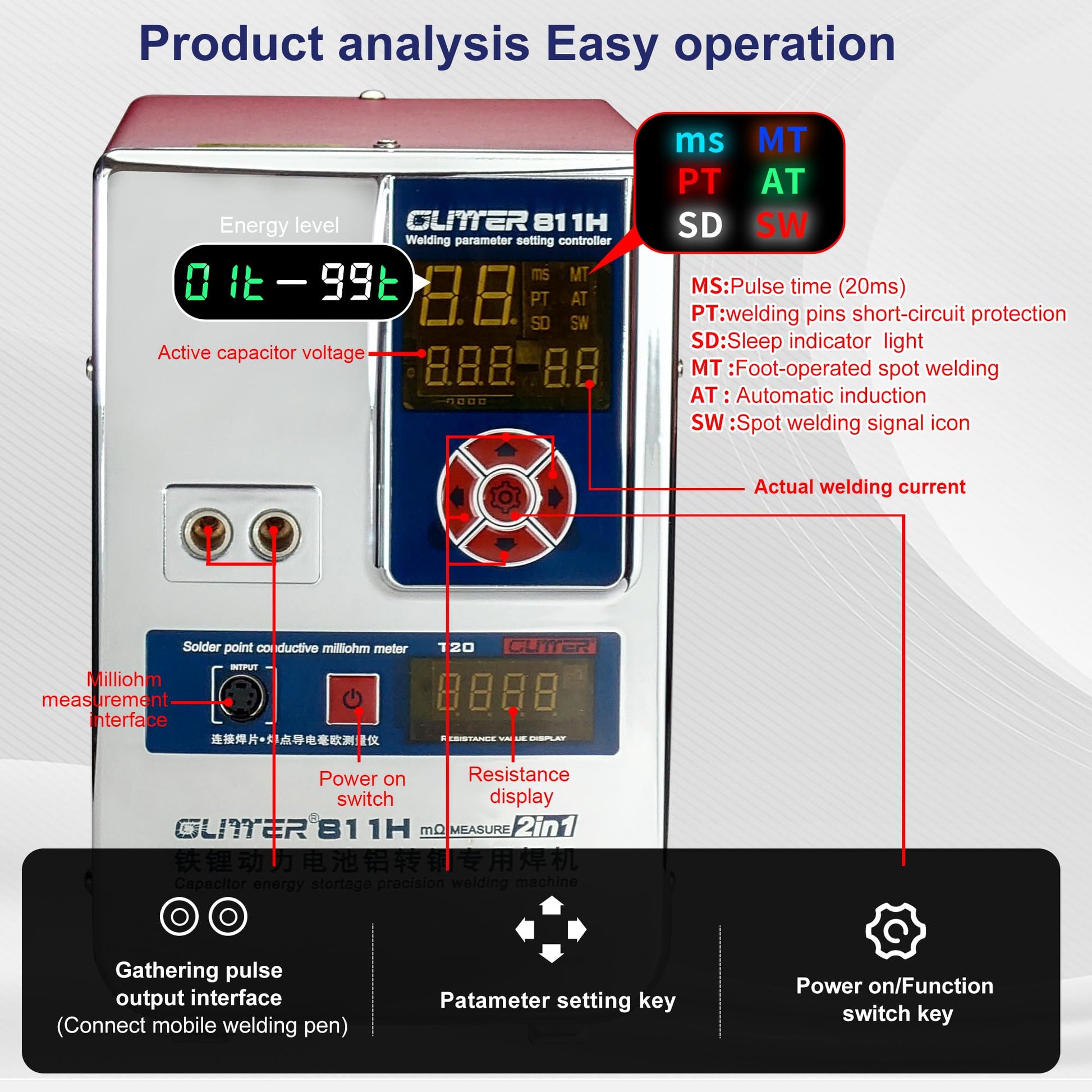

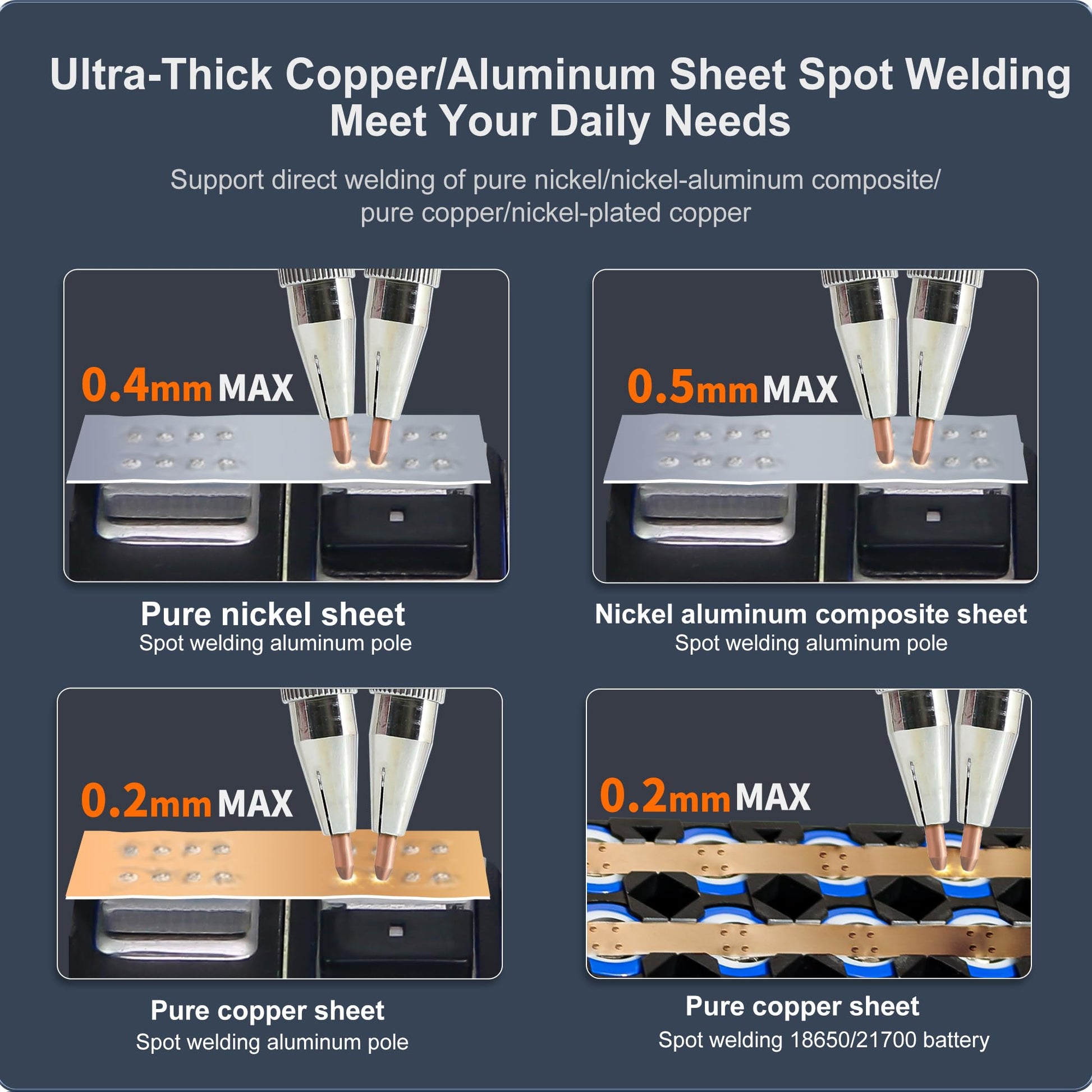

• 3.Dual-Mode Versatility & Customization：Featuring AT and MT modes, this welder ensures precise and efficient results for a wide range of applications. It supports optional removable professional welding pens, allowing you to customize your setup for diverse tasks ranging from ultra-thin to ultra-thick weldments
• 4.Industrial-Grade Efficiency ：With ultra-low internal resistance (<0.3mΩ), this welder minimizes energy loss for maximum efficiency. Its robust industrial design ensures reliable, continuous operation without overheating, perfect for demanding professional use.
• 5.Precision Resistance Measurement：Features a digital milliohm meter (0-200mΩ) to ensure consistent resistance across battery pack connectors. This precise monitoring effectively prevents false welding and high contact resistance, guaranteeing secure and reliable connections.

model number: 811H

Details: Parameters: Model : GLITTER 811H Voltage Output :5.6~6V（Peak ） Voltage Input :AC 100-240V 50/60HZ Peak Welding Energy :720/840J Pulse Power: 42KW（Max.） Trigger Mode :AT/MT Welding Mode :75B split spot welding pen AT mode--automatic welding(no foot pedal control, suitable for welding a large number of batteries for a long time). MT mode--control with foot pedal(Convenient for parameter adjustment and welding debugging to achieve the best spot welding effect). Energy Grade: 0-99T Pluse Time: 0~20mS Charging Current: 10~20A（Peak） Charging Time :18(mins)

EAN: 0720118113880

Package Dimensions: 16.0 x 13.7 x 10.0 inches
