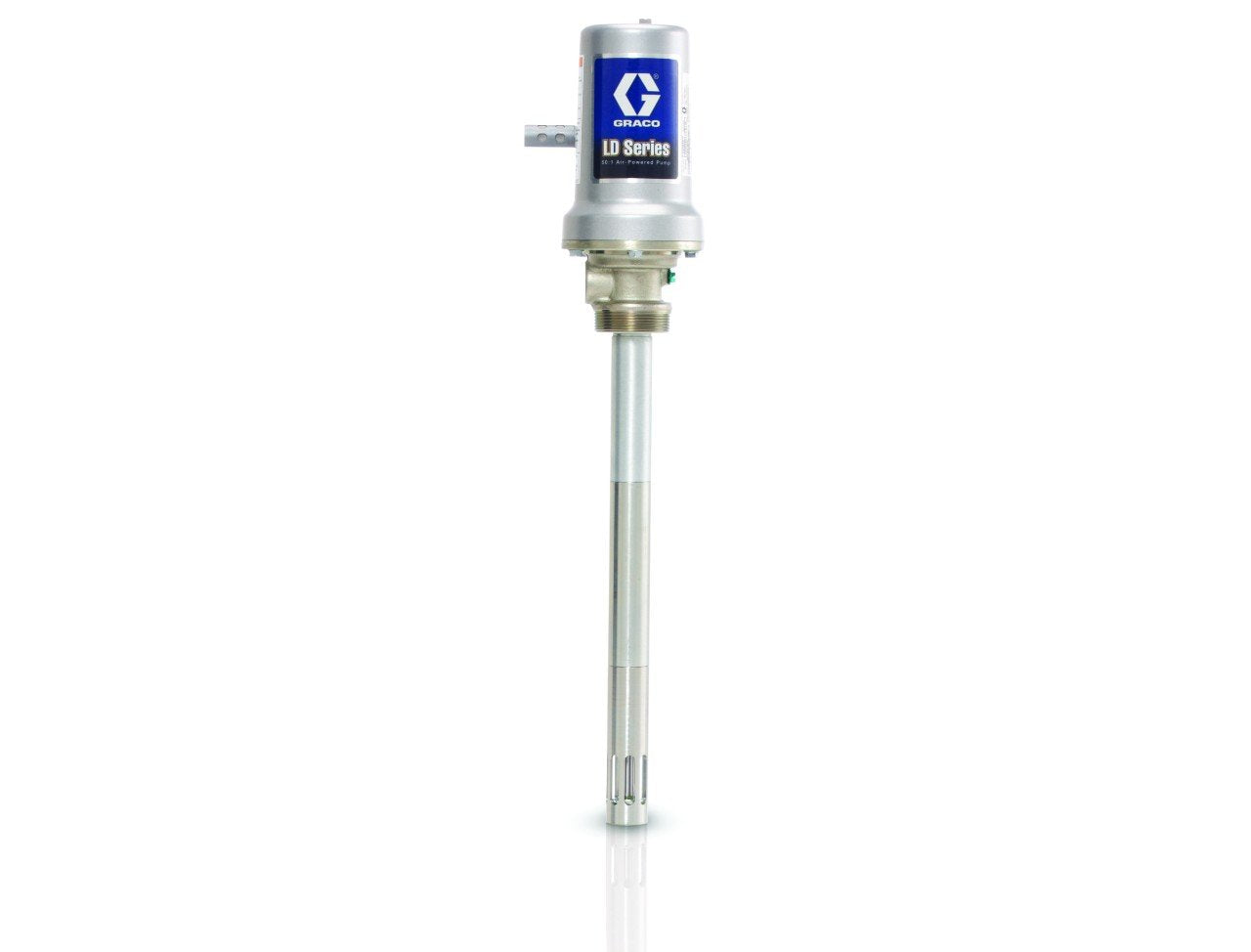

Graco 24G582 Oil Pump with Down Tube and Bung Adapter, 3:1 Ratio, for 55 Gallon Drum

Brand: Graco

Features:

• Air Operated Oil Pump for 55 Gal Drum for Petroleum and Synthetic-based Oils.
• Includes Pump, Down Tube, and Bung Adapter
• 3:1 Pumping Ratio
• 3' Air Motor provides more power to create better flow.
• 450 PSI Max Fluid Working Pressure

Part Number: 24G582

Details: Graco 24G582 Oil Pump with down tube for 55 Gallon Drum and Bung Adapter, 3:1 Ratio. For Petroleum and Synthetic-based Oils. LD Series (Light Duty)
Features and Specs:
• Fluid Pressure Ratio: 3:1
• Max Fluid Working Pressure: 450 PSI (31 bar, 3.10 MPa)
• Suction Lift (feet of oil): 10
• Air Operating Range: 20 to 150 PSI (1.37 to 10.3 bar)
• Recommended Air Pressure: <125 PSI (8.6 bar)
• Max Recommended Pump Speed: 120 cycles per minute
• Cycles Per Gallon/pund (l/kg): 29 cycles per gallon (7 cycles per liter)
• Wetted Parts: Zinc plated, steel, aluminum, nitrile, polyurethane, nickel plated aluminum
• Air Inlet: 1/4 in
• Fluit Inlet: 1 in
• Fluid Outlet: 1/2 in
• Free Flow: 7.8 gpm
• Annual Usage: Up to 20,000 gal (76,000 l)

EAN: 0633955613508

Package Dimensions: 25.8 x 18.9 x 12.0 inches
