Note: Hydraulic hose press come without battery and oil. The 9V battery and hydraulic oil need to buy separately. Hydraulic oil tank capacity is 0.26 gal (1 L)
Precision crimping:: Hydraulic hose crimping machine for hydraulic hose 1/4“ to 1” 1&2 wire (R1&R2) and is equipped with a 0.04” accuracy limiter that illuminates a red light when crimped to the set crimp range.

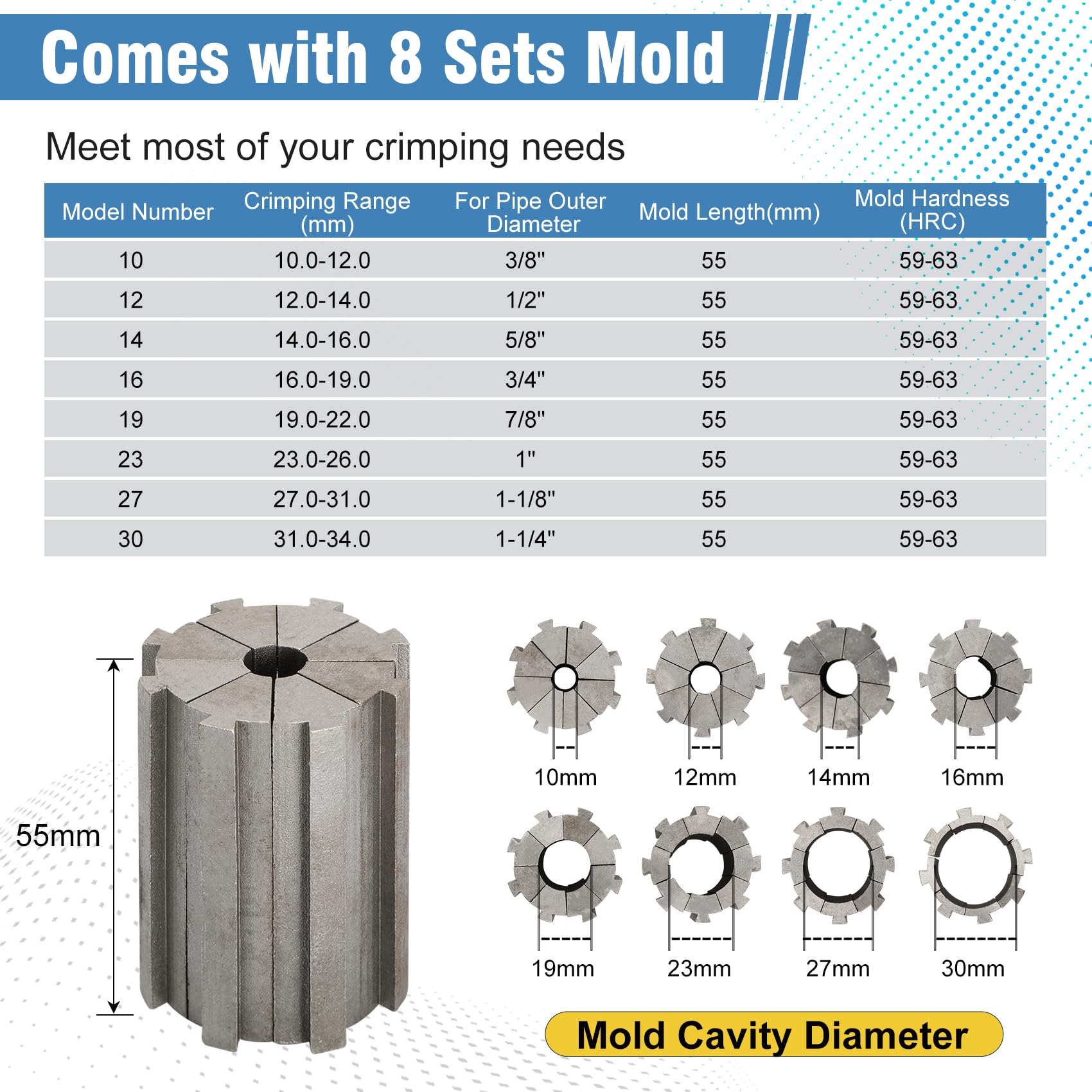

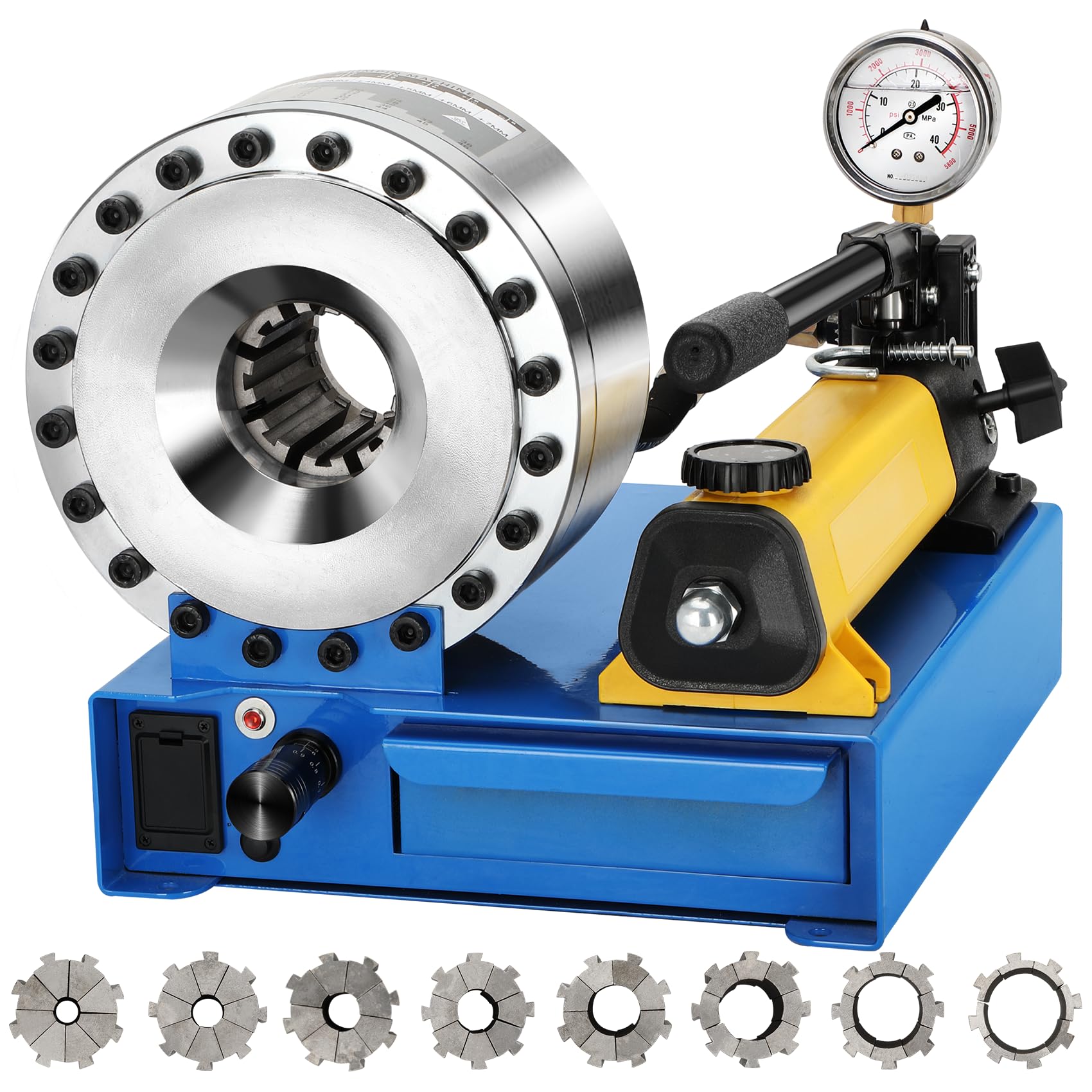

Sizes: Hydraulic hose crimper with 8 dies. Die size range 10/12/14/16/19/23/27/30mm, Maximum opening (without dies): 1.89” (48mm). Covers from 1/8 100R7 hose to 1-inch 100R2 two-core hose.

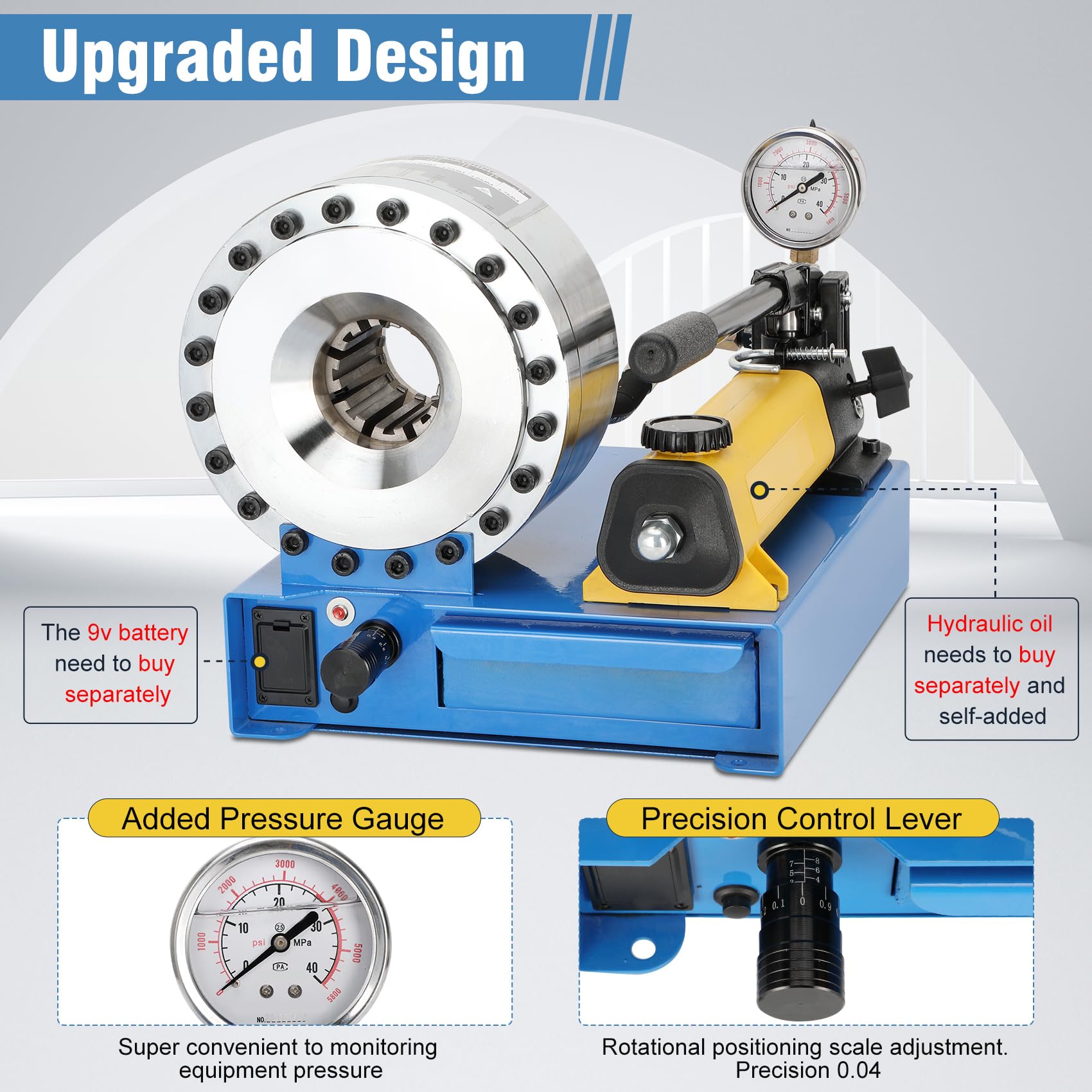

Intense pressure: Manual hydraulic hose crimping tool has a pressure of 35Mpa and a maximum crimping force of 1,000KN, and is equipped with a pressure gauge to provide real-time pressure feedback, as well as a precision control lever to adjust different crimping sizes.
Mobile Workbench: Hose crimper works without electricity or compressed air, high quality forged steel head, more durable than ordinary steel. Replacing the dies is easy and can be carried to the point of failure for repair.

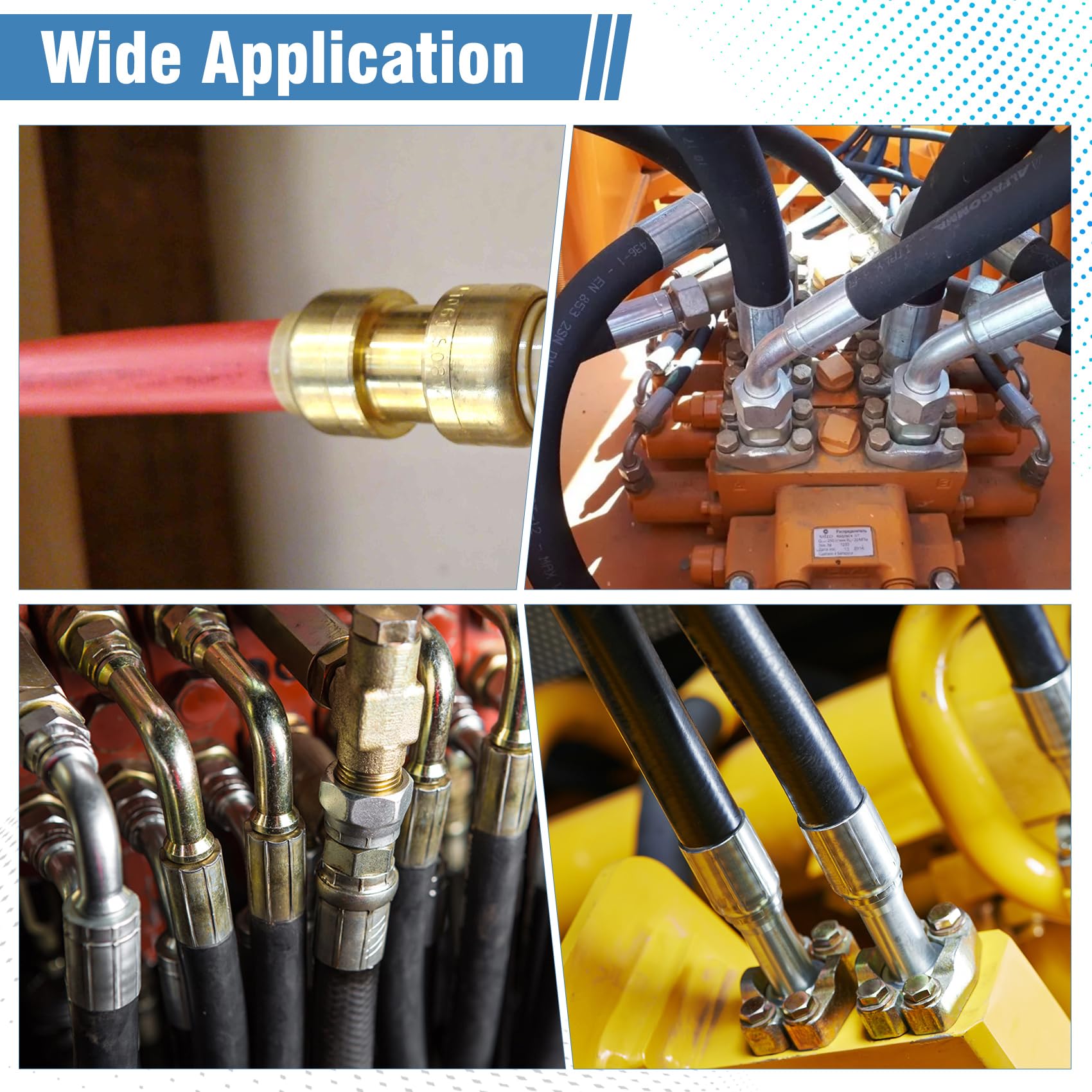

Application Scenarios: hydraulic hose crimper machine is suitable for crimping all kinds of rubber hoses and braided hoses. Such as low pressure oil hose, gas hose, water hose, cable connector, automobile air conditioning hose, automobile power steering hose, etc. And it can be applied to vehicles, engineering machinery, hydraulic machinery, welding and cutting equipment and other industries.
model number: hydraulic line crimping tool
Details: high pressure hydraulic hose line crimping tool with 8 dies
