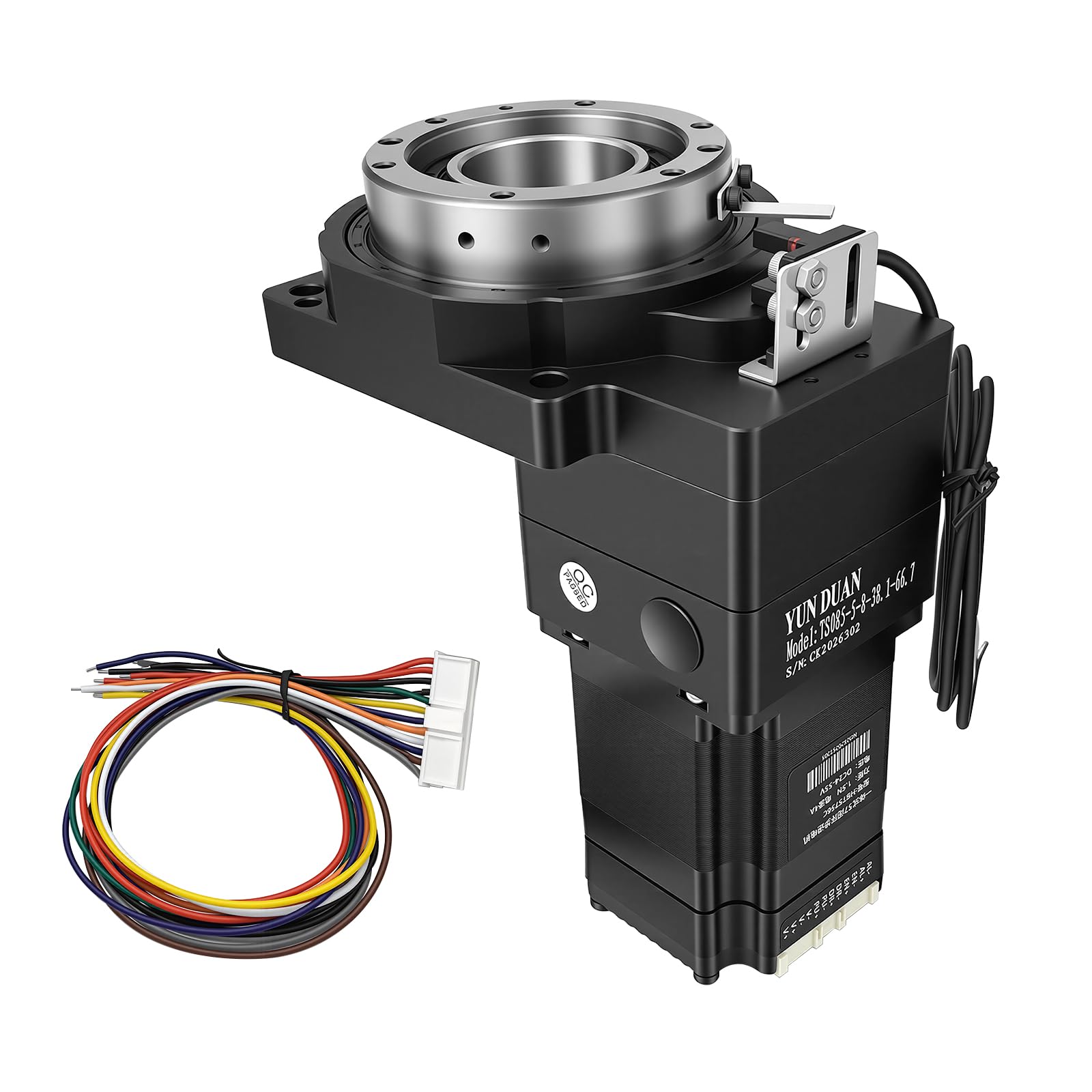

Hollow Rotary Actuator Ratio 10:1 with 3.2Nm NEMA 23 57mm Closed‑Loop All‑in‑One Stepper Motor Kit Integrated Driver High‑Resolution Encoder Hollow Rotary Platform 1 arcmin Accuracy for CNC,3D

Brand: TOSEASTARS

Features:

• 【Package List】1PC*Hollow Rotary Table(Ratio 10:1)；1PC*3.2Nm Nema23 57mm,all-in-one integrated CAN interface smart servo step motor that comes with an encoder, motor driver.

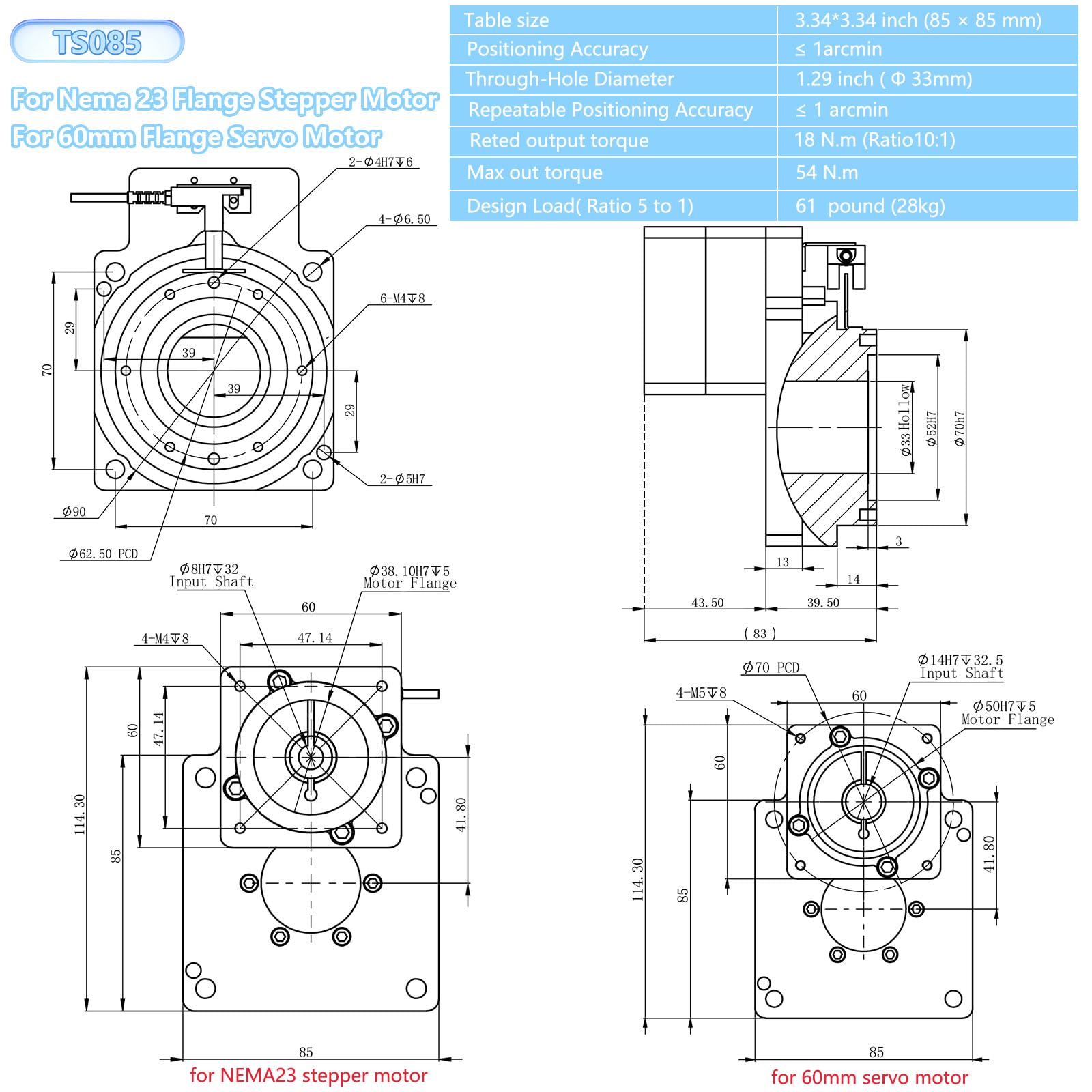

• 【High Accuracy Rotating Platform Specifications】Ratio:10 to 1;Positioning accuracy: ＜=1 arc-min; Repeated positioning accuracy:≤1 arc-min;Transmission efficiency: 96%;Design load:Ratio 10 to 1=28 Kg(61 pounds).This space-saving platform integrates easily into tight spaces,operates with minimal noise for a better work environment, and features a hollow design for effortless cable routing and direct mounting to streamline installation.
• 【Rotating Platform For Cnc&High Precision Rotating Platform】Achieve precise positioning with a ≤1 arc-min accuracy,ensuring reliable and repeatable results for CNC applications;(Reted output torque:18 N.m;Max out torque:54 N.m)High Torque Output:Experience a 3 times rated torque output,allowing for the handling of heavy loads and powerful cutting tools.
• 【 Stepper Motor Specifications】Holding Torque 3.2 Nm.Type: Hybrid; Encoder line number: 1000; Motor length: 57x57x132mm / 2.24*2.24*5.2 inch; Shaft Diameter:8mm; Lead wire: 4; Support DC Power Supply:DC24-55V; Current: 4A.
• 【HIGH PRECISION,EXCELLENT DESIGN】Our high torque stepper motor is a Nema23 57mm, all-in-one integrated CAN interface smart servo step motor that comes with an encoder, motor driver, in an alloy aluminum case.It is a new motor-driven integrated hybrid servo drive system with communication function.Using a new generation of 32-bit DSP control and closed-loop control, it can prevent out-of-step and ensure the accuracy of the product.
