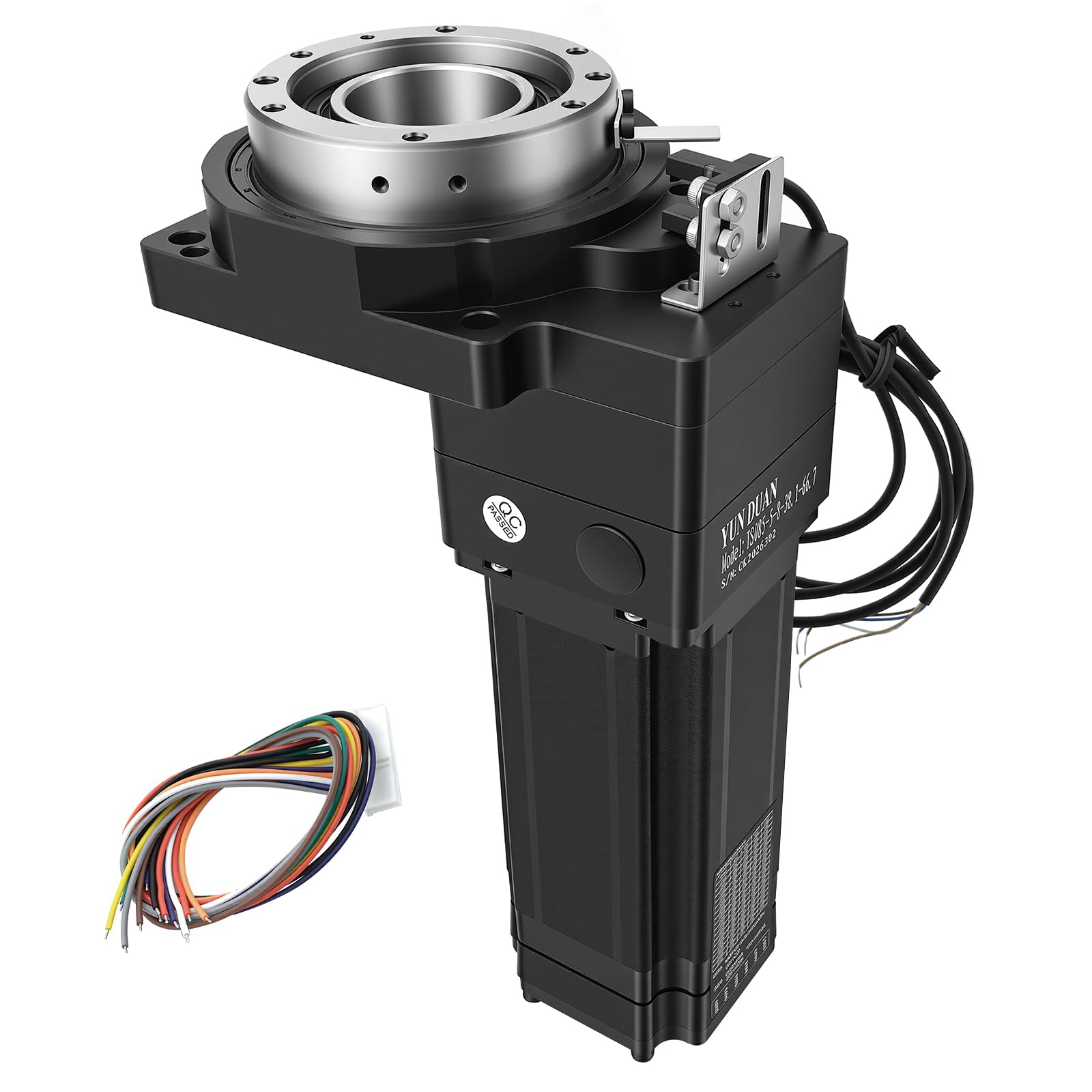

Hollow Rotating Platform 130mm 10:1 Ratio with 3Nm Integrated NEMA23 57mm Closed Loop Stepper Motor Driver Kit 45kg Load High Precision ≤1 Arcmin Speed Reducer for Automation Indexing Table Robotic

Brand: TOSEASTARS

Features:

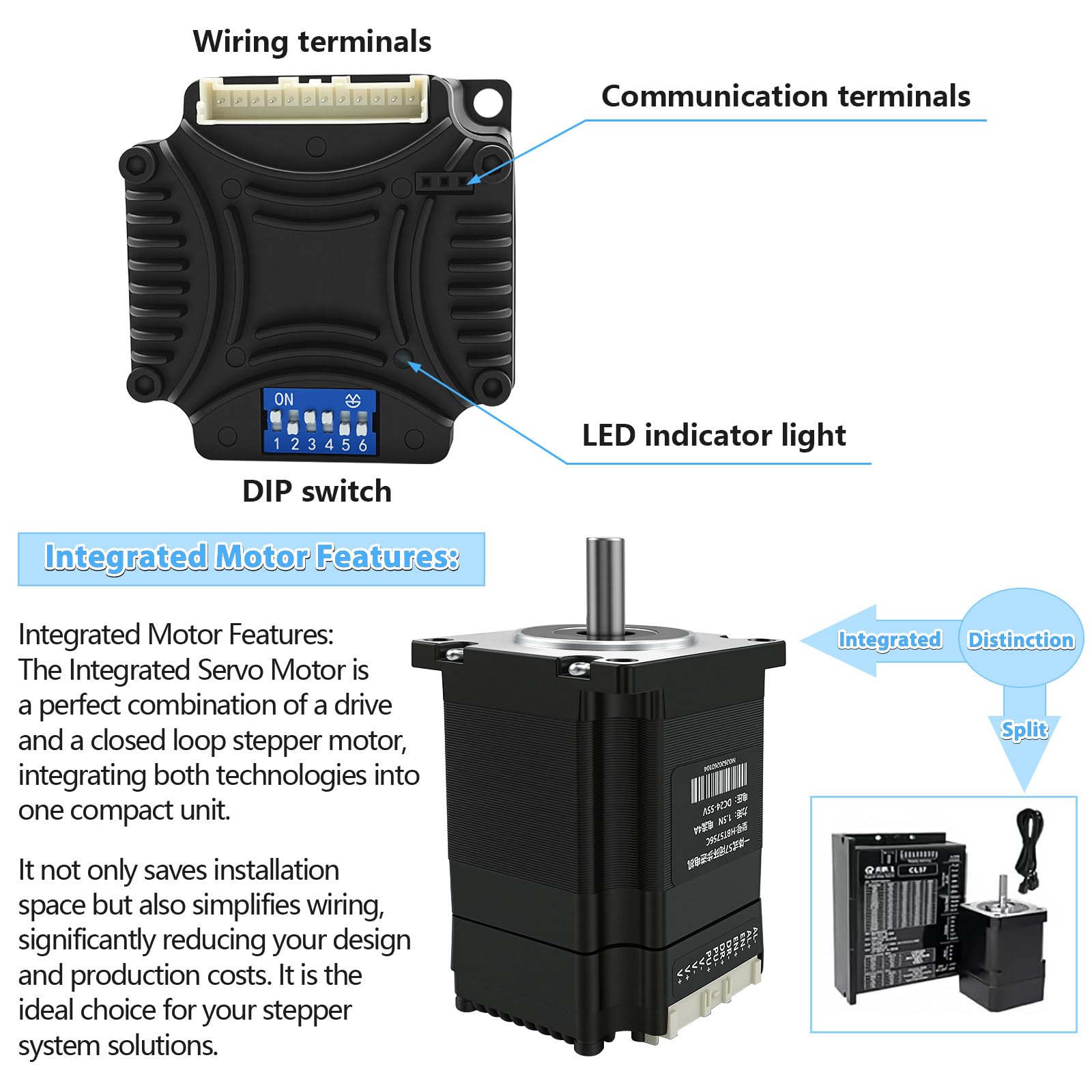

• 1. ALL-IN-ONE CLOSED-LOOP NEMA 23 SYSTEM This hollow rotary table comes with a 3NM fully integrated closed-loop NEMA 23 stepper motor driver, eliminating the need for external wiring and reducing setup time. The all-in-one design provides real-time position feedback to prevent step loss and ensure consistent torque, even under varying loads up to 45kg.
• 2. ULTRA-HIGH PRECISION ≤1 ARCMIN Achieve positioning accuracy within 1 arcmin, making this rotary table ideal for applications demanding tight tolerances, such as CNC indexing, laser marking, and semiconductor alignment. The 10:1 precision ground gear delivers smooth, backlash-controlled motion.

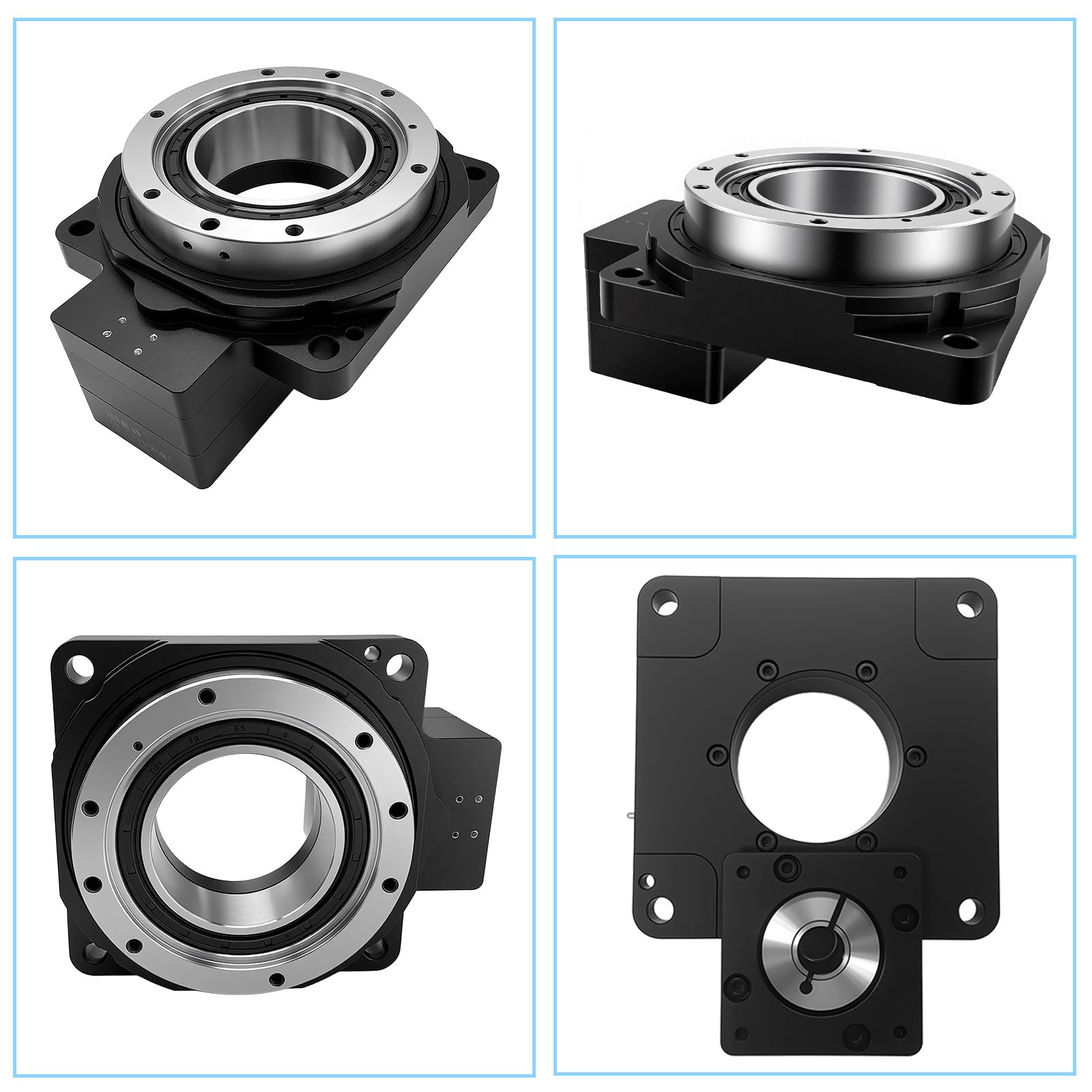

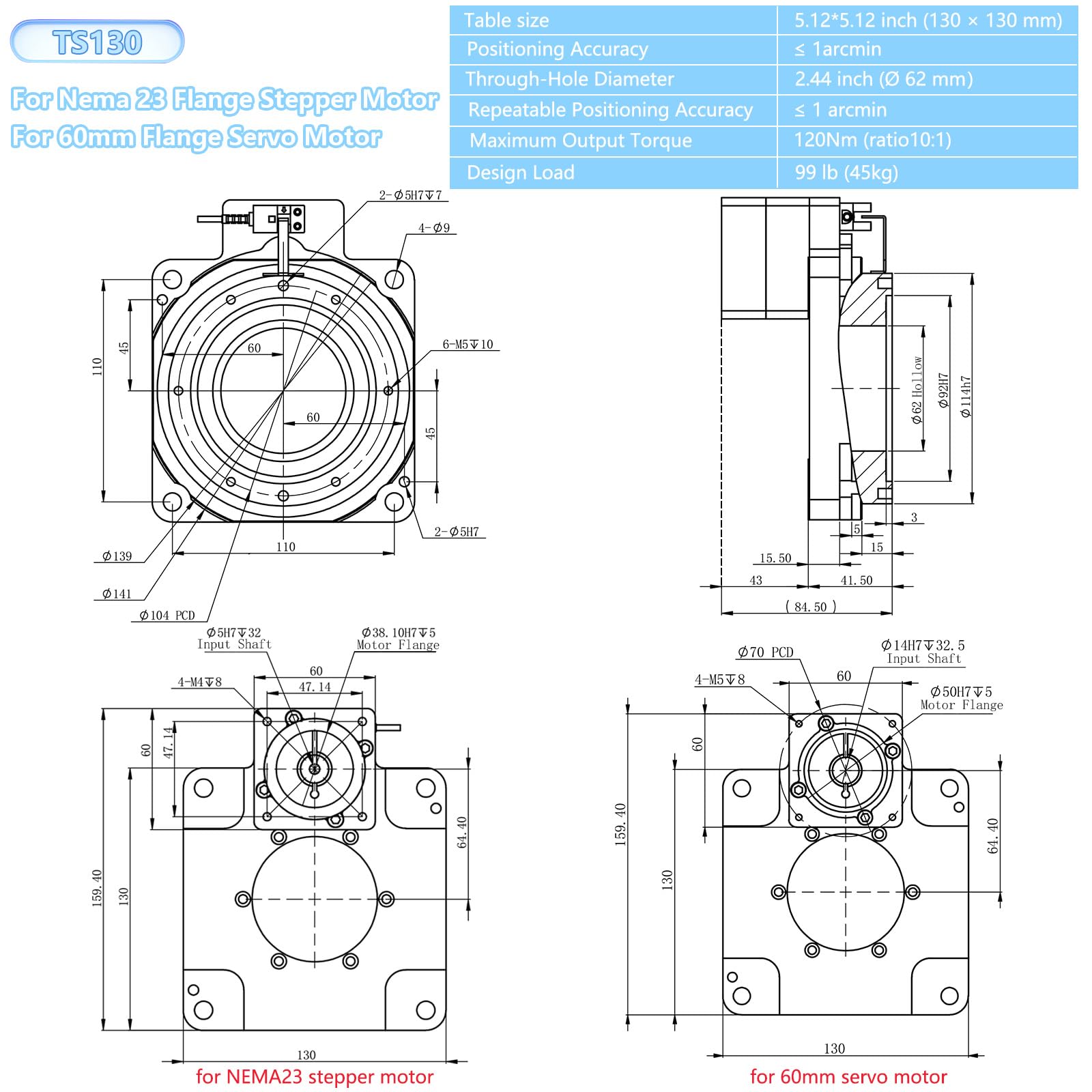

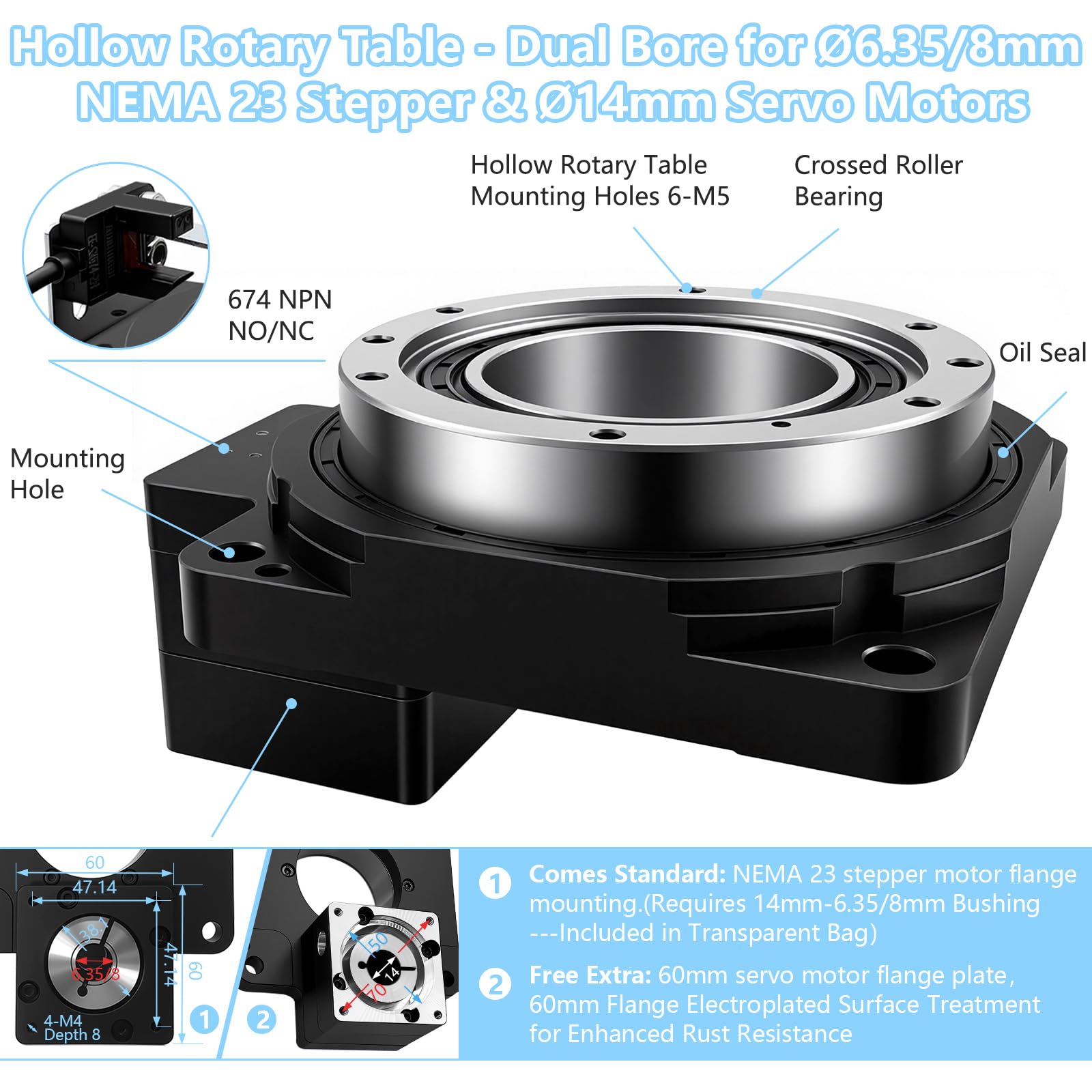

• 3. COMPACT 130MM HOLLOW SHAFT DESIGN The 130mm faceplate with a through-hole hollow shaft allows easy routing of cables, pneumatic lines, or laser optics through the center, saving valuable space in automated workcells. Perfect for robotic end-effectors, rotary fixtures, and assembly turntables.
• 4. HEAVY-DUTY 45KG LOAD CAPACITY Engineered to support both vertical and horizontal loads up to 45kg, this rotary stage handles heavy workpieces with ease. The rugged construction ensures long-term reliability in industrial environments like pick-and-place stations and packaging machinery.
• 5. PLUG-AND-PLAY FOR FAST INTEGRATION The integrated driver simplifies connectivity — just power and signal, and you're ready to run. Compatible with most CNC controllers, PLCs, and motion control systems. Ideal for automation retrofits, custom machinery, and robotics projects.
