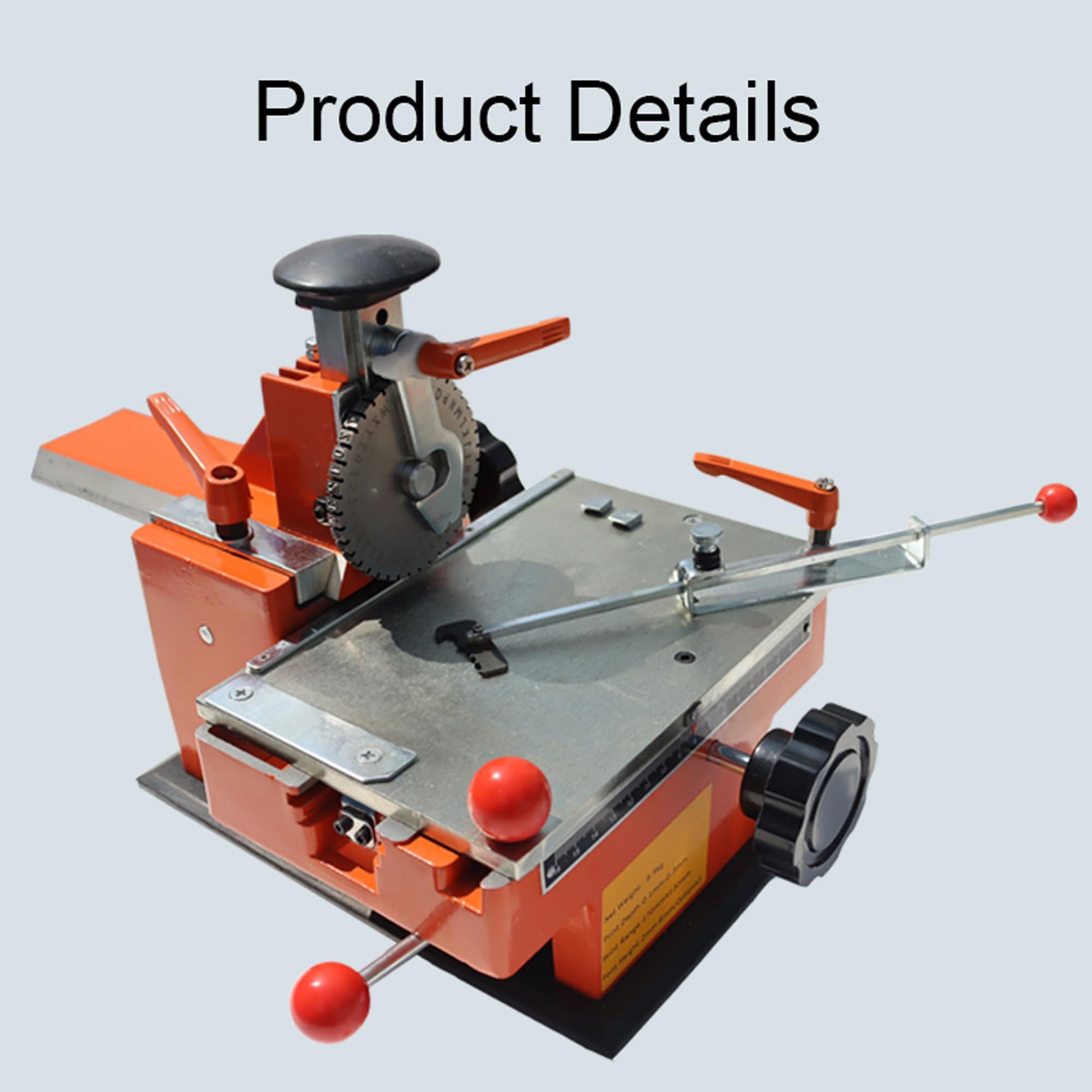

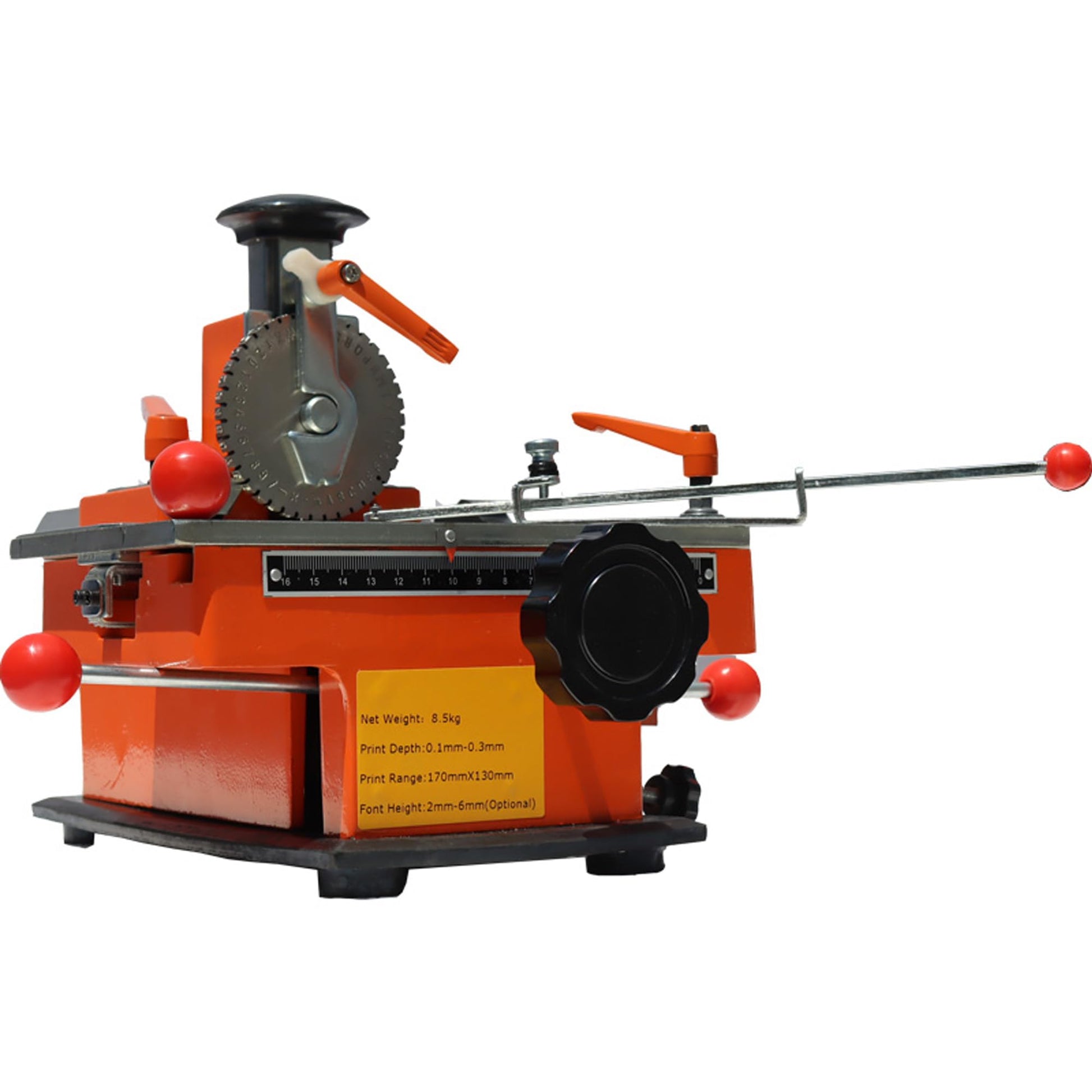

HQHAOTWU Semi-Automatic Sheet Embosser Metal Nameplate Marking Machine 4mm Metal Stamping Printer with Fixture for Printing Uppercase Letters Digits&Simple Symbols

Brand: HQHAOTWU

Features:

• 【Scope Of Application】This semi-automatic sheet embosser on all types of aluminum, copper, stainless steel, plastic tag for mechanical, electrical, pumps, valves, automobiles, motorcycles, electrical appliances. It embosses variable parameters: such as dog tag, specific model, date, batch number, serial number and so on.

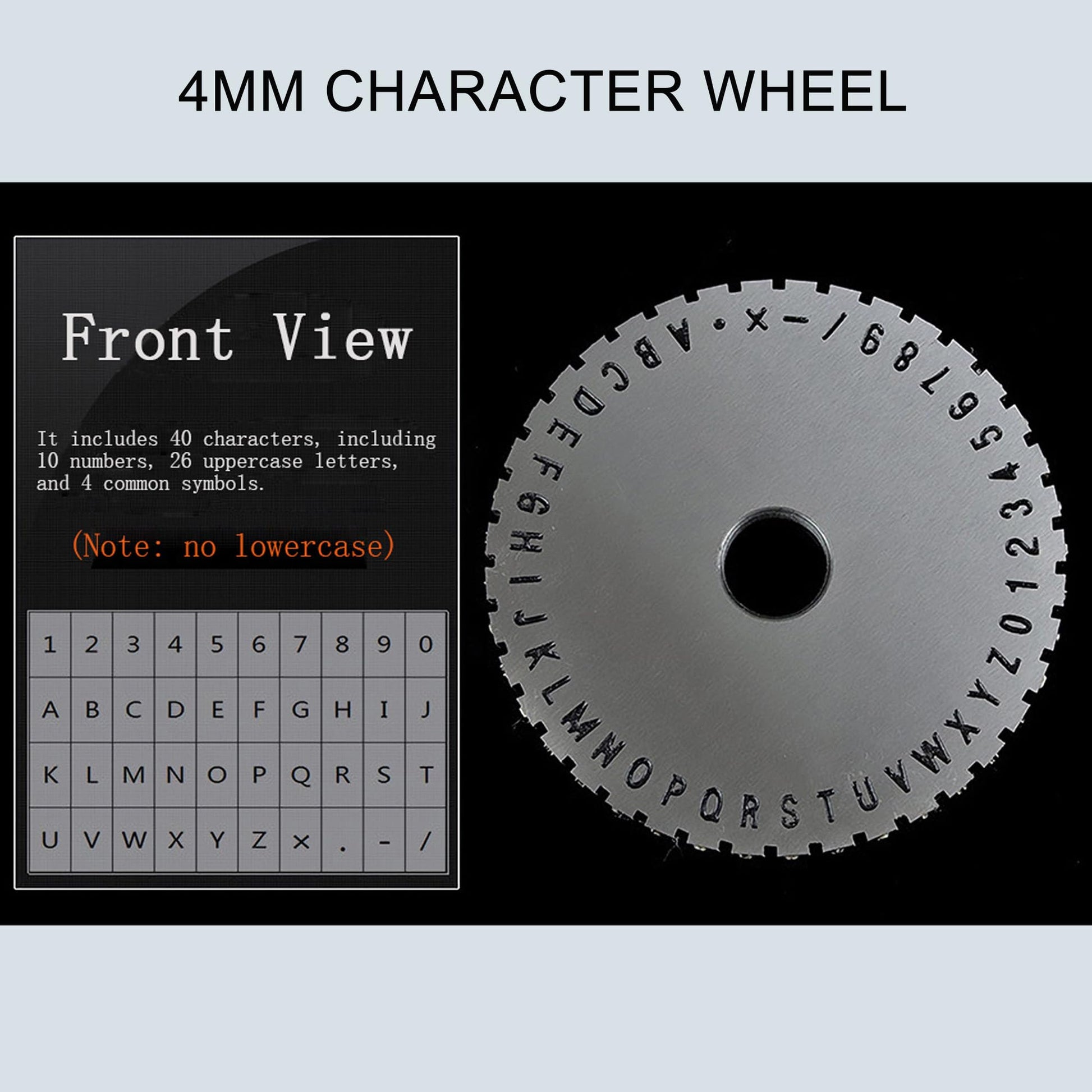

• 【Printable Characters】Printing content including: A B C D E F G H I J K L M N O P Q R S T UV W X Y Z 0123456789 . x / -
• 【4MM Font Size】The font size of this character wheel is 4MM. We also provide 2mm,3mm,5mm,6mm character wheel to choose. Changing character wheel is very easy.

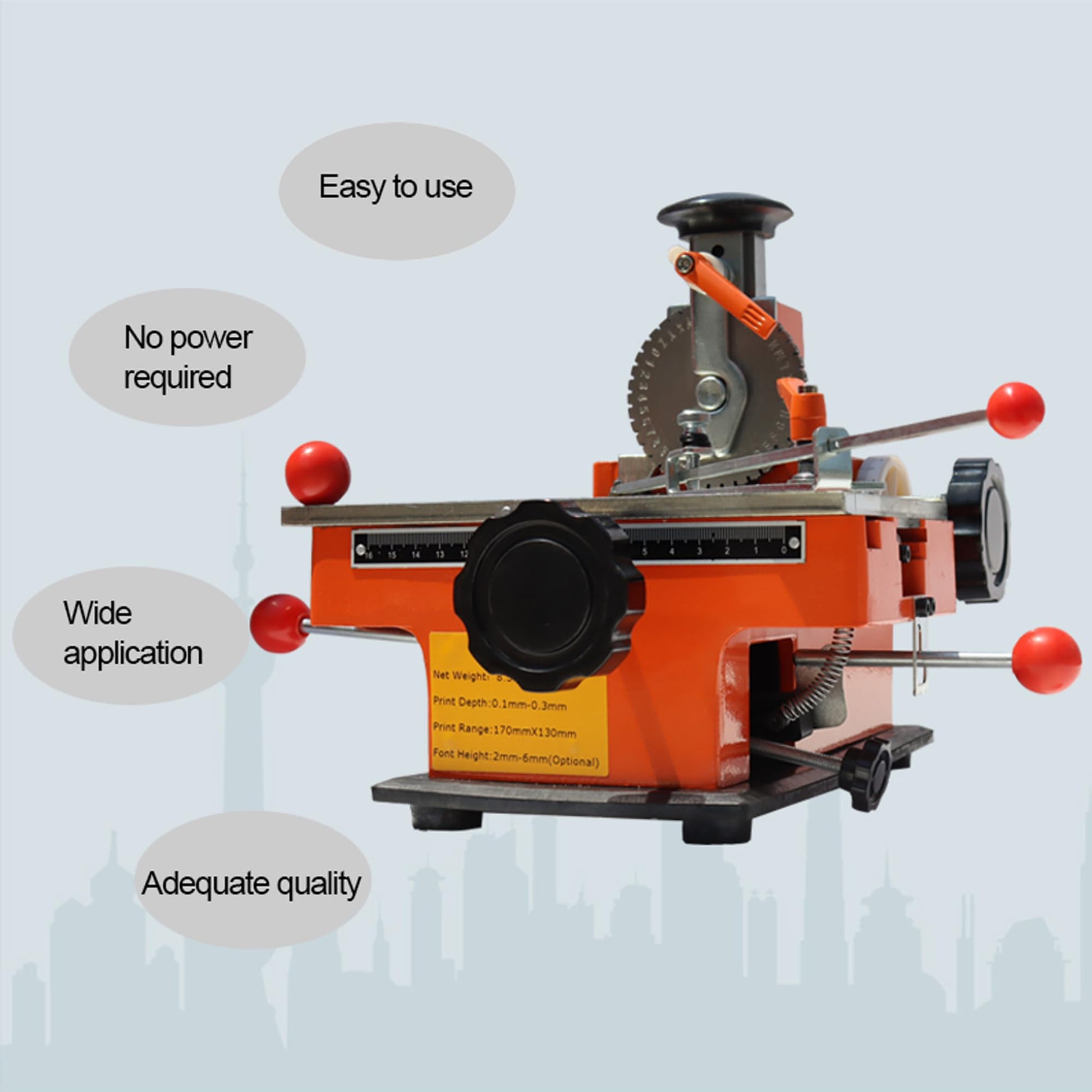

• 【Easy to Use】The external force (hand pressure or a rubber hammer) will emboss letters or numbers on the metal plate with a certain depth (0.1 ~ 0.3mm deep). Its stepless adjustment agent will adjust the embosser position, word spacing, and line spacing. Different letters and numbers can be easily changed by turning around the plate.
• 【Maximum label size】Maximum label size: 170*130mm（Tie rod clamps can only be used within the specifications of the square nameplate <100mm*50mm, and other specifications should be fixed with magnetic steel.）

Part Number: DX211001

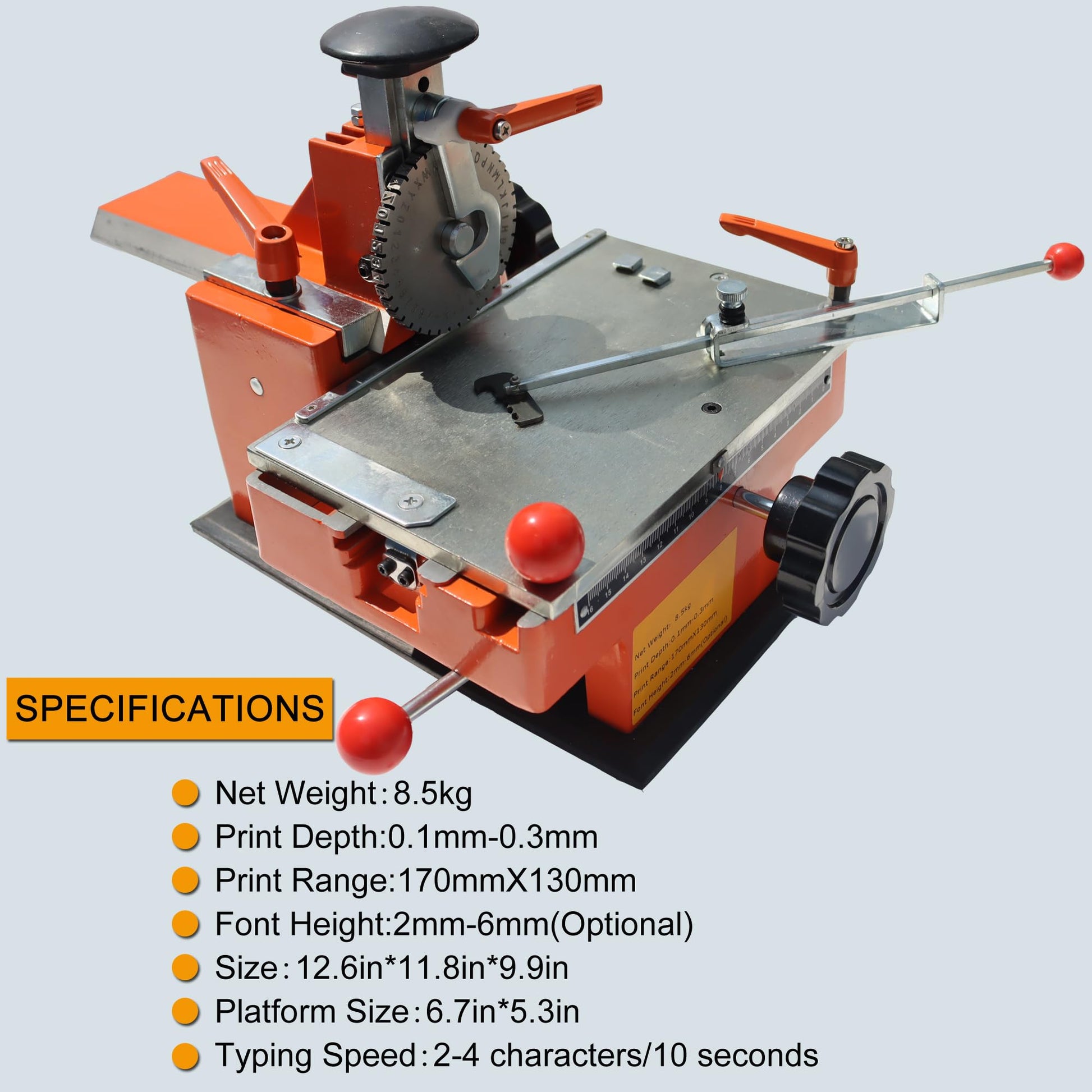

Details: Specifications:
Print Depth:0.1mm-0.3mm
Print Range:170mmX130mm
Font Height:2mm-6mm(Optional)
Size: 12.6in*11.8in*9.9in
Platform Size: 6.7in*5.3in
Typing Speed: 2-4 characters/10 seconds
Net Weight: 8.5kg
How to use:
1. How to place the nameplate: Place the nameplate on the upper left corner of the workbench, and fix it with a nameplate clamp or magnetic steel so that the nameplate is not loose.

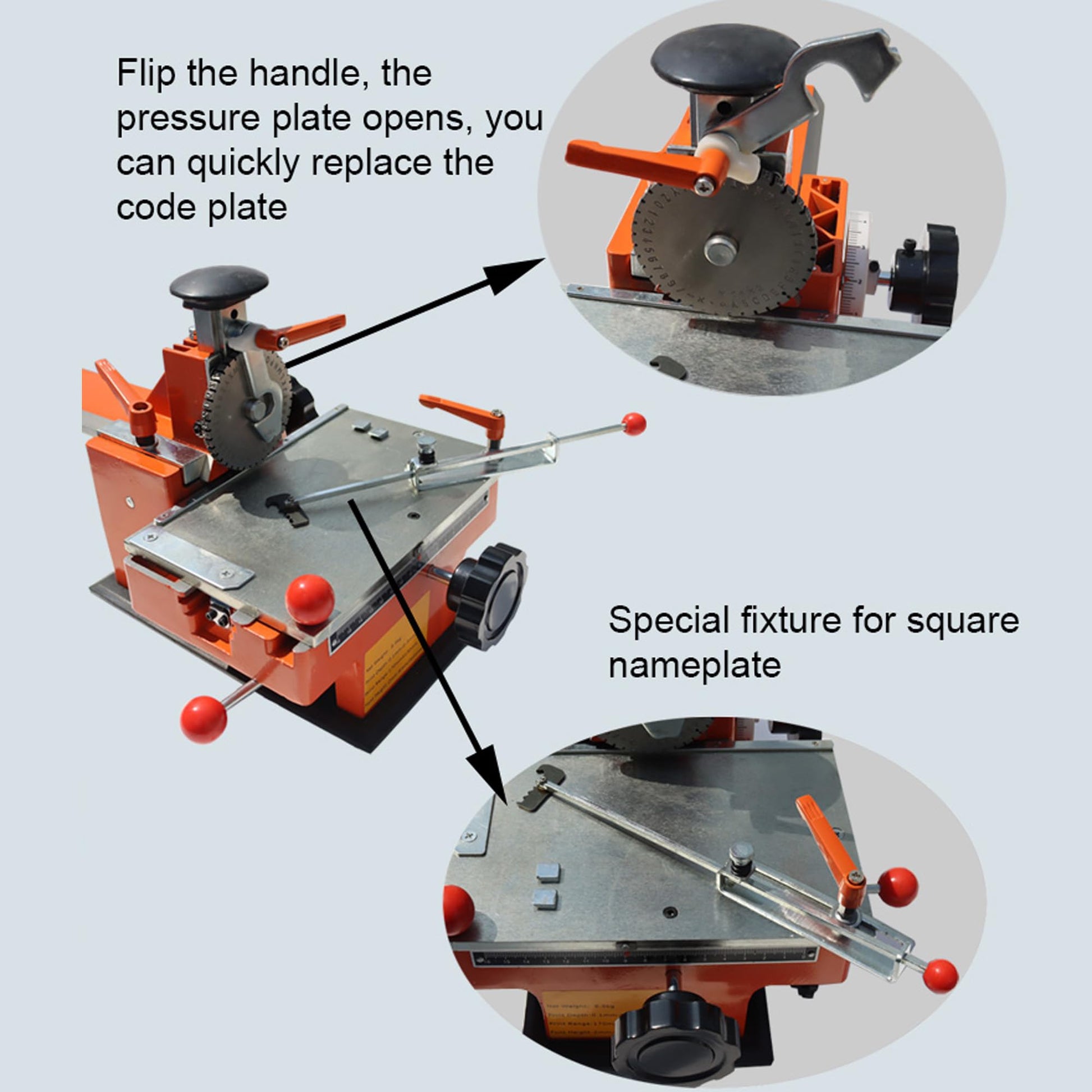

2. The loading and unloading of the letter wheel: Turn the handle and open the pressing plate to quickly replace the letter wheel.

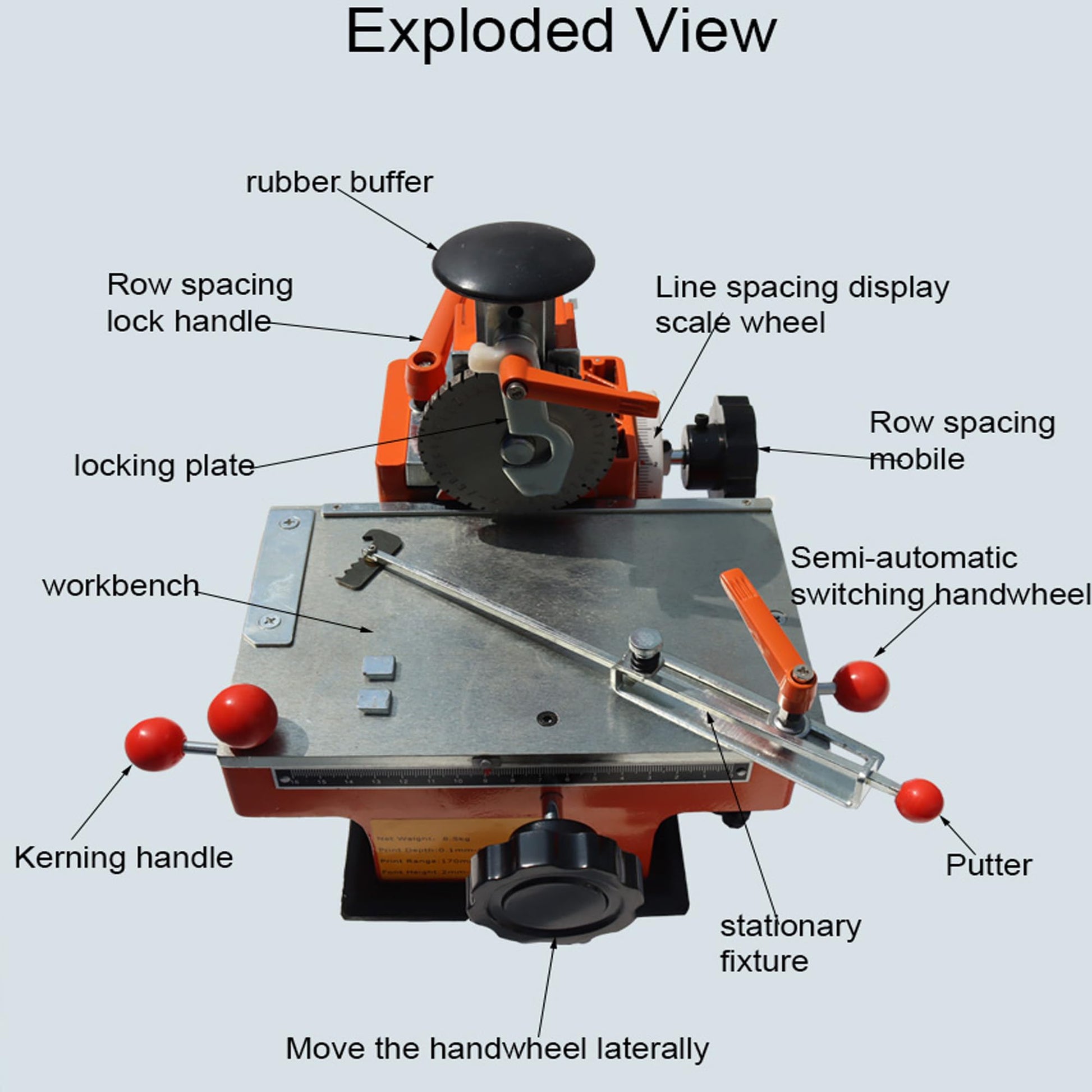

3. Printing and starting position adjustment: first measure the row spacing position of the nameplate with a steel ruler, then place the nameplate on the upper left corner of the workbench, adjust the fixed fixture, switch the clutch switch handle (disconnected state), and coordinate the rotation of the row spacing handwheel and Move the hand wheel on the table, move the longitudinal head to the printing starting position (the scale wheel shows the position of the line spacing), lightly lock the line spacing handle, switch the clutch handle, press the feed handle, and turn the word spacing handwheel at the same time, adjust the self-spacing, and rotate the characters.The code wheel aligns the characters to be printed with the concave notch, taps the rubber head with the palm to type a character, presses the feed handle, moves one grid, and achieves continuous printing with the same action operation.
