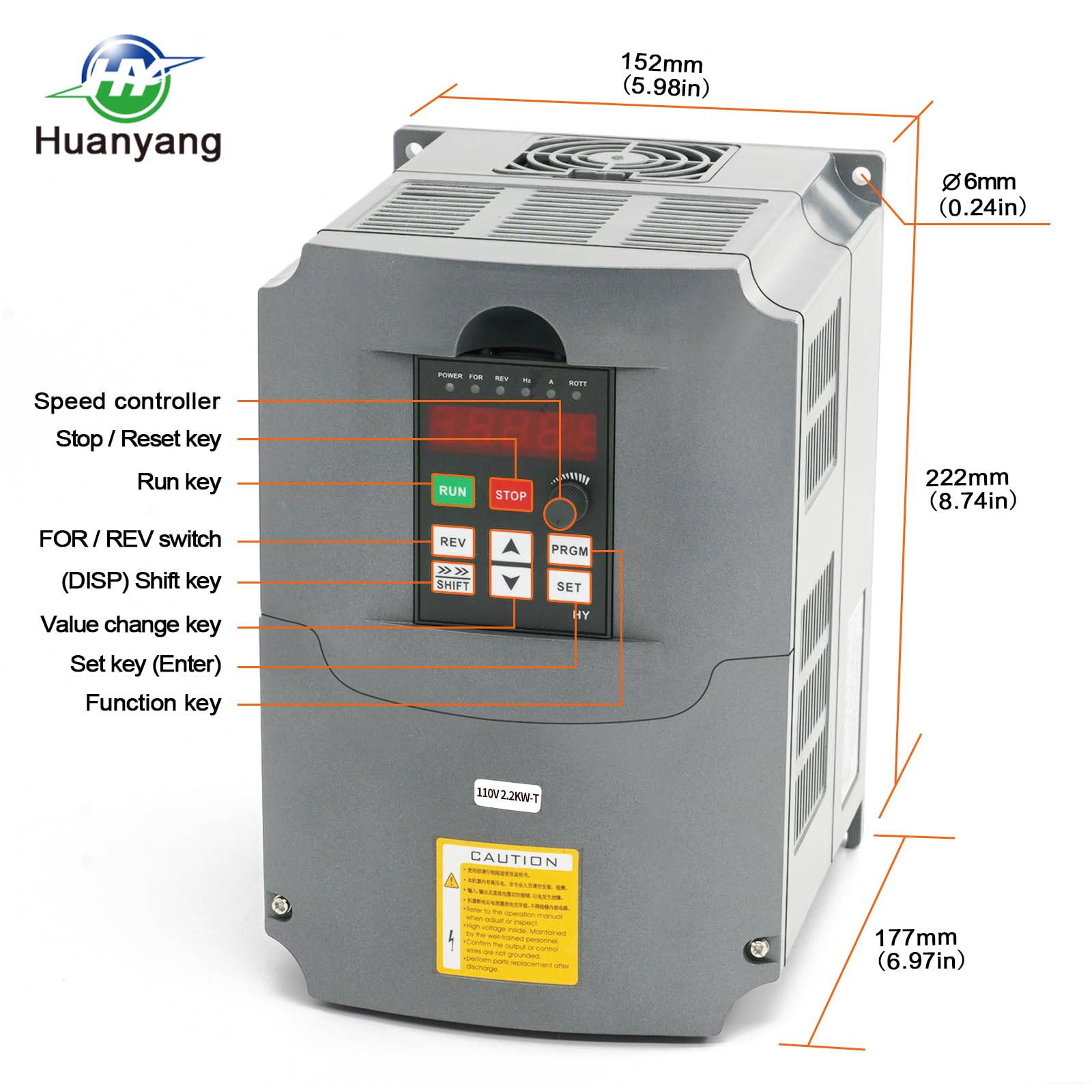

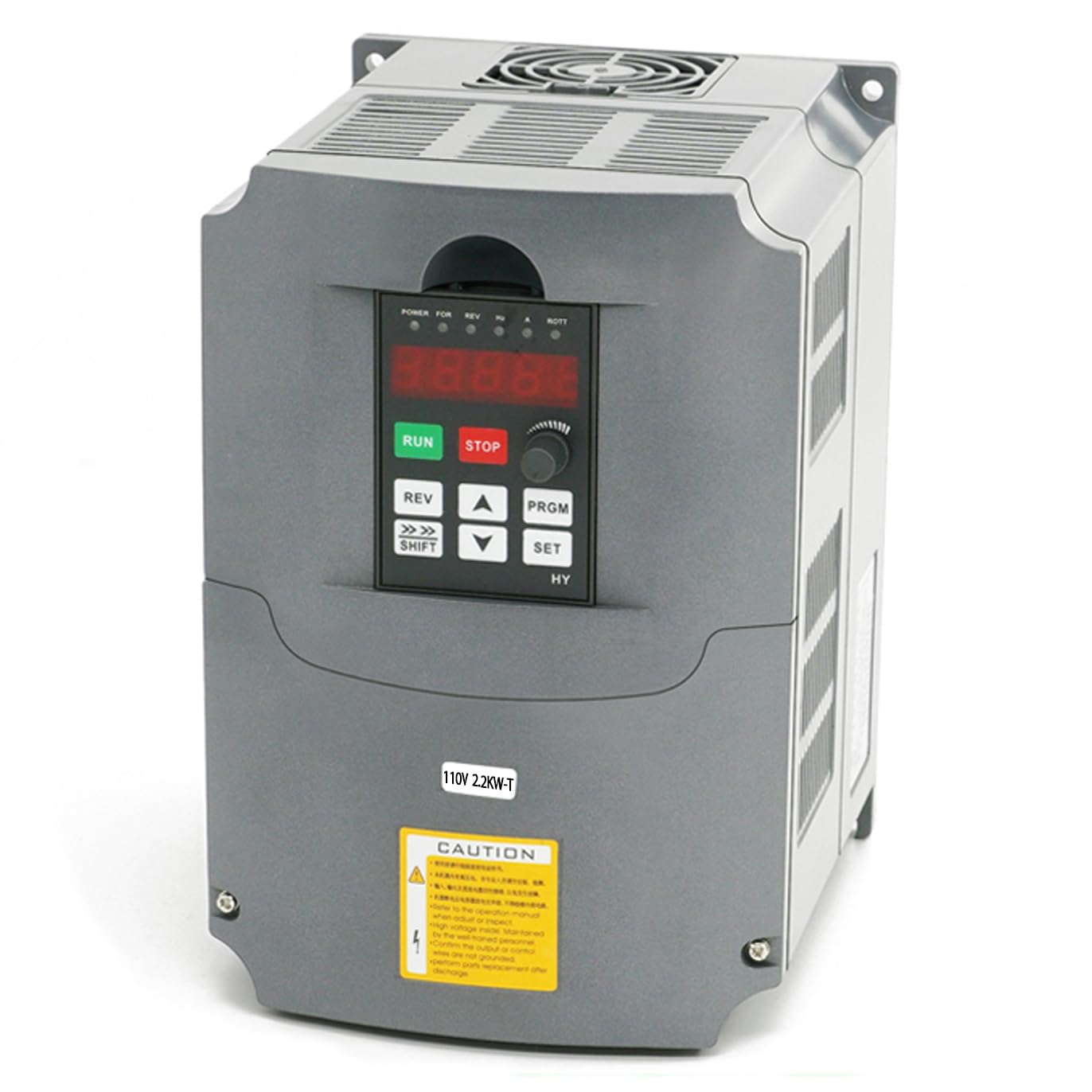

Huanyang VFD,110V 1-Phase to 220V 3-Phase,Variable Frequency Drive,for 220v 3phase 50/60hz Motor Speed Control (110V Input/220v Output-3hp)

Brand: HY HUANYANG

Features:

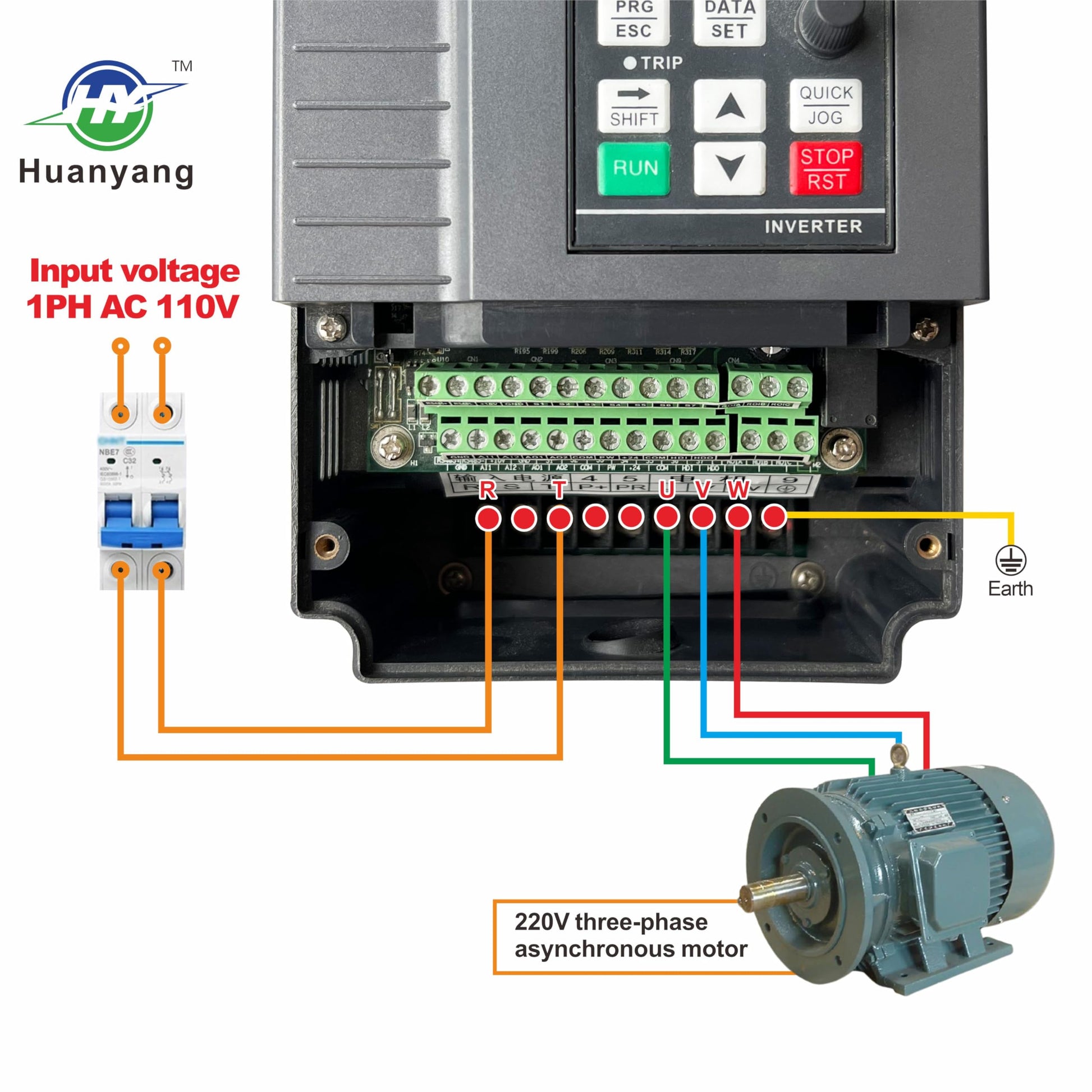

• The VFD can run 3-phase 220v motor with 110v AC single-phase input
• Supports mcah3 function and RS-485 communication

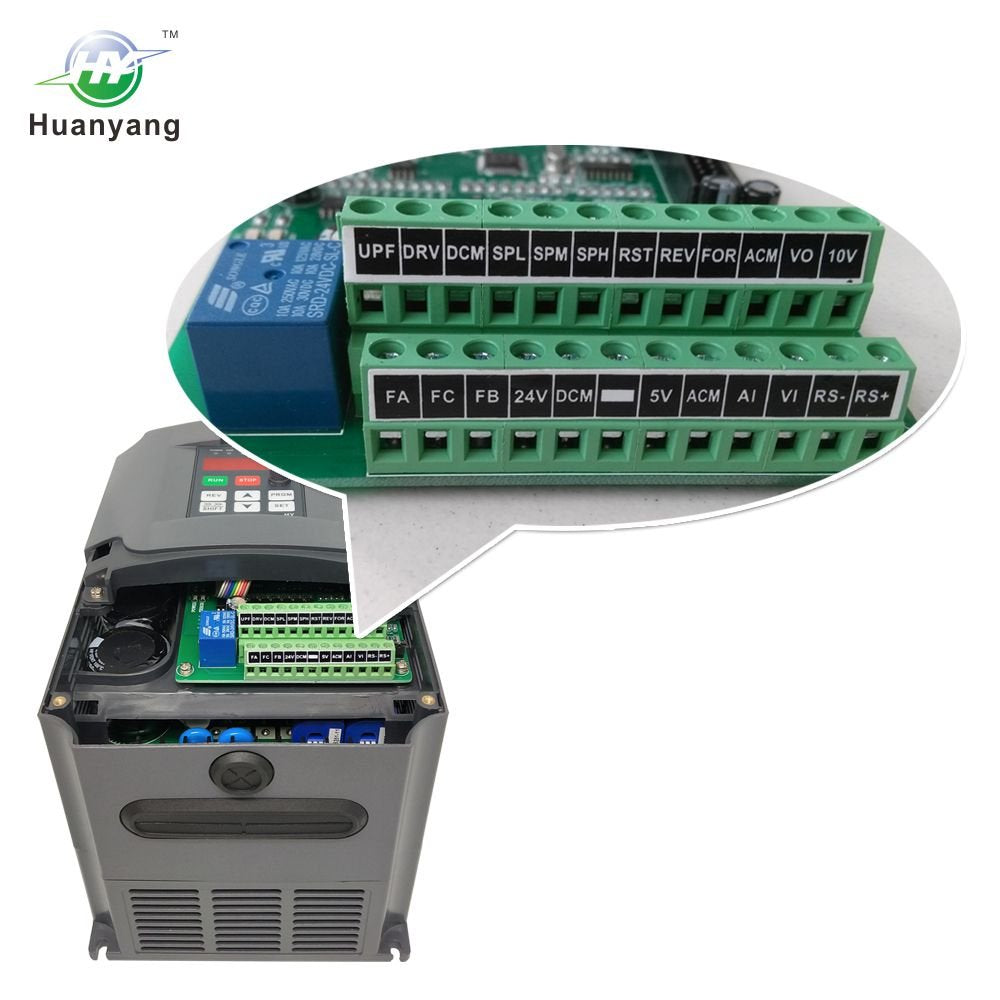

• Supports remote potentiometer speed control and remote switch start/stop
• Easy to connect the motor/easy to use
• Low failure rate/Designed to be non-flammable
• The VFD has the advantages of low noise and low electromagnetic interference
• Achieved CE listed
• 1 Year replace .If there is an error code in the vfd and you do not know how to operate, pls contact me or the after-sales service

model number: HY02D211B-T.

Part Number: HY02D211B-T.

Details: NOTE：the item is not fit for capacitance motor(single phase motor) ,motor loads are not allowed to be too heavy

specification：
Input Voltage : 110v AC single phase
Input Frequency: 47-63Hz
Output Voltage : 220V AC three phase
Output Frequency: 0-50Hz / 0-60Hz
Suitable 220V 3phase Motor: ≤2.2KW
Feature：
●RS485 communication port, adopting standard international MODBUS main circuit control
●CWith extremely strong anti-jamming capability
●Low output ratting torque0.5HZ-150%, low speed running ability
●Carrier adjustable by 16KHZ, completely soundless working environment
●Broad voltage working area, normal running in 304V-456V
●Auto voltage regulation (AVR) technique, for ensuring the inverter load capability
●Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes
●With perfect error protection and short circuit starting protection capability
●PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability
●Easy PLC function can realize 16 legs of speed and inverter control function

Package Dimensions: 11.6 x 10.4 x 9.0 inches
