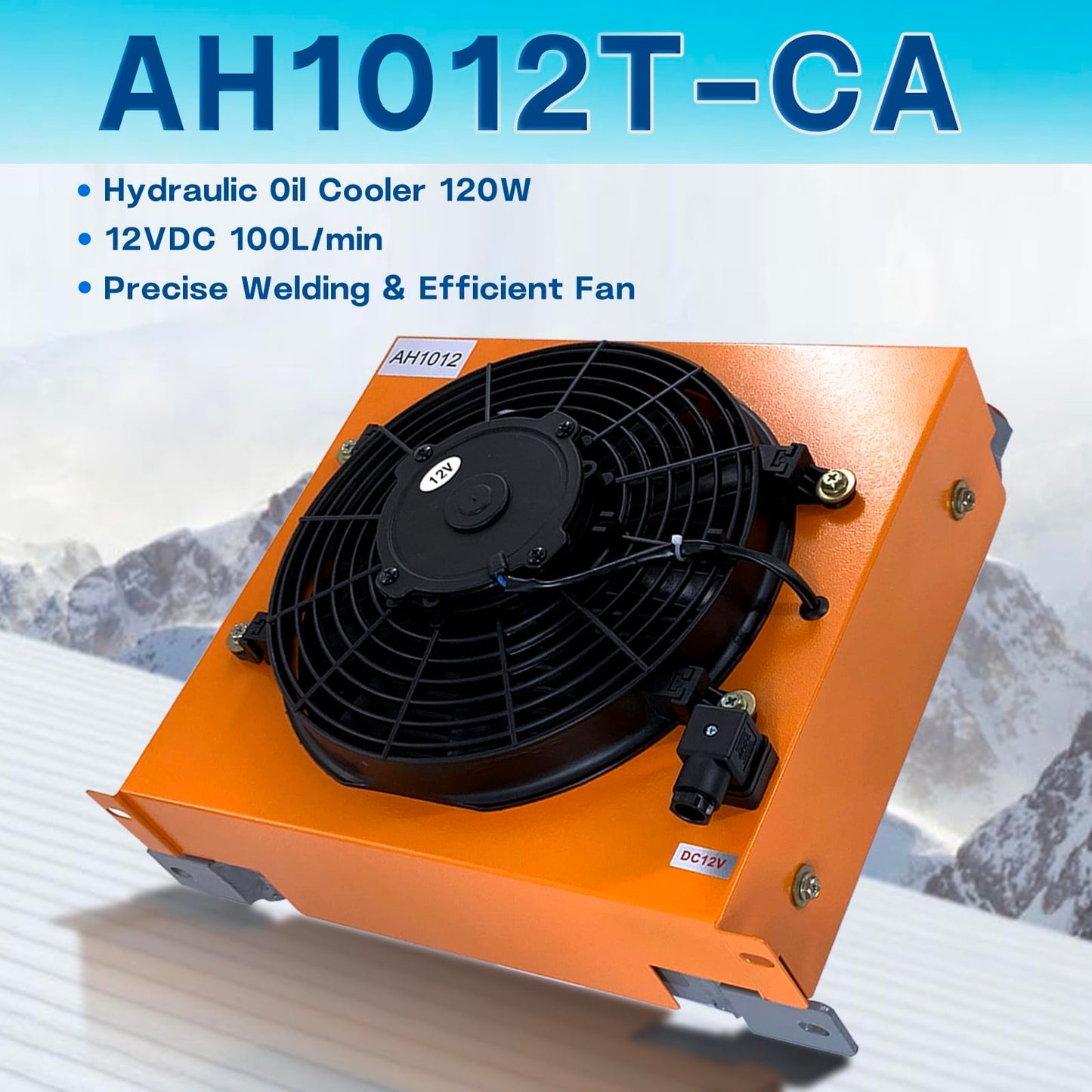

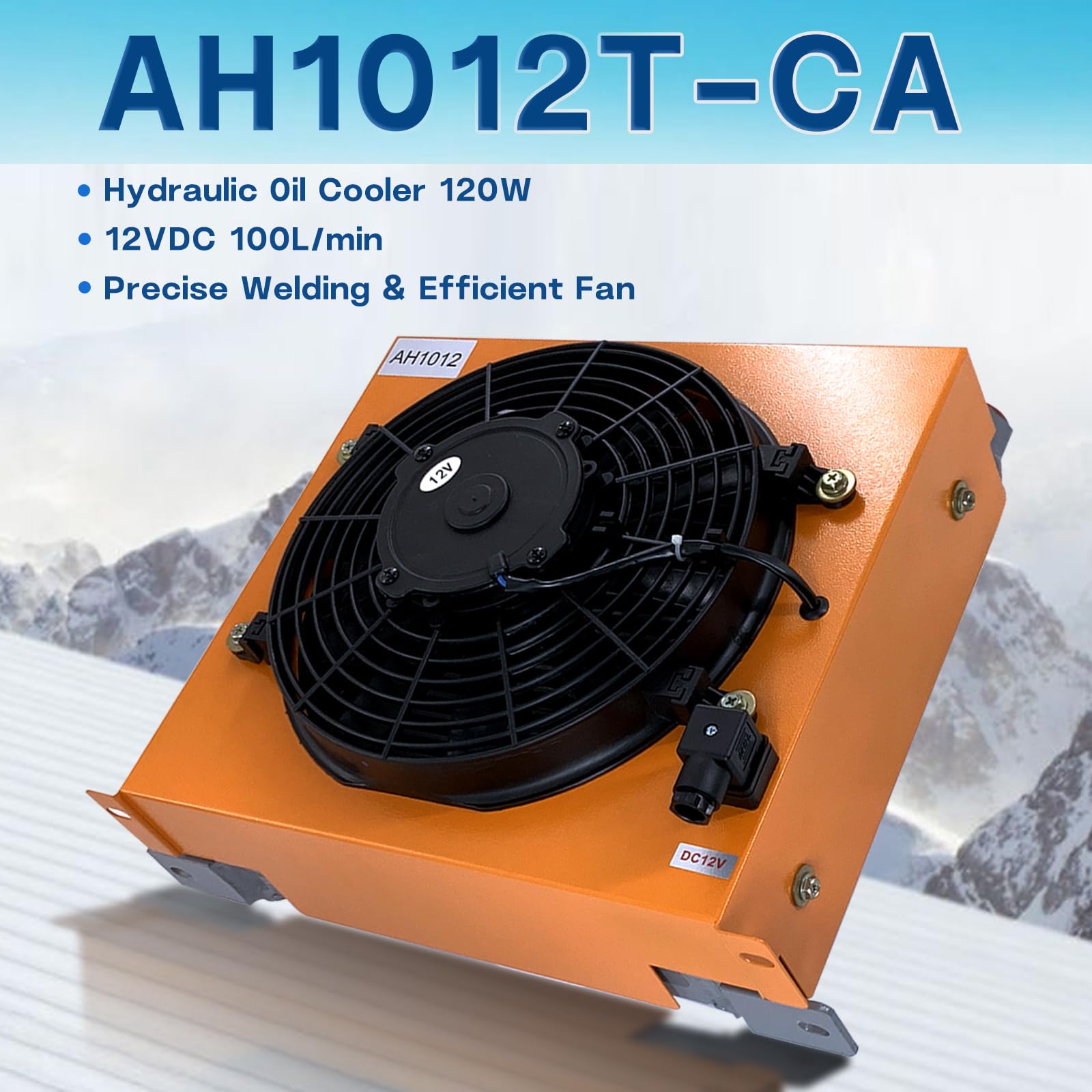

Hydraulic Oil Cooler AH1012T-CA Air Cooled Oil Radiator 120W 12VDC 100L/min Precise Welding & Efficient Fan Replace # AH1012T

Brand: ZHENYUAN

Features:

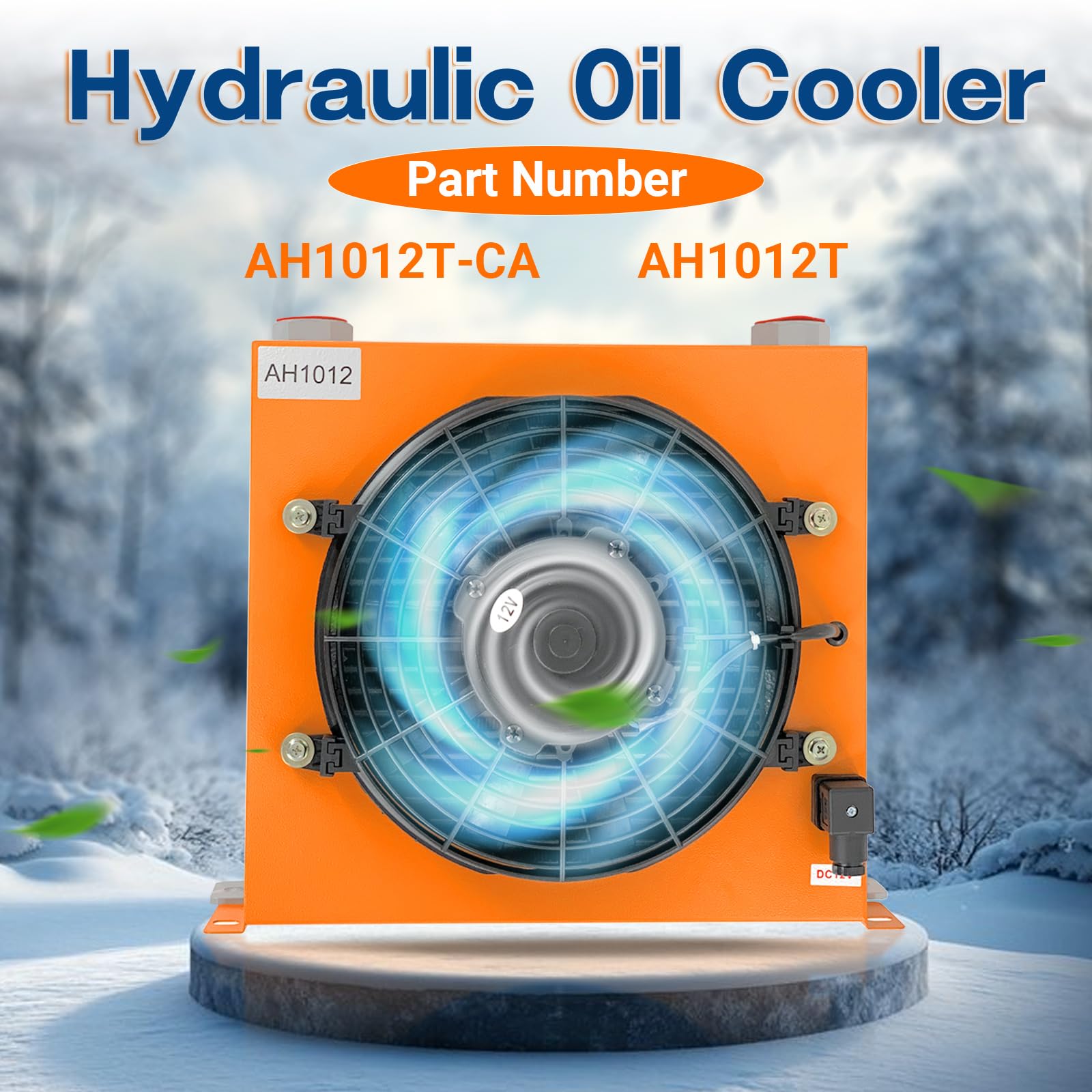

• 【 Part Number】AH1012T-CA AH1012T

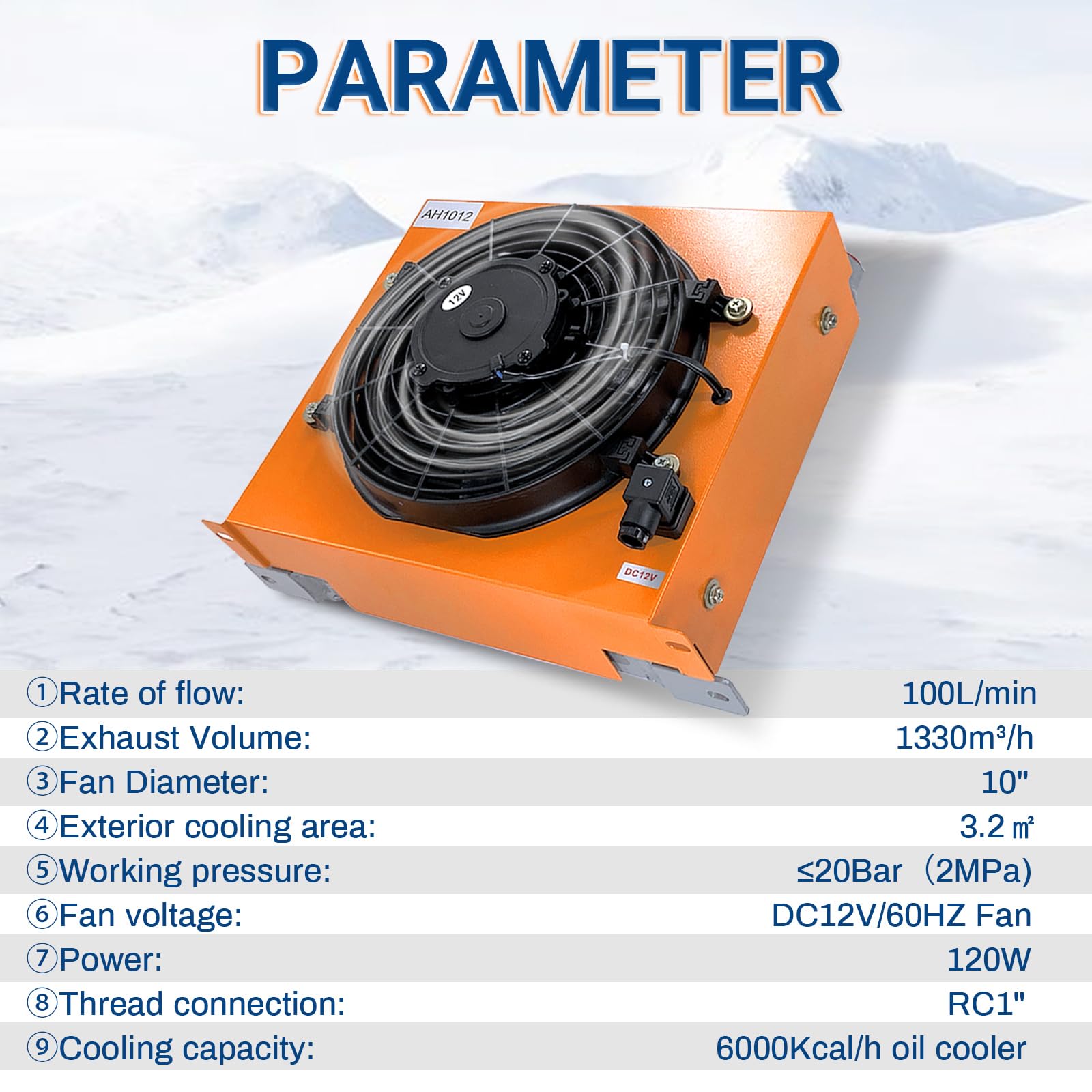

• 【PARAMETER】 ①Rate of flow: 100L/min; ②Exhaust Volume: 1330m³/h; ③Fan Diameter: 10'; ④Exterior cooling area: 3.2㎡; ⑤Working pressure: ≤20Bar（2MPa);⑥ Fan voltage: DC12V/60HZ Fan; ⑦Power: 120W; ⑧Thread connection: RC1'; ⑨Cooling capacity: 6000Kcal/h oil cooler
• 【APPLICATION】hydraulic air coolers AH1012T are widely used in oil pressure systems, lubrication systems, transmission oil systems, ship parking oil pressure systems, vehicle oil pressure systems, power systems, etc

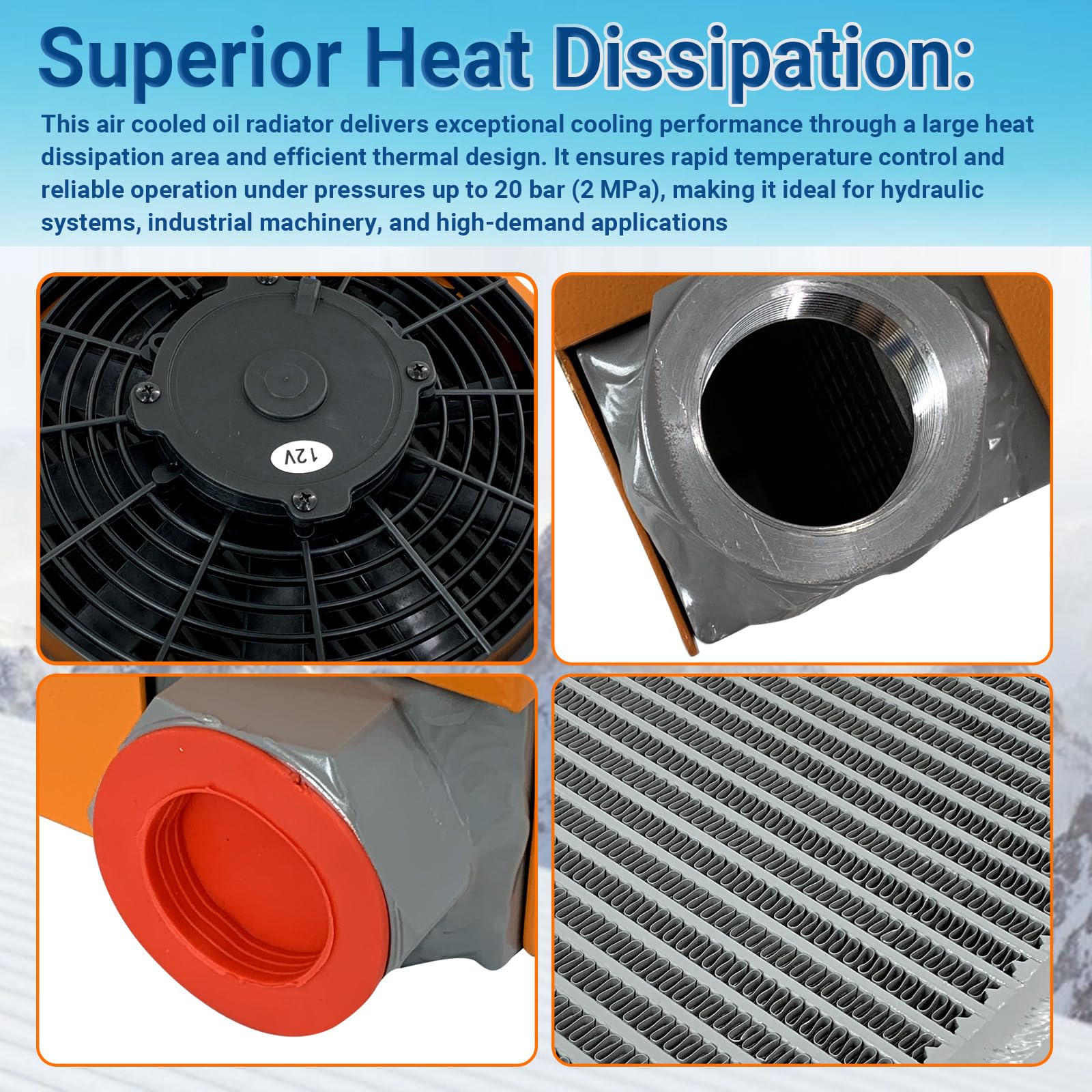

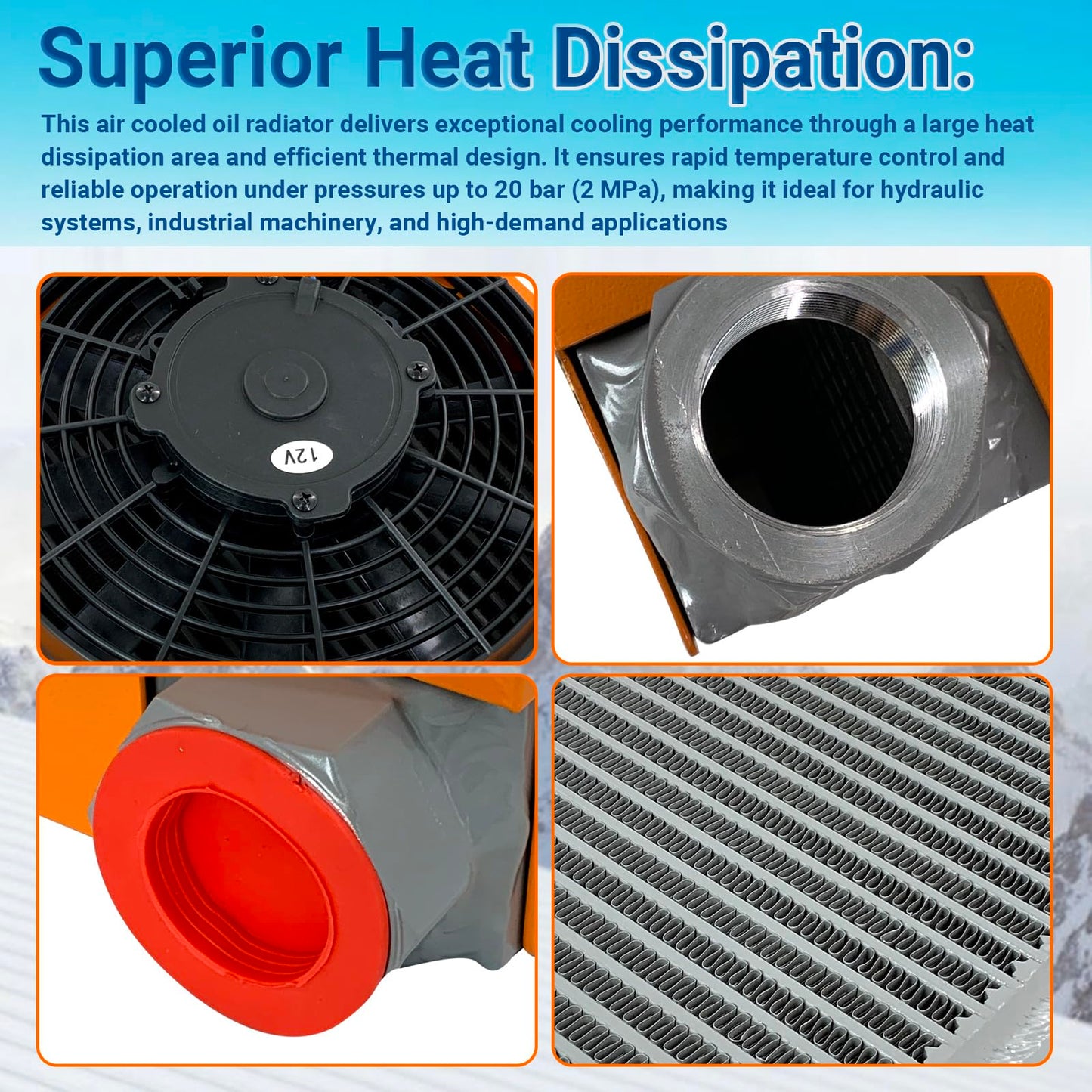

• 【Superior Heat Dissipation】This air cooled oil radiator delivers exceptional cooling performance through a large heat dissipation area and efficient thermal design. It ensures rapid temperature control and reliable operation under pressures up to 20 bar (2 MPa), making it ideal for hydraulic systems, industrial machinery, and high-demand applications
• 【Premium Service】 We will provide high-quality Hydraulic Oil Cooler with a simple, Please contact us with any questionswe are here to assist you

model number: Air Cooled Oil Radiator

Part Number: AH1012T-CA AH1012T

Package Dimensions: 16.5 x 15.0 x 7.5 inches
