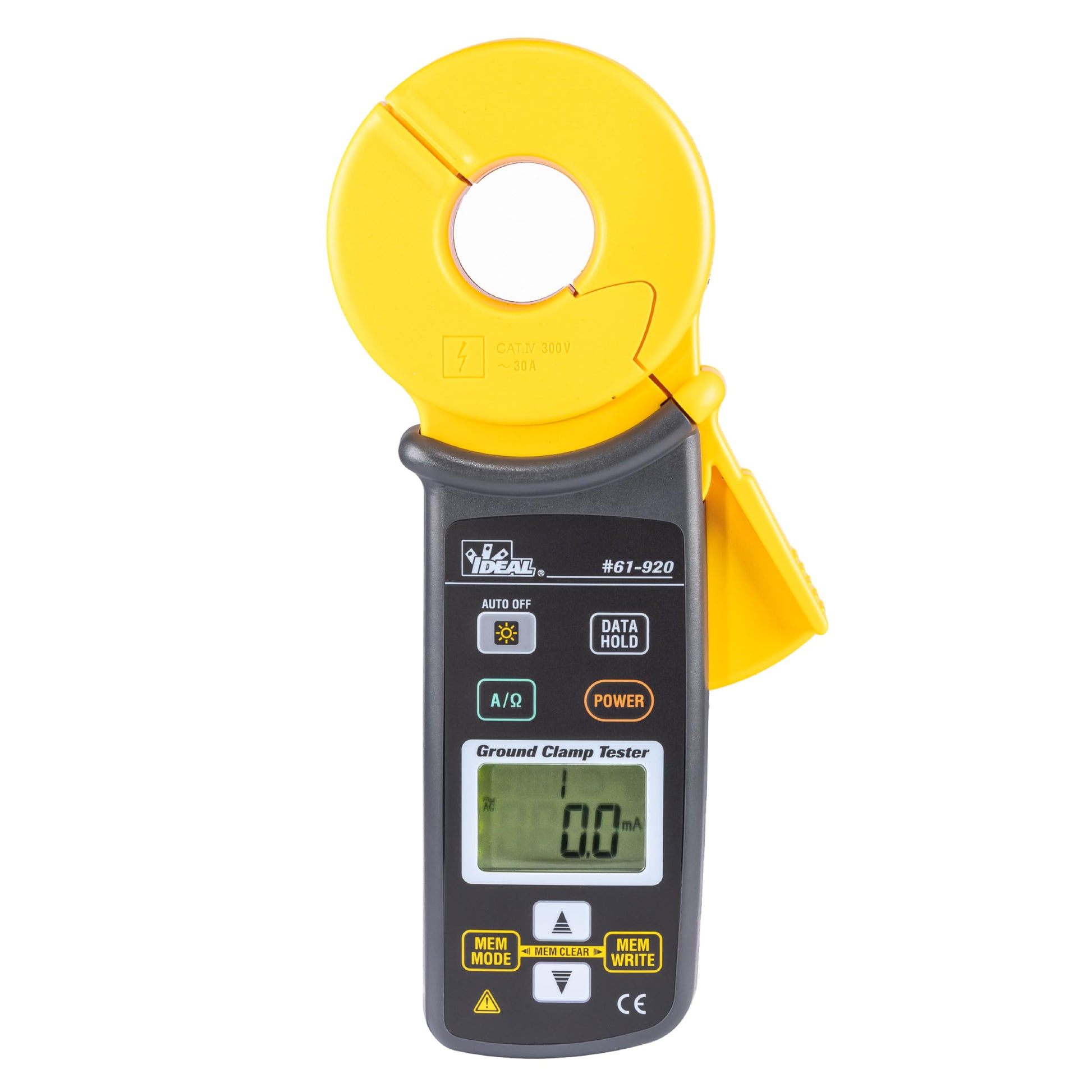

Ideal Electrical Ground Resistance Clamp Meter, Digital Auto-Ranging, Measures 0–1200Ω & 0–30A AC, True RMS, Noise Check, Data Hold, Continuity Buzzer, Memory Save, Auto Power-Off, Electrical Tools

Brand: Ideal Industries

Color: Yellow

Features:

• AUTO-RANGING MEASUREMENT: This digital clamp meter measures ground resistance up to 1200Ω and AC current up to 30A quickly and accurately
• TRUE RMS ACCURACY: This electric meter tester ensures reliable AC current readings even on distorted waveforms with harmonics
• NOISE DETECTION: This electric tester displays “NOISE” on the LCD when current is present on the ground electrode or wire
• CONVENIENT DATA FUNCTIONS: Data hold captures readings, continuity buzzer alerts under 10Ω, and memory save stores results on this ground clamp meter

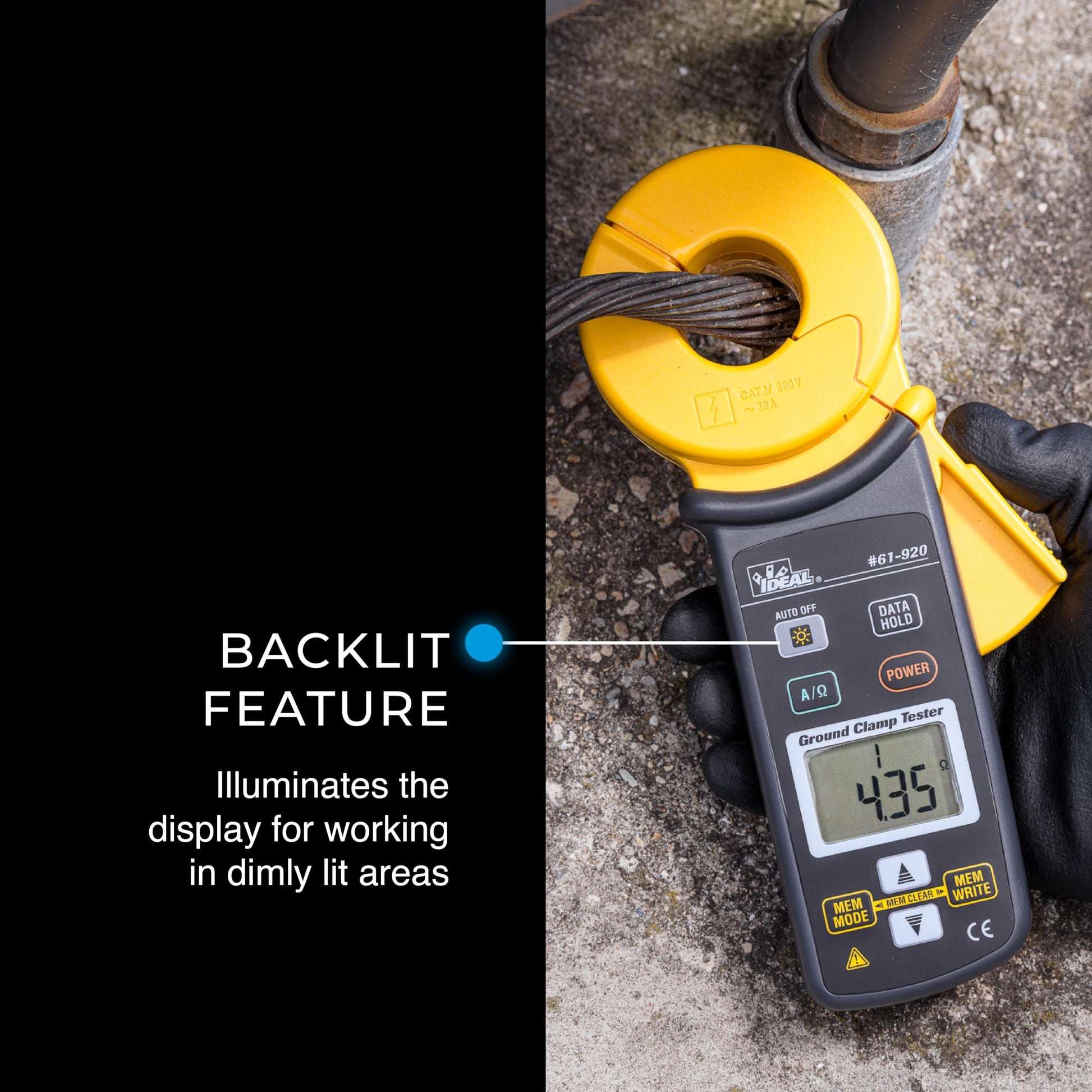

• BACKLIT DISPLAY: This electrical tester illuminates readings for easy use in dimly lit or confined spaces
• SAFETY & DURABILITY: This model features auto power-off that conserves battery; IDEAL clamp meters meet CAT IV 300V and IEC safety standards

model number: 61-920

Part Number: 61-920

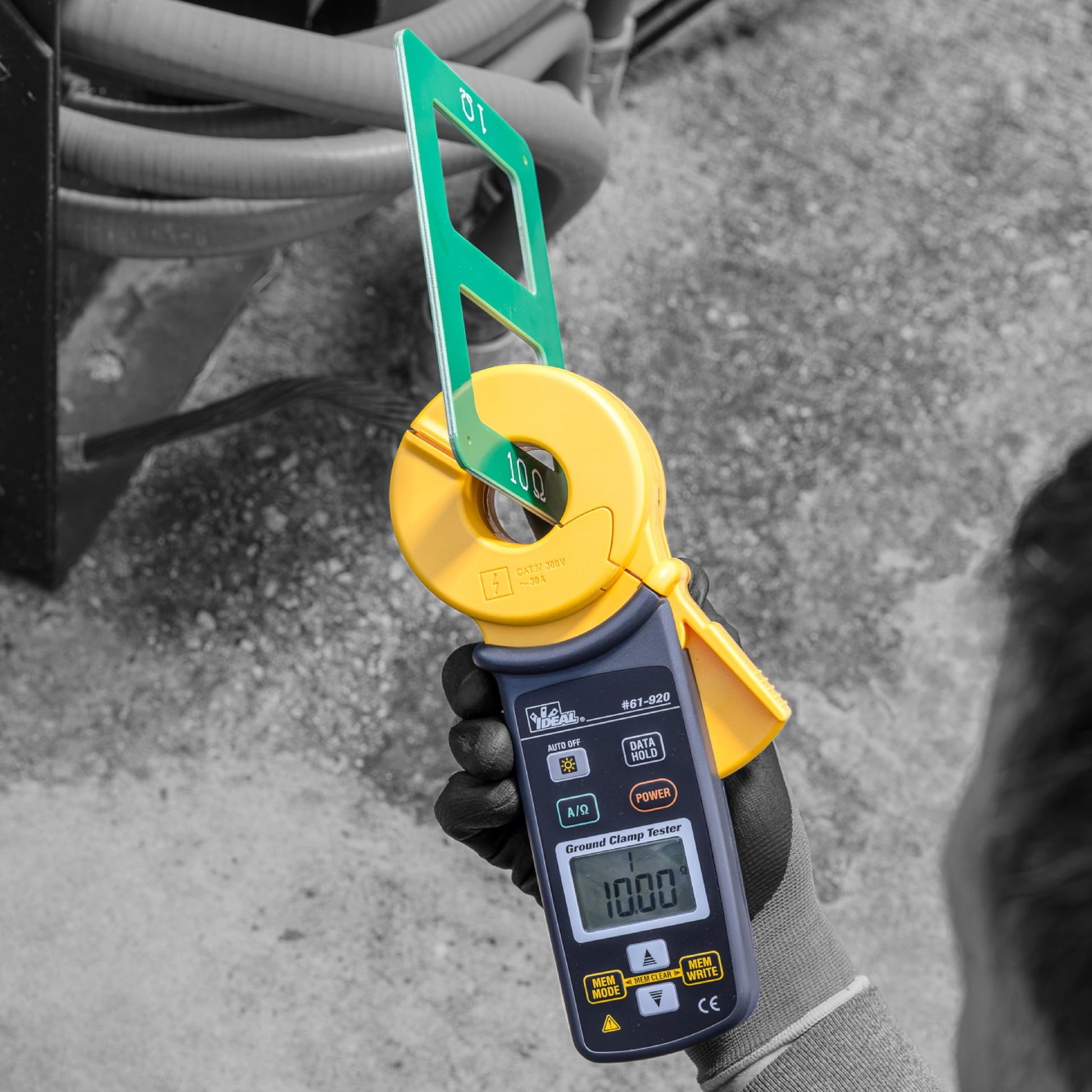

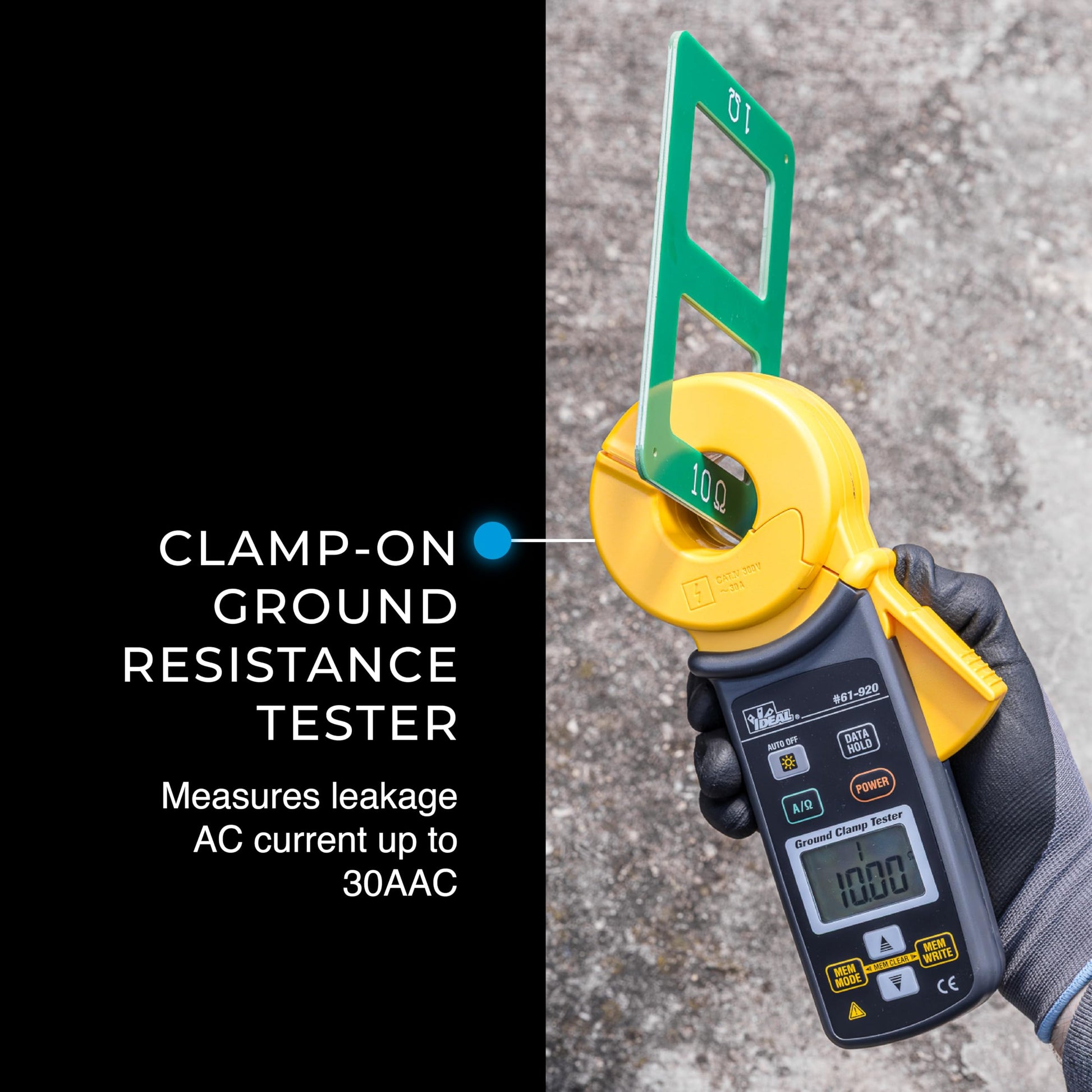

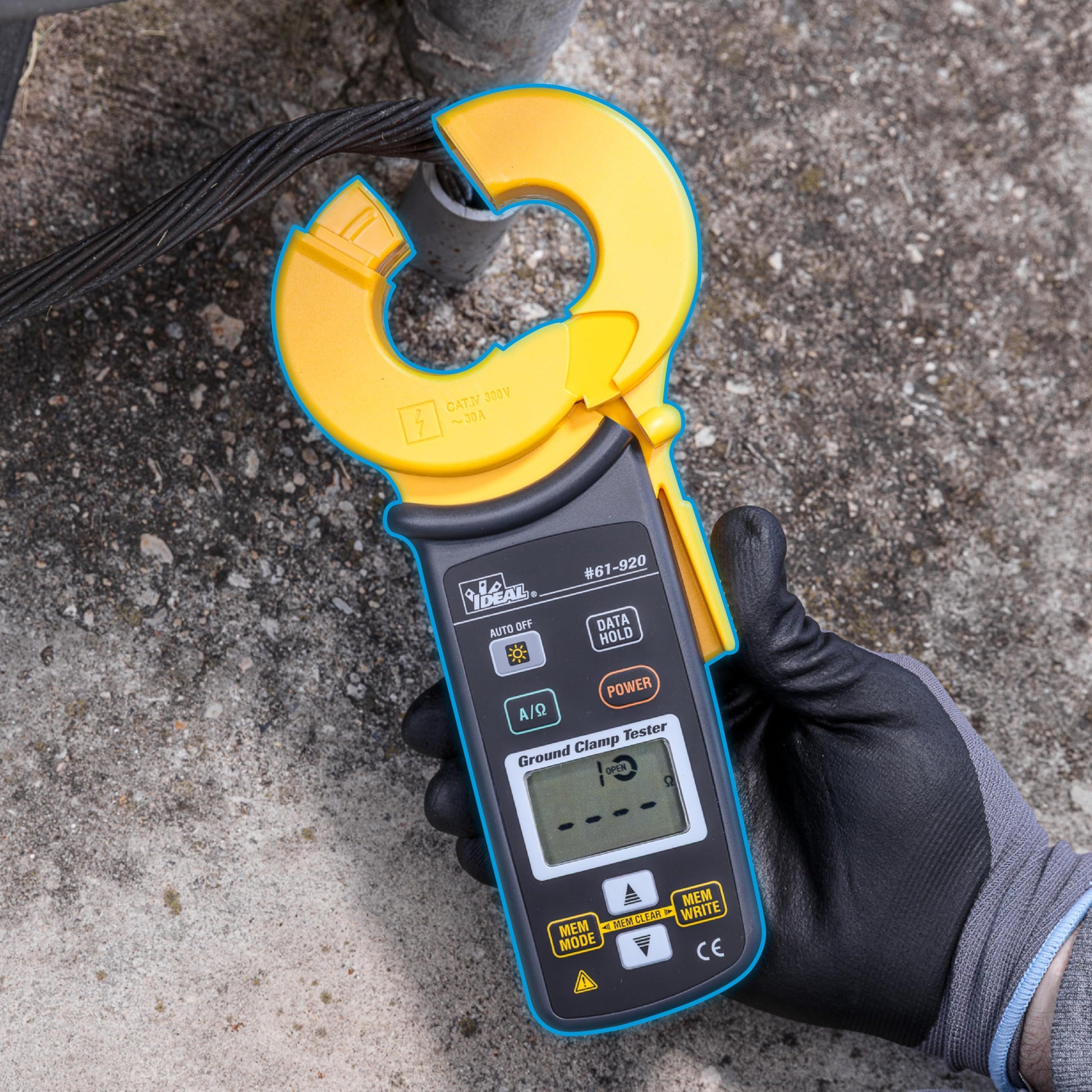

Details: The Ground Resistance Clamp Meter is a digital, auto-ranging clamp-on electrical measurement tool designed for fast and accurate measurement of ground resistance and leakage AC current. Simply clamp around a ground conductor, ground rod, or equipment ground to measure resistance up to 1200Ω and AC current up to 30A without disconnecting the circuit. Equipped with True RMS technology, this ground tester reports accurate readings for AC current even on distorted waveforms caused by harmonics. The noise check function identifies current on the ground electrode or wire, displaying “NOISE” on the LCD to help ensure reliable readings. Additional features include data hold for capturing readings, a continuity buzzer for resistances of 10Ω or less, backlit display for low-light environments during electrical work, and memory save to store measurements for easy reference. Built for safety and convenience, this meter is auto power-off enabled to conserve battery life and meets IEC61010-1:2001 (CAT IV 300V) and IEC61010-2-032:2002 standards. Rugged and versatile, this clamp meter is a suitable addition to essential electrician tools for contractors, technicians, and maintenance professionals performing ground system testing and troubleshooting.

EAN: 0783250619207

Package Dimensions: 14.4 x 12.8 x 5.2 inches
