INTBUYING 110V Reflow Oven T962 v2.0 800W Micro-computer Control Reflow Soldering Machine with 7.1x9.3Inch Soldering Area Drawer Type Lead Infrared IC Heater Free Reflow Soldering Machine

Brand: INTBUYING

Features:

• Technical Parameter: Power supply: AC110V/60HZ,AC110V/60HZ, rated power: 800 W, drawer panel area: 7.1x9.3 Inch (180x235 mm), temperature range: 100℃-350℃, cycle time: 1～8 min, rated duty cycle: 100%, machine size: 12.2x11.4x6.7inch (310 x 290 x170 mm)
• Large Infrared Soldering Area: With 11.8x12.6 Inch large effective soldering area, greatly increase the usage and save investment; adopts fast infrared radiation and circulating air heating, the temperature is more accurate and uniform during working
• Good Performance: This reflow soldering machine adopts microcomputer control, equipped with visual drawer type workbench, so that the whole welding process is automatically completed under your supervision; and preset with 8 intelligent temperature control curves. The curve display operation is more intuitive than the digital display, and the operation status is monitored in real time

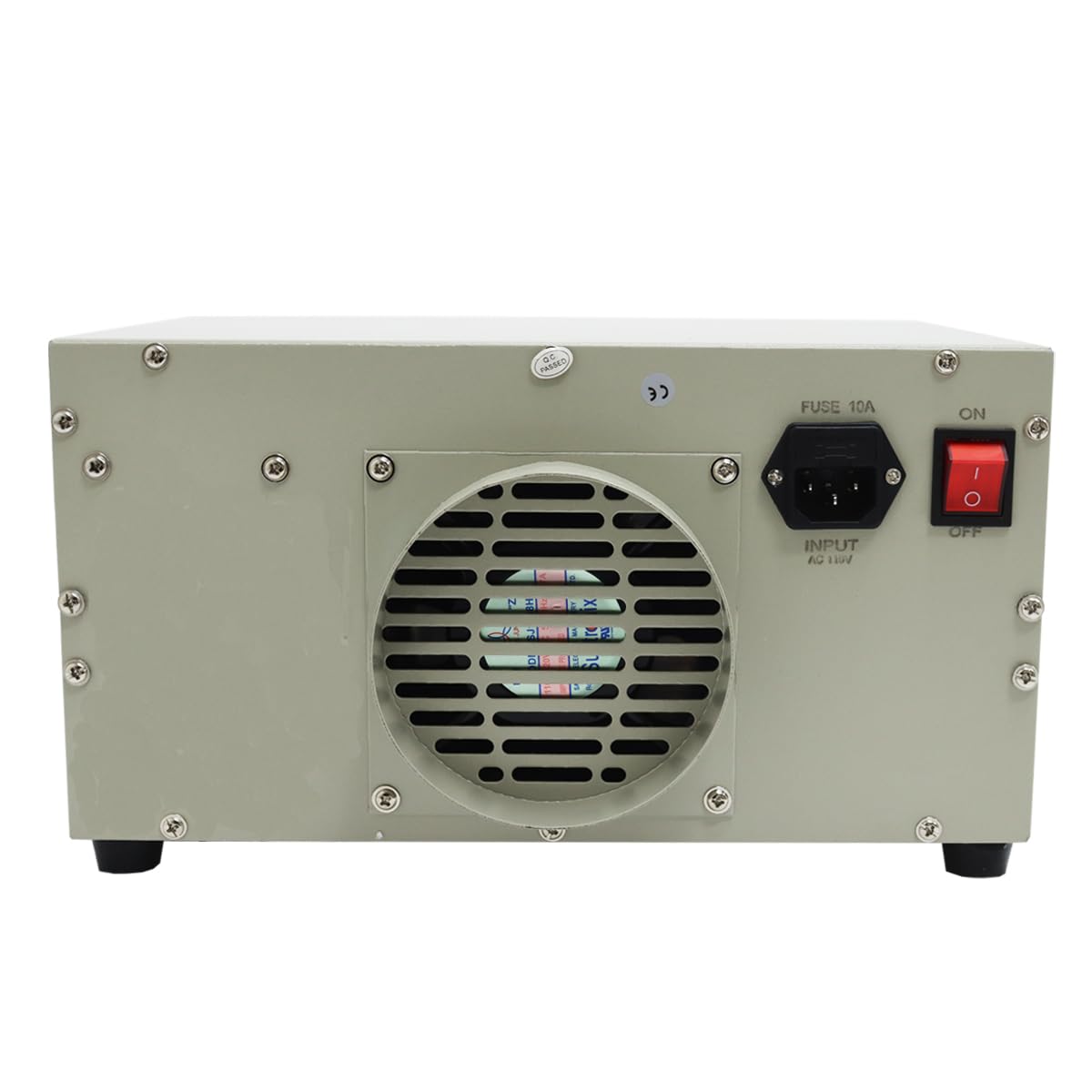

• Intimate Design: The automatic infrared heater soldering machine comes with a vent pipe pre-installed interface, and the smoke exhaust pipe can be installed on the back of the machine(suitable for Φ 110 mm smoke exhaust pipe). Besides, the light weight and small footprint is convenient for transport and store

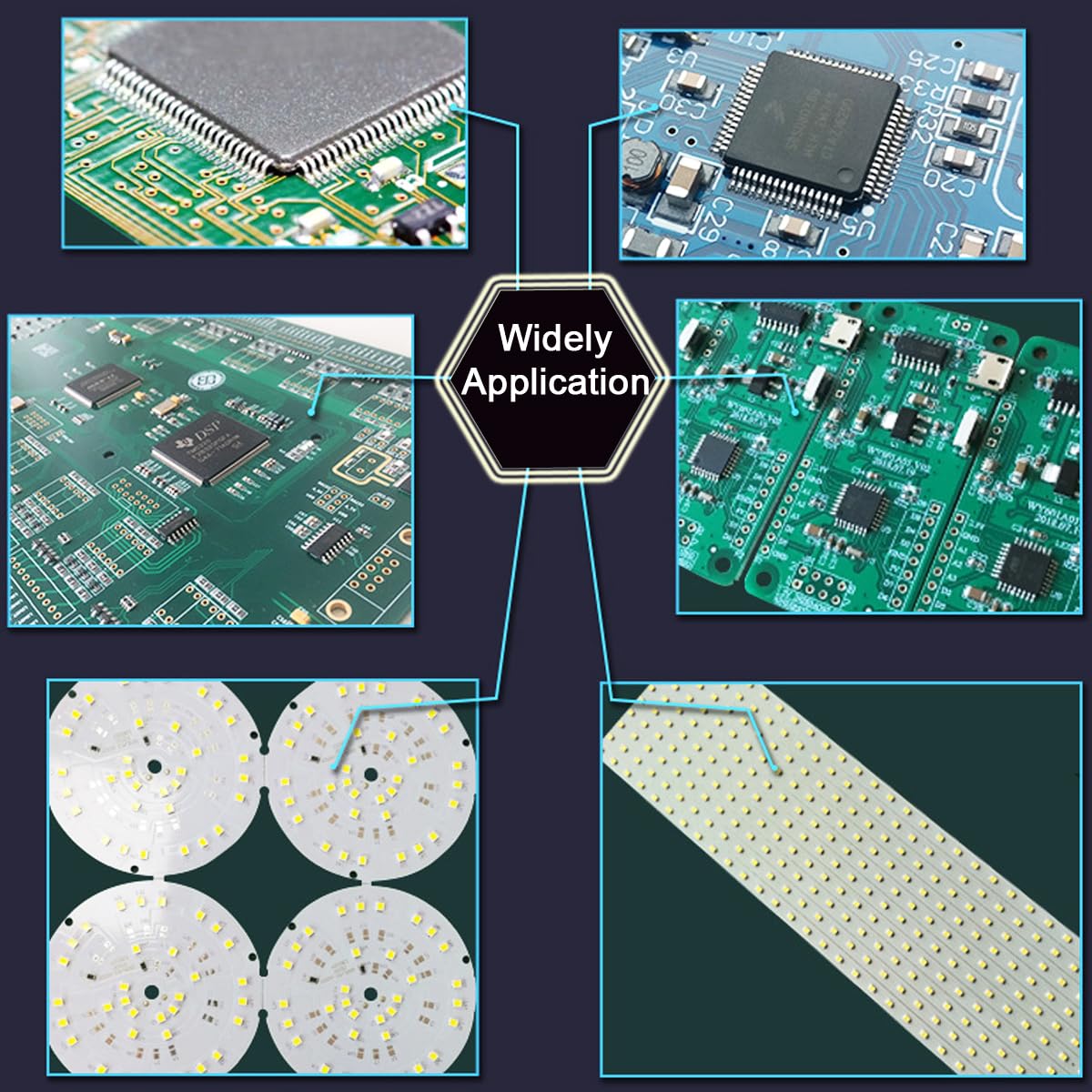

• Widely Application: This micro processor controlled reflow-oven T962A can complete single and double panel welding, even the finest surface attachment components, which is used for effectively soldering various SMD and BGA components, and also the most boss-eyed PCB boards small parts, for example CHIP, SOP, PLCC, QFP, BGA etc. Widely used in R & D and small batch production of various enterprises, companies and institutes

model number: FBU-022829

Part Number: S022829FBA

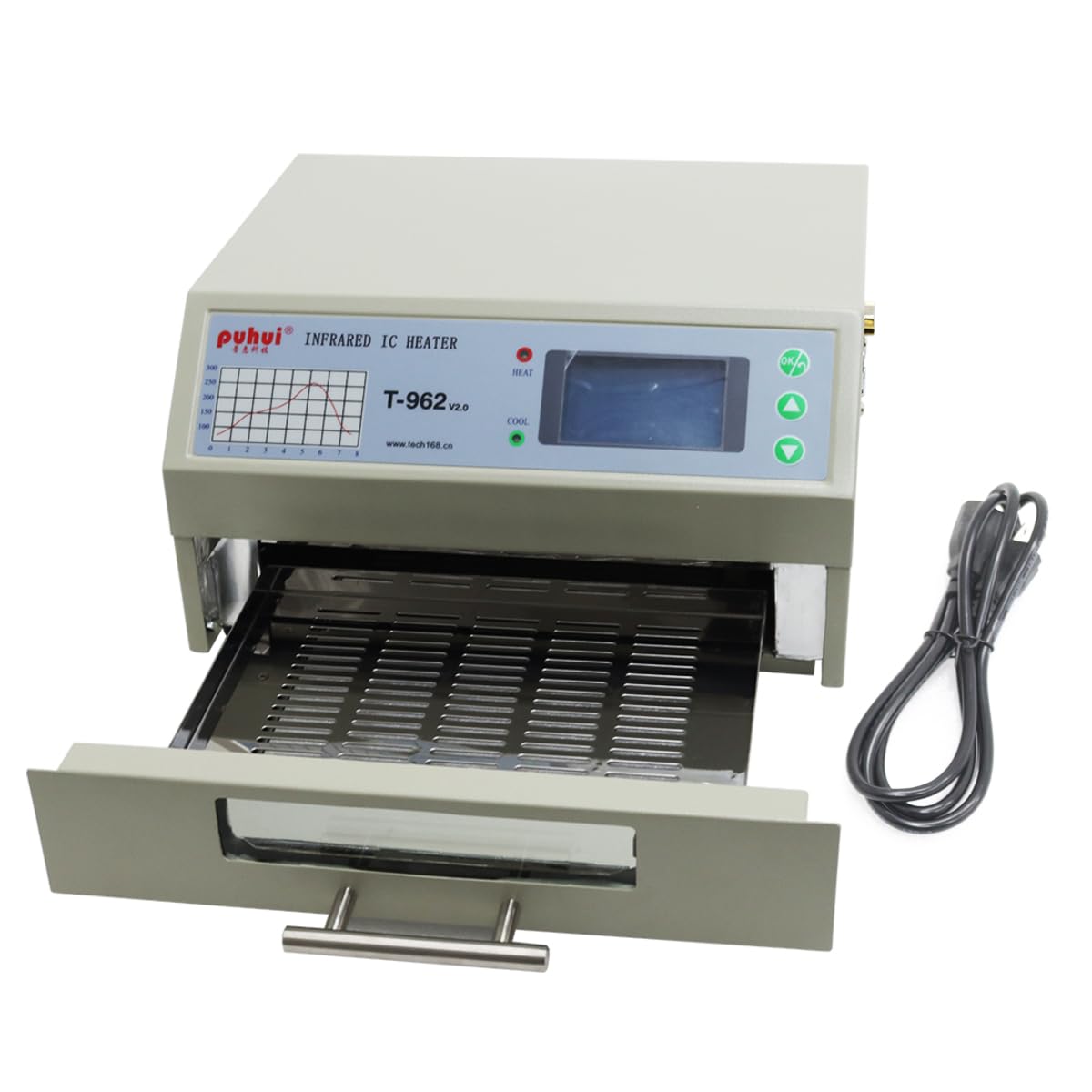

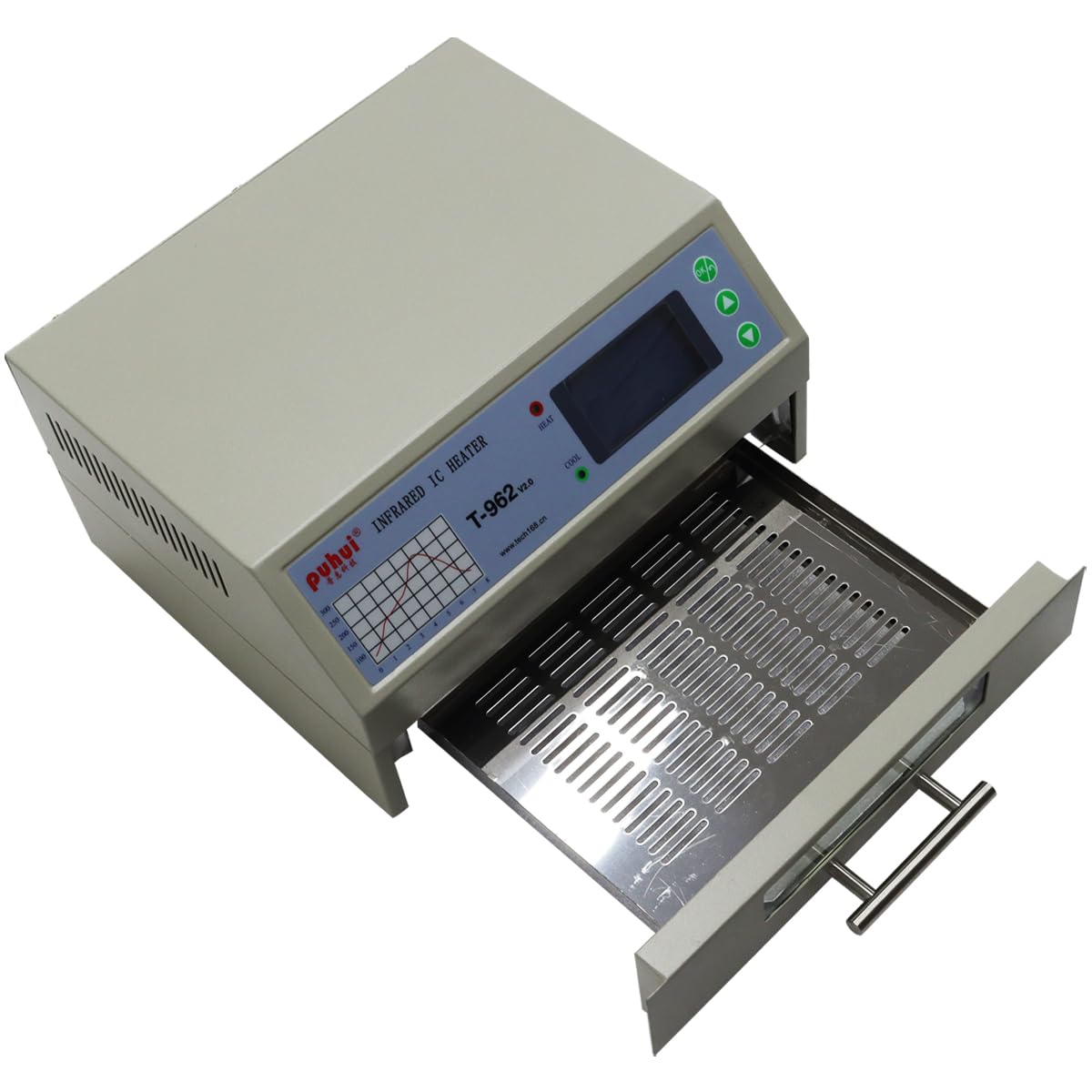

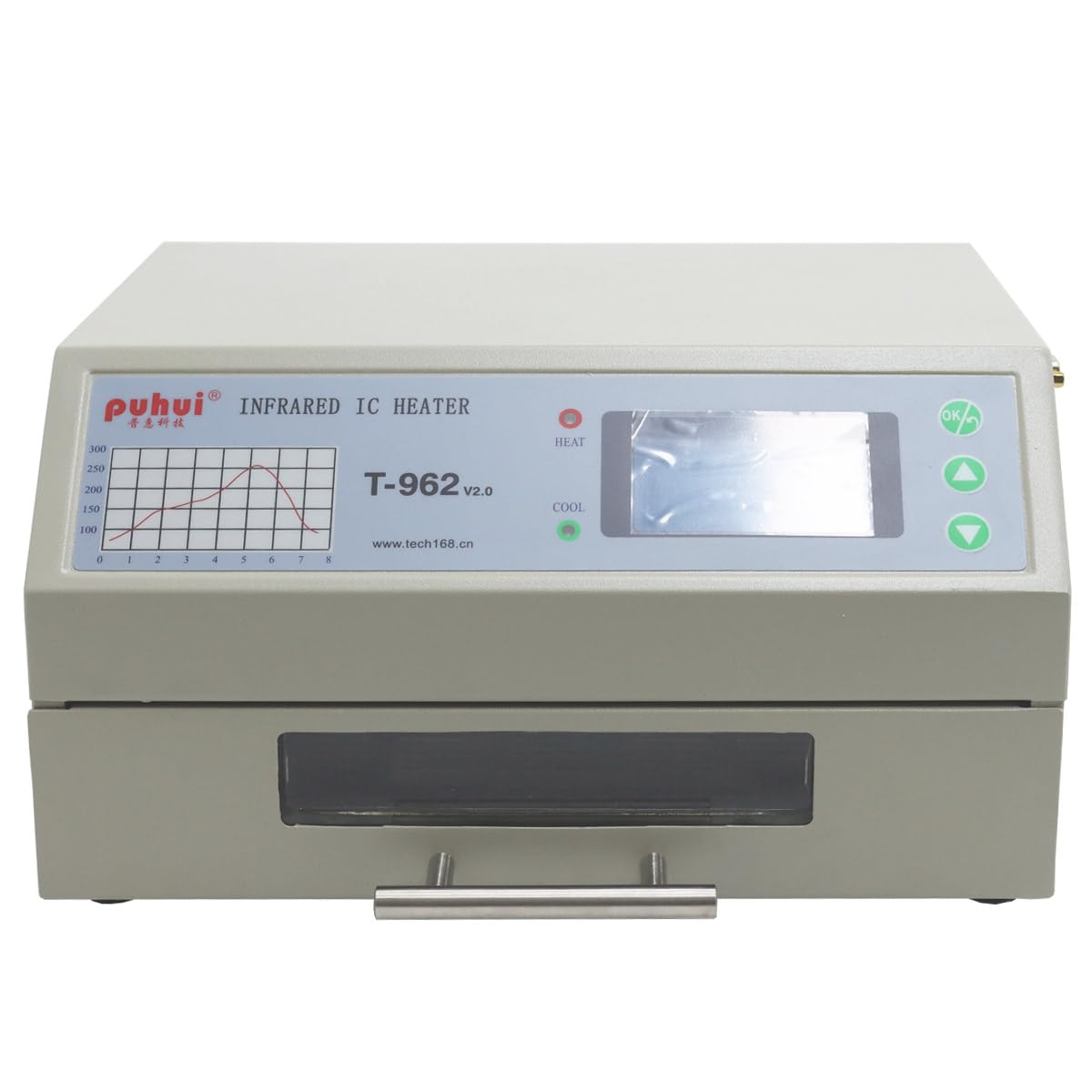

Details: Reflow Oven Reflow Soldering Machine T-962 v2.0
Features
This is a micro-processor controlled reflow oven, works automatically by micro-computer control. It can satisfy a dissimilarity SMD, BAG soldering a request on a PCB assembly.
T962 v2.0 may be used to automatically “re-flow” solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.
Parameter
Reflow oven model: T962 v2.0
Rated power: 800W
Effective Soldering max area: 7.1x9.3 Inch (180x235 mm)
Power supply: AC110V/60HZ,AC110V/60HZ
Temperature Range: 100℃ - 350℃
Cycle Time: 1～8 min

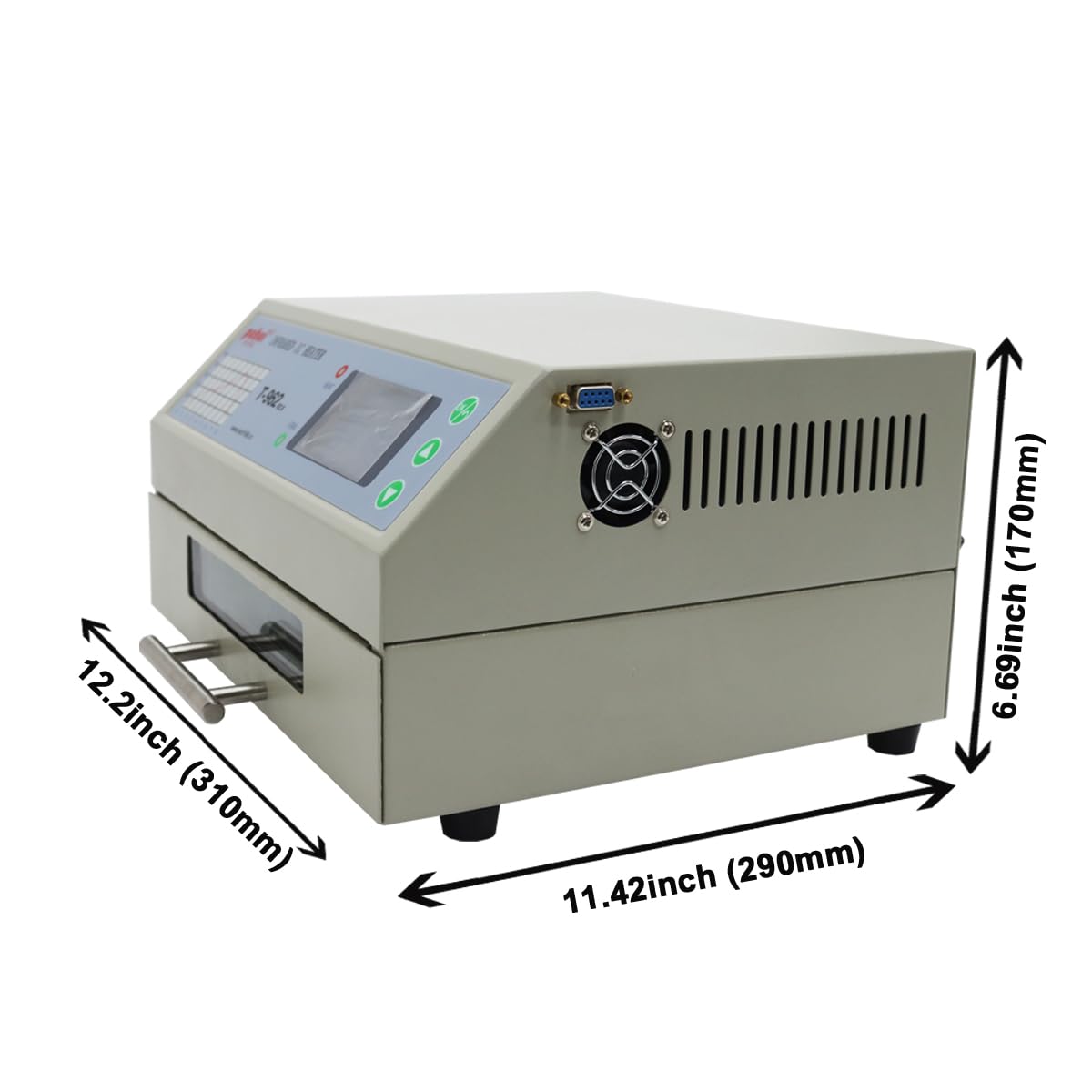

Size: 12.2x11.4x6.7inch (310 x 290 x170 mm)
Rated Duty Cycle: 100%

EAN: 0840403706020

Package Dimensions: 16.5 x 15.3 x 11.5 inches
