INTBUYING 110V Reflow Oven T962A+ 2300W Micro-computer Control Reflow Soldering Machine with 17.7x14.6 Inch Soldering Area Drawer Type Lead Infrared IC Heater Free Reflow Soldering Machine

Brand: INTBUYING

Features:

• Technical Parameter: Power supply: AC110 V/ (50~60) Hz, rated power: 2300 W, drawer panel area: 17.7x14.6 Inch (450x370 mm), temperature range: 0℃-280℃, cycle time: 1～8 min, rated duty cycle: 100%
• Large Infrared Soldering Area: With 17.7x14.6 Inch large effective soldering area, greatly increase the usage and save investment; adopts fast infrared radiation and circulating air heating, the temperature is more accurate and uniform during working

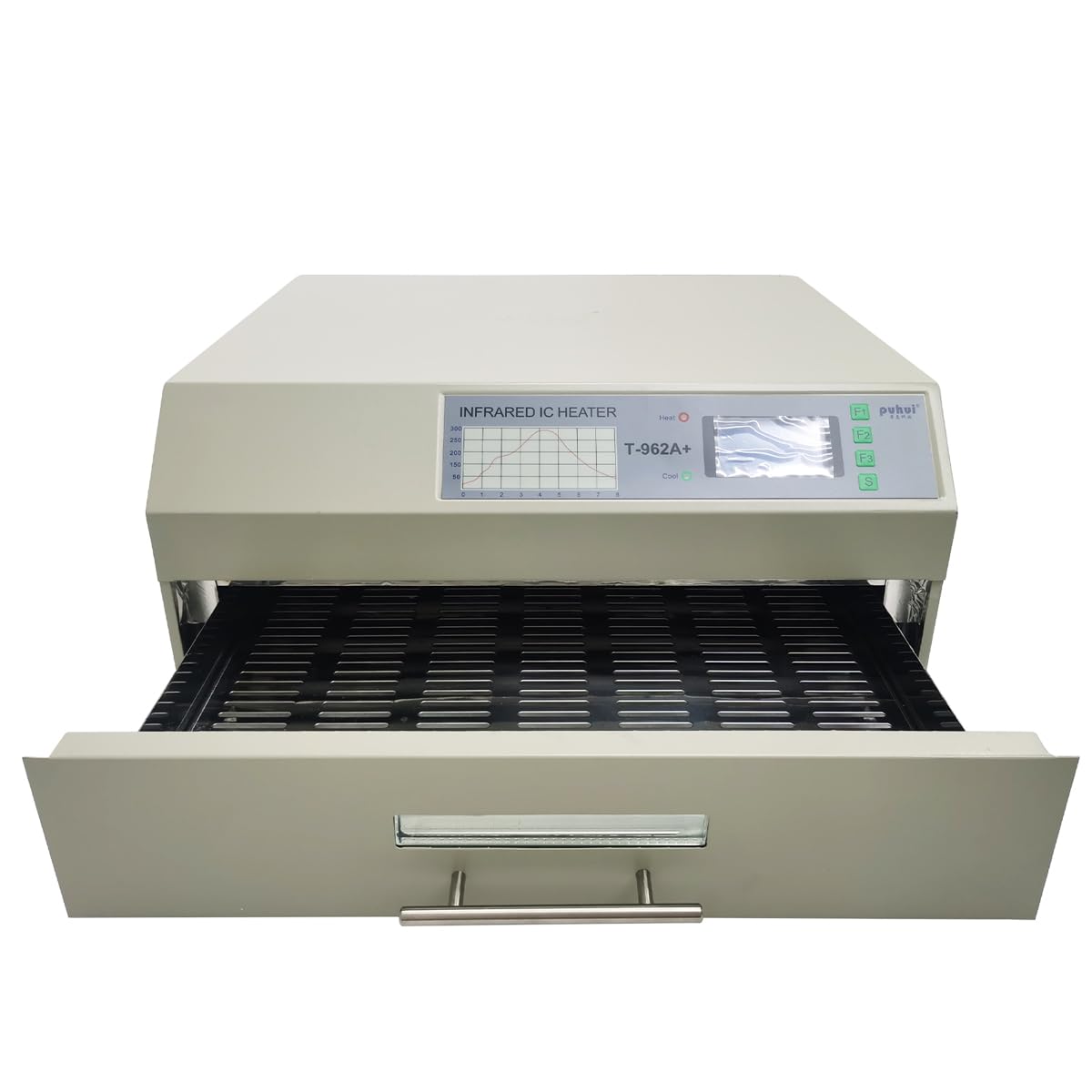

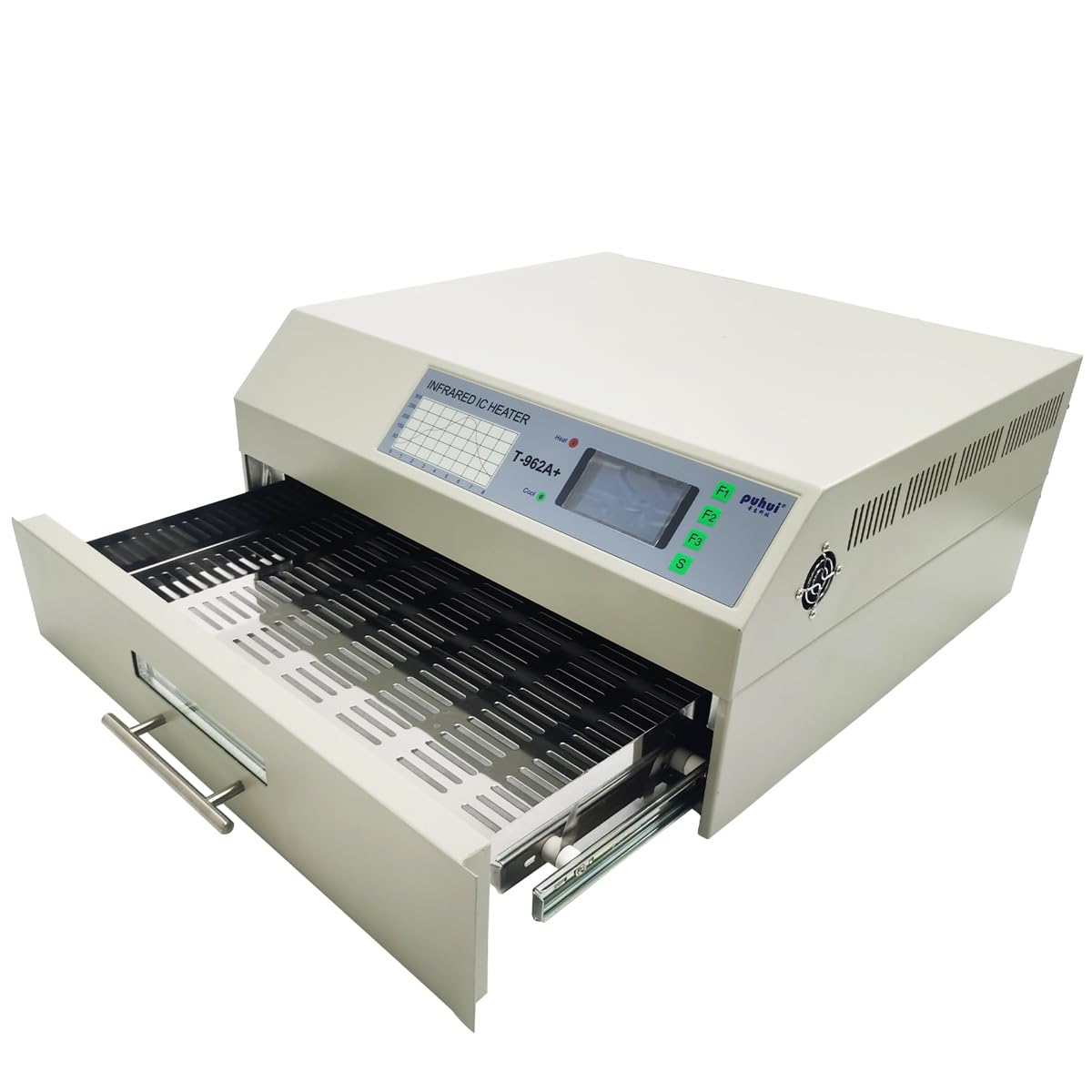

• Good Performance: This reflow soldering machine adopts microcomputer control, equipped with visual drawer type workbench, so that the whole welding process is automatically completed under your supervision; and preset with 8 intelligent temperature control curves. The curve display operation is more intuitive than the digital display, and the operation status is monitored in real time

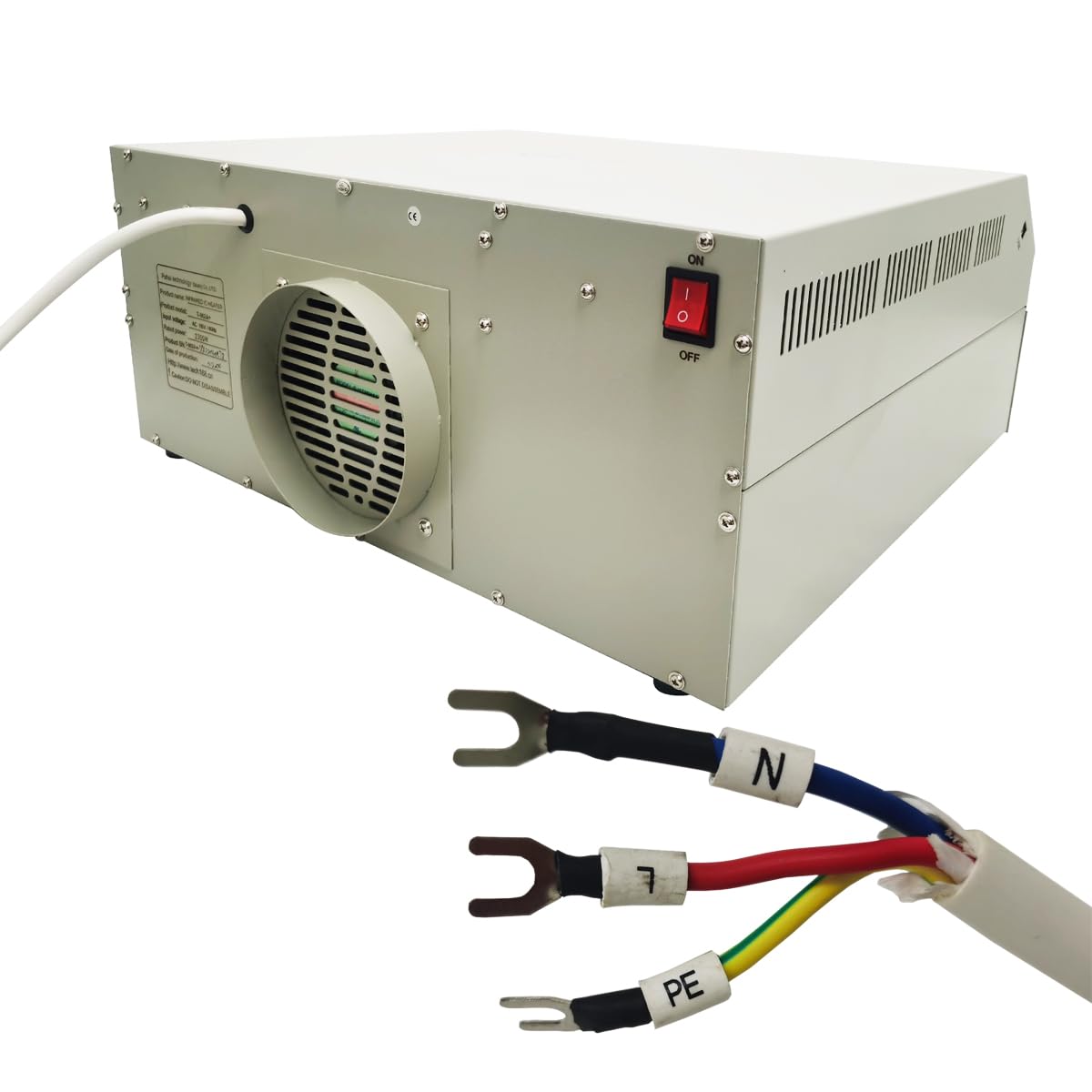

• Intimate Design: The automatic infrared heater soldering machine comes with two vent pipe pre-installed interfaces, and the smoke exhaust pipe can be installed on the back of the machine(suitable for Φ 110 mm smoke exhaust pipe). Besides, the light weight and small footprint is convenient for transport and store

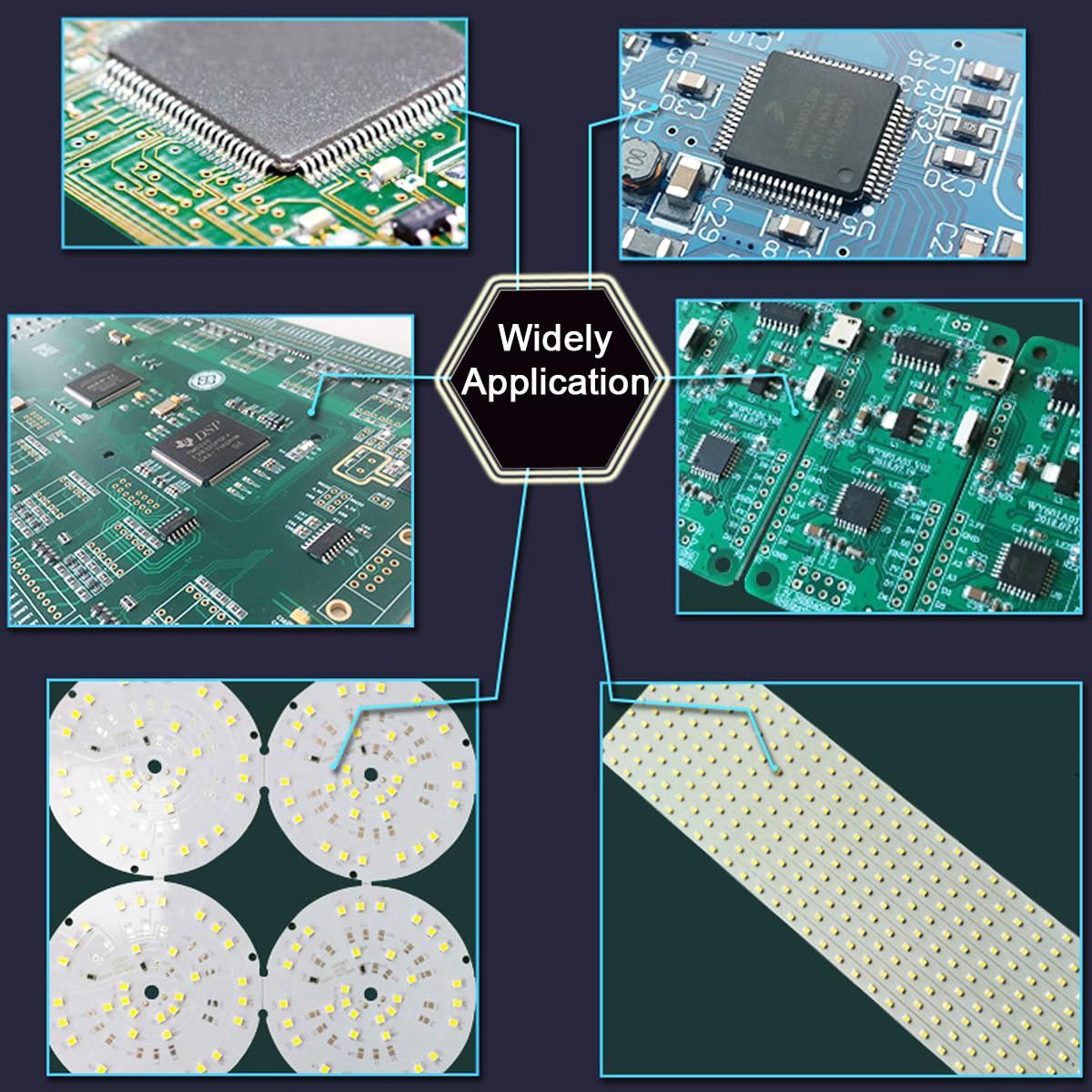

• Widely Application: This micro processor controlled reflow-oven T962A+ can complete single and double panel welding, even the finest surface attachment components, which is used for effectively soldering various SMD and BGA components, and also the most boss-eyed PCB boards small parts, for example CHIP, SOP, PLCC, QFP, BGA etc. Widely used in R&D and small batch production of various enterprises, companies and institutes

model number: FBU-022753

Part Number: S022753FBA

EAN: 0840403707461

Package Dimensions: 25.6 x 23.4 x 15.4 inches
