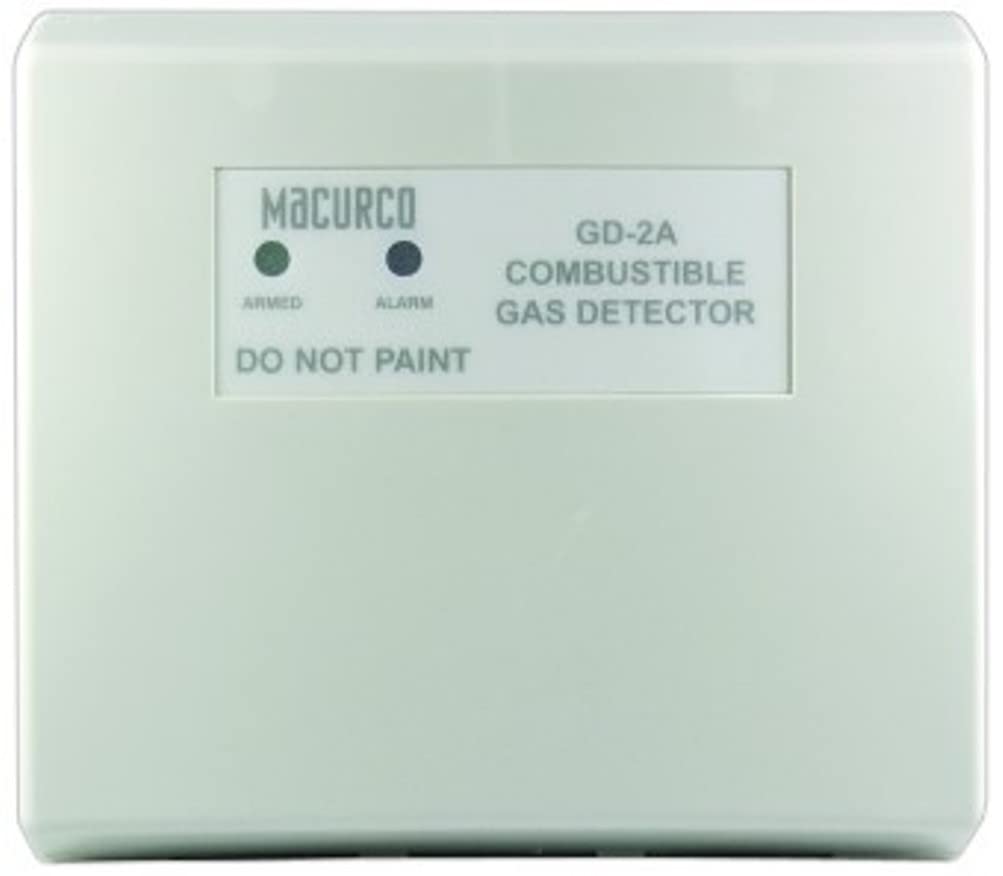

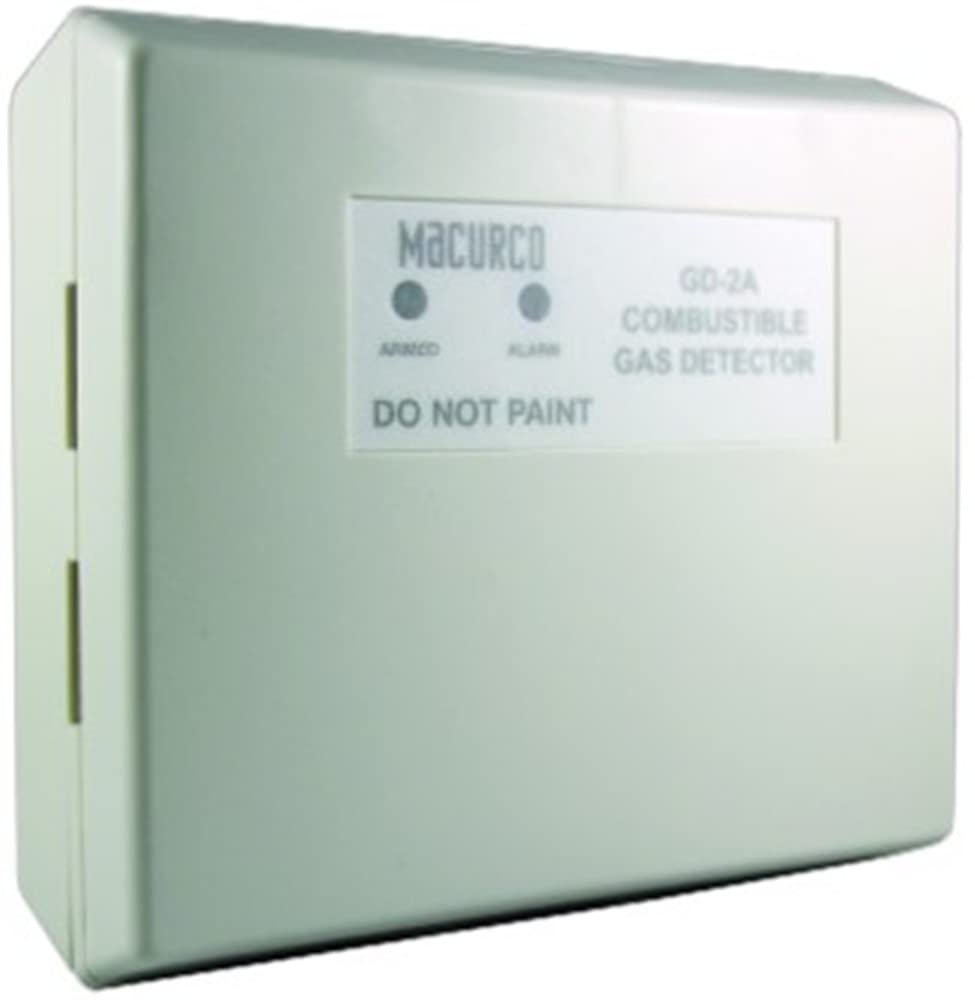

JCI GD-2A MACURCO

Brand: JCI

Color: White

Features:

• Low replacement costs with long-life sensors
• Low maintenance with no calibration needed
• Aesthetically pleasing. Flush mount or surface options
• Ties into any Fire/Burglary panel for local and remote monitoring
• N.O. or N.C. Alarm Relay, N.C. Trouble/Supervisory relay

model number: GD-2A

Part Number: 70-0715-6468-9

Details: Macurco 70-0715-6468-9 Model GD-2A Residential/Light Commercial Combustible Gas Detector, 900 sq. ft. Coverage Area, 12-24 VAC or VDC Input, N.O. or N.C. Alarm Relay, N.C. Trouble/Supervisory Relay

The Macurco GD-2B and GD-2A combustible gas detectors are reliable, lightweight, and aesthetically pleasing gas detectors made to keep you and the people you care about safe from harmful gases in residential and light commercial applications. They are low-voltage gas detectors designed for use with fire and security systems. The GD-2A is UL 2075 Listed for use in residential and commercial applications and is also approved by the California State Fire Marshal.

Key Features
- Low replacement costs with long-life sensors
- Low maintenance with no calibration needed
- Aesthetically pleasing. Flush mount or surface options
- Ties into any Fire/Burglary panel for local and remote monitoring
- 12-24 VAC or VDC input

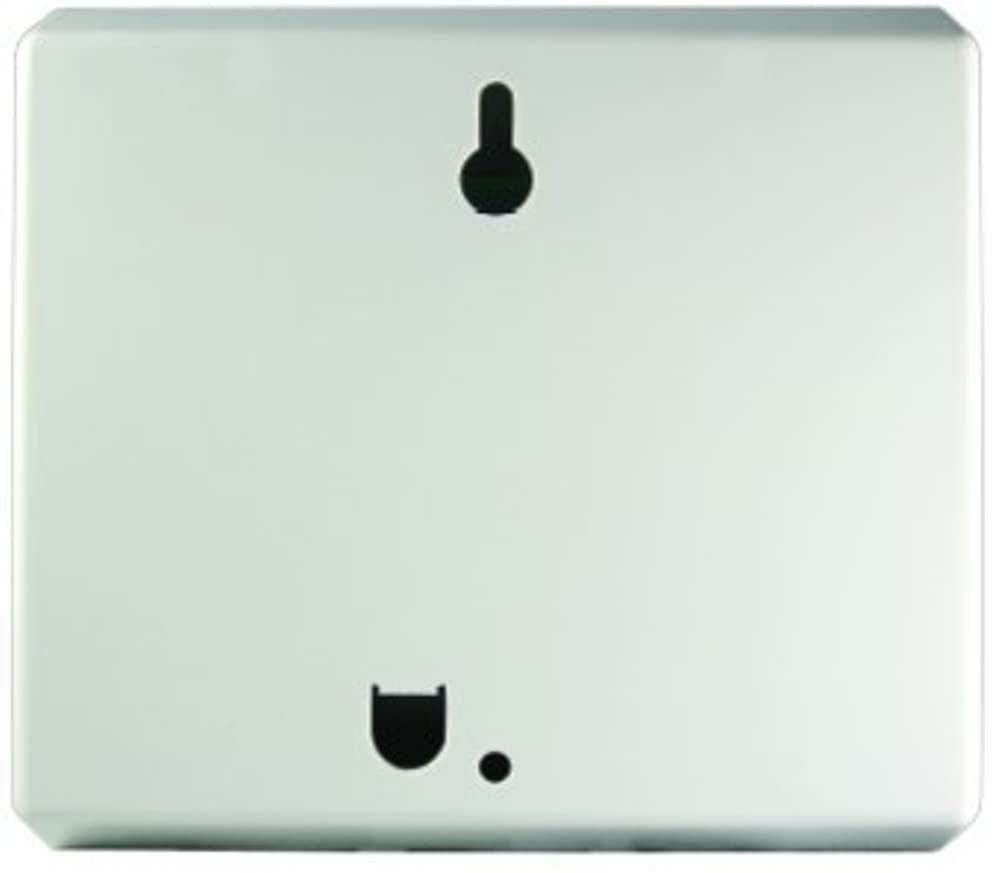

- Flush or Surface Mount Enclosure
- N.O. or N.C. Alarm Relay
- N.C. Trouble/Supervisory relay
- 900 sq. ft. Coverage Area
- Made in America

Specifications
- Voltage: 9-32 VDC or 12-24 VAC
- Sensor Life: 5 years w/EOL
- Operating Temperature: 32°F to 120°F (0°C to 48.9°C)
- Status Indicators: LED (Red alarm, green normal, alternating red/green trouble)
- Alarm Levels: Per UL 1484, 25% LEL
- Size: 4.5'H x 5'L x 1.62'W
- Shipping Weight: 0.5 lb. (8 oz.)
- Approvals/Listings: UL 2075 Listed. Tested to 1484 standard for residential gas detectors

EAN: 0808226783345

Package Dimensions: 5.0 x 5.0 x 2.5 inches
