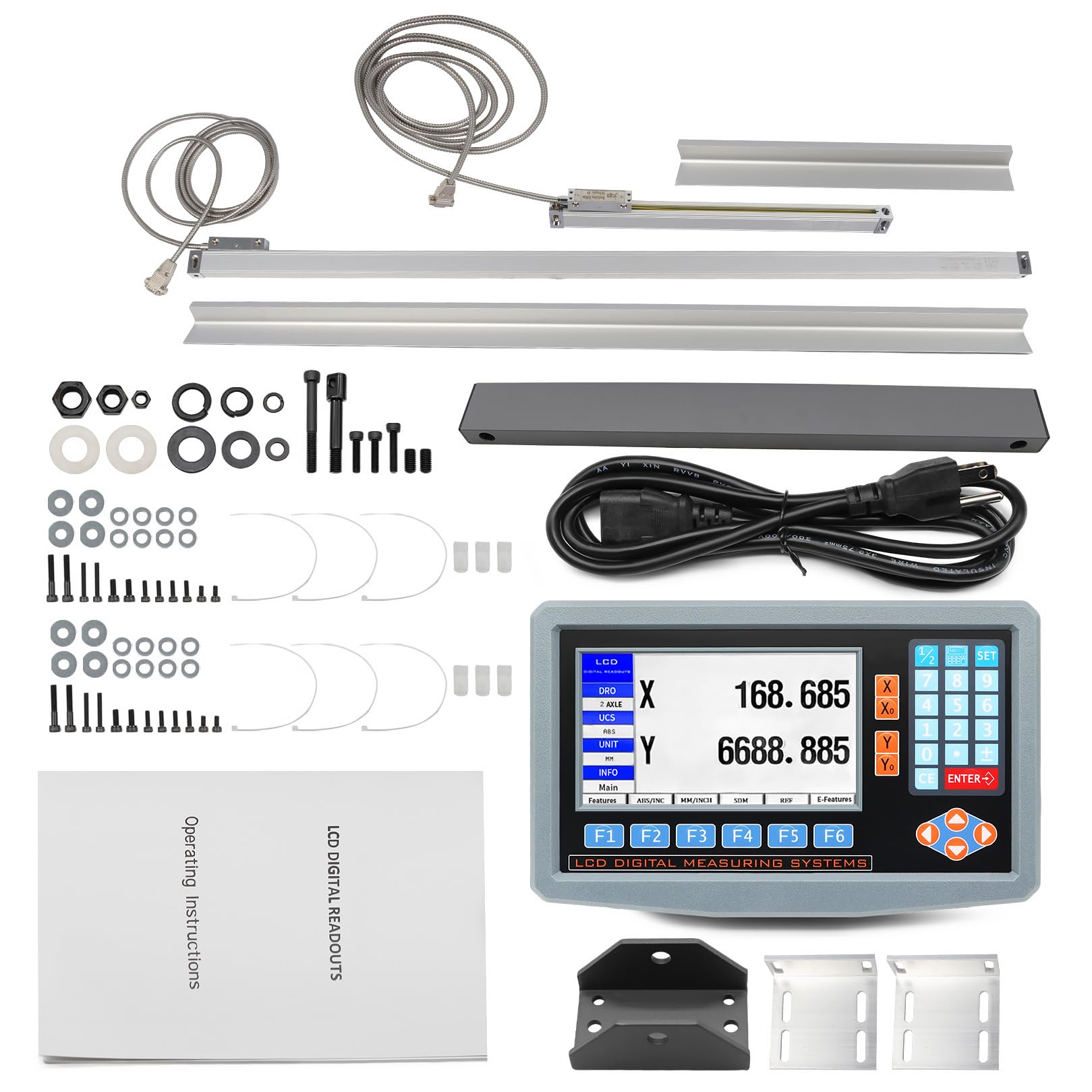

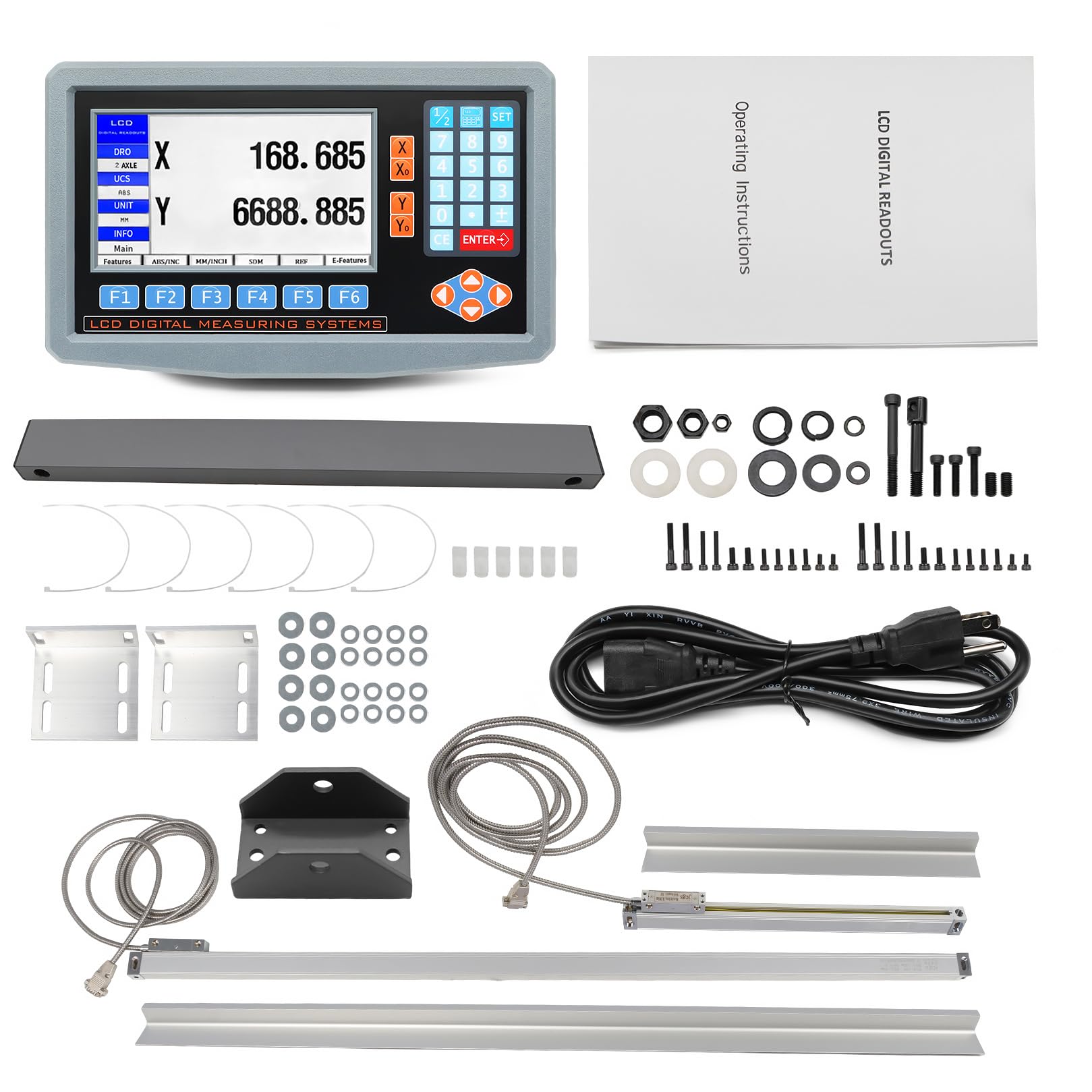

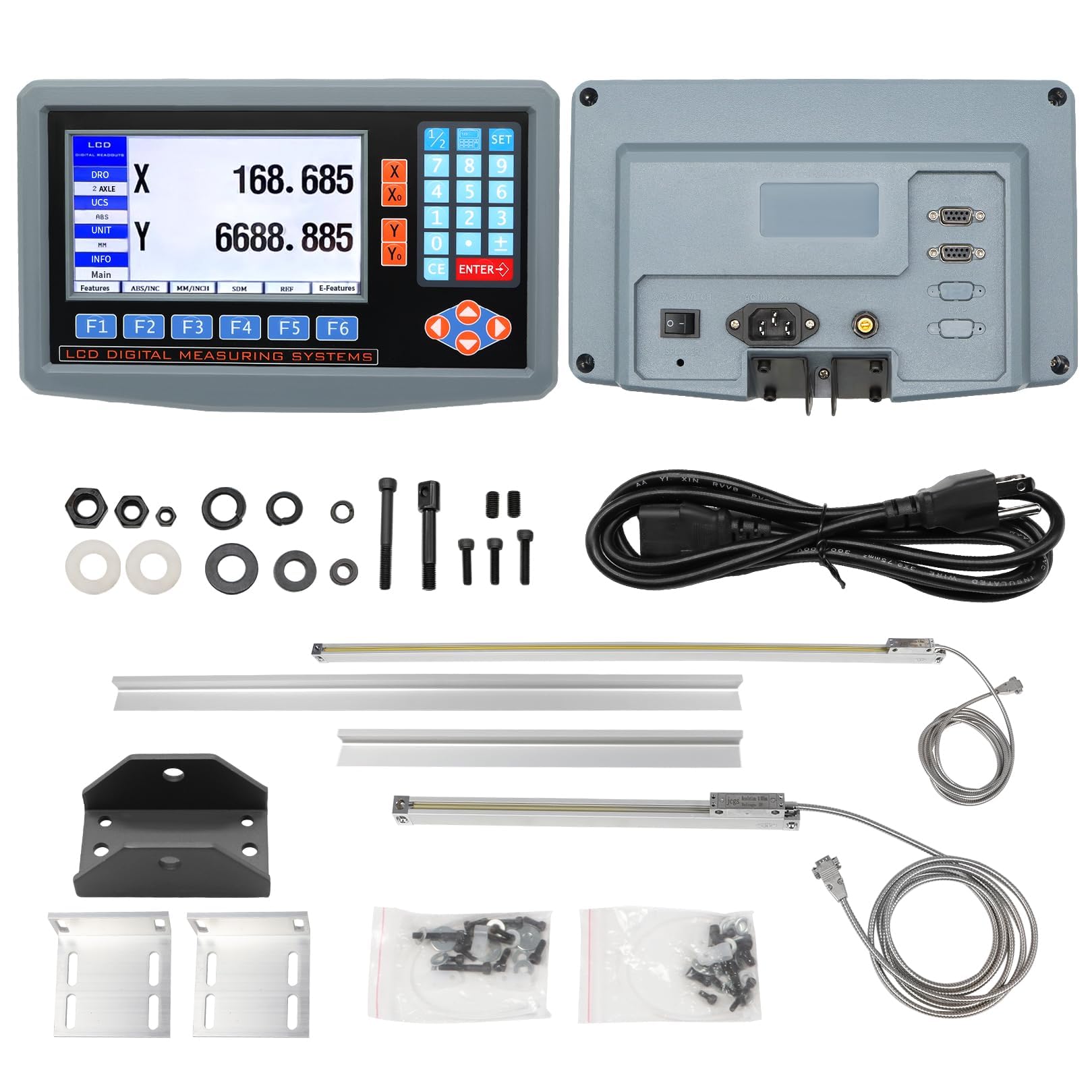

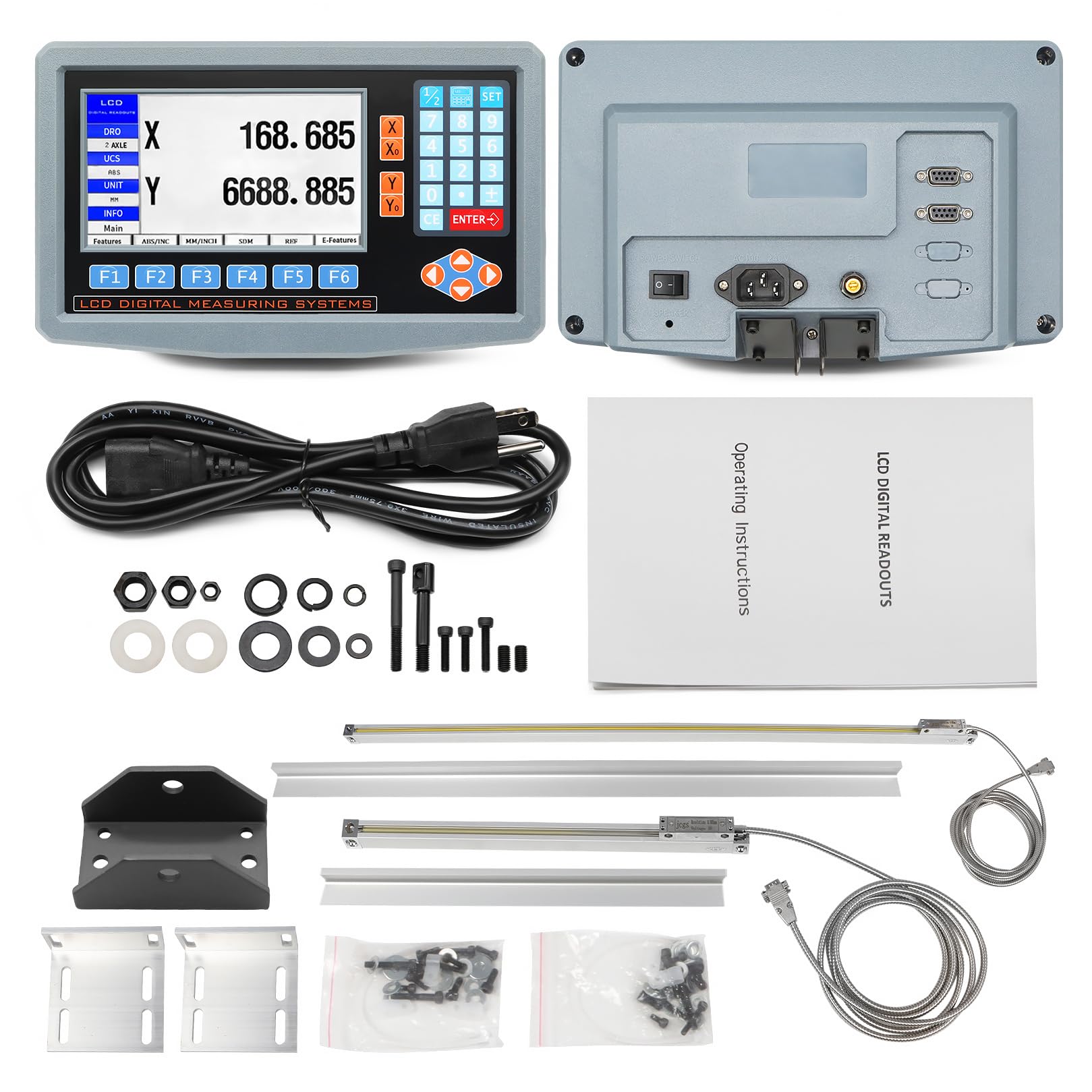

2-Axis digital display DRO kit scale length: 350mm+700mm. Total length = Measured length + 140mm = 490mm + 840mm.
The 2-axis lathe DRO digital reading linear scale kit is widely used in the field of mechanical processing, providing high-precision information for precision machining, mass production, complex part machining, etc., helping operators achieve high-precision and high-efficiency machining.
Excellent Precision: Resolution 5um, signal input is TTL square wave, power supply voltage range AC 86V~240V; 50~60Hz.
Ideal accessory for machine tool enthusiasts: 2-axis digital reading DRO display kit displays the position of the machine tool worktable or tool in real-time with micrometer level accuracy, reducing manual errors, significantly improving machining accuracy and efficiency, and reducing scrap rates.
Simplified use: The digital display kit allows you to visualize the position information without having to rely on dials or manual calculations, making it less difficult to use.
Part Number: JE-021635-579238-CU
Details: Our 2-Axis DRO digital readout simplifies use and improves machining efficiency and accuracy by providing high-precision position information with versatility and data logging capabilities for a wide range of machine tools.
Product Specification: Resolution: 5um Supply Voltage range: AC 86V~240V; 50~60Hz Power consumption: 15VA Operating temperature: 0~50°C Readout allowable input signa: TTL square wave Overall Length: Travel Length + 140mm
