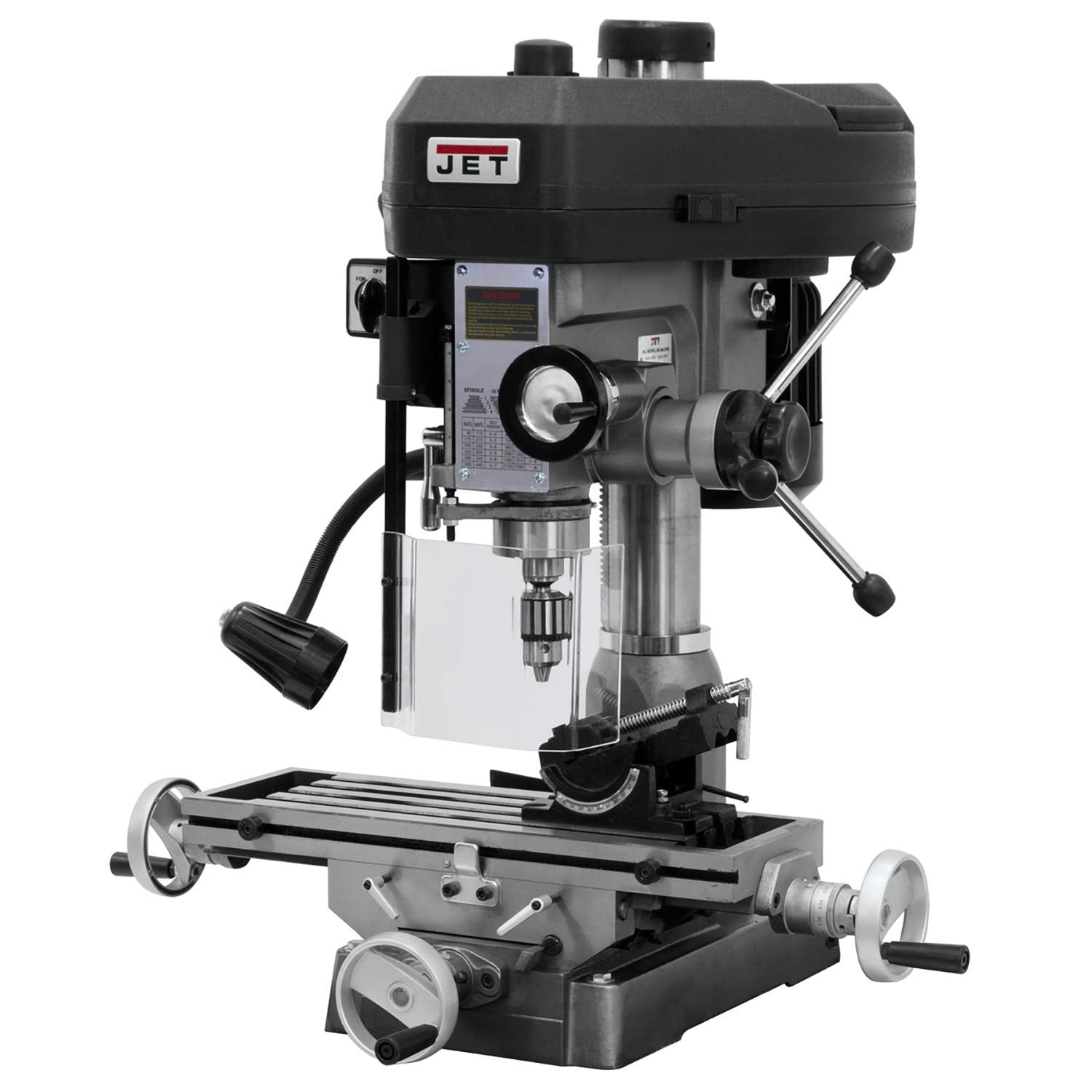

JET 15-Inch Mill Drill Machine, 1 HP, 115/230V 1Ph (Model JMD-15)

Brand: Jet

Color: Gray

Features:

• One-piece cast iron column for added support
• 360° head swivel
• Positive quick-stop knob and easy to read internal depth gauge

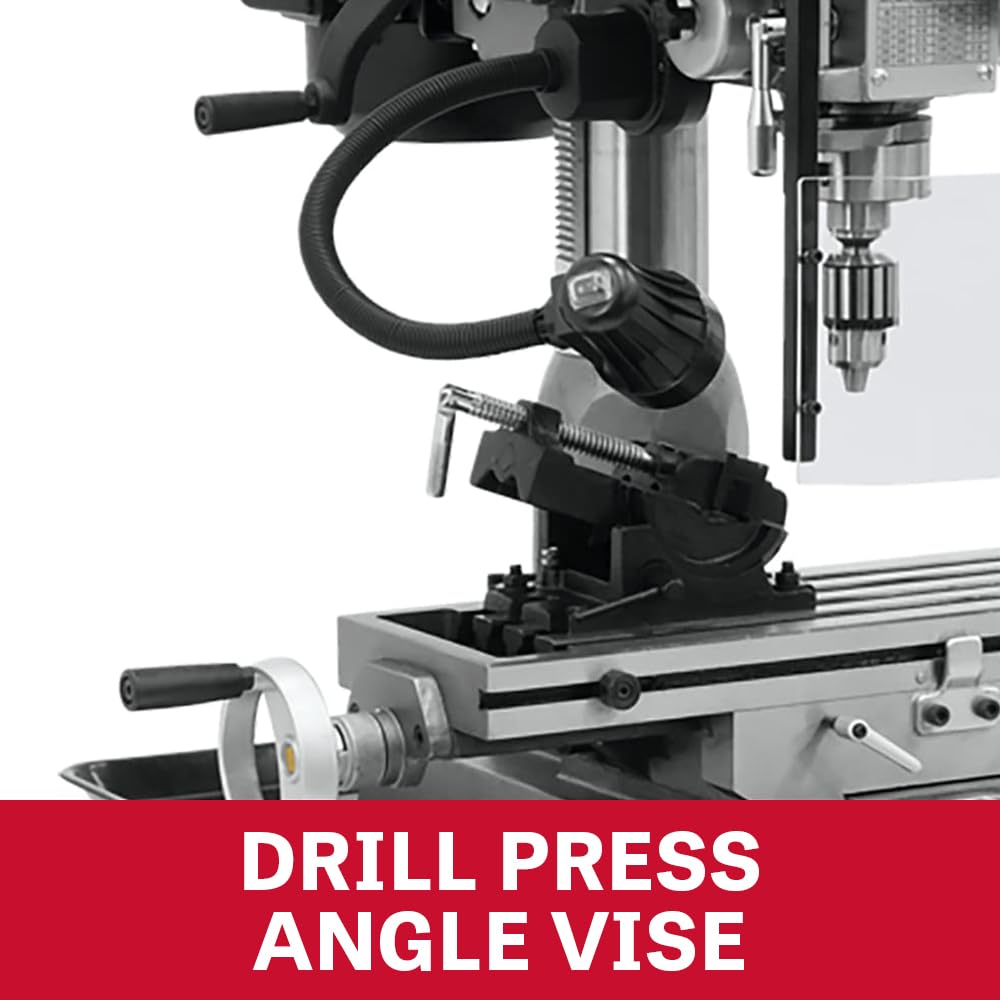

• Drill press angle vise
• 1/2' drill chuck, chuck arbor
• Backed by JET's industry-leading two-year warranty against manufacturing defects

model number: JMD-15

Part Number: 350014

Details: From the Manufacturer

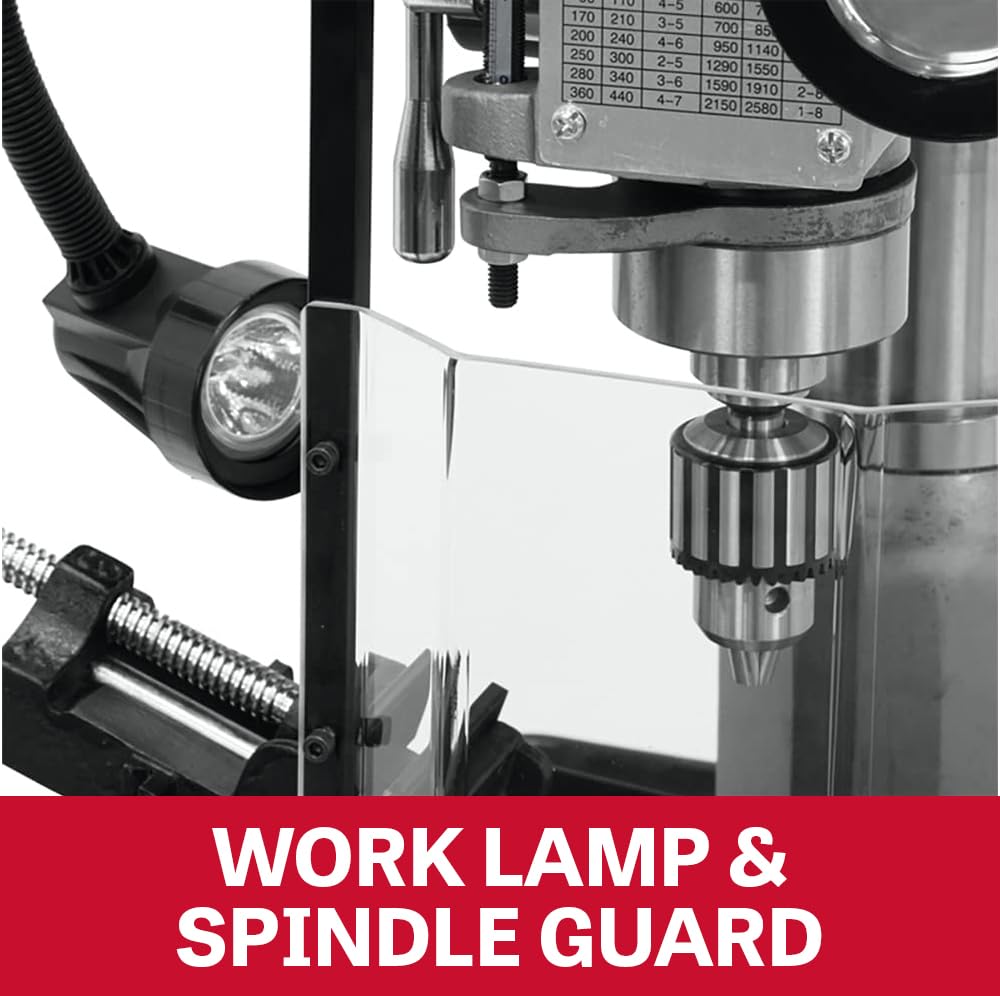

This mill/drill has a one-piece cat iron column for support and features large hand wheel knobs, a large worktable, and a highly versatile 360 degree head swivel. Innovative base-taper allows for easier clean-up, and the belt cover has a quick slide latch that allows for faster belt adjustment to change spindle speeds. The heavy duty tapered roller bearings support the spindle resulting in greater tolerance and more accurate drilling depth. New to this machine is a positive quick-stop knob and an easy-to-read internal depth gauge. Standard equipment includes: work lamp, draw bar, adjustable carbide facemill, drill press angle vise, and 1/2' drill chuck and chuck arbor.
FEATURES

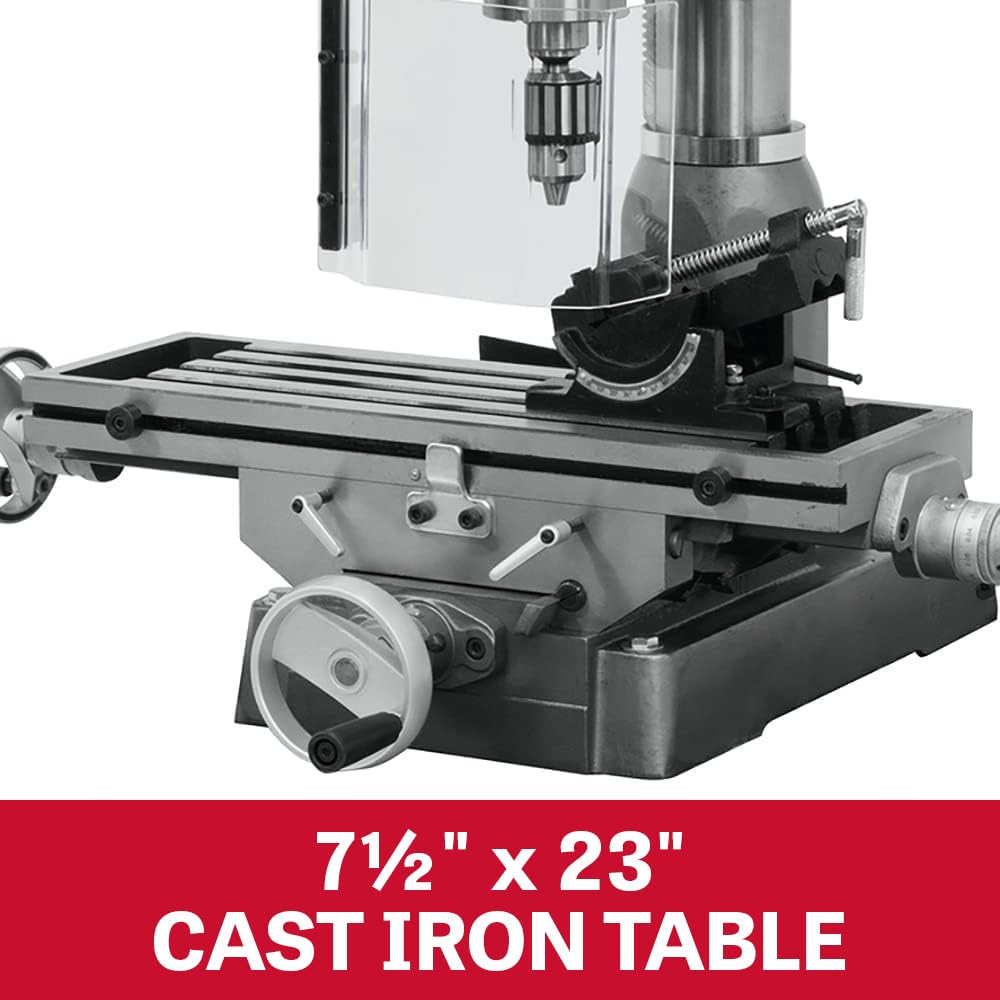

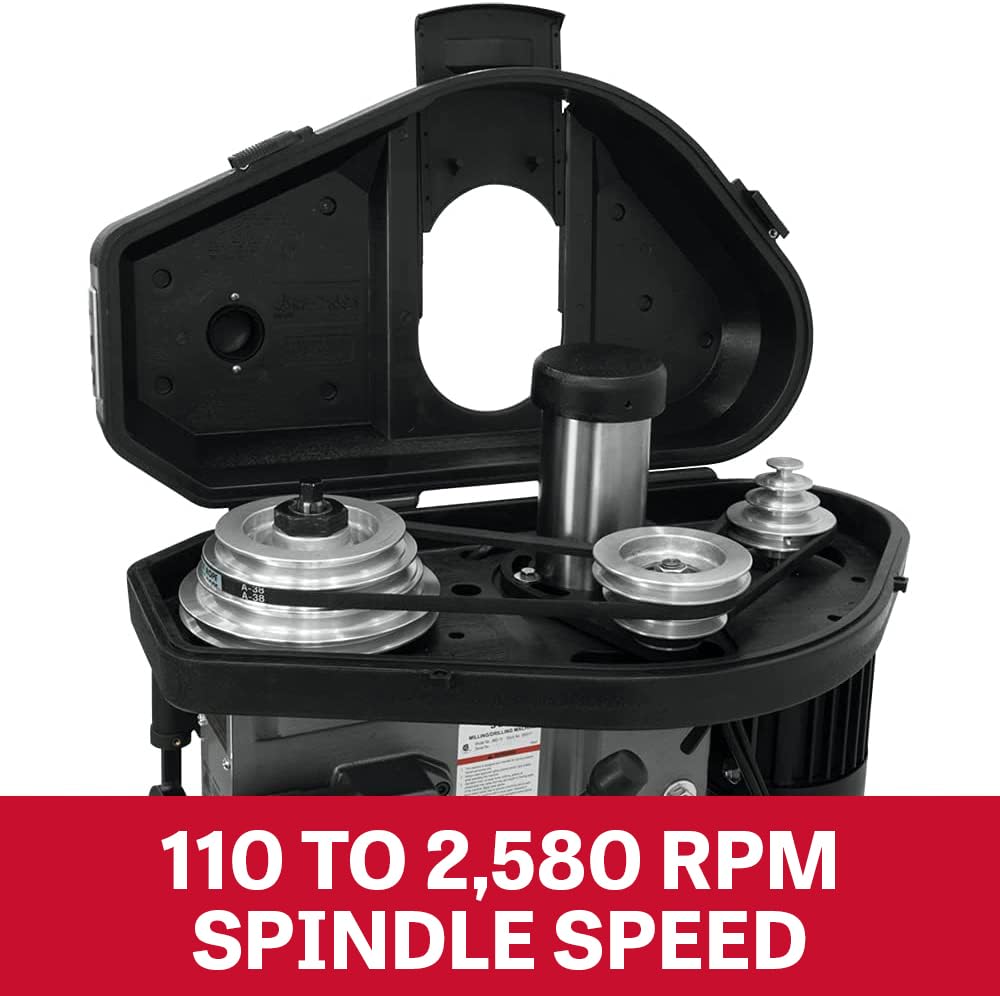

One-piece cast iron column for support Quick slide belt cover latch allows fast belt adjustment to change spindle speeds Tapered base for easy clean-up Extra large worktable 360° head swivel Heavy-duty power downfeed with manual fine feed Three power down feeds
SPECIFICATIONS
Drilling Capacity: 1' Face Mill Capacity: 2-1/2' End Mill Capacity: ½' Swing: 15-7/8' Max Distance Spindle to Table: 15' UL listed motor

Product Description

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

EAN: 0410050000873

Package Dimensions: 43.7 x 30.0 x 29.0 inches
