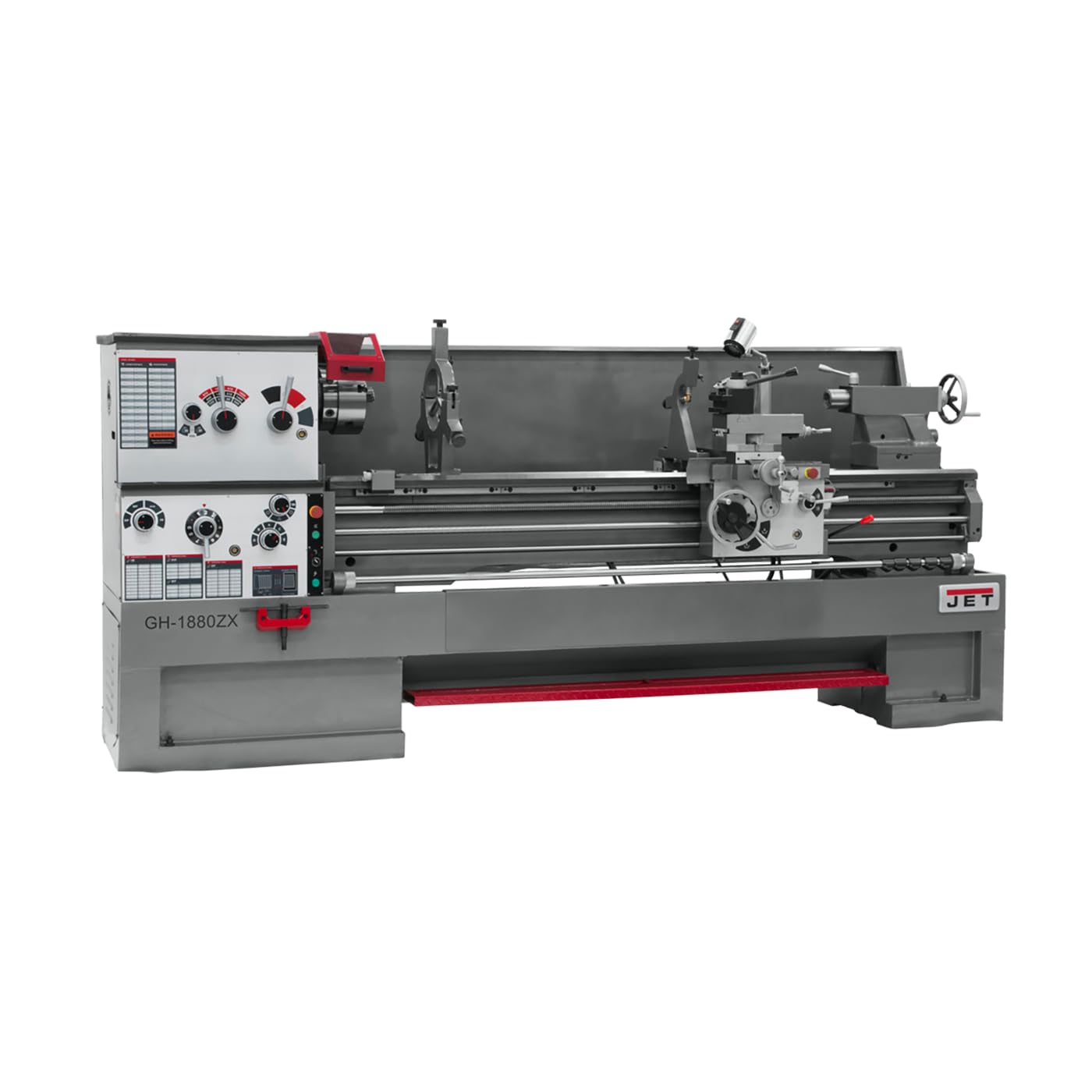

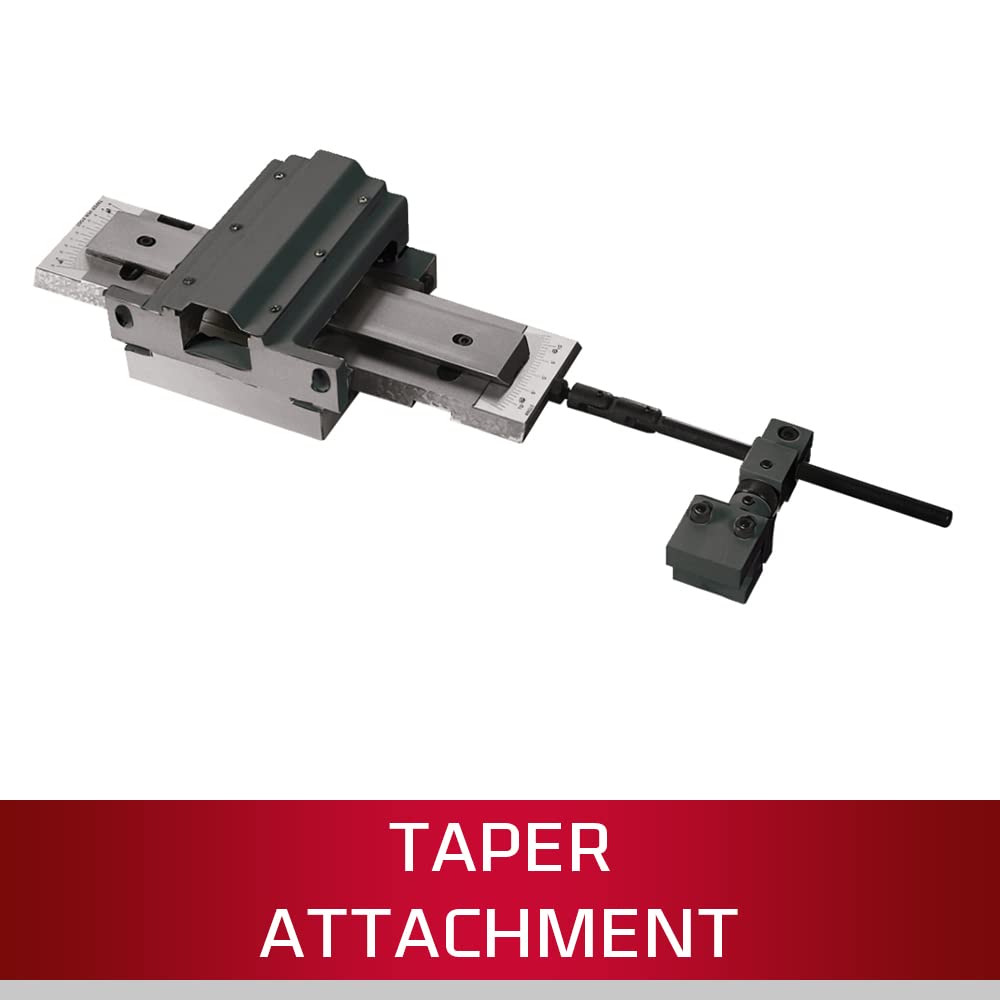

JET 18" x 80" Geared Head Metal Lathe, Taper Attachment, 3Ph 230/460V (Model GH-1880ZX)

Brand: Jet

Color: Gray

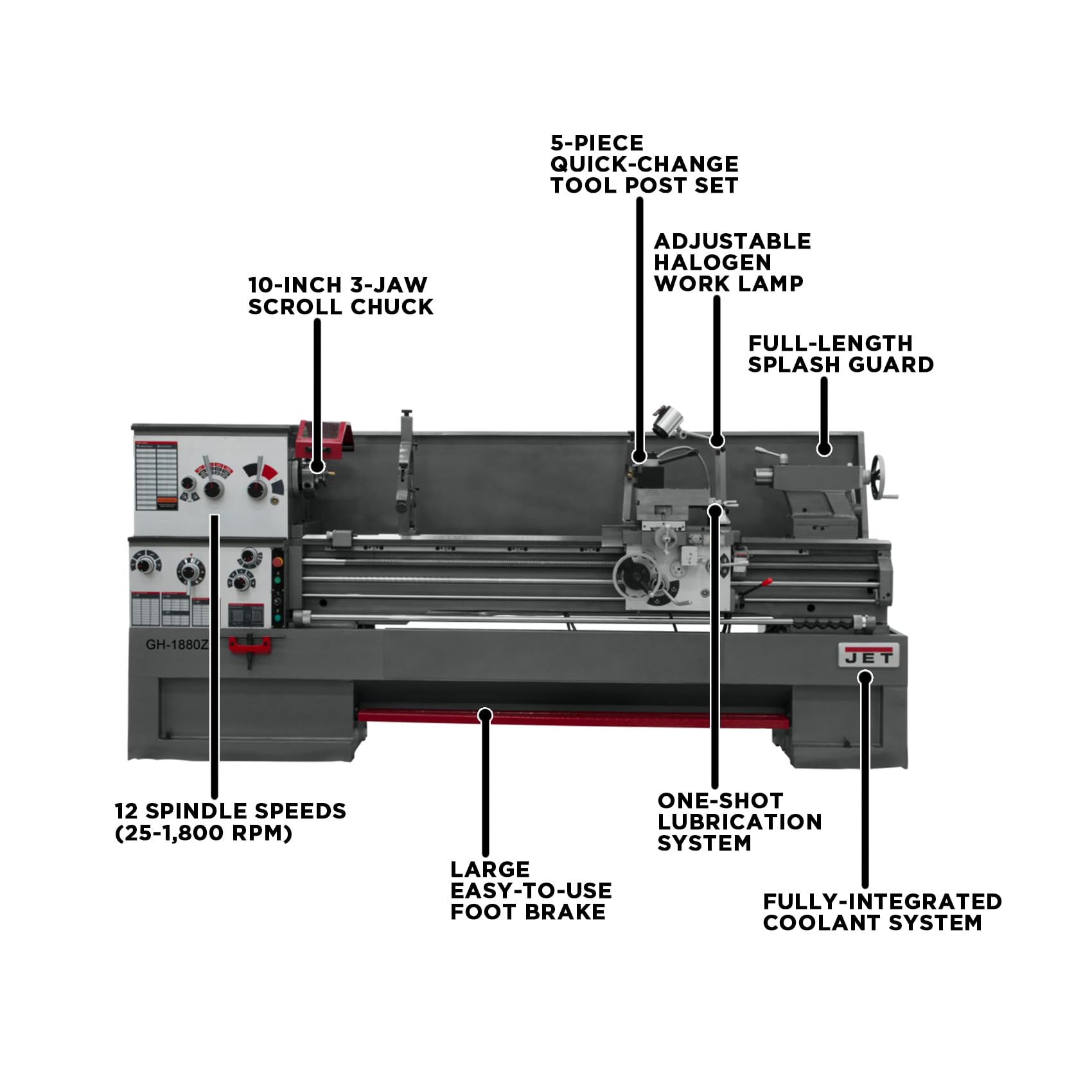

Features:

• 3-1/8' bore spindle is supported by two tapered and one ball bearing
• Five position automatic carriage stop increases productivity
• Centrally-located controls with jog button, and a large foot brake
• Universal gearbox allows inch, metric, diametral, and module pitch threads (no change gears required)
• Fully-integrated coolant system features a full-length splash guard and coolant return
• One-piece cast iron base absorbs vibration, allowing heavier cuts
• Carriage features one-shot lubrication and Turcite B on bed sliding surfaces

model number: GH-1880ZX

Part Number: 321486

Details: Product Description

The JET ZX Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. This lathe also features a 10' 3-jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. These are features you've come to expect in a JET Lathe, and are backed by an industry-leading JET two-year warranty.

From the Manufacturer

Our ZX series large spindle bore lathes are a JET exclusive!! The 3-1/8' spindle bore is supported by two tapered and one ball bearing, while the headstock gears are hardened, ground, shaved and composed of chrome molybdenum. The universal gearbox allows inch, metric, diametral, and module pitch threads with no change of gears required. The carriage features one-shot lubrication, Turcite-B on bed sliding surfaces, and five position automatic carriage stops to increase productivity. The T-slotted compound slide features a four-way tool post. A removable gap allows up to 23-5/8' diameter work. The high quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground, while the one-piece cast iron base absorbs vibration allowing for heavier cuts. ISO 9001 certified manufacturer. Standard features include; 10' 3-jaw chuck with top reversing jaws, 12' 4-jaw chuck, 12' faceplate, follow rest, steady rest, coolant system w/splash guard, foot brake, work lamp, mounting pads and levers, spindle sleeve, dead & live centers, and tool box and tools.

EAN: 0662755515149

Package Dimensions: 137.0 x 49.0 x 40.0 inches
