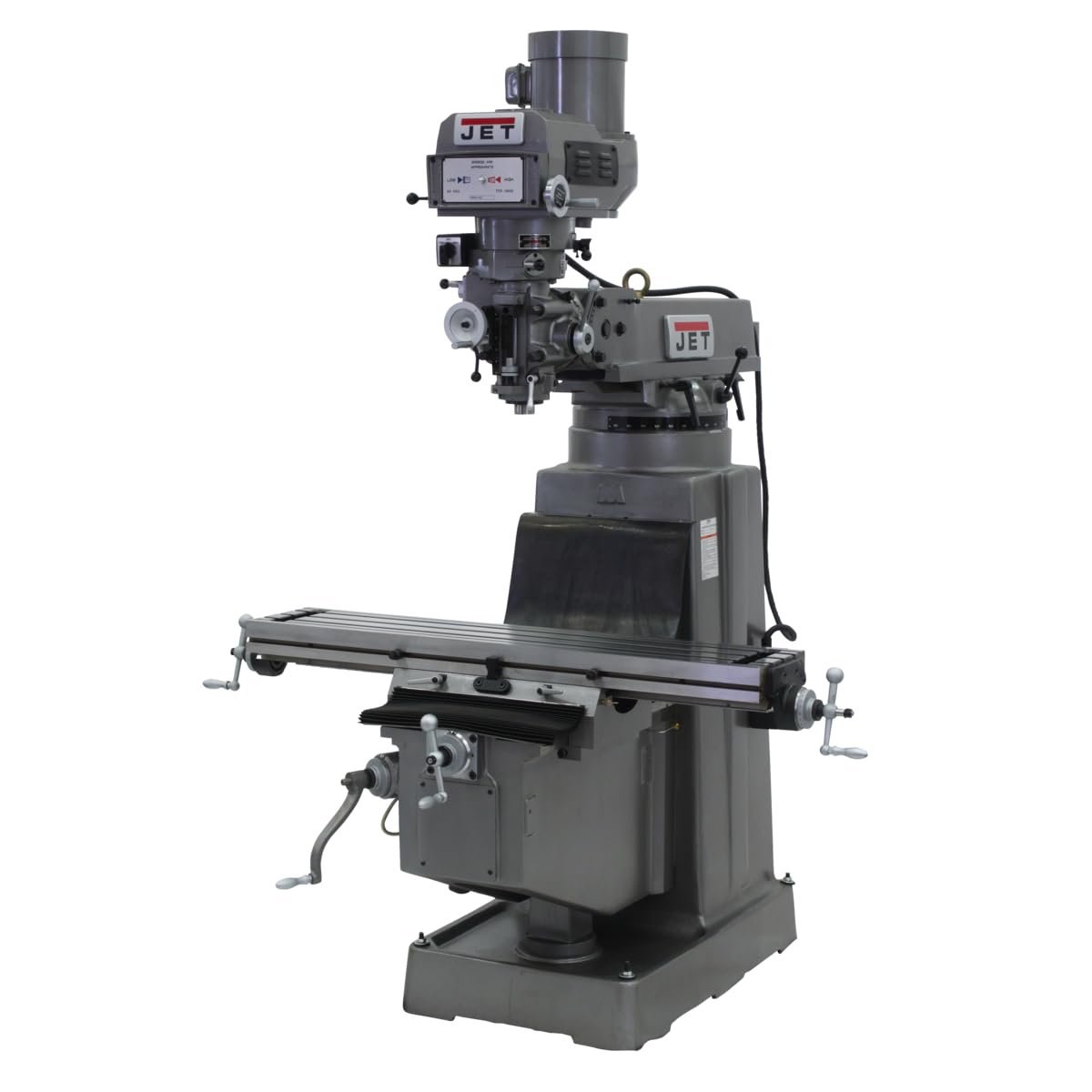

JET JTM-1050VS2 Mill With X and Y-Axis Powerfeeds (690150)

Brand: Jet

Color: Gray

Features:

• Adjustable gibs throughout
• Chrome lead screws on X and Y axis
• Chrome-plated motor shaft with bearing support at end

model number: 690150

Part Number: 690150

Details: Product Description

JTM-1050VS2 W/203 2-X X & Y HDWE

From the Manufacturer

This model is the JTM-1050 milling machine with the addition of X and Y-axis powerfeeds. This variable speed milling machine has a precision bored and honed machine head. The large diameter quill is chrome finished. The spindle head is internally cooled, has high precision class 7 spindle bearings, and includes a heavy duty spindle brake. Included is a no fuse breaker power connection. The motor drive is splined with a one-piece quill pinion and shaft, with bearing support at the end. The three-stage power downfeed with an automatic stop make this machine easy to work with. Included are precision hardened and ground ways and table. There are chrome lead screws and Turcite B on the X and Y axis. There are adjustable gibs throughout, and an internal coolant tank is built into the base for use with a coolant system (coolant pump not included). There are locks on all movable surfaces and all the dials are satin chrome finished. Standard equipment includes; one-shot lubrication system, way covers, a draw bar, and a tool box with tools. Tolerance test sheet included.

EAN: 0662755516023

Package Dimensions: 95.7 x 87.0 x 68.7 inches
