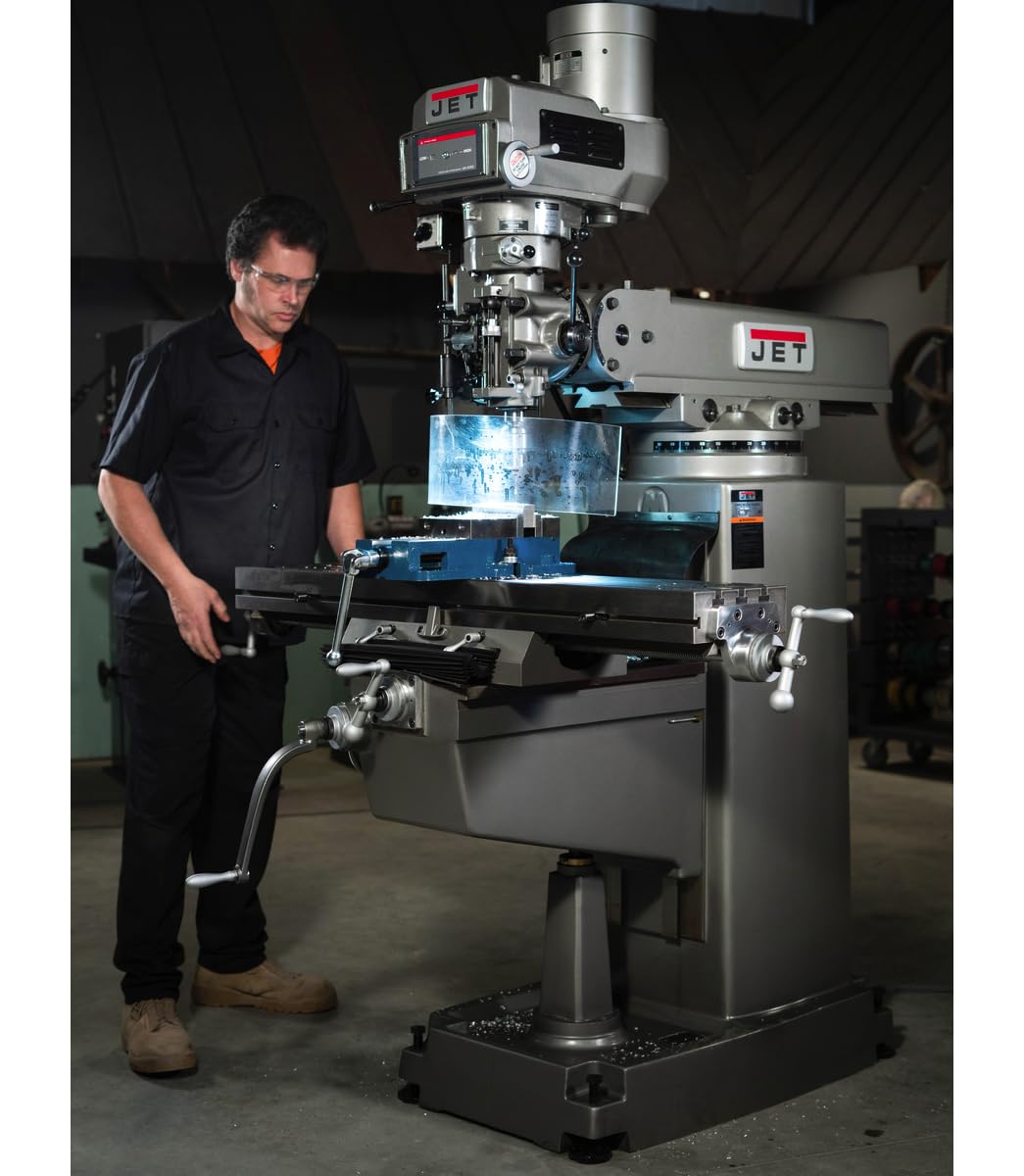

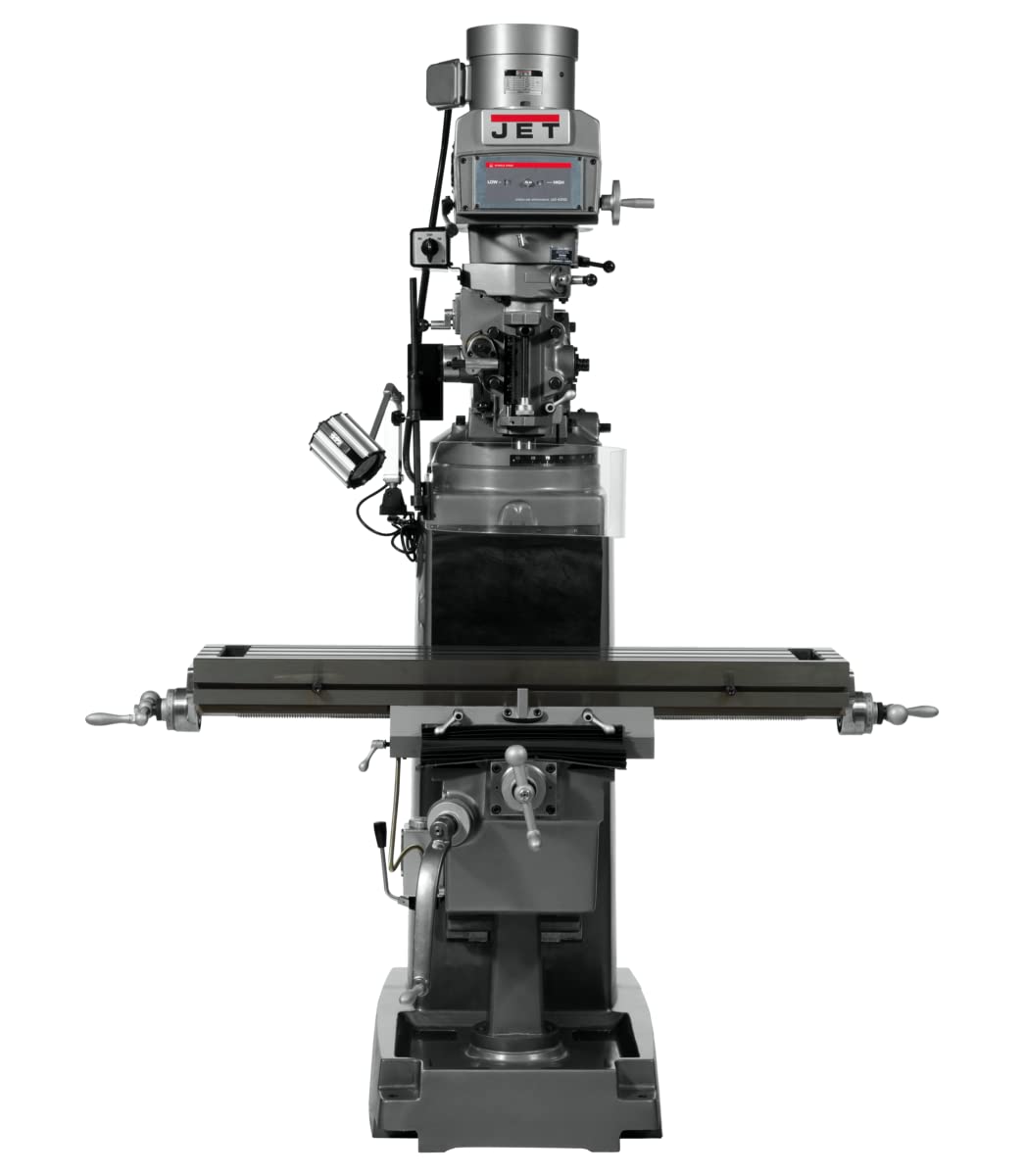

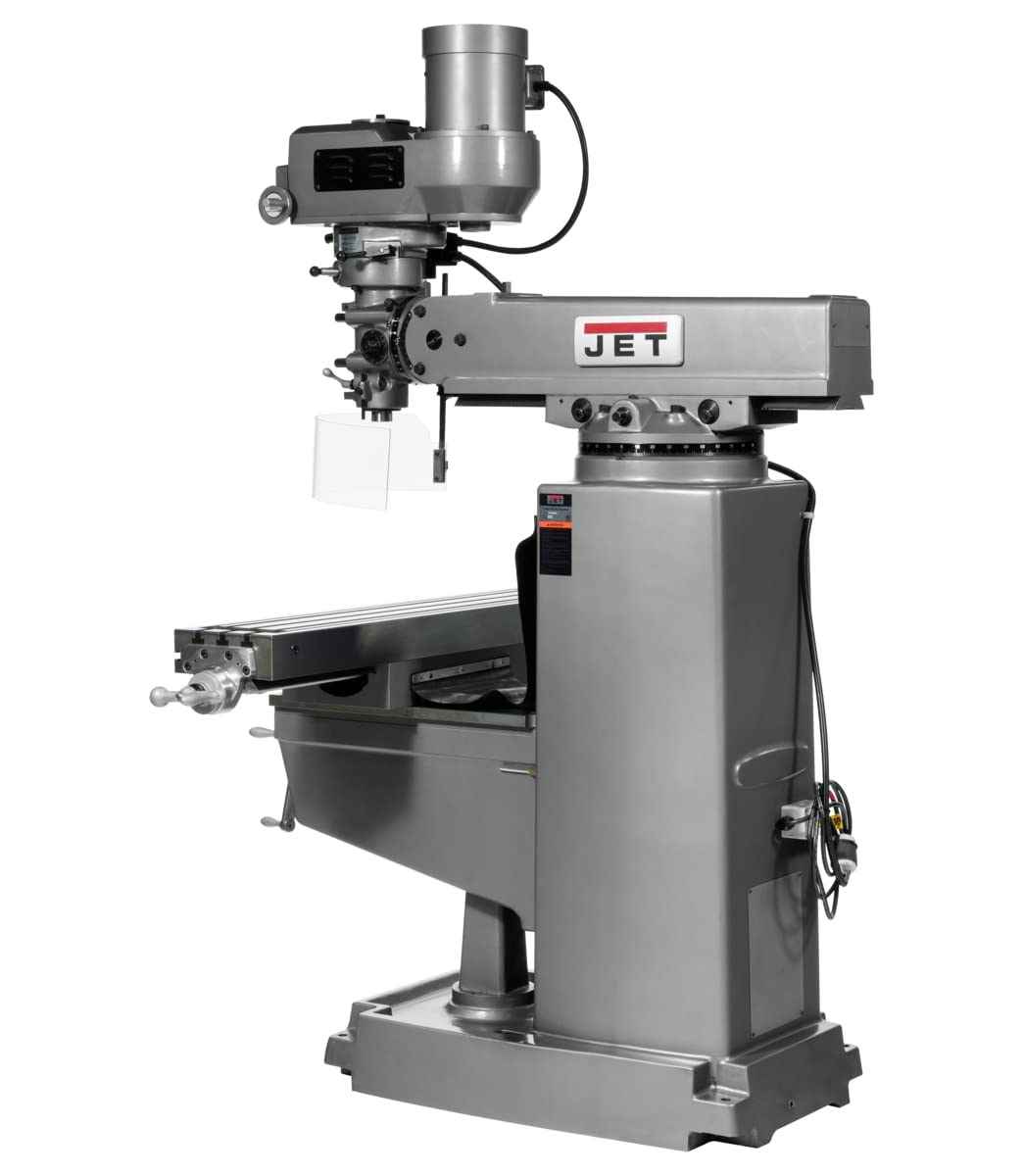

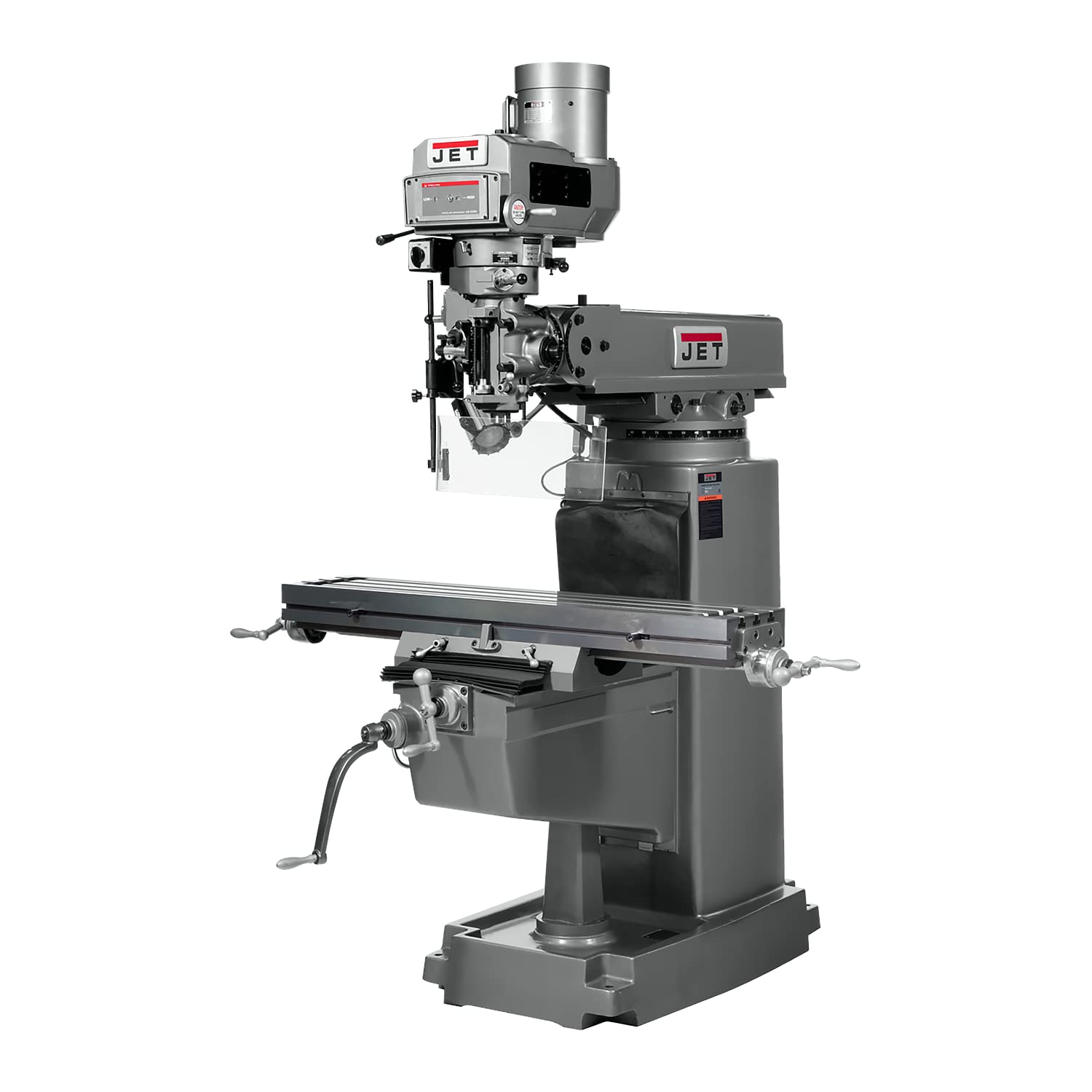

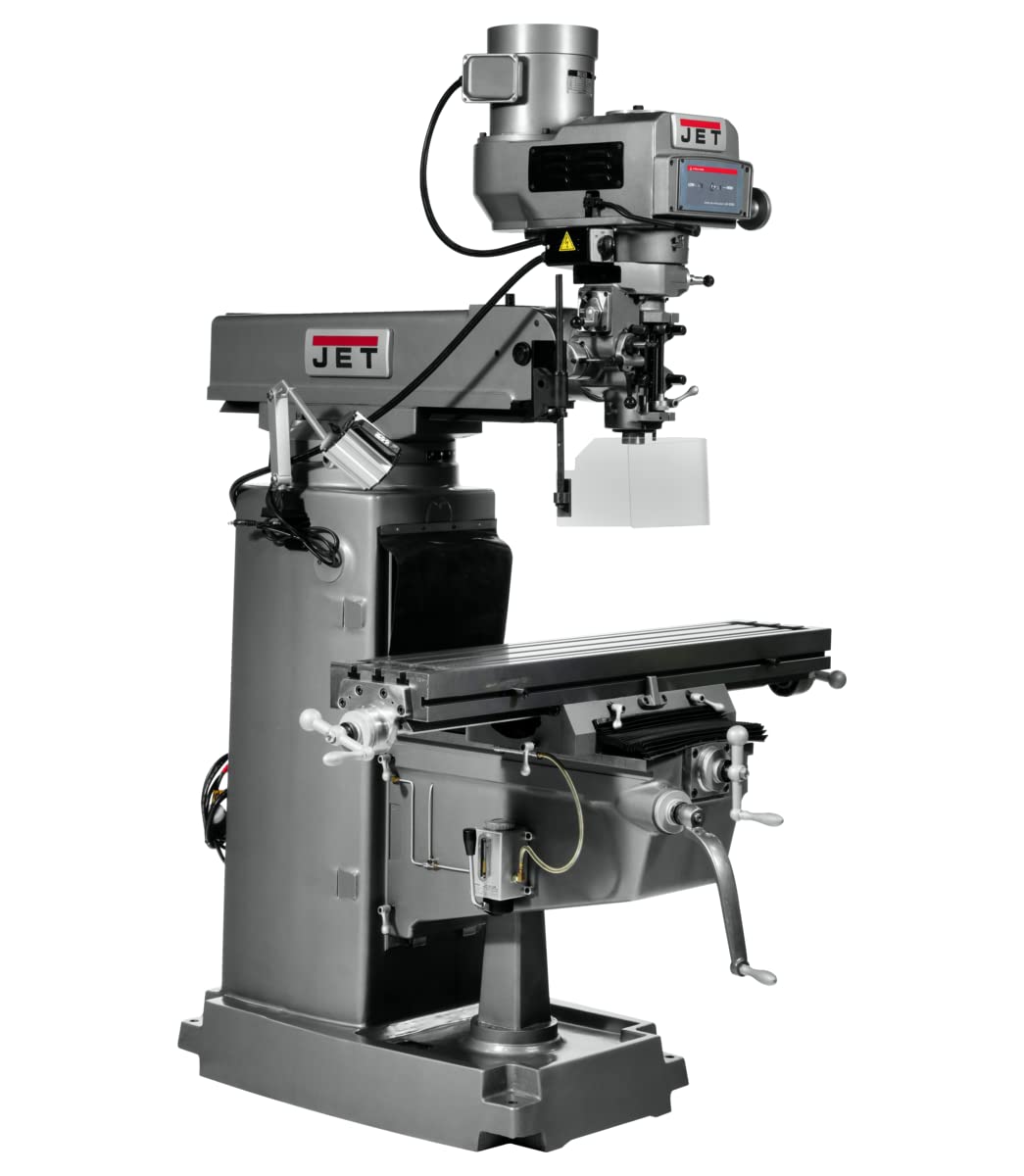

JET Variable-Speed Vertical Mill, X-Axis Powerfeed, ACU-RITE 203 DRO, 230/460V 3Ph (JTM-1050VS2)

Brand: Jet

Color: Gray

Features:

• Adjustable gibs throughout
• Chrome lead screws on X and Y axis
• Chrome-plated motor shaft with bearing support at end
• Hardened and ground square vertical knee ways and cross ways
• Internal coolant tank built into base for use with coolant system (coolant pump not included)
• One-shot lubrication system
• Spindle head is internally cooled

model number: 690117

Part Number: 690117

Details: Product Description

The JET JTM-1050VS2 features Certified Meehanite castings, a heavy-duty hardened and ground 10' x 50' table, and high-precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable-Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two-Year Warranty.

From the Manufacturer

This model is the JTM-1050 milling machine with the addition of an Acu-Rite 200M DRO and powerfeed(X-axis). This variable speed milling machine has a precision bored and honed machine head. The large diameter quill is chrome finished. The spindle head is internally cooled, has high precision class 7 spindle bearings, and includes a heavy duty spindle brake. Included is a no fuse breaker power connection. The motor drive is splined with a one-piece quill pinion and shaft, with bearing support at the end. The three-stage power downfeed with an automatic stop make this machine easy to work with. Included are precision hardened and ground ways and table. There are chrome lead screws and Turcite B on the X and Y axis. There are adjustable gibs throughout, and an internal coolant tank is built into the base for use with a coolant system (coolant pump not included). There are locks on all movable surfaces and all the dials are satin chrome finished. Standard equipment includes; one-shot lubrication system, way covers, a draw bar, and a tool box with tools. Tolerance test sheet included.

EAN: 0662755137136

Package Dimensions: 78.0 x 78.0 x 75.0 inches
