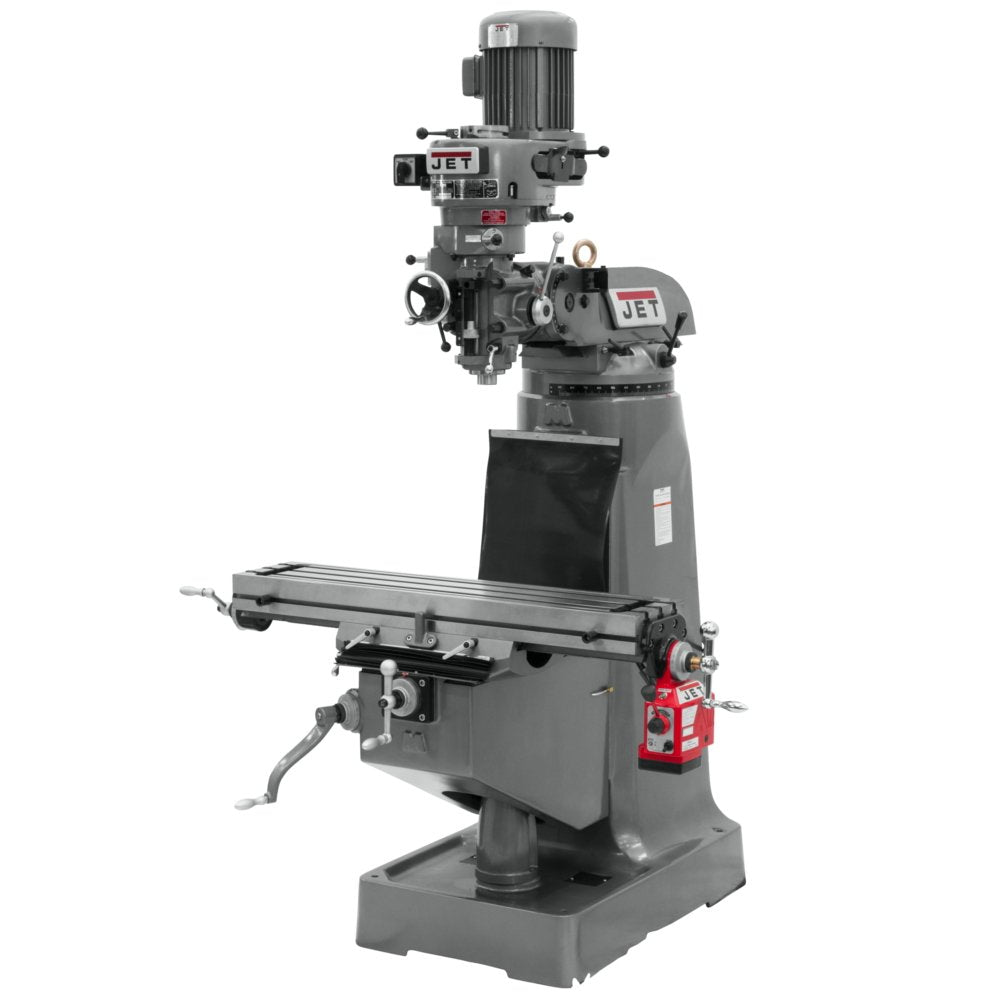

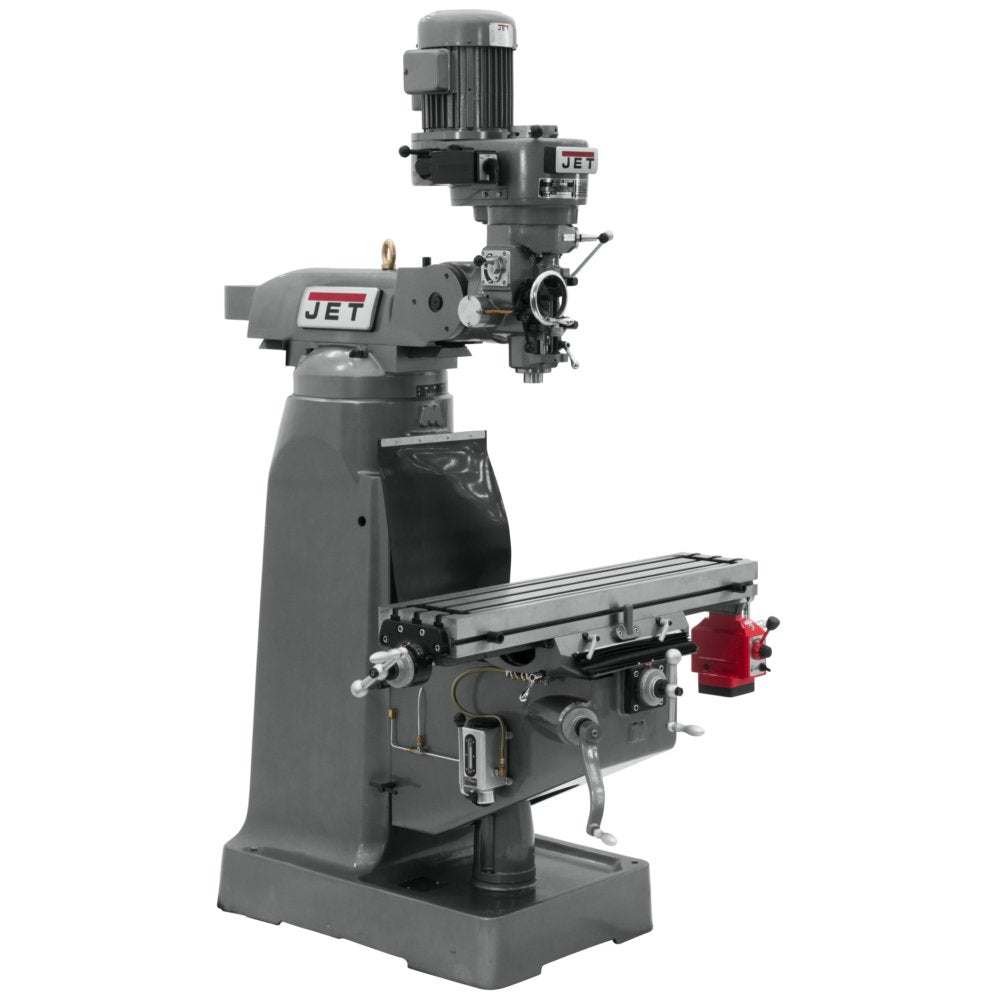

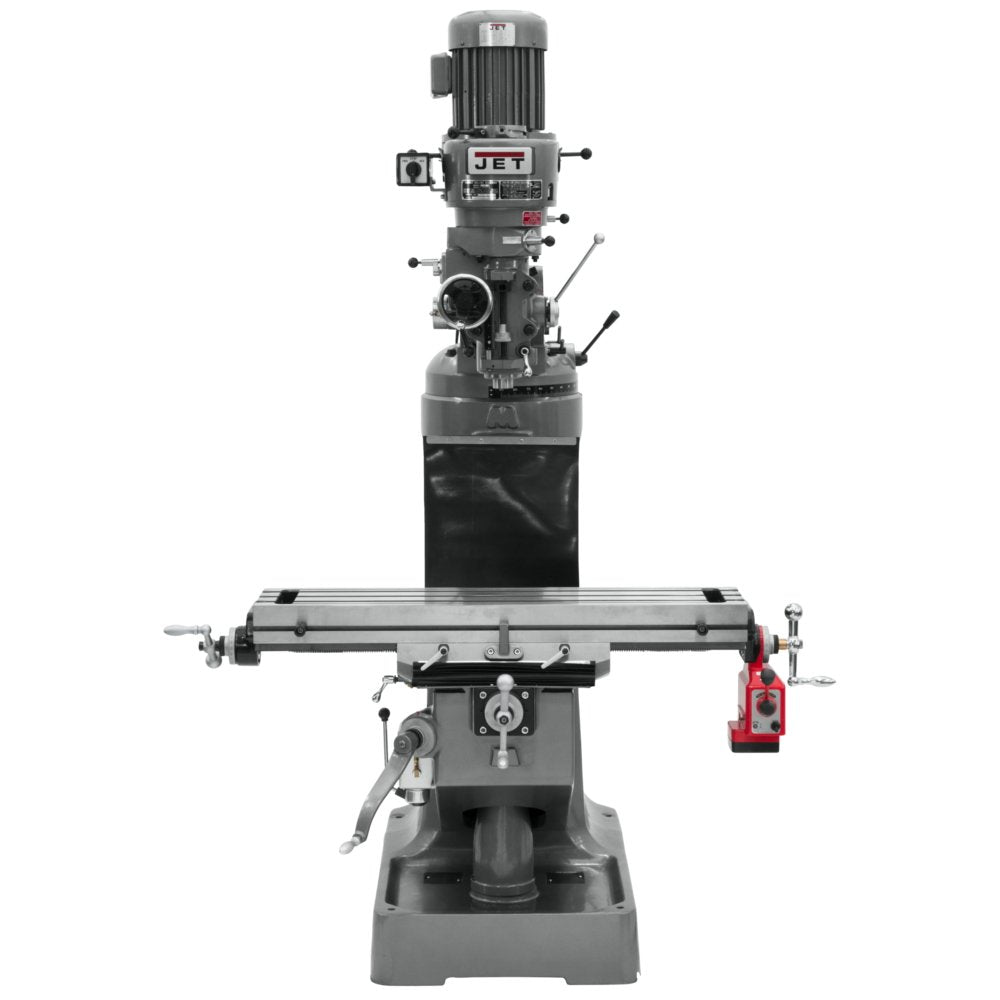

JET Vertical Milling Machine, X-Axis Powerfeed, 2 HP, 115/230V 1Ph (Model JTM-2)

Brand: Jet

Color: Gray

Features:

• Heavy-duty splined motor drive
• Internal coolant tank built into base for use with coolant system (pump not included)
• Large diameter quill is chromed
• One shot lubrication system
• Precision bored and honed milling head
• Three-stage power downfeed with automatic stop
• Precision hardened and ground ways

model number: JTM-2

Part Number: 690006

Details: Product Description

Three-stage power down feed with auto stop, high-precision Class 7 spindle bearings, and the rugged stability of Meehanite castings ensures you get everything you need from the JET JTM-1 and 2 mills. The internally-cooled spindle head prevents seizing, and JET precision engineering ensures superior results with the features you've come to expect, all backed by the industry-leading JET Two-Year Warranty.

From the Manufacturer

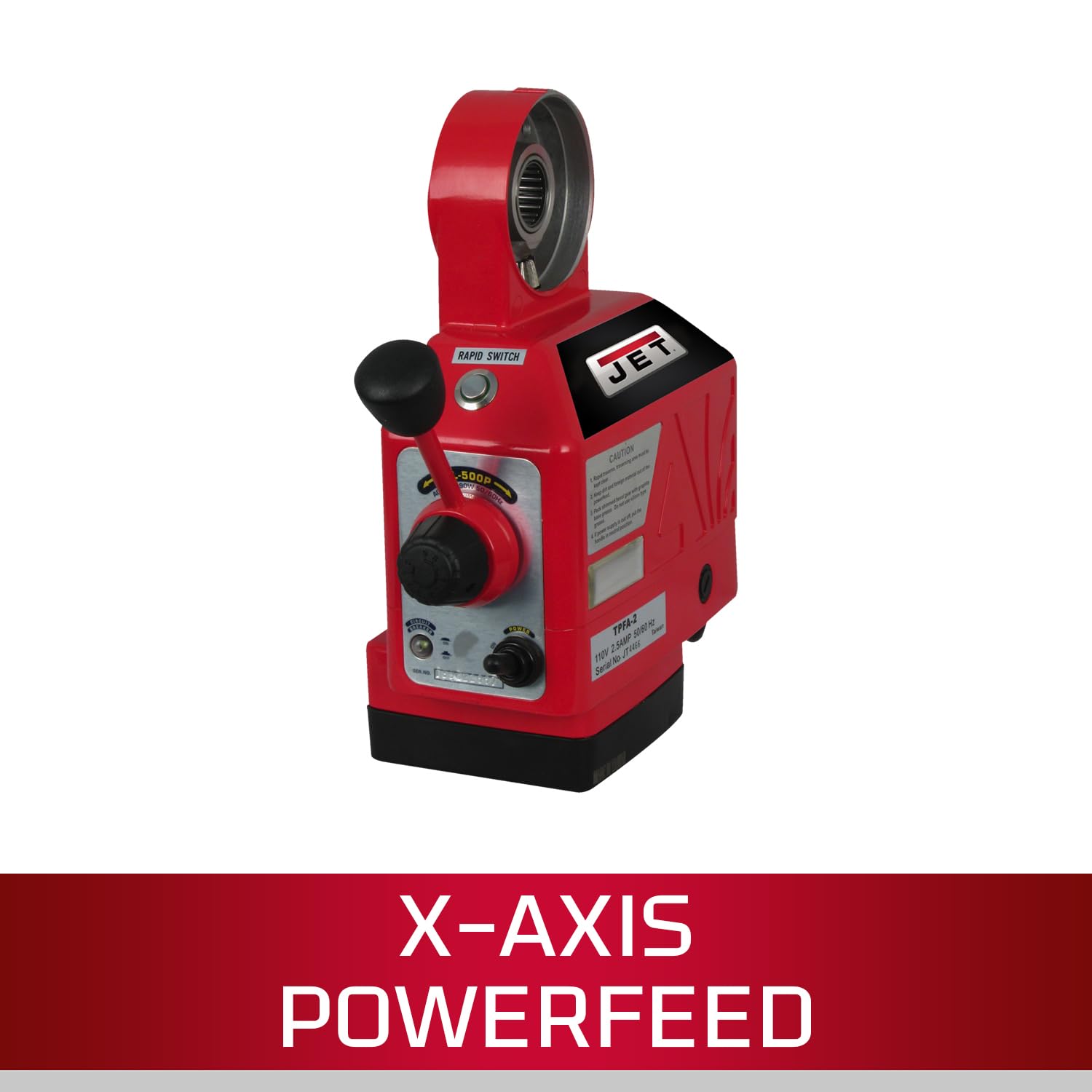

This model is the JTM-2 milling machine with the addition of an X-axis powerfeed. This machine has a precision bored and honed machine head. The large diameter quill is chrome finished. The spindle head is internally cooled, has high precision class 7 spindle bearings, and includes a heavy duty spindle brake. The motor drive is splined with a one-piece quill pinion and shaft. The three-stage power downfeed with an automatic stop make this machine easy to work with. Included are precision hardened and ground ways and table. There are adjustable gibs throughout, and an internal coolant tank is built into the base for use with a coolant system (coolant pump not included). There are locks on all movable surfaces and all the dials are satin chrome finished. Our step pulley milling machine is the perfect solution for maintenance shops, repair shops, job shops, schools, and light production. Standard equipment includes; one-shot lubrication system, way covers, a draw bar, and a tool box with tools. Tolerance test sheer included.

EAN: 0662755515880

Package Dimensions: 82.0 x 65.0 x 57.0 inches
