Johnson Controls A19DAC-1C A19D Series Surface Mounted Temperature Control, 100 to 240 Degree F Temperature Range and Scale, 10 F Degree (+/- 2.8 F Degree) Differential, Visible Range Scale

Brand: Johnson Controls

Color: Gray

Features:

• Provides either high or low temperature detection
• Provides reliable and durable on/off control for commercial and industrial applications
• Simplify wiring the control
• Minimizes the effects of ambient temperature on the control set point
• Provides knob, screwdriver, or concealed adjustment options

Release Date: 14-06-2017

model number: A19DAC-1C

Part Number: A19DAC-1C

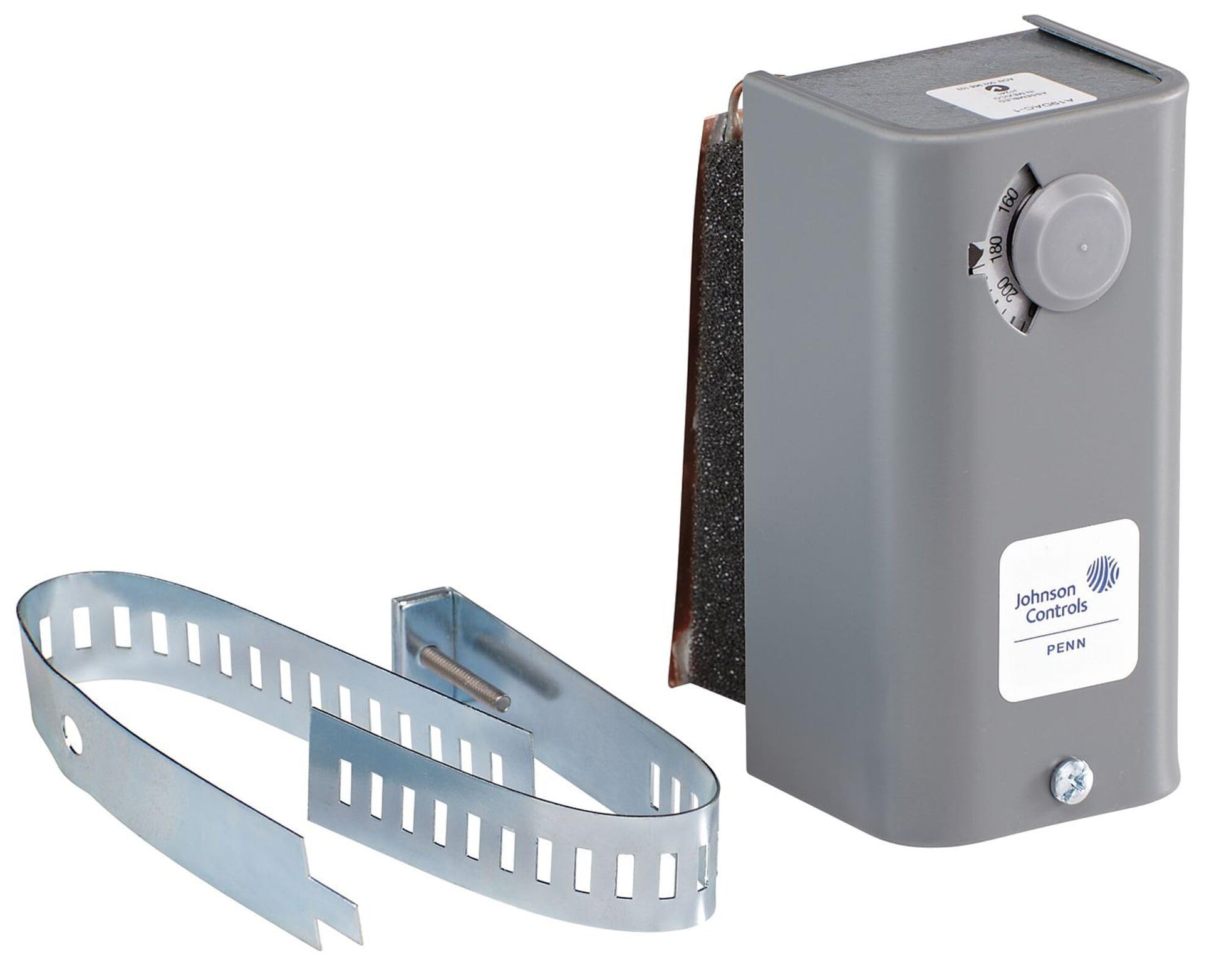

Details: The A19D Series Surface Mounted Temperature Controls (Figure 1) Are Reliable, Durable On/Off Temperature Controls With Line-Voltage Single Pole, Double Throw (Spdt) Switches. The A19D Series Controls Are Designed Primarily For Fluid Piping Applications And Include Two Adjustable Mounting Straps For Mounting The Control Directly To A Pipe. The Sensing Element Has A Liquid Charge And Provides Fast Response To A Change In Temperature. A Range Adjustment Knob And A Visible Temperature Scale Are Standard. Models Are Also Available With A Snap-In Plug In The Cover For Concealed Screwdriver Slot Adjustment. Made in United States. Manufactured by Johnson Controls.

EAN: 0696333232913

Package Dimensions: 9.2 x 7.6 x 7.5 inches
