Jonard Tools FLS-55 Multi-Mode & Single-Mode Fiber Optic Light Source with FC/LC/SC (PC/UPC) Adapters (2025 Model)

Brand: Jonard Tools

Color: blue

Features:

• WHAT'S IN IT: MM/SM Fiber Optic Light Source, FC Adapter, LC Adapter, SC Adapter, (2) Cleaning Swabs, (3) AA Batteries, Storage Pouch
• HIGH DURABILITY DESIGN: Flush button design makes it easy to use and prevents dust from entering the unit plus shatter-resistant sleeve protects the light source from falls and other damage

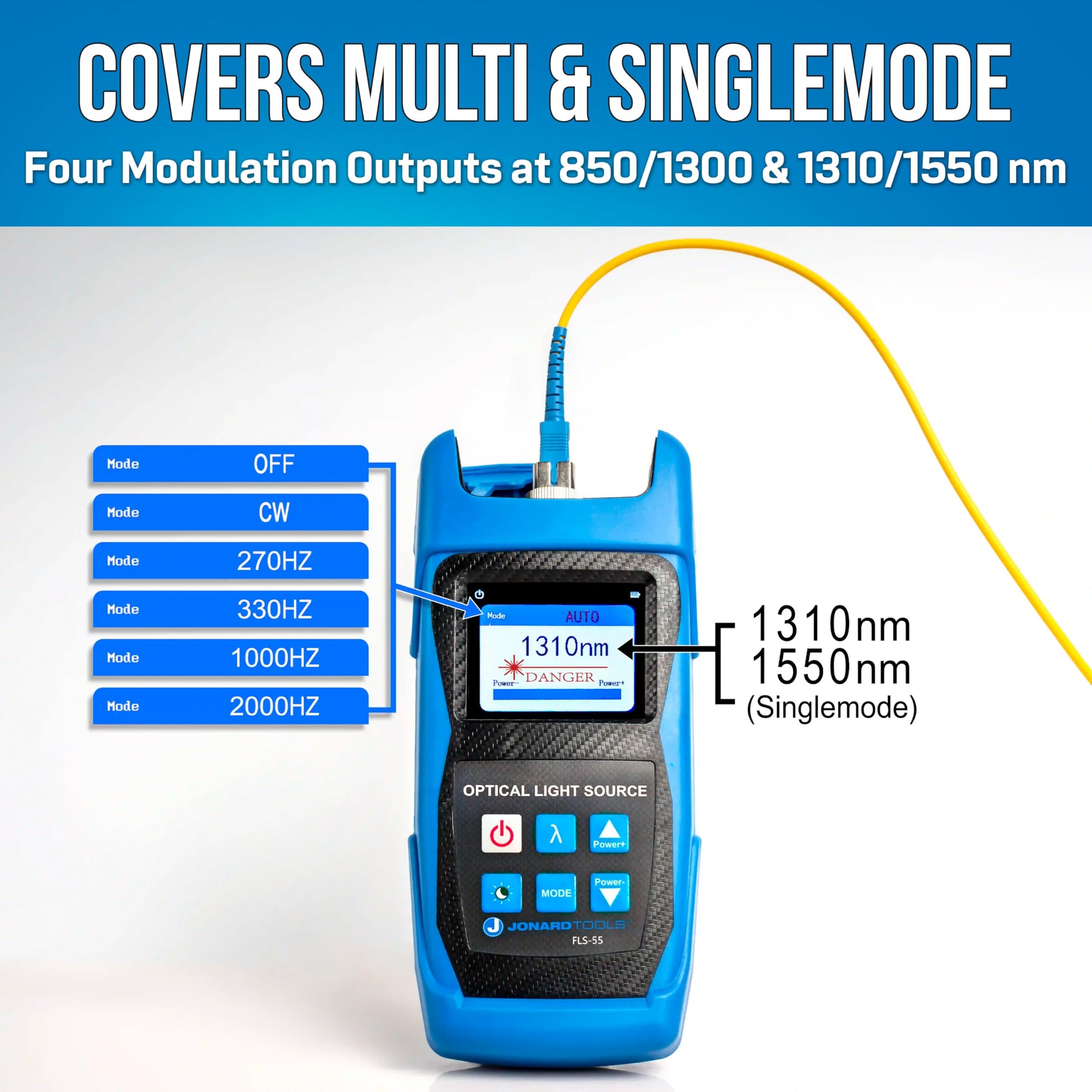

• 4 MODULATION OUTPUTS: This optical light source has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 850/1300 nm (multimode) and 1310/1550 nm (singlemode) wavelengths

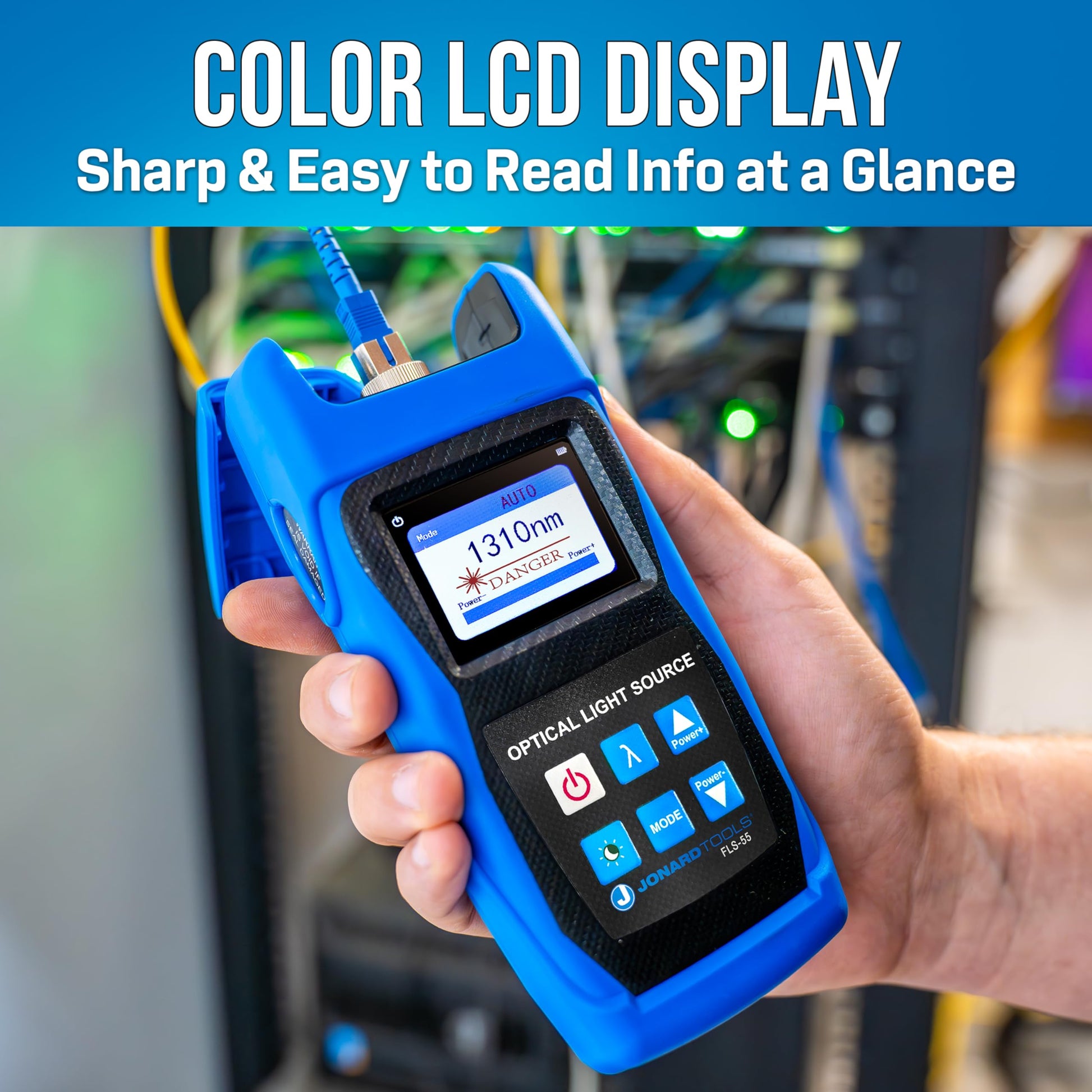

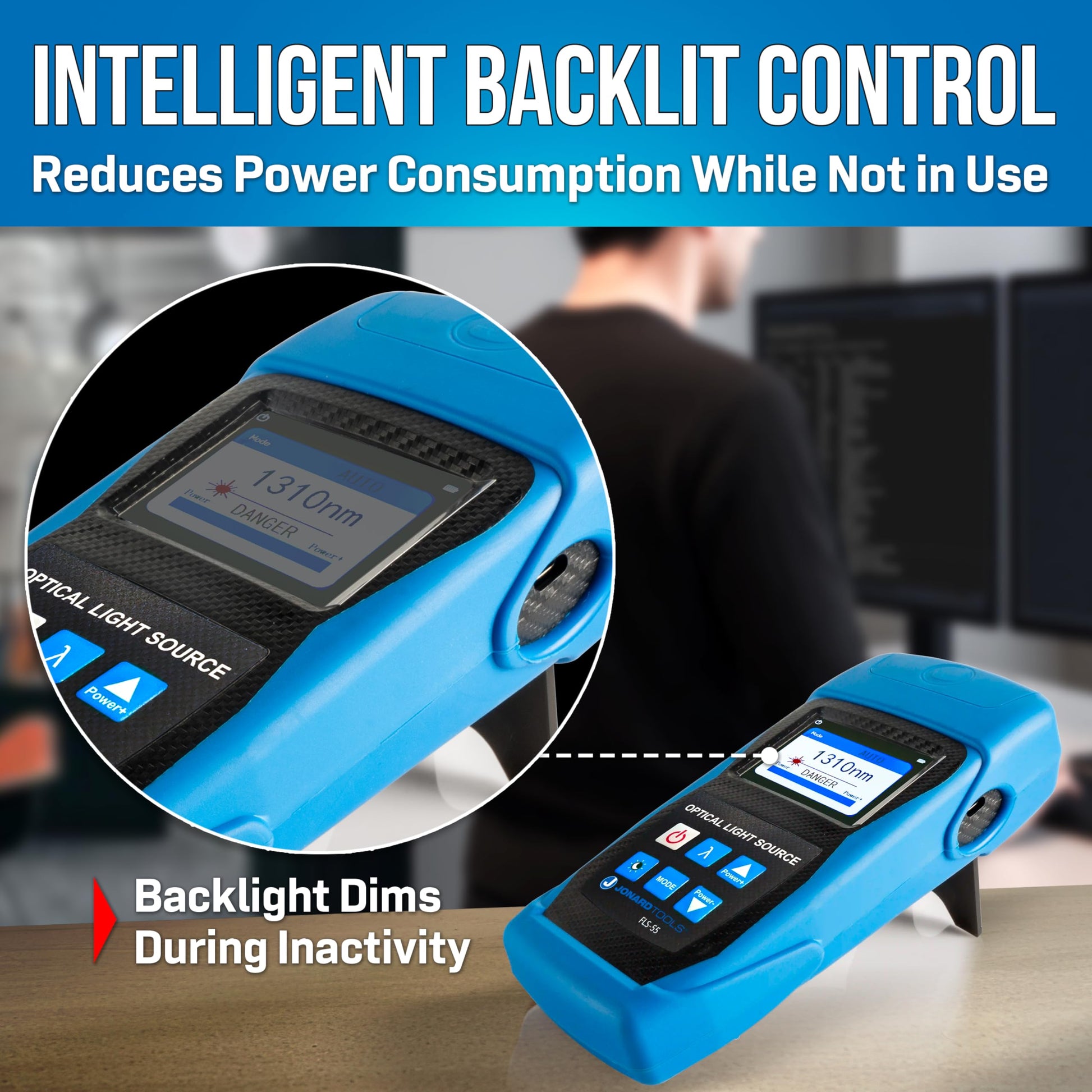

• BACKLIT LCD SCREEN: The LCD screen provides a clear viewing display and is backlit, making it ideal for viewing in dark and low light applications
• SHATTER-RESISTANT: Shatter-resistant sleeve protects the light source from falls or other damage
• ADDITIONAL JONARD TOOLS ADAPTERS AVAILABLE: Additional adapters from Jonard Tools, sold separately. Available part numbers include FLS-FCUPC, FLS-SCUPC, and FLS-STUPC.

model number: FLS-55

Part Number: FLS-55

Details: Designed to provide 850/1300 nm or 1310/1550 nm wavelengths, this optical light source is the perfect tool for providing a stable light source for multimode or single mode fiber measurements. This optical light source features the following:

Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors

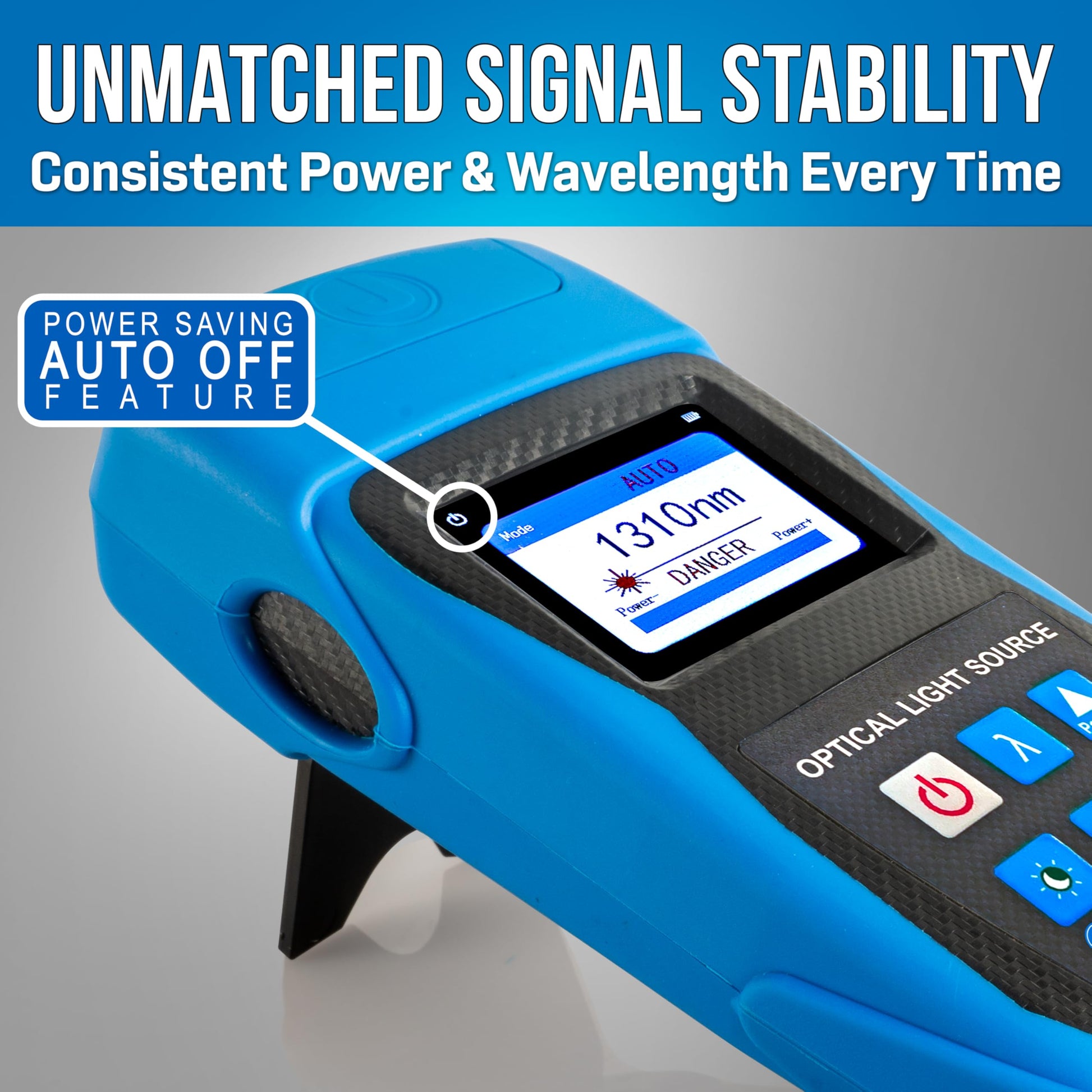

Highly stable output power and wavelengths
Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 850/1300 nm (multimode) and 1310/1550 nm (singlemode) wavelengths
Flush button design makes it easy to use and prevents dust from entering the unit
Shatter-resistant sleeve protects the light source from falls or other damage
Backlit LCD screen provides a clear display, ideal for dark places

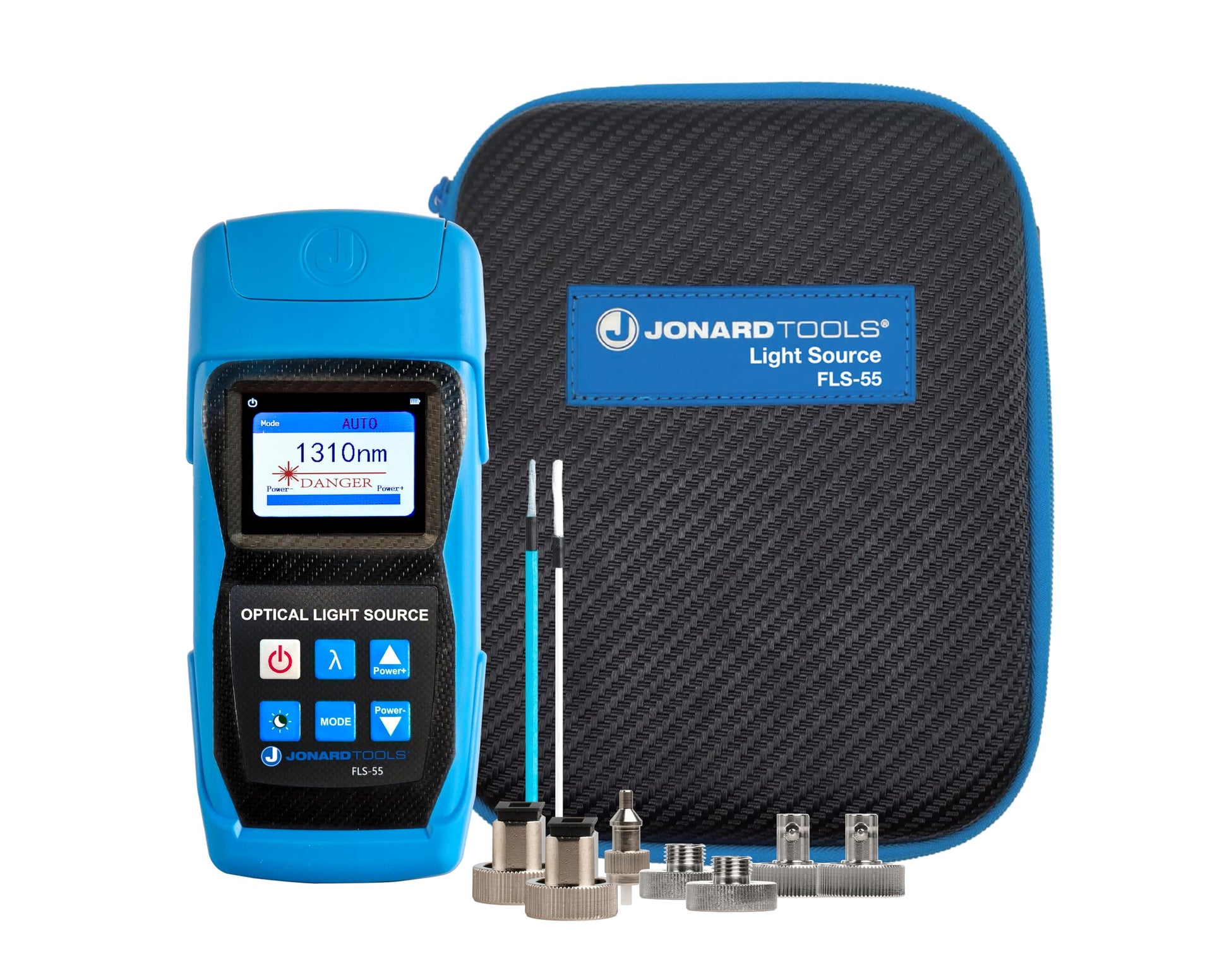

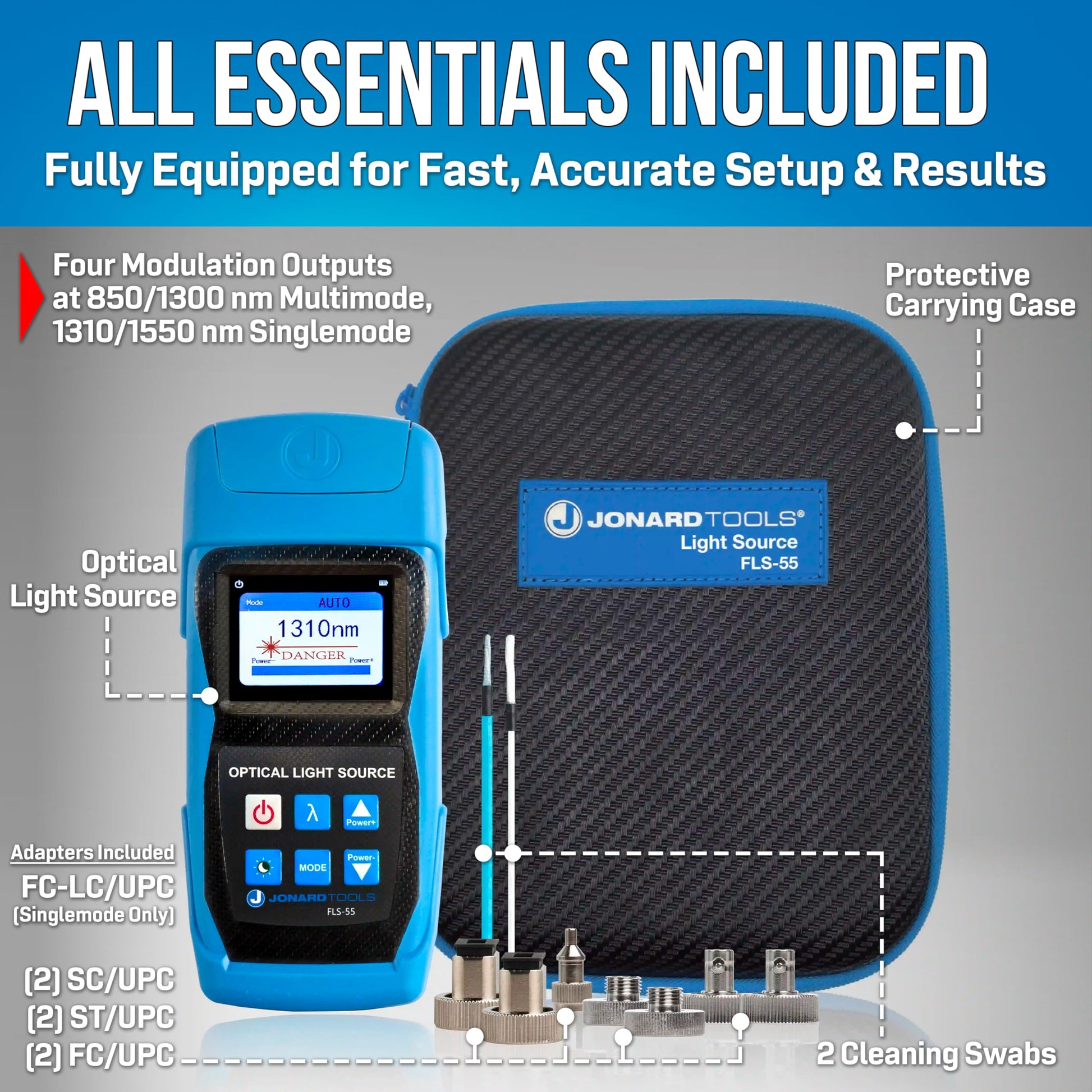

Includes:
Fiber Optic Light Source (MM/SM)
FC Adapter
LC Adapter
SC Adapter
(2) Cleaning Swabs
(3) AA Batteries (required for operation)
Storage Pouch

EAN: 0810053350195

Package Dimensions: 9.5 x 5.1 x 2.6 inches
