JQDML 24 Inch Stroke 8000N/1700lbs Heavy Duty Linear Actuator 12V Speed 0.157"/sec High Force IP43 Electric Actuator with Mounting Brackets,for Electric Lifting System, Electric Bed,Electric Door

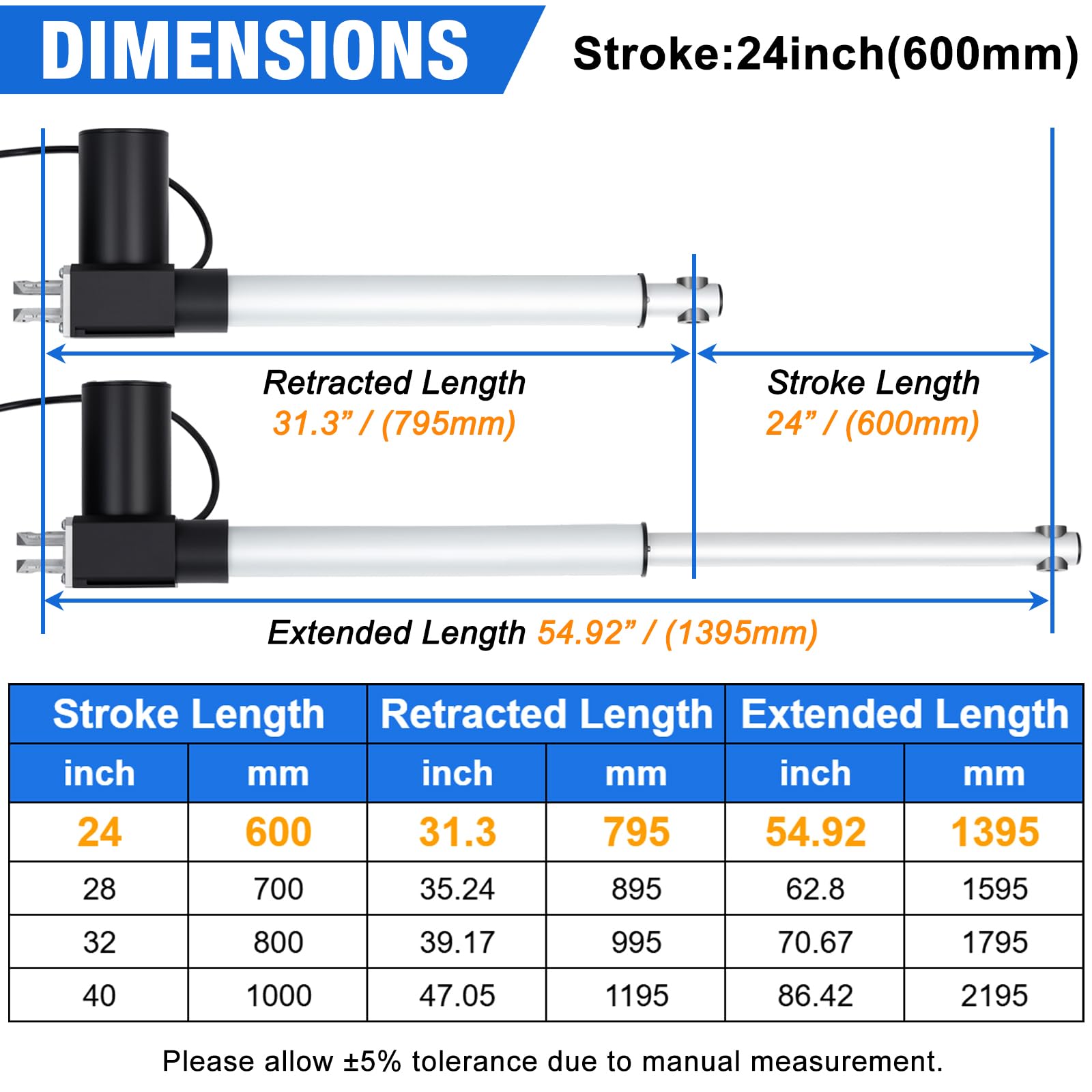

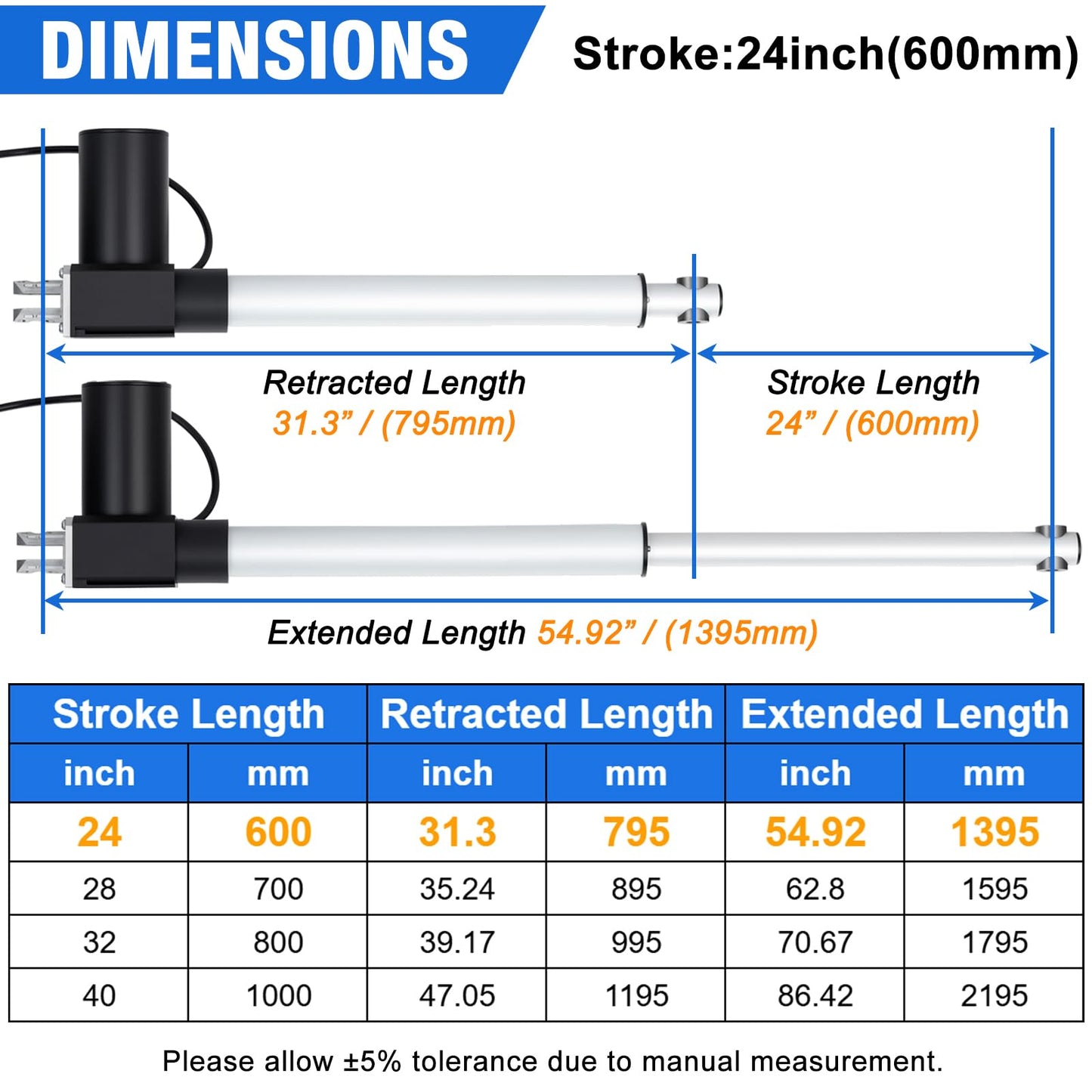

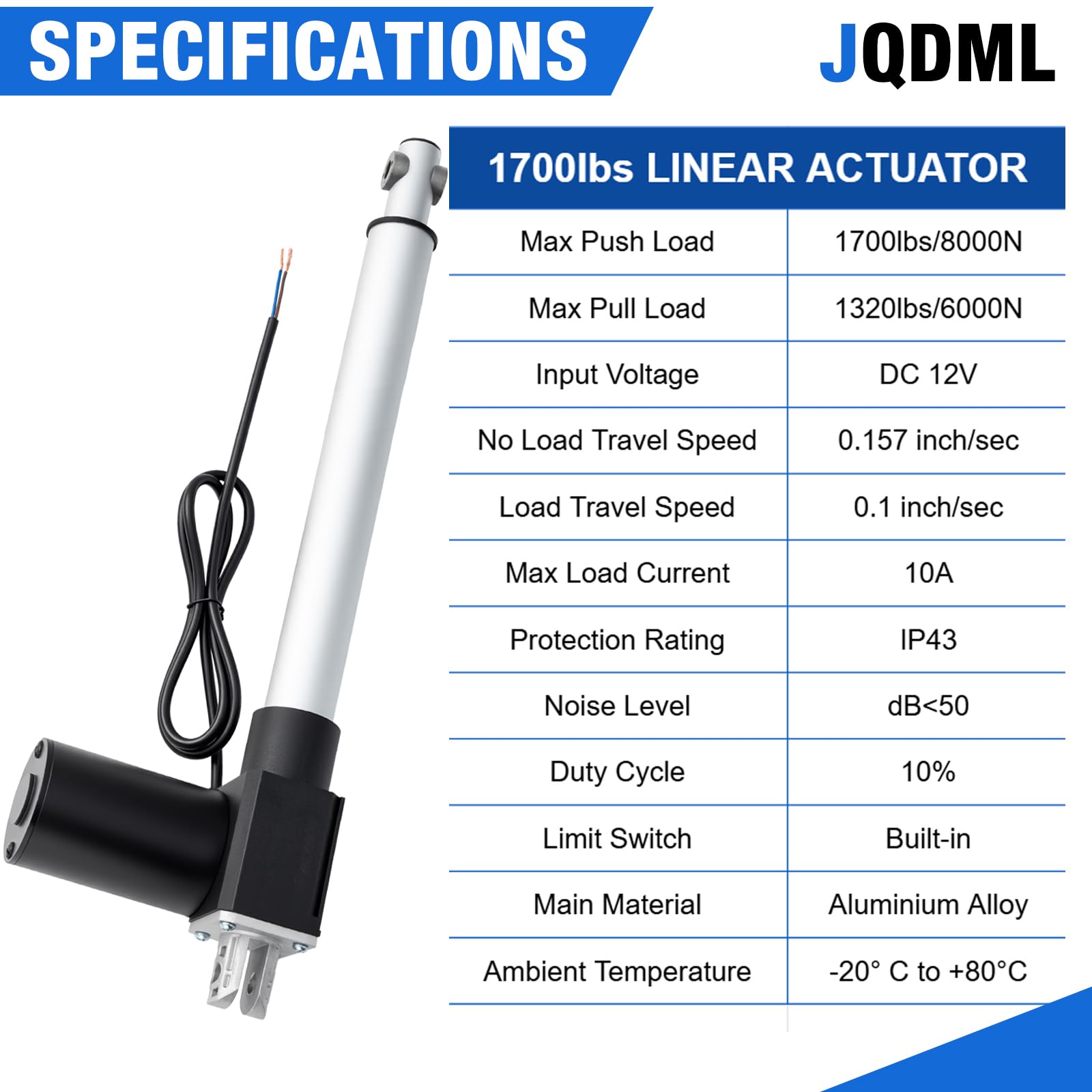

Specification: Voltage:12V DC;Stroke Length:24'(600mm),Retracted length: 31'(795mm), Extended Length:55'(1395mm); No load speed: 0.157 '/sec (4mm/s), Maximum Load:1700lbs(8000N),Maximum current draw:10A.

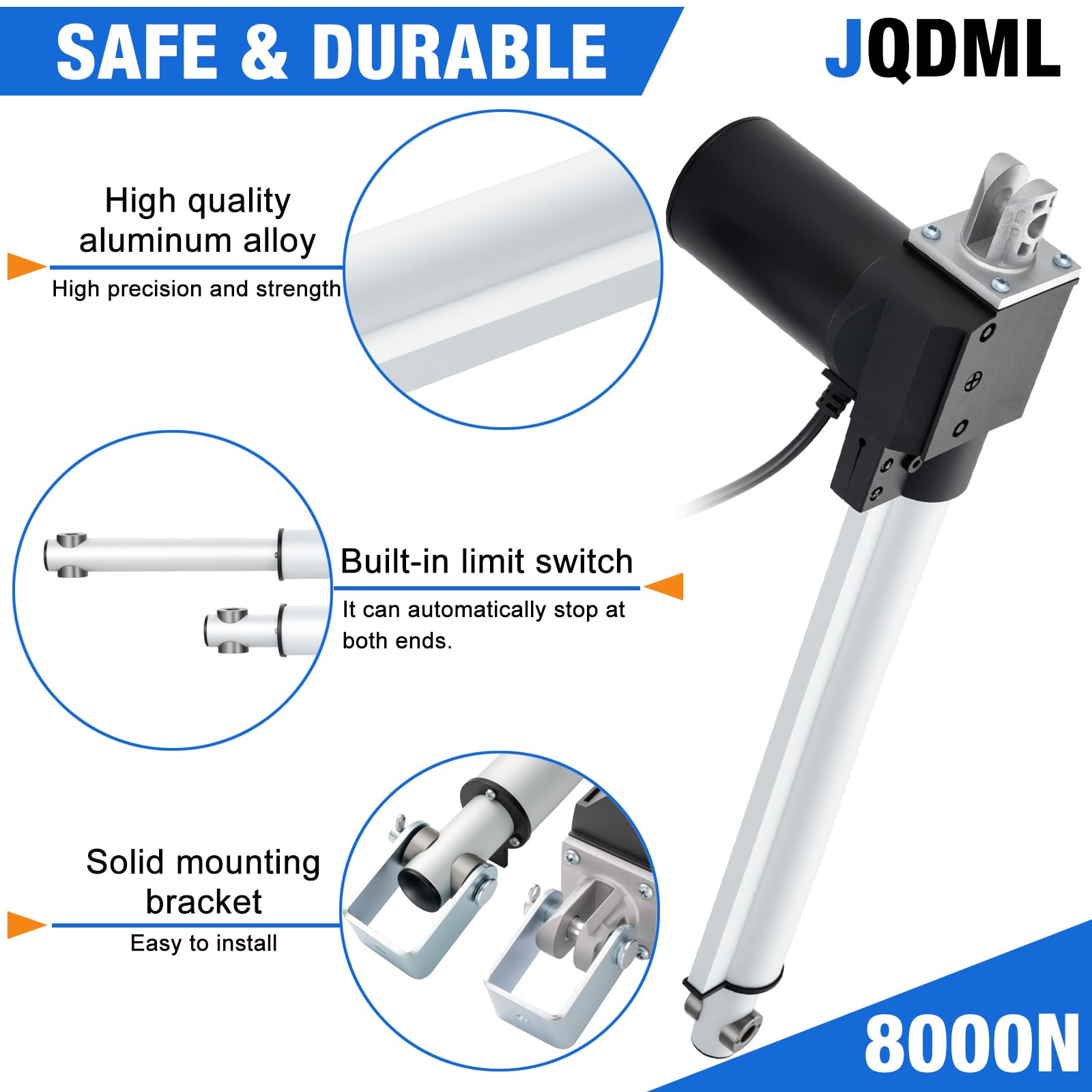

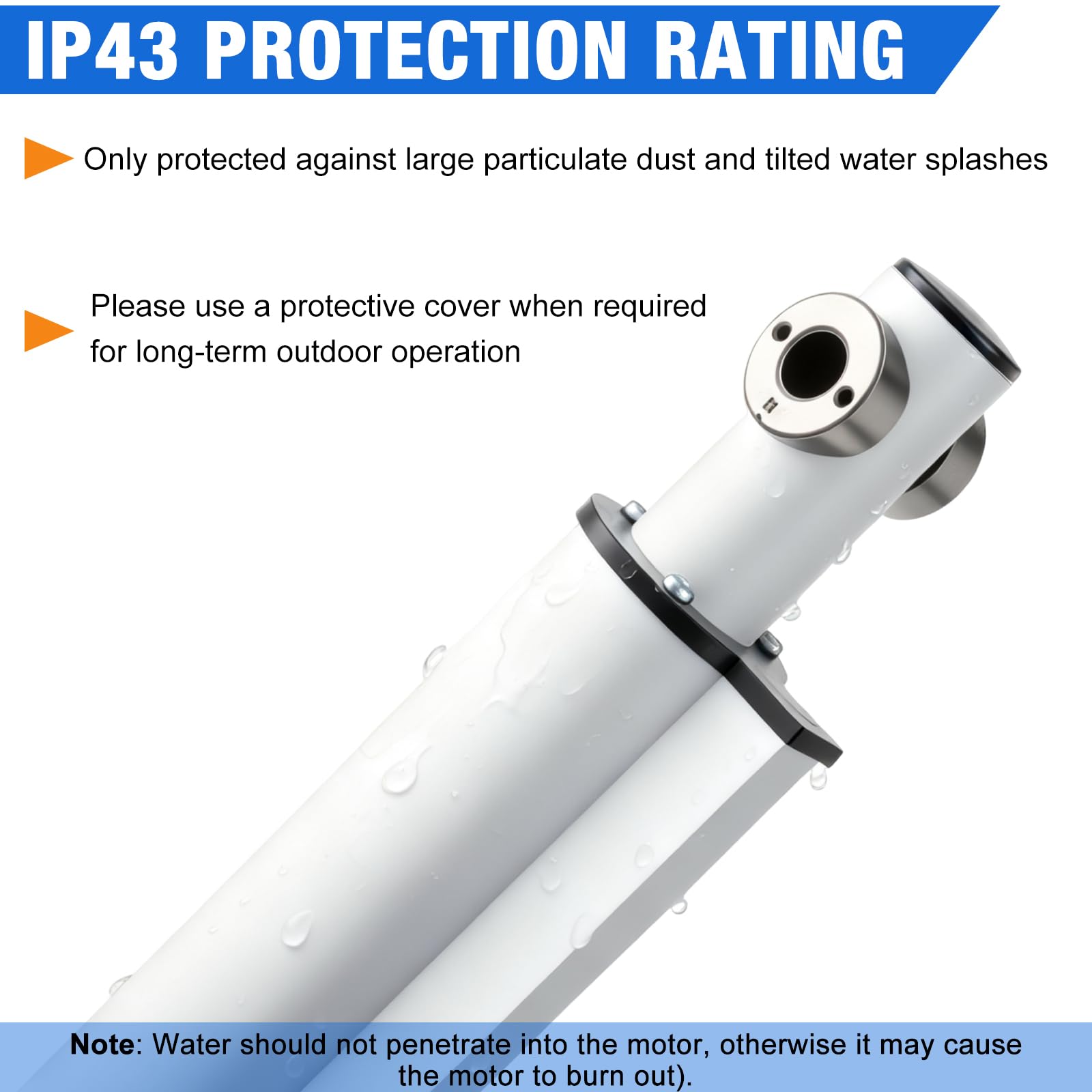

Features: Aluminum Alloy Housing;Noise level below 50dB;Ambient temperature:-20° C to +80°C;IP43 rated protection (Note:Water should not penetrate into the motor, otherwise it may cause the motor to burn out,use a protective cover when required for long-term outdoor operation).

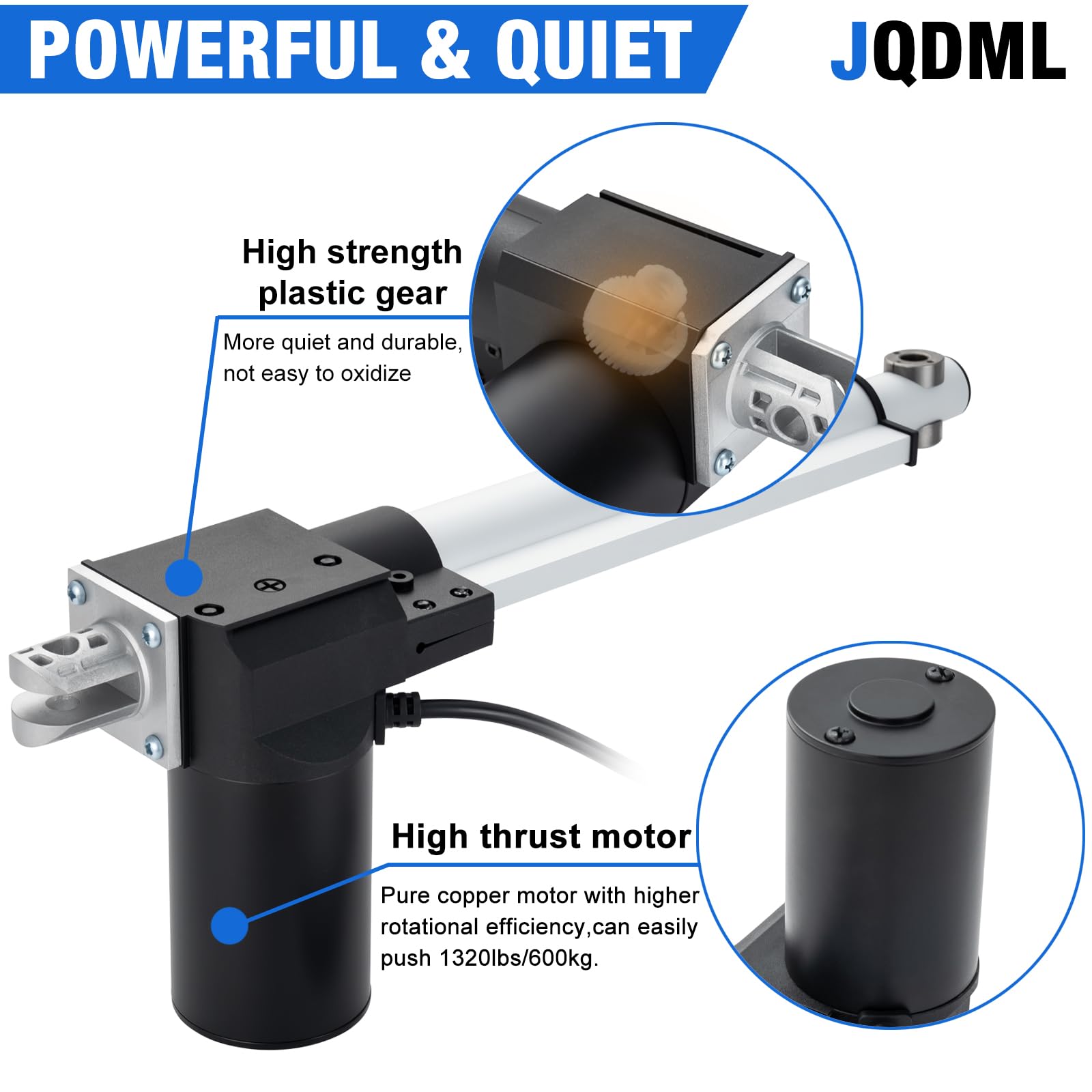

Powerful & Safe: The linear actuator equip with a high-performance moto,it can provide a pushing force up to 1700lbs and pulling force up to 1320lbs,designed specifically for heavy-load demands.It comes with a self-locking function and built-in limit switch (can't be adjustable),it can be stopped at any position and automatically stop at the top and the bottom.
Application: The JQDML 8000N linear actuator boasts broad compatibility, making it an ideal choice for industrial electric lifting system,door openers, electric beds, electric sofas,electric sunroofs, and various marine and RV equipment.

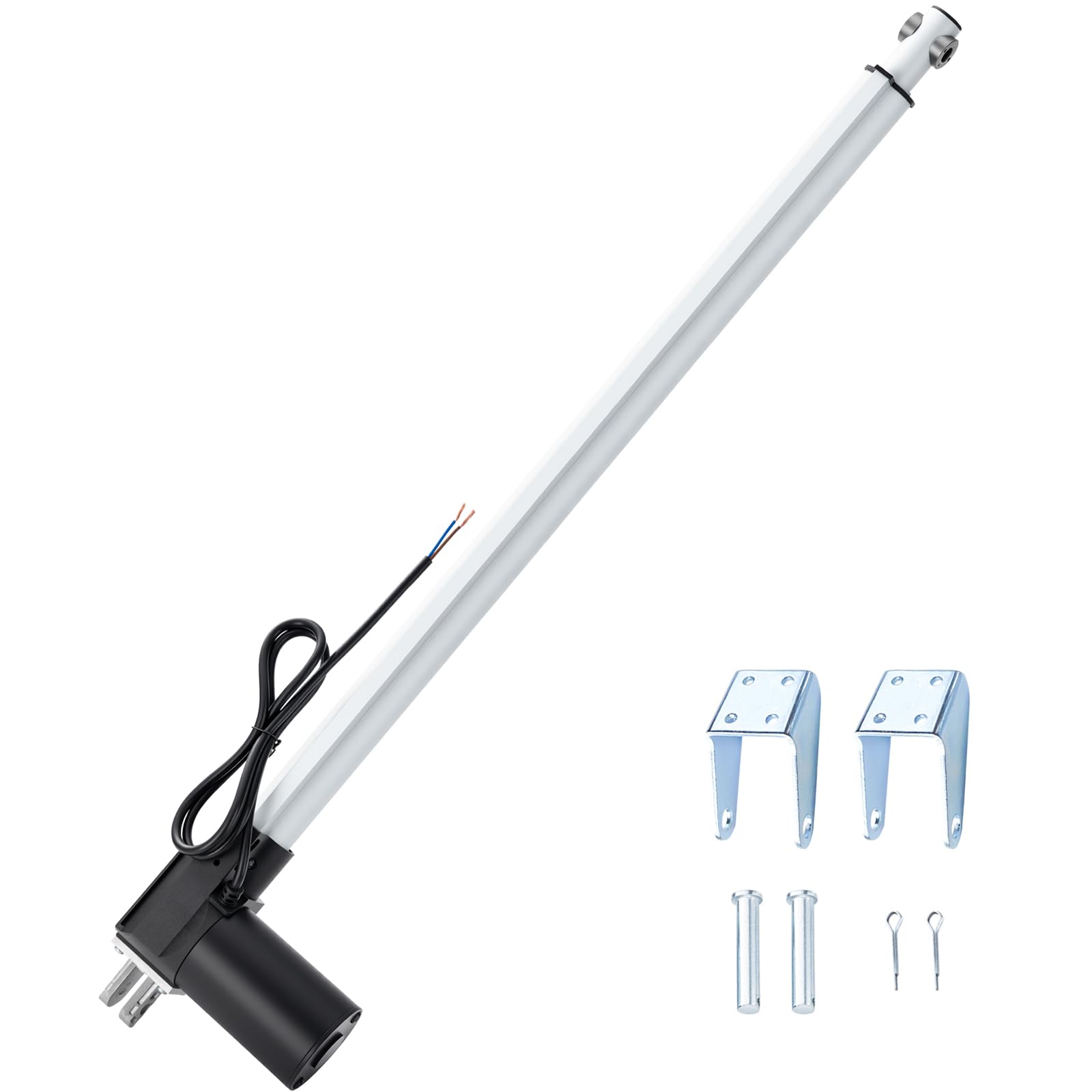

Package Included: 1 x DC 12V 8000N Linear Actuator and 2 x Mounting Brackets.
