Just one tool for the most common crimping applications
Crimping Dies changed quickly and easily without any additional tool

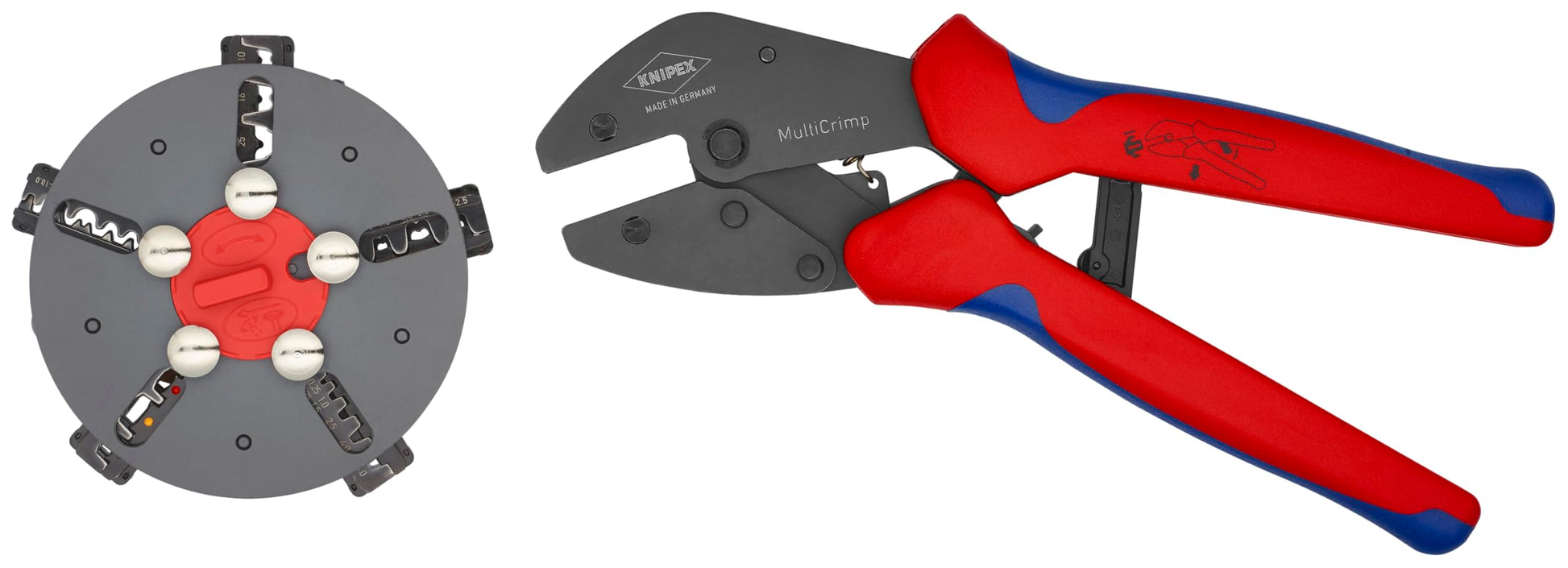

Secure and protected storage of the Interchangeable Dies in a round MAGAZINE
Capacity: 0.5 - 6.0 mm², AWG 20-10
Repetitive, high crimping quality due to precision Dies and integral self-release mechanism
model number: 97 33 02
Part Number: 97 33 02

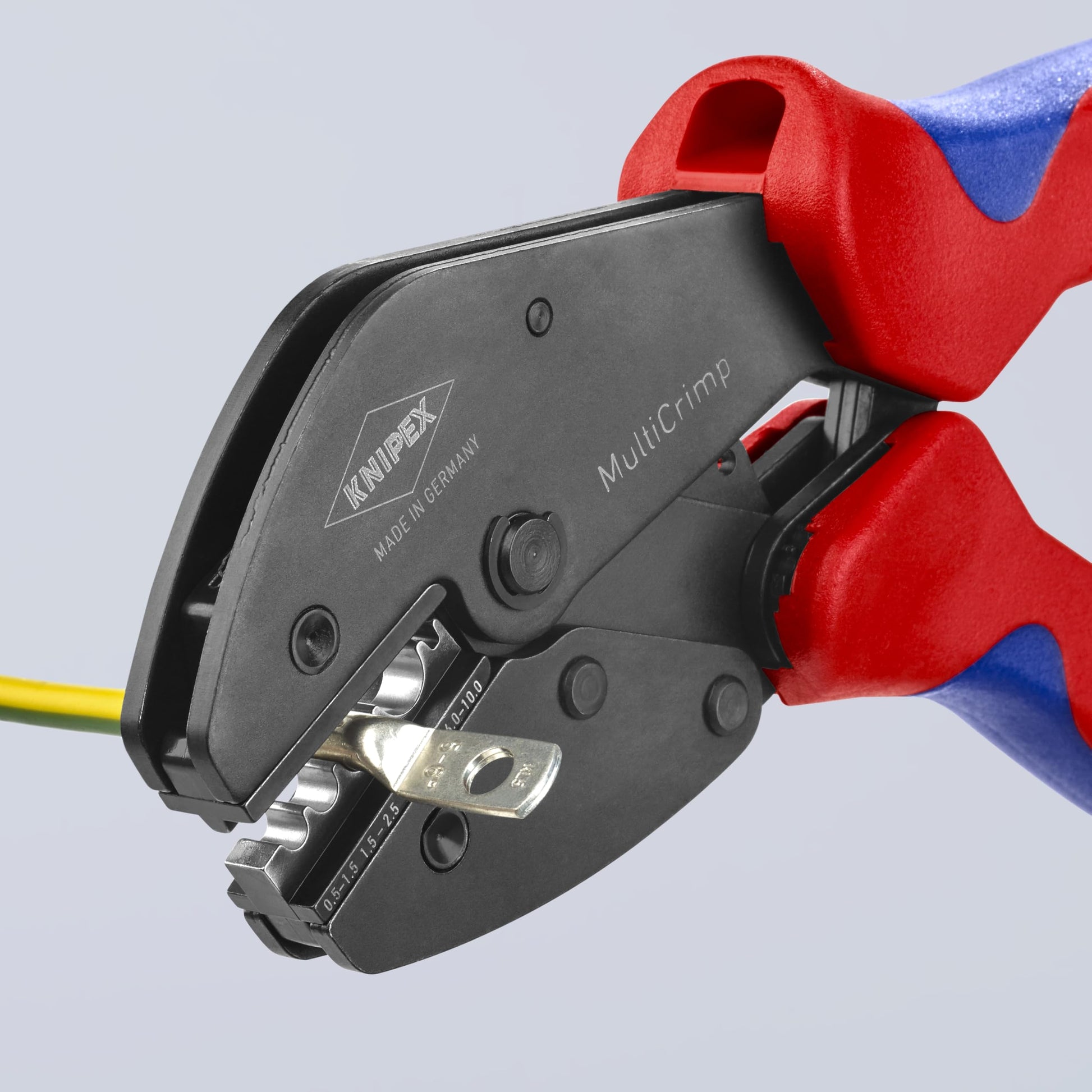

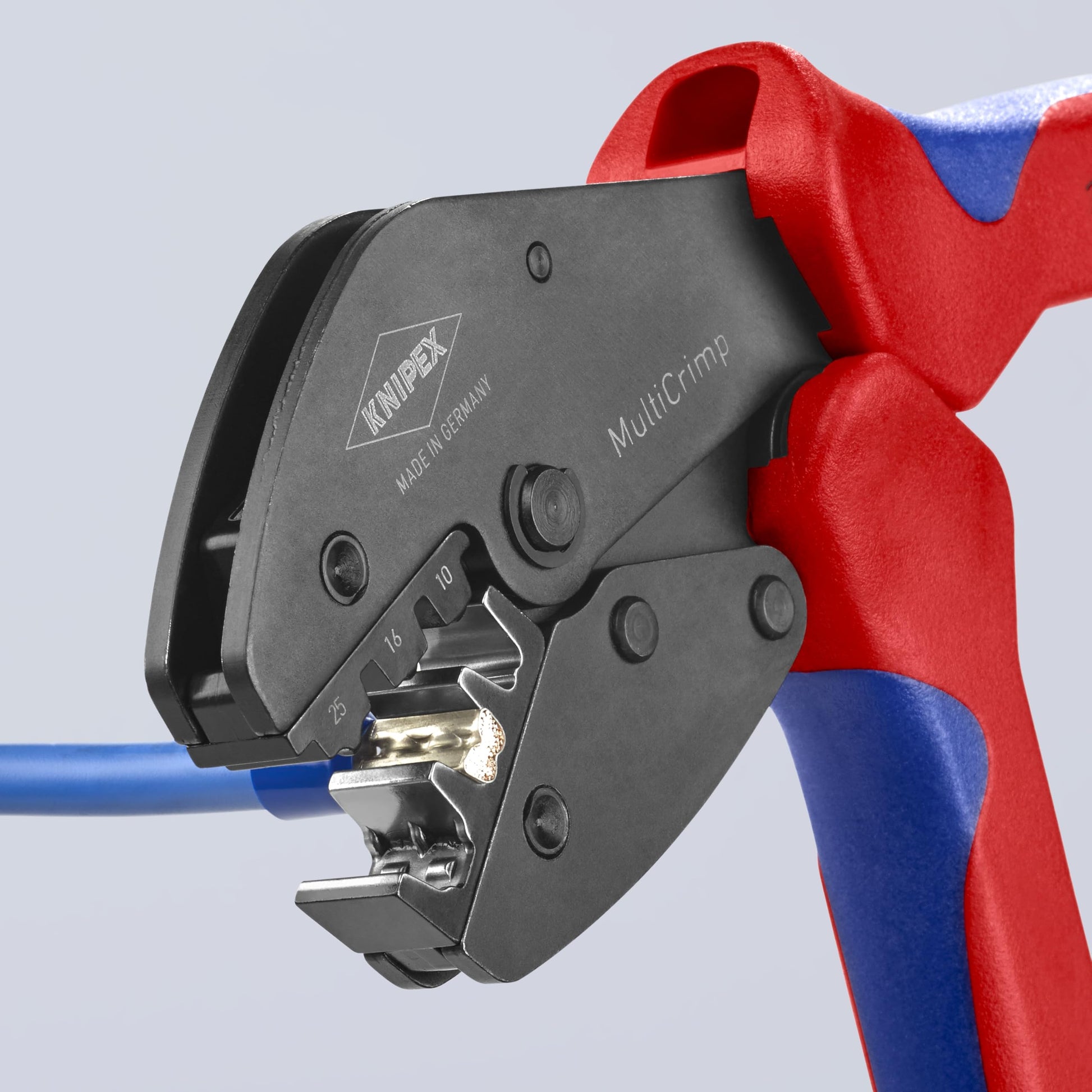

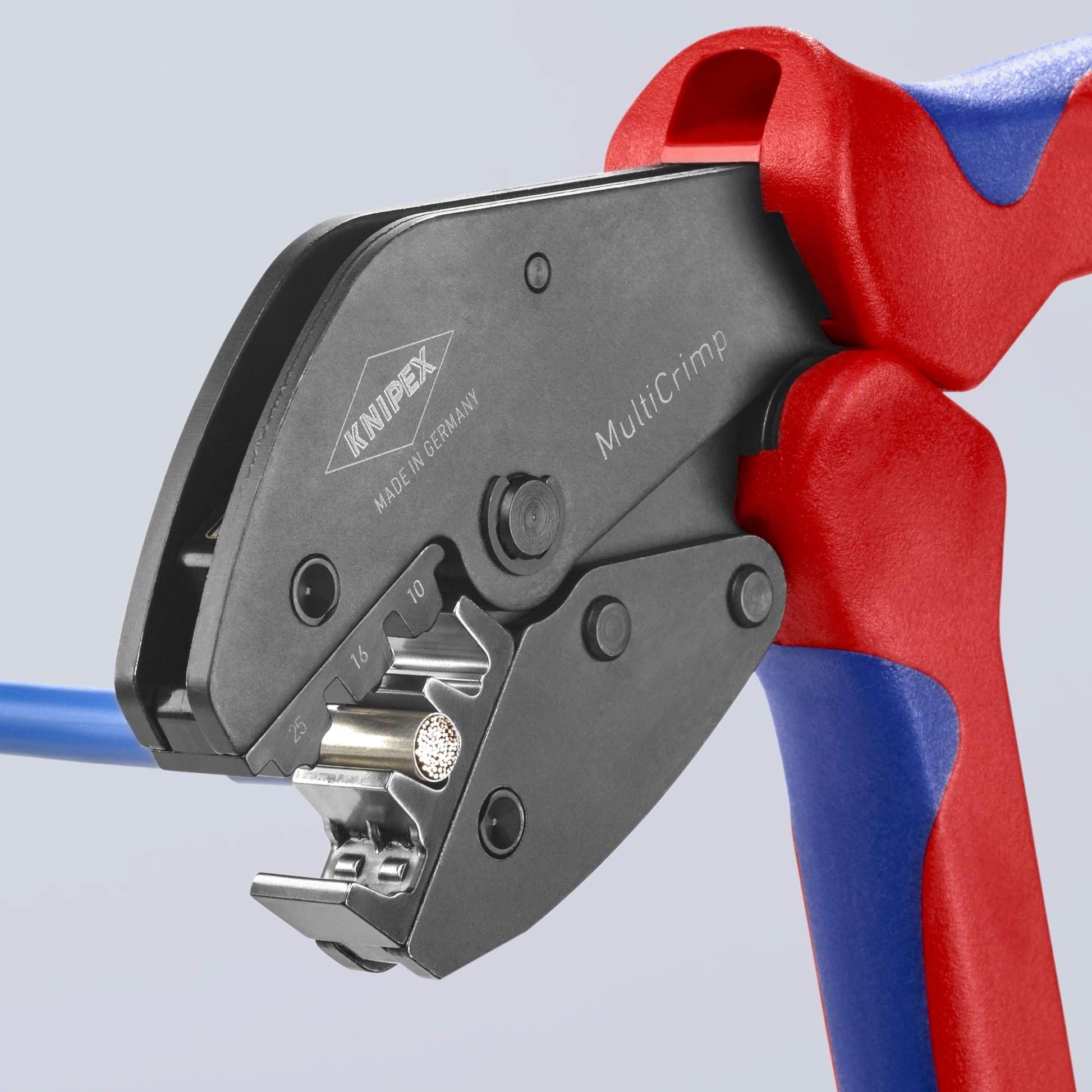

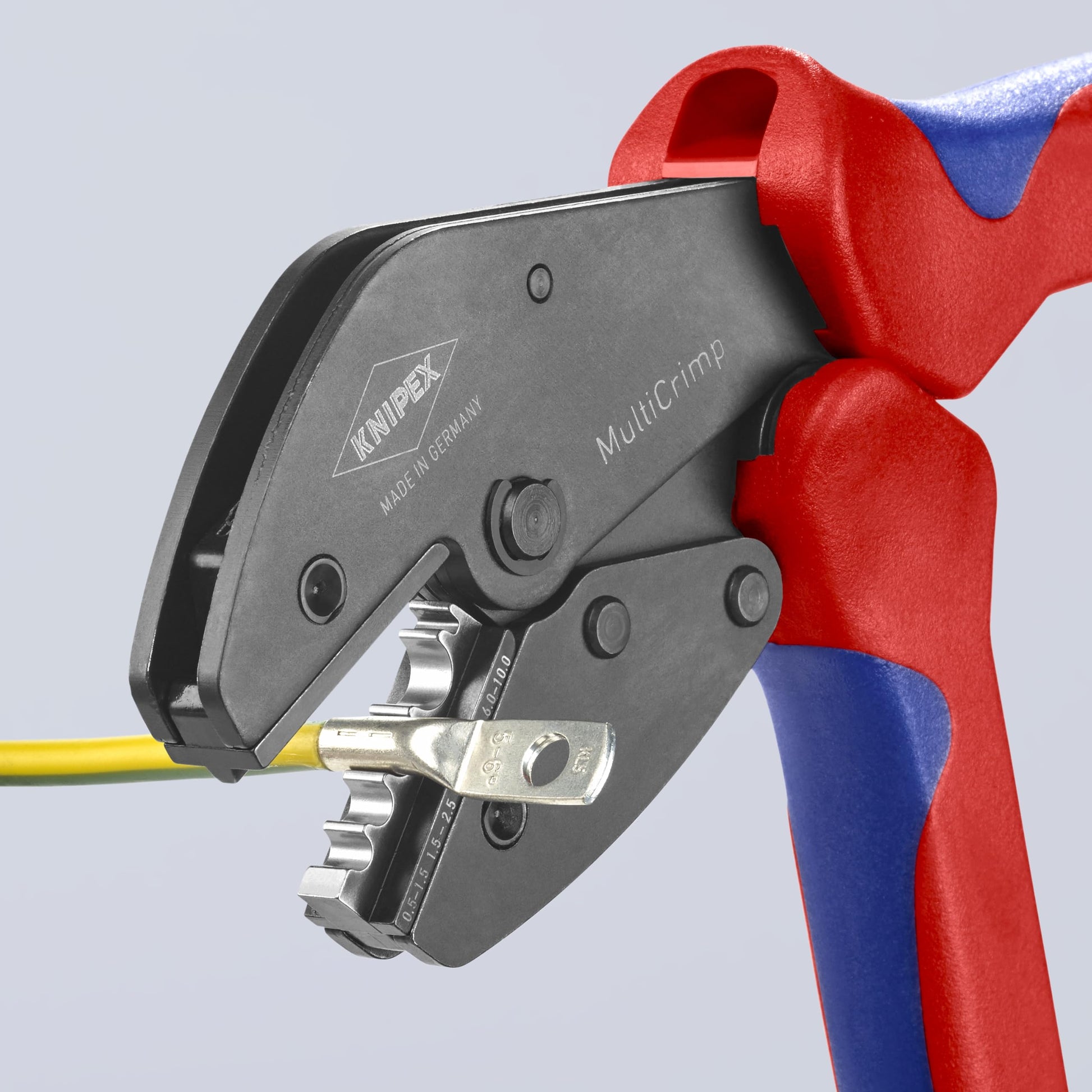

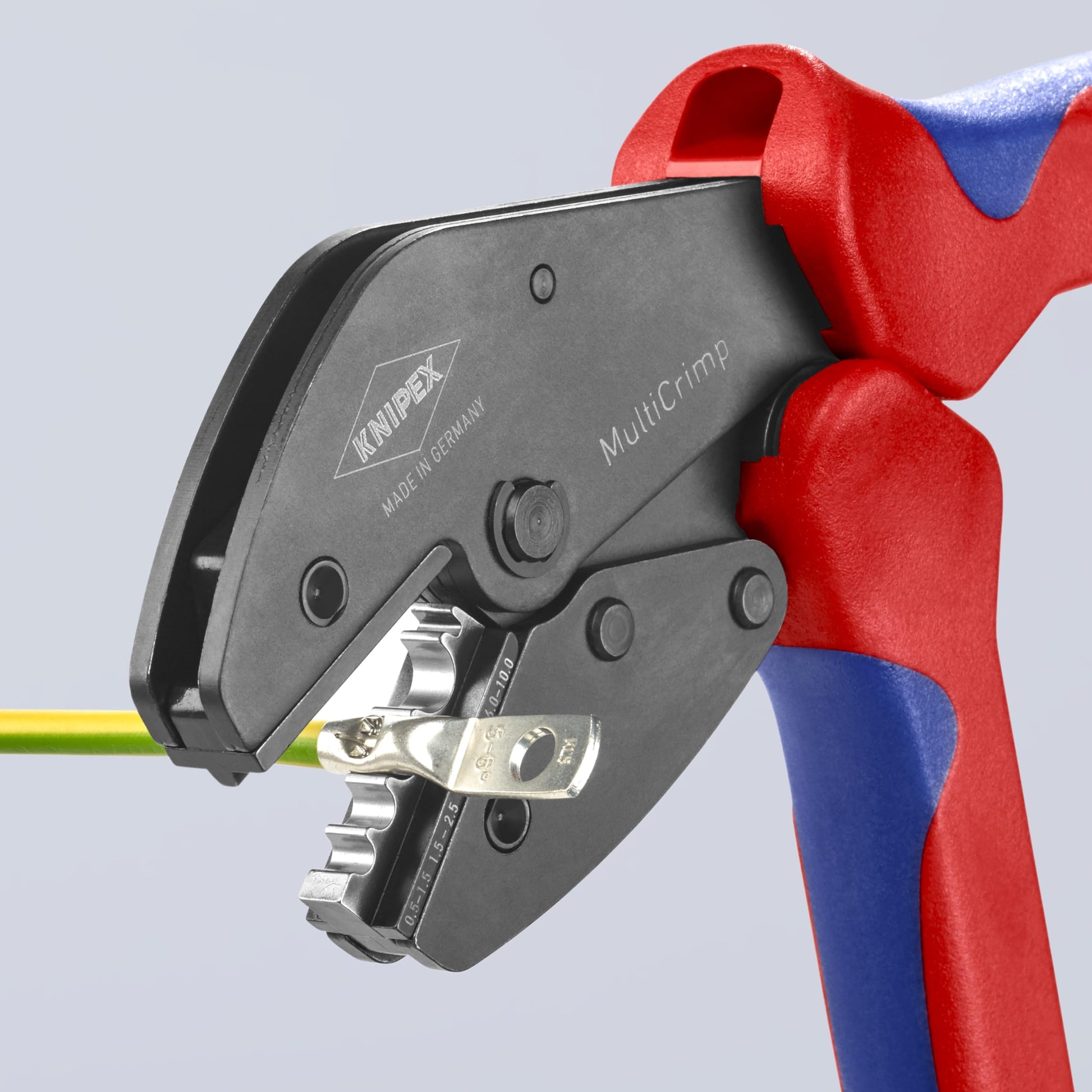

Details: Knipex 97 33 02 Multi crimp crimping pliers with round magazine and five interchangeable dies for non-insulated, open Plug connectors (4.8 + 6.3 mm connector width) of 0.5 to 6.0 mm²; Insulated terminals + Plug connectors of 0.5 to 6.0 mm²; end sleeves (ferrules) of 0.25 to 6, 0 mm²; end sleeves with 10/ 16 and 25 mm²; non-insulated terminals and butt connectors of 0.5 to 10 mm².
