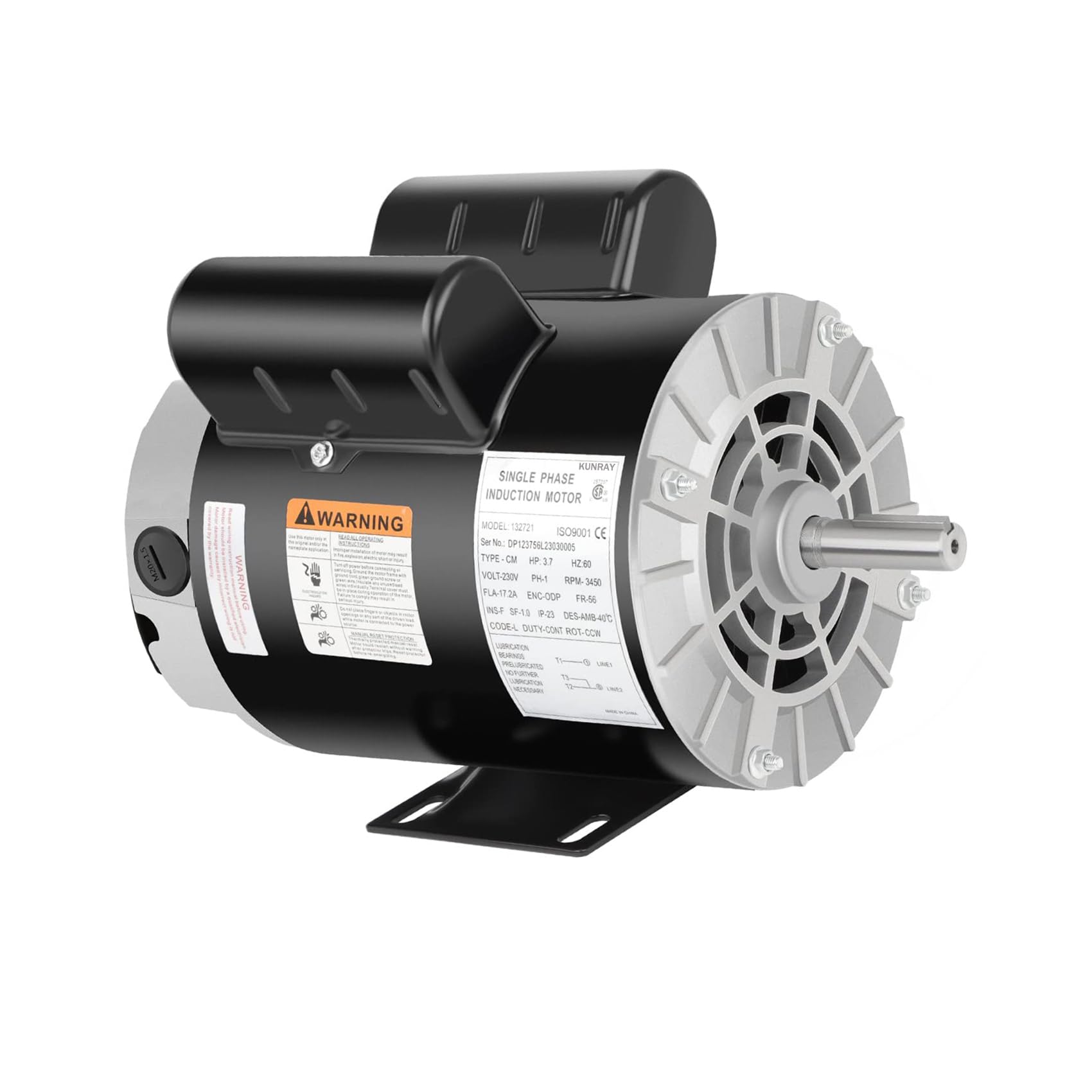

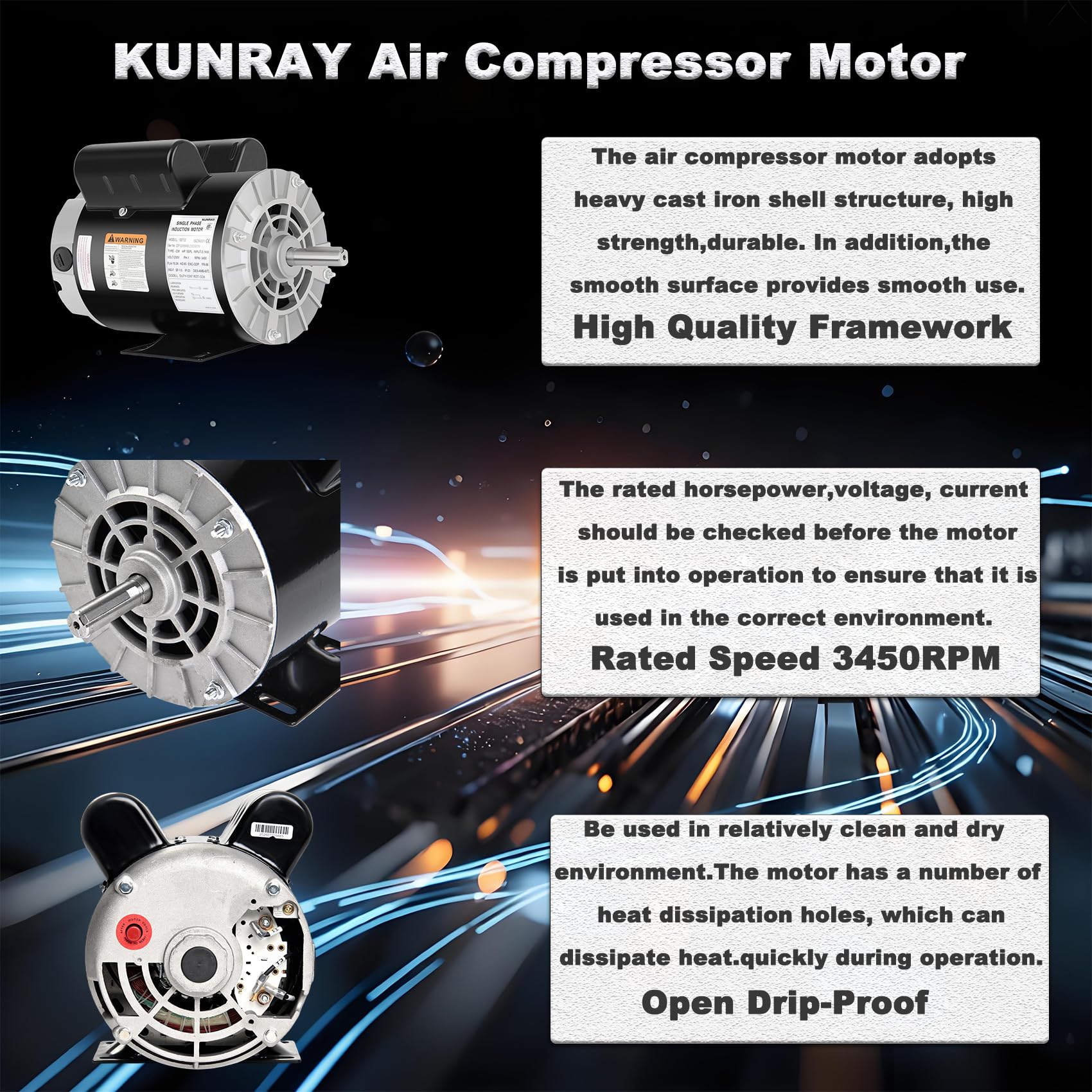

3.7HP Air Compressor Motor: 3.7 horsepower, 3450 RPM, single phase motor with 230V voltage, 17.2A full load amps, 60Hz frequency for reliable performance

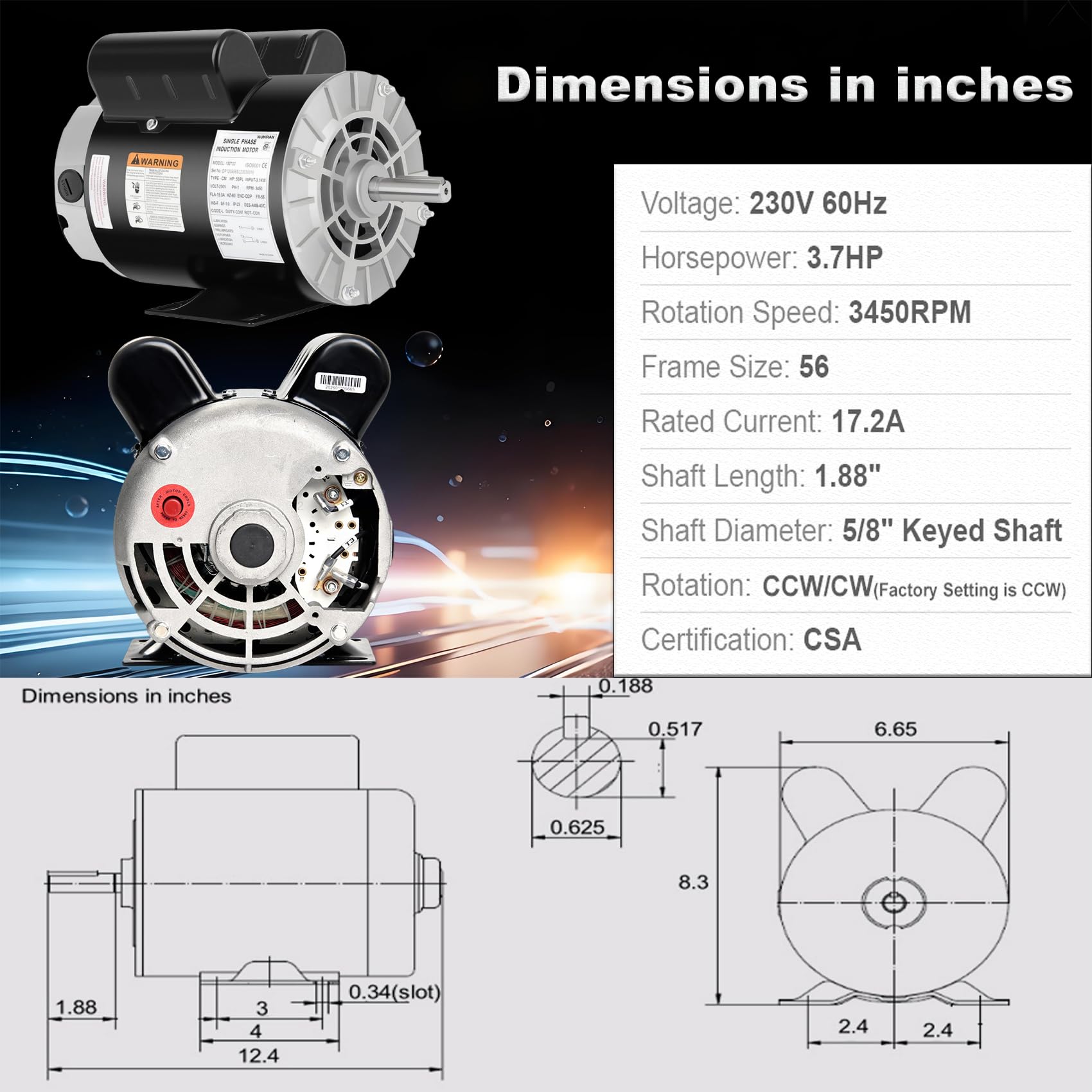

56 Frame with 5/8 Inch Keyed Shaft: Features 56 frame size, 5/8 inch diameter keyed shaft with 1.88 inch length, 2 pole design for secure mounting and power transmission
Open Drip-Proof Enclosure: ODP enclosure with IP23 protection rating, rolled steel housing construction, suitable for clean and dry environments with effective protection
High Efficiency Design: Compact structure with multiple heat dissipation fins, Class F insulation system, S1 continuous duty rating for extended operation and long service life

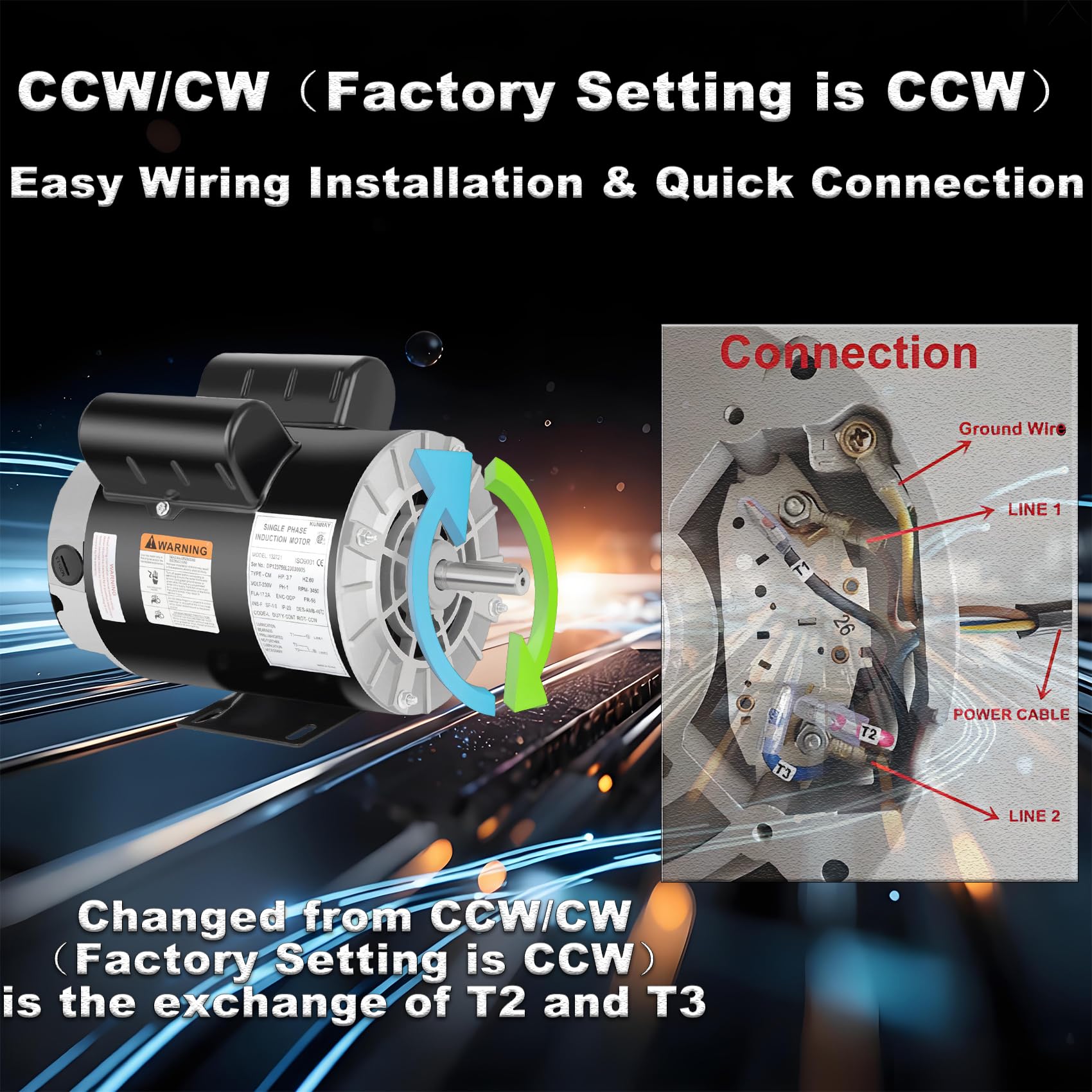

Reversible Rotation with Built-In Protection: CCW/CW dual rotation capability for flexible installation, includes thermal protector, specifically designed for air compressor applications
