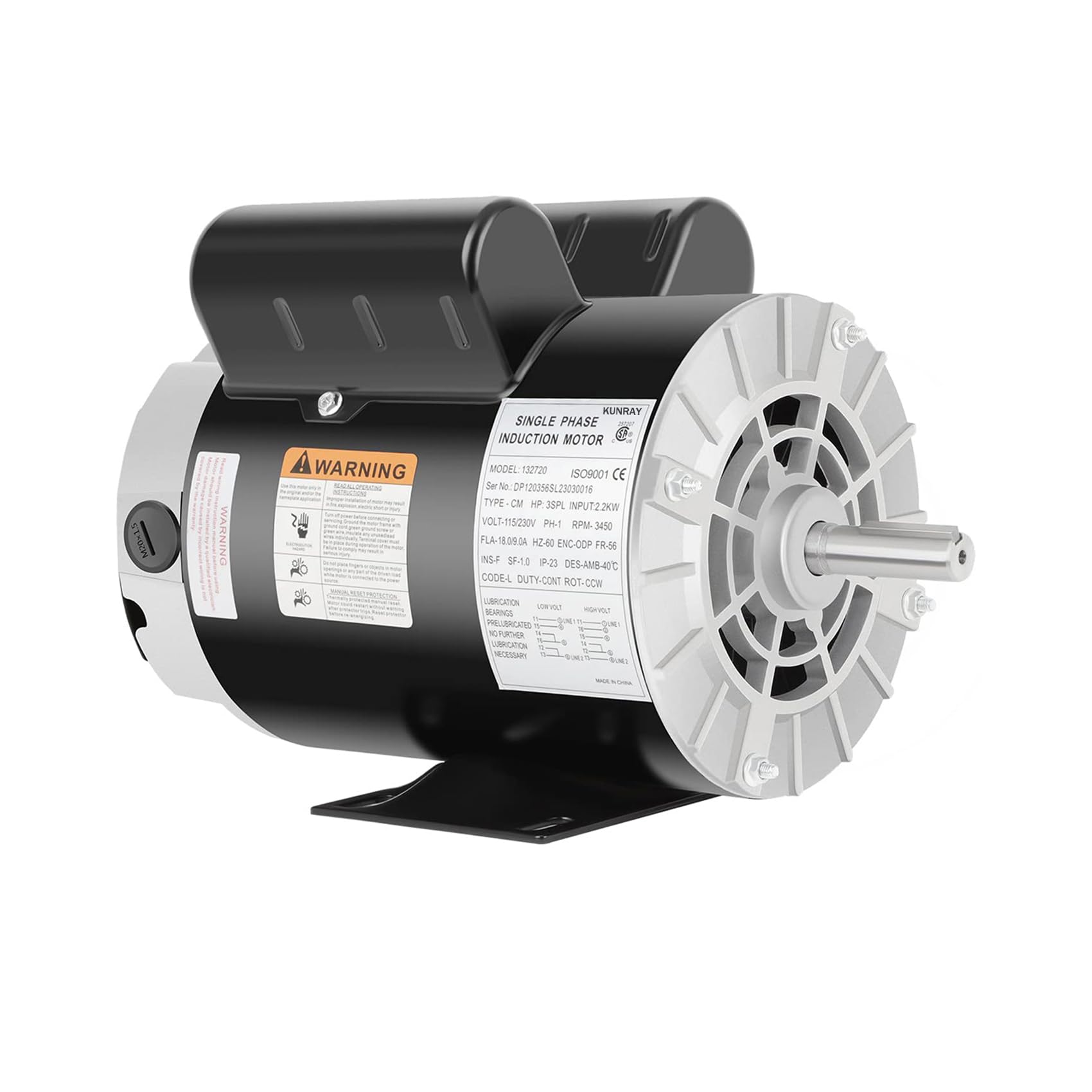

Kunray Air Compressor Motor, 3HP SPL Electric Motor, 56 Frame 3450 RPM,115/230V,18/9Amps Single Phase Motor, 5/8" Keyed Shaft, 1.88" Shaft Length 60 HZ,CCW Rotation

Brand: Kunray

Features:

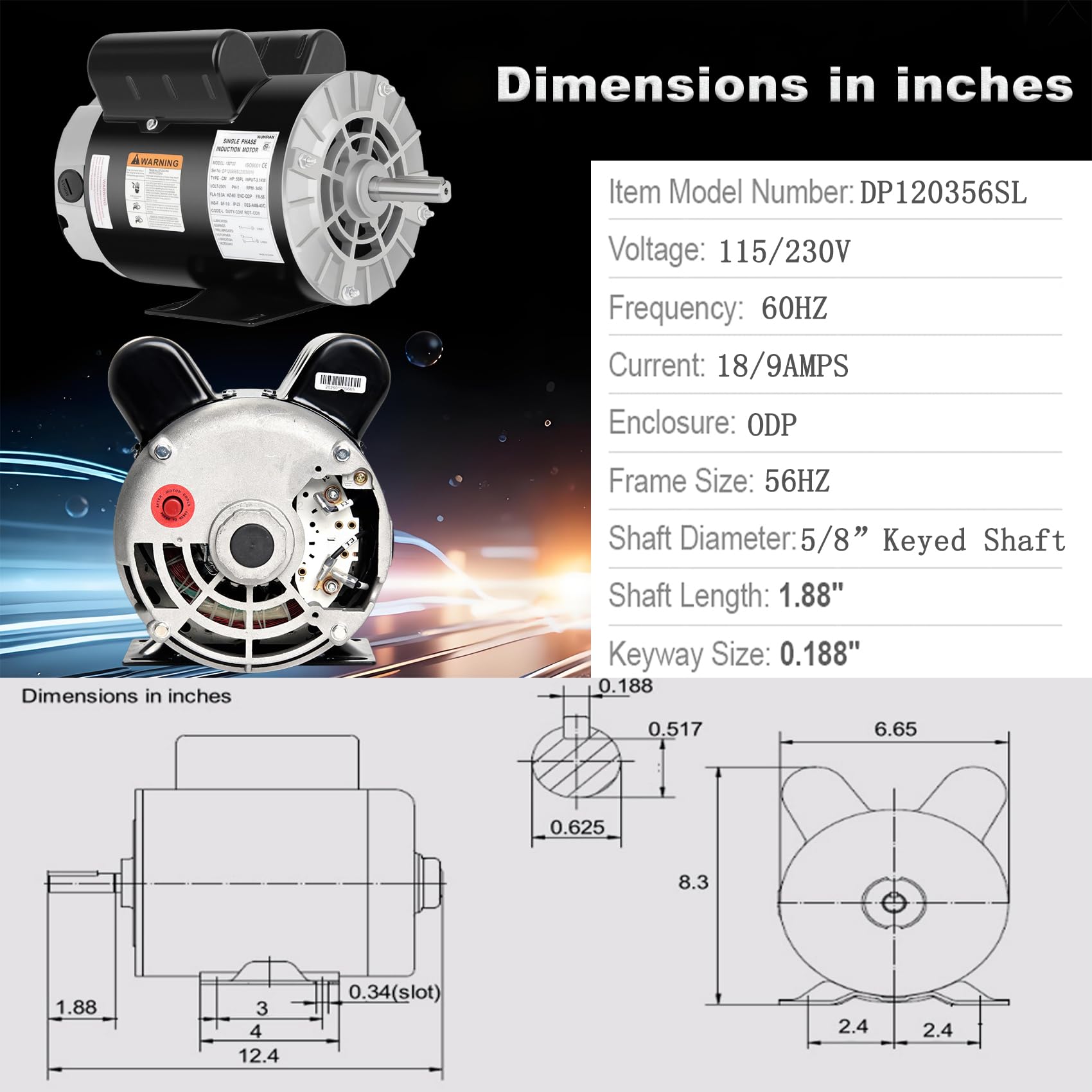

• Professional-Grade 3HP Electric Motor Built with premium rolled steel housing for exceptional durability and longevity. This 2-pole, 56-frame motor delivers reliable 3450 RPM performance with dual voltage capability (115V/230V). Features Class F insulation for superior heat resistance and continuous S1 duty operation. The 5/8' diameter shaft with 1.88' length ensures secure equipment mounting. Engineered specifically for air compressor applications with integrated thermal protection.
• High-Performance Air Compressor Motor with Advanced Cooling Maximize your compressor efficiency with this 3HP motor featuring an innovative heat sink design for optimal thermal management. The compact 56-frame construction saves valuable workspace while delivering powerful 3450 RPM output. Open Drip Proof (ODP) enclosure design makes it, dry workshop environments. Dual voltage operation (18A at 115V, 9A at 230V) provides installation flexibility. Counter-clockwise rotation with standard 5/8' x 1.88' shaft configuration.
• Industrial Electric Motor - 60Hz Continuous Duty Designed for demanding air compressor applications, this motor combines robust rolled steel construction with S1 continuous working capability. The 2-pole design ensures consistent 3450 RPM speed for reliable compressed air delivery. Class F insulation withstands elevated operating temperatures, while the extensive cooling fin array promotes efficient heat dissipation. ODP enclosure (IP23 rating) suits indoor applications in controlled environments. Includes built-in thermal overload protection for enhanced safety.

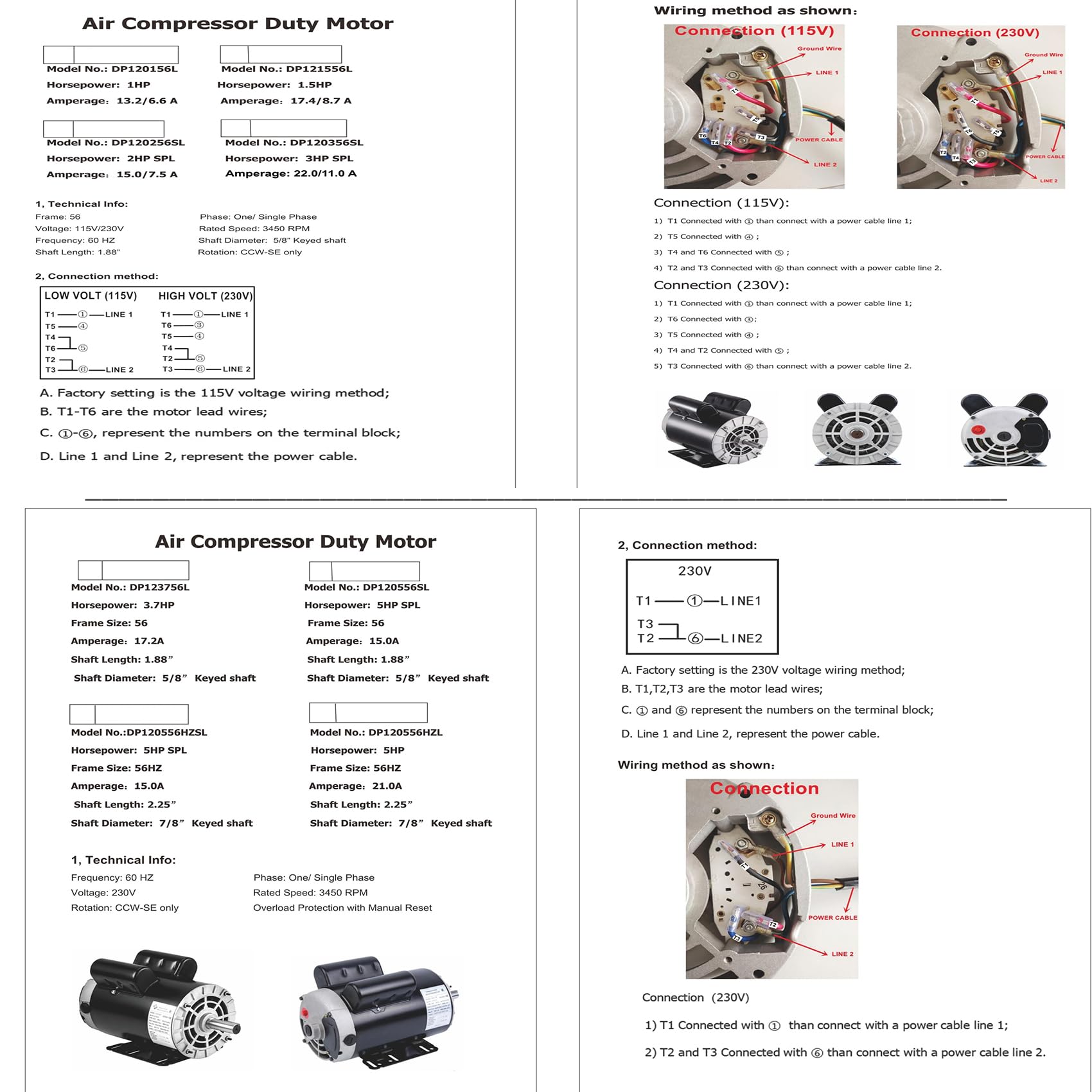

• Dual-Voltage 3HP Motor with Thermal Protection Versatile power solution offering 115V/230V operation to match your facility’s electrical configuration. The precision-engineered 56-frame motor features counter-clockwise shaft rotation and delivers 3HP output at 3450 RPM. Open Drip Proof design with IP23 protection rating ensures reliable operation in appropriate environments. Rolled steel housing provides structural integrity, while Class F insulation and integrated thermal protector safeguard against overheating. Purpose-built for air compressor installations.
• Compact 56-Frame Motor for Air Compressor Systems Space-efficient design doesn’t compromise on power—this motor delivers full 3HP performance in a compact 56-frame package. Features 60Hz operation with 2-pole configuration for consistent 3450 RPM output. The extensive cooling fin architecture ensures optimal heat management during continuous operation. Dual voltage capability (115V/230V) with corresponding amperage ratings (18A/9A) provides electrical flexibility. ODP enclosure suits clean, dry environments, while the 5/8' x 1.88' shaft accommodates standard compressor couplings.

model number: 5HP SPL Air Compressor Electric Motor

Part Number: DP120356S

EAN: 0768637343722

Package Dimensions: 14.0 x 10.0 x 9.0 inches
