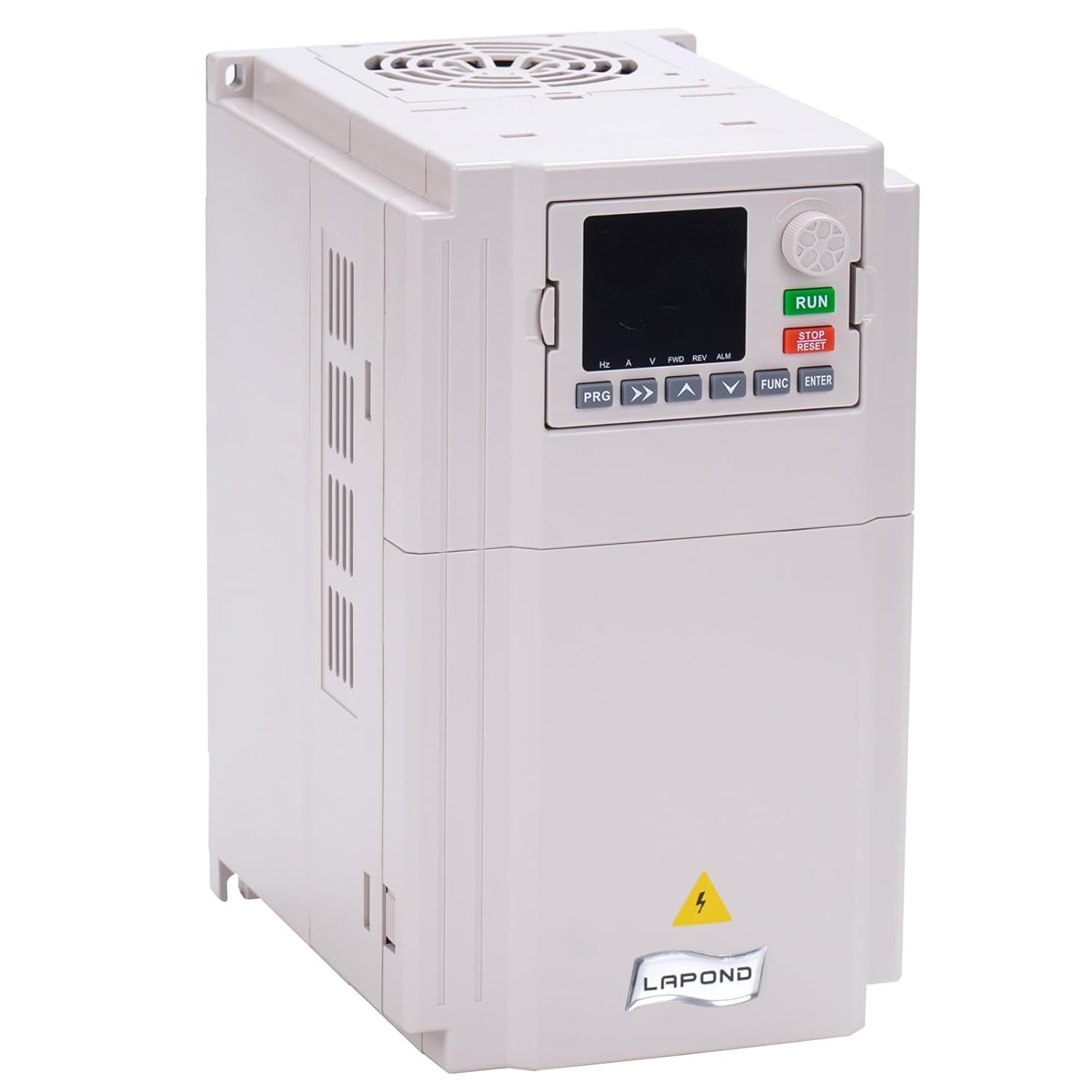

LAPOND AC 220V/18KW 25HP Variable Frequency Drive,75A VFD Inverter Single Phase to 3 Phase Converter,Used on ≤20HP(15kW) 55Amps 200-230V 3-Phase Motor

Brand: LAPOND

Color: White

Features:

• 1-phase/3-phase 220VAC input (±15%, 0-75A, 50/60Hz); 3-phase 220VAC output (0-75A, 0-400Hz, 18KW). Dimensions: 19.3 x 10.6 x 8 inch (H×W×D).This vfd is used on ≤20HP(15kW) 55Amps 200-230V 3-Phase Motor

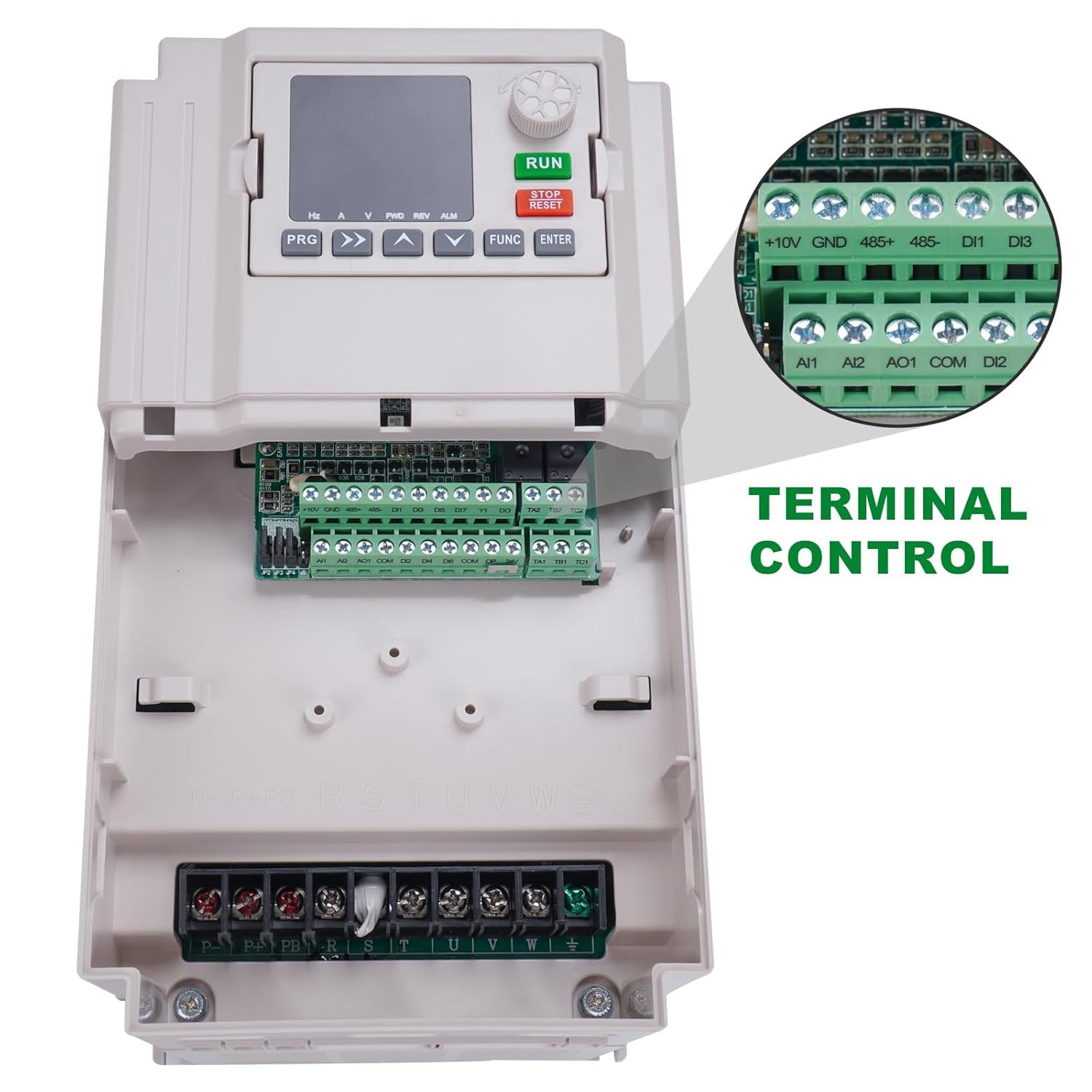

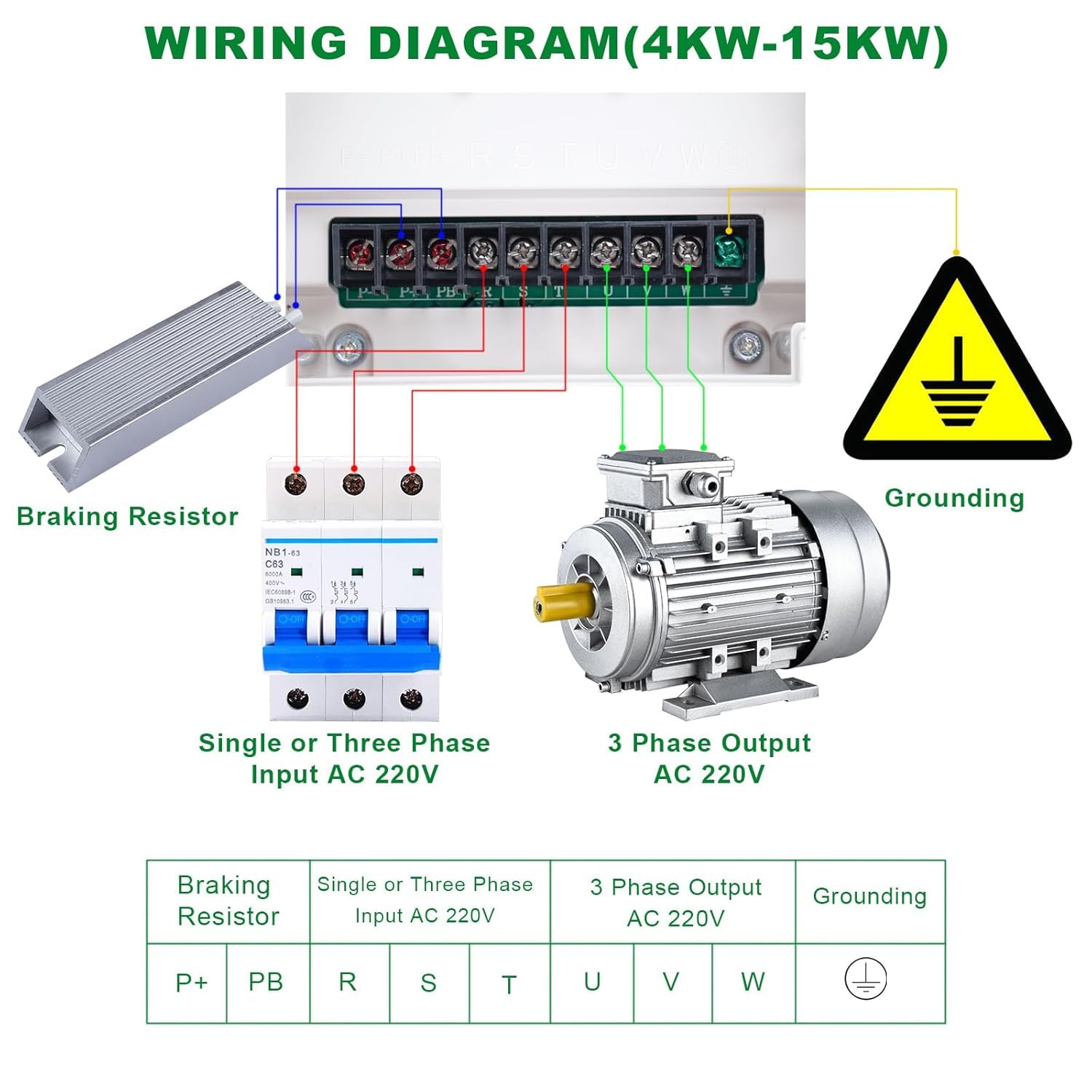

• This vfd inverter offers enhanced digital/analog terminals for flexible operation, supporting Mach3 function & RS-485 communication, remote potentiometer, switch start/stop, and braking resistor.
• The vfd drive features superior performance and stability, with low failure rate and low noise.

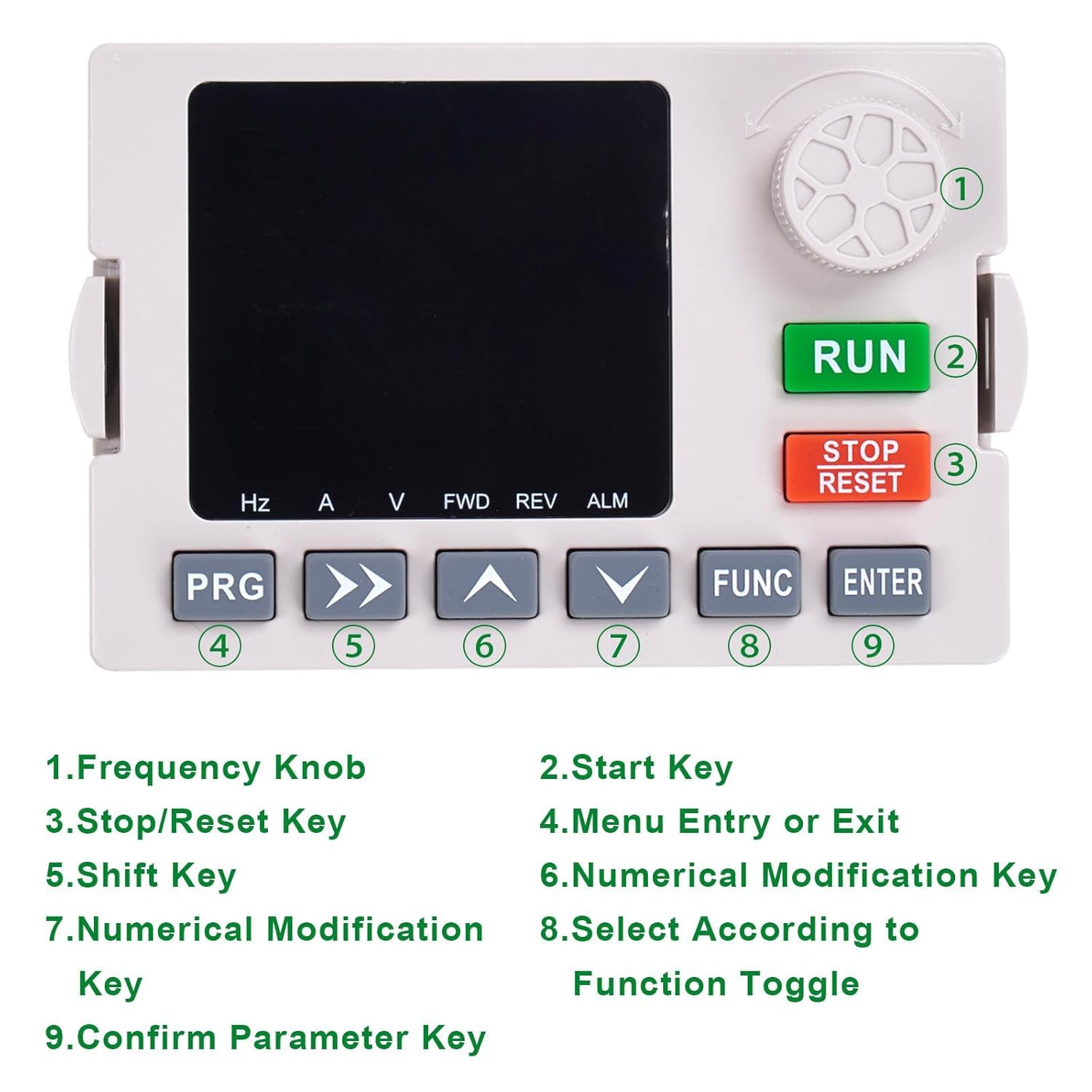

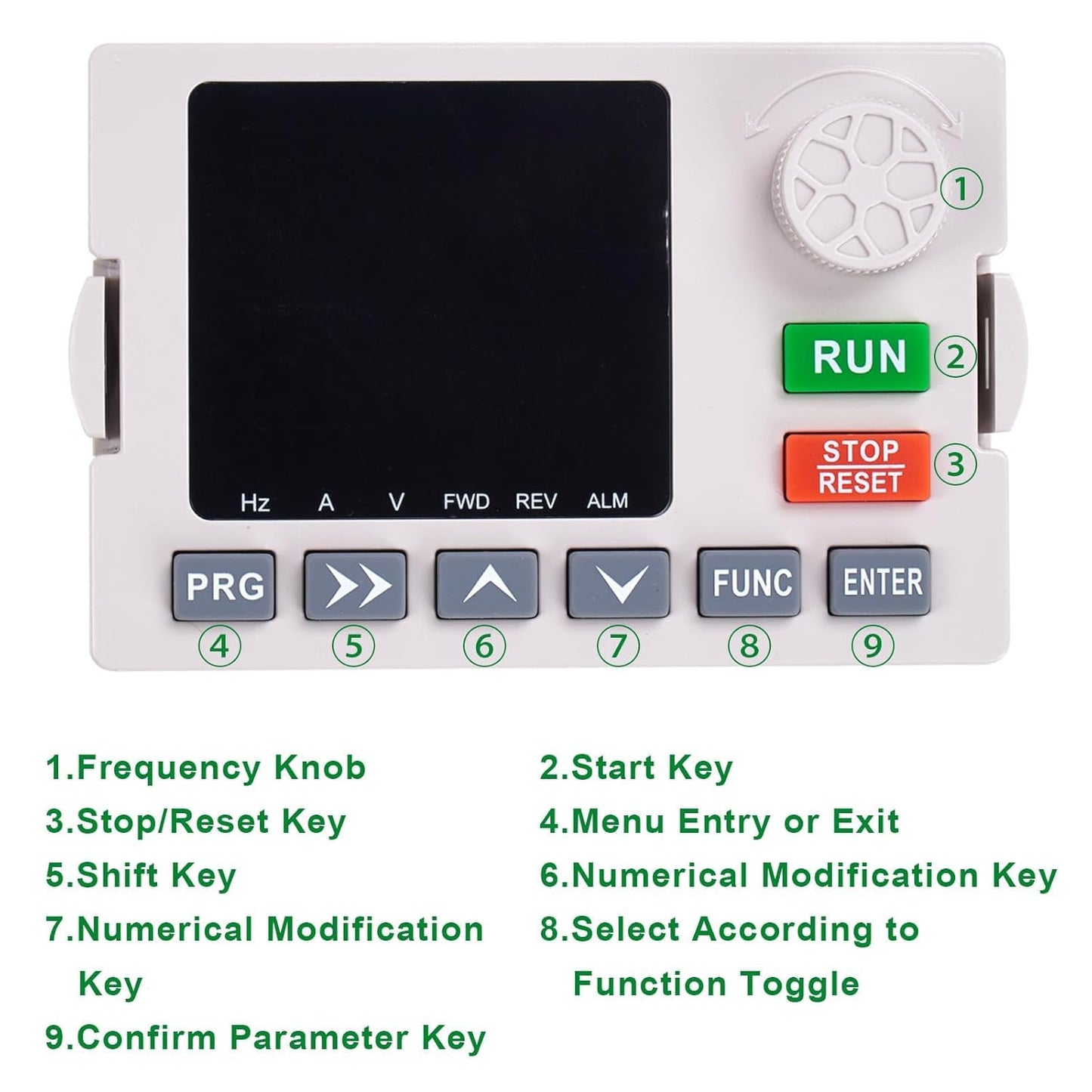

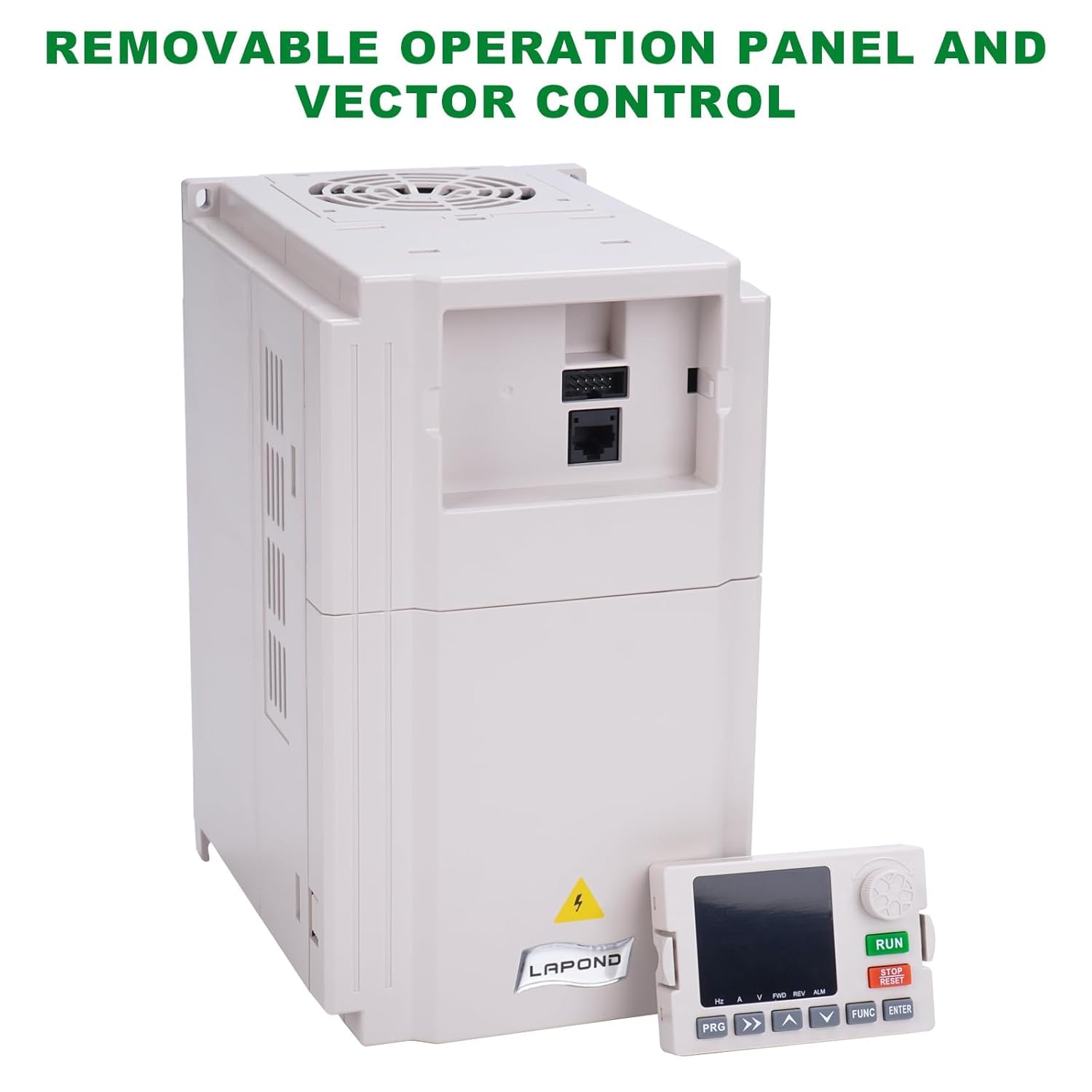

• Built-in cooling fan ensures excellent heat dissipation. Its display and keys enable quick setup, while the detachable panel allows remote control and it easy to installation
• Application Motors: Mixer, pump, compressor, conveyor, elevator, ventilator, grinder, milling machine, drilling machine, CNC router, extruder, slitter, winder, blower, hoist, centrifuge, winding machine, etc.

model number: K100-018G1

Part Number: TK128-10

Details: Attention
1. This VFD is ONLY applicable to three-phase asynchronous motors.
2. If your motor operates under heavy load, please choose a VFD with higher horsepower than your motor's.
3. The instantaneous starting current of air compressors is very large. To avoid overcurrent, please select a VFD with twice the horsepower of the motor. Example: For a 2 HP compressor, recommend a 4 HP or 5 HP VFD.
4. One of the key functions of the VFD is its soft-start capability, which prevents high-current to the power grid and mechanical shock to the machine system. We strongly recommend NOT starting the motor directly after the VFD is powered on.

High Performance

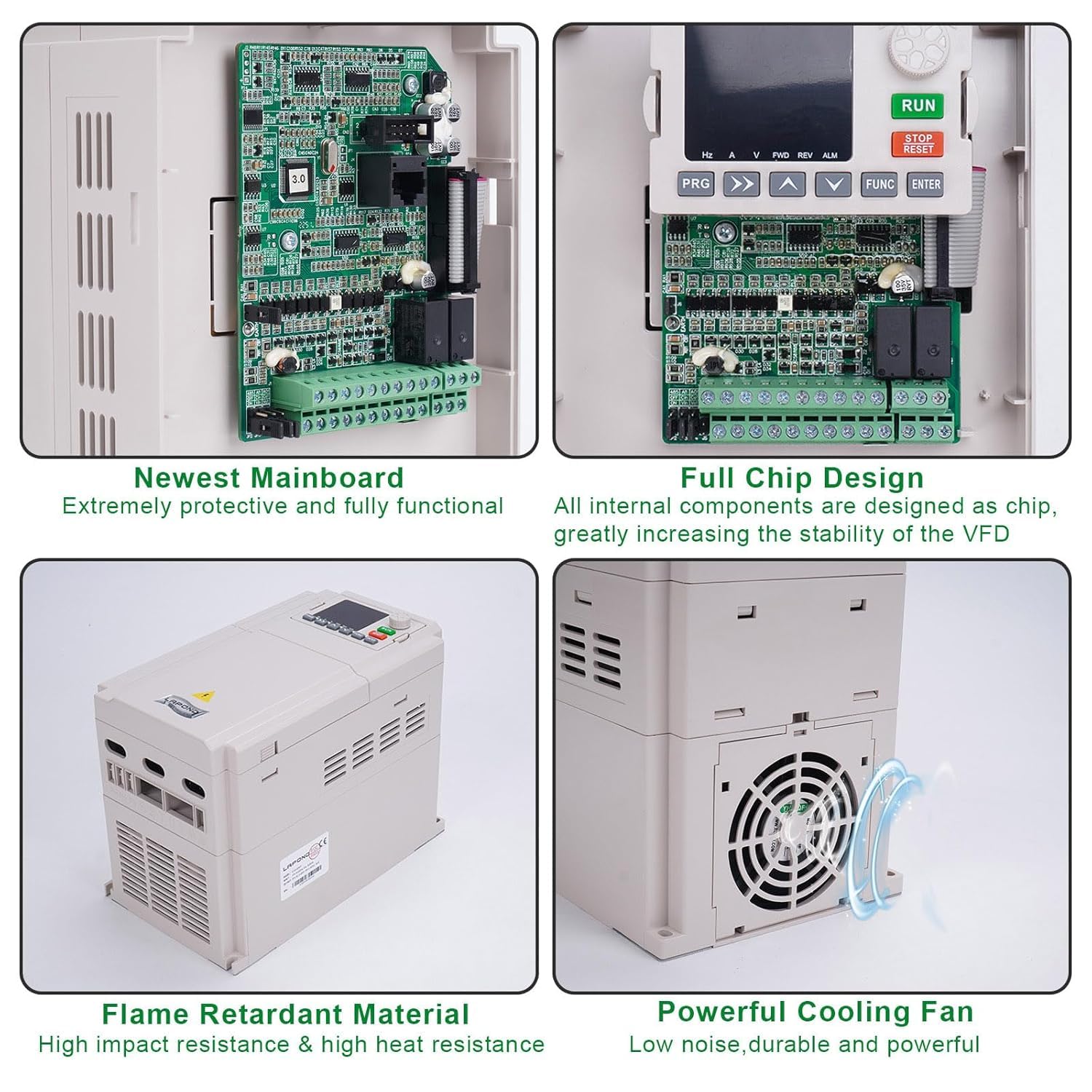

Utilizes high stability, low failure rate IGBT modules.

Cooling System
Featuring high quality copper coils, this VFD drive is safer and more durable. The multi-grid design provides ample cooling space between electronic components and the enclosure for efficient heat dissipation.

Wide Applications
Mixer, pump, compressor, conveyor, elevator, ventilator, grinder, milling machine, drilling machine, CNC router, extruder, slitter, winder, blower, hoist, centrifuge, winding machine, etc.

Package Dimensions: 24.3 x 17.2 x 15.0 inches
