Little Giant 3X-MDX 115-Volt, 1/50 HP, 348 GPH Magnetic Drive Mildly Corrosive Chemical Transfer Pump, 6-Foot Power Cord, Black/White, 581030

Brand: Little Giant

Color: Black/White

Features:

• APPLICATIONS: for in-line, non-submersible use to circulate mildly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions and other liquid compatible with the pump's material
• CHEMICAL RESISTANT CONSTRUCTION: glass-filled polypropylene volute, housing; glass-filled polypropylene and Ceramagnet 'A' barium ferrite impeller; titanium shaft and thrust washers; nitrile O-ring
• NO SPECIAL TOOLS REQUIRED: pumping head is easily rotated for easier installation; wing-nuts allow for easy cleaning and services
• MOTOR SPECIFICATIONS: 1/50 HP; thermally protected, open, fan cooled motor; 115-volt with 6' cord and 3-prong plug; 60 Hz; 0.94 running Amps; 67 Watts; CSA listed in the USA and Canada
• PUMP SPECIFICATIONS: discharge and intake fits 5/8' I.D. hose; 348 GPH at 1' lift; maximum 3.0 PSI; can handle fluid temperature to 150 °F; maximum air temperature to 77 °F; specific gravity to 1.1

model number: 581030

Part Number: 581030

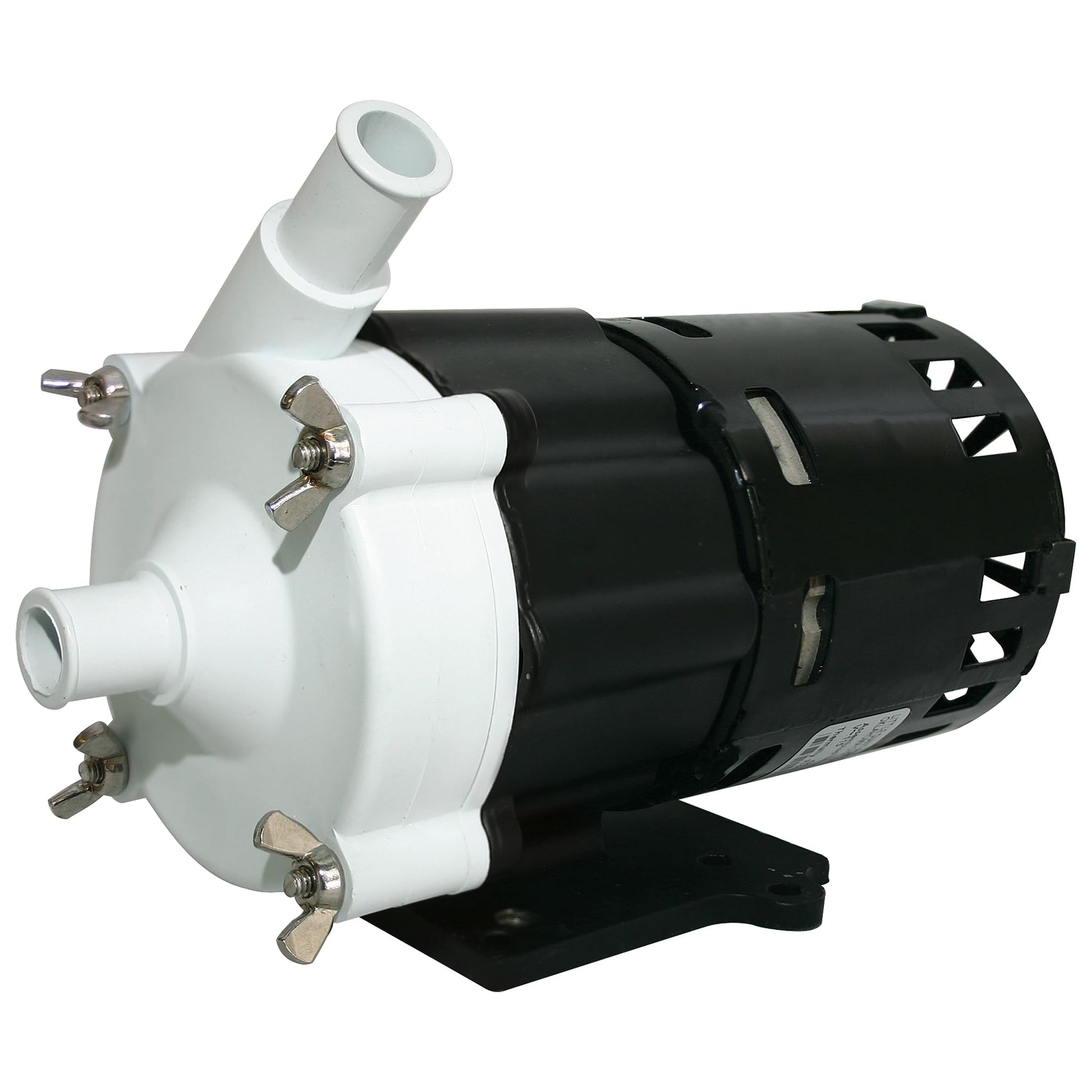

Details: The Little Giant 3X-MDX is a non-submersible, in-line pump that handles most mildly corrosive fluids such as low concentrations of acids and alkalis in the pH range of 5 to 9 at fluid temperature up to 150 °F. The pump's patented magnetic drive design is engineered to resist corrosion, chemical attack, and abrasive wear.

Features and benefits:

- 1/50 HP open fan-cooled motor; CSA listed in the USA and Canada

- glass-filled polypropylene housing and volute for excellent chemical resistance

- glass-filled polypropylene and Ceramagnet 'a' (barium ferrite) impeller

- titanium shaft and thrust washers for excellent wear and trouble-free services

- nitrile O-ring

- pumping heads are easily rotated making installation easier

- easy-to-remove wing nuts require no special tools for servicing or maintenance

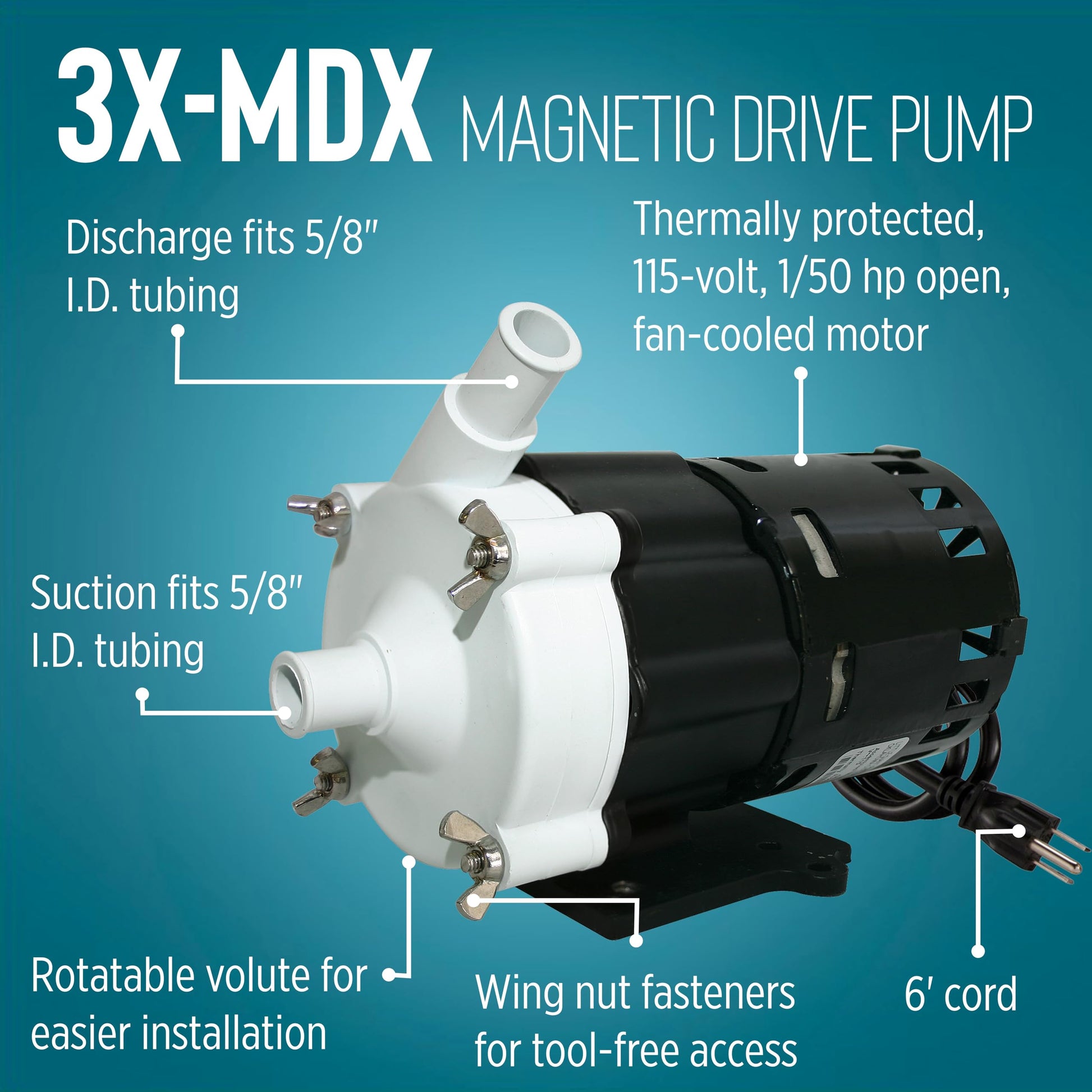

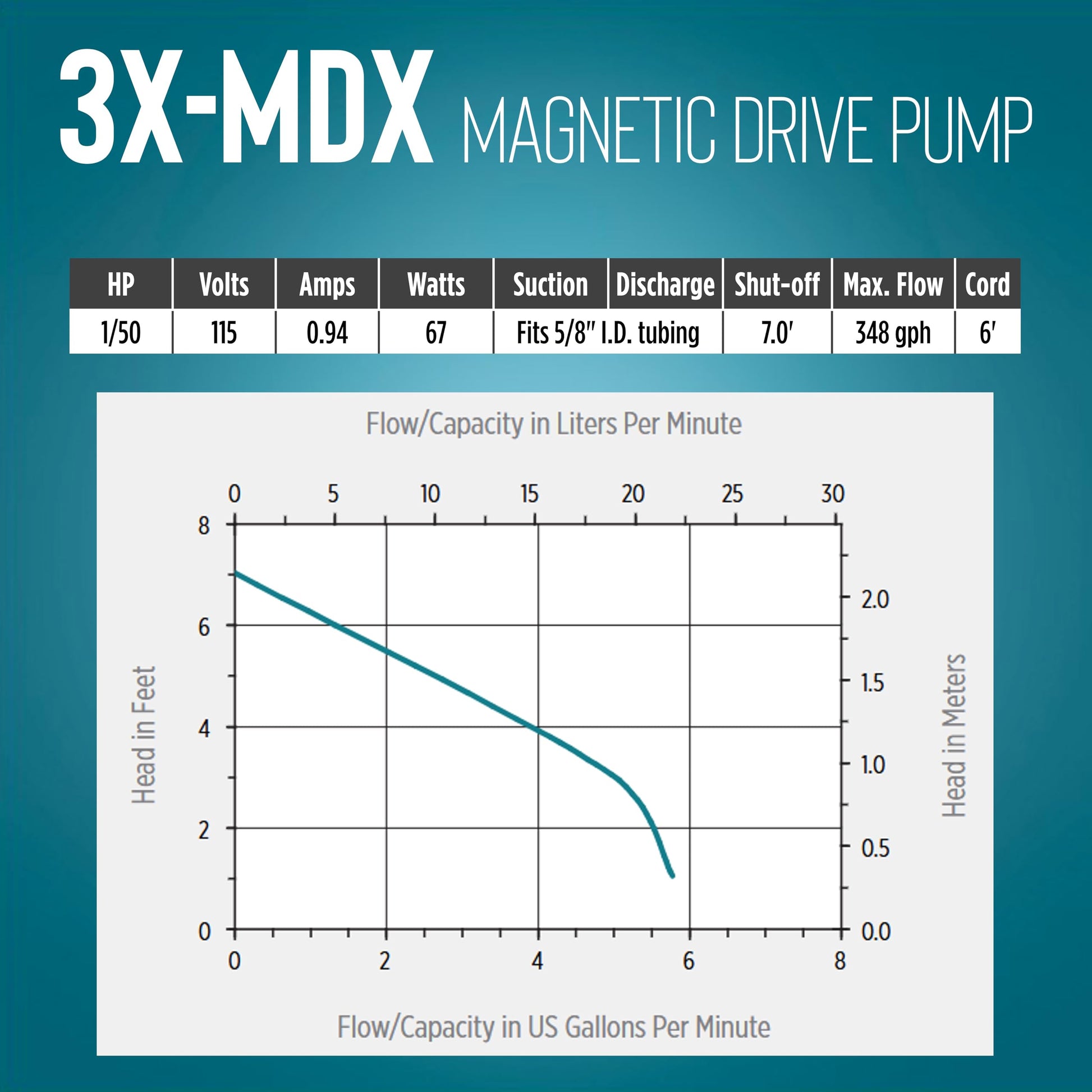

The Little Giant 3X-MDX can deliver up to 348 GPH at 1' lift with a shut-off of 7.0' and a maximum pressure of 3.0 PSI. The discharge and intake are designed to fit 5/8' I.D. hose. The motor runs on 0.94 Amps and 67 Watts. This unit is equipped with a 6' cord and 115-volt 3-prong plug that fits standard North American outlets.

EAN: 0010121810303

Package Dimensions: 11.5 x 7.3 x 6.8 inches
