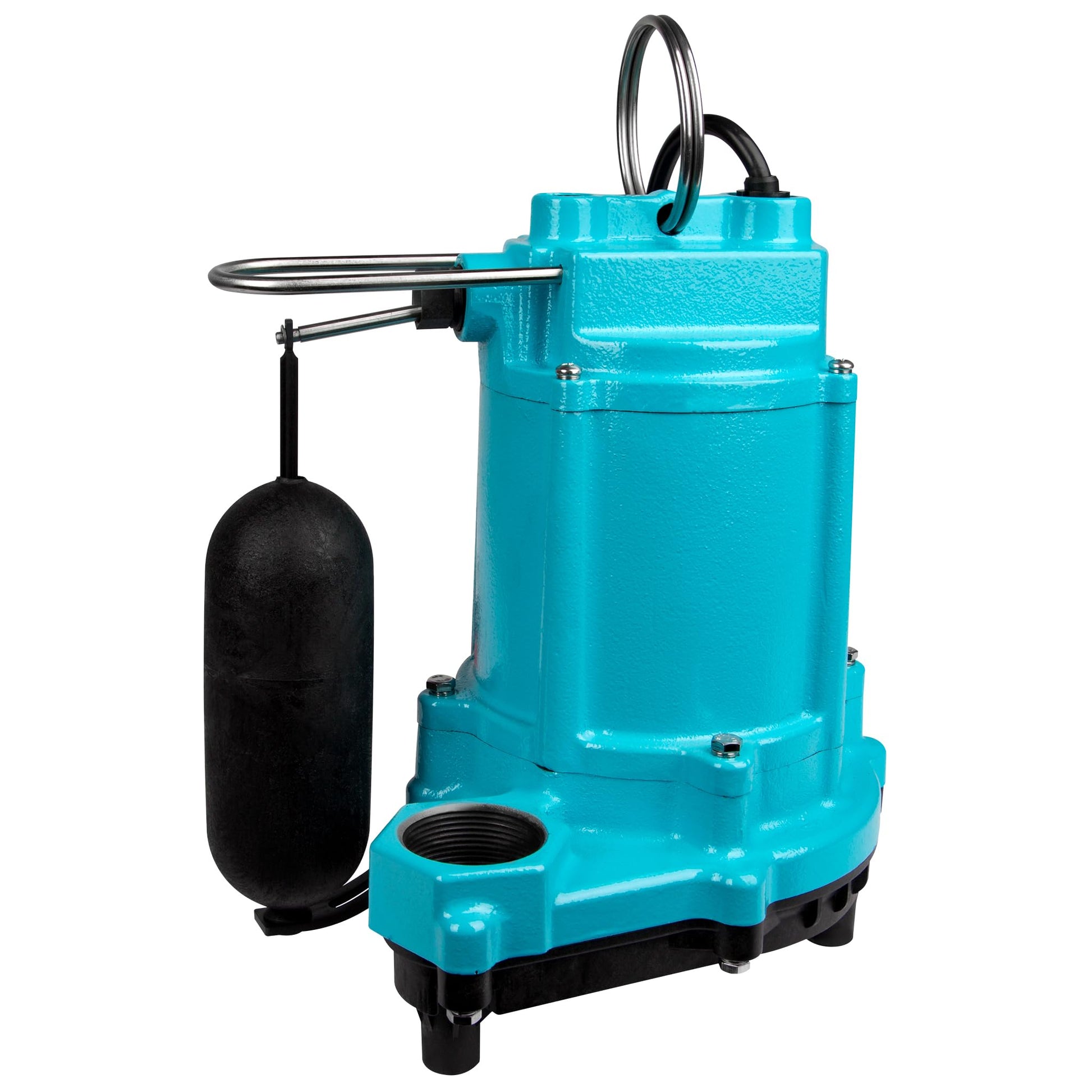

Little Giant 6EC-CIA-SFS 1/3 HP, 115-Volt, 3180 GPH Automatic Cast Iron Submersible Sump/Effluent Pump with Polypropylene Base, Integral Snap-Action Float Switch and 10-Ft. Cord, Blue, 506807

Brand: Little Giant

Color: Blue

Features:

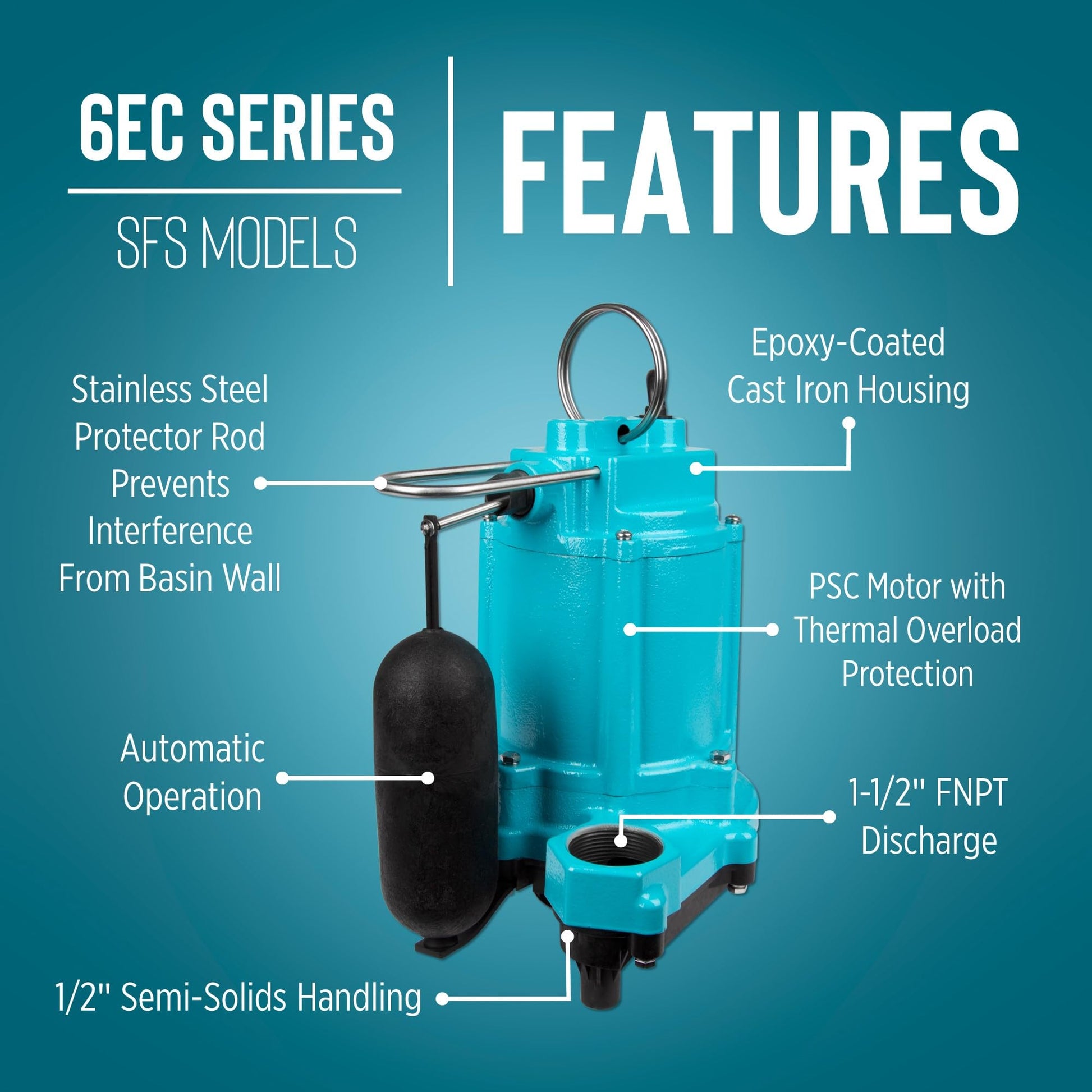

• BUILT TO LAST: epoxy-coated cast iron cover, housing and volute; nitrile/carbon/ceramic mechanical shaft seal ; cold-rolled steel shaft and upper and lower ball bearings;
• CONTINUOUS DUTY MOTOR: Features an energy-efficient 115-volt, 5 Amp, 600-Watt PSC (permanent split capacitor) motor and improved performance; standard 10-foot power cord

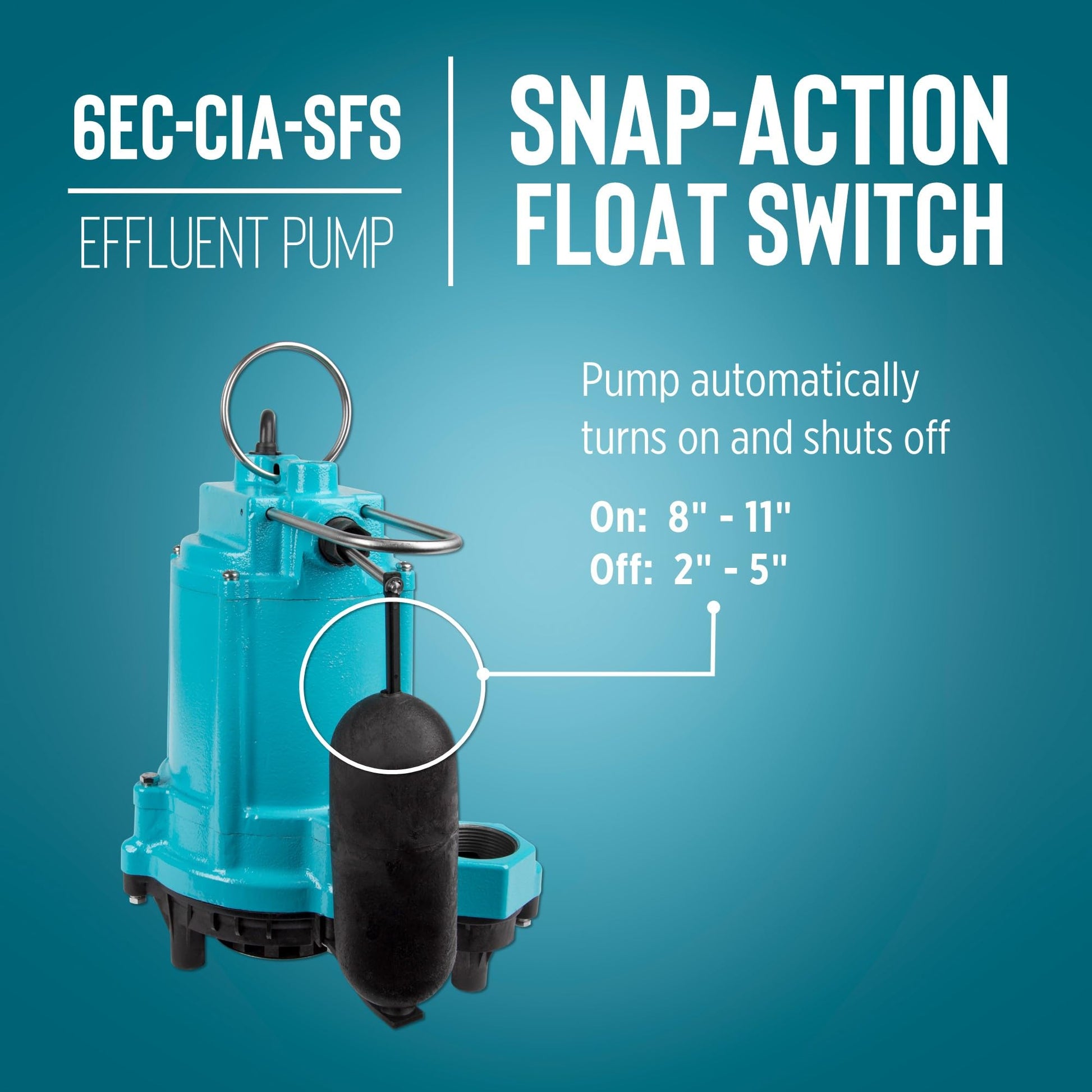

• AUTOMATIC OPERATION: Snap-action float switch turns pump on when water reaches 8 to 11 inches and shuts pumps off when water drops to between 2 and 5 inches
• SOLIDS HANDLING: clog-resistant impeller handles up to 1/2-inch semi solids suitable for light effluent waste

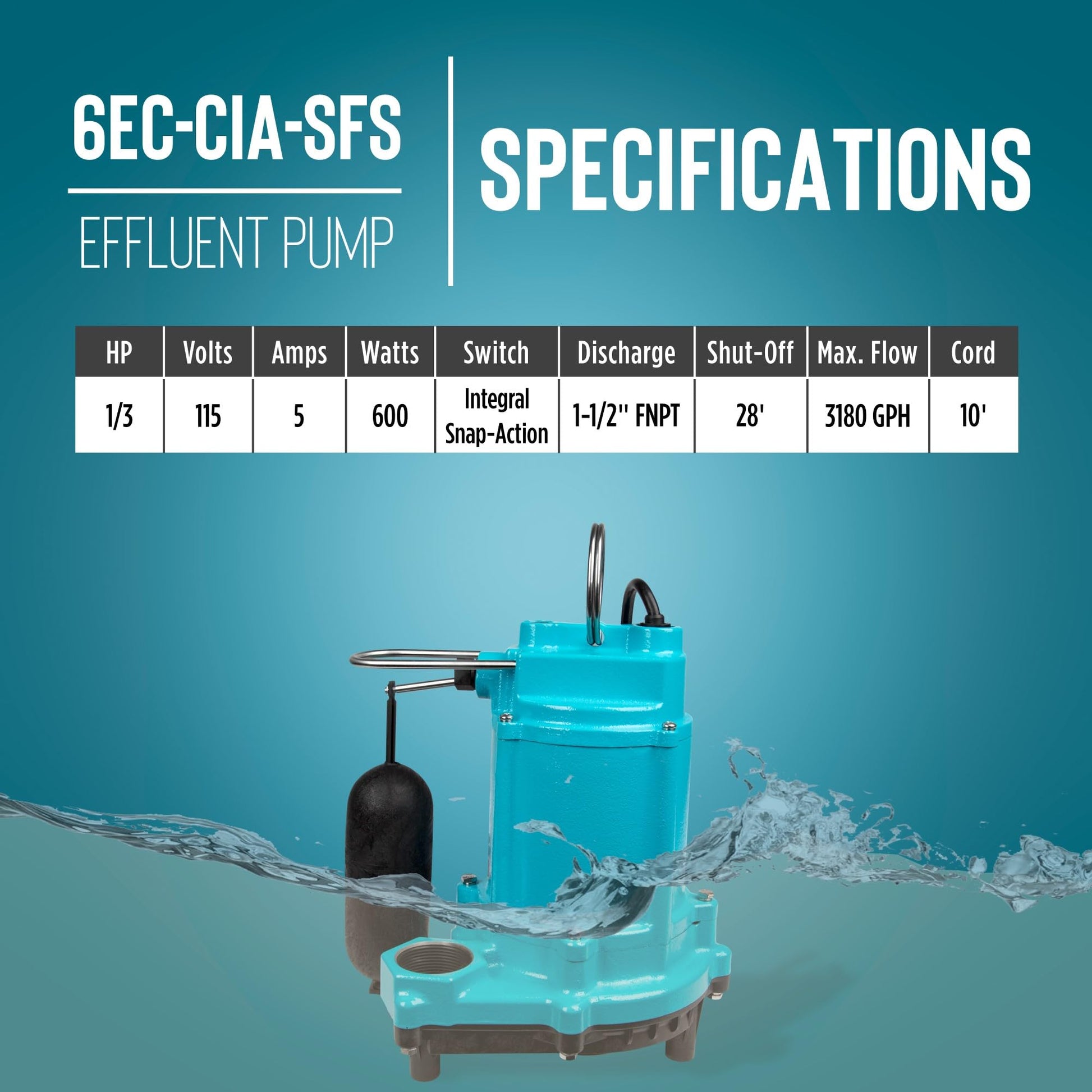

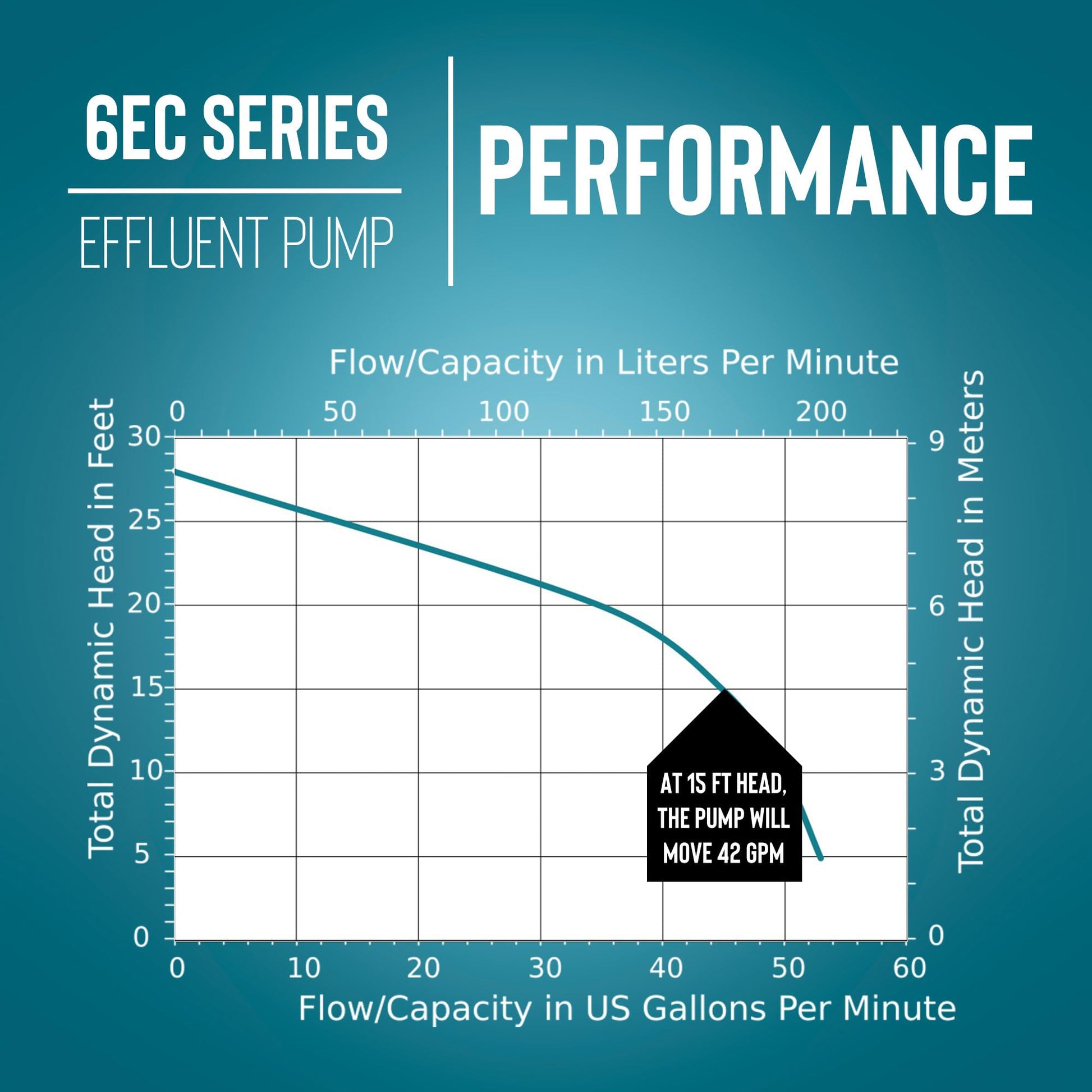

• SPECIFICATIONS: 1/3 HP, 115-Volts, 5 Amps, 600 Watts, 60 Hz, 53 GPM at 5-foot lift; 28-ft shutoff; 12.1 PSI, 10-ft cord, integral snap-action float switch; polypropylene base

model number: 506807

Part Number: 506807

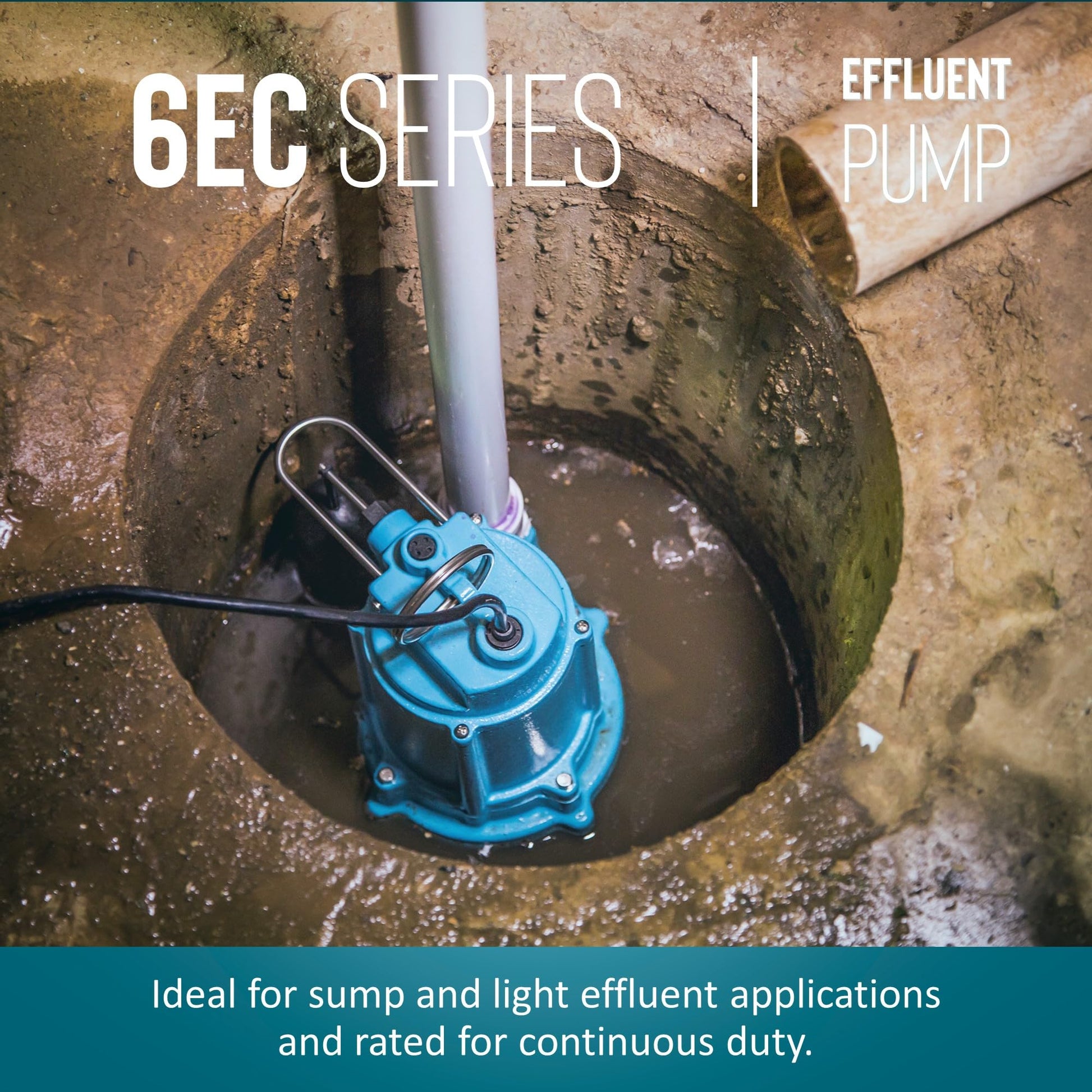

Details: The Little Giant 506807 6EC-CIA-SFS 1/3 hp, 3180 GPH, 115-volt pump is ideal for use as a sump or light effluent pump. This pump can handle up to 1/2' solids and has a 1.5' FNPT discharge. This pump comes with a 115-volt, 10' cord suitable for standard outlets in North American homes. The integral snap-action switch activates the pump when the water level reaches 8' - 11' and shuts off when the water level drops to between 2' and 5'.

Features & Benefits:

- 1/3 horsepower PSC motor

- 1-1/2' FNPT discharge

- 140 °F (60 °C) liquid temperature rating

Pump selection guidelines:

Application: effluent pumps can be used to transfer or remove clean water or liquid effluent with up to 1/2' semi-solids. It is not designed to pass raw sewage.

Switch options (not all may be available):

- Tethered switches rise/drop with the depth of the water. They require a minimum basin size of 18'. The on/off levels can be adjusted easily.

- Diaphragm switches take up less room than a traditional tethered switch and uses water pressure to turn the pump on/off. A breather tube is located on the plug which must be free of debris for it to operate properly. The on/off levels cannot be adjusted.

- Snap-action switches take up less room that a traditional tethered switch. The float rises/lowers with the water level. The on/off level cannot be adjusted.

Piggyback vs. integral (built-in):

- A piggyback plug allows the switch to be overridden to pump below the off level. It is easily replaceable.

- An integral switch is built into the pump. An integral switch cannot be overridden so it is not the best choice for emergency water removal.

EAN: 0010121149076

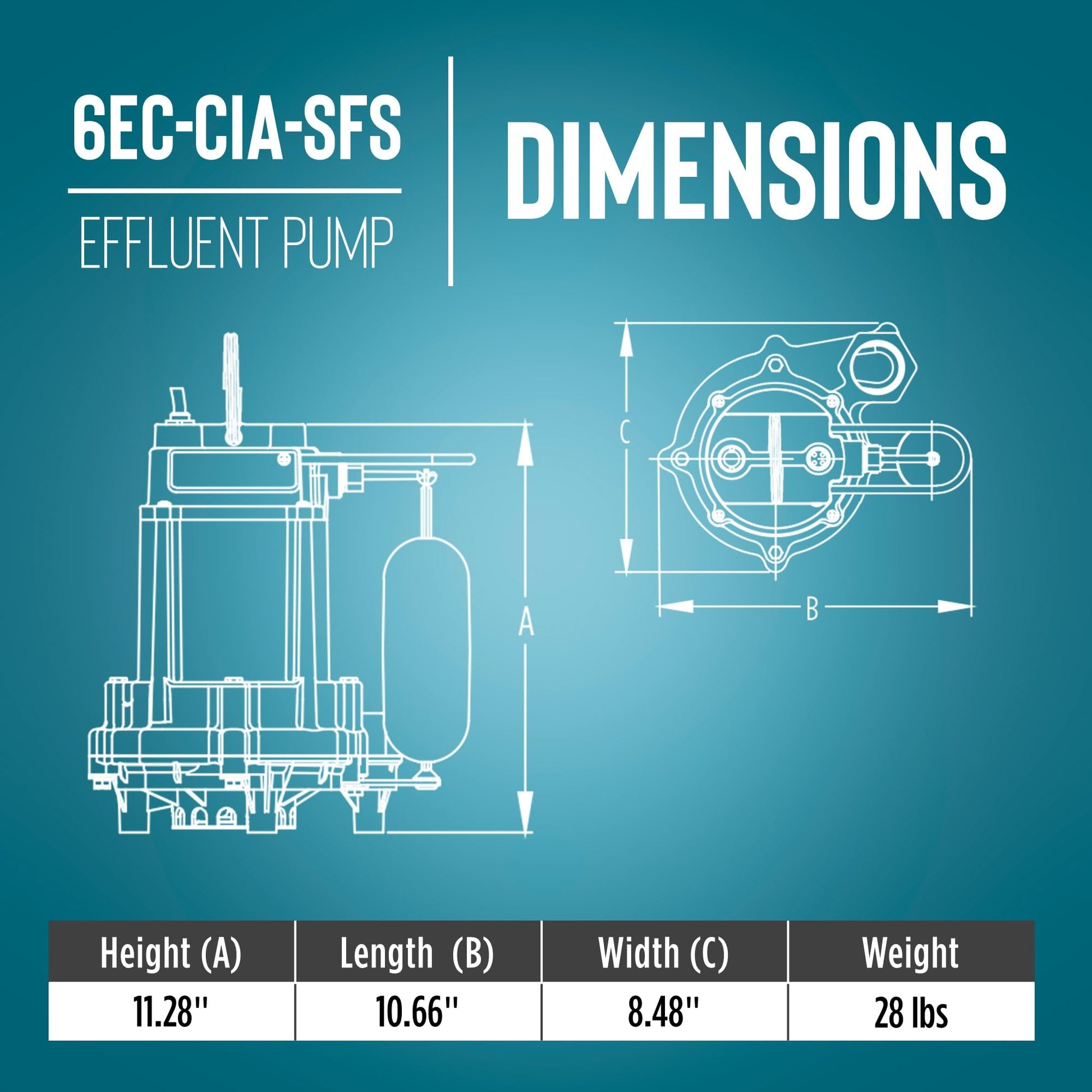

Package Dimensions: 14.0 x 11.1 x 9.5 inches
