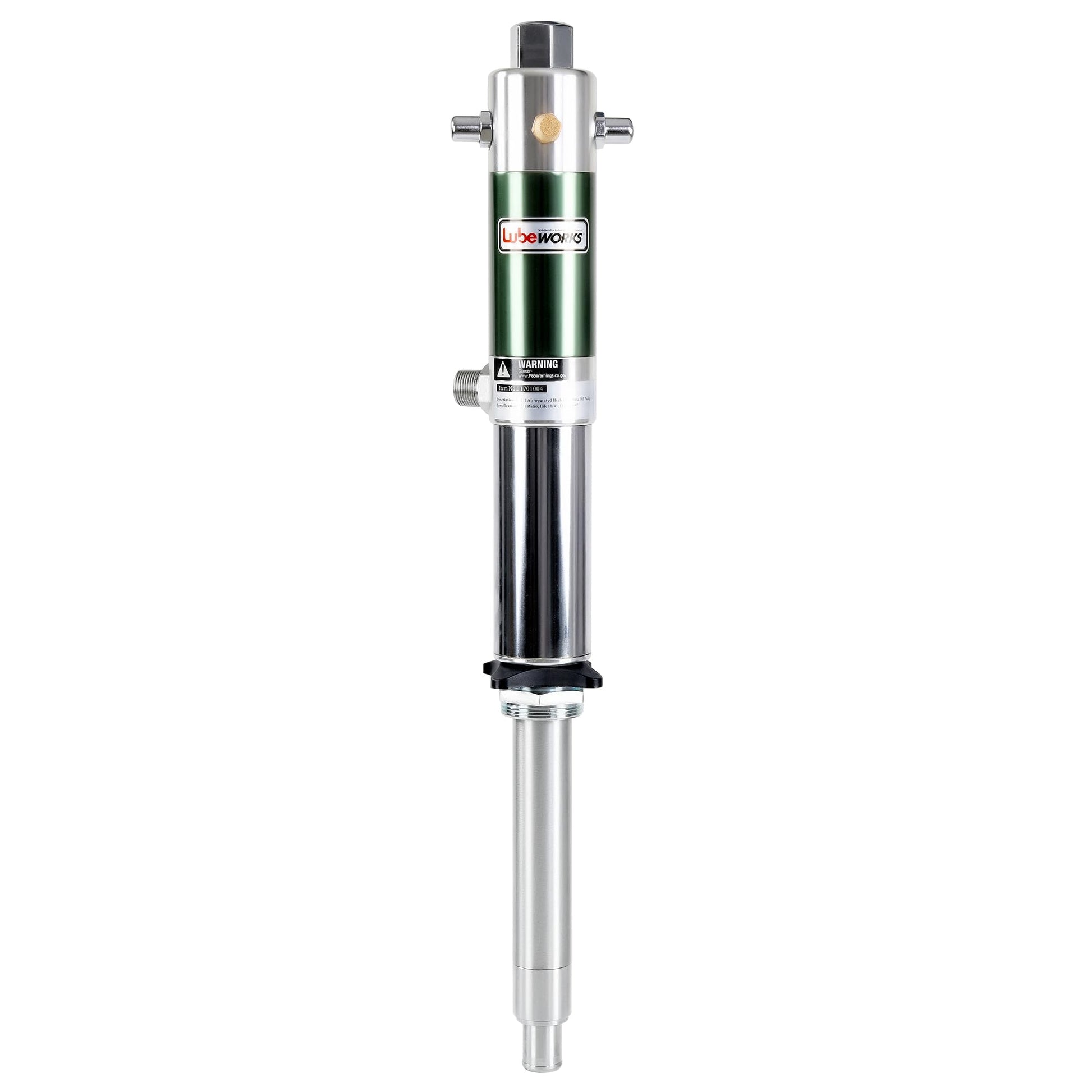

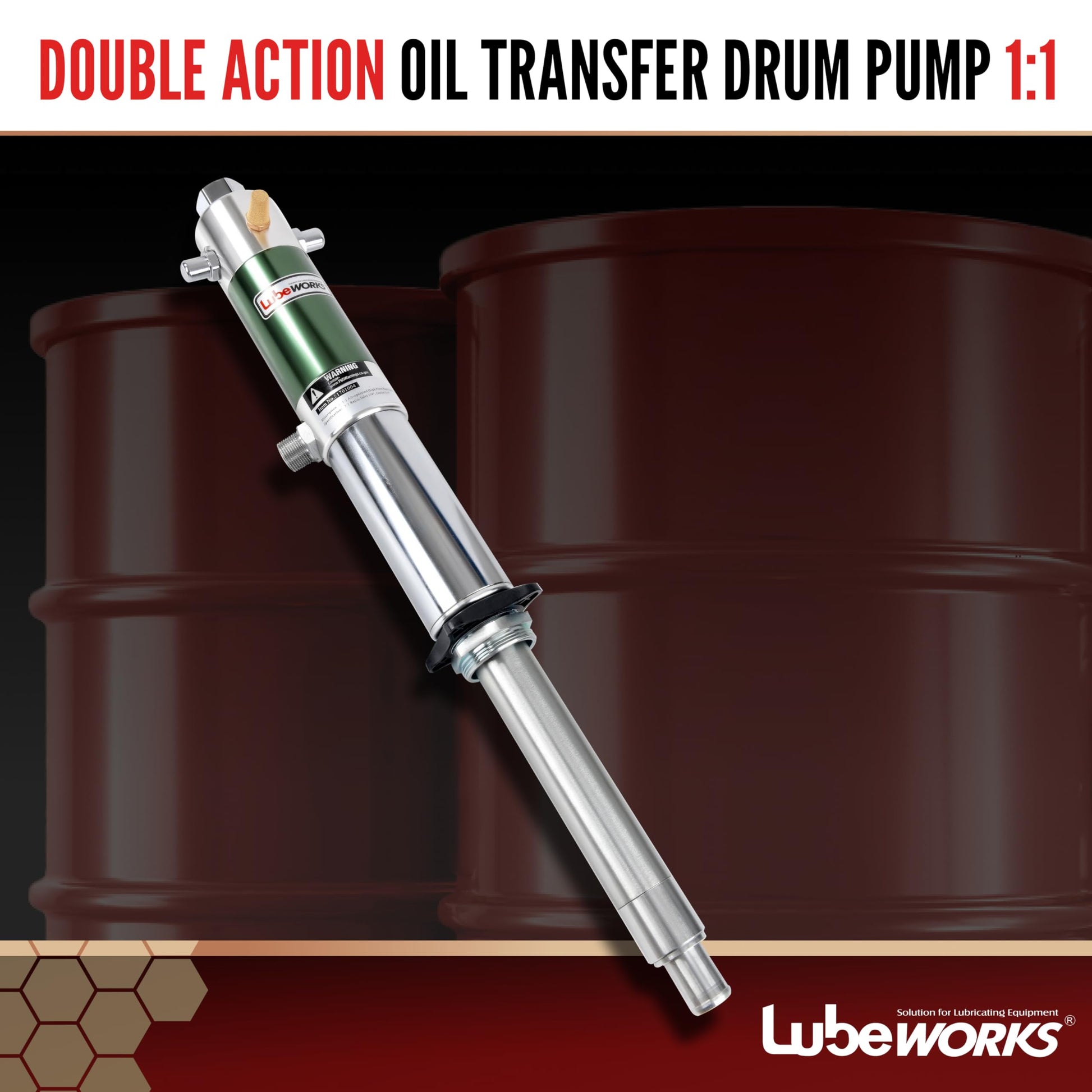

Lubeworks Oil Transfer Drum Pump Double Action 1:1 Fast High Flow Rate 8.5GPM / 32LPM for SAE130 Oils/Fluids

Brand: Lubeworks

Color: 1:1 High Flow Rate Pump

Features:

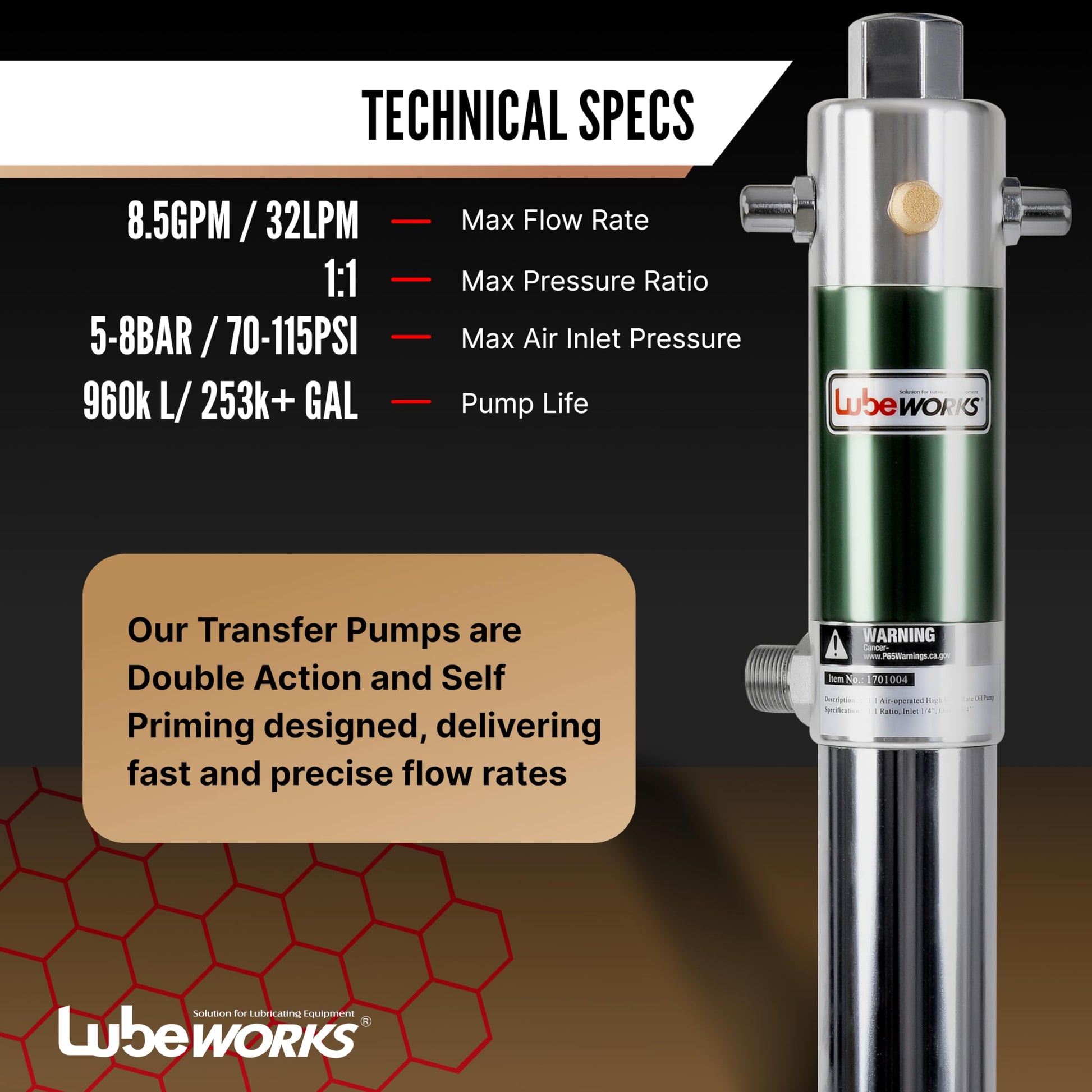

• SPECIFICATIONS - This Air Operated (Pneumatic) Double Action Oil Transfer Pump has a High Flow rate of a Max 8.5GPM / 32LPM; A Max Pressure Ratio of 1:1; A Max Air Inlet Pressure of 5-8BAR / 70-115PSI; A Max Fluid Pressure of 8BAR / 115PSI. An Air Motor Effective Diameter of 63mm 2.5' inch; An Air Consumption (per minute) @ 8BAR / 130L @ 115PSI / 4.7CFM; An Air Inlet Connection of 1/4' and Oil Outlet Connection of 3/4' Male; A Long Pump Life of 960k Liters / 253k+ Gallons

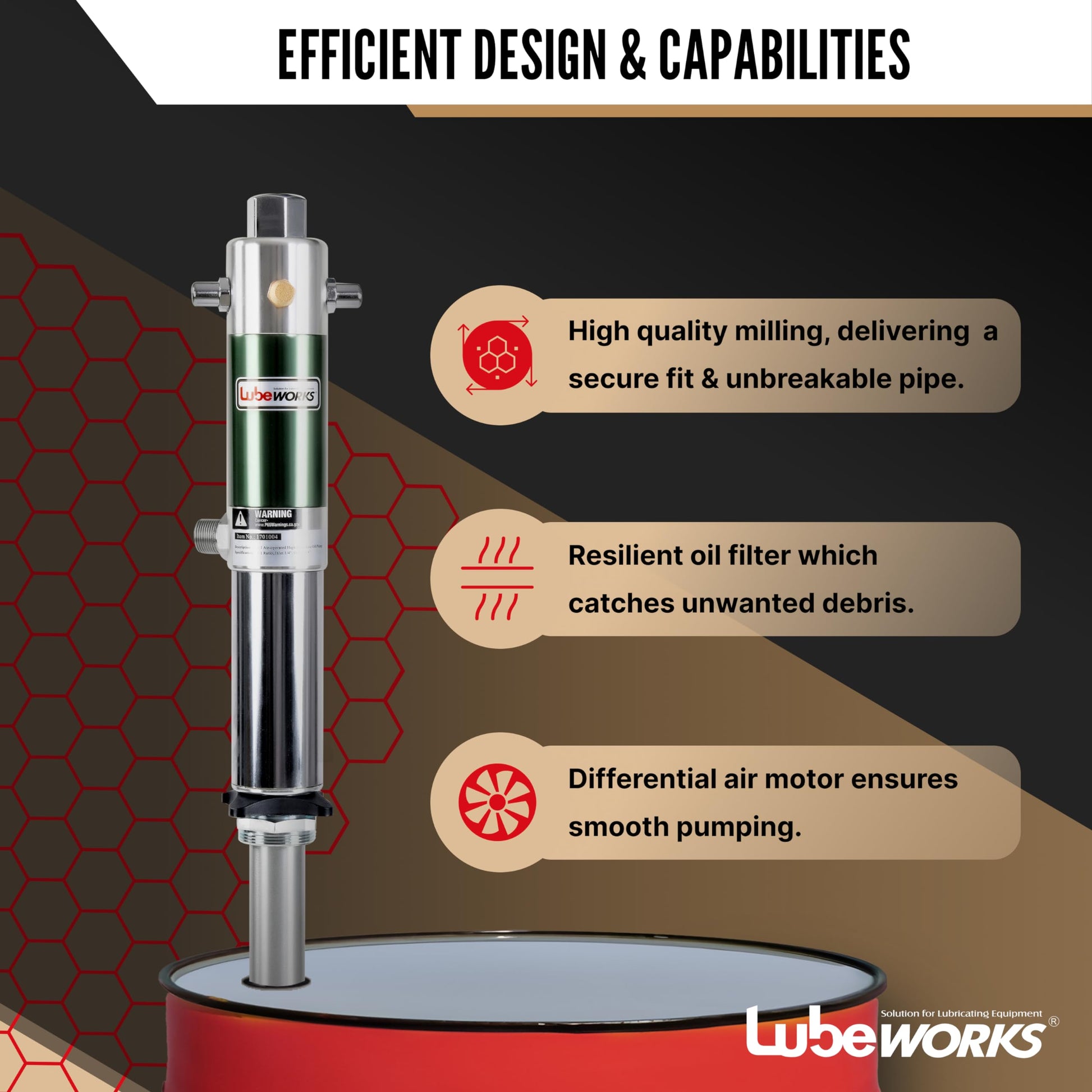

• EFFICIENT DESIGN and CAPABILITIES - Our Transfer Pumps are Double Action and Self Priming designed, delivering fast and precise flow rates; This Smart design uses fewer parts for less pump wear/tear, making it is easy to use/maintain This pump is best suited for Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include: motor oil, synthetic oil hydraulic, gear oil, automatic transmission fluid and suitable up to SAE80 grade oil

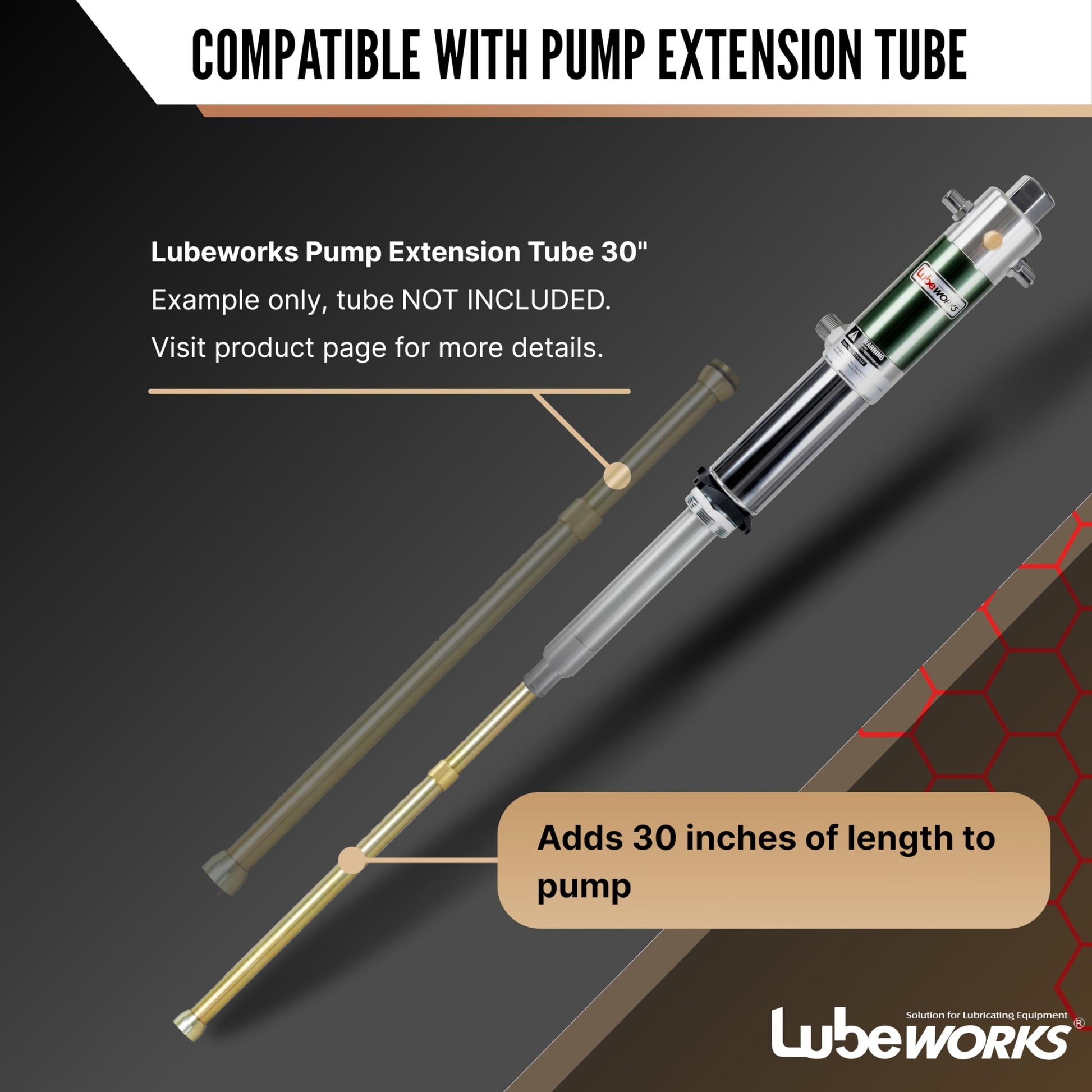

• PROPER USE & SAFETY - All our pumps come with a 2' inch Adjustable Bung adapter, for easy installation for barrel mounted applications; This pump can be barrel, cart or wall-mounted; A Wall Mount Kit or Extension Tube Kit are Sold SEPARATELY; Follow manual for setup and always use the proper additional equipment as listed in the manual when installing pump and always wear protective glasses/goggles or gear when operating equipment

model number: 1701034

Part Number: 1701034

EAN: 6943940717062

Package Dimensions: 32.0 x 5.2 x 5.2 inches
