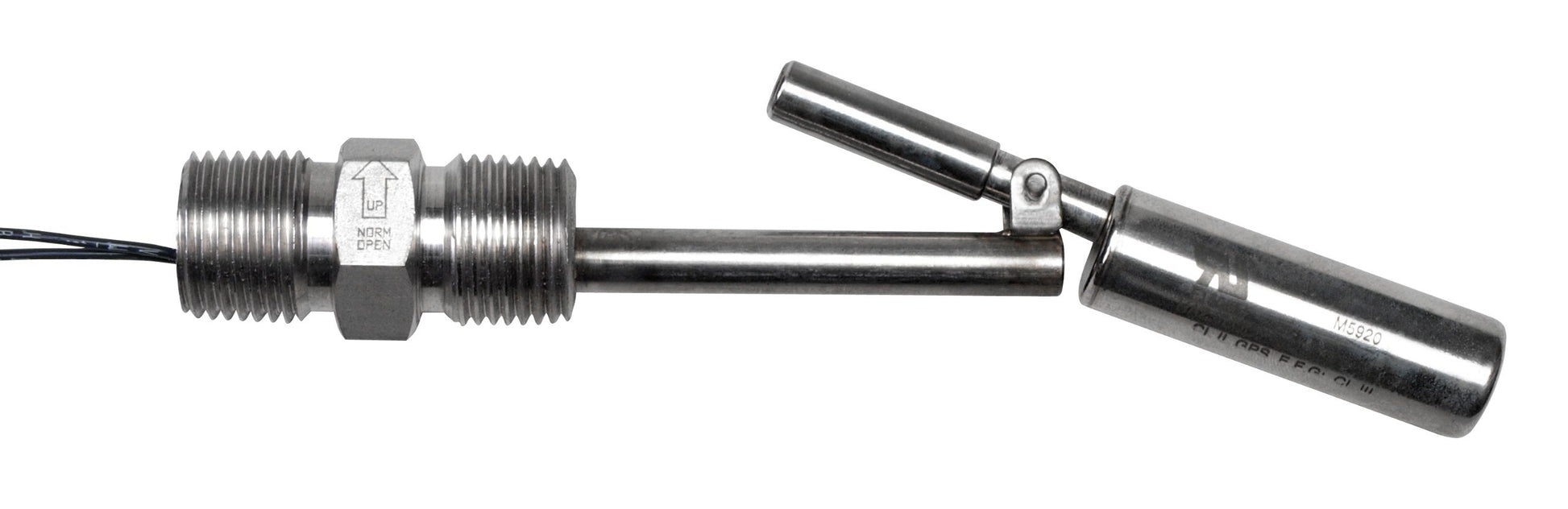

Madison M5920 Liquid Level Sensor, Side Mount Float Switch, Stainless Steel, 1/2" x 1/2" NPT

Brand: Madison

Features:

• Approvals: CE, UL Haz. Loc. , CSA Haz. Loc. , NSF
• Electrical Ratings: 240 VAC, 0. 14A; 120 VAC, 0. 28A; 120 VDC, 0. 07A; 24 VDC, 0. 28A
• Stem Material: 316 Stainless Steel
• Float Material: 316 Stainless Steel
• Float SG: 0. 60
• Lead Wires: 24', 22 AWG, Teflon Insulated
• Max Pressure/Temp: 300 PSI/392°F (200°C)
• Mounting: 1/2' x 1/2' NPT
• Switch Rating: 30 Watt, SPST
• Note: Switches are rated for resistive loads. See our Electrical Considerations for UL guidelines for current (Amperes resistive) at different voltages, Minimum through hole size for mounting is 0. 69'

model number: M5920

Part Number: M5920

Details: Single point detection of high/low levels through side wall of tank 316 SS is frequently used in food processing Ideal for high-temperature, medical and petrochemical applications, as well as plating processes Suitable in applications where superior corrosion resistance is required

EAN: 7424189673856

Package Dimensions: 6.5 x 2.5 x 1.5 inches
