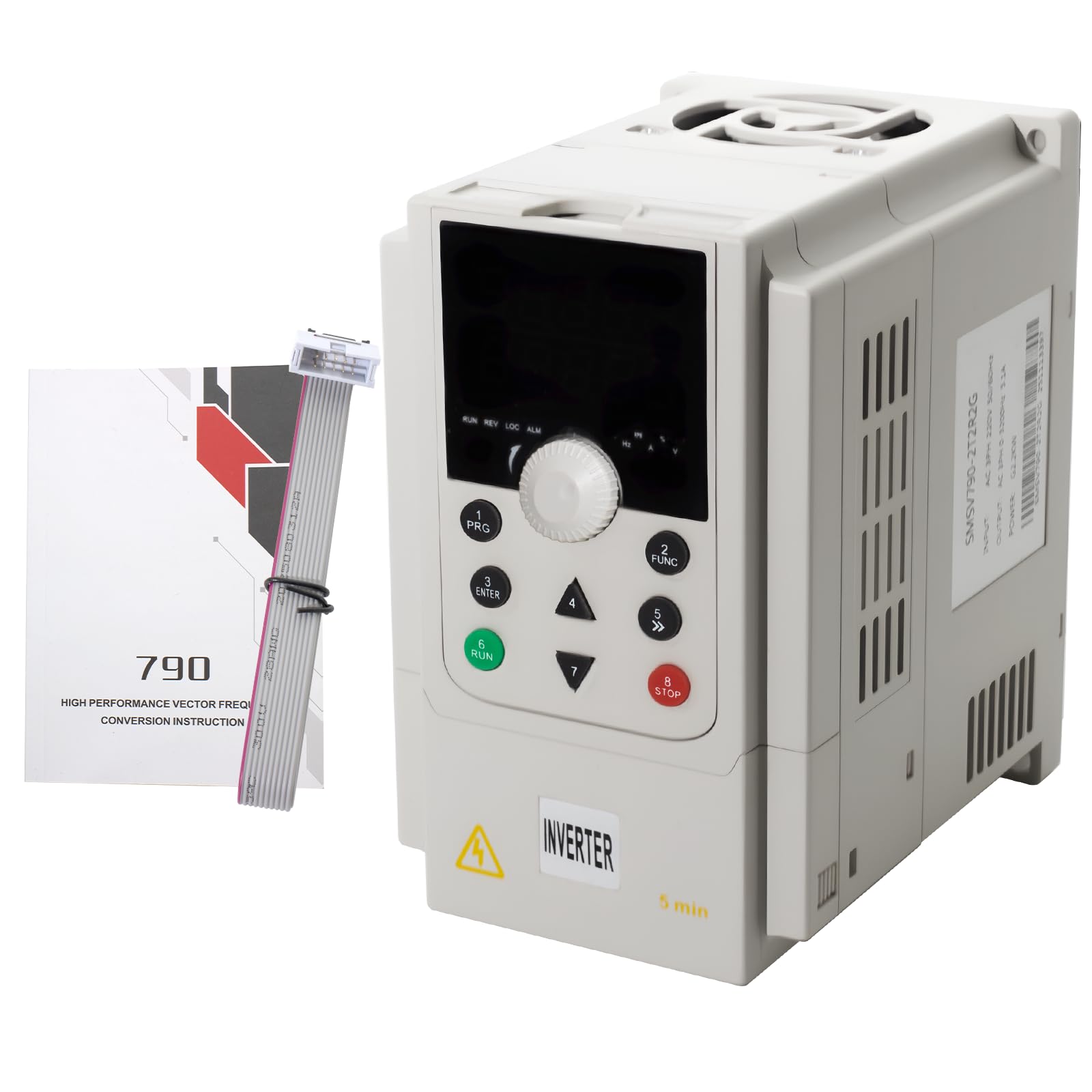

MAKERELE AC 220V/2.2kw 3HP Variable Frequency Drive, VFD Single or Three Phase Input to 3 Phase Output Frequency Converter for for CNC Spindle Motor and AC Motor Speed Control

Brand: MAKERELE

Features:

• 【Product Parameter】:This vfd drive: 1 or 3 phase input and 3 phase output; Input voltage: AC 220V(+/-15%) 1 or 3 phase, Output voltage: AC 220V three phase; Input frequency: 50/60 Hz; power: 2.2kw; horsepower: 3HP.

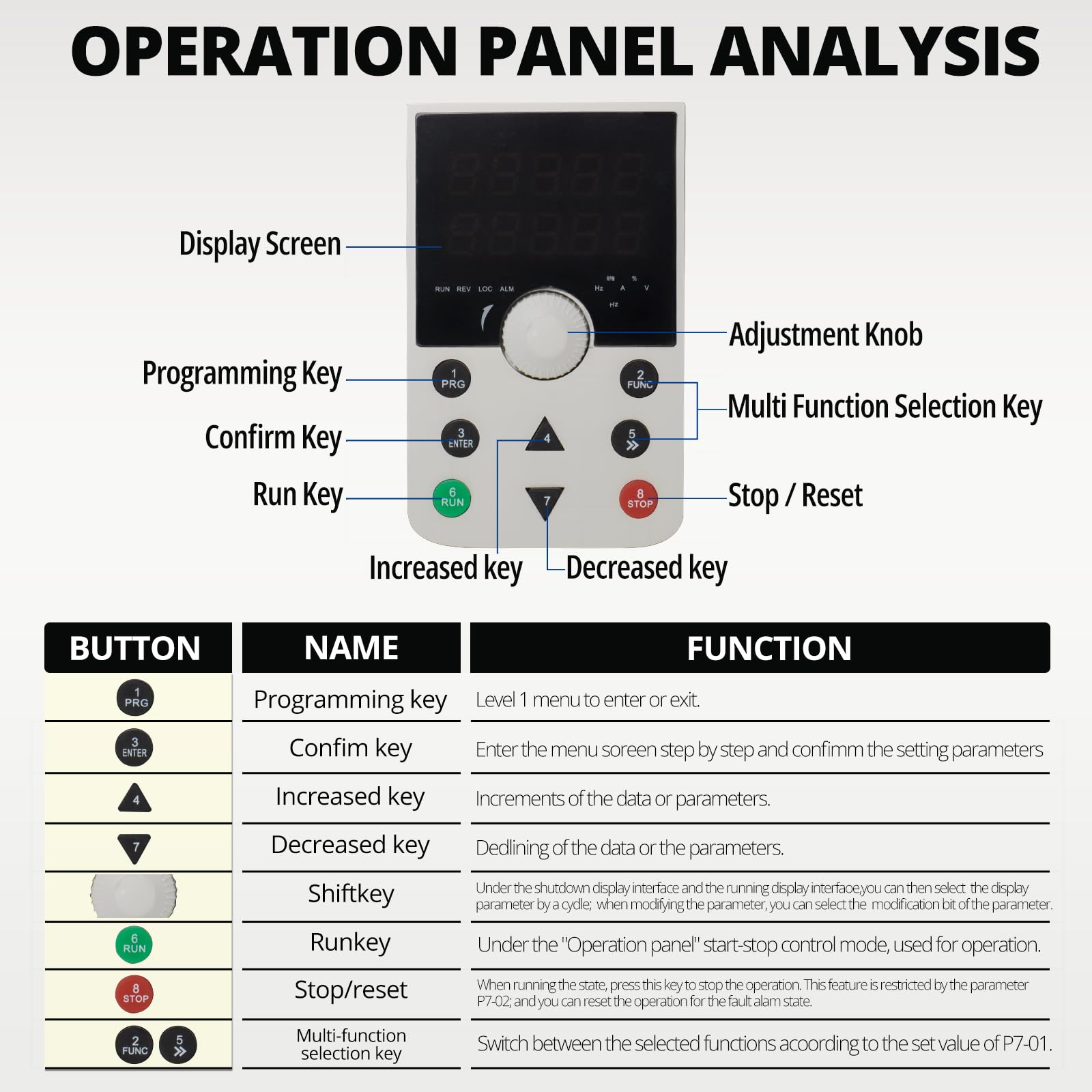

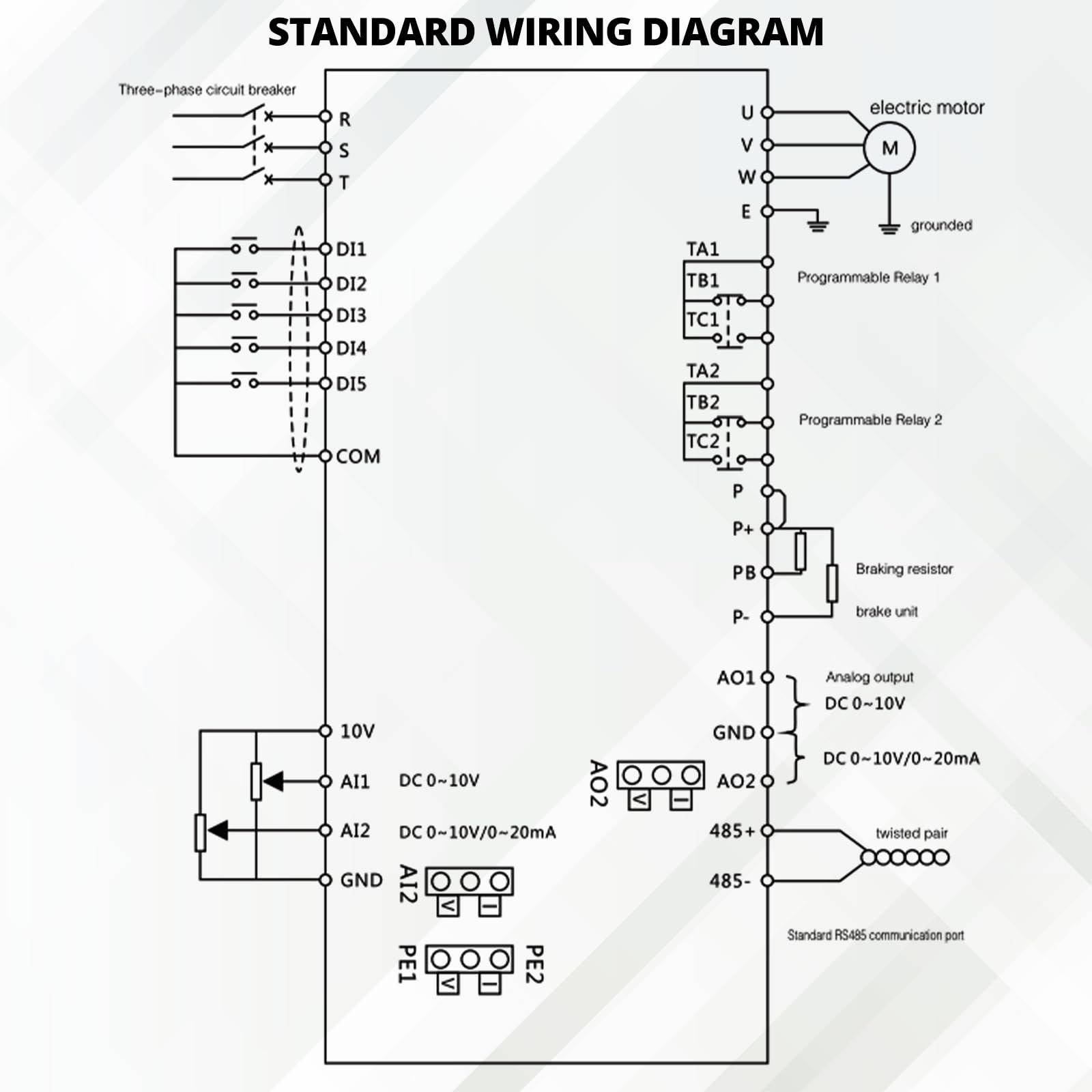

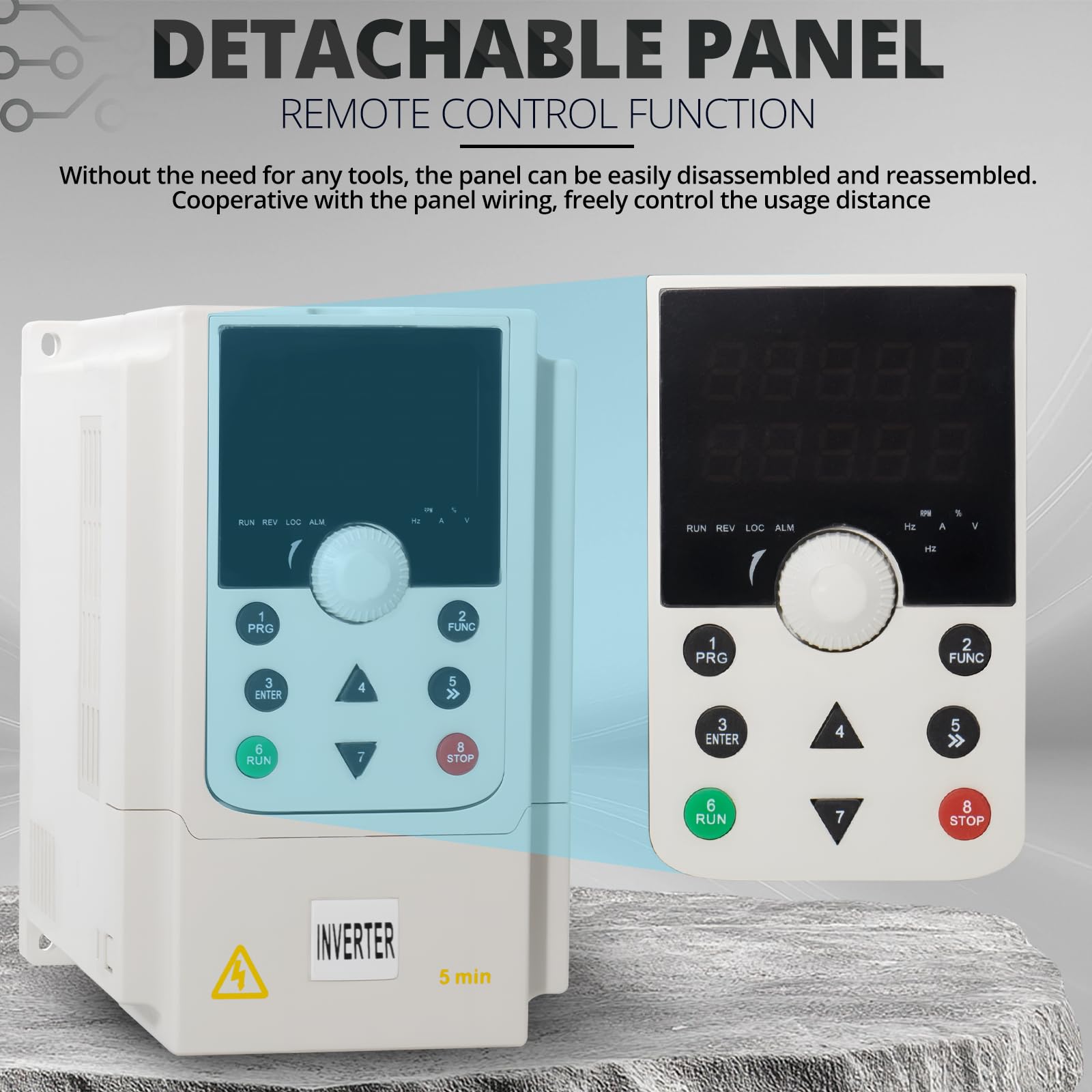

• 【Intelligent Control and Stable Communication】:The vfd 220v input 220v 3 phase output is equipped with a digital display panel and a detachable design (standard 7.9inch connection cable), supporting remote control and potentiometer speed adjustment. It has an internal RS485 communication port and a rich set of digital/analog control terminals, meeting diverse and complex control requirements, making device integration and automation upgrades simple and efficient.
• [Durable and Reliable]:The vfd variable frequency drive uses high-quality copper coils and a triple-proof paint circuit board (resistant to moisture, dust and corrosion), ensuring that the internal components can operate stably in harsh environments.

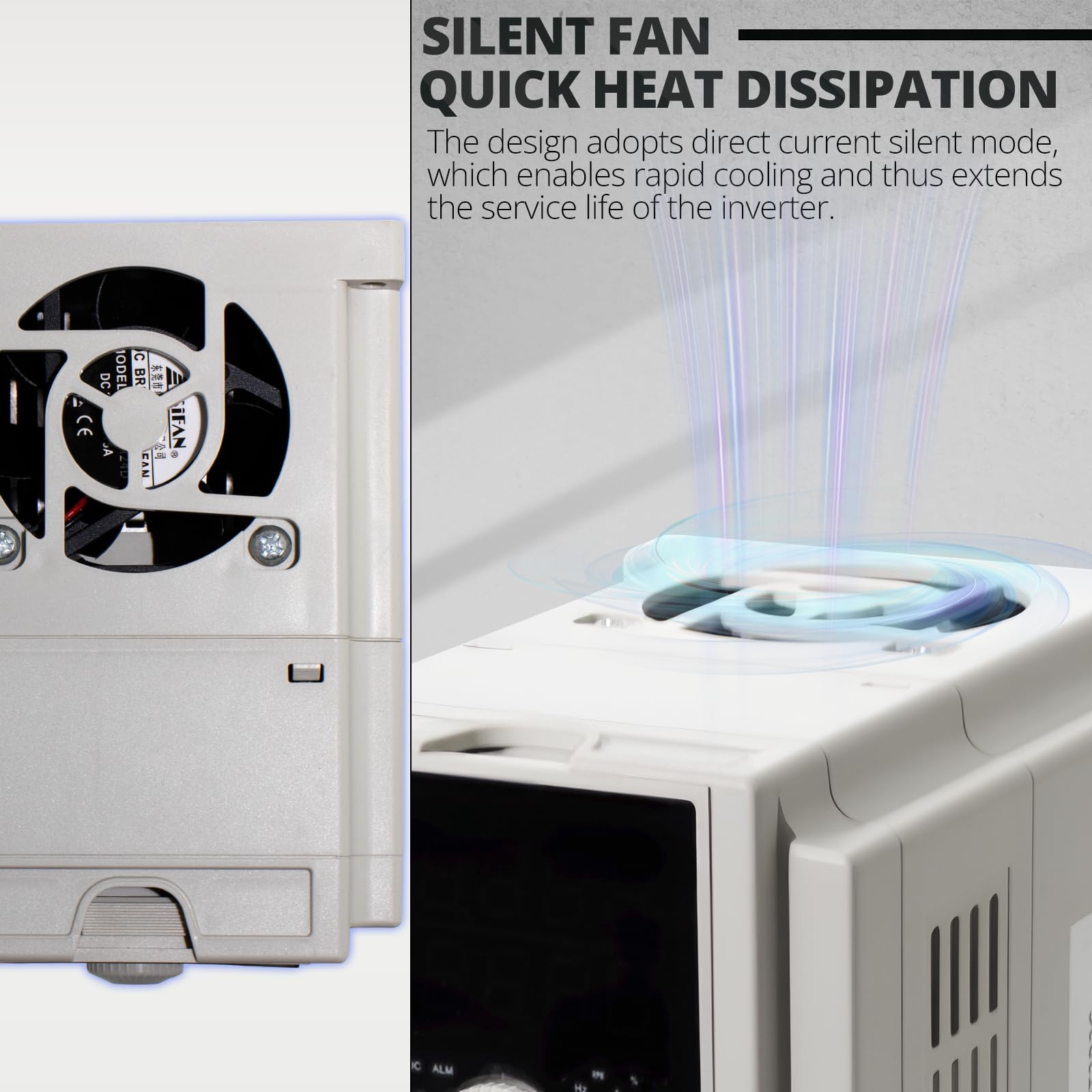

• [Efficient Heat Dissipation]:The vfd inverter adopts an innovative multi-grid and multi-hole three-dimensional heat dissipation structure, combined with high-efficiency silent fans, to form an efficient ventilation channel. Even when operating under full load for a long time, it can quickly dissipate heat, effectively extending the service life and reducing the failure rate.
• [Wide Applicability]:The variable Frequency Drive Control Inverter is specially designed for various three-phase motor speed control scenarios and is widely used in CNC machines, pumps, fans, compressors, conveyor belts, mixers, and other equipment. Caution: This model does not support external braking resistors; if the motor load is heavy, it is recommended to choose a model with a higher power.

Part Number: MK-VFD-790S-220v-2.2KW

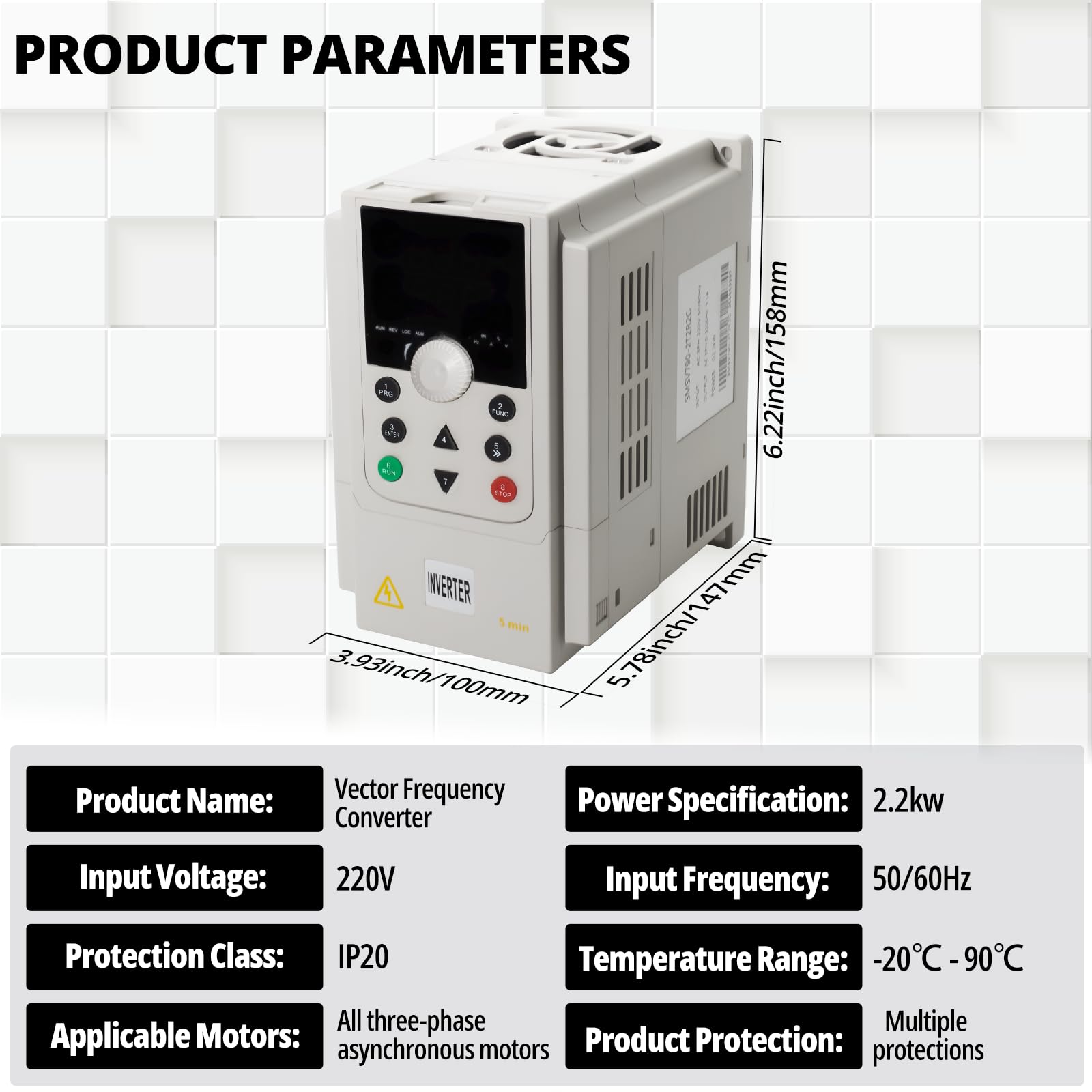

Package Dimensions: 6.2 x 5.2 x 3.9 inches
