Mastercool 69000 Refrigerant Recovery System – Compact, Oil-Less Compressor, Works with All Refrigerants, Auto Shut-Off

Brand: Mastercool

Color: Blue

Features:

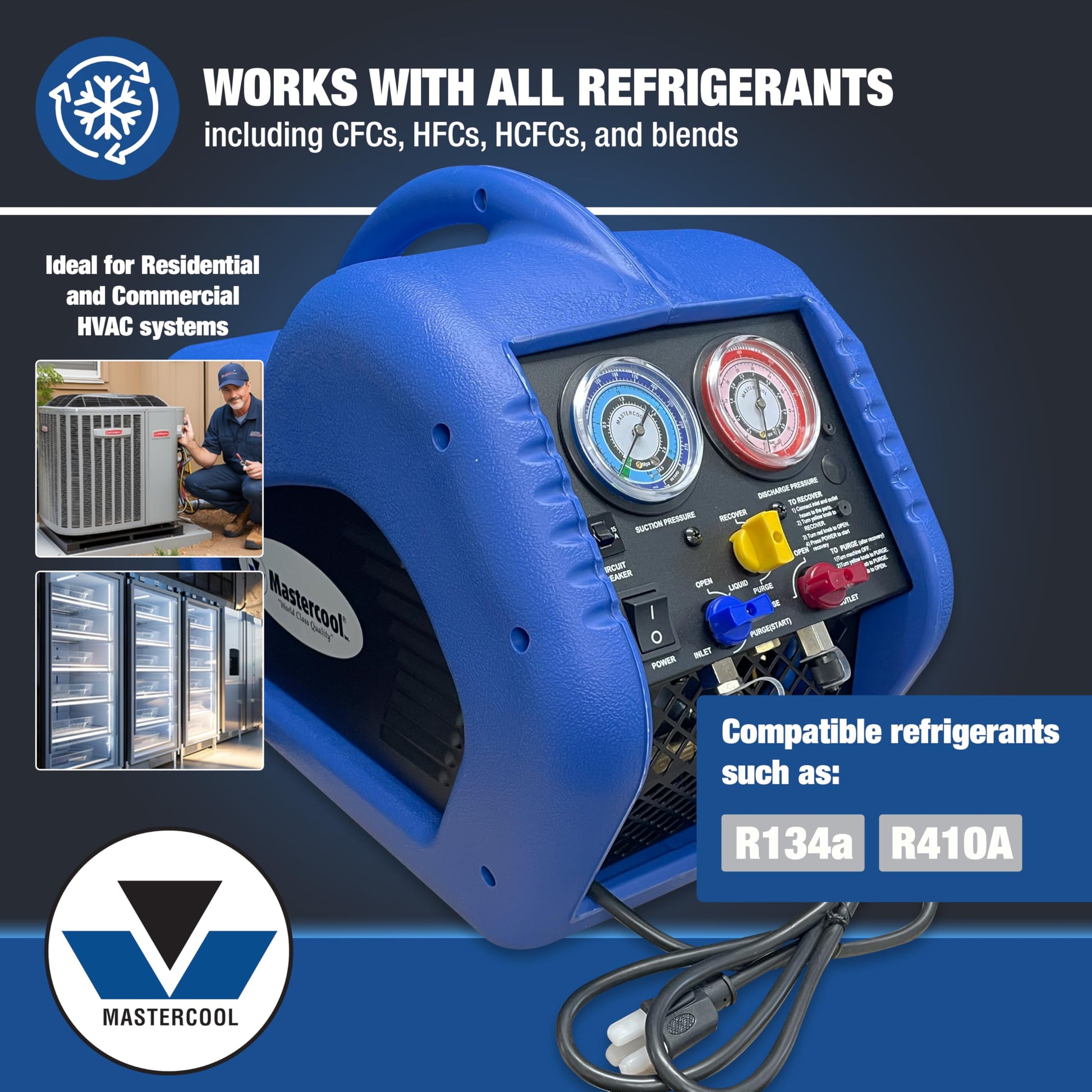

• Works with All Refrigerants – Compatible with CFCs, HCFCs, and HFCs, including R134a and R410A, making it ideal for both residential and commercial HVAC systems.

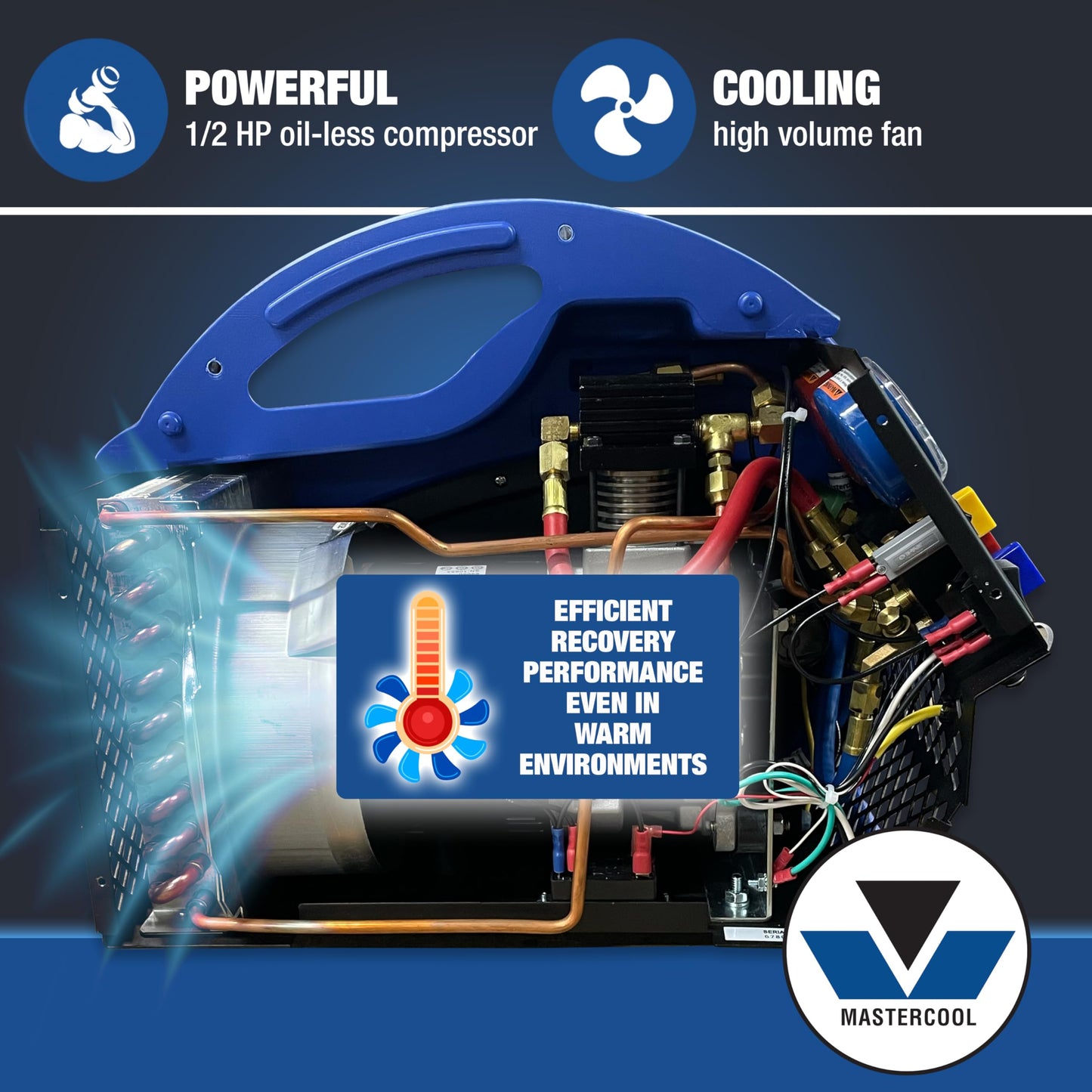

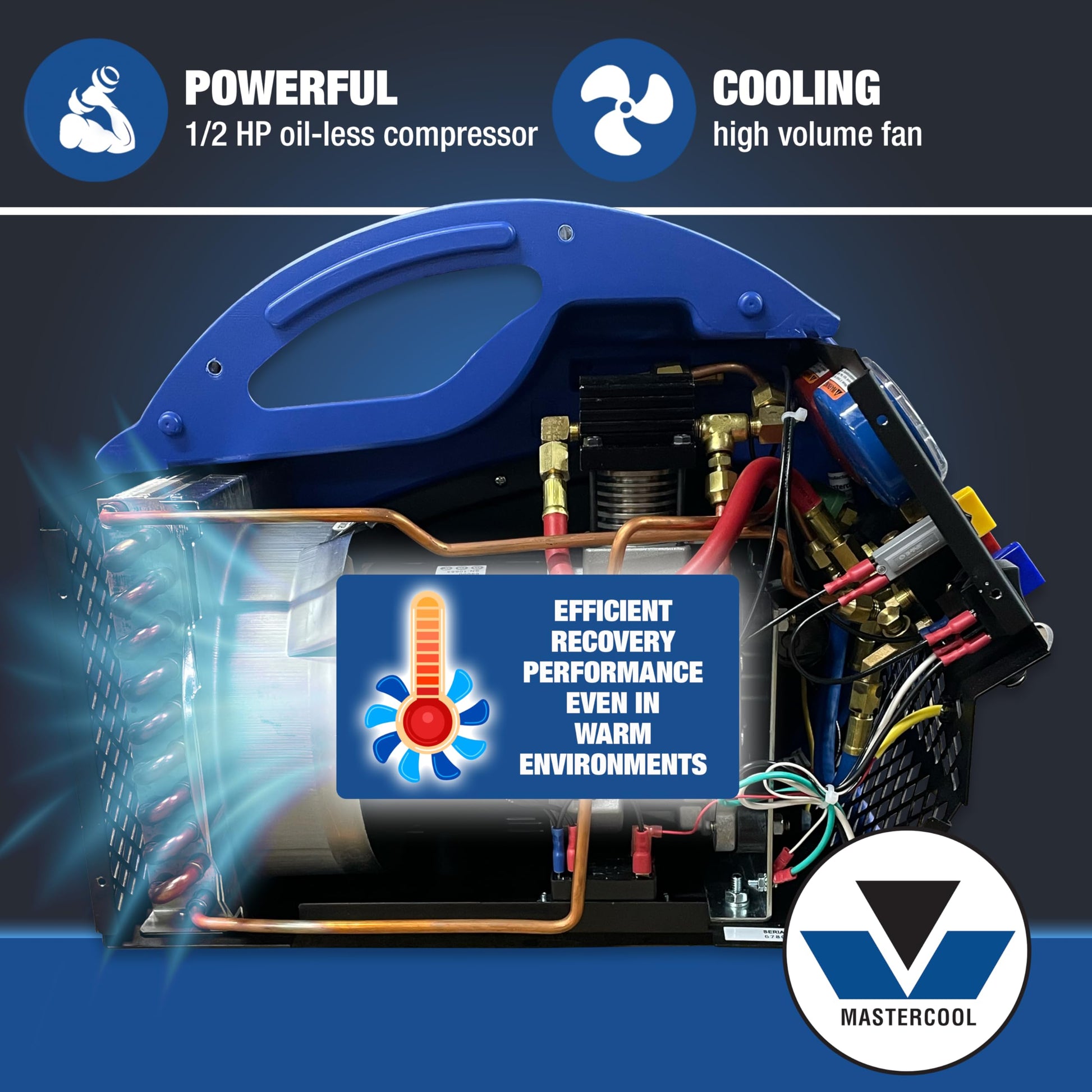

• High-Efficiency Oil-Less Compressor – Equipped with a 1/2 HP oil-less compressor and high-volume cooling fan, ensuring maximum recovery efficiency, even in high-temperature environments.

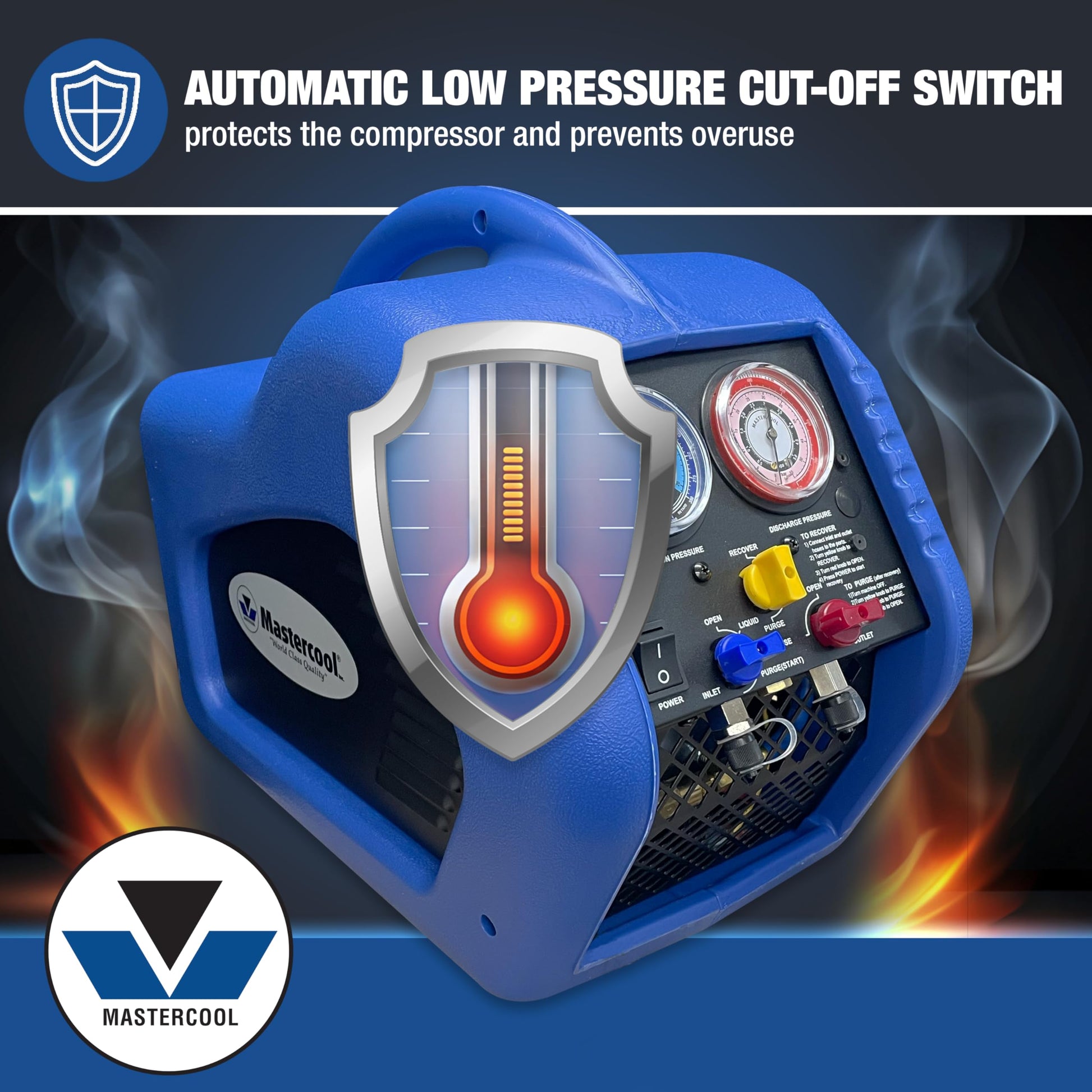

• Automatic Low-Pressure Cut-Off – Features an auto shut-off switch that activates when the recovery process is complete, protecting the compressor from overuse and eliminating the need for constant monitoring.

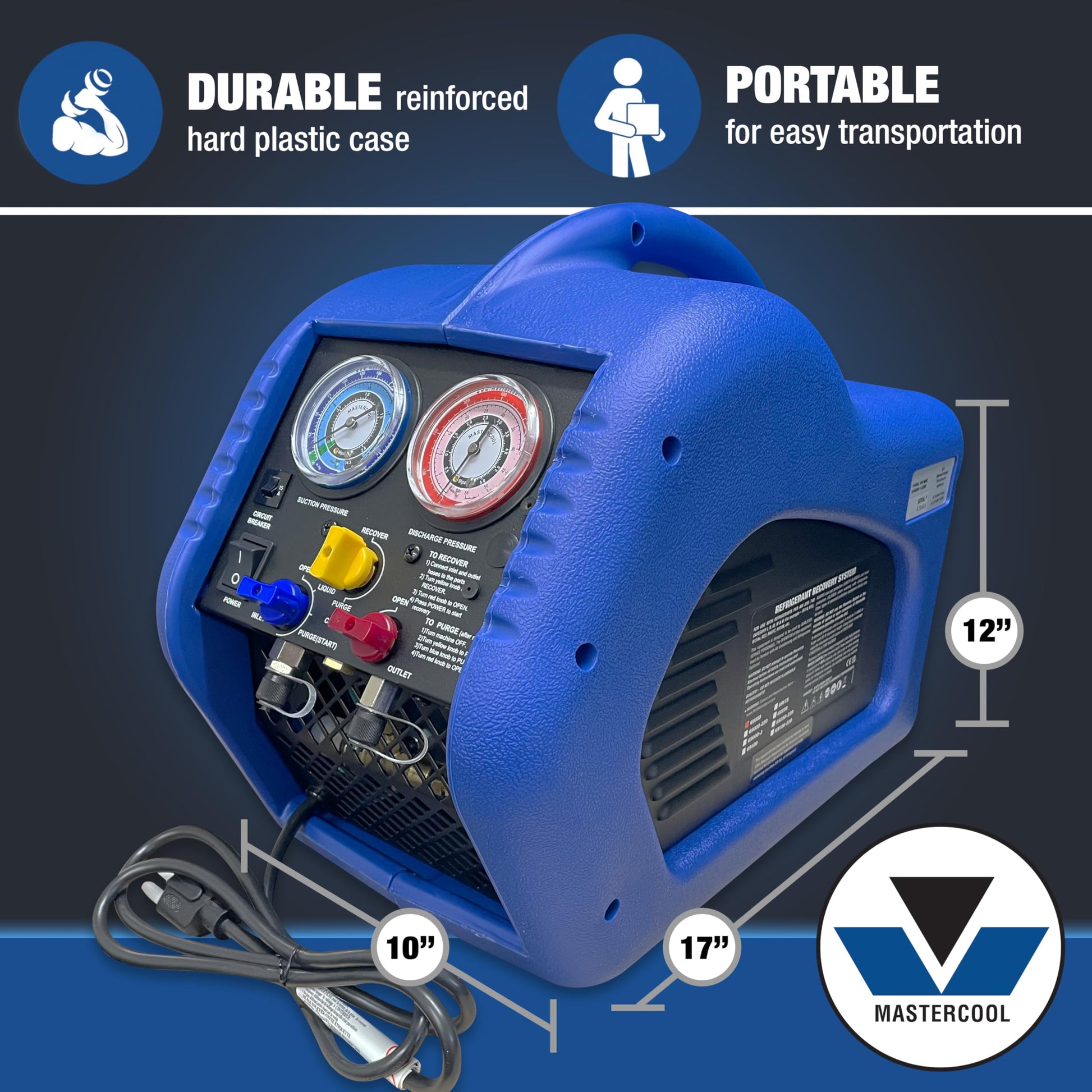

• Durable and Portable – Housed in a reinforced hard plastic case, the 69000 is compact, lightweight, and designed for easy transportation, weighing only 38 lbs.
• Quick Recovery Rates – Offers high recovery speeds with a recovery rate of up to 0.44 lb/min for vapor, 2.62 lb/min for liquid, and 12 lb/min in push/pull mode, making it suitable for demanding jobs.

Release Date: 26-09-2014

model number: 69000

Part Number: 69000

Details: Product Description

The Mastercool 69000 Refrigerant Recovery System is built for professionals handling the recovery of refrigerants from residential, commercial, and industrial HVAC systems. This powerful recovery unit works with all major refrigerants, including CFCs, HCFCs, and HFCs, such as R134a and R410A, offering versatility for a variety of applications.
At its core, the 69000 is equipped with a 1/2 HP oil-less compressor and a high-volume cooling fan, allowing it to maintain high recovery capacities even in warmer environments. The system features an automatic low-pressure cut-off switch that shuts off the compressor when recovery is complete, preventing overuse and protecting the equipment.
Despite its robust capabilities, the unit is compact and portable, housed in a reinforced hard plastic case that ensures durability while weighing just 38 lbs. The stainless steel ball valve manifold provides smooth refrigerant flow with just a quarter-turn, and the pressure gauges display readings in PSI, BAR, and MPa, offering precision during operation.
Designed for efficiency and ease of use, the Mastercool 69000 achieves recovery rates of 0.44 lb/min (vapor), 2.62 lb/min (liquid), and 12 lb/min (push/pull), making it an ideal solution for quick, reliable refrigerant recovery.

Specifications:
Voltage: 115 V / 60 Hz Compressor Power: 1/2 HP oil-less compressor Recovery Rate: Direct vapor: up to 0.44 lb/min Direct liquid: up to 2.62 lb/min Push/pull: up to 12 lb/min Weight: 38 lbs Dimensions: 17' L x 10' W x 12' H Operating Temperature: 32°F to 122°F Refrigerants Supported: CFCs, HCFCs, HFCs (R134a, R410A, and others) Safety Features: Automatic low-pressure cut-off, reinforced hard plastic case

EAN: 0700376690002

Package Dimensions: 21.7 x 18.0 x 17.1 inches
