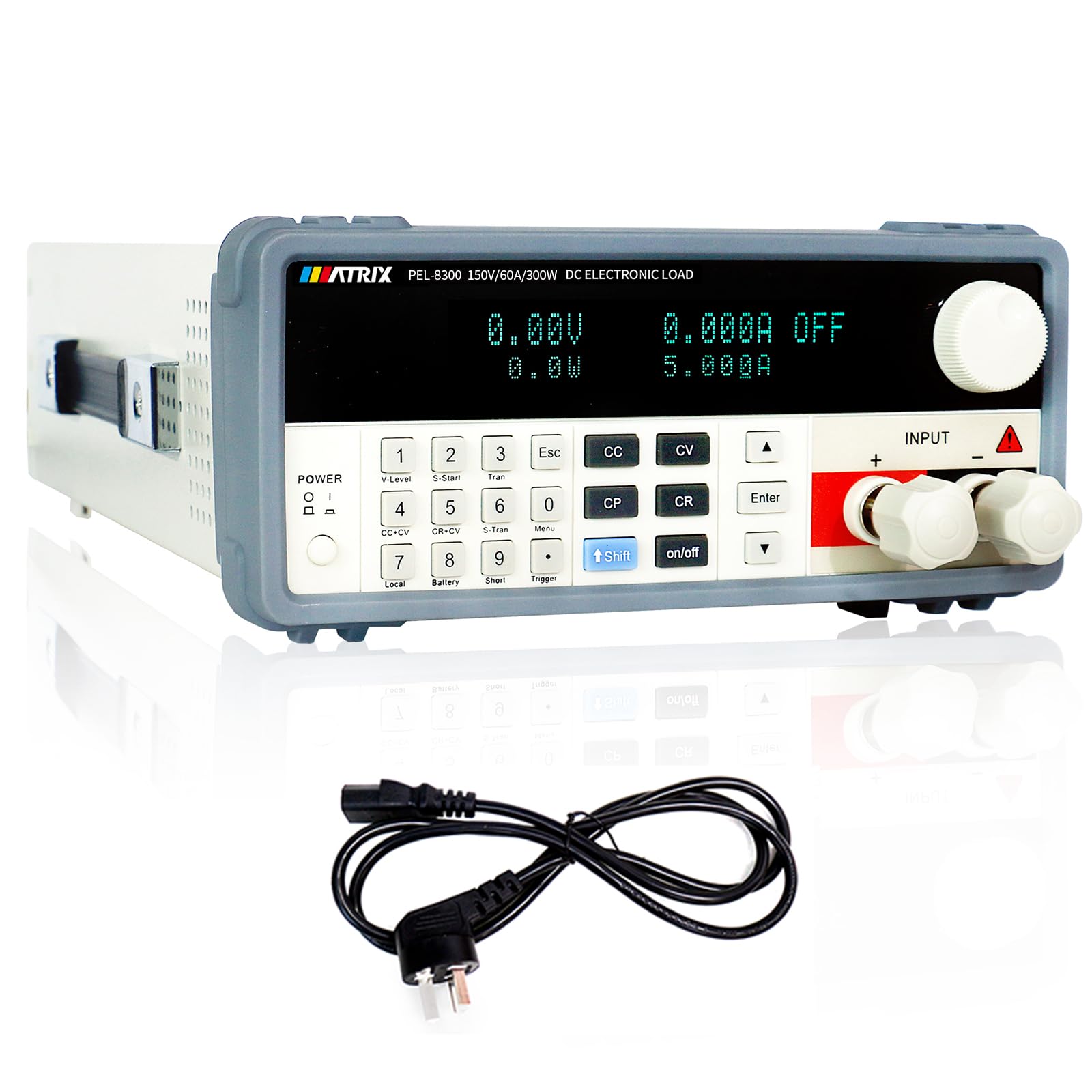

MATRIX Electronic Load Tester PEL8300, 150V/60A 300W Programmable DC Electronic Load, 0.1mV 0.1mA Resolution DC Power Supply Tester for Voltage Current, 0.1% Accuracy Electric Circuit Testing Device

Brand: MATRIX

Color: gray

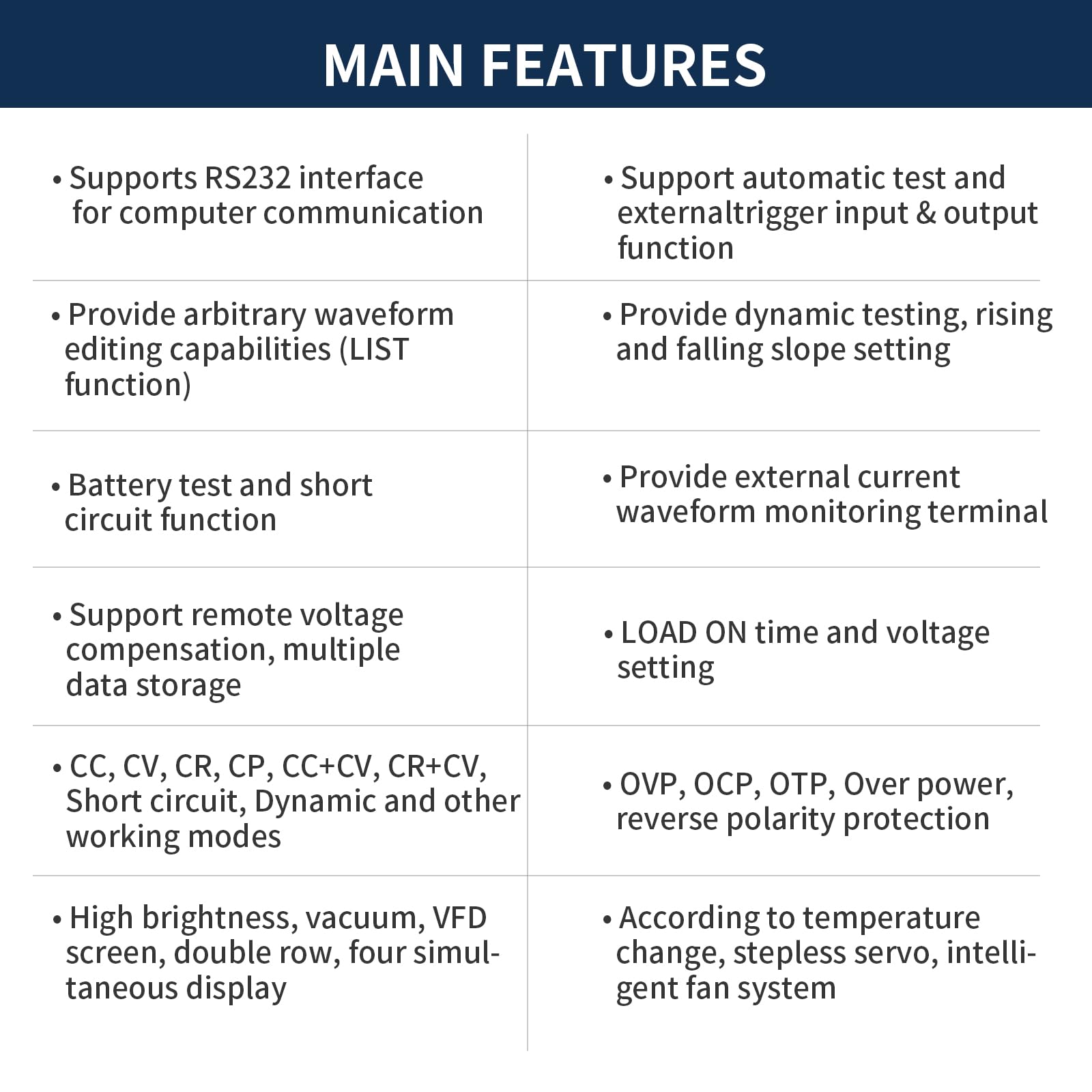

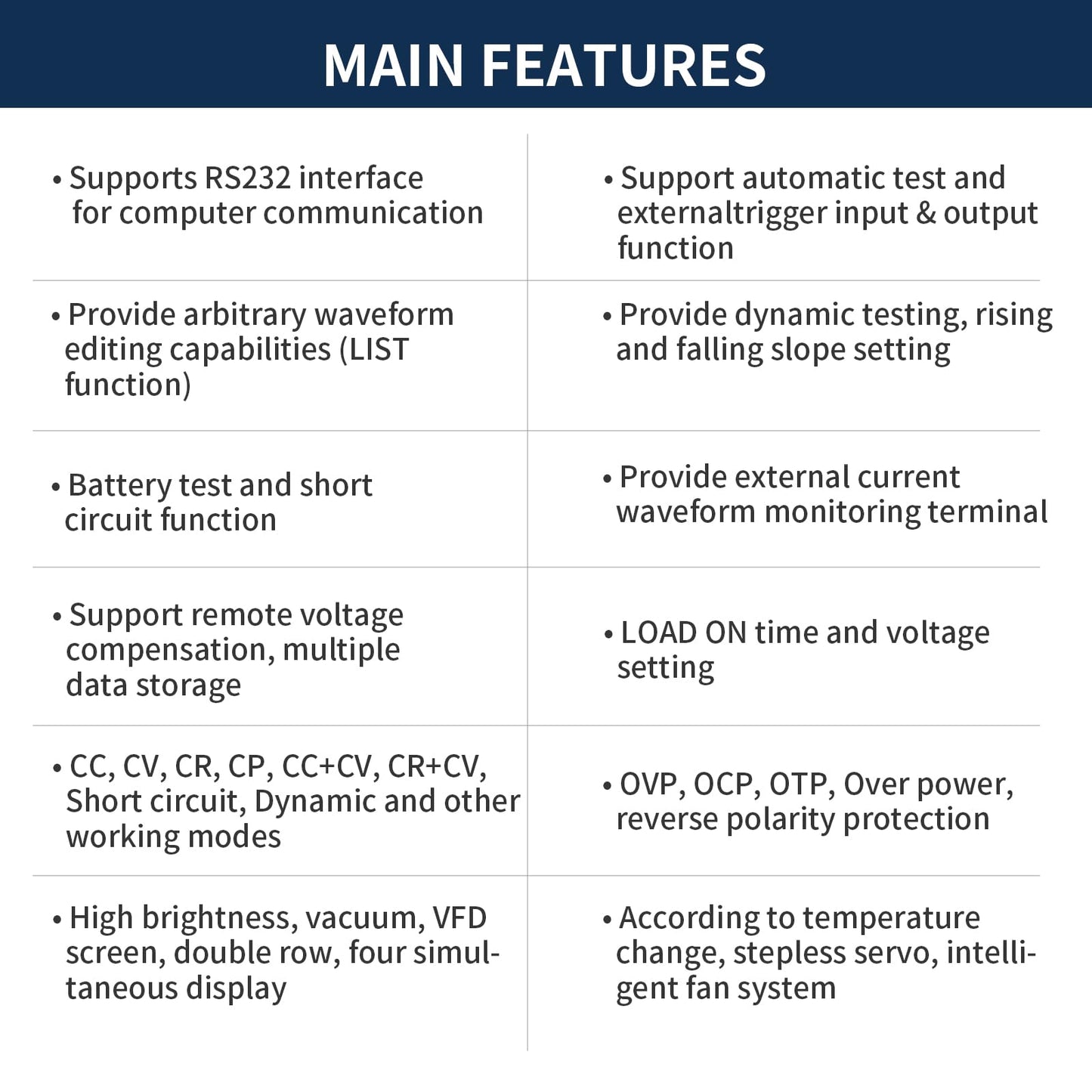

Features:

• 【MATRIX PEL8300 SINGLEC HANNEL PROGRAMMABLE ELECTRONIC LOAD 】Adopt high-performance chip high-speed and high-precision design, providing 0.1mV, 0.1mA resolution.HIGH ACCURACY-resolution and precision instrument, Basic accuracy is 0.03% ，CALIBRATION CERTIFICATE INCLUDED.
• 【SINGLE OUTPUT and 4 STATIC MODES or DYNAMIC MODE】DC 150 V/60 A, total power up to 300 W.4CC, CV, CR, CP, and short circuit, dynamic and other working modes.Over voltage / over current / over power / over heat / polarity reversion protection.

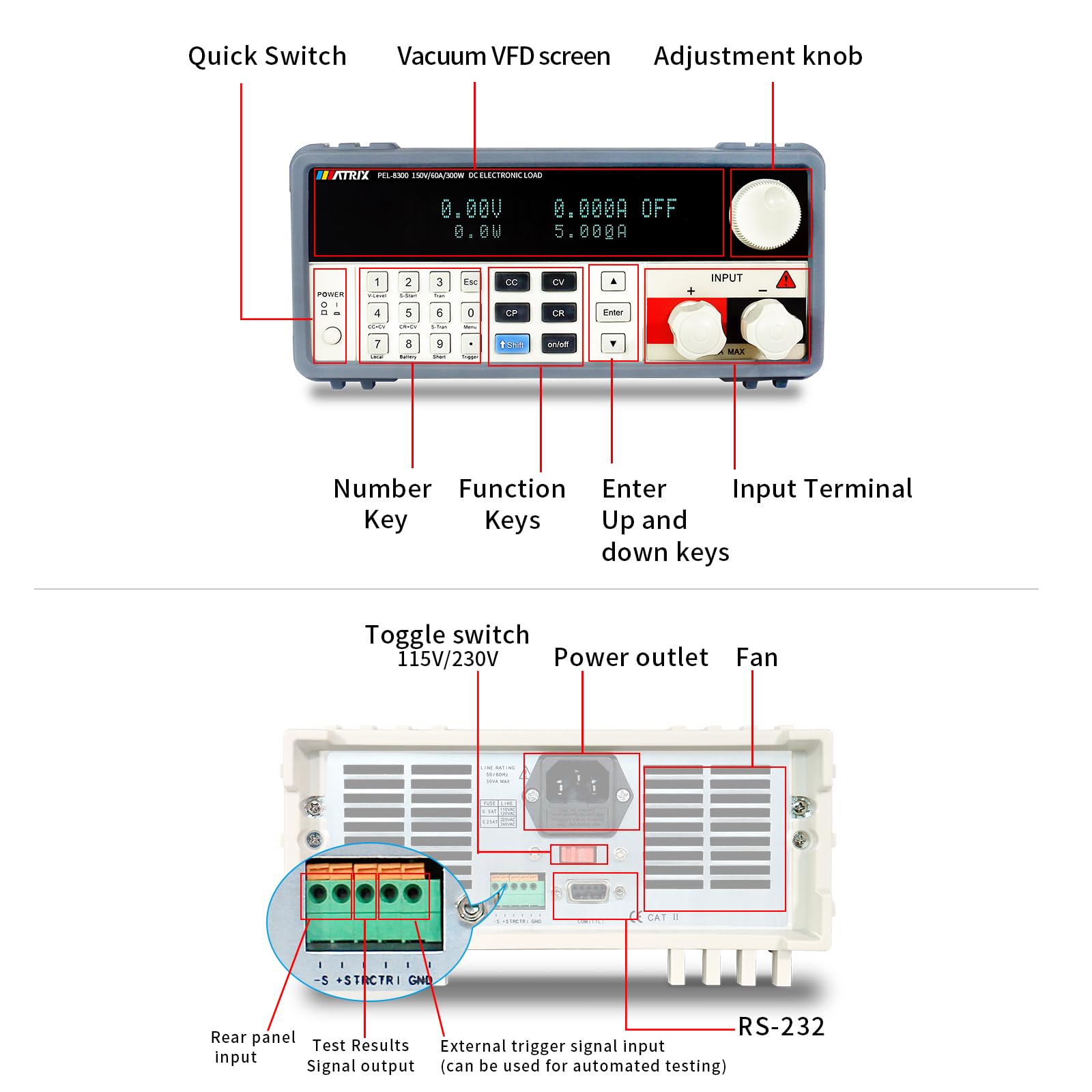

• 【VFD SCREEN and PRODUCT DESCRIPTION】High brightness vacuum VFD screen, display VPA at the same time，Easily view test data even in low-light areas.External trigger input and output are supported. Automatic test function settings, easy to use.
• 【VERSATILE】The dc load can be used to simulate or test DC power supplies, thermal regulators, amplifiers, transformers. At the same time, it can also test new energy, battery, power supply, aerospace test etc.
• 【PACKAGING】1 x DC Electronic Load，1 x output power cord，1 x User manual.

model number: PEL8300

Part Number: PEL-8300

Package Dimensions: 18.0 x 11.9 x 8.9 inches
