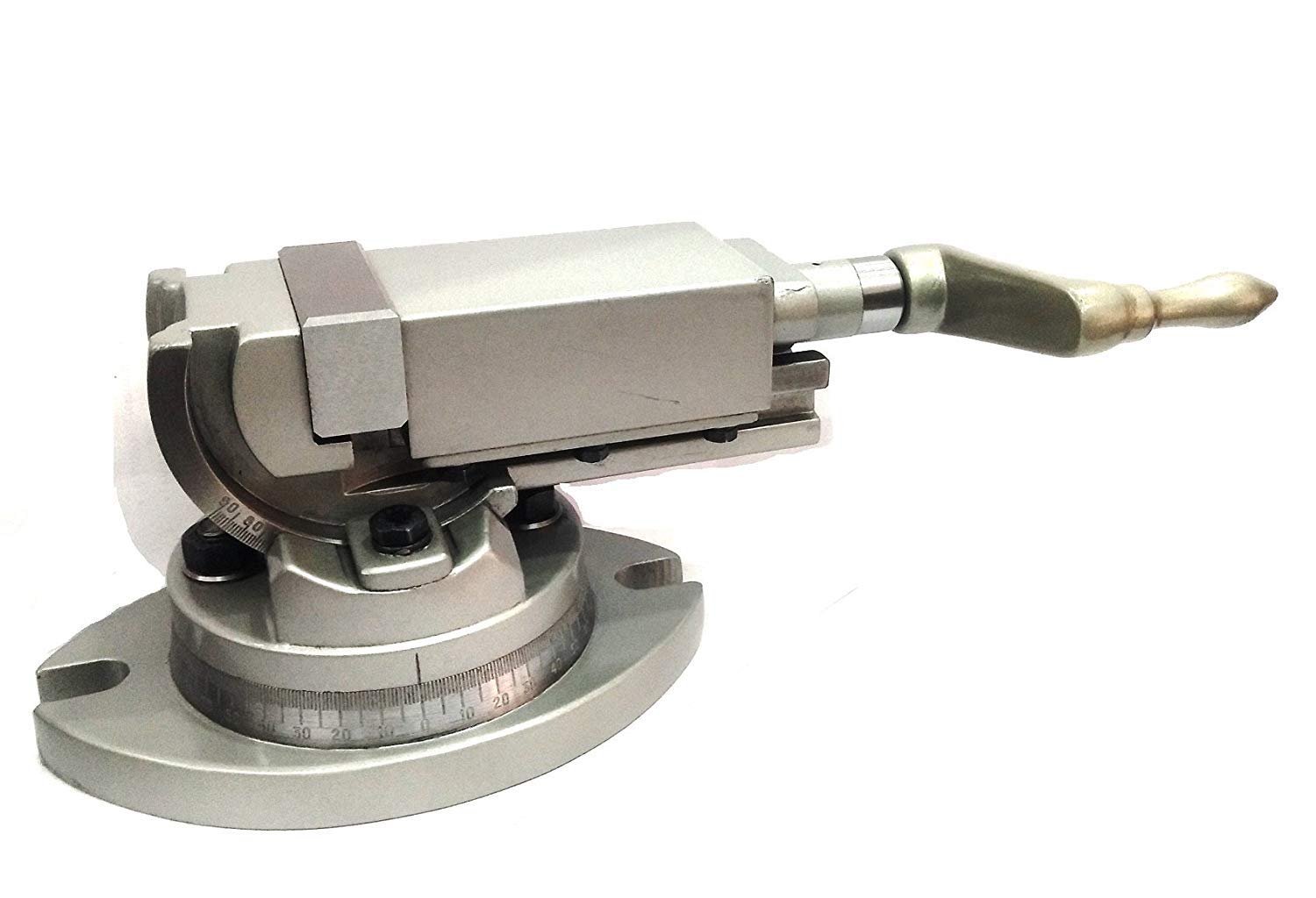

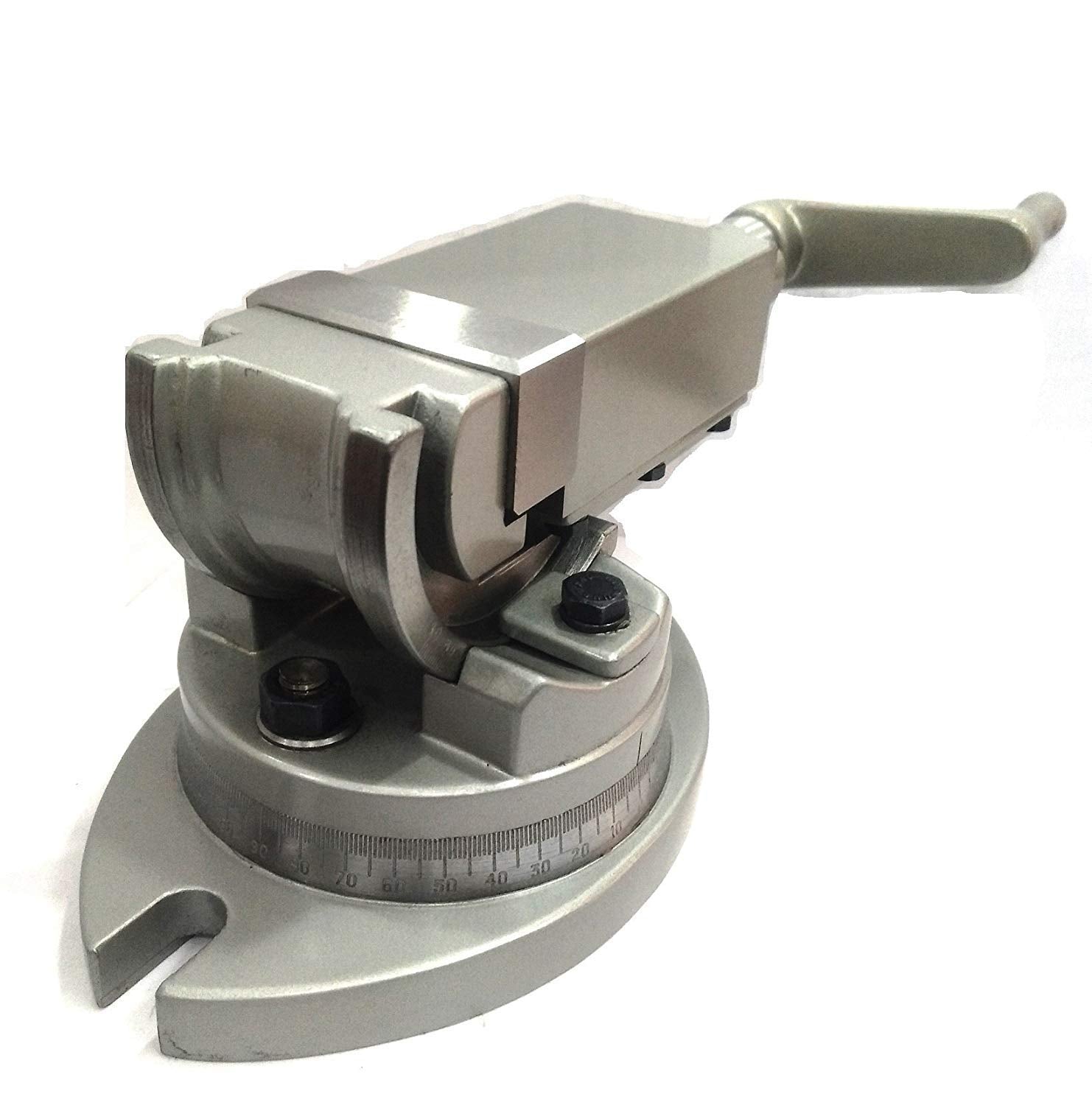

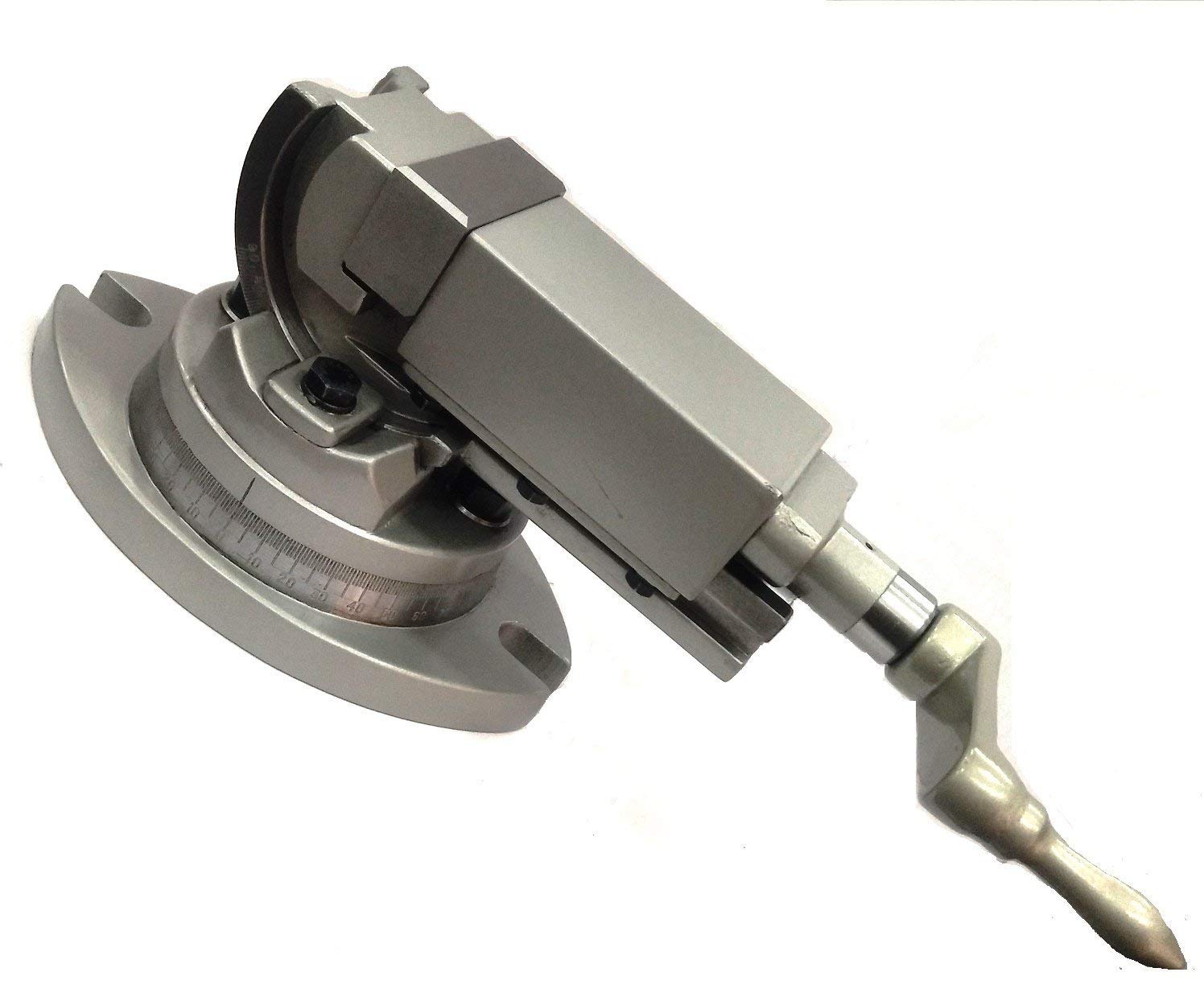

Milling Vise Vice Swivel & Angle Tilting 2 way-Jaw 3" Inches (75 mm) Vertical Slide Machine Tools

Brand: AD INTERNATIONAL

Color: Metallic

Features:

• 3' (75 mm) Jaw Width-2 way Milling Vice
• Swivel Base is graduated 360 Degrees, in 1 Degree increment , so that vice can be set at any working angle in Y axis.
• Jaw Width : 75 mm Max. Jaw Opening: 78 mm Jaw Depth : 35 mm & Center Height in Vertical Position is 165 mm
• Center Height in Vertical Position is 165 mm Base Dimensions are 195 x 138 mm Mounting Slots PCD is 175 mm Slot width is 12.5 mm

Details: 3' (75 mm) Jaw Width-2 way Milling Vice Swivel Base is graduated 360 Degrees, in 1 Degree increment , so that vice can be set at any working angle in Y axis. Jaw Width : 75 mm Max. Jaw Opening: 78 mm Jaw Depth : 35 mm & Center Height in Vertical Position is 165 mm Center Height in Vertical Position is 165 mm Base Dimensions are 195 x 138 mm Mounting Slots PCD is 175 mm Slot width is 12.5 mm

EAN: 4374253439068

Package Dimensions: 12.5 x 7.5 x 6.0 inches
