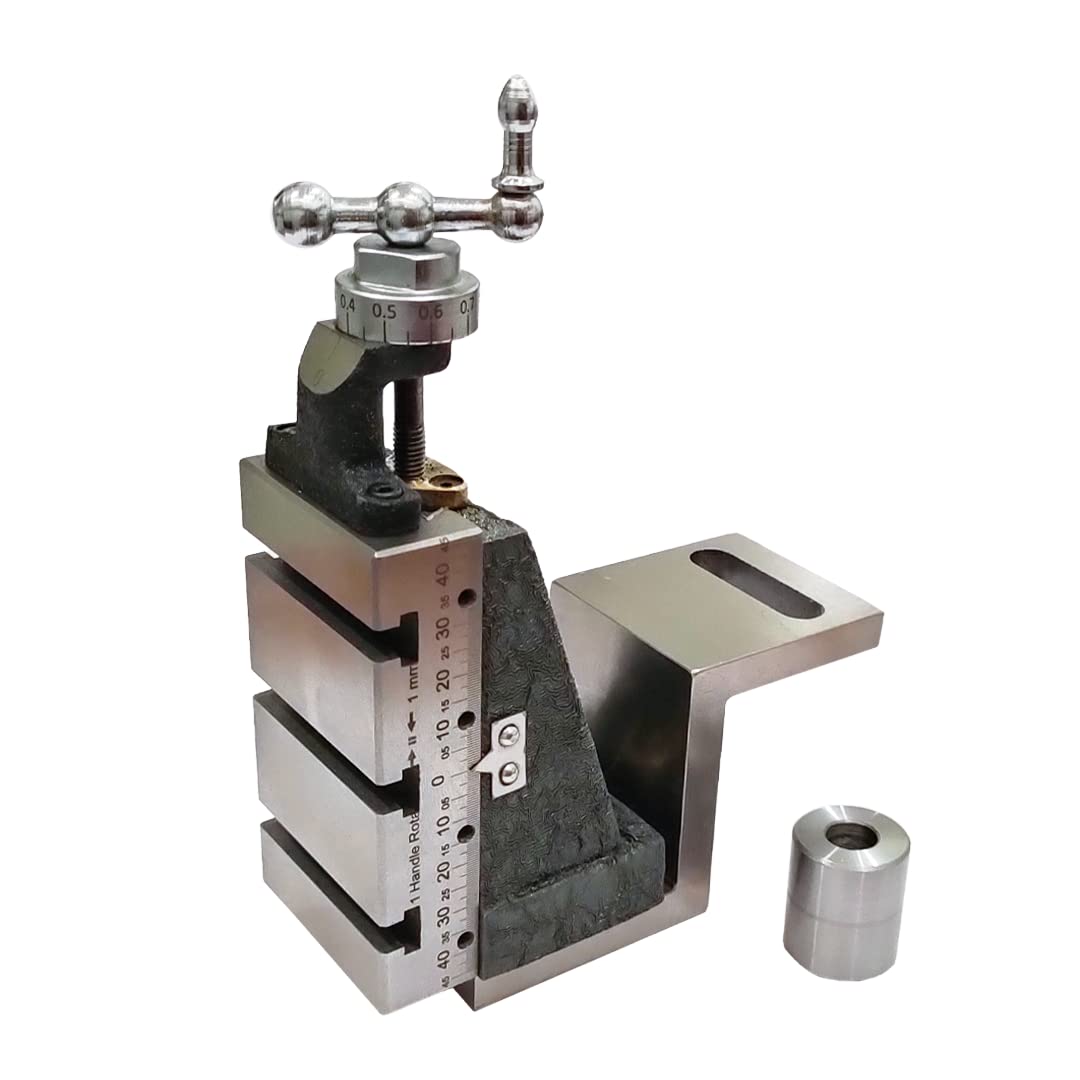

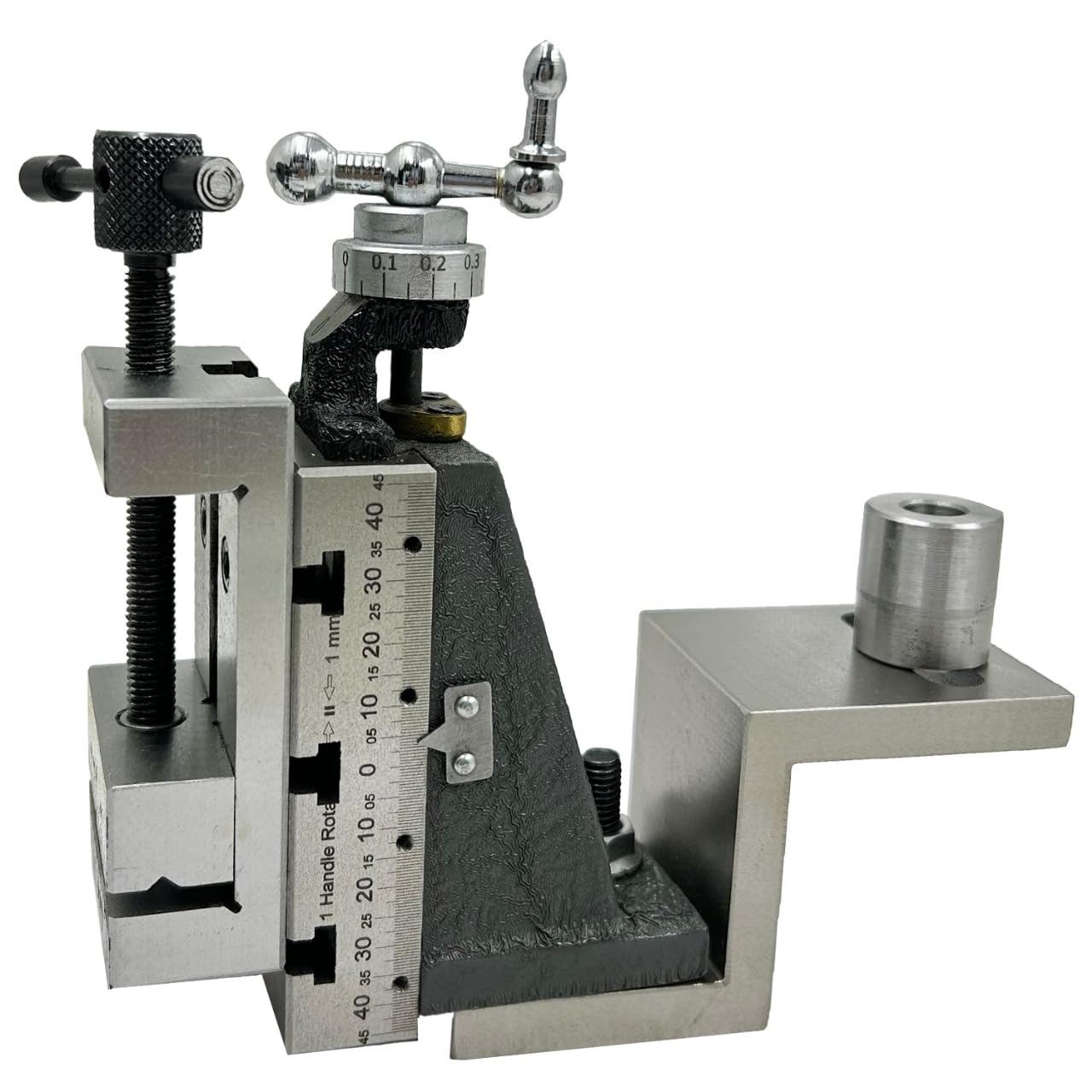

Mini Vertical Milling Slide Mounted on Z Type Angle Plate -Direct Fit for Mini Lathe Machine (Without Clamp & with Mini Vice 2")

Brand: ASSORTS

Color: Black Paint on the Body & Ground Finish on Working Surface

Features:

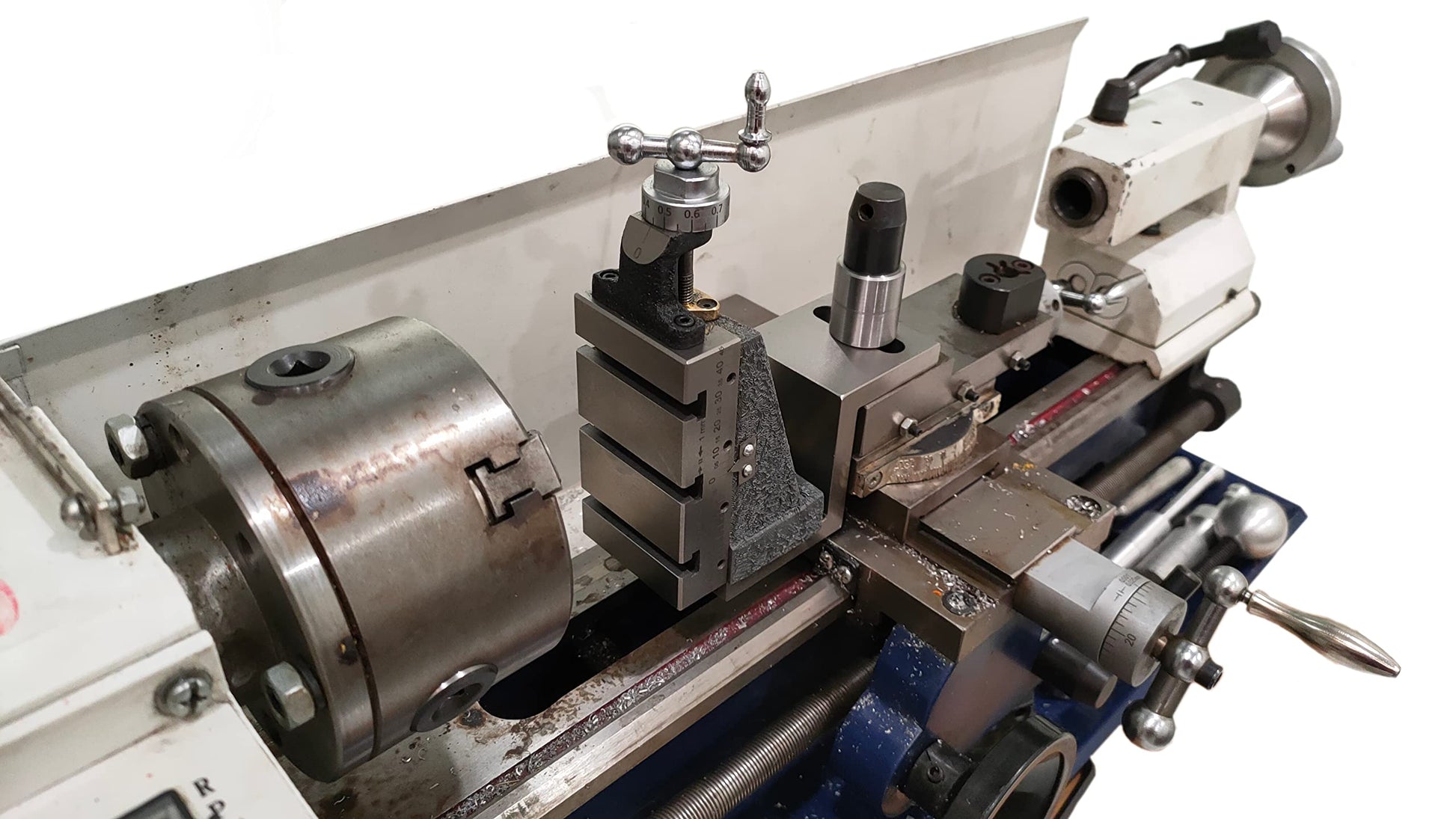

• Mini Vertical Slide (90 x 50 mm) for instant Milling Operation on Lathe Machine, supplied with a Z type angle plate and a tool steel 2'/ 50 mm jaw width mini vice to directly mount to fit on the 7 x 14 mini lathes
• Small Vertical Milling Slide for Bench Small Lathes Suitable for Bench Lathes up to 150 mm Swing,
• Slide's Base Dimension 50 x 55 mm. Sliding Table Bed Size :90 x 50 mm. Vertical Travel 50 mm. Tee- Slot width 9.5 mm Maximum.
• Supplied with a Z type Angle Plate. Precision ground from all sides/ faces for perpendicularity/ squareness.
• Adjustable Vice Jaws (In Clamp option), provided with brass gib for fine adjustment. Dial is graduated to 0-50

model number: 9631108548036

Part Number: ABSMVS-ZAP.C

Details: Mini Vertical Slide (90 x 50 mm) for instant Milling Operation on Lathe Machine, supplied with a Z type angle plate and a tool steel 2'/ 50 mm jaw width mini vice to directly mount to fit on the 7 x 14 mini lathes* Small Vertical Milling Slide for Bench Small Lathes Suitable for Bench Lathes up to 150 mm Swing. * Slide's Base Dimension 50 x 55 mm. Sliding Table Bed Size :90 x 50 mm. Vertical Travel 50 mm. Tee- Slot width 9.5 mm Maximum. Adjustable Vice Jaws (In Clamp option), provided with brass gib for fine adjustment. Dial is graduated to 0-50

EAN: 9631108548036

Package Dimensions: 8.1 x 6.2 x 3.6 inches
