Natotela B Class Driveway Channel Drain with Ductile Iron Grate-39.4Lx6.1Wx5.5H in. Deep Profile Trench Drain System,3 Pack Total Length 118.2in,Heavy Duty Drainage System for Garage,Parking Lot

Brand: Natotela

Color: Black- 3 Pack

Features:

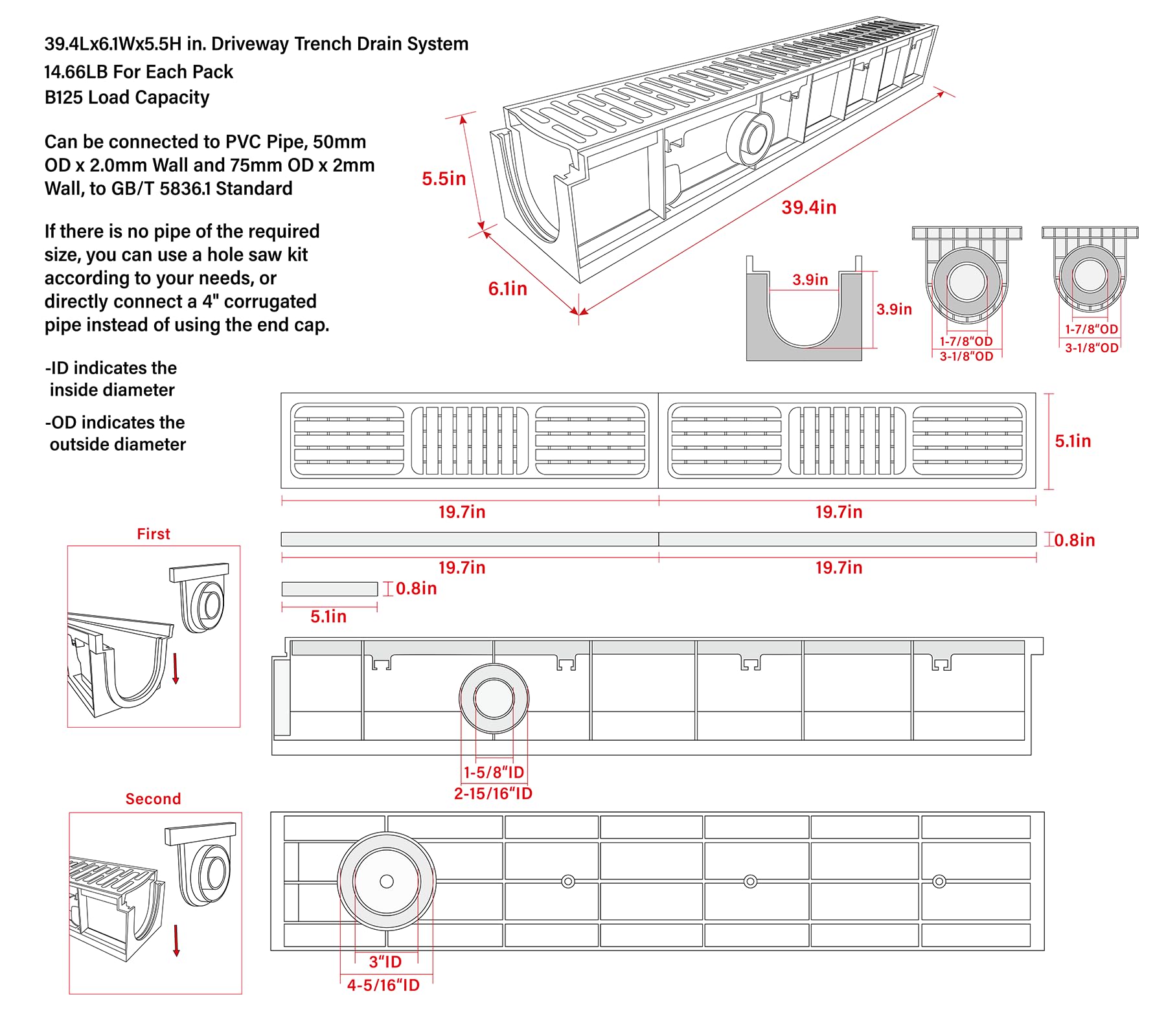

• HDPE TRENCH BODY: 39.4Lx6.1Wx5.5H inch channel drain with grate is made of high density polyethylene (HDPE) which has higher hardness and tensile strength than ordinary polyethylene. Make sure the trench drain system will not easily damaged and has a long service life. Bottom outlet diameter is 3' & 4-5/16'; Outlet adapter diameter is 1-7/8' & 3-1/8'; Side outlet diameter is 1-5/8' & 2-15/16'.

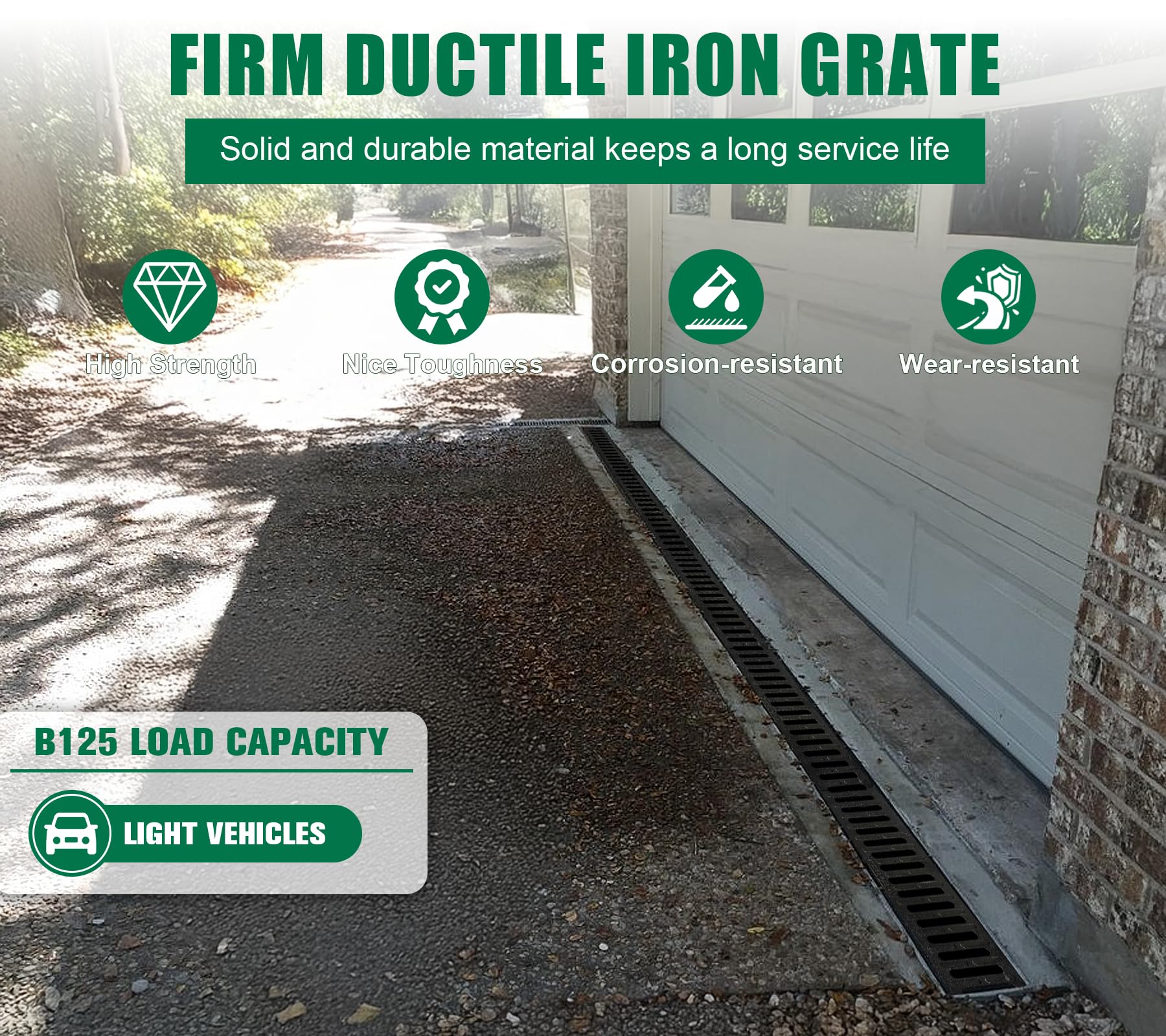

• DUCTILE IRON GRATES: The grate of the channel drain is made of ductile iron which has higher strength than ordinary gray iron. Loads up to 6600 lb. Make sure the trench drain system sturdy enough to pass the ordinary cars. The surface of the grate is coated with fluorocarbon paint. Compared with traditional asphalt paint, it can effectively resist UV and chemical pollution. And it is also not prone to accumulate dust and contaminants on its surface.

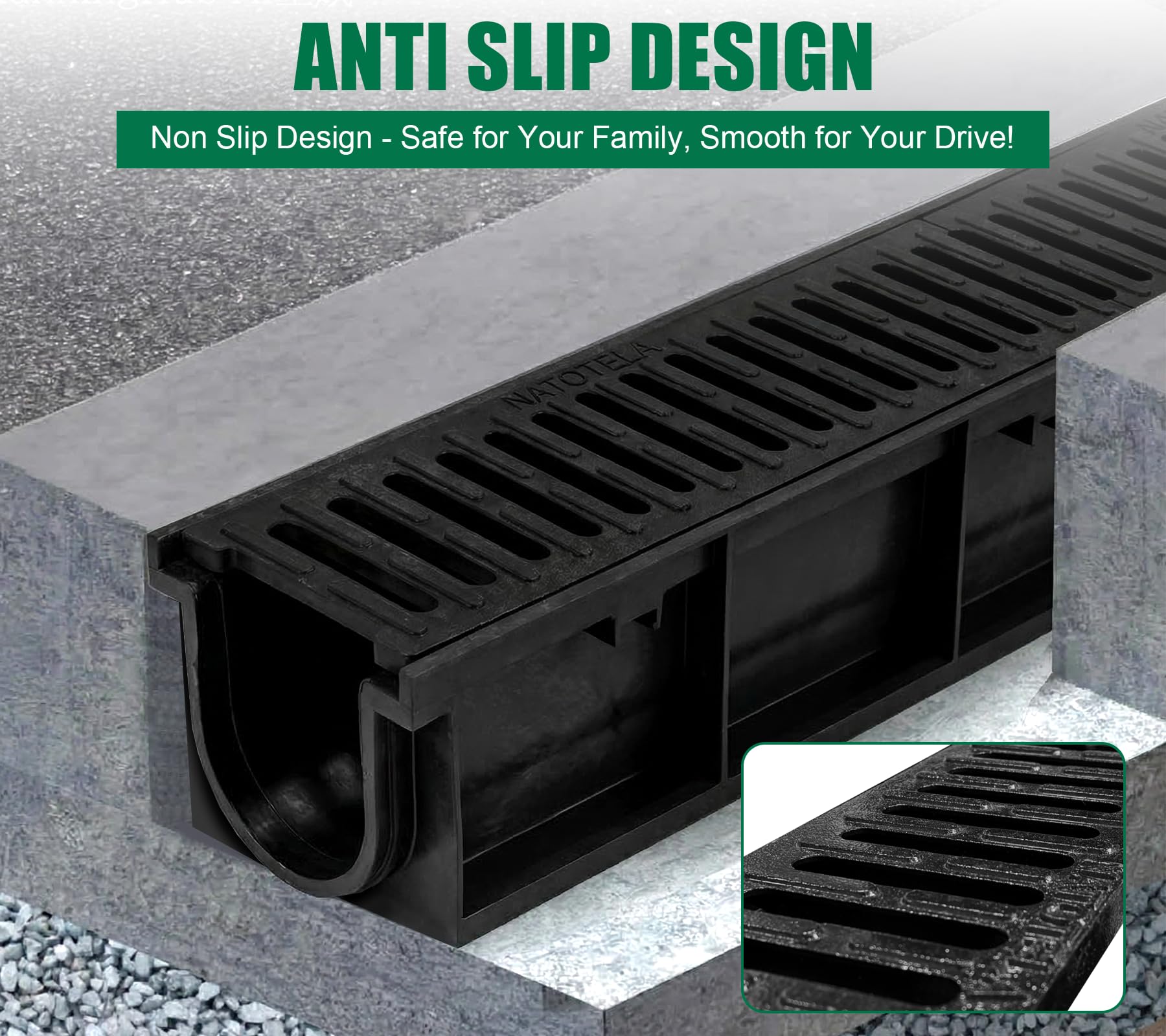

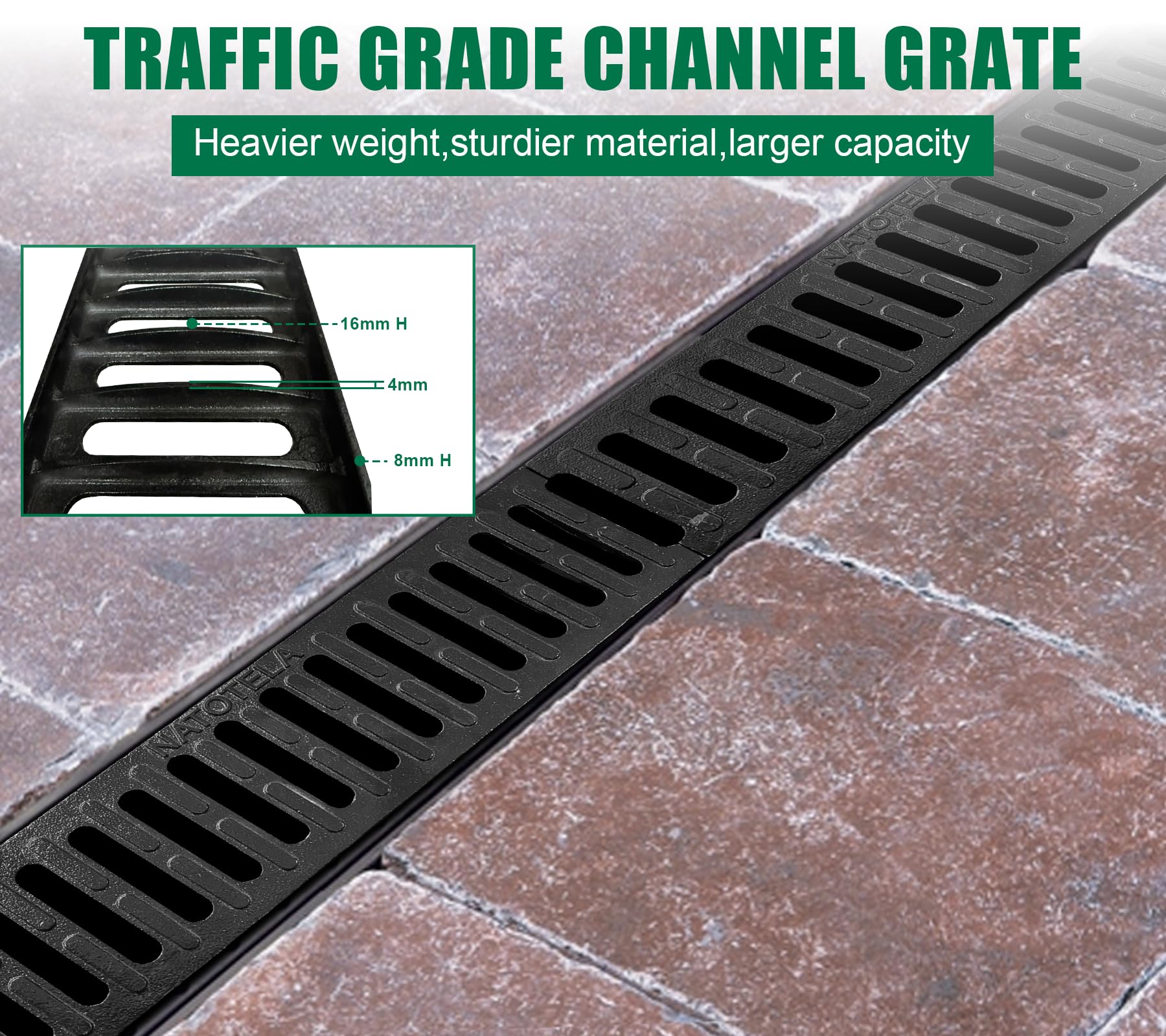

• REINFORCING RIB: The thick and dense reinforcing ribs ensure that the grate will not be damaged when vehicles pass by. The base has a stable design to prevent damage caused by uneven force of trench drain. Application for driveway, garage, parking lot, factory.

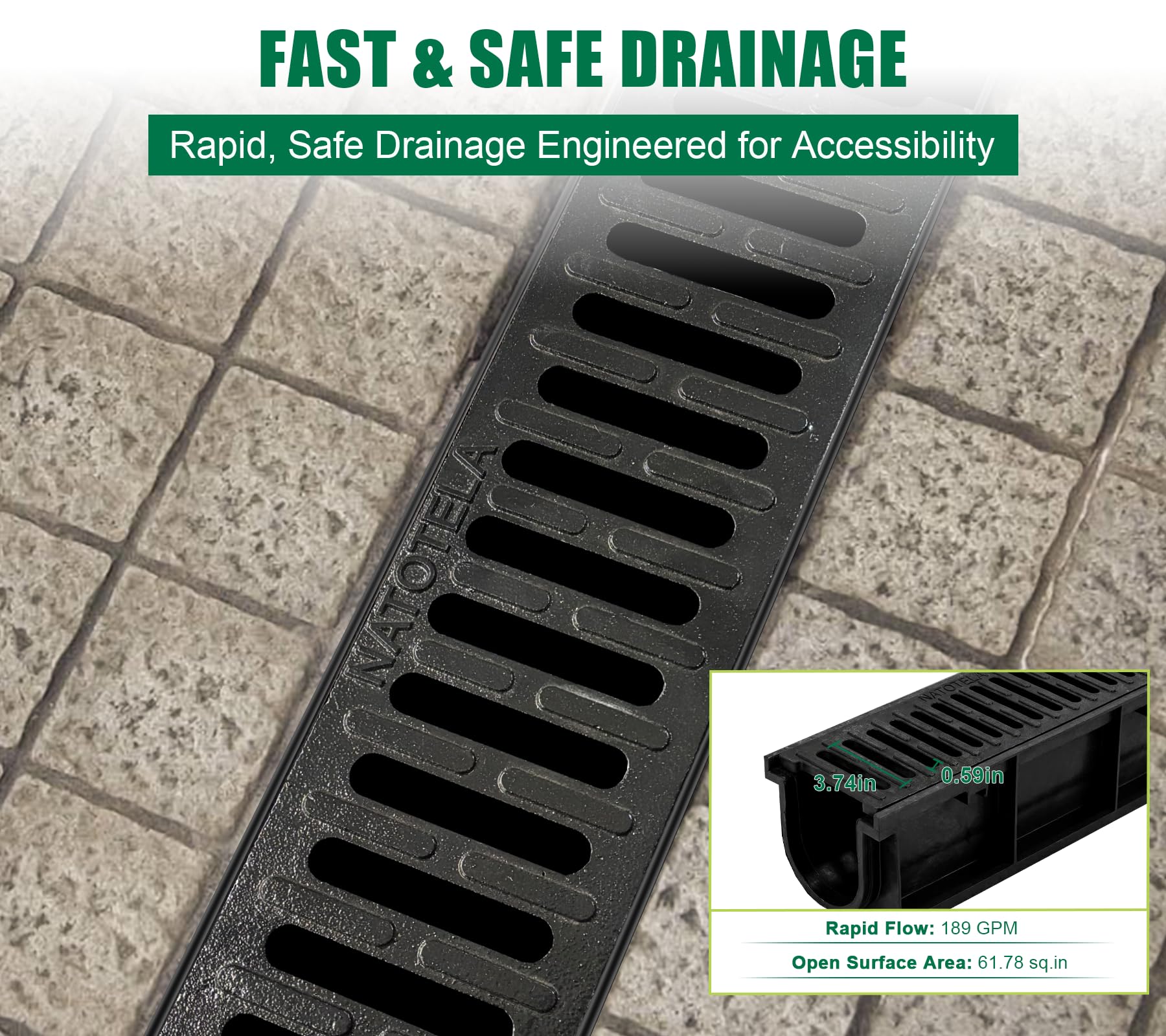

• PERFORATED DESIGN: Our trench drain system for driveway adopts perforated design. It ensures fast drainage and prevents leaves and small objects from entering the trench body. Besides, the grate and the trench adopt sliding connection without screws or clasps. Easy to clean.

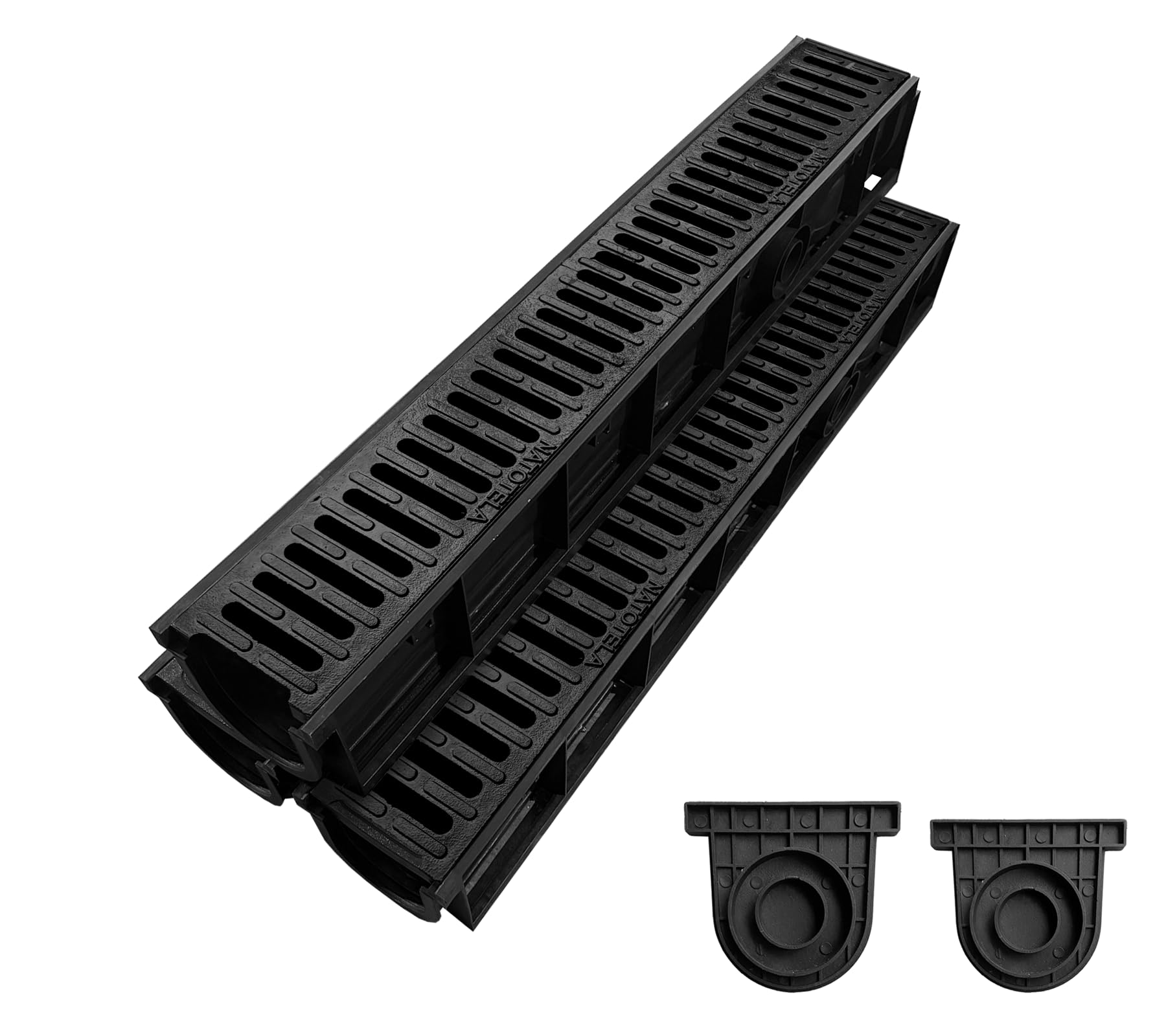

• PACKAGE INCLUDES: What you currently see consists of 6 grates, 3 trench drain and 2 end caps. 118.11 in. total length. You can connect this driveway channel drain directly together for extra length. Please allocate sufficient time for your project to prevent the occurrence of project delays due to delivery delays.

model number: US-PSG100-100-FTQ-3

Package Dimensions: 41.1 x 12.8 x 7.6 inches
