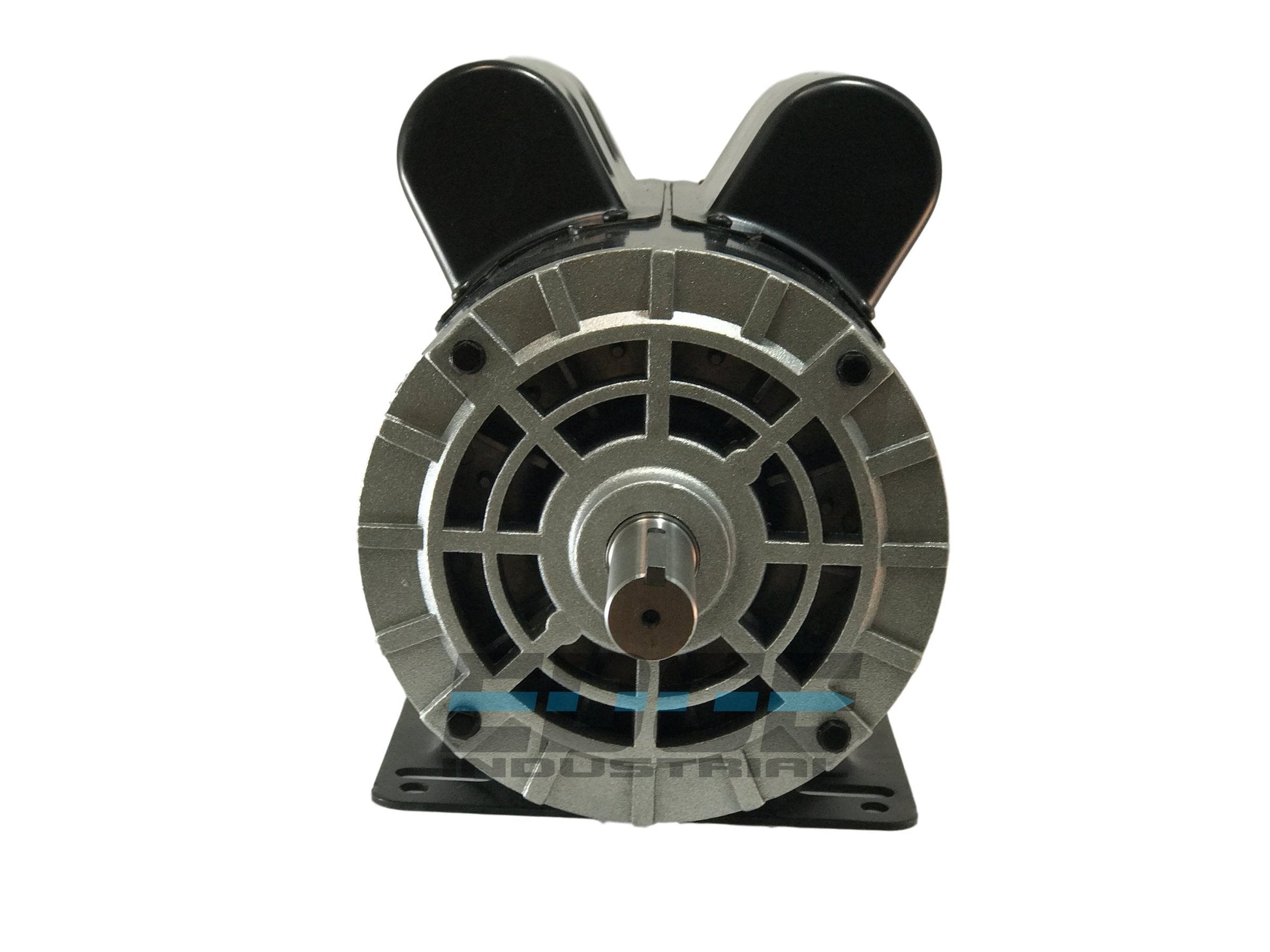

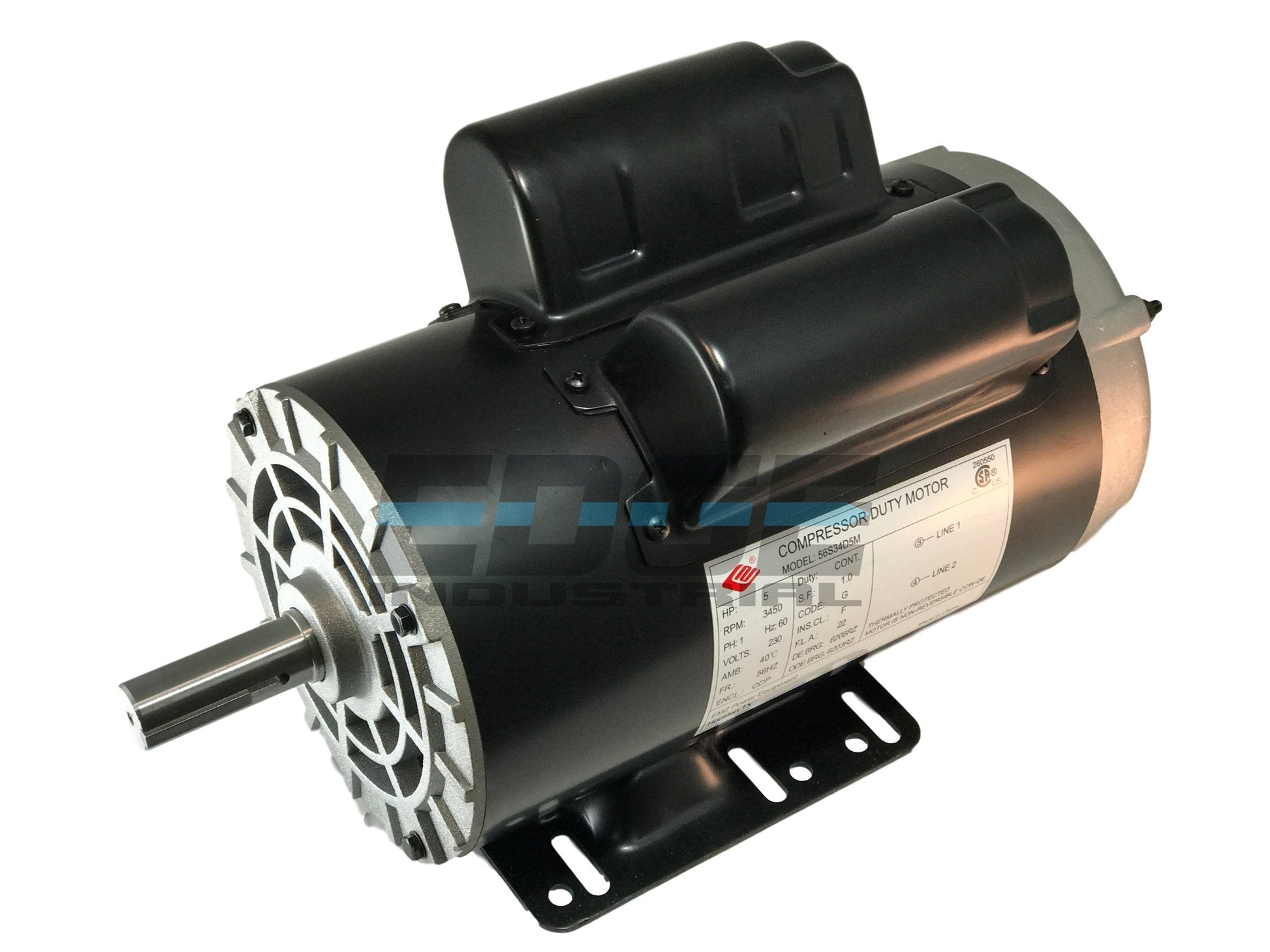

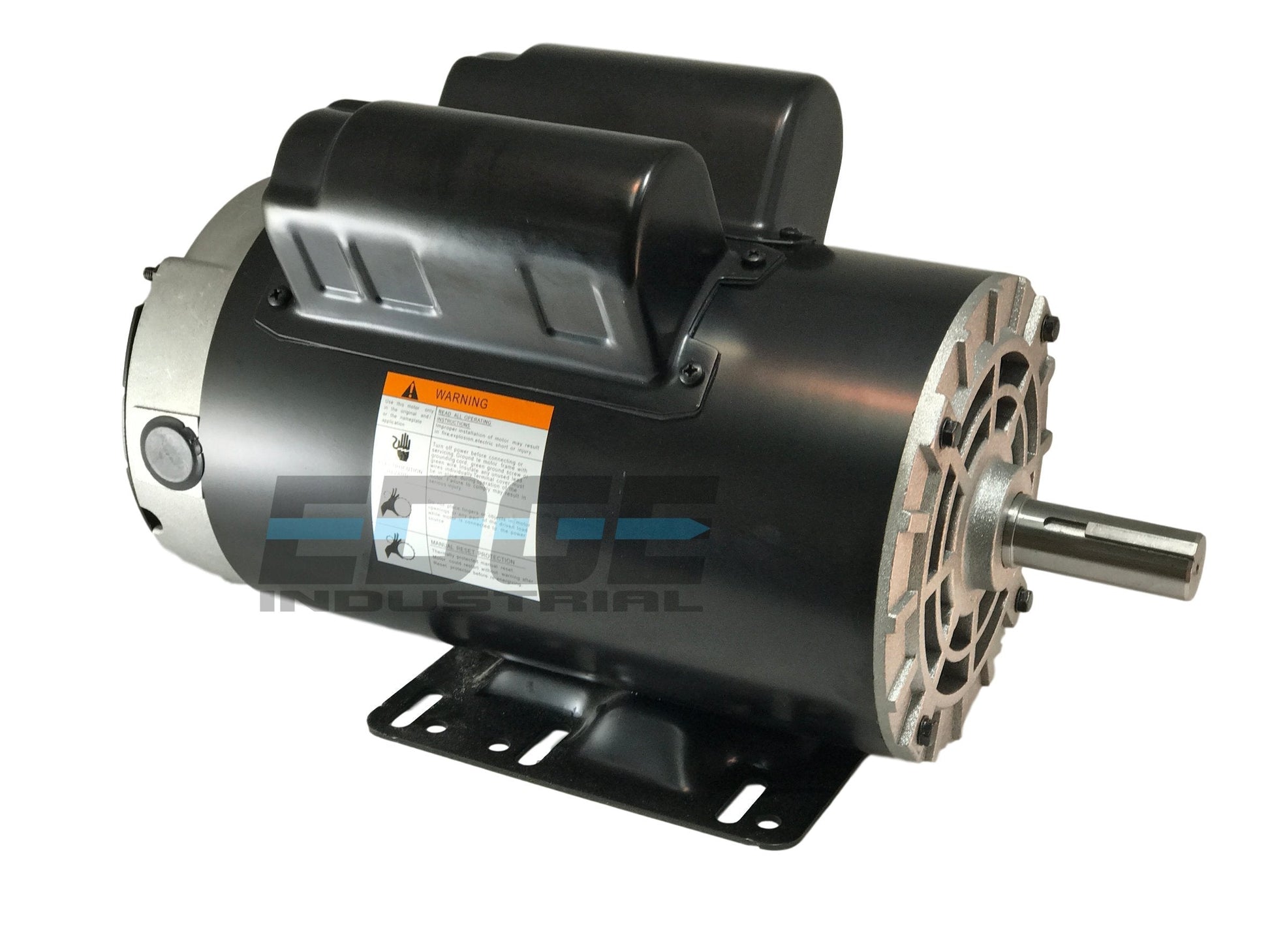

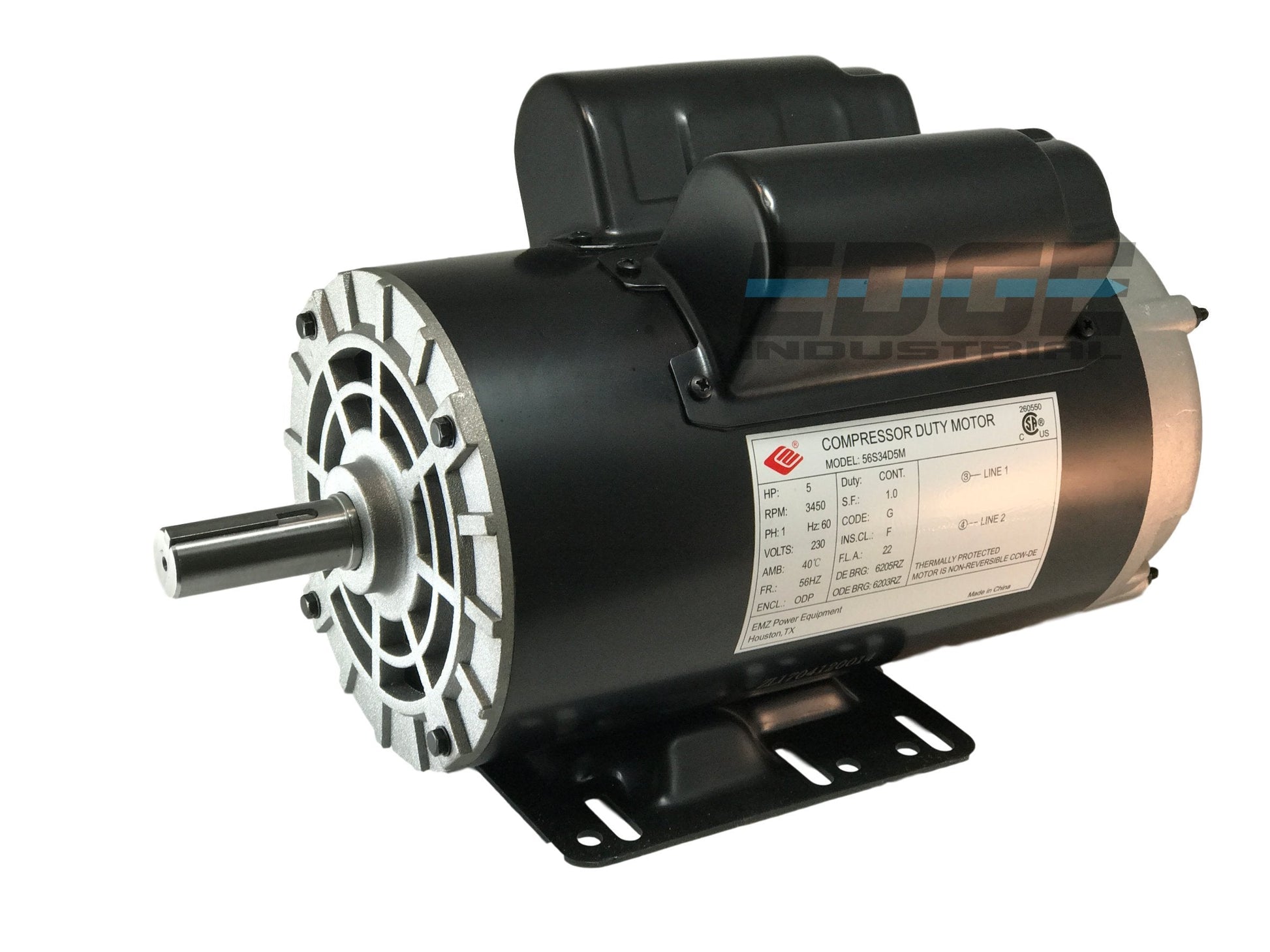

New 5HP Compressor Duty Electric Motor, 56HZ Frame, 3450 RPM, 7/8" Shaft Diameter, NEMA Rated Motor

Brand: EDGE INDUSTRIAL EMZ

Color: Black

Features:

• BRAND NEW TRUE 5HP COMPRESSOR DUTY MOTOR, 56HZ FRAME, 3450RPM, 7/8' SHAFT DIAMETER
• 22 FULL LOAD AMP AT 230V, THIS MOTOR NOT SUITED FOR INCOMING VOLTAGE LESS THAN 208V
• CCW (COUNTER CLOCKWISE) SHAFT ROTATION WHEN VIEWED FROM THE SHAFT END. SHAFT ROTATION IN NOT REVERSIBLE
• 2.25' SHAFT LENGTH, KEYED SHAFT, 60HZ, 1.0 SERVICE FACTOR

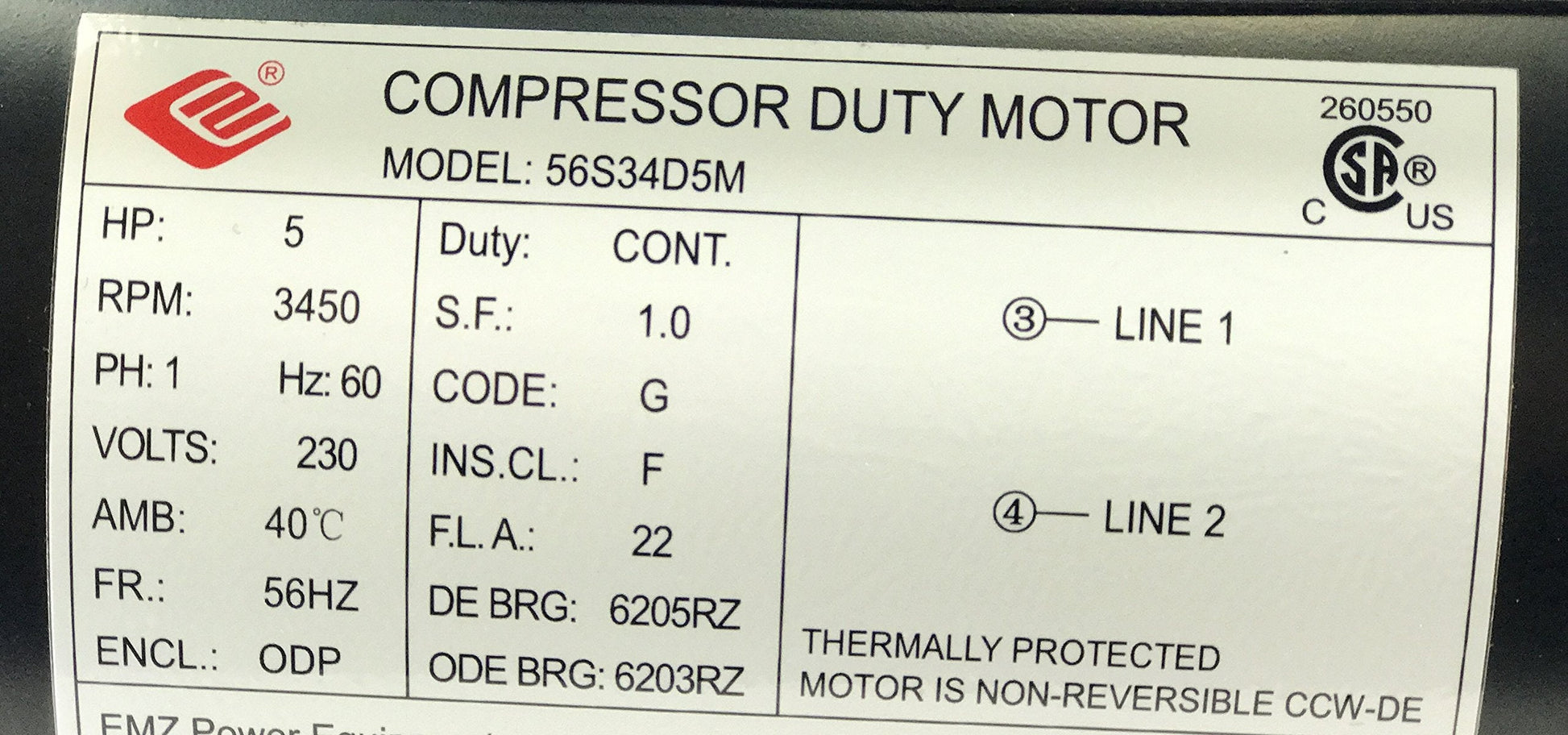

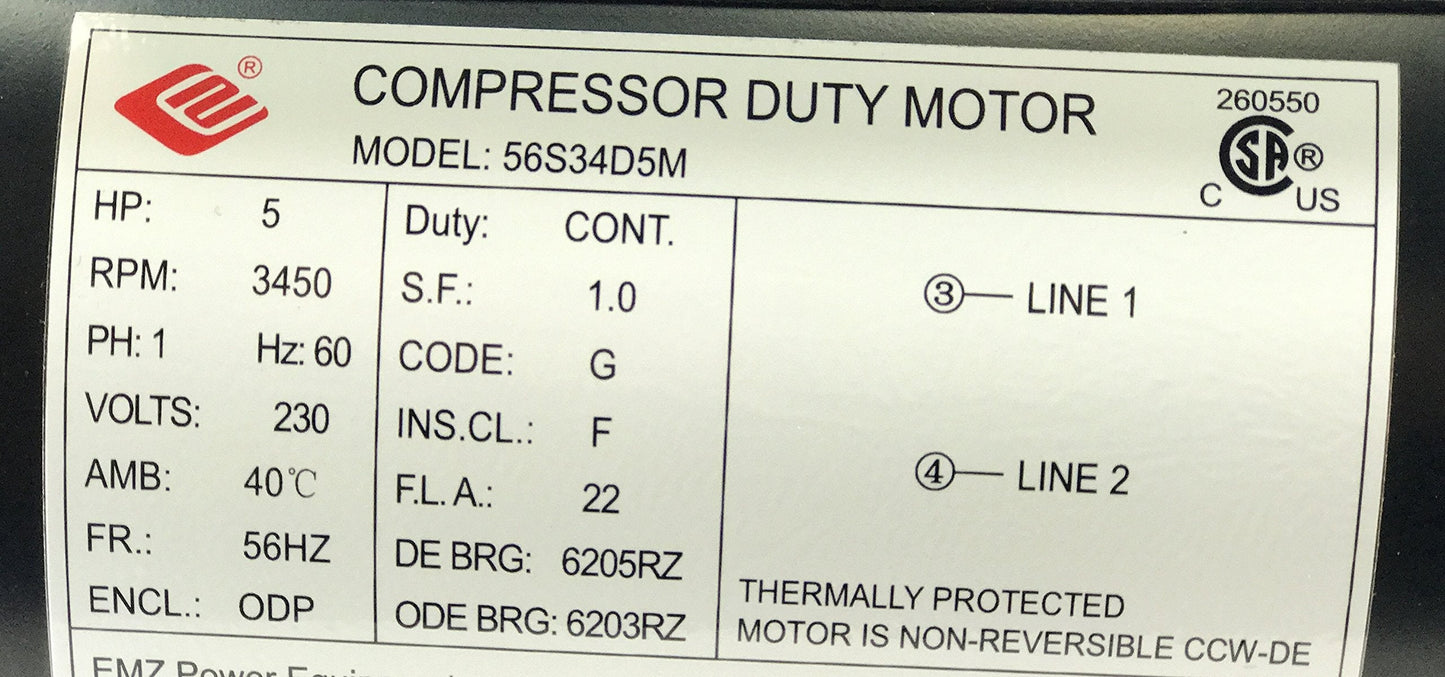

• WIRING INFO SHOWN ON NAMEPLATE, PROFESSIONAL INSTALLATION REQUIRED

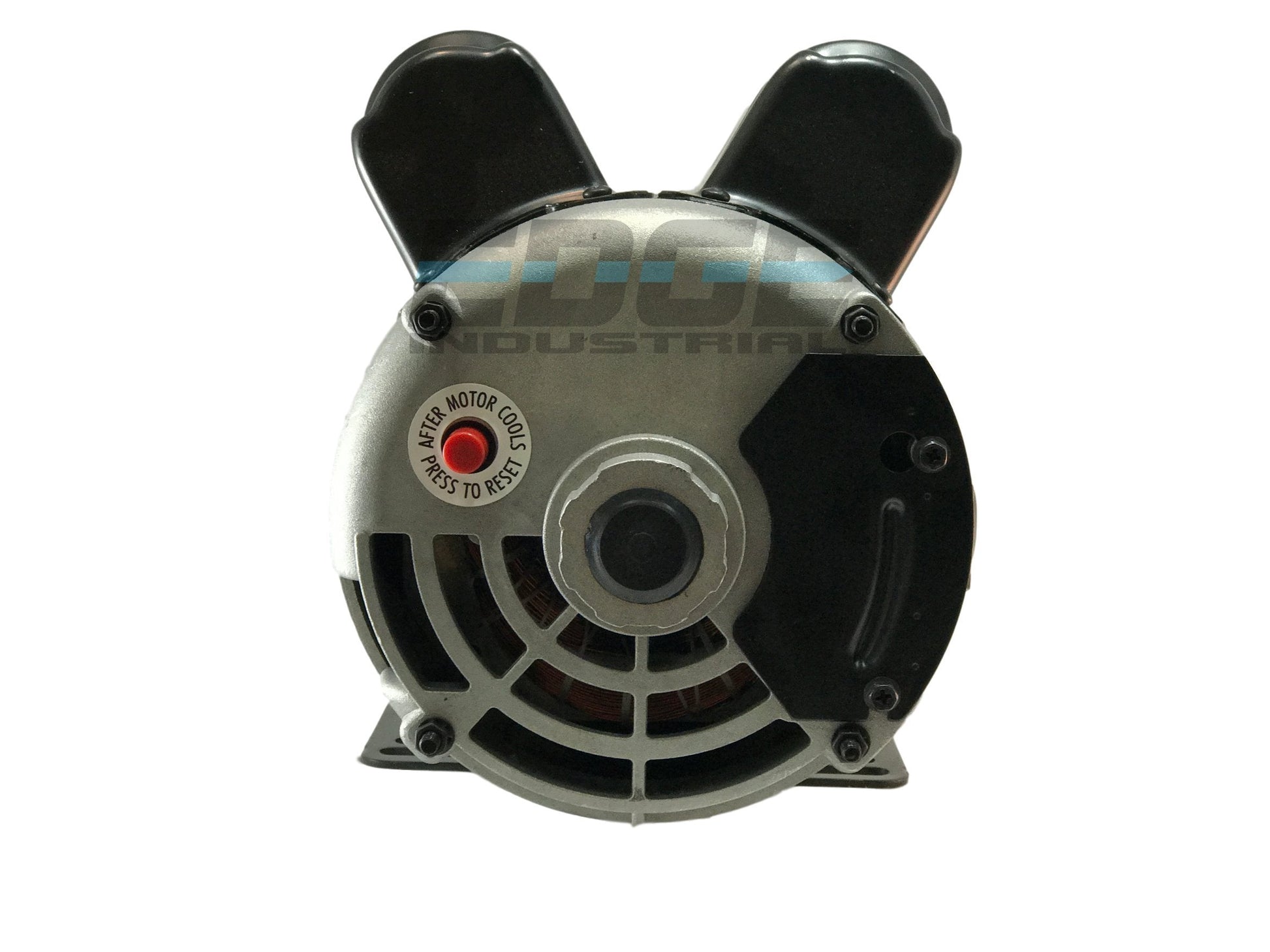

Details: 5 HP - 1PH 56HZ - 3450RPM - 22 FULL LOAD AMPS AT 230V WILL REPLACE FRAME SIZES 143T / 145T / 56 / 56H / 56HZ ( THIS MOTOR WILL REPLACE MULTIPLE BOLT PATTERN CONFIGURATIONS) 3450 RPM - 22 AMP - 7/8' SHAFT Diameter ELECTRIC MOTOR FOR BELT DRIVEN AIR COMPRESSORS Capacitor Start & Capacitor Run Compressor duty motor Please view our 5HP technical guide below. Technical Info: Horsepower: 5HP. Voltage: 230V ( Motor NOT rated for any voltage less than 208 VAC) Amperage: 22.0 fl amps at 230v Rotation: CCW Counter Clockwise Rotation when viewed from the shaft end. THIS MOTOR IS NOT REVERSIBLE RPM: 3450 Frequency: 60hz Shaft Diameter: 7/8' Keyed shaft Shaft Length: 2.25' Efficiency: 80% Service Factor: 1.0 Enclosure: ODP Open Drip Proof THERMALLY PROTECTED WITH MANUAL RESET Phase: One / Single Phase. 2 pole 5HP Motor Technical Guide: For all you 'Do it Yourselfers out there' its vitally important that you match up the specs on your old motor, with the new motor you're purchasing. All 5HP motors are NOT created equal. A 5HP 56frame motor is drastically different than a 5HP 184T frame motor. All of the information you need to know can be found right on your electric motors nameplate/sticker. usually found on the side of the motor.

EAN: 0713807486891

Package Dimensions: 16.0 x 12.0 x 10.0 inches
