Newhai Hydraulic Porta Power Kit 20 ton Hydraulic Ram Jack + cp-180 Hand Pump Hydraulic Lifting Cylinder Tool Retract Automatically for Industrial Factory DIY Use

Brand: Newhai

Features:

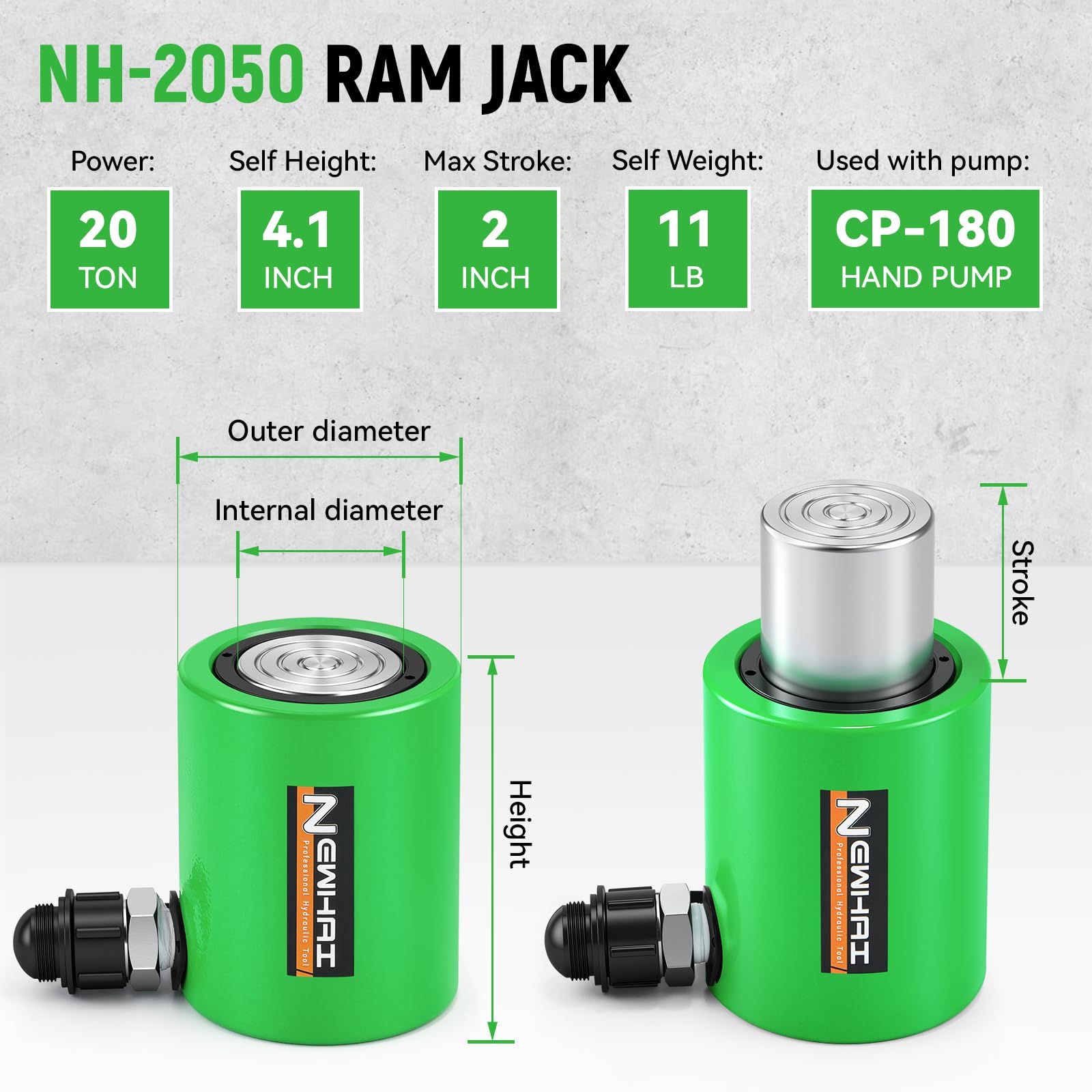

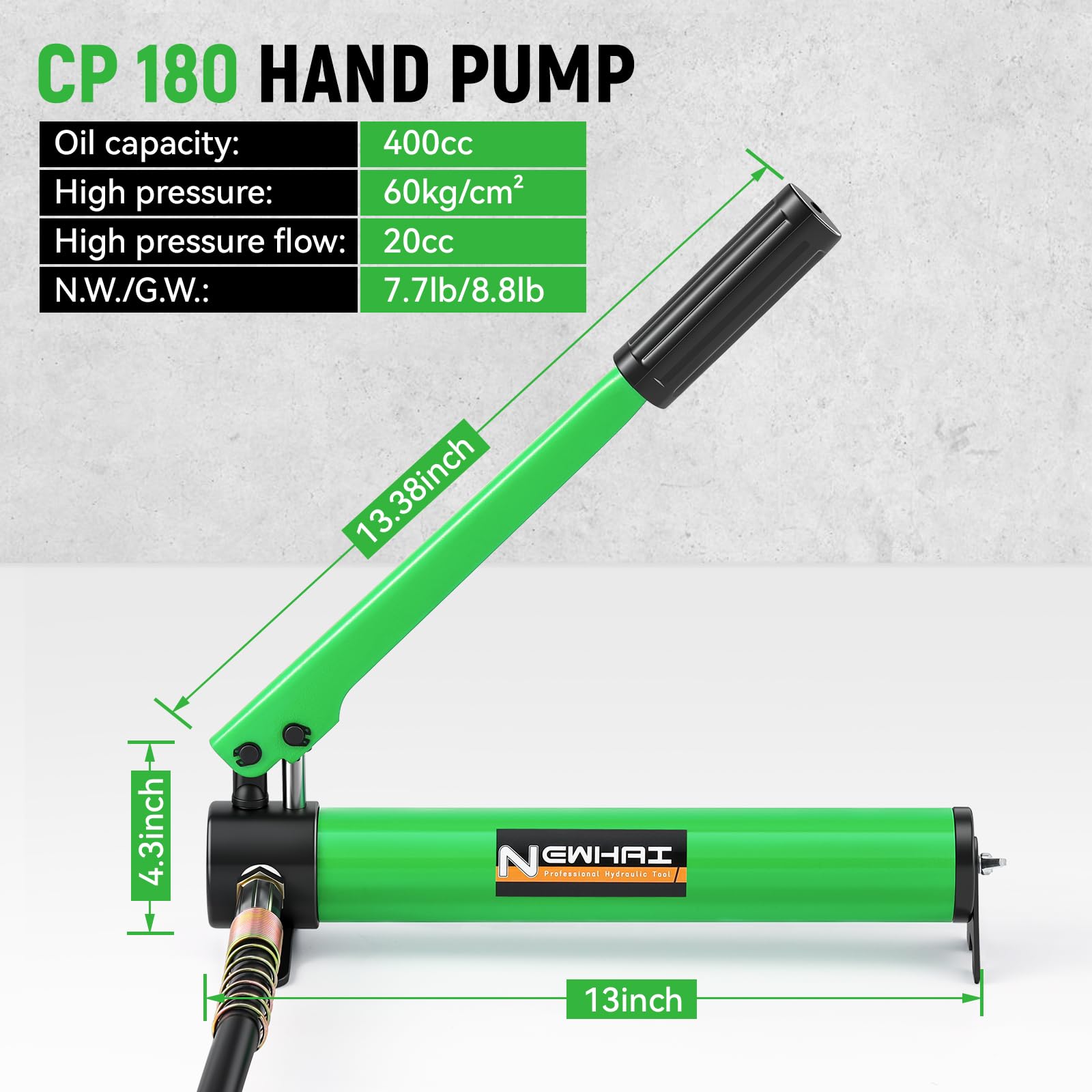

• [Basic Specifications]---Tonnage: 20 ton; Self height: 4.1”; Max stroke: 2”; Inner diameter: 2.56” Outer diameter: 3.34”; Weight: 9.6lb. CP-180 pump with oil pressure gauge: Oil capacity: 400cc; High pressure: 60kg/cm²; High pressure flow: 20cc; N.W./G.W.: 7.7lb/8.8lb.

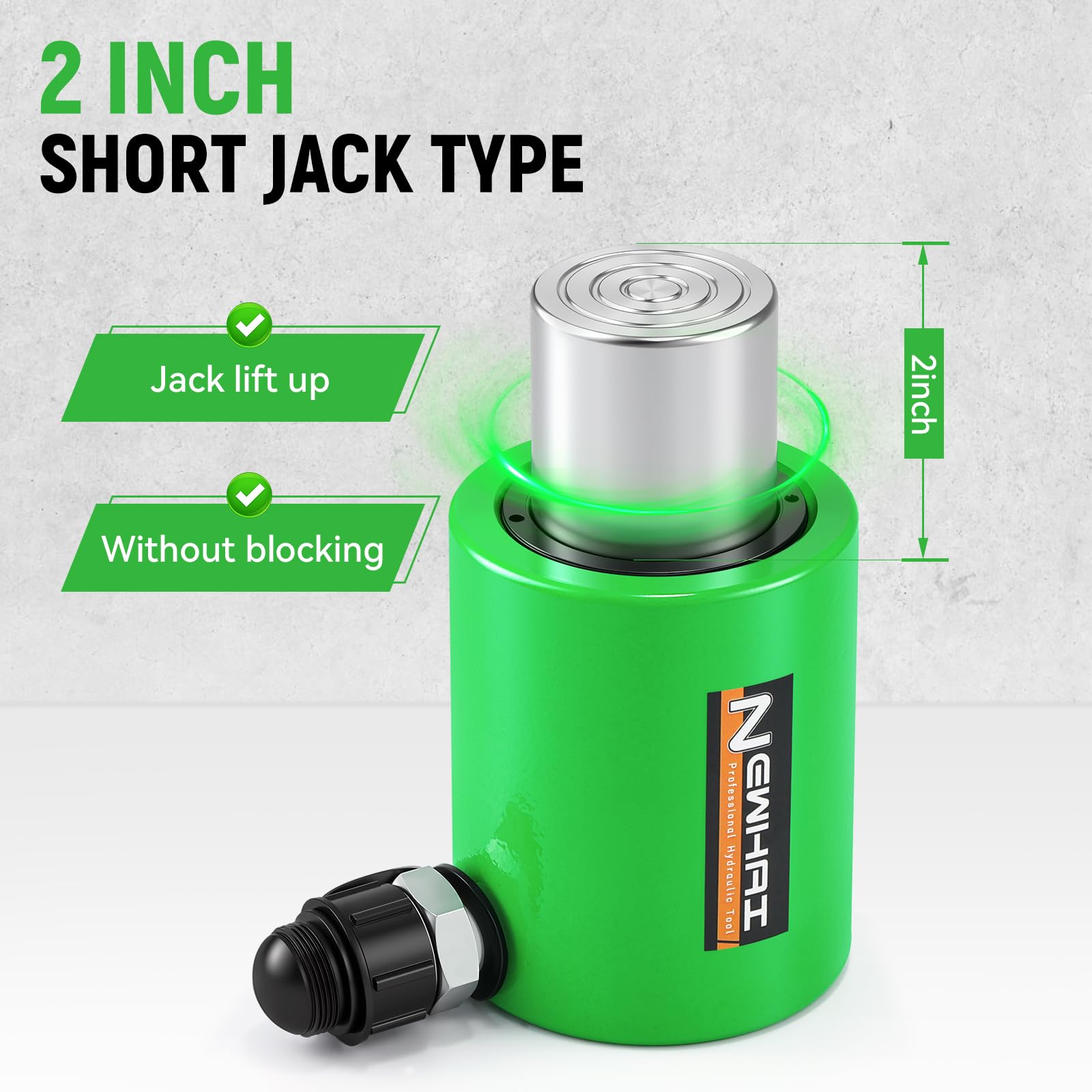

• [2-Inch Smooth Stroke Hydraulic Cylinder]---This hydraulic ram features a precision-ground spindle for effortless lifting without binding. Pro tip: On initial use, pump the handle several times to purge air before lifting. Integrated seals fully protect the spindle at maximum extension.

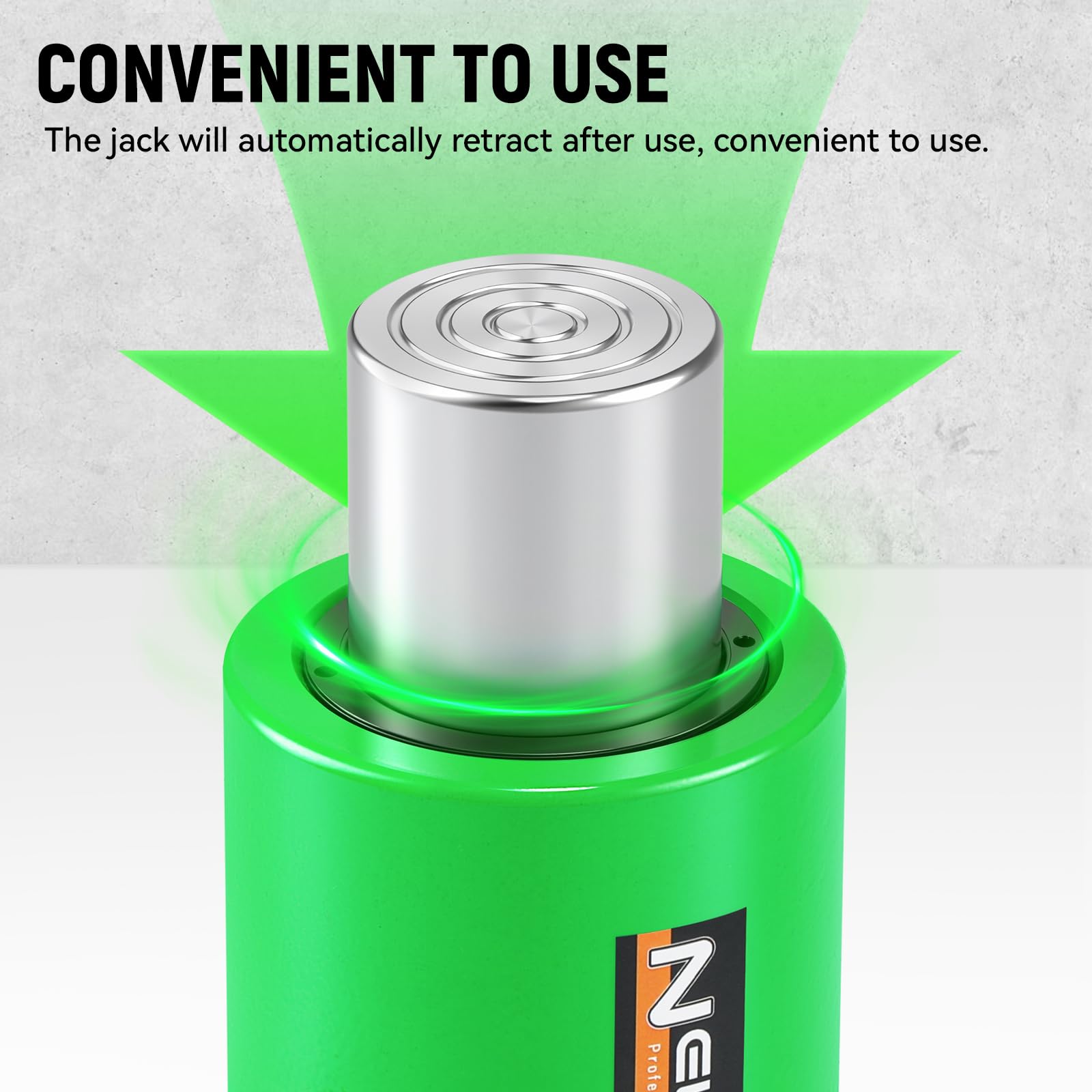

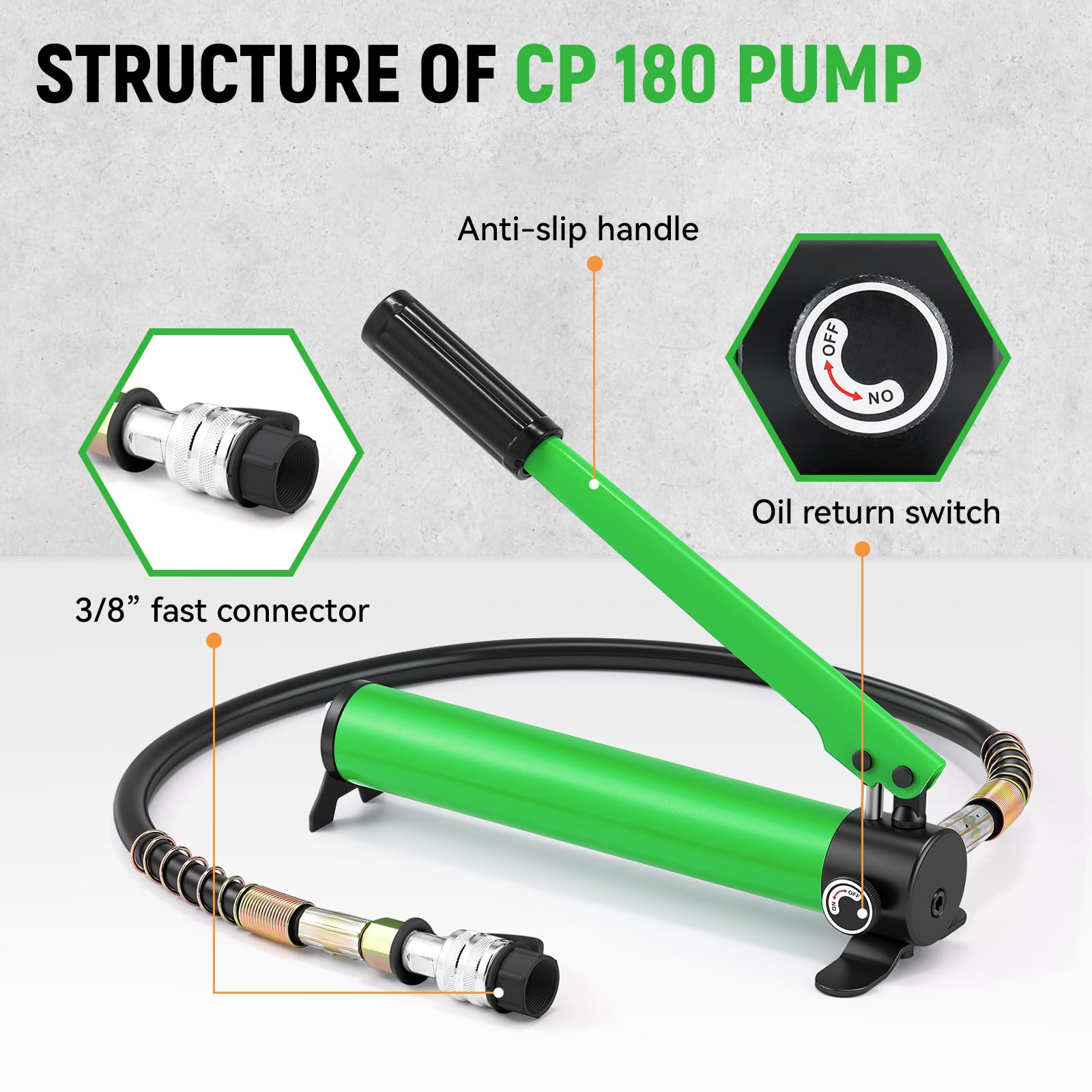

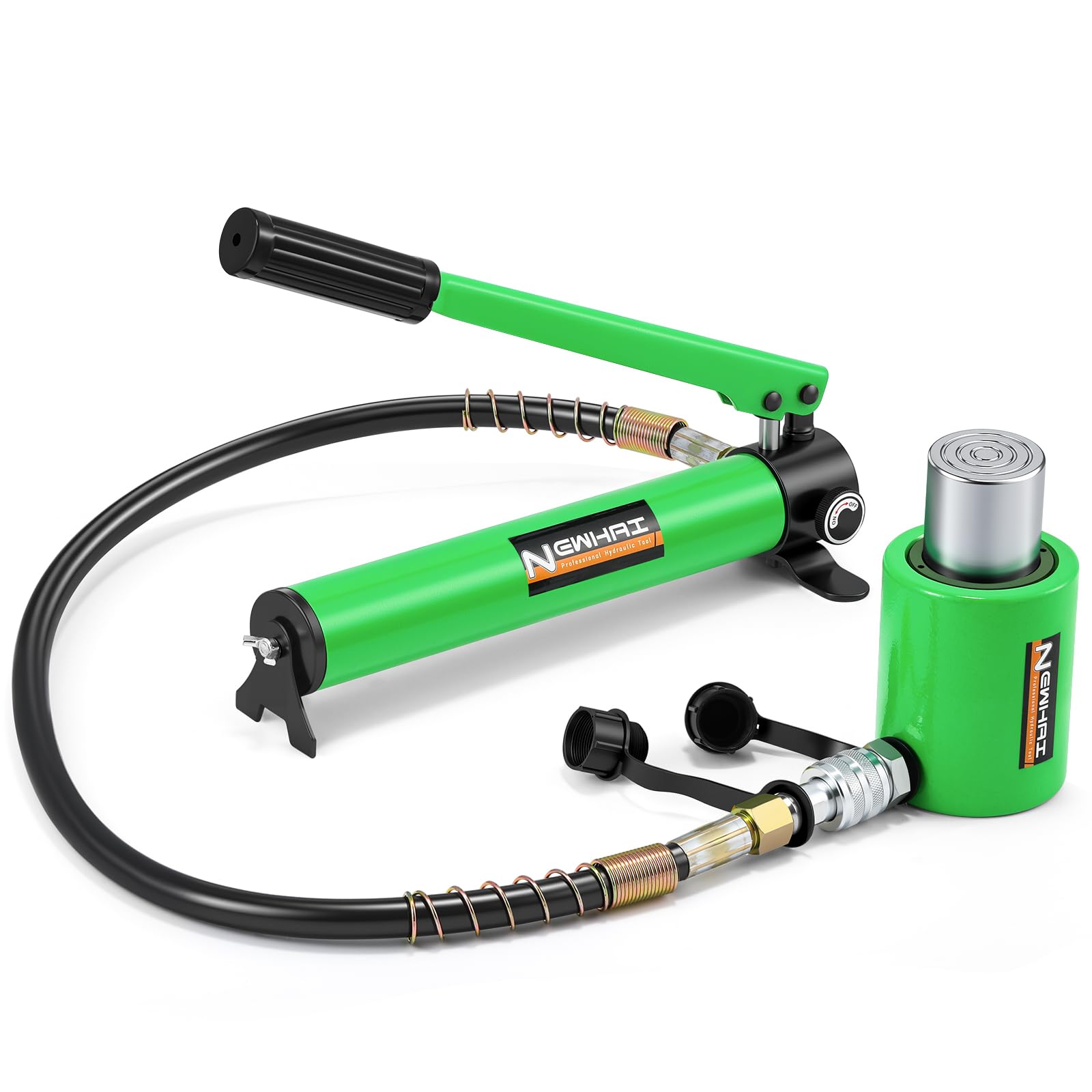

• [Intuitive Operation in Compact Porta Power Kit]---Simply turn the pump’s release valve clockwise to engage, then pump to lift the hydraulic jack effortlessly. Open the valve post-use for smooth automatic retraction. Engineered for versatile positioning—operates horizontally, vertically, or inverted. The streamlined porta power kit (pump + cylinder) offers unmatched portability.
• [Industrial-Grade Hydraulic Ram Durability]---Rust-resistant lacquer finish + chrome-plated spindle for extreme longevity. Reinforced jacking points resist deformation. Ergonomic pump handle features slip-resistant rubber grip.

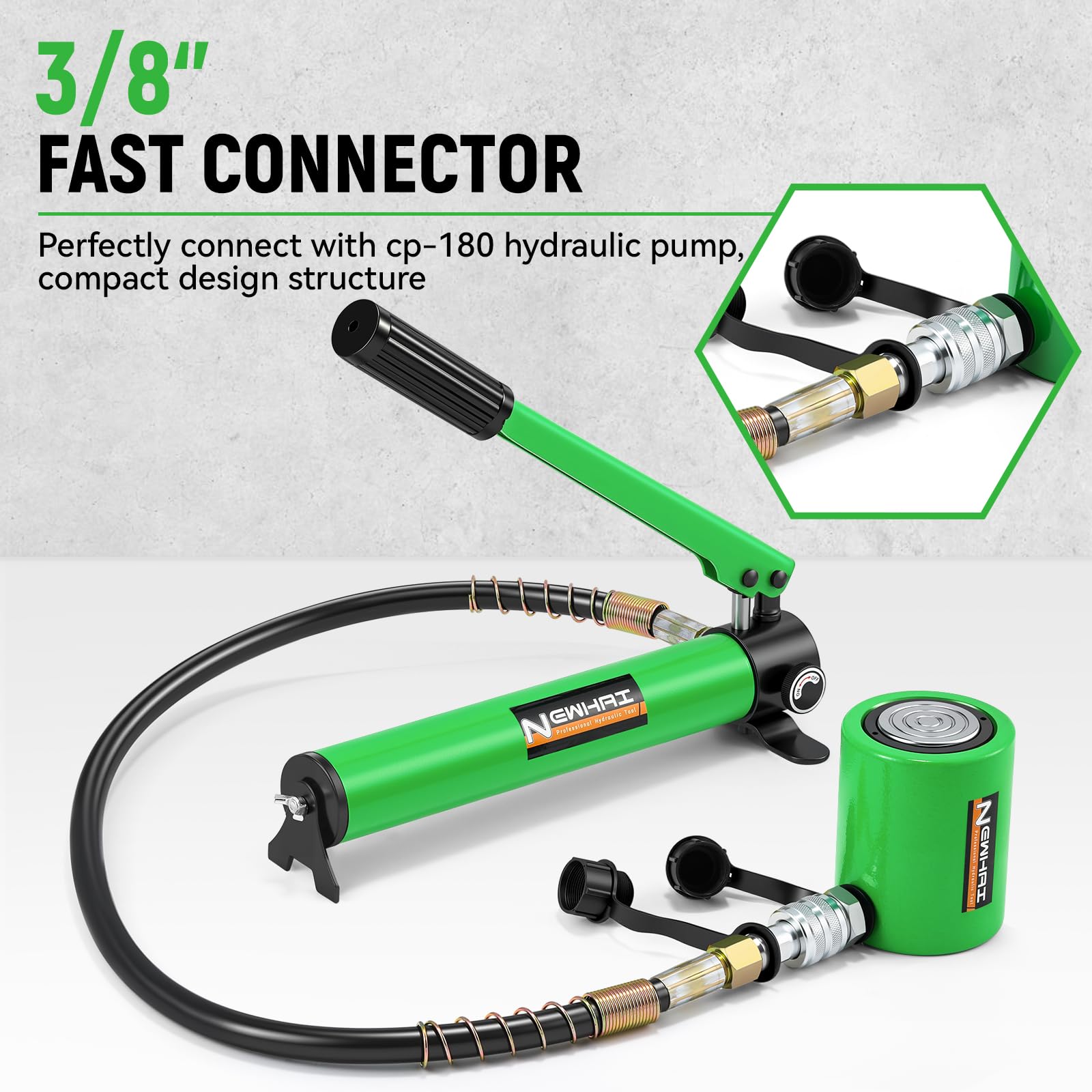

• [Multi-Industry Hydraulic Cylinder Applications]---Ideal for factories, construction, docks, railways, and shipyards. Perfect for lifting, alignment, assembly, and pressure testing with this hydraulic cylinder. Note: Not designed for automotive use. Expand Functionality: The CP-180 pump pairs with compatible split hydraulic rams and cylinders.

model number: Jack WWX88

Part Number: WWX88

Package Dimensions: 14.8 x 10.2 x 7.2 inches
