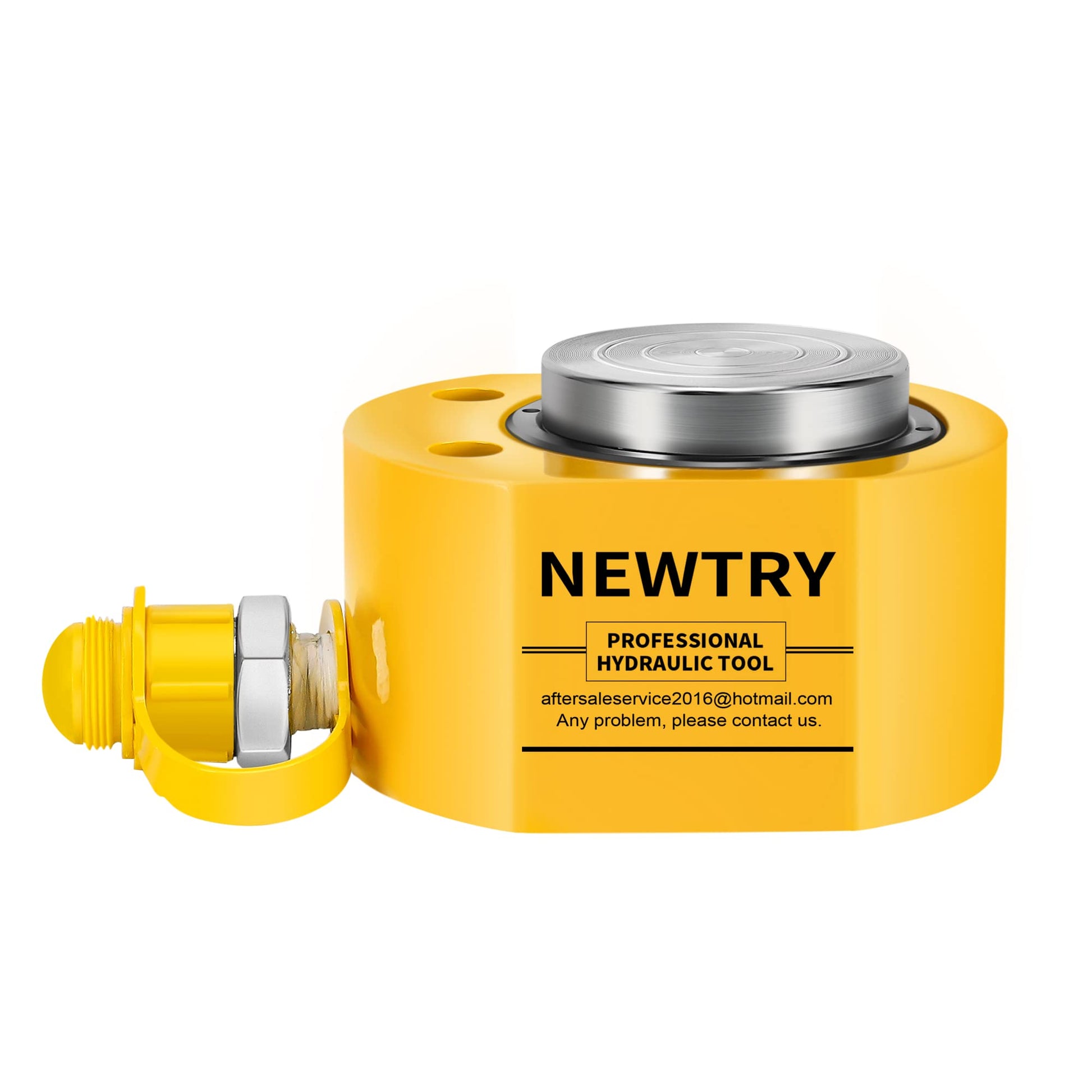

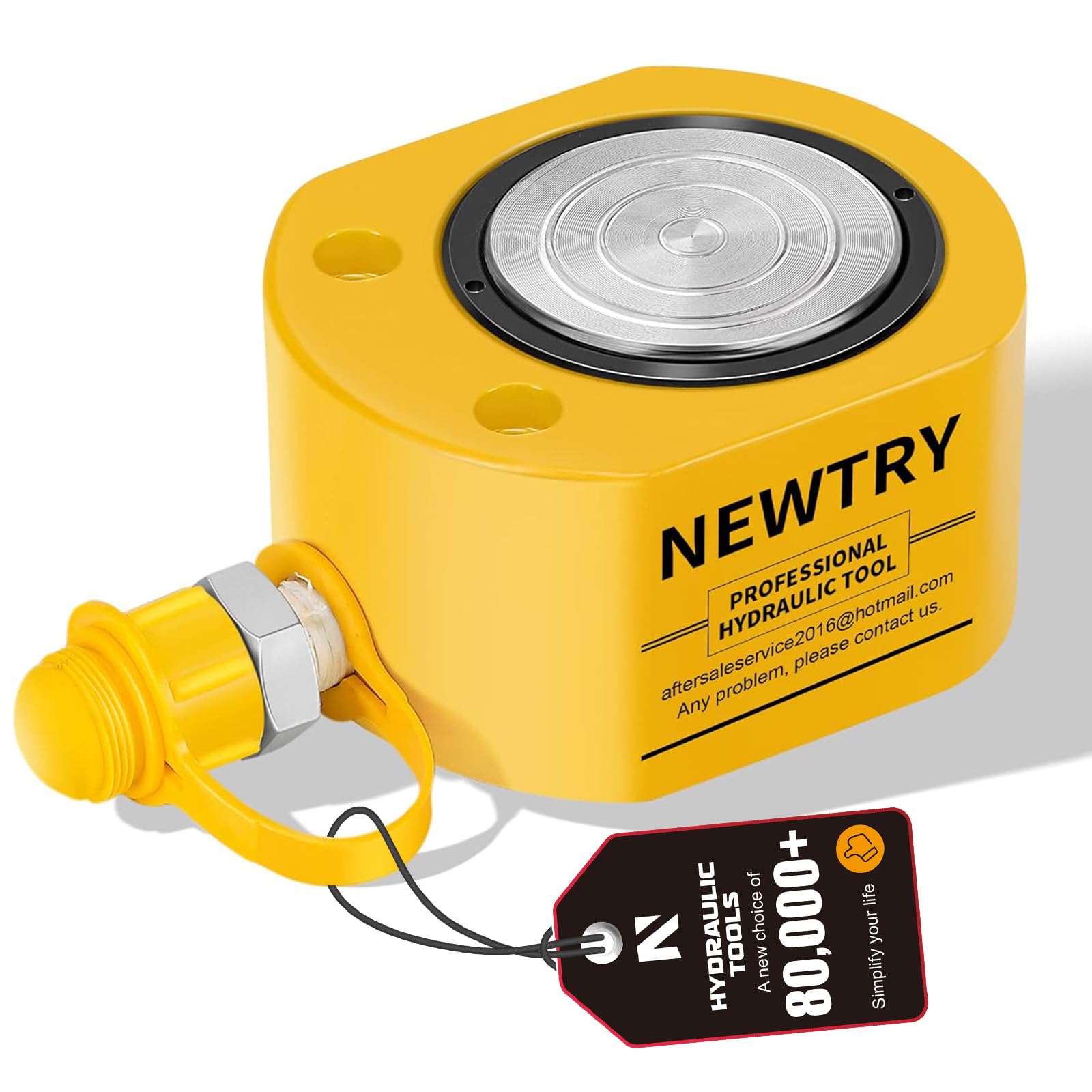

NEWTRY Hydraulic Ram Cylinder 30 ton Hydraulic Jack Lifting Cylinder Hydraulic Cylinder Jack 0.55” Low Profile Hydraulic Porta Power Ram Jack Mini, Portable for Shipbuilding, Bridge, Construction

Brand: NEWTRY

Color: Yellow

Features:

• ▷Important Parameters---Tonnage: 30T | Stroke: 0.55 inch/14mm | Self height: 2.6 inches/65mm | Outer diameter: 5x4 inches/125x100mm | Internal diameter: 3 inches/80mm | Weight: 11lbs/5kg | Effective area: 7.79 square inches/50.24cm2 | Used with Pump: CP-700(not included).

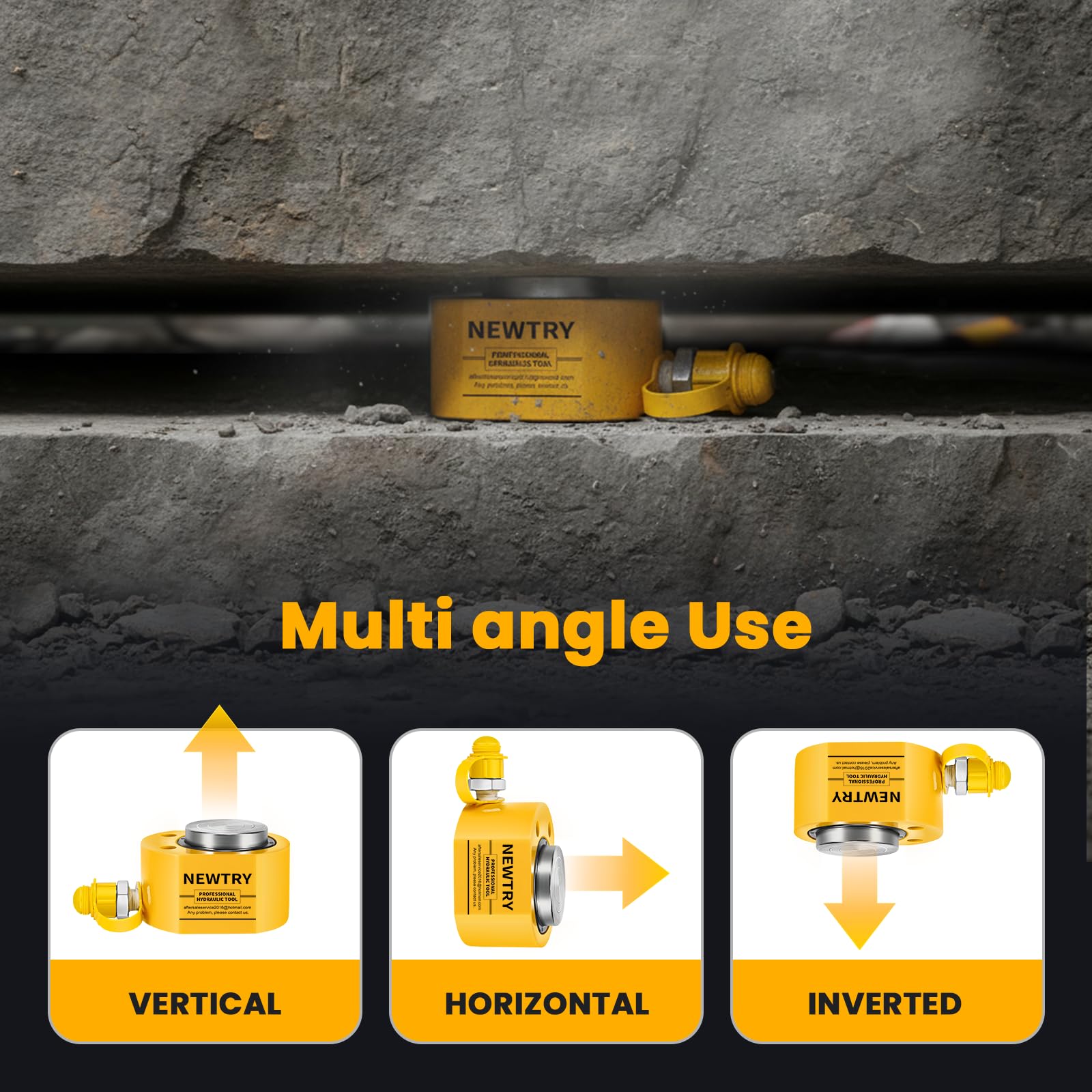

• ▷Compact Design with High - Load Capacity---This hydraulic jack measures just 2.6 inches in height, yet it can effortlessly lift up to 30T heavy loads. Its compact size doesn't compromise on performance, offering you the advantage of greater working capacity even in tight spaces. It's highly portable, flexible, and delivers a powerful lifting force, making it an ideal choice for various applications where space is limited.

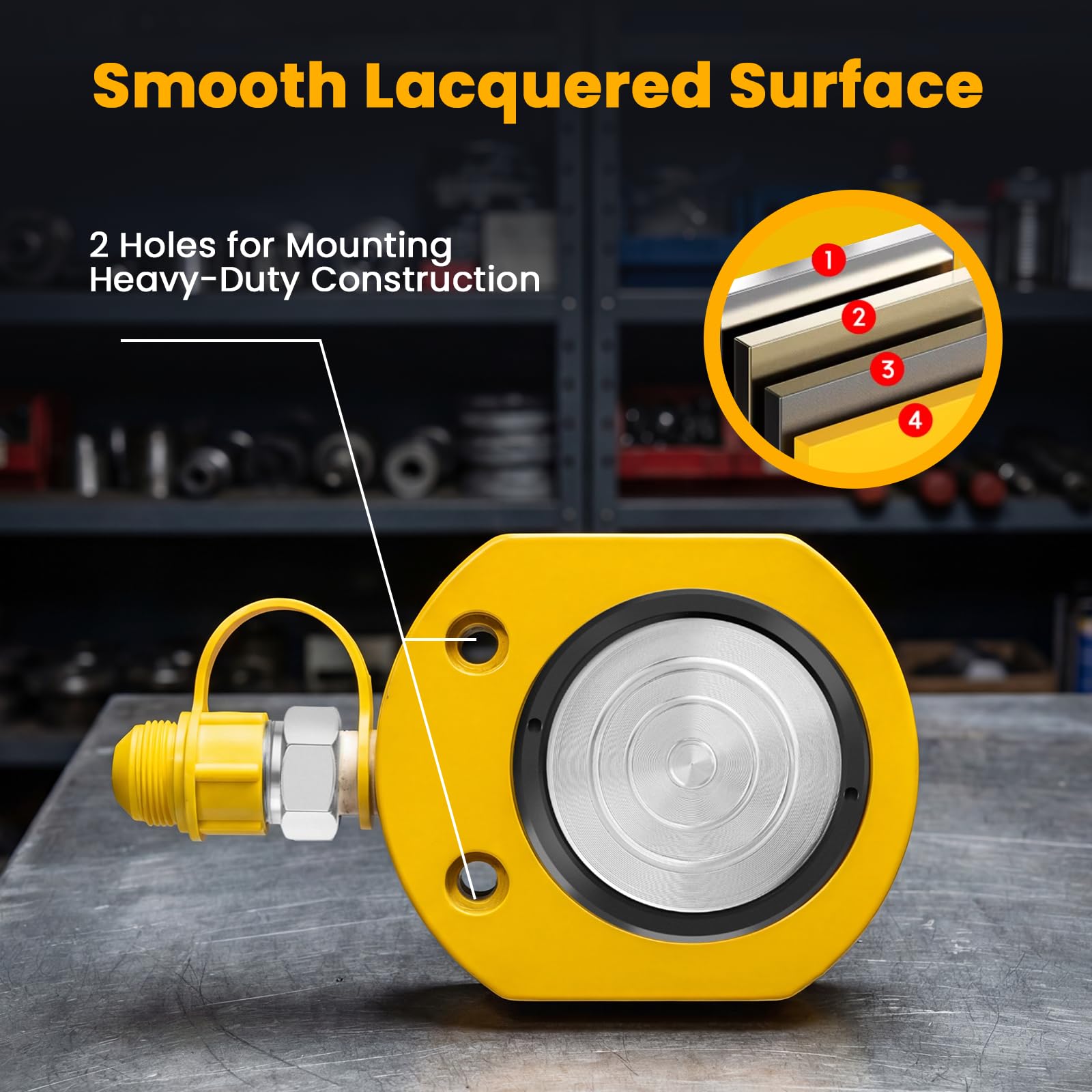

• ▷Smooth Lacquered Surface and Dust-Resistant Cover---The hydraulic ram cylinder features a smooth lacquered surface that not only gives it a sleek appearance but also provides good rust - resistance. Constructed from heavy - duty metal, this hydraulic cylinder jack is built to last. Additionally, it comes with a dust - resistant cover, ensuring that internal components remain clean and in optimal working condition for an extended period.
• ▷Composite Structure and Versatile Functions---Thanks to the quick - connectors, installation is a breeze and can be completed in no time. The 10T and 20T jacks are perfectly compatible with the CP - 180 pump, while the 30T model pairs well with the CP - 700 pump, providing you with a comprehensive and adaptable solution for different tasks.

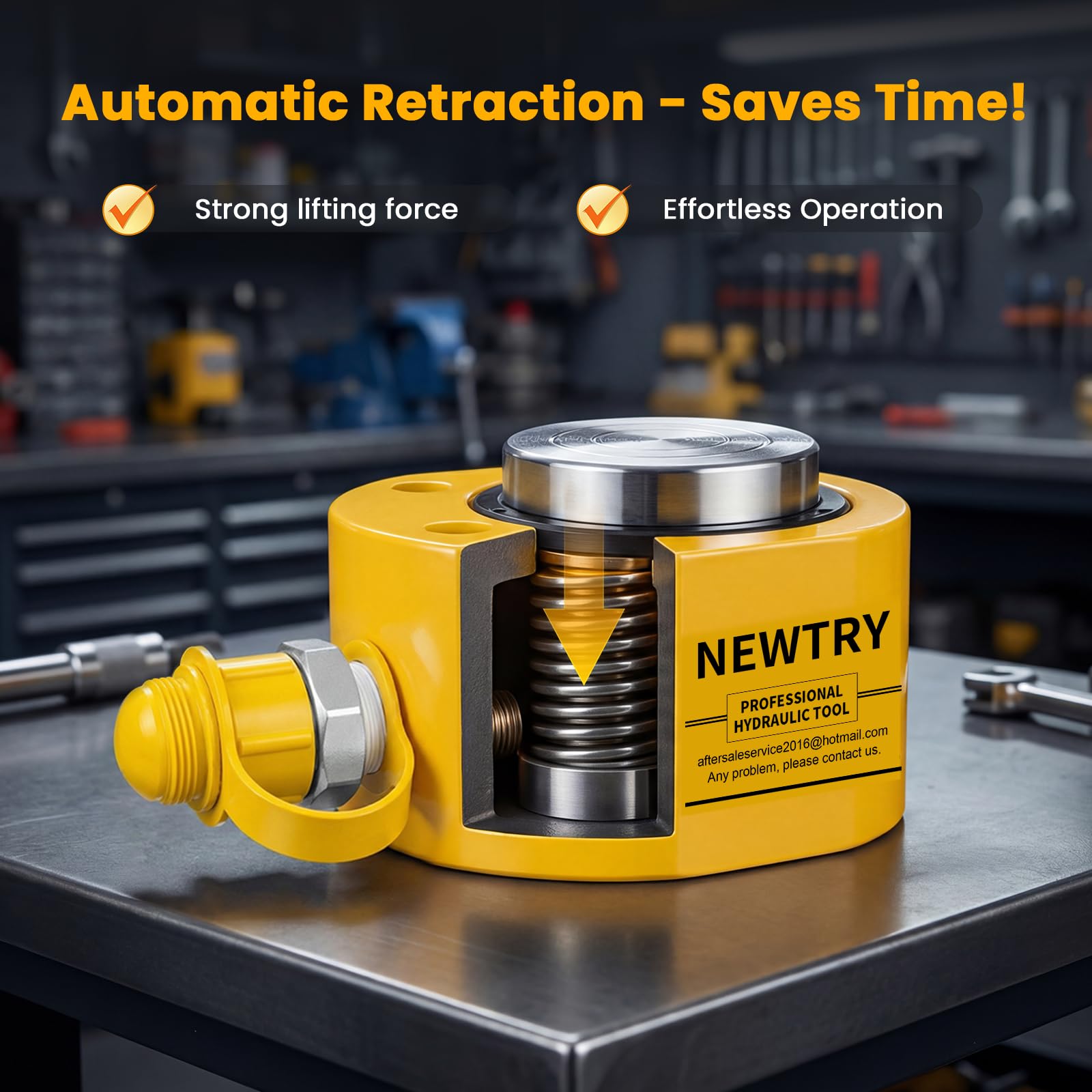

• ▷Effortless Operation and Automatic Retraction---The jack offers easy operation. Once the pressure is released, the piston retracts automatically, removing the need for external force. This makes it a time - saving and convenient choice for tasks. Its ultra - short stroke ensures smooth lifting. Whether for DIY projects or professional work, you can lift objects precisely, free from jerky movements.

model number: YX-128

Part Number: YX-128

EAN: 6130978230070

Package Dimensions: 7.9 x 6.2 x 6.0 inches
