OMAX 40X-1000X Lab Binocular Compound Microscope with Replaceable LED Light

Brand: OMAX

Color: black

Features:

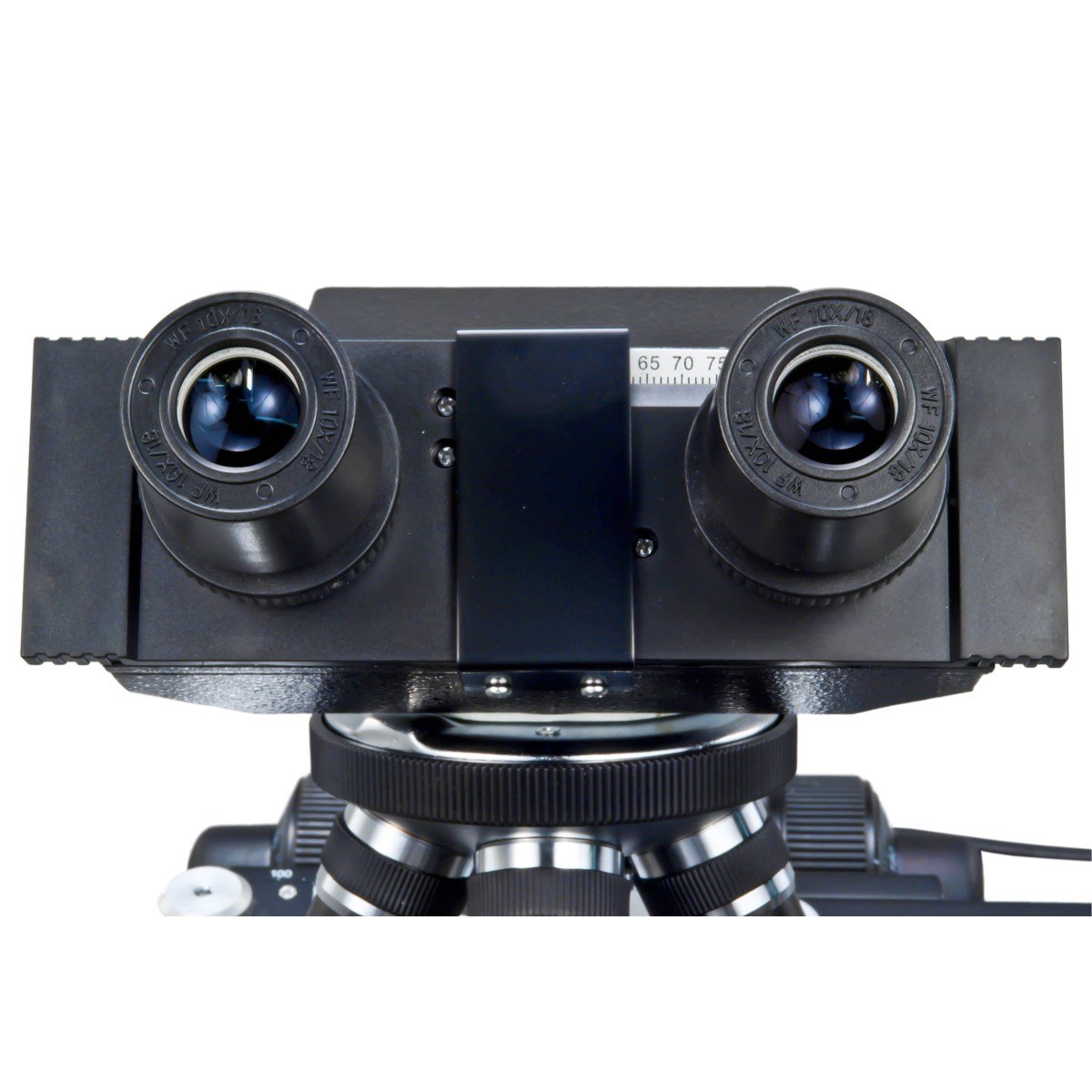

• Total magnification: 40X-100X-400X-1000X; Eyepieces: widefield WF10X/18; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360d egrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes
• Total magnification: 40X-100X-400X-1000X; Eyepieces: widefield WF10X/18; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360d egrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch 2-15/16inch (55 75mm); Diopter: adjustable on both eyepiece tubes
• Total magnification: 40X-100X-400X-1000X; Eyepieces: widefield WF10X/18; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45 degrees inclined 360d egrees swiveling binocular; Interpupillary distance: sliding adjustable 2-3/16inch 2-15/16inch (55 75mm); Diopter: adjustable on both eyepiece tubes
• Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer size 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation
• Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity

model number: M827L

Part Number: M827L

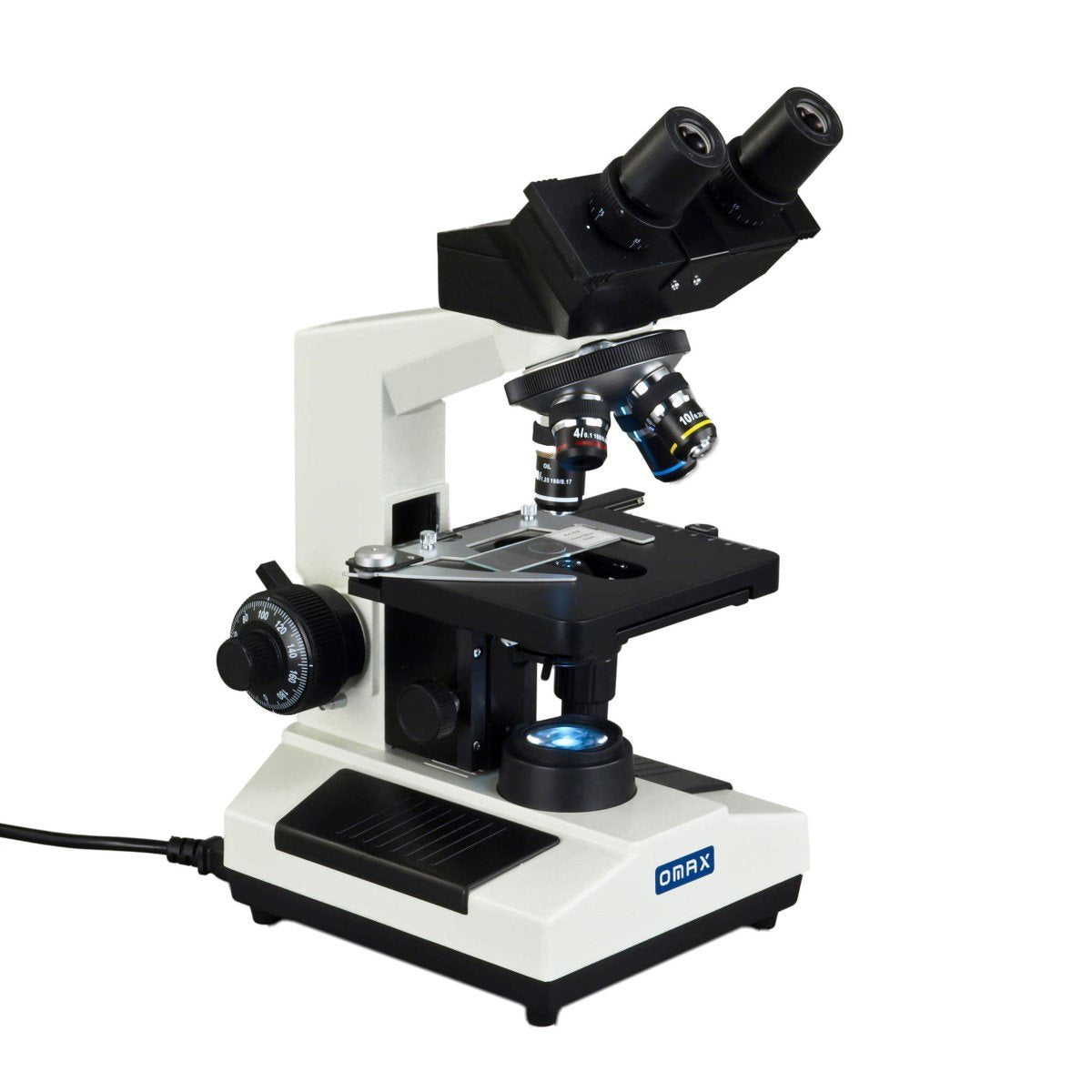

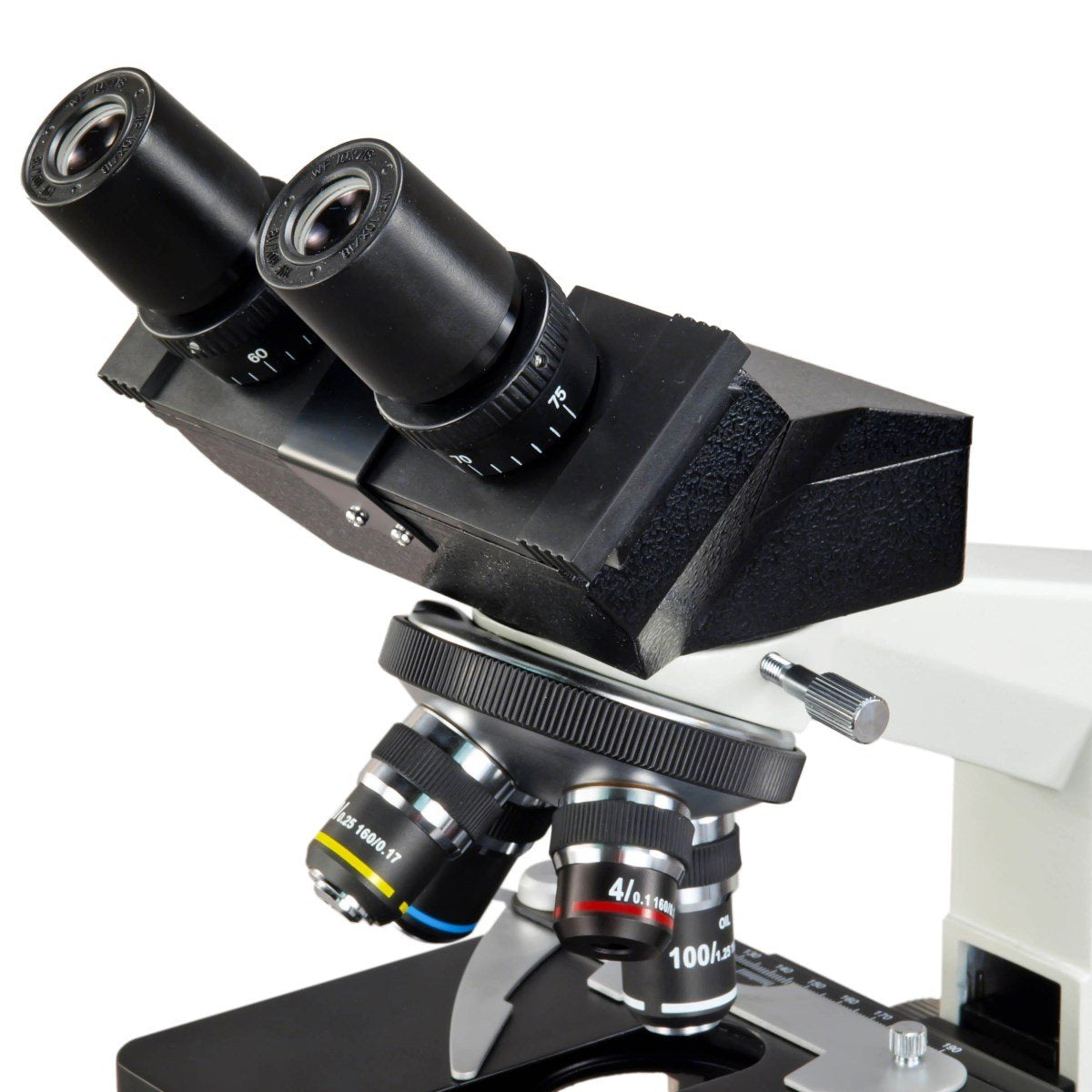

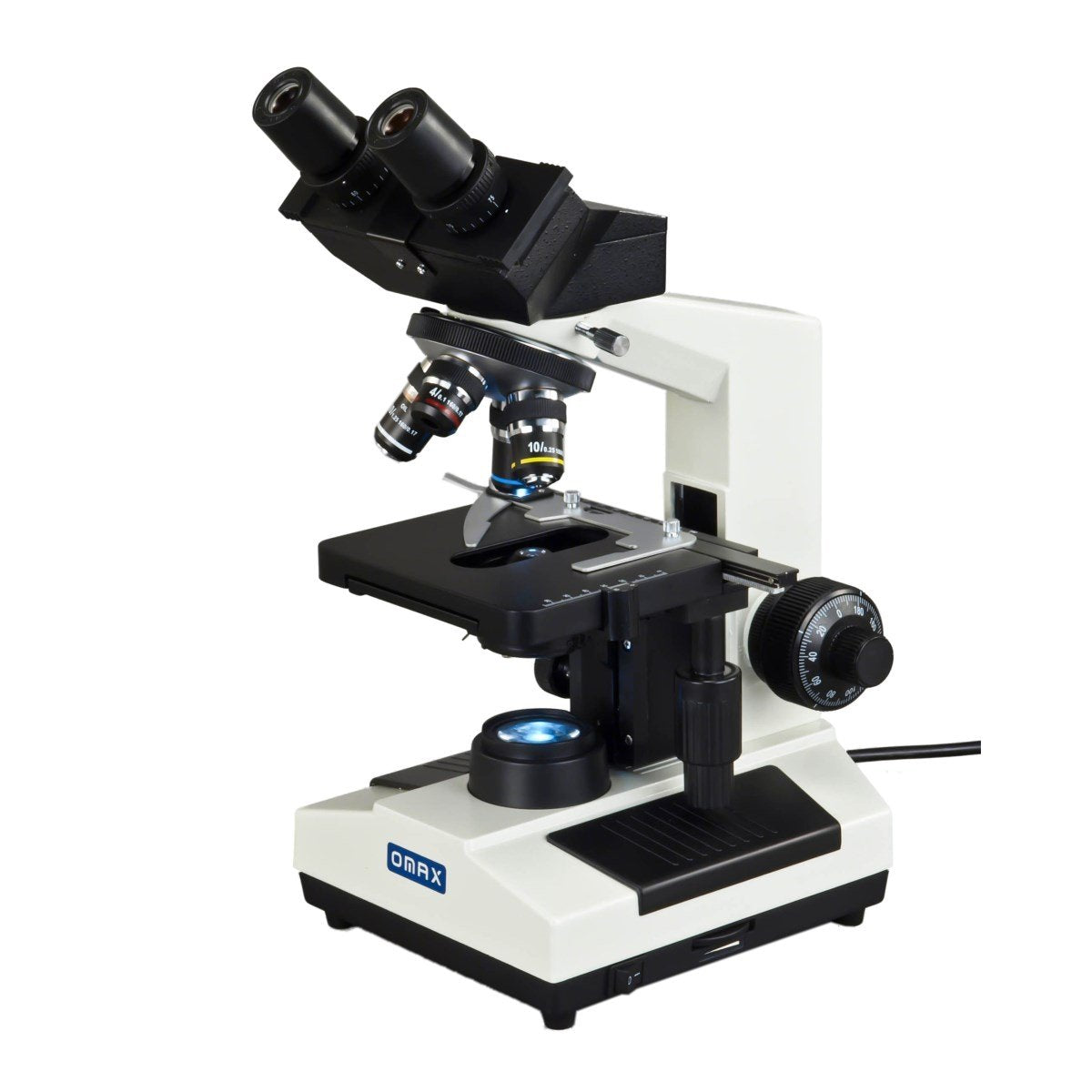

Details: This is a binocular compound LED microscope with the magnification range from 40X to 1000X. The compound LED microscope comes with a 45 degree inclined, 360 degree swiveling binocular head, body frame, revolving quadruple nosepiece, a pair of widefield eyepieces WF10X/18, four DIN achromatic objectives: 4X, 10X, 40X (spring), 100X (spring,oil), large double layer mechanical stage, Abbe NA1.25 condenser with iris diaphragm and a LED illumination system. The LED on this microscope is user serviceable. It is possible to add a USB camera by installing it into the eyepiece tube, or add a darkfield condenser or phase contrast condenser by replacing the existing brightfield condenser. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This binocular microscope is good for teaching, demonstration, clinical examination and research purposes.

EAN: 0670541469408

Package Dimensions: 17.2 x 12.7 x 11.0 inches
