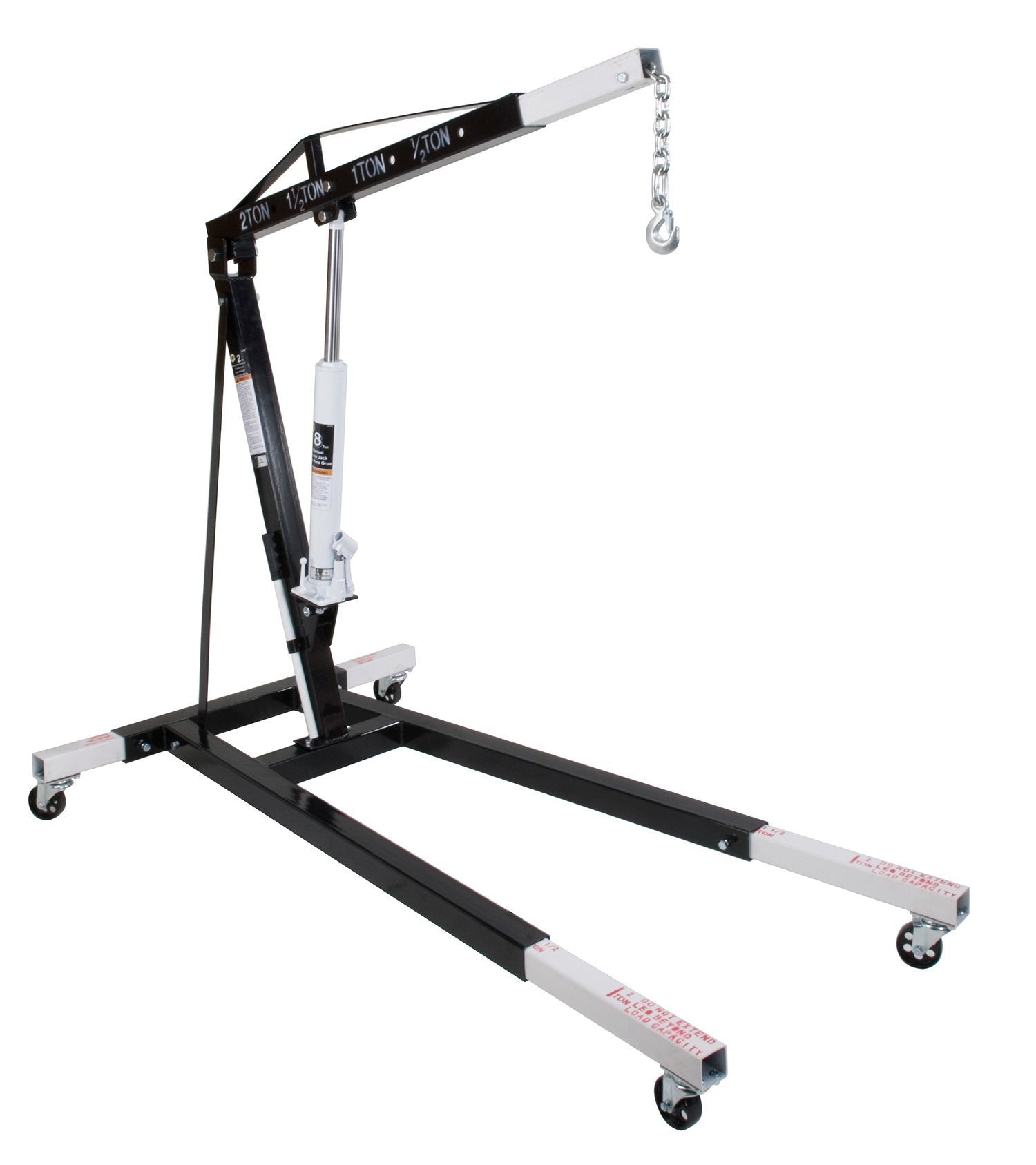

Omega 44020 Black Engine Crane - 2 Ton Capacity

Brand: Omega Lift Equipment

Color: Black

Features:

• 4 boom extension with max hook height of 86-1/2 inches
• The hydraulic ram is equipped with a patented built-in bypass mechanism
• Metered release system allows for precise load control
• Heavy duty welded construction with rugged reinforced tubular steel
• Four (4x) full ball bearing swivel casters for maneuverability

Release Date: 08-08-2013

model number: 44020

Part Number: 44020

Details: Omega 44020 Engine Crane is a 2 Ton Engine Crane to be used to remove, install and transport in the lowered position, rated capacity automotive and light truck engines and engine assemblies. It must be used with appropriately rated engine leveler, sling and/or chains which are included.
Omega 44020 Engine Crane gives you 4 boom extension with the max hook height of 86-1/2 inches.
It is built with the heavy duty welded construction with rugged reinforced tubular steel that enhances the stability and durability to prevent from distortion or twisting.
The built-in hydraulic long ram is equipped with a patented bypass mechanism to prevent from over pumping damage. At the same time, it features the metered control release valve to control the lowering precisely.
- 4 Boom Extension with Max Hook Height of 86-1/2 inches
- Hydraulic Ram is Equipped with a Patented Bypass Mechanism
- Metered Release System Allows for Precise Load Control
- Four Full Ball Bearing Swivel Casters for Maneuverability
Specifications
- 2 Ton Boom Capacity - Min Hook Height: 18-3/8 inch; Max Hook Height: 69-1/4 inch
- 1-1/2 Ton Boom Capacity – Min Hook Height: 14 inch; Max Hook Height: 75-1/4 inch
- 1 Ton Boom Capacity – Min Hook Height: 9-1/4 inch; Max Hook Height: 81-1/4 inch
- ½ Ton Boom Capacity – Min Hook Height: 5 inch; Max Hook Height: 86-1/2 inch
- Base Length: 62-3/8 – 90-3/4 inch
- Front Base Width: 28-7/8 – 33-7/8 inch; Rear Base Width: 34-5/8 – 53-1/8 inch
- Height: 57 inch
- Wheel Diameter – 3-1/2 inch
- GW: 317 Lbs
Omega 44020 Engine Crane is backed by one full year warranty from the date of the purchase.

EAN: 0047077032367

Package Dimensions: 65.0 x 37.0 x 13.0 inches
