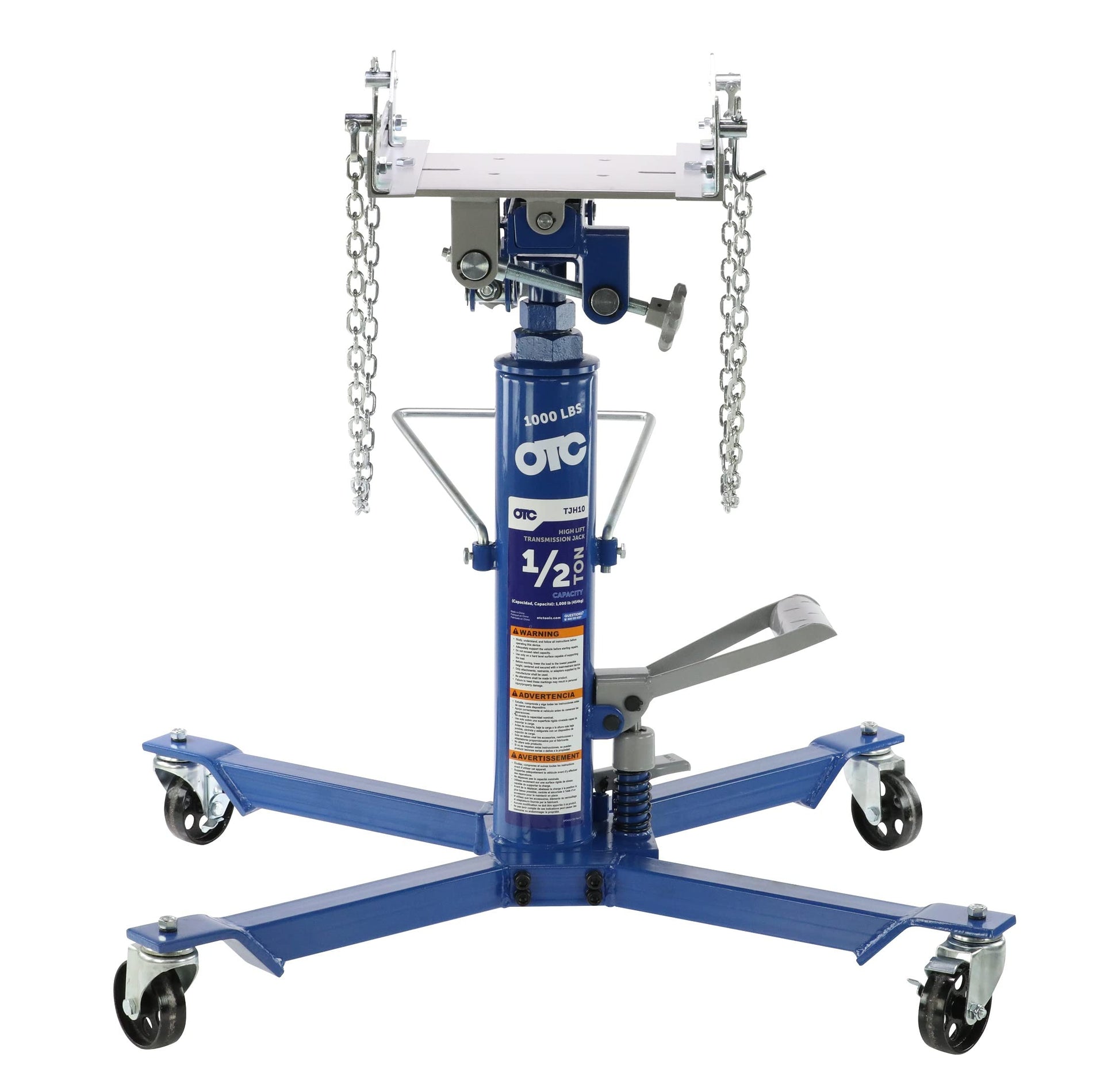

OTC TJH10 1,000 LB. Capacity High-Lift Transmission Jack with Universal Saddle, Tilting Head, Safety Chains, and Foot Operated Pump and Lowering Pedal

Brand: OTC

Color: Blue

Features:

• TJH10 is a fully featured hydraulic high-lift transmission jack with universal saddle, tilting head, adjustable corner brackets, and safety chains for optimum positioning of the load

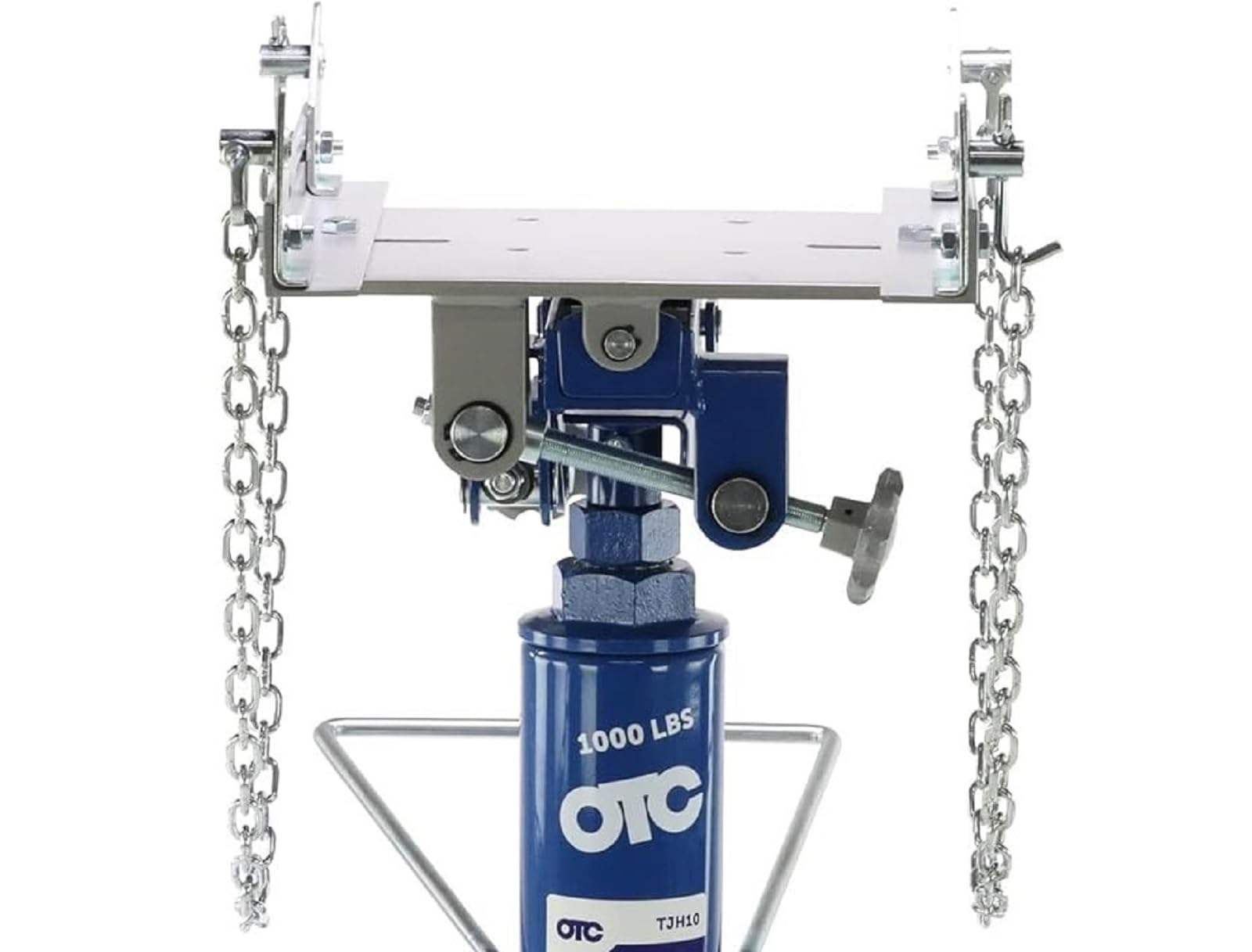

• Head tilts front to back and side to side to make removal and installation of transmission and driveline components easier
• Big, easy-to-grip knobs make mounting head adjustments simple, and the included safety chains securely hold components during removal, transport and installation

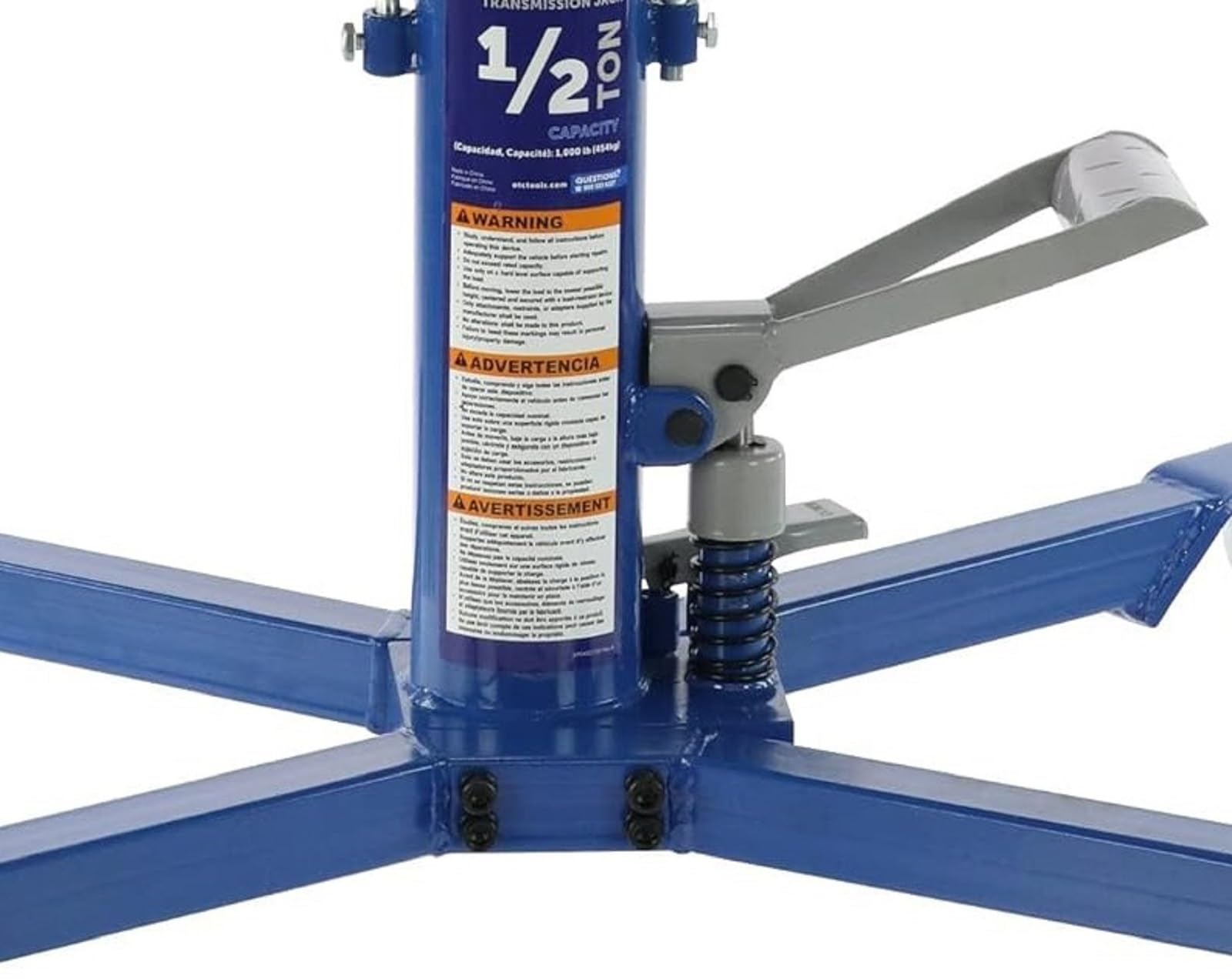

• Hydraulic system features flash-chromed rams to prevent rust from entering the system, prolonging jack life; Foot-operated pump and lowering pedal allow for ease of control when positioning or removing a transmission
• Specially designed with a wide leg base and four 4-inch steel swivel wheels (two locking) for stability and easy maneuvering around the shop; Built-in safety overload system prevents the jack from being used beyond its rated capacity
• Ideal size and capacity for the removal and installation of automobile transmissions; Meets all ASME PASE-2019 safety standards
• Specifications: Capacity: 1,000 lbs, Min height, retracted: 35 inches, Max height: 71-5/8 inches, Forward tilt (max): 24 degrees, Backward tilt (max): 19 degrees, Side tilt (Max, side/side): 20 degrees, Leg width: 37-1/8 inches, Wheel size: 4 inches

model number: TJH10

Part Number: TJH10

Details: OTC's TJH10 1,000 LB. Capacity High-Lift Transmission Jack features a universal saddle, adjustable corner brackets, and safety chains for optimum positioning of the load. The head tilts front to back and side to side to make removal and installation of transmission and driveline components easier. Big, easy-to-grip knobs make mounting head adjustments simple, and the included safety chains securely hold components during removal, transport and installation. Ideal size and capacity for the removal and installation of automobile transmissions. Hydraulic system features flash-chromed rams to prevent rust from entering the system, prolonging jack life. A foot-operated pump and lowering pedal allow for ease of control when positioning or removing a transmission. Specially designed with a wide leg base and 4' steel swivel wheels for stability and easy maneuvering. A built-in safety overload system prevents the jack from being used beyond its rated capacity while two locking casters help keep the jack safely in position during use. Meets all ASME PASE-2019 safety standards. Specifications: Capacity: 1,000 lbs, Minimum height (retracted): 35', Maximum height: 71-5/8', Forward tilt (max): 24 degrees, Backward tilt (max): 19 degrees, Side tilt (Max, side/side): 20 degrees, Leg width: 37-1/8', Wheel size: 4'.

EAN: 0731413593000

Package Dimensions: 38.0 x 23.0 x 10.0 inches
