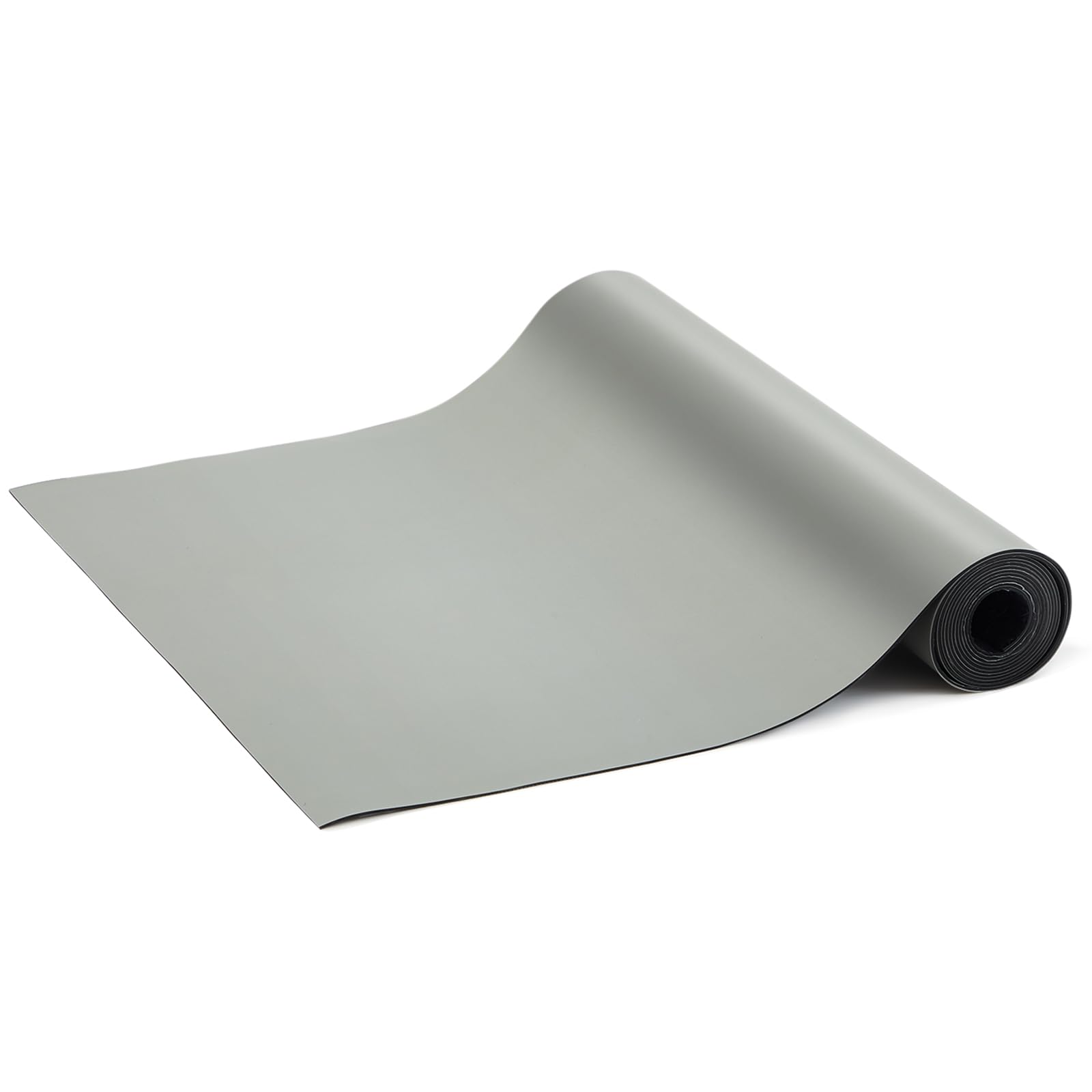

Pangda ESD Mat Roll 2 ft x 10 ft High Temperature Rubber ESD Soldering Roll Anti-Static Soldering Heat Resistant Workbench Mat for Electronics Repair PC Building, Gray

Brand: Pangda

Color: Gray

Features:

• Durable Work Surface:This ESD mat is designed with a thickness of 0.08 inches, offering a strong and durable surface for demanding workshop environments. It is resistant to oils, greases, common solvents, high-temperature solder, and iron contact. The mat is easy to clean and can be reused, ensuring long-lasting performance in various work settings

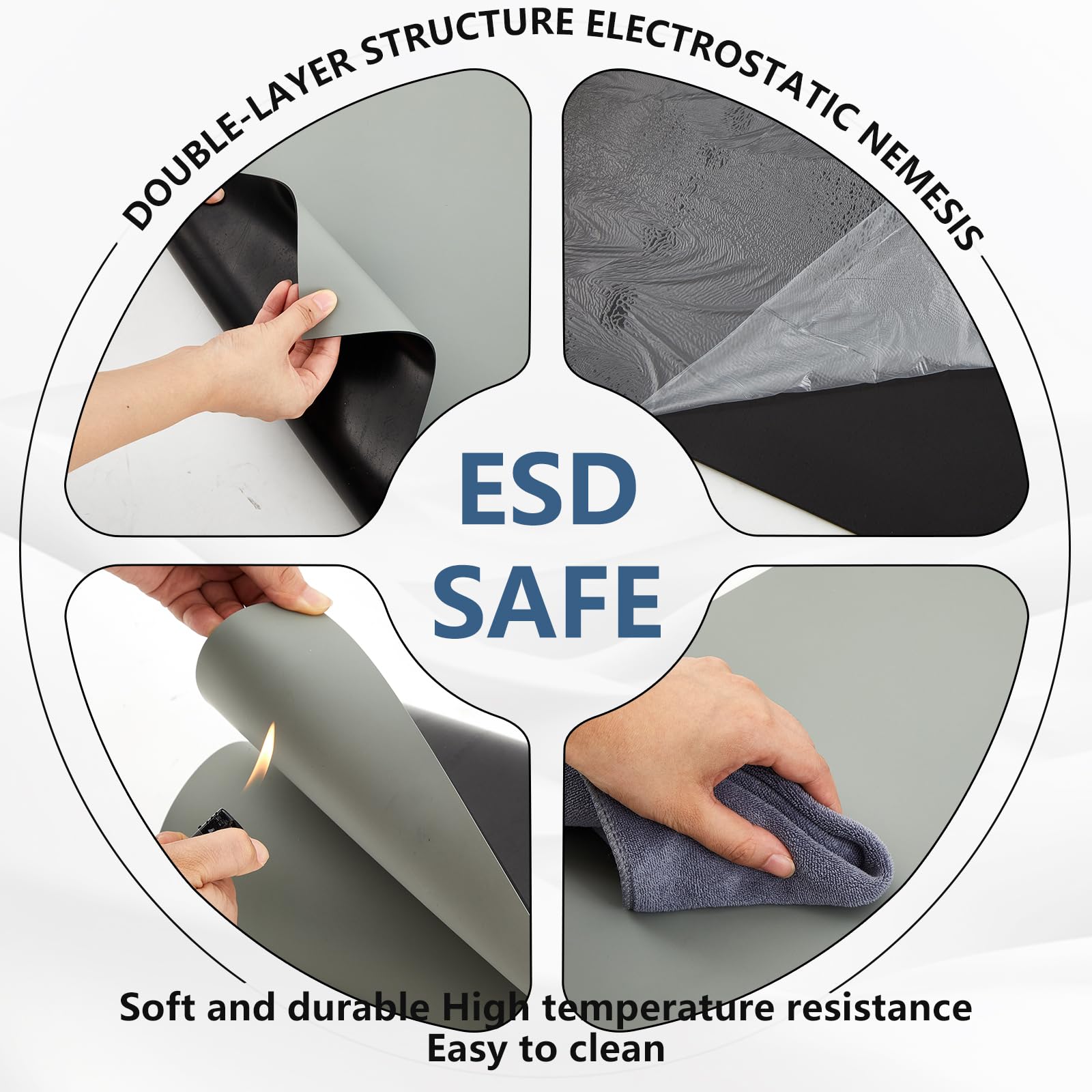

• Reliable Two-Layer Material Structure:The mat features a 0.08-inch thick, two-layer vinyl construction. The top gray layer is static-dissipative, while the bottom black conductive layer ensures reliable grounding. The textured surface minimizes glare and helps prevent small components and tools from slipping during detailed repair tasks

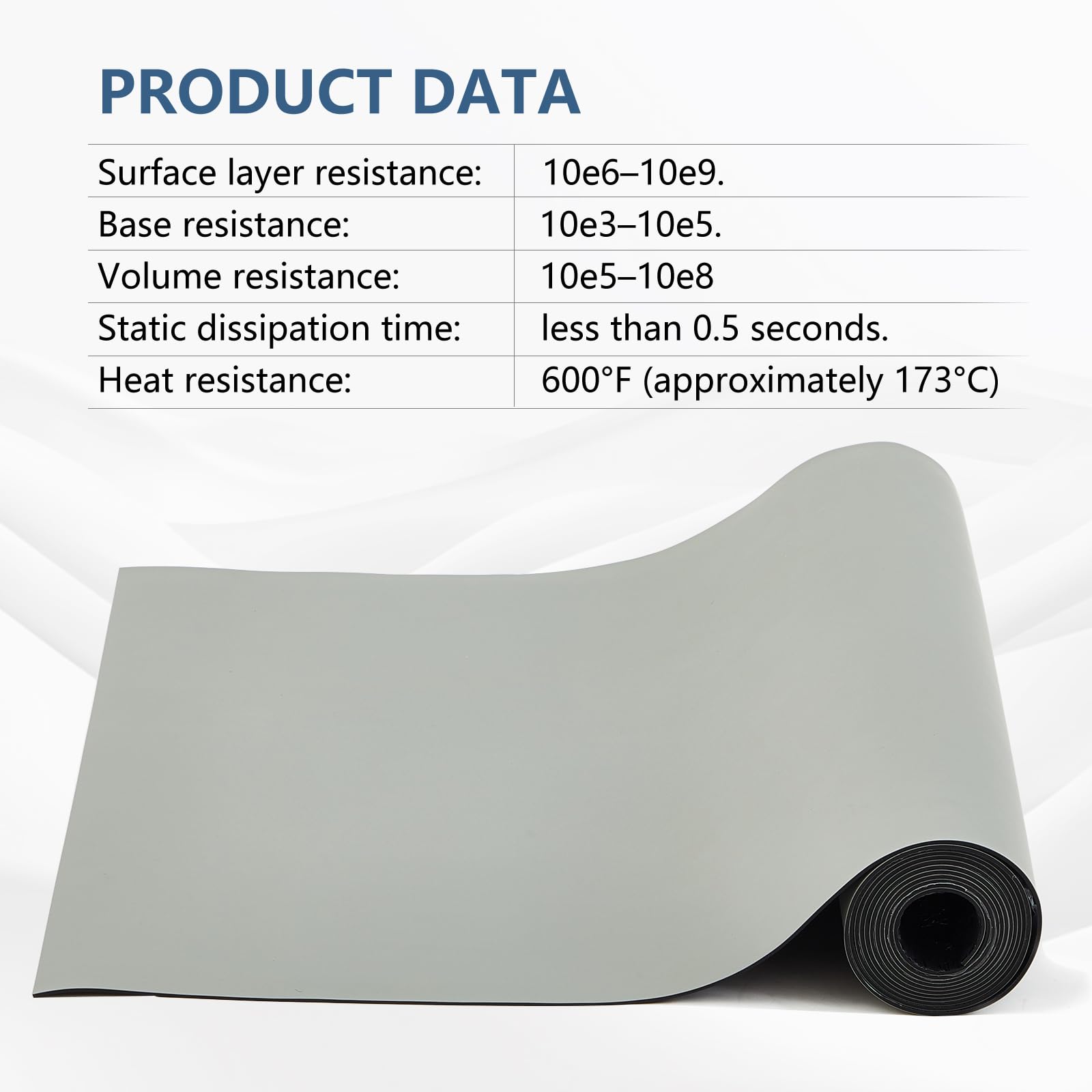

• Precise Technical Specifications:The mat's surface resistance ranges from 10⁶ to 10⁹ ohms, base resistance from 10³ to 10⁵ ohms, and volume resistance from 10⁵ to 10⁸ ohms. It reliably dissipates static charges within 0.5 seconds, providing consistent protection for sensitive electronic components
• Simple and Safe Grounding Operation:For proper function, the mat must be connected to a grounded point using a dedicated grounding cord. Once correctly grounded, the mat allows electrical charge to flow safely to the ground, preventing sudden discharges that could potentially damage sensitive internal circuits
• Versatile Application Use: This ESD mat is ideal for various applications requiring static discharge control, including circuit board repair, computer and mobile device servicing, aerospace assembly, semiconductor handling, and medical device manufacturing. It offers essential protection to sensitive components in these tasks

model number: ISI-Pangda-1606

Part Number: ISI-Pangda-1606

Details: Features:
Designed for soldering applications, this ESD mat can withstand brief contact with a soldering iron up to 600°F (approximately 315°C) for short periods. The material is formulated to resist melting and does not produce unpleasant odors when exposed to high temperatures, making it suitable for extended work sessions.

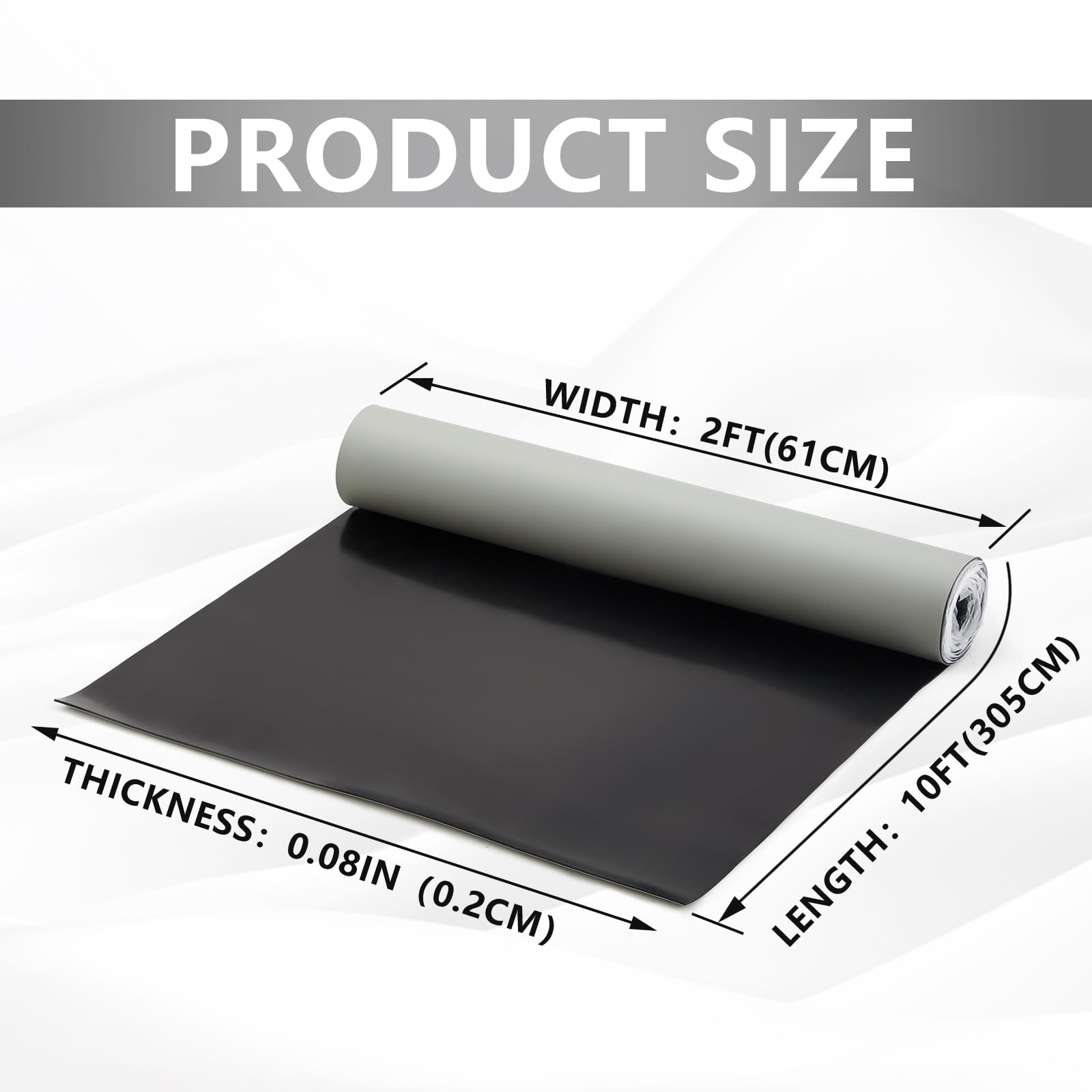

This ESD mat comes in a practical roll format, measuring 2 feet wide by 10 feet long with a thickness of 0.08 inches. The generous size offers ample coverage for workbenches and desks, providing a large, continuous surface for handling multiple projects or larger equipment.

Specifications:
Material: ESD
Color: gray
Size: about 2 FT x 10 FT x 0.08 IN / 61cm × 305cm × 0.2cm

Package includes:
1 x ESD soldering mat

Notes:
Manual measurement, please allow slight errors on size.
The color may exist a slight difference due to different screen displays.

Package Dimensions: 24.4 x 4.3 x 3.9 inches
