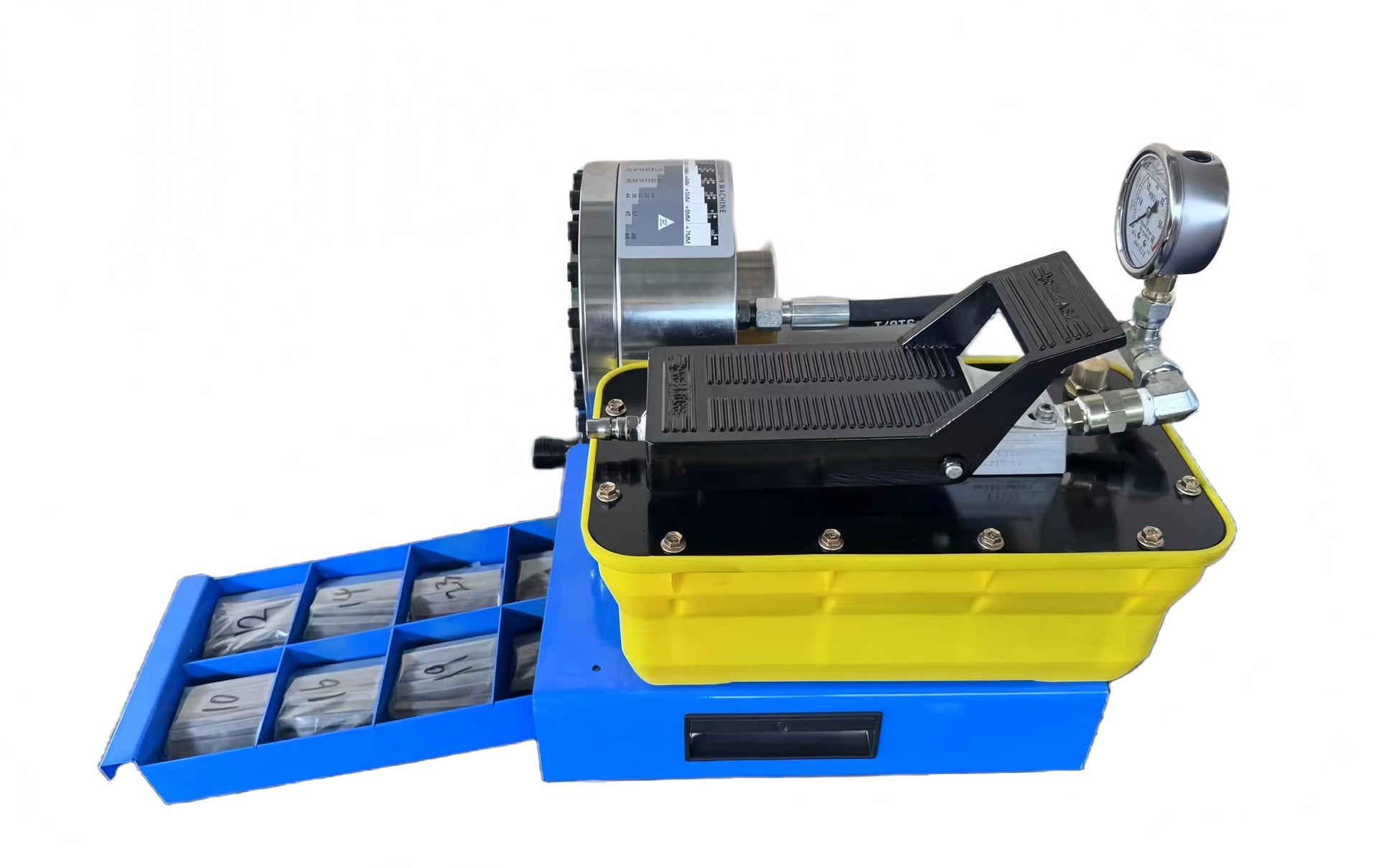

Pneumatic Hydraulic Hose Crimping Machine with 8 Sets of Dies, 40MPa System Pressure, suitable for high-pressure hydraulic hoses and pipes (Plastic Pump Casing)

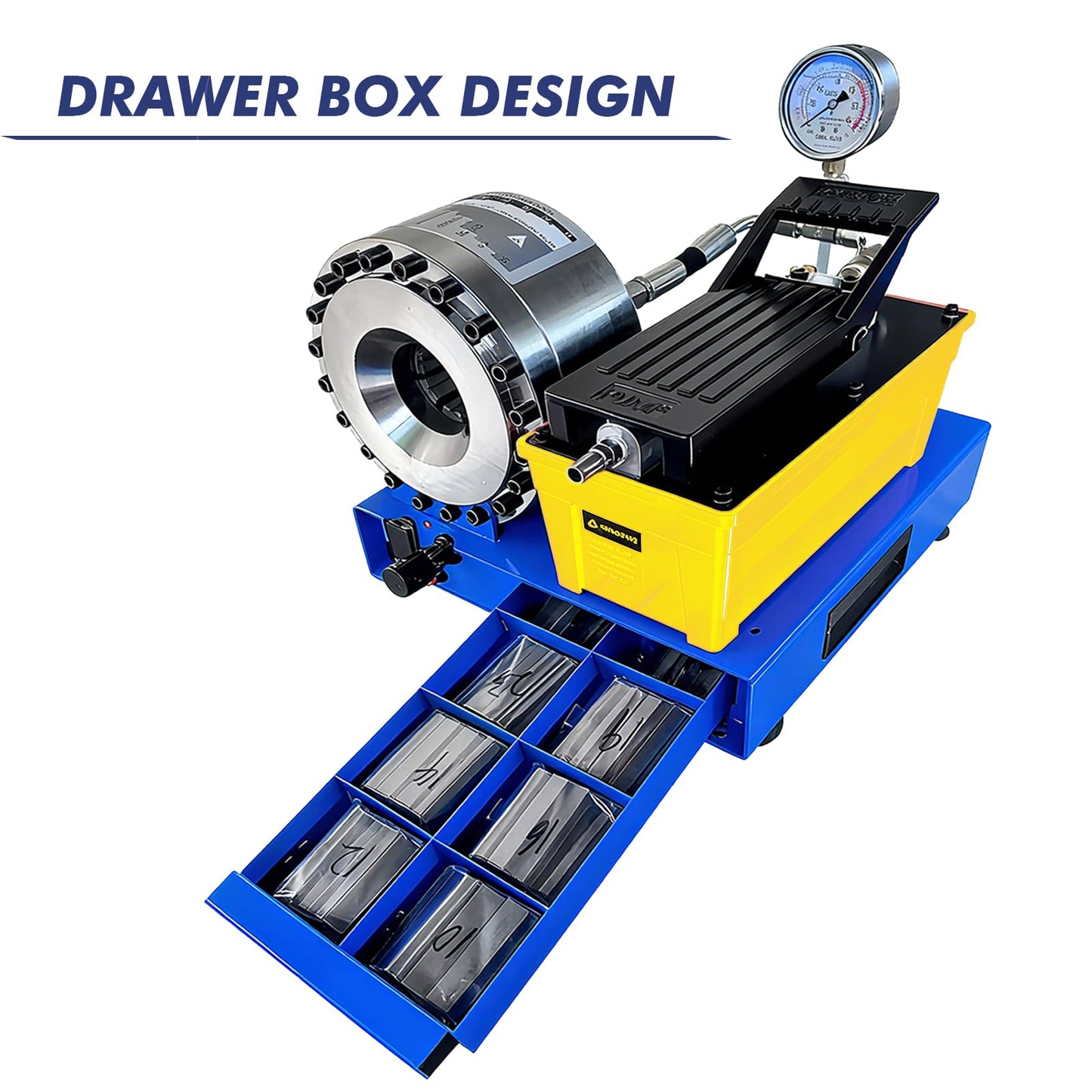

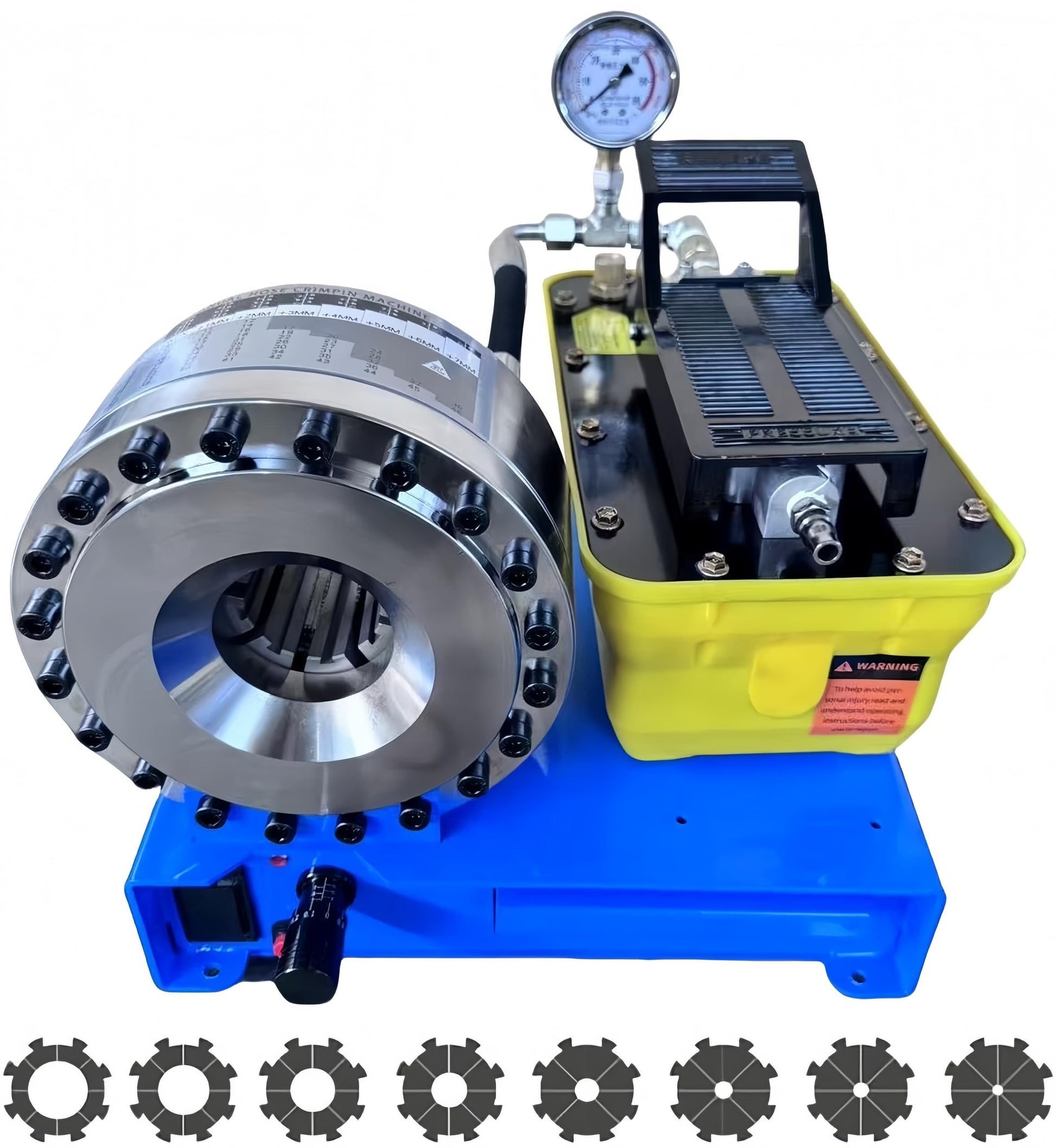

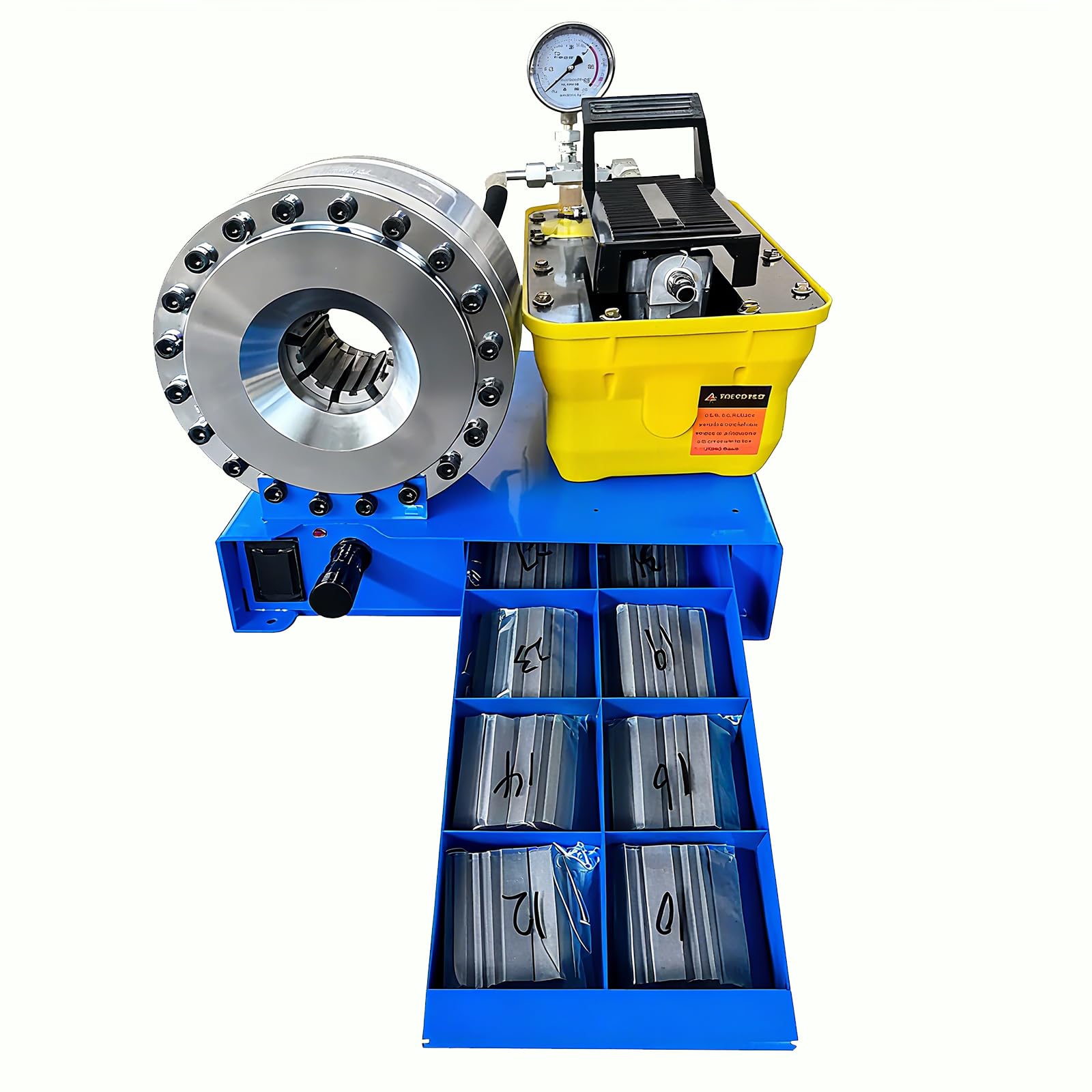

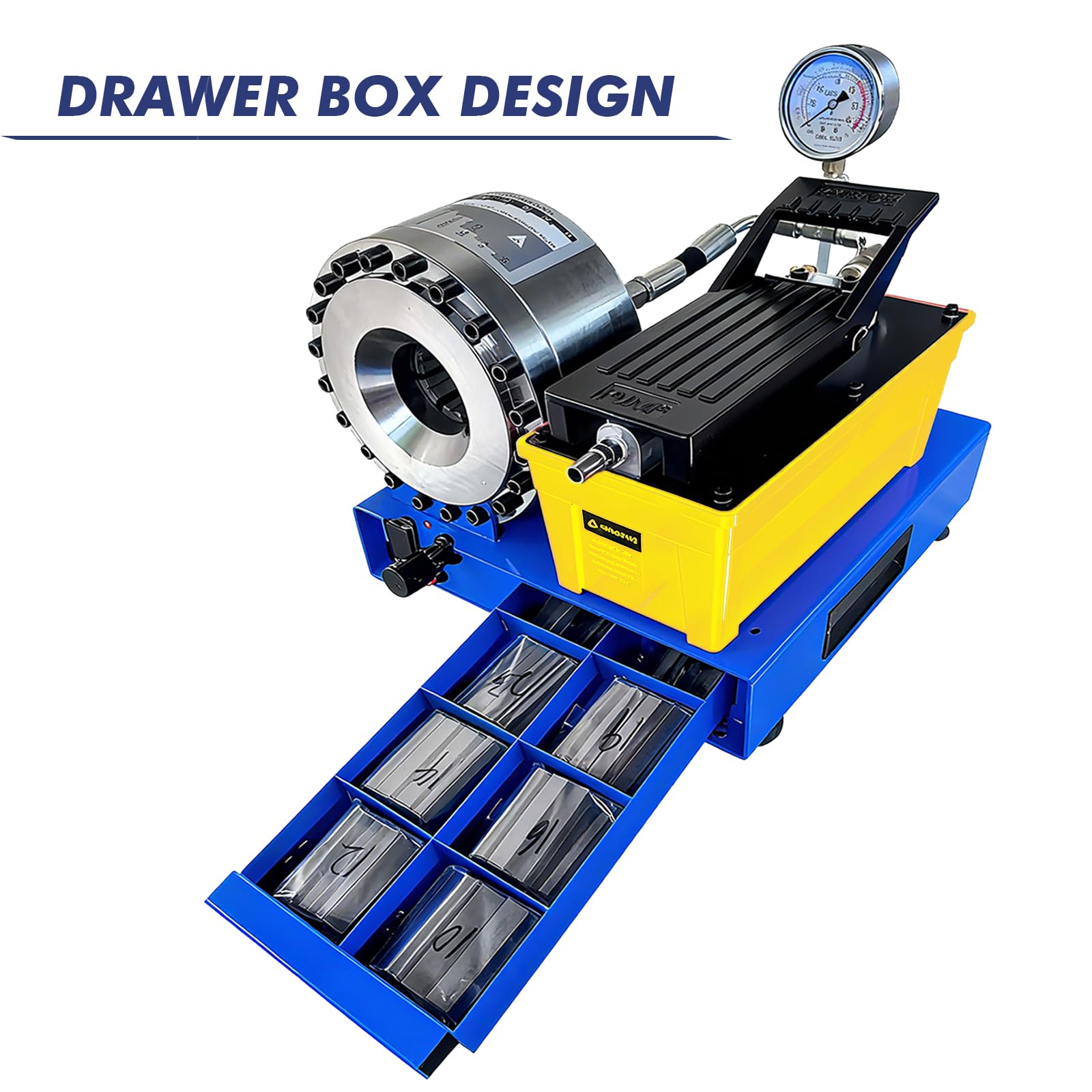

Equipped with 8 interchangeable dies (10/12/14/16/19/23/27/31 mm), this pneumatic hydraulic crimping machine supports hoses with an outer diameter up to 32 mm and inner diameter up to 25 mm.
Designed to work with 1/4' to 1' hydraulic hoses reinforced with two layers of steel wire (R2), and 3/4' hoses with double steel wire (2AP/SH).
Built with a reinforced plastic pump casing and the same 1.6–2.3L high-capacity oil tank, this machine provides consistent and dependable performance even in high-pressure applications.
It operates at a system pressure of 40MPa and has an air inlet size of 1/4 inch, with a 3/8 inch oil outlet. The crimping head allows for a maximum opening of 55 mm without dies and 45 mm with dies.
Durable and precise, this machine is ideal for mechanical oil pipes, air conditioning hoses, water and gas lines, fuel pipes, cable joints, and more.
model number: Acd2599
Part Number: Acd2599

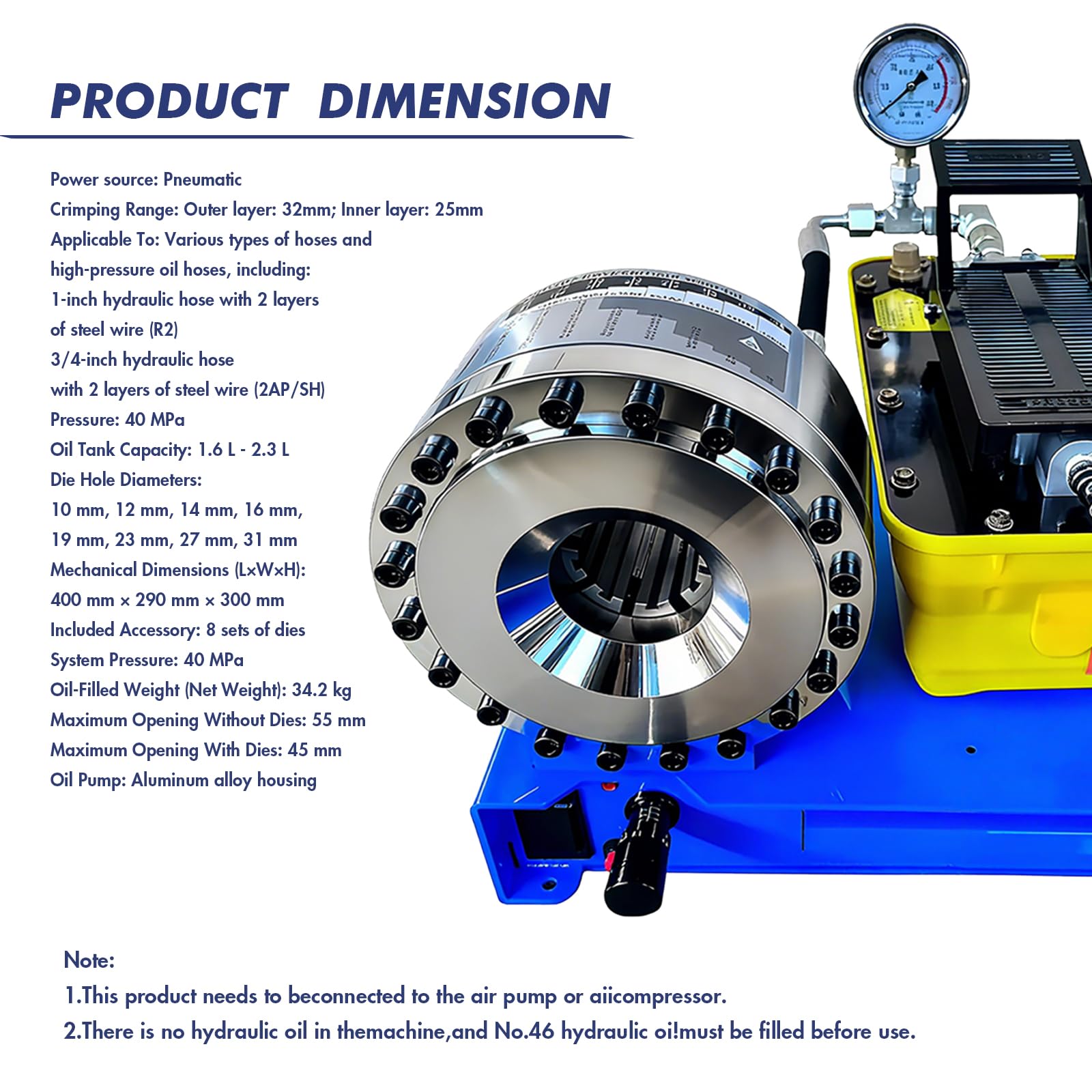

Details: Crimping range (outer): ≤ 32 mm Crimping range (inner): ≤ 25 mm Crimping force: 95 tons Die sizes: 10 / 12 / 14 / 16 / 19 / 23 / 27 / 31 mm Max opening without dies: 55 mm Max opening with dies: 45 mm Number of dies: 8 sets (included) Oil tank capacity: 1.6–2.3 L System pressure: 40 MPa Oil outlet: 3/8 inch Air inlet: 1/4 inch Recommended oil: No. 46 hydraulic oil (sold separately) Dimensions (L×W×H): 400 × 290 × 300 mm Net weight (with oil): 34.2 kg Pump housing: Aluminum alloy/ABS
