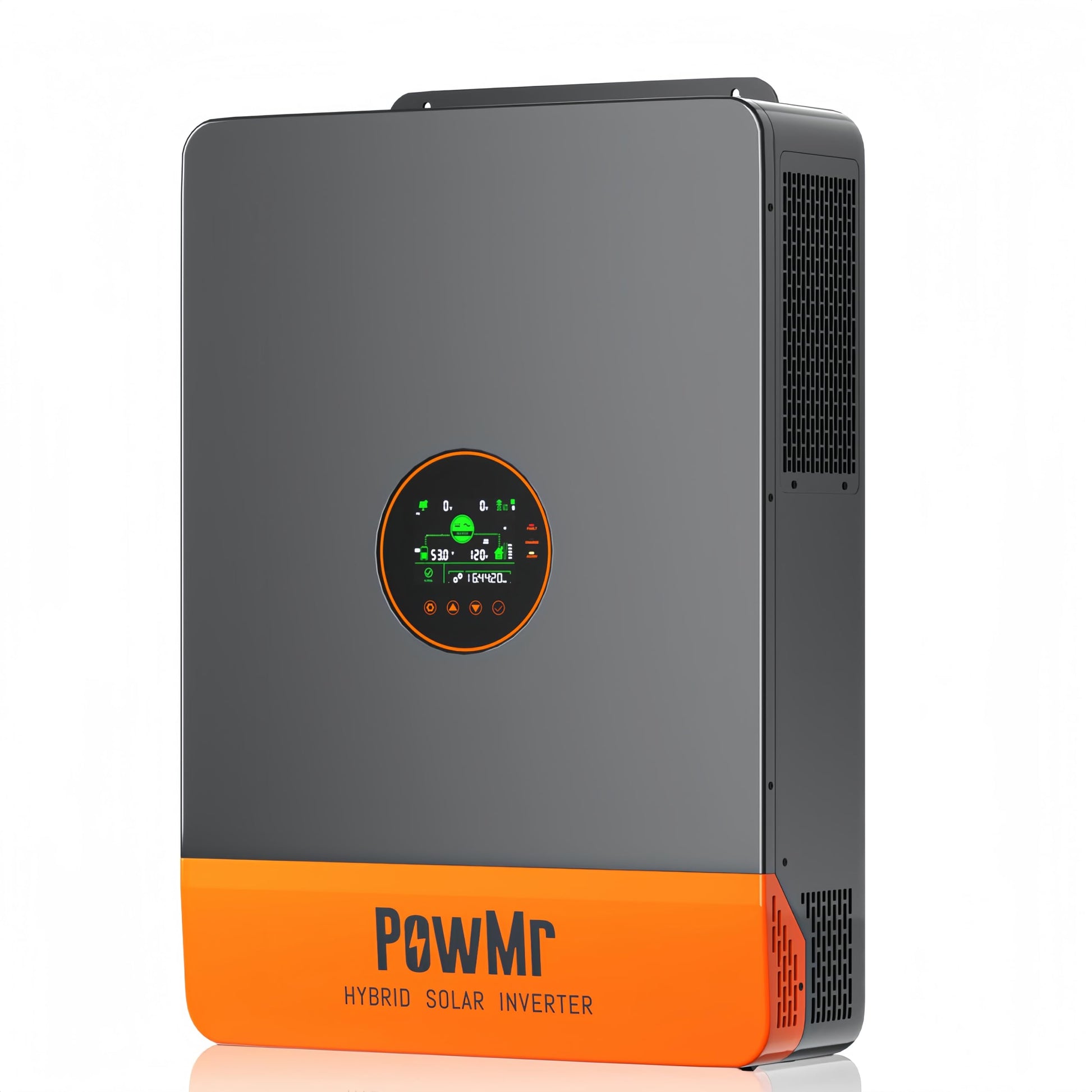

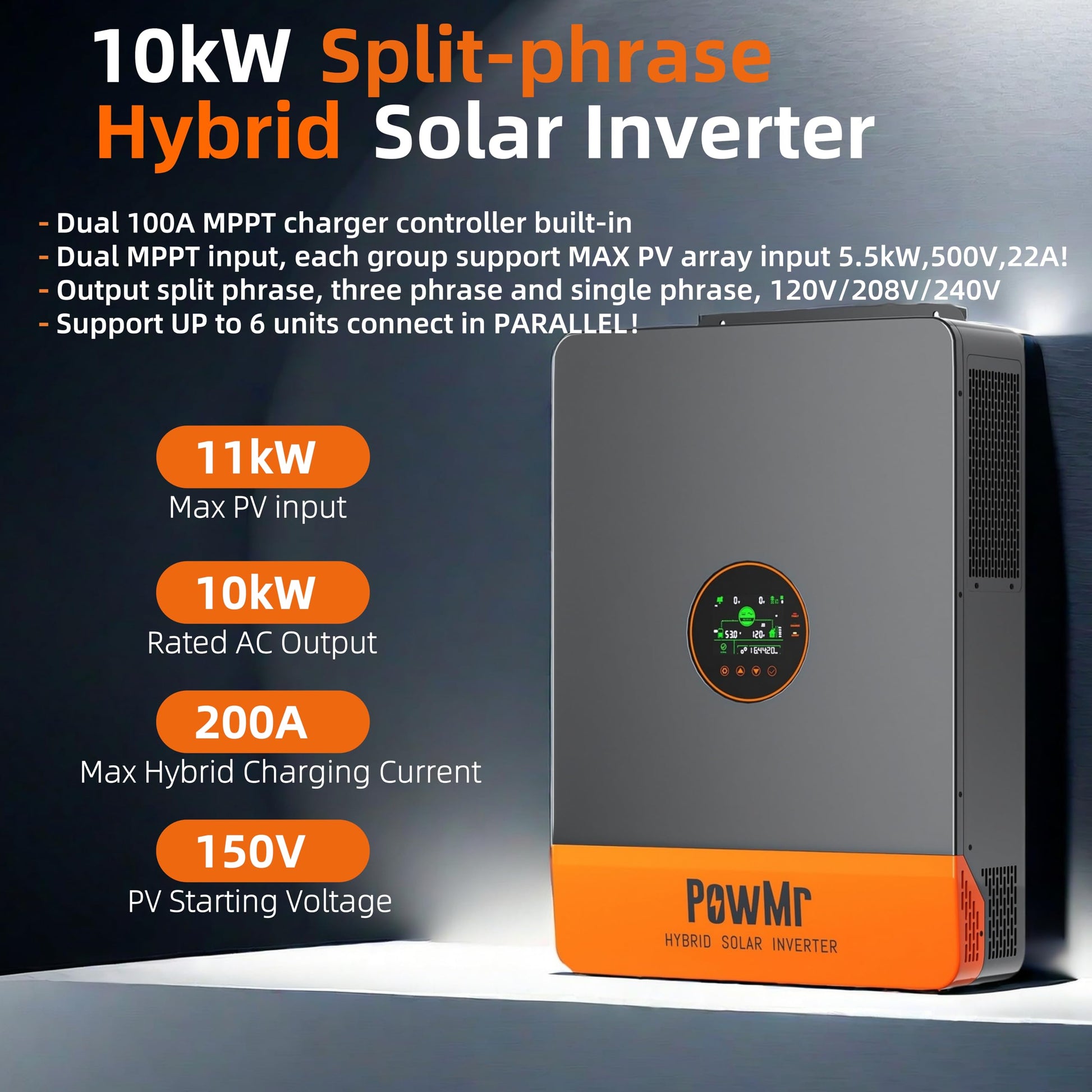

PowMr 10000W Hybrid Solar Inverter, 48V DC to 110V/240V AC Split Phase Inverter with 200A MPPT Controller, Max PV Input 11KW, 500VDC, Supports Up to 6 in Parallel, for Lead Acid Lithium Battery

Brand: PowMr

Features:

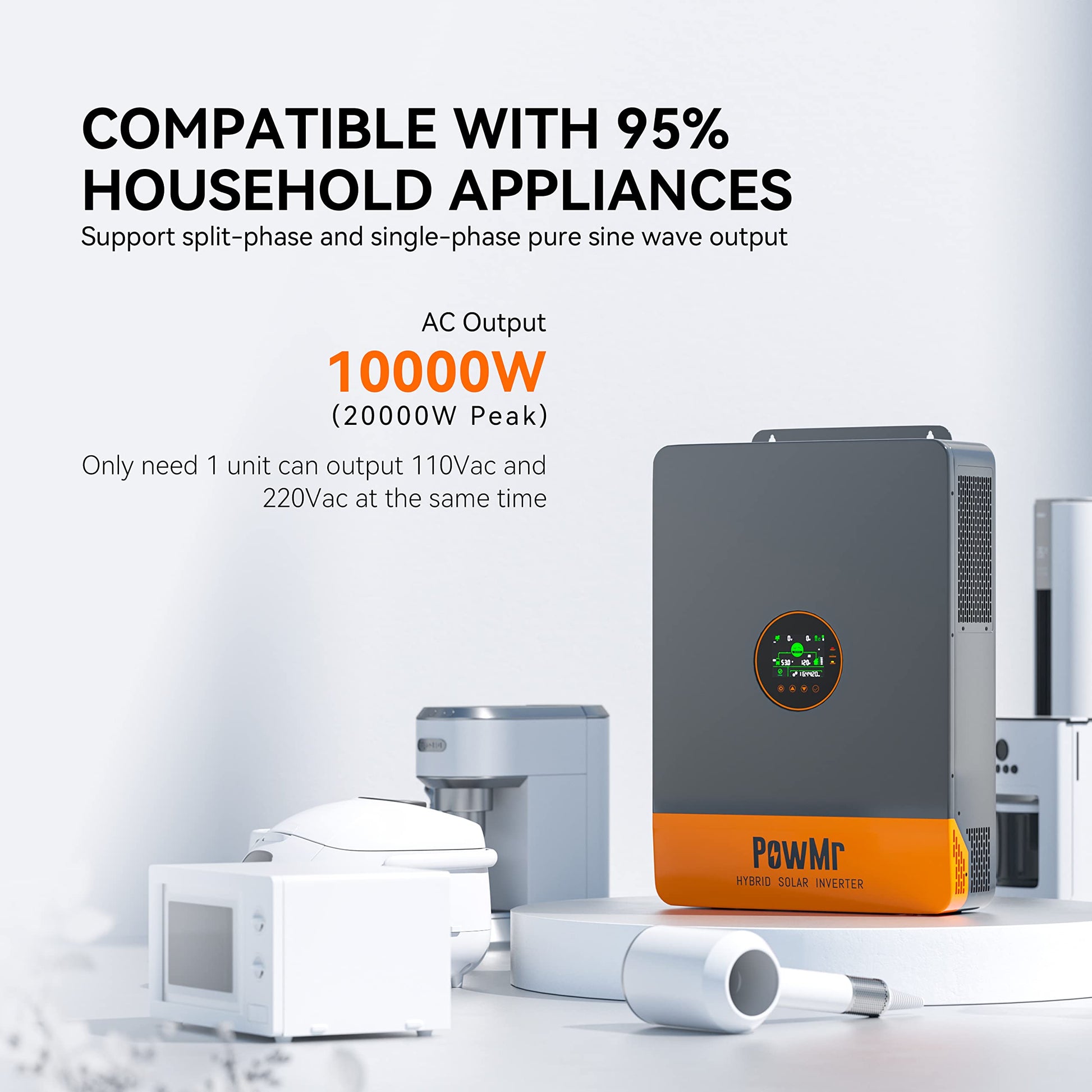

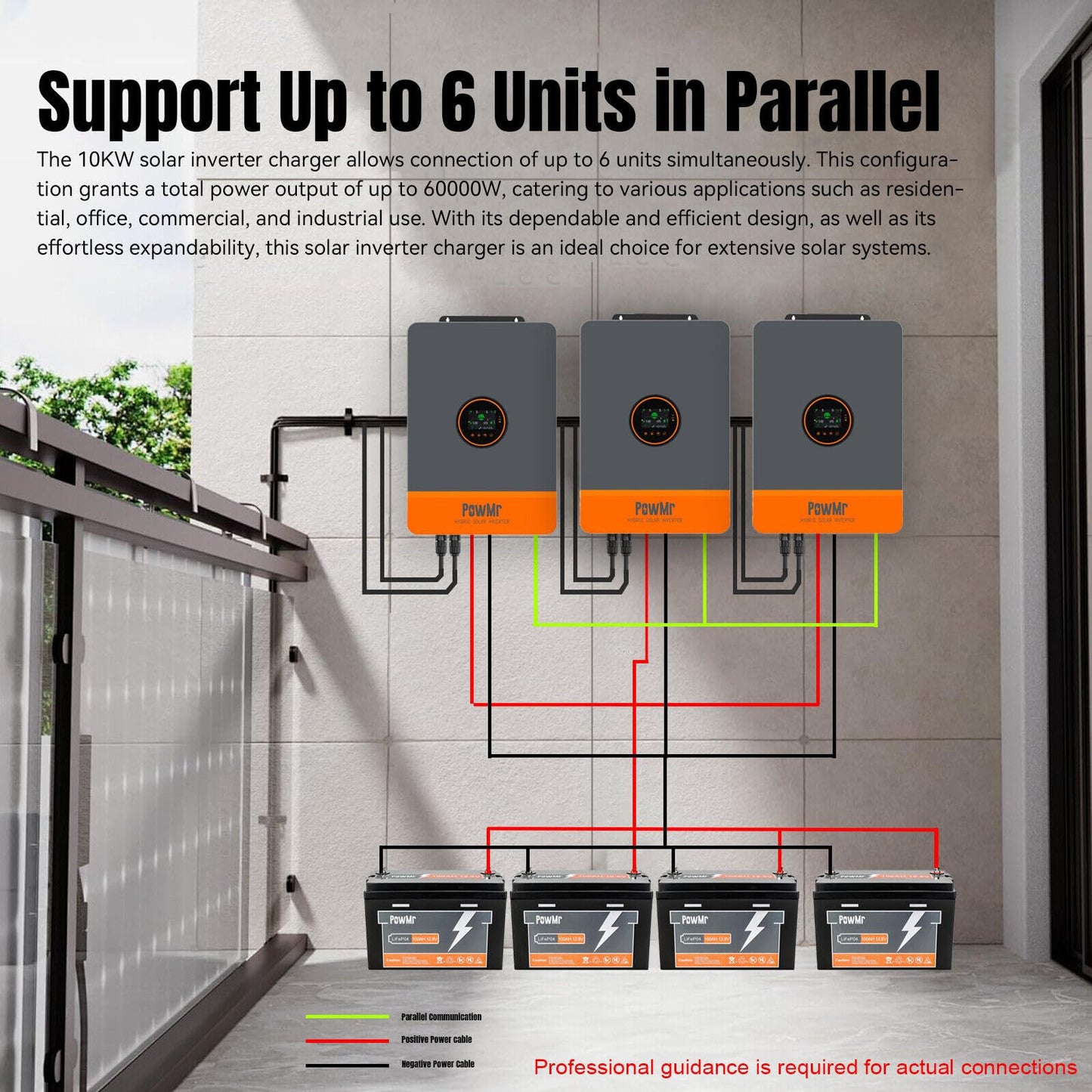

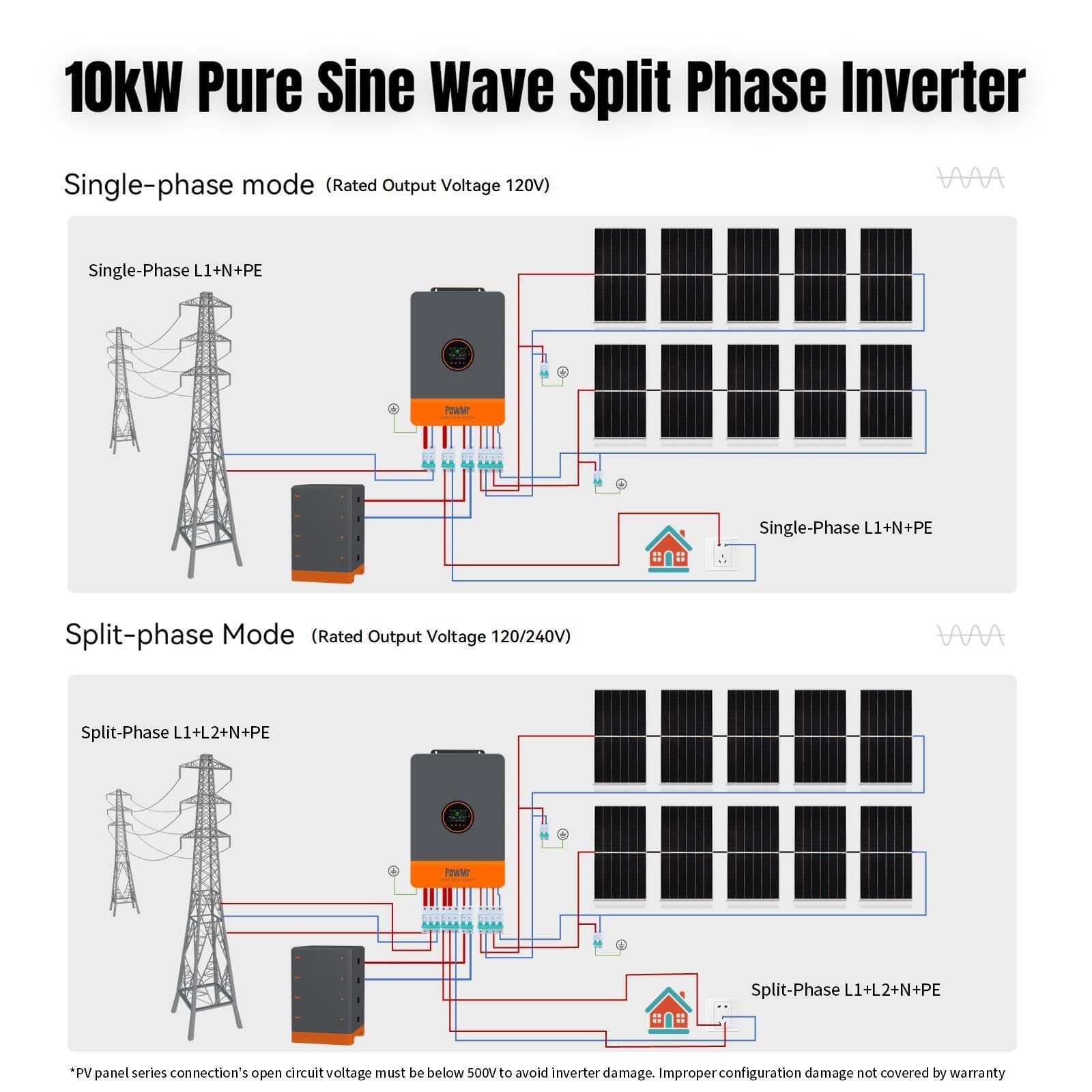

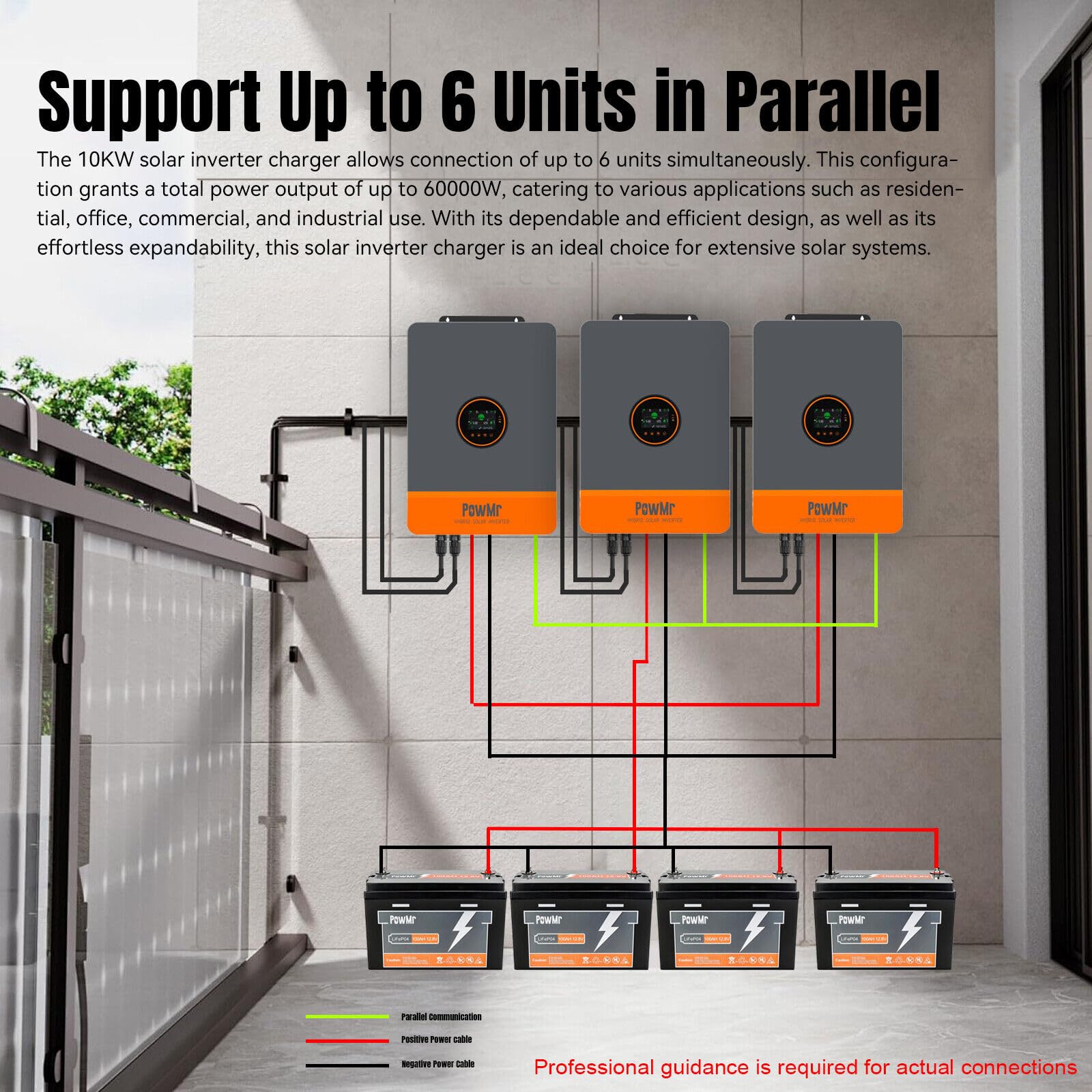

• 【UPGRADED NEW-PARALLEL VERSION】Powmr 48V split-phase solar inverter supports both split-phase and single-phase pure sine wave output. A single 10k inverter can output 120V and 240V simultaneously via separate connections. Upgraded to support parallel operation for expanding capacity up to 60kW, with a maximum of 6 inverters in parallel

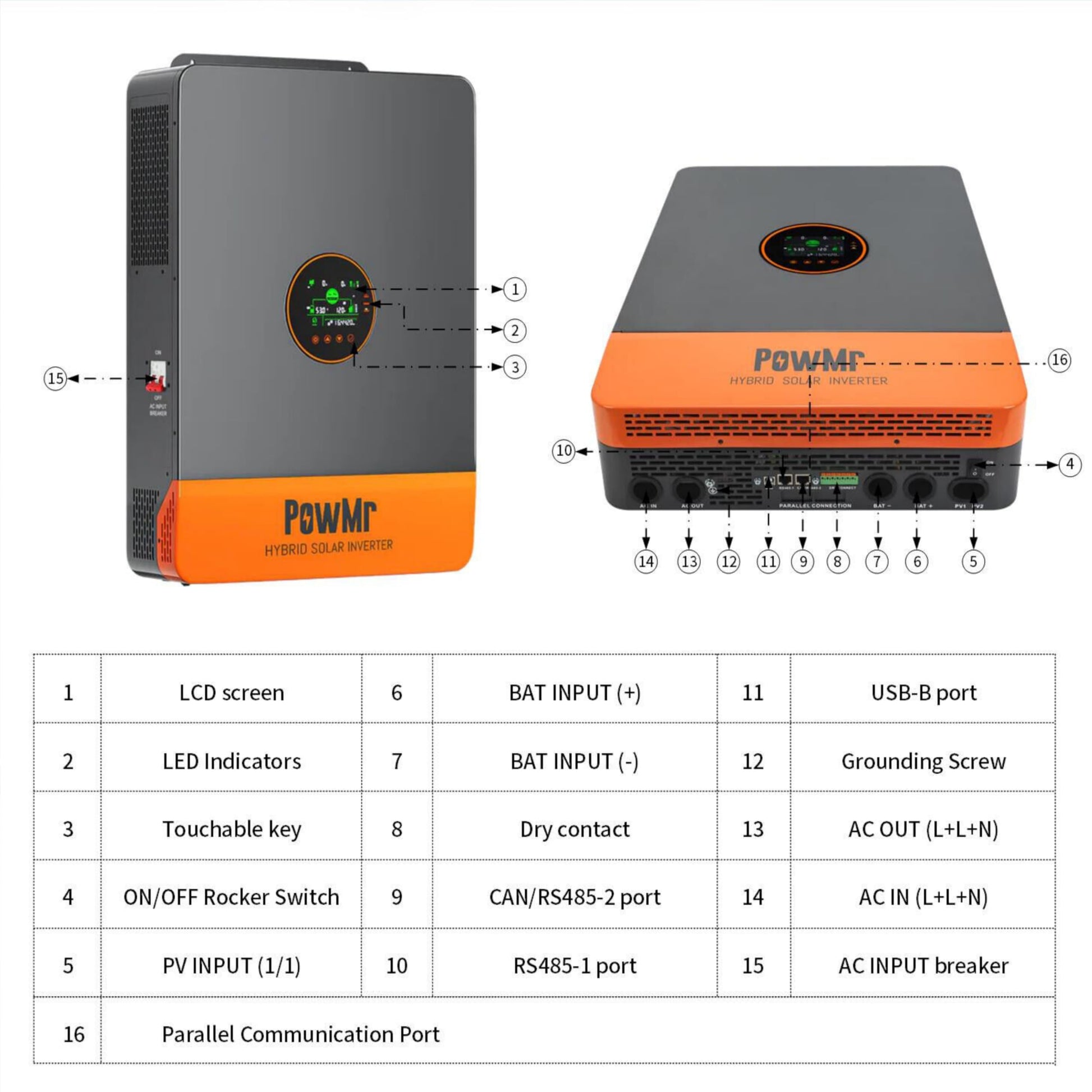

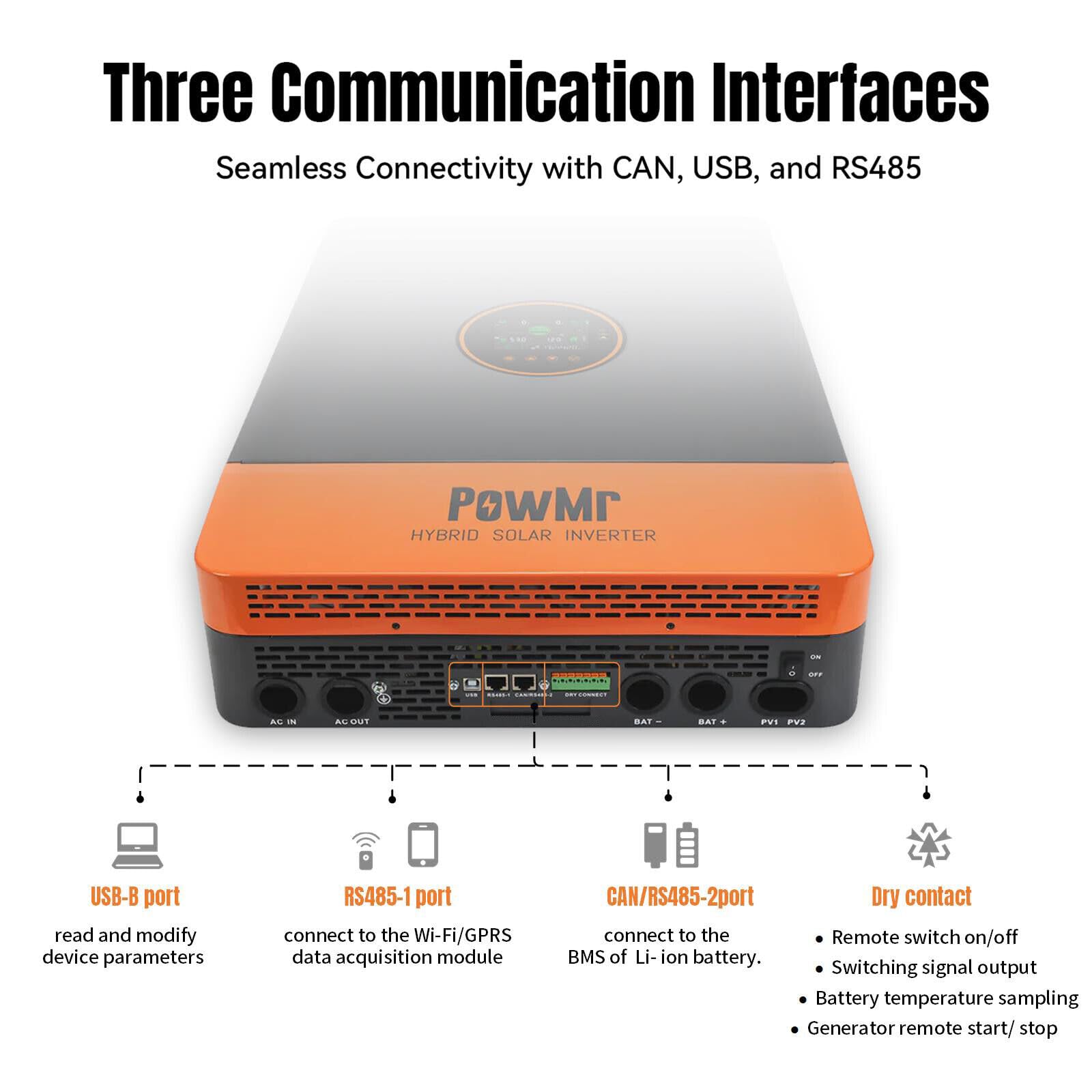

• 【TECHNICAL SPECIFICATIONS】Rated output :10000Watt continuous (with surge up to 20000W). Rated output voltage: 120/240Vac (split-phase/single-phase). Maximum PV input power: 11KW (5500W per MPPT input). Maximum PV input: 500V DC and 22A. The PV starting voltage: ≥150V, and it uses 10AWG PV wire. Communication ports: CAN, USB, and RS485 interfaces
• 【DUAL 100A MPPT CONTROLLER BUILT-IN】Features dual 100A MPPT controller with 99.9% efficiency and up to 22A current per circuit, ideal for high-power modules. Enables connection of two solar inputs with simultaneous tracking for maximum power point. Supports both split-phase and single-phase pure sine wave output configurations
• 【FOUR AC OUTPUT MODES and FOUR CHARGING MODES】The pure sine wave solar inverter offers a selection of four optional battery charging modes, including only solar, utility priority, solar priority, and utility & solar hybrid charging. Additionally, it provides four AC output working modes: PV priority, utility priority, inverter priority and solar&utility hybrid, catering to diverse application needs
• 【COMPATIBLE BATTERY TYPE】Rated battery input 48V, the inverter works with 48V lead-acid batteries, including Seal, AGM, Gel, and Flooded types, as well as lithium batteries. Meanwhile, this solar inverter support batteryless working

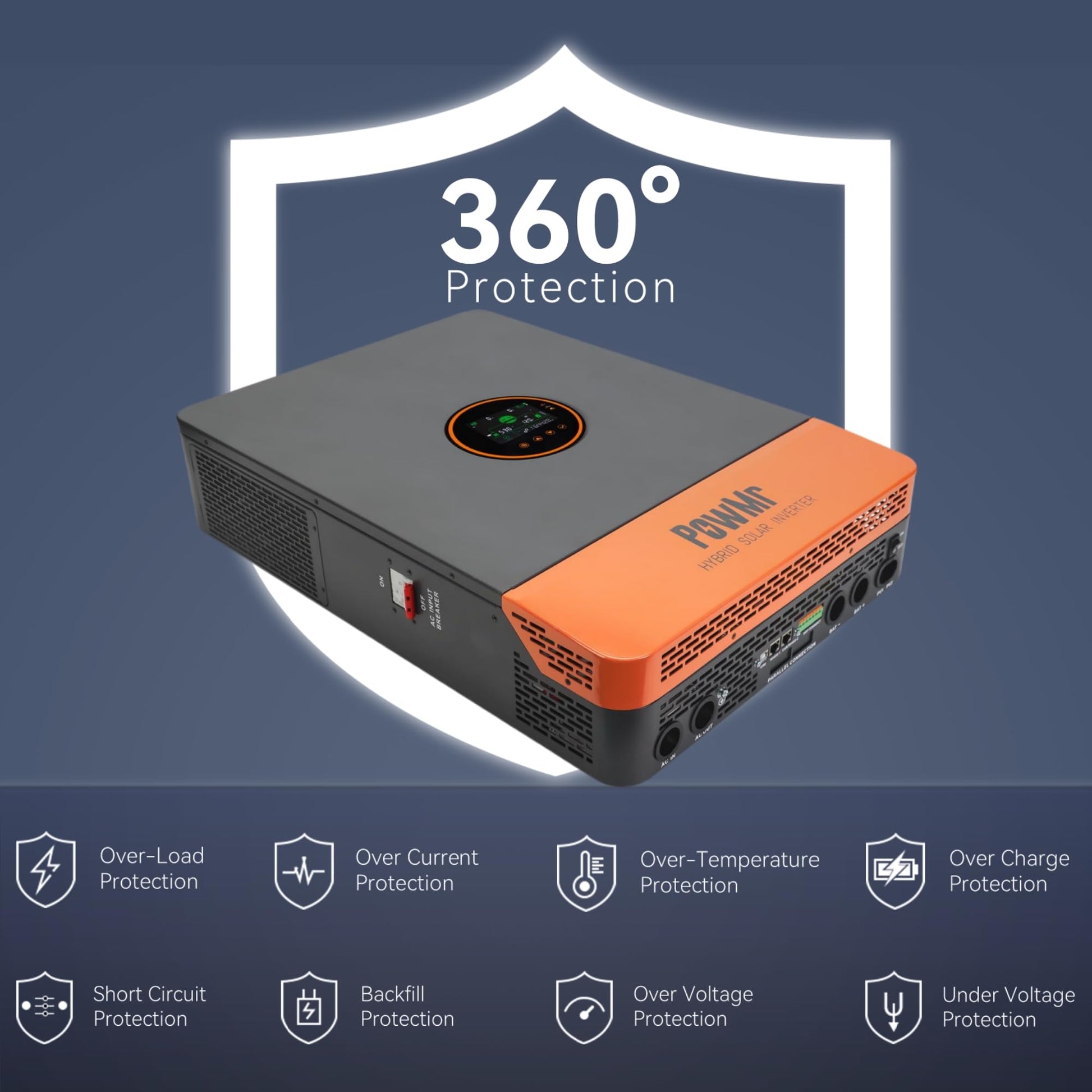

• 【FULL PROTECTION AND VERSATILE APPLICATIONS】The PowMr 10000W solar inverter offers extensive safeguards such as short circuit, over-current, over/under voltage, overload, and backfeed protection. It excels in off-grid backup and self-sufficiency applications, serving well in residential home, cabins, campers, RVs, trailers, boats, and more

model number: POW-Sunsmart 10KP

Part Number: POW-Sunsmart 10KP

Package Dimensions: 31.0 x 22.5 x 9.5 inches
