PROCET Gigabit PoE Injector 60W DIN Rail, 6KV Surge Protection, -40℉ to 149℉ for eero PoE 6/7, UniFi U6 Pro, Sisco Access Point, PTZ AI Turret Camera, Digital Transportation, Information Kiosks

Brand: PROCET PoE System

Features:

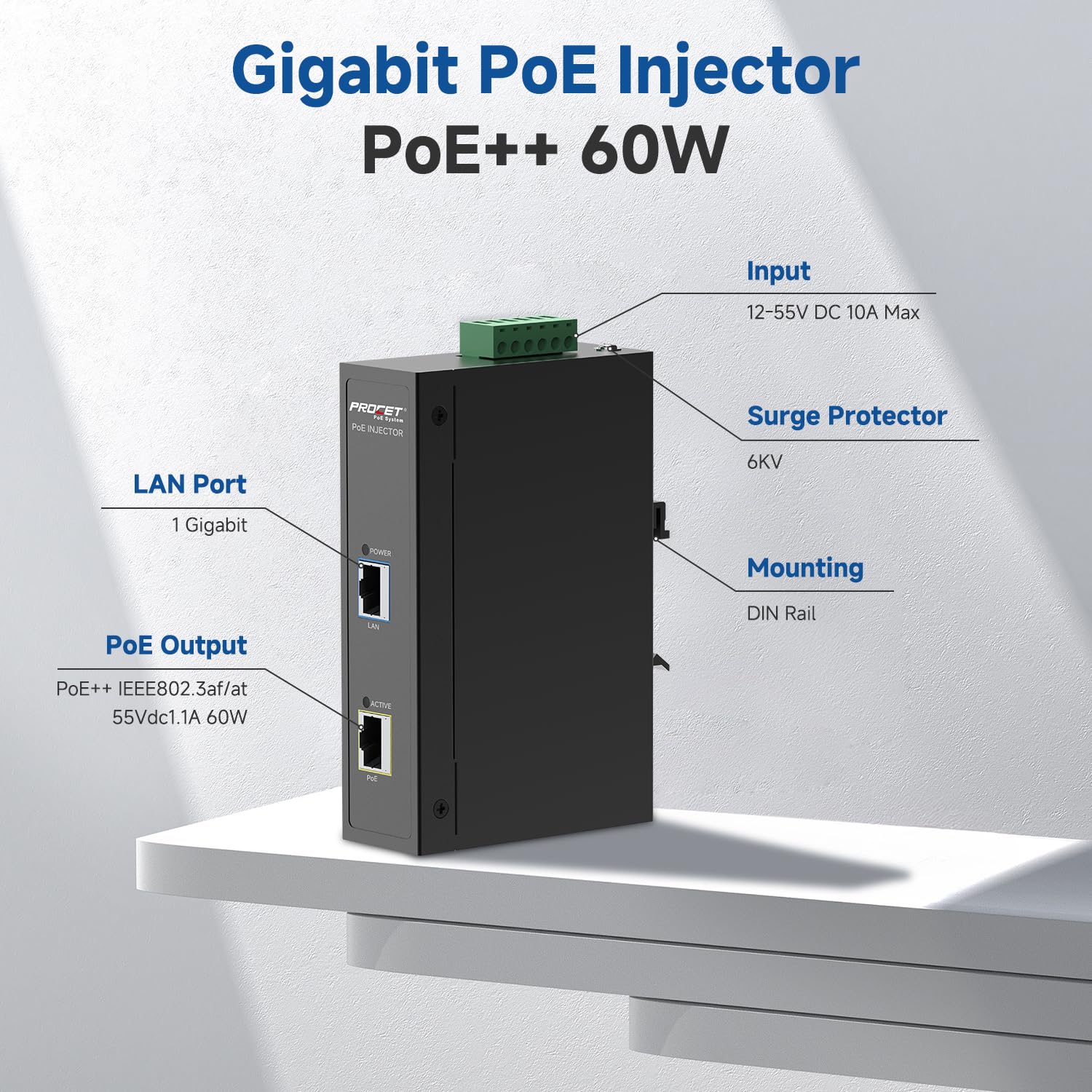

• 【Input】Wide voltage of 12 to 55 Volts DC input and solar powered input support due to built-in voltage boosting.
• 【Output】Gigabit 10/100/1000Mbps; 55V DC 60W PoE++ power supply. IEEE802.3af/at compliant.
• 【PoE Surge Protection】PoE port 6KV surge protection.

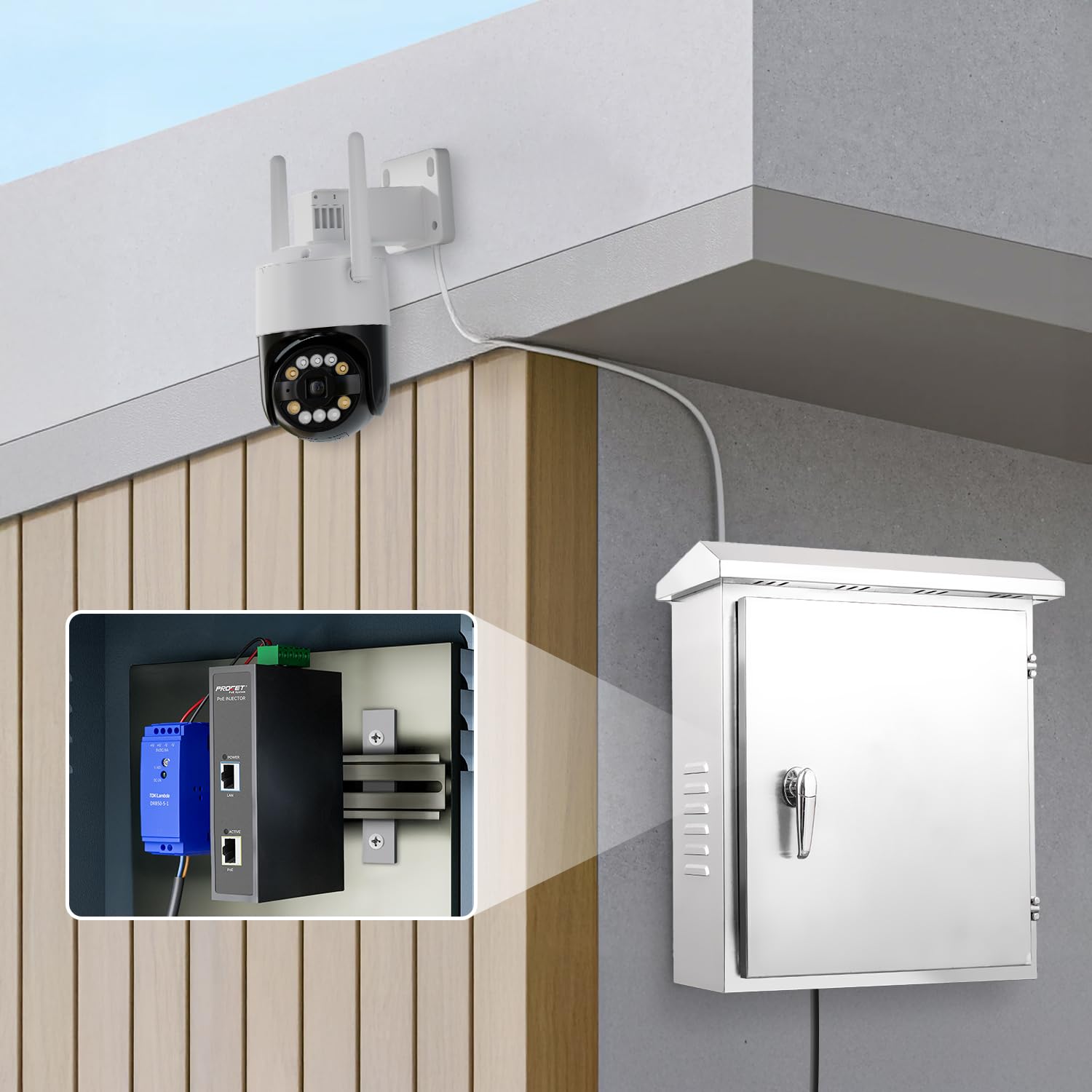

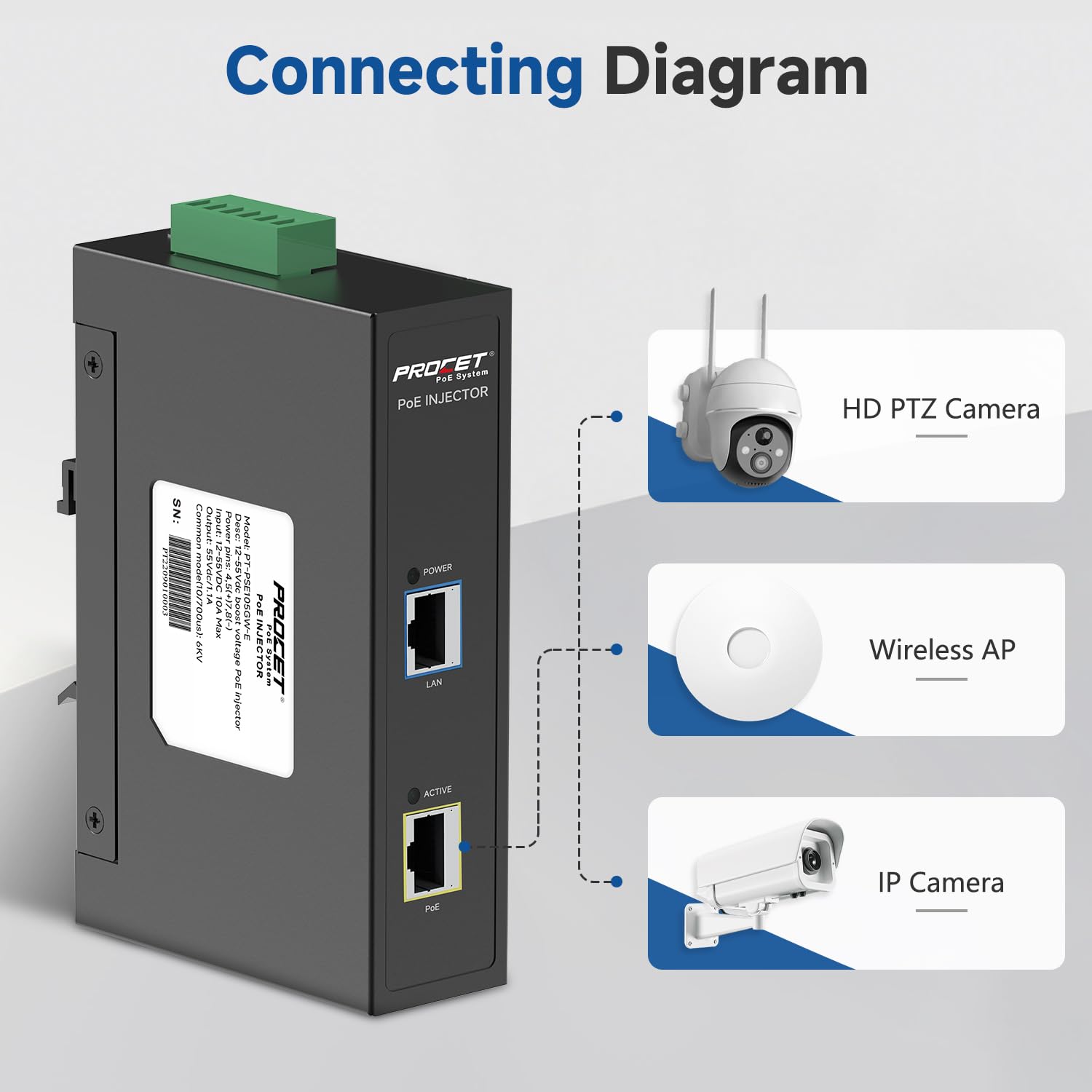

• 【PoE++ High Power】Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.

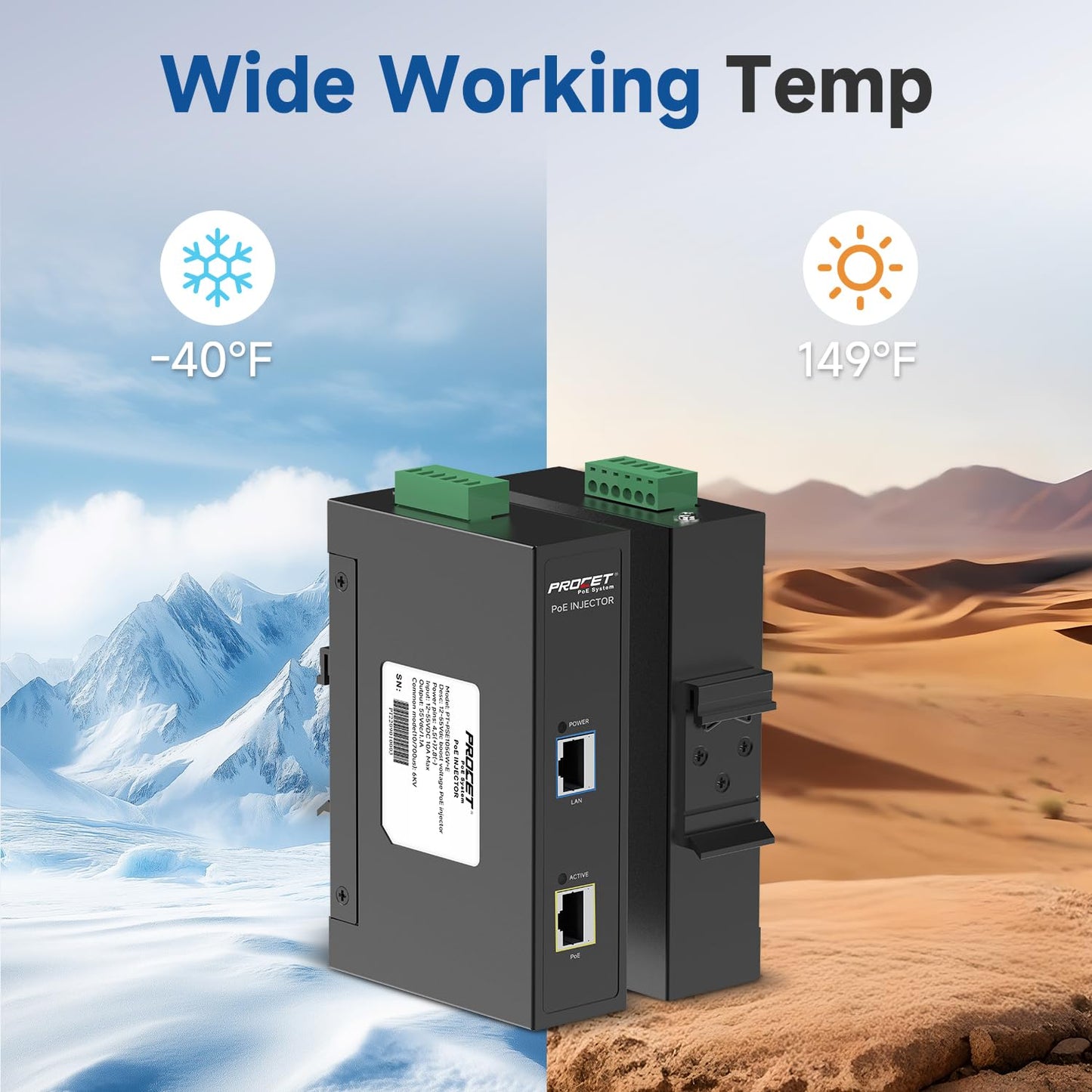

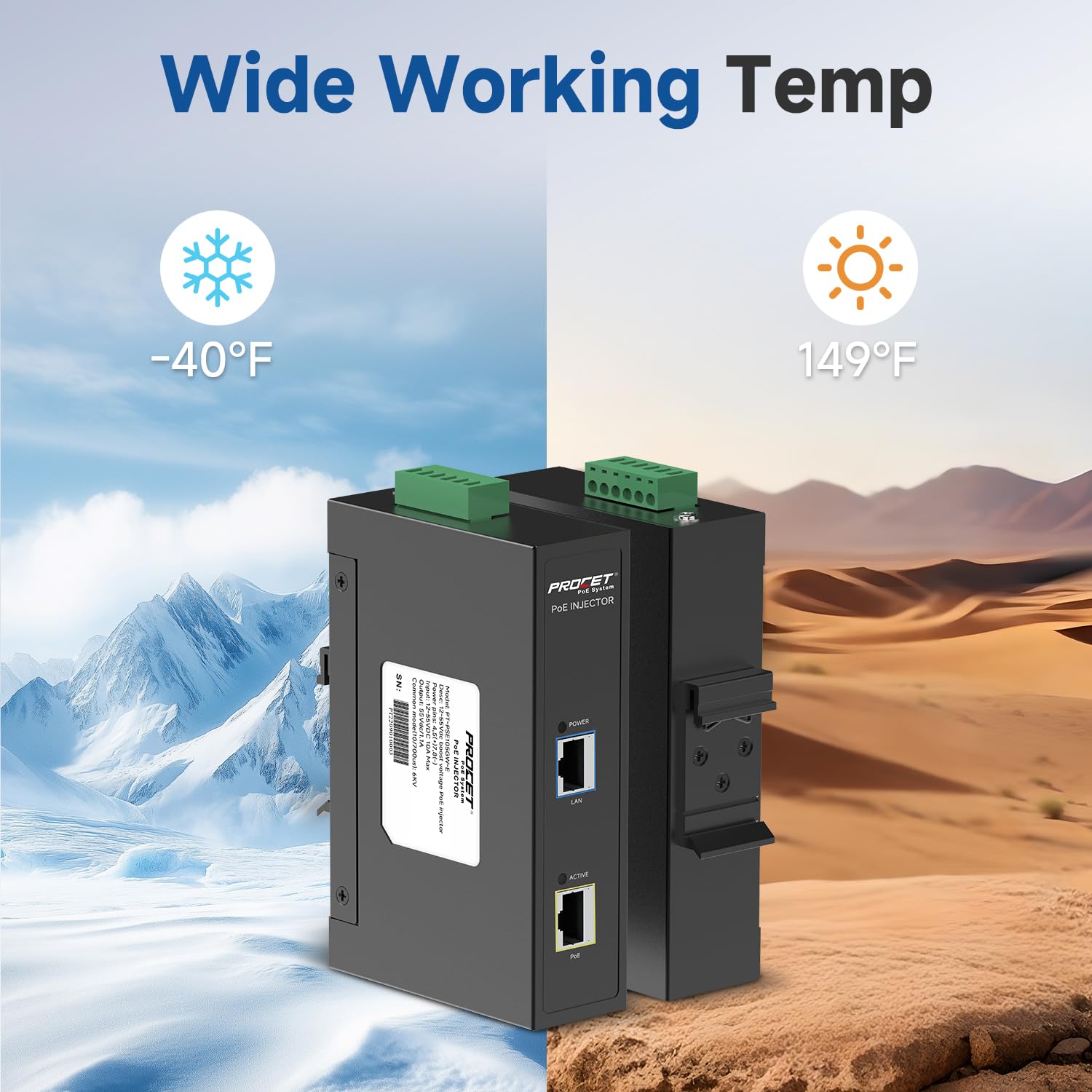

• 【Wide Working Temperature】Metal Constructive, and working temperature from -40℉ to 149℉.
• 【Model】PT-PSE105GW-E

model number: PT-PSE105GW-E

Part Number: PT-PSE105GW-E

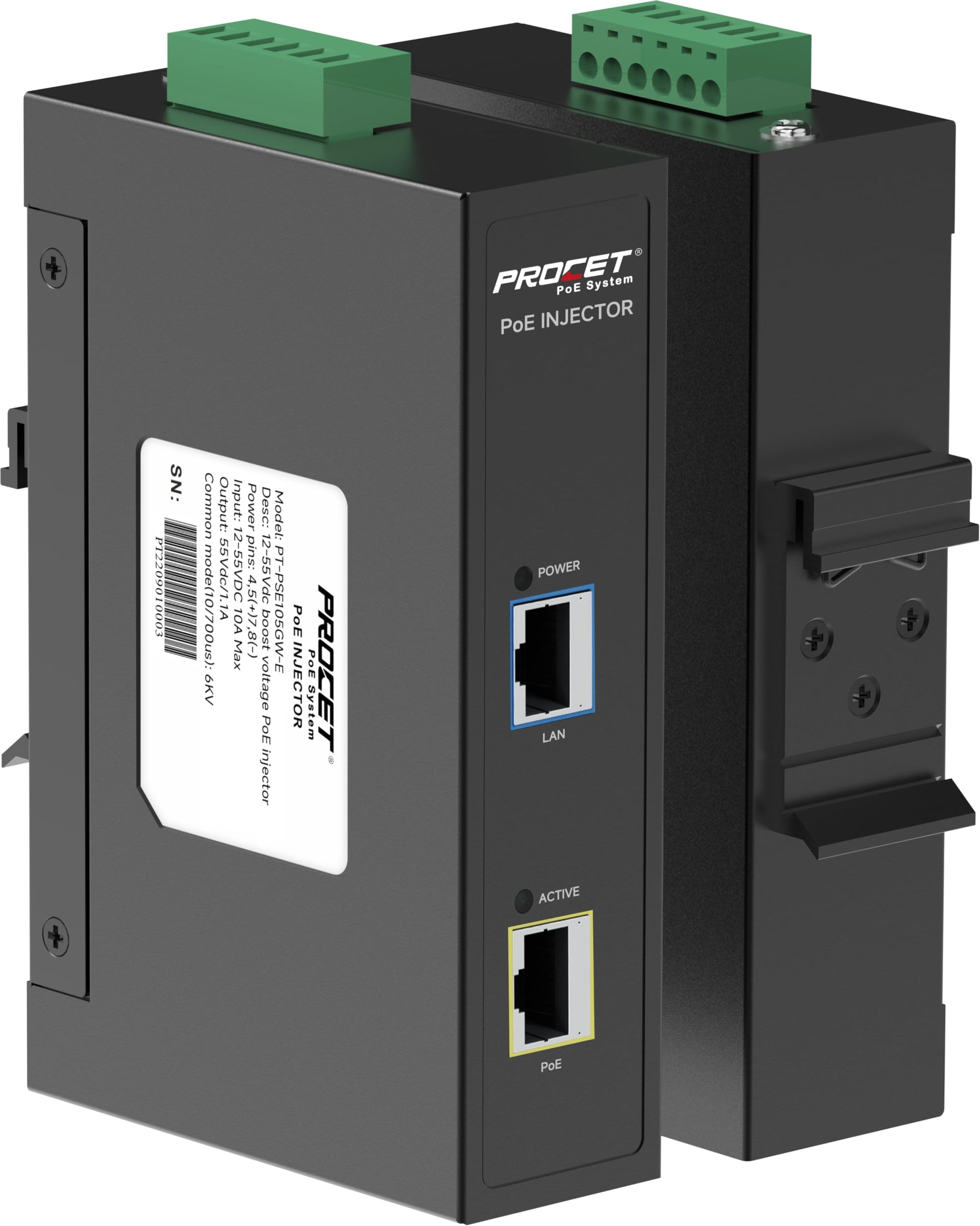

Details: PT-PSE105GW-E is a single-port, industrial-scale boost high power PoE injector. It provides 55Vdc, 1.1A power for remote PDs over full 4 pairs output with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of data speed.It works for 60W PoE PDs, such as wireless access points, network cameras, base station, Microwave radio and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at, PoE++ compliant terminals.

PT-PSE105GW-E is designed for indoor use. It works with input voltage of 12-48Vdc and operates under -40℃ to 65℃. It has detection chip inside,which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables. This model equiped standard DIN rail mounting bracket, which can easily jam into the guide rail.

- Input :12-48Vdc
- Output: 55Vdc 1100mA
- Power Pins: 4/5(+), 7/8(-)& 1/2(-),3/6(+)
- Data Speed: 10/100/1000Mbps
- IEEE802.3 10Base-T Ethernet
- IEEE802.3u 100Base-Tx Fast Ethernet
- IEEE802.3ab 1000Base-T Gigabit Ethernet
- Full compliant with IEEE802.3af/at,PoE++ standard
- RoHS Compliance
- WEEE Compliance
- Operating Temperature: -40℃ to 65℃
- Operating Humidity: 20% to 80%, non-condensation
- Storage Temperature: -40℃ to 85℃
- Storage Humidity: 10% to 90%, non-condensation
- Operating Altitude: up to 5000meters
- Case: Metal
- Color: Black

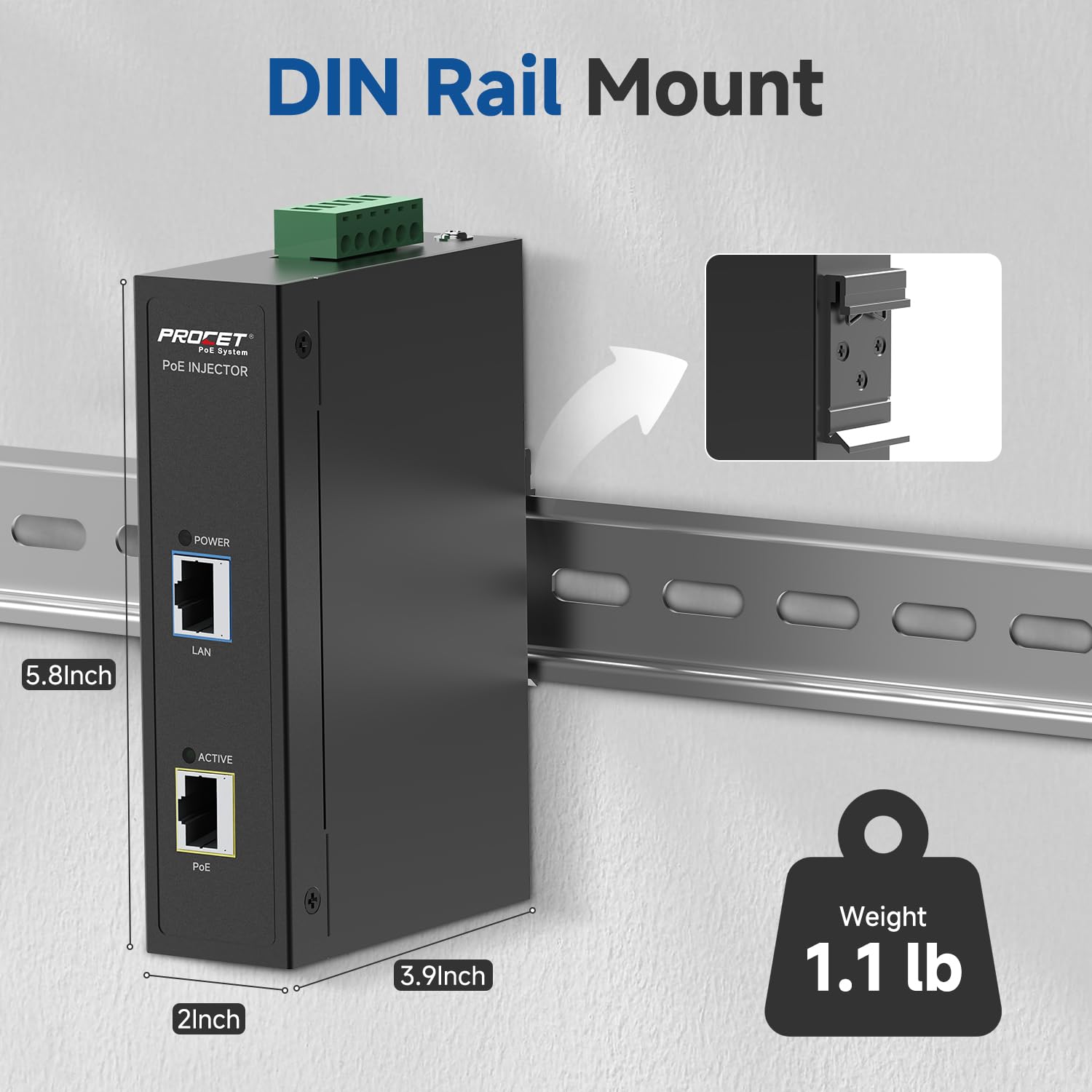

- Mounting: DIN Rail
- IP Rated: IP40
- Size: 115mm X 75mm X 32mm
- Weight: 400g
- Packing.：Manual x 1, Ground lug Wire: 16AWG
- Full details and data sheet at: http://www.poesystem.com/industrial-poe-injector/PT-PSE105GW-E-Industrial-PoE-Injector.html

EAN: 0765951316166

Package Dimensions: 6.5 x 5.6 x 2.1 inches
