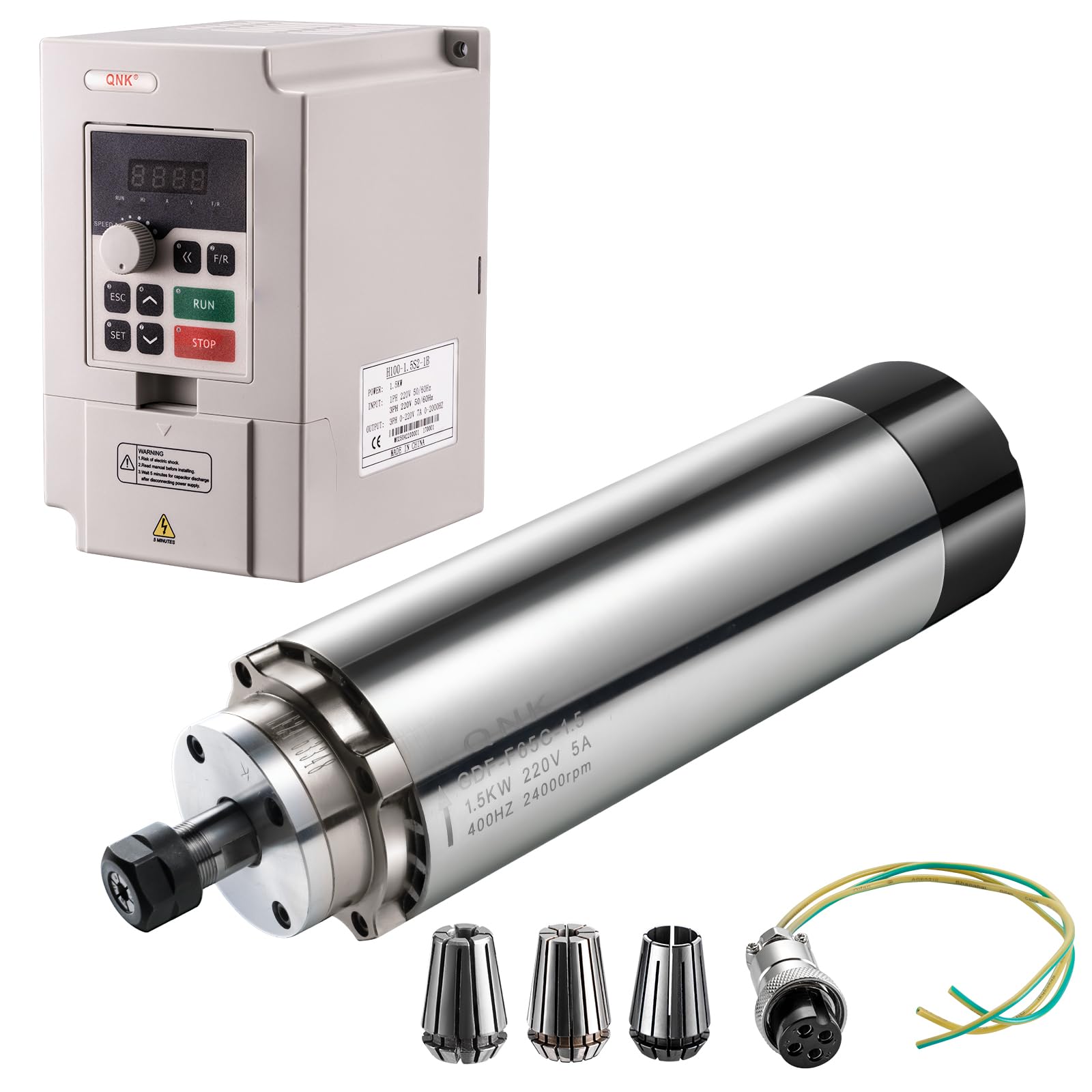

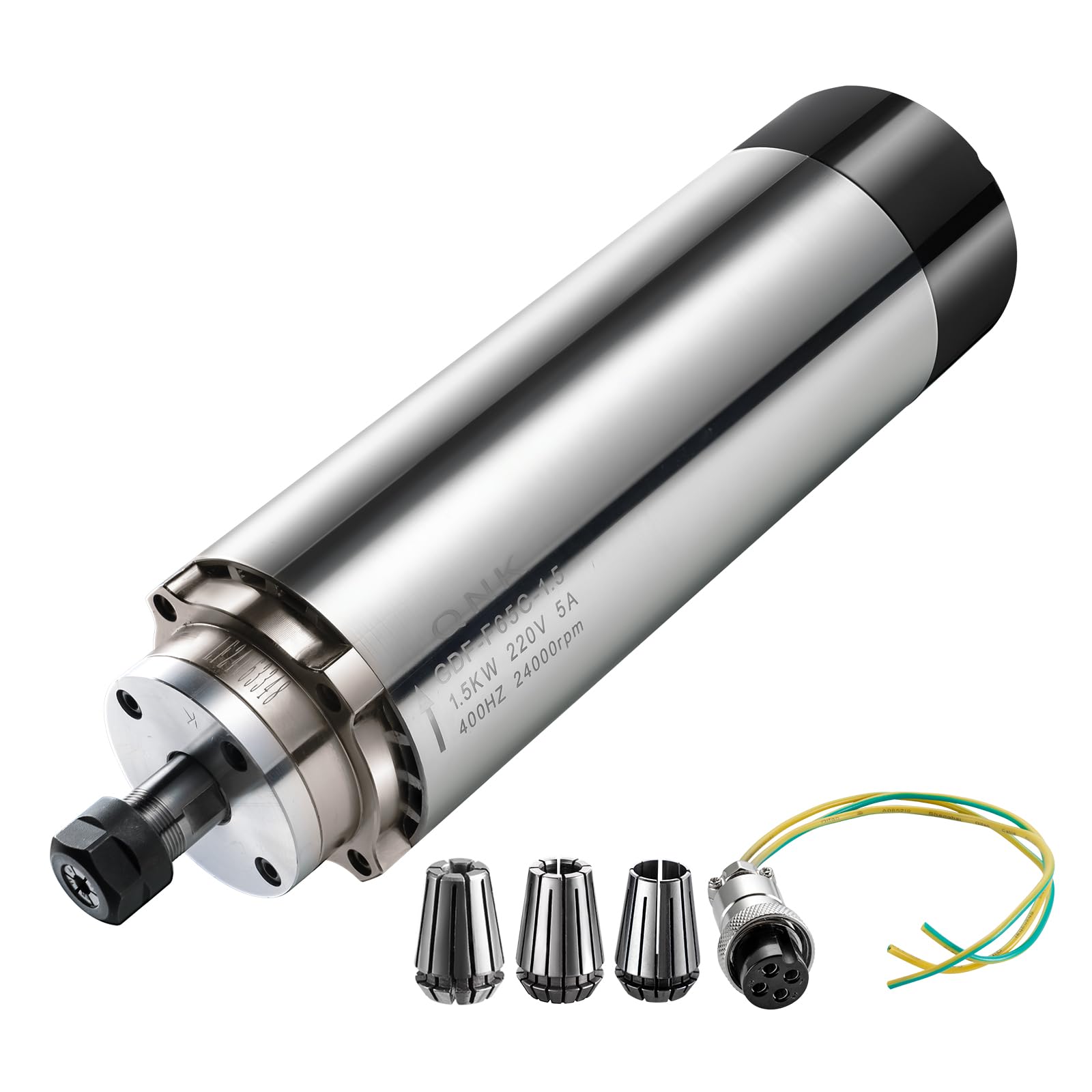

QNK CNC Spindle Motor Kits,220V 1.5KW CNC Spindle Air Cooled Spindle Motor+220V 1.5KW VFD Single to 3 Phase Inverter Variable Frequency Drive+ ER11 Collet Set

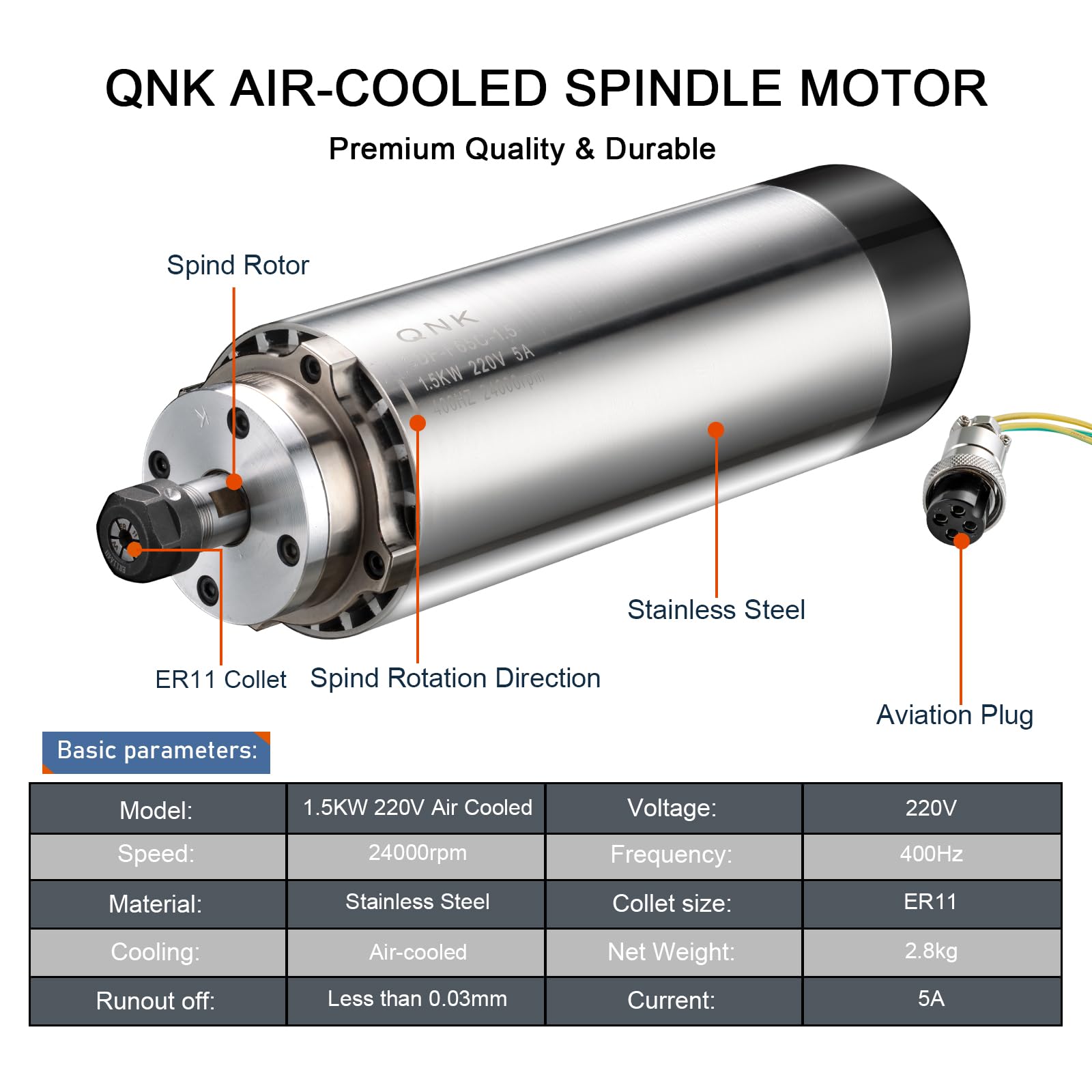

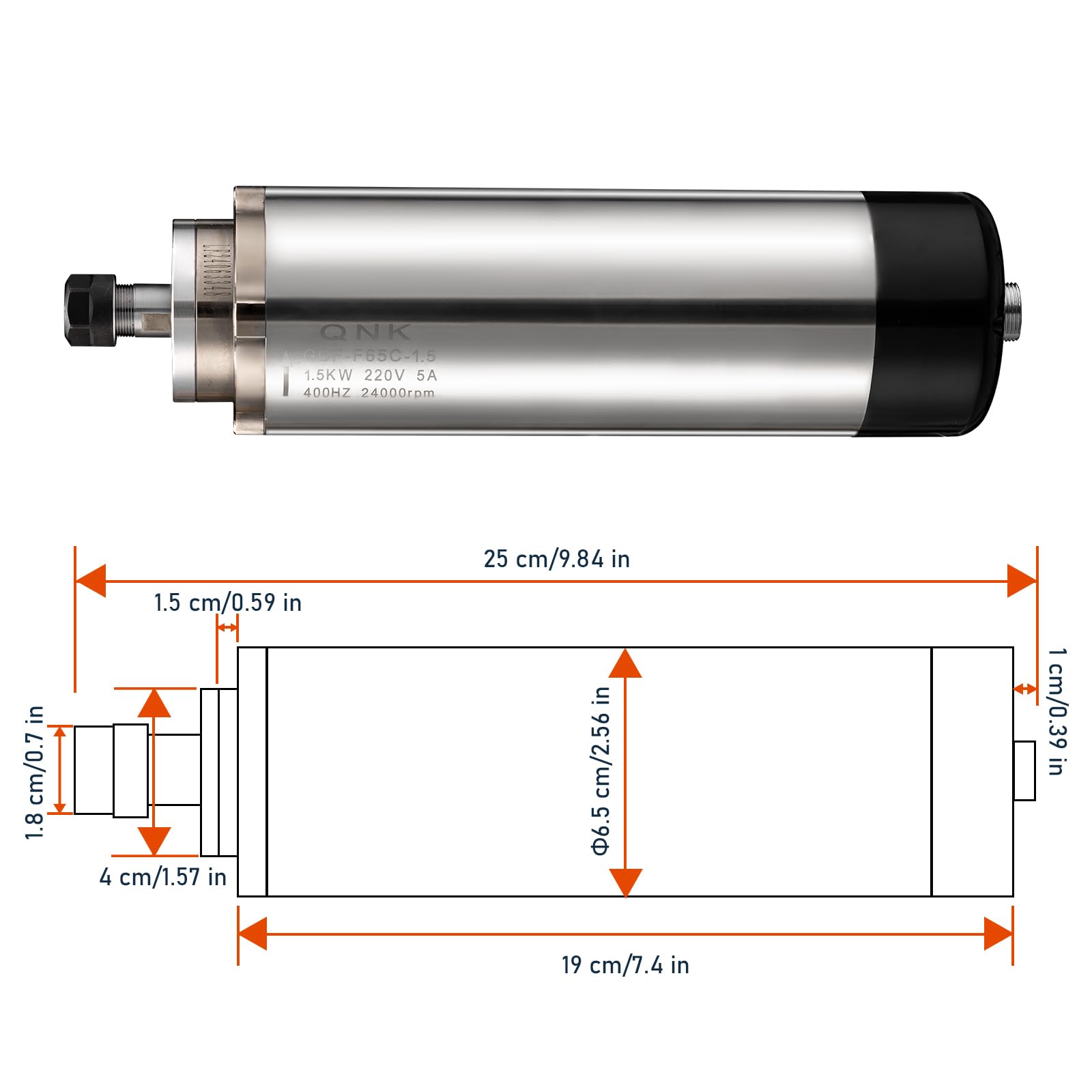

【Basic Parameters for CNC Spindle Motor】- Power: 1.5KW, Voltage: 220V, Current: 5A, Speed: 24000RPM, Frequency: 400HZ, Collet: ER11, Net Weight: 2.8KG, Runout off: less than 0.03mm,Diameter： Φ60mm.This spindle motor should be equipped with VFD 220V,400HZ

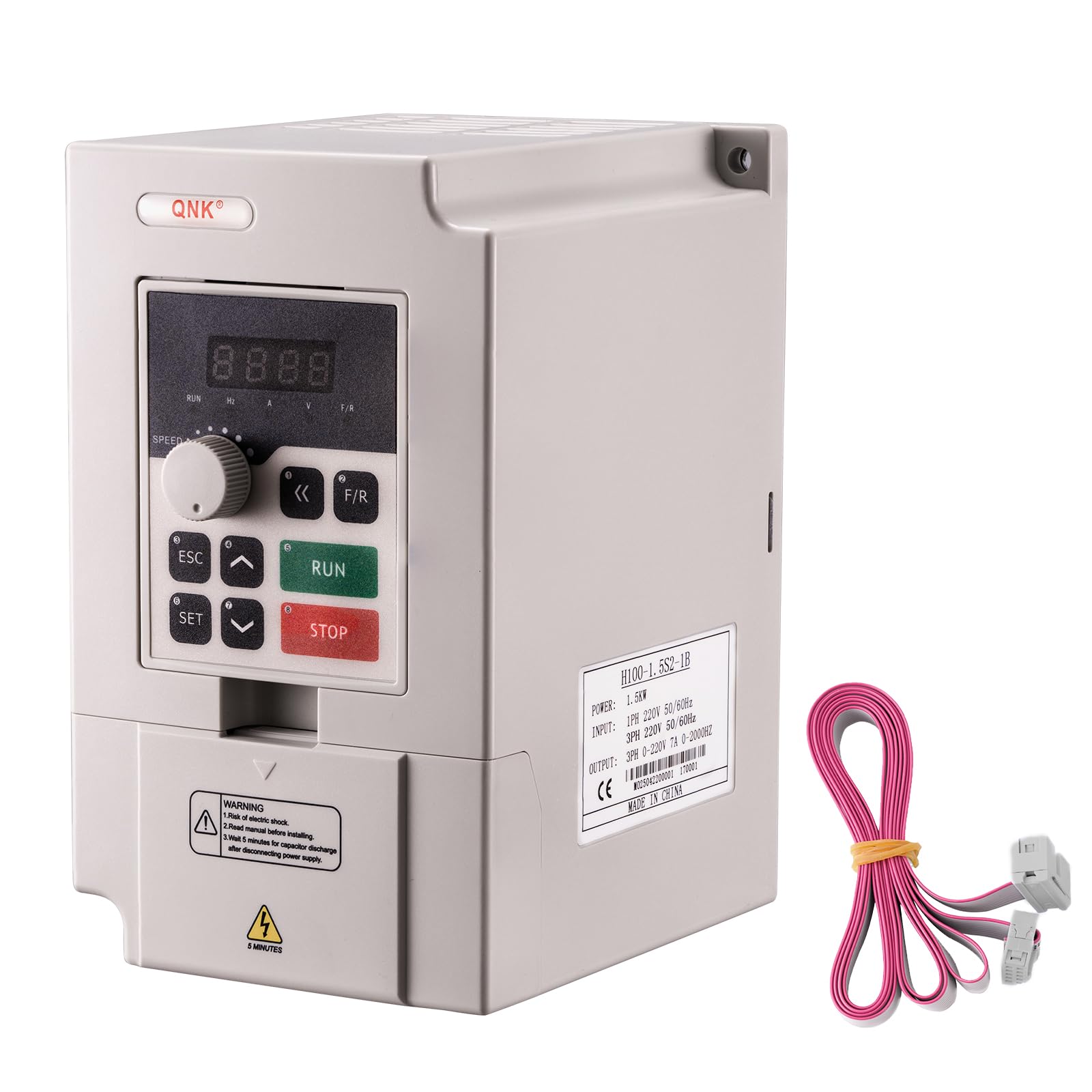

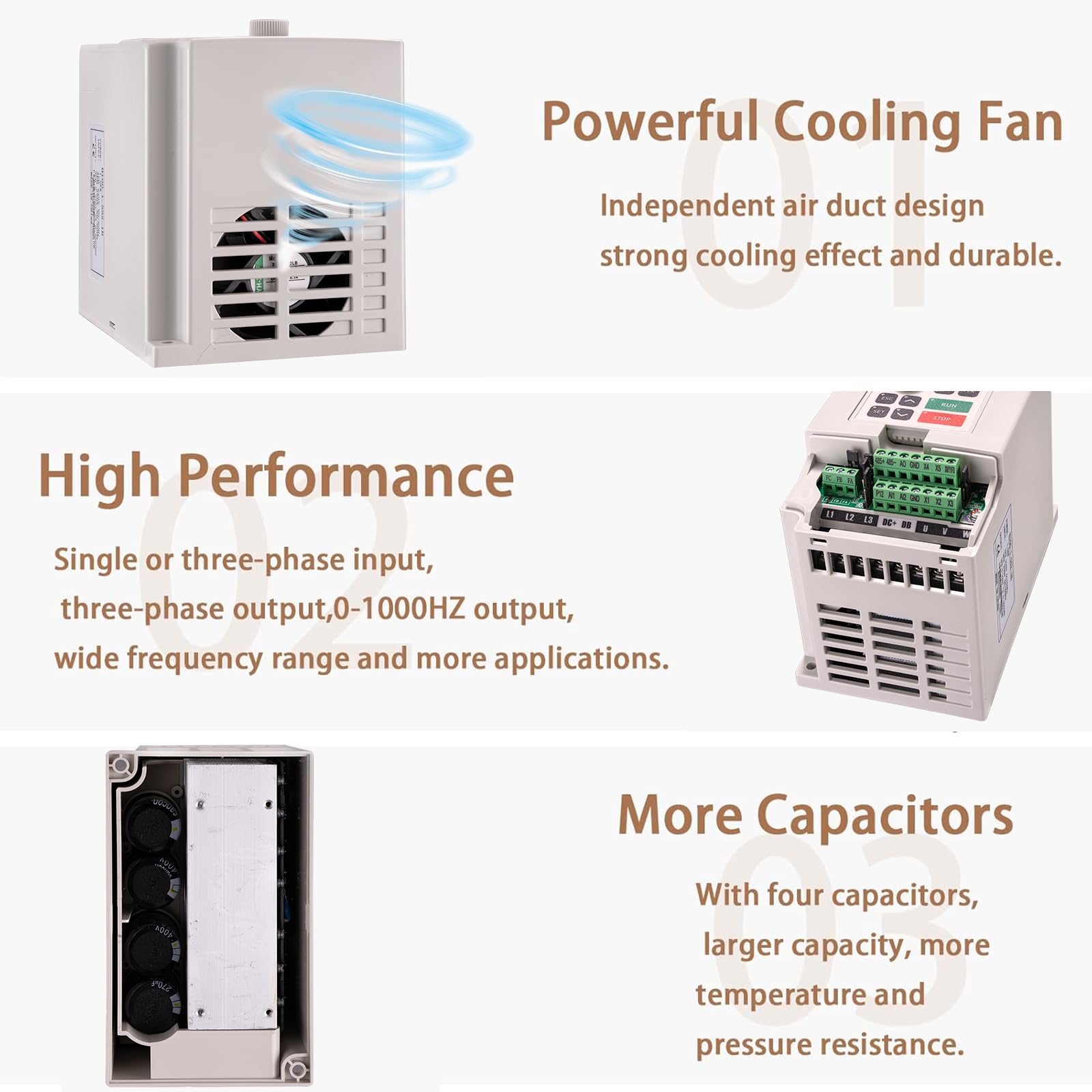

【1.5KW (2HP) Variable Frequency Drive】Input: 1-phase/3-phase 220 VAC (+/- 15%), 0-7 A, and 50/60 Hz. Output: 3-phase 220 VAC, 0-7A, and 0-1,000 Hz.
【Primary Application】- This spindle motor is usually used with VFD InverterTypes of Drilling and Engraving Materials: such as plastics, soft aluminum,brass, acrylics, PVC, PCB, wood,plywood, nylon,ect; The VFD can be used in various types of equipment such as Spindle Motors, CNC Routers, Milling Machines, Pumps, Compressors, Grinders, among others
【How to Connect The Spindle Motor】The spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected with inverter's port U, V, W respectively. Number 4 is the ground wire, no wiring is required
