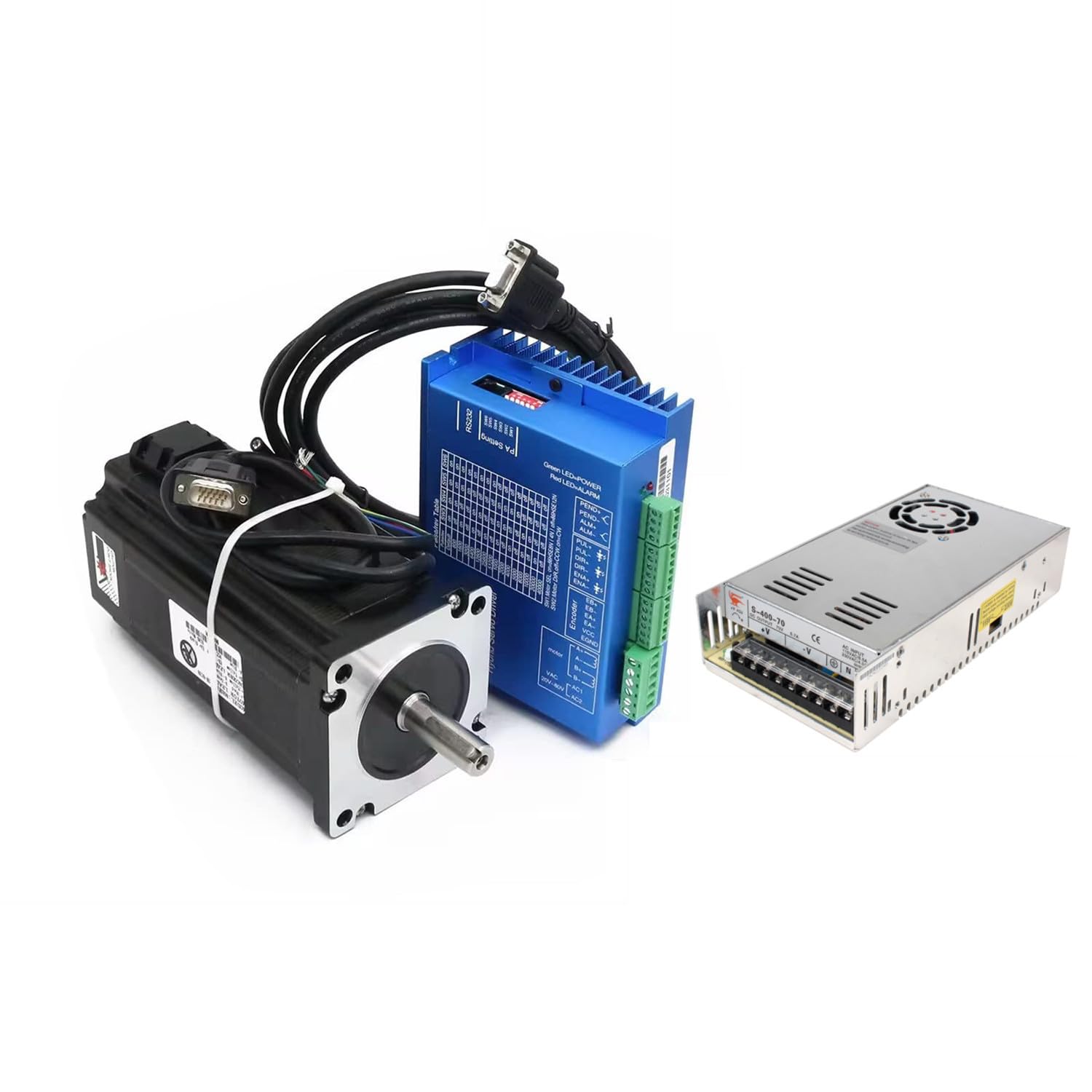

RATTMMOTOR 12N.m Closed Loop Servo Motor Nema34 CNC Kit with 70V DC Power Supply,12Nm 1700oz-in 86x86x156mm 6A+2HSS86 Hybrid 2-Phase Stepper Motor Servo Driver for CNC Router Engraving Milling Machine

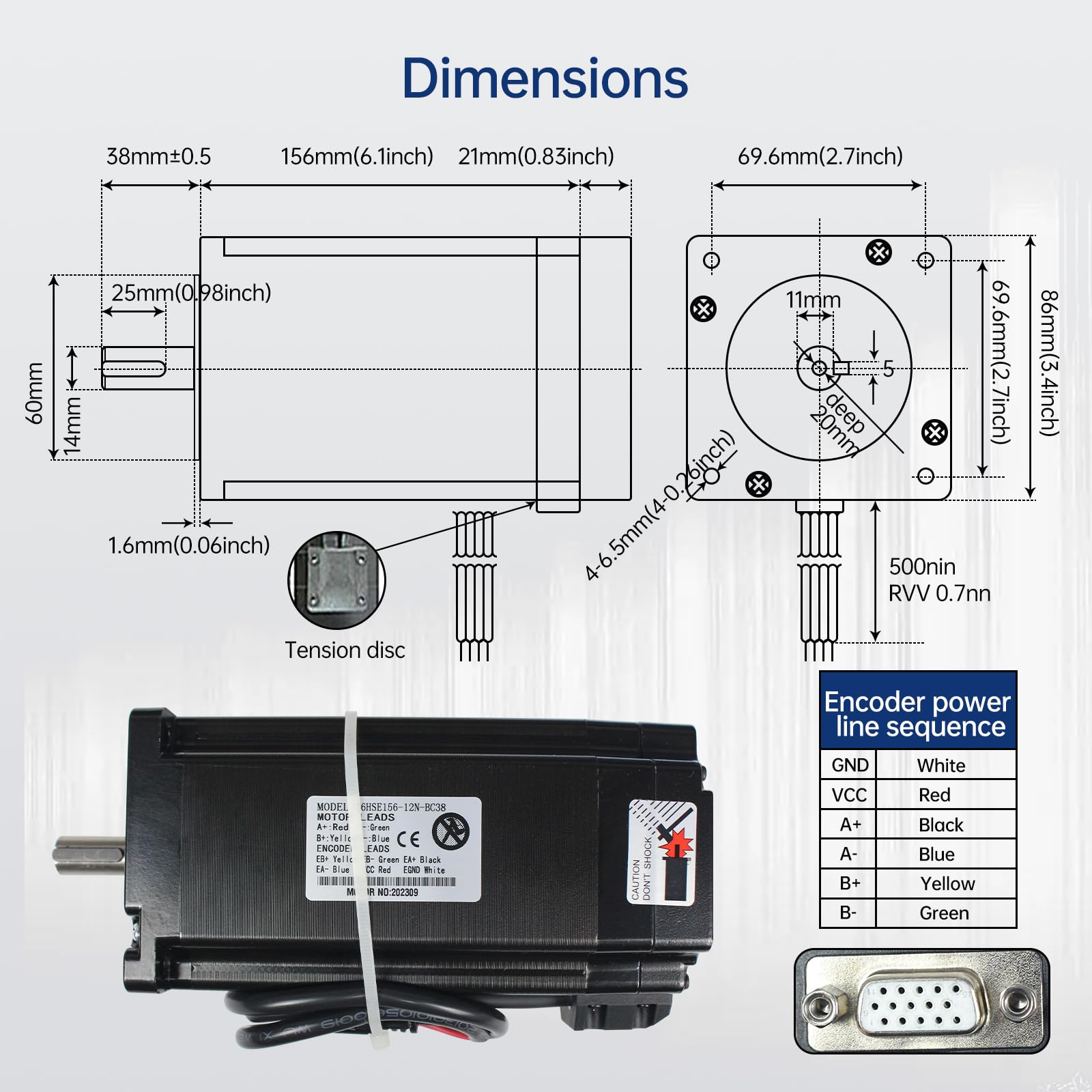

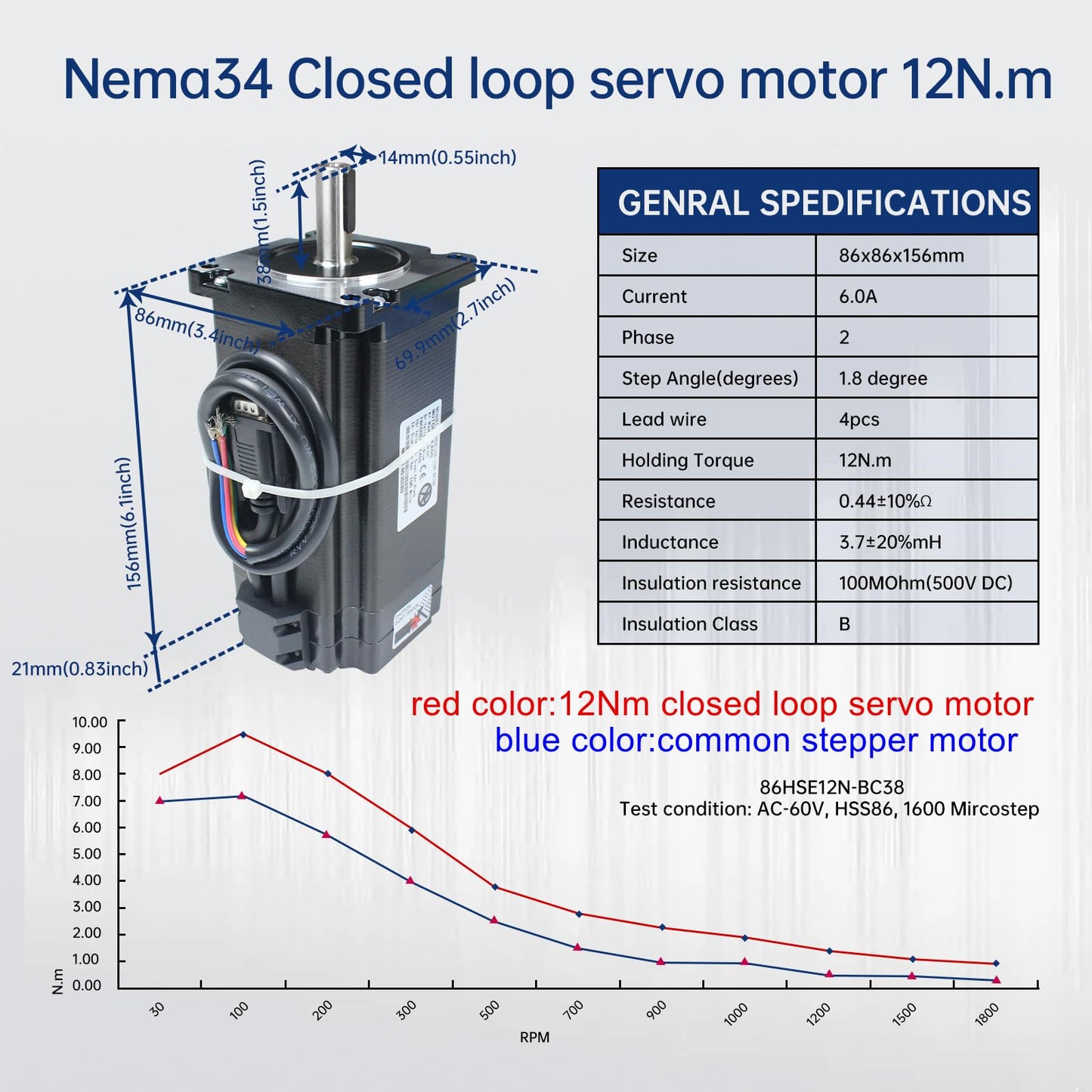

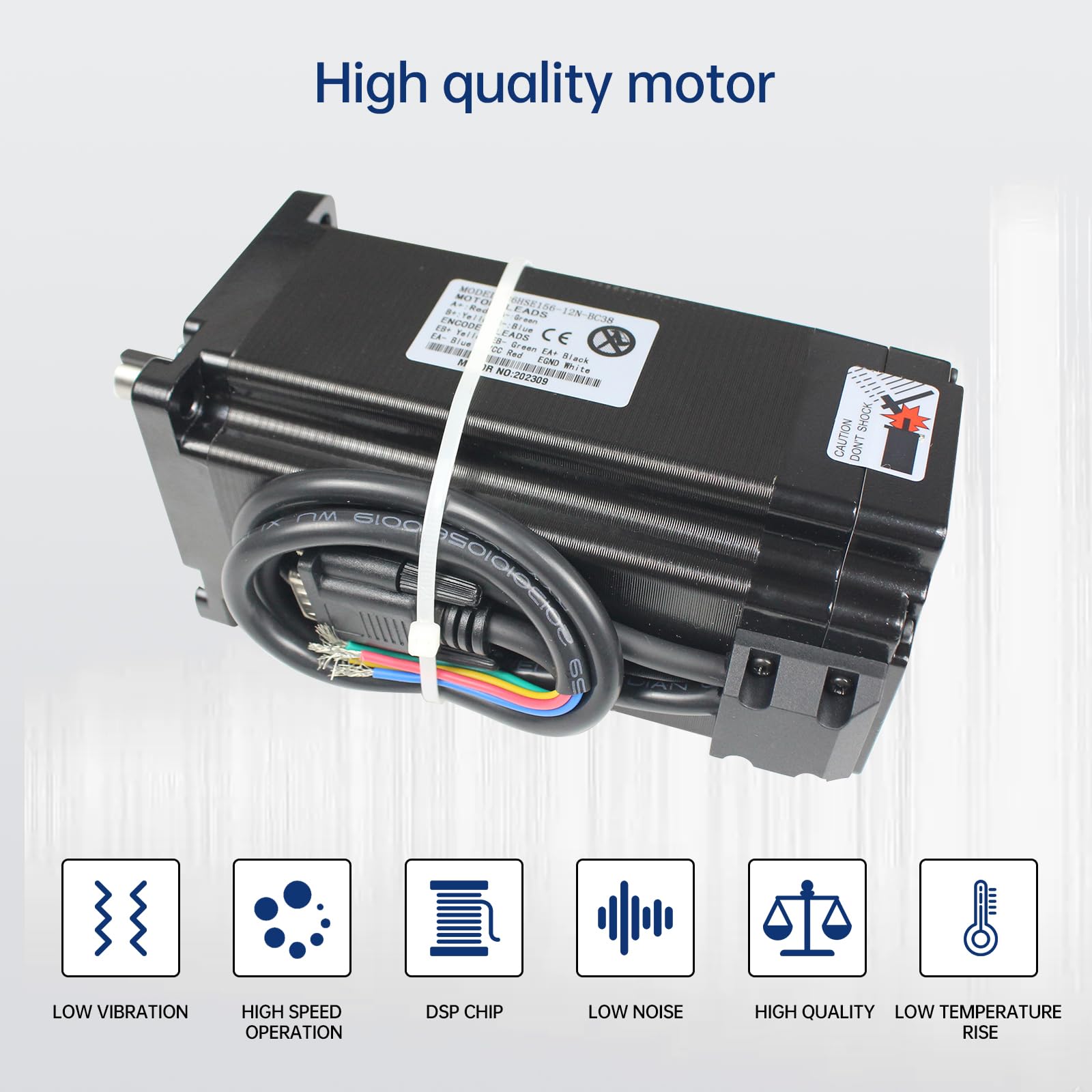

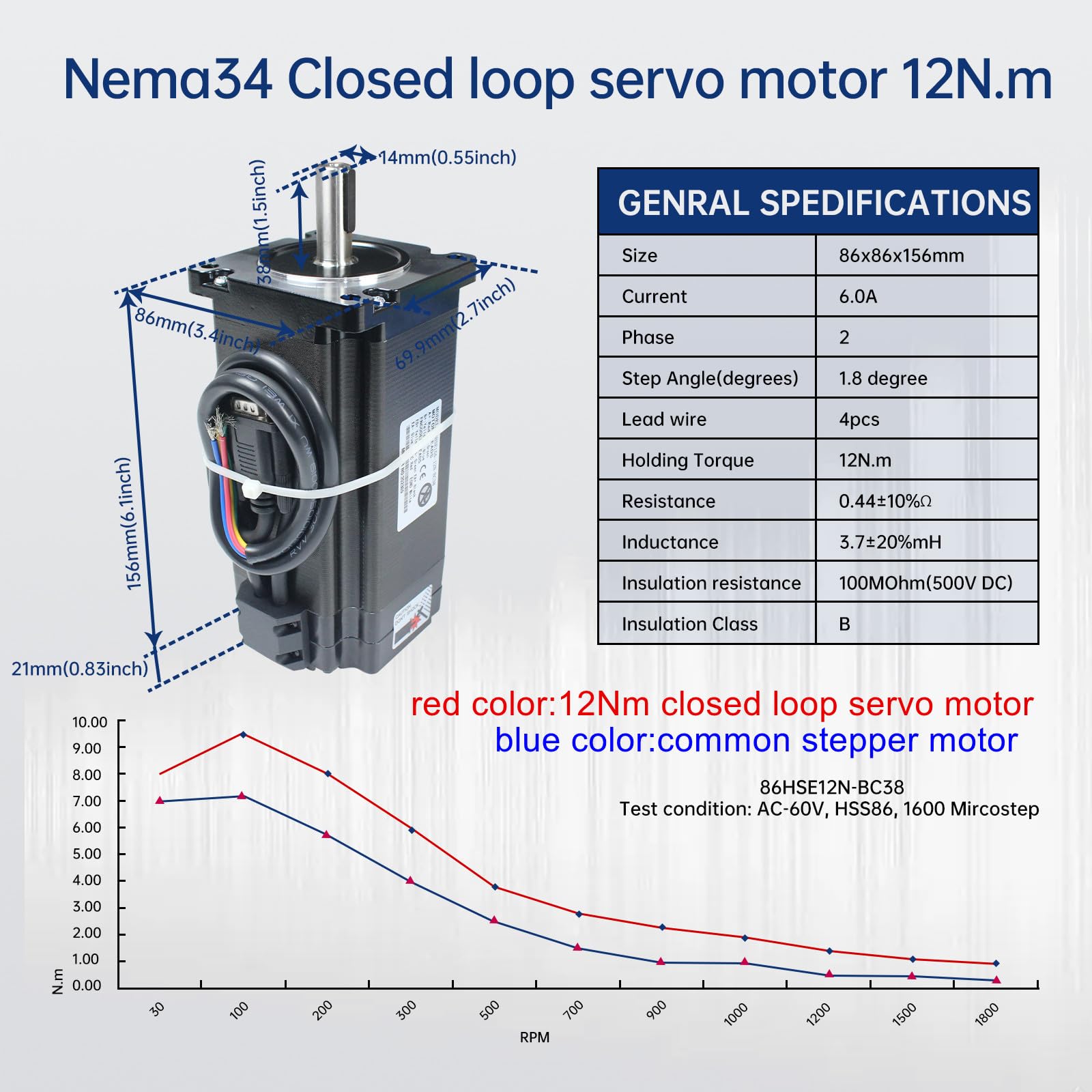

Specifications of Motor: Model is 86HSE156; Holding Torque:12N.m 1700oz-in; Rated Current:6A; Peak Current:8A; Phase:2-Phase; Size:86x86x156mm; Step Angle:1.8 degree; Motor Lead Wire: 4-Wires; Encoder lines:1000; Shaft diameter: 14mm

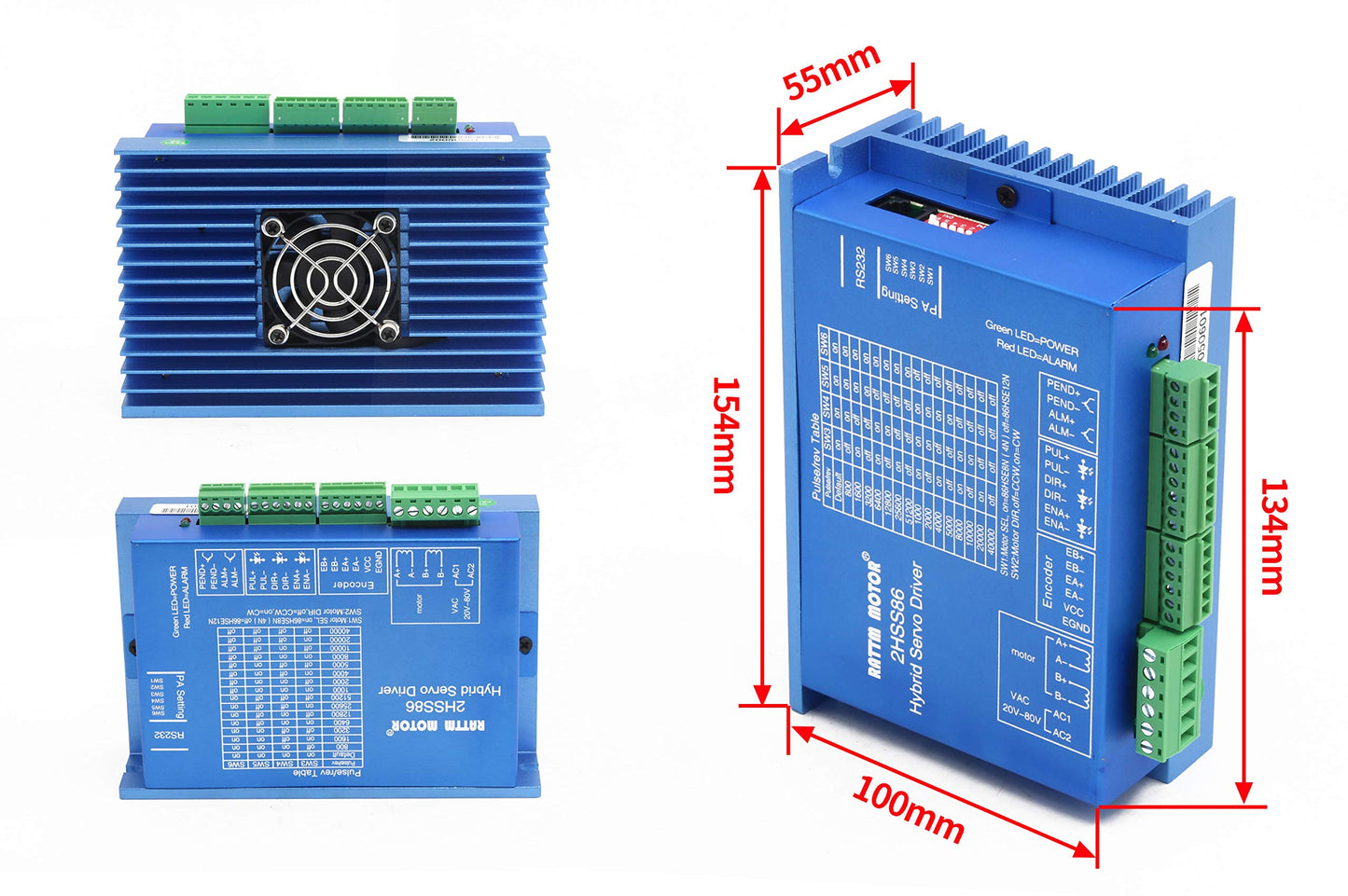

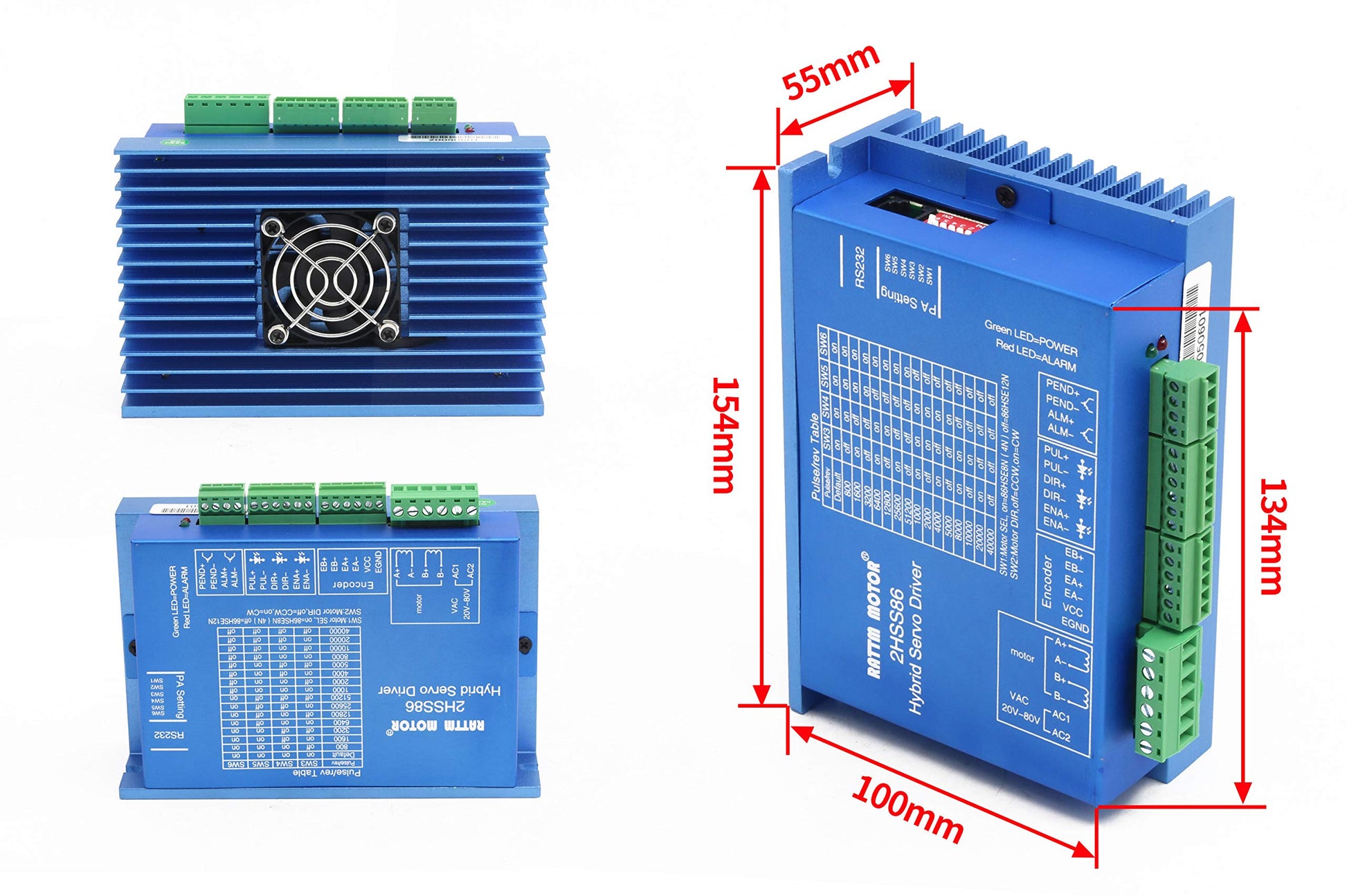

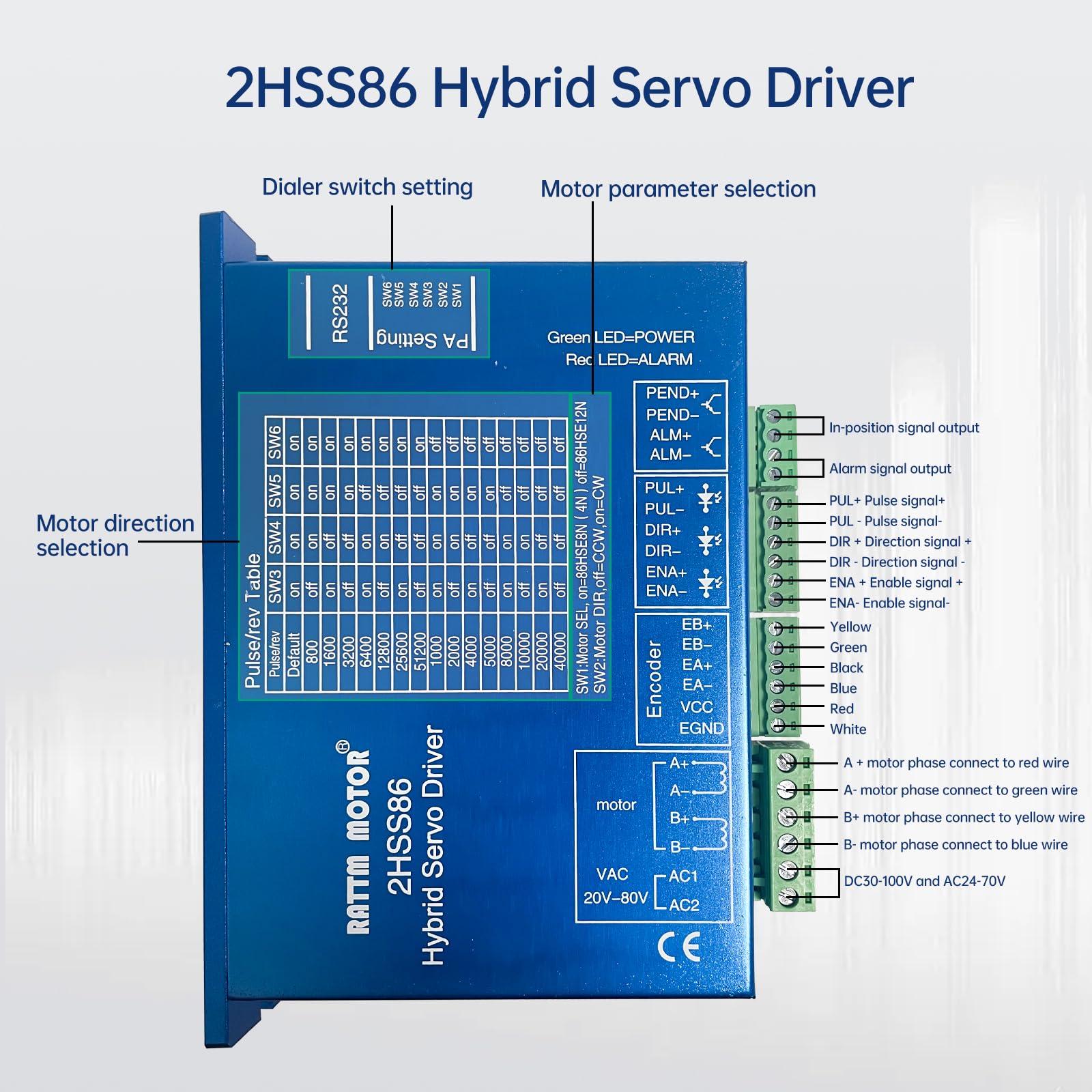

Specifications of Driver: Model is 2HSS86; Type:2-Phase Hybrid Stepper Servo Driver; Frequency:0-200KHz;Voltage: AC 24-70V or DC 30-100V input
Advantages:Stepper motor closed loop system,never lose step; The stepper motor control has a new generation of 32-bit DSP; The vector control technology can ensure the accuracy of the motor; Improve motor output torque and working speed; Automatic current adjustment based on load; Pulses response frequency can reach 200KHZ; 16 kinds microsteps choice,highest 51200 microsteps/rev
More Functions: It supports over-current protection, over-voltage protection, position outside the tolerance protection; The build-in place in position and alarm output signal can help the upper monitor to monitor and control,the function of position ultra difference alarm can ensure the machine work safely

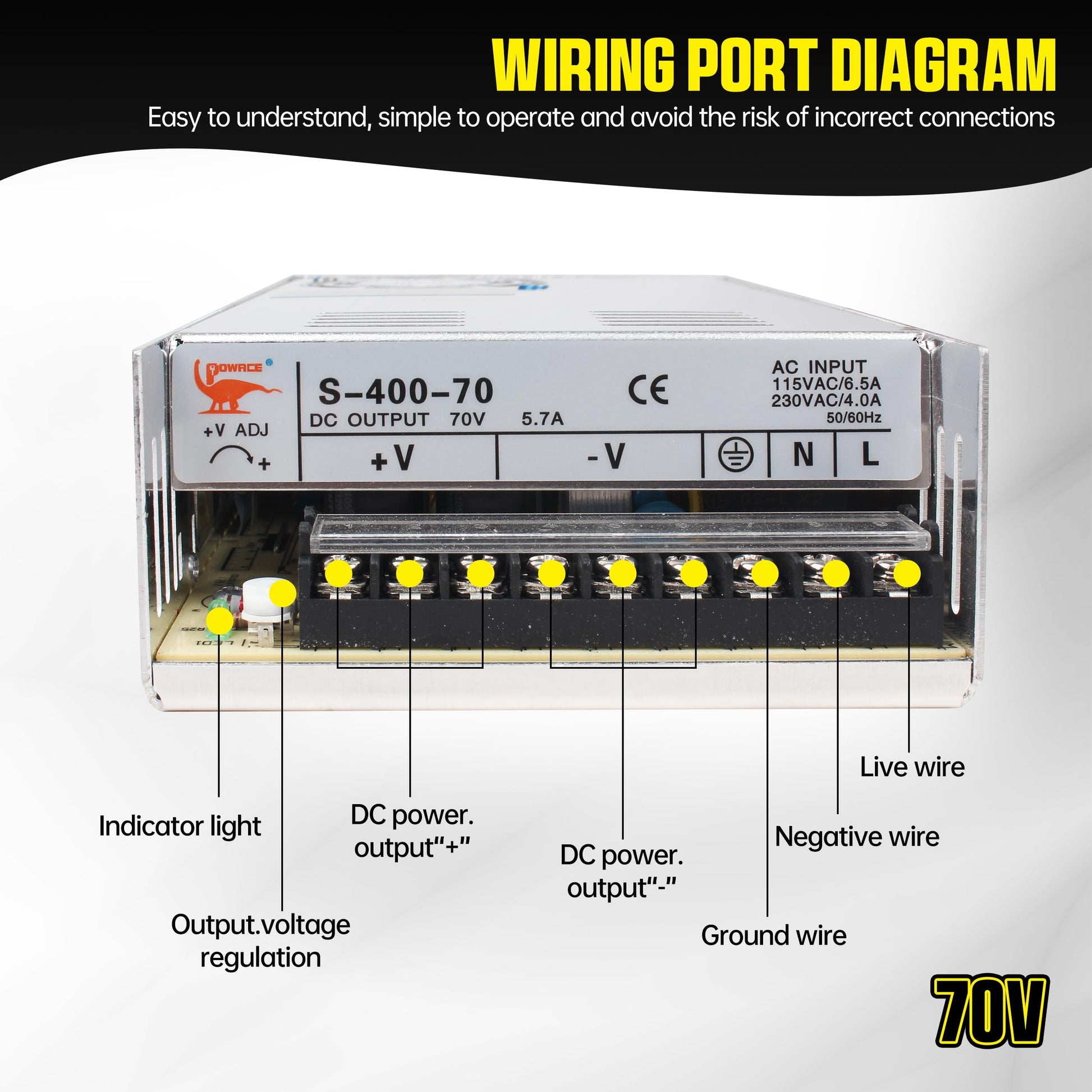

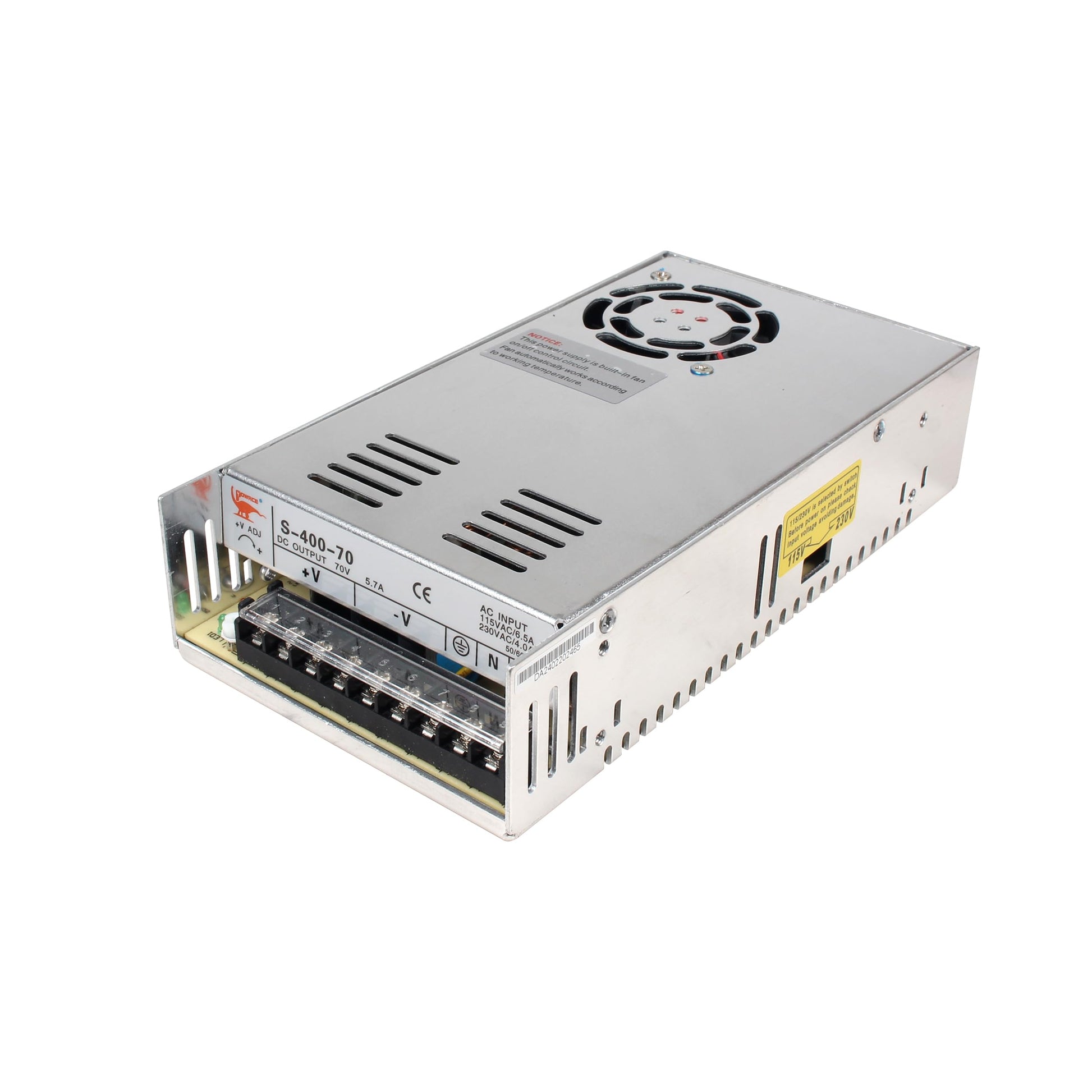

400W 70V DC Switching Power Supply; S-400W-70V-5.7A ; Size: 215x115x50mm Input voltage: 115V AC 50Hz or 230V AC 60Hz Please flip the side input voltage selector switch; Output voltage: Output Voltage: 70V DC; Output Current: 0-5.7A ; Output Frequency: 85% ; Output Power: 301-400W
